2BSEJ-A2smart glasses

Photo/Video Recording Taking a photo: Short press. Recording a video: Double-click the button to start;short press the button to end. Incoming call: Short press to answer, long press for 2 seconds to end. Force restarting : Long press for 16 seconds. During a call: Short press once to end. AI/recording Wake up the AI Voice Assistant: Short press to wake up/close. AI Quick Image Recognition: Double-click the button. Record: Long-press the button to start recording, short press to end. Toggle the switch forward or backward to turn the machine on or off. Power on/off Smart Glasses Instruction manual (2) Charge: The red indicator light is flashing: The device is low on battery. Please charge it immediately. A solid red indicator light indicates the device is charging. A solid green indicator light indicates the device is fully charged. Instructions Smart Glasses User Manual (1) Power On/Off: Dial code below the left temple (as shown at position A in the figure above) Power on forward (indicator light flashes blue) Turn off the power (the indicator light turns off) (3) Connecting devices: You can download it by searching "HeyCyan" on Google Play or App Store. You can scan the QR code below and follow the link to download and install the "HeyCyan" app. Device requirements: Support Android 9.0 and above, iOS 13.0 and above. Go to the APP homepage, click Connect Device, select the name of the device you want to connect to and pair it. After successful pairing, you can start using the glasses. Scan the QR code to Download the app: HeyCyan WARNING Smart Glasses User Manual Before using and operating this device, please read and follow the precautions below to ensure optimal performance and avoid dangerous or illegal situations. Using harsh cleaning tools or the wrong cleaning products may damage the product. Please use the included special eyeglass cloth or a clean, gentle cloth to clean the product. Use a standard neutral cleaning solution. Avoid abrasive cleaners, sprays, highly concentrated cleaning solutions, chemical cleaning solutions, alcohol, or acetone. Doing so may damage, deform, or discolor the frame, accessories, or lenses. In order to prevent hearing damage, please do not use high volume for a long time. Do not heat or bend the temple of the glasses to avoid damaging the temple and causing functional failure. This device shall not be used for direct observation of the sun, for the protection of artificial light sources, or as eye protection against mechanical impact injuries. 1. 2. 3. 4. Safety Tips Smart Glasses User Manual Please read this manual carefully before using this product and keep it properly. To prevent possible hearing damage, avoid prolonged use at high volume levels. This product is not water-resistant. Do not use it in high-humidity environments such as bathrooms, showers, or saunas. If you feel an abnormal temperature while wearing or charging the device, remove it and stop using it immediately. If the device overheats or becomes unresponsive while not being worn, disconnect the charging cable immediately to avoid damage. 1. 2. 3. 4. Do not use this product during strenuous exercise to avoid accidental injury.5. B Product Introduction Smart Glasses User Manual This product is an AI smart device in the form of glasses. It supports calls, music playback, recording, photography, video recording, simultaneous interpretation and AI dialogue, providing you with a comfortable all-weather AI smart experience. Touchpad Adjust volume: Swipe forward to increase volume, swipe backward to decrease volume. Activate/close the phone's voice assistant: Long-press to activate/exit. Adjust volume: Swipe forward to increase; swipe backward to decrease Play/Pause music: Double-tap the touch area. A D C G A H H B I G E E C F D B Power on/offAI/recordingPhoto/video captureTouchpadMIC/Indicator CameraPrivacy lightUSB-CSpeaker A H B I G E C F D USB-C charging port Enregistrement photo/vidéo Prendre une photo : Appui court. Enregistrer une vidéo : Double-cliquez sur le bouton pour démarrer ; appuyez brièvement pour arrêter. Forcer le redémarrage : Appui long de 16 secondes. Appel entrant : Appui court pour répondre, appui long de 2 secondes pour arrêter. Pendant un appel : Appui court pour arrêter. IA/enregistrement Pour réveiller l'assistant vocal IA : appuyez brièvement pour réveiller/quitter. Pour reconnaître rapidement les images : Double-cliquez sur le bouton. Pour enregistrer : appuyez longuement sur le bouton pour démarrer l'enregistrement, appuyez brièvement pour terminer l'enregistrement. Basculez l'interrupteur vers l'avant ou vers l'arrière pour allumer ou éteindre la machine. Marche/arrêt Lunettes Intelligentes Manuel d'instructions (2) Charge: Le voyant rouge clignote : La batterie de l’appareil est faible. Veuillez la recharger immédiatement. Un voyant rouge fixe indique que l'appareil est en charge. Un voyant vert fixe indique que l'appareil est complètement chargé. Instructions Manuel d'utilisation des lunettes intelligentes (1) Marche/arrêt : Composez le code sous la tempe gauche (comme indiqué en position A sur la figure ci-dessus). Mise sous tension en marche avant (le voyant lumineux clignote en bleu) Coupez l'alimentation (le voyant s'éteint) (3) Connexion des appareils : Vous pouvez le télécharger en recherchant « HeyCyan » sur Google Play ou App Store. Vous pouvez scanner le code QR ci-dessous et suivre le lien pour télécharger et installer l'application « HeyCyan ». Configuration requise pour l'appareil : prise en charge d'Android 9.0 et supérieur, iOS 13.0 et supérieur. Accédez à la page d'accueil de l'application, cliquez sur « Connecter l'appareil », sélectionnez le nom de l'appareil auquel vous souhaitez vous connecter et appairez-le. Une fois l'appairage réussi, vous pouvez commencer à utiliser les lunettes. Scannez le code QR pour télécharger l'application : HeyCyan AVERTIR Manuel d'utilisation des lunettes intelligentes Avant d'utiliser cet appareil, veuillez l…

Text truncated - open the document above for the full version.

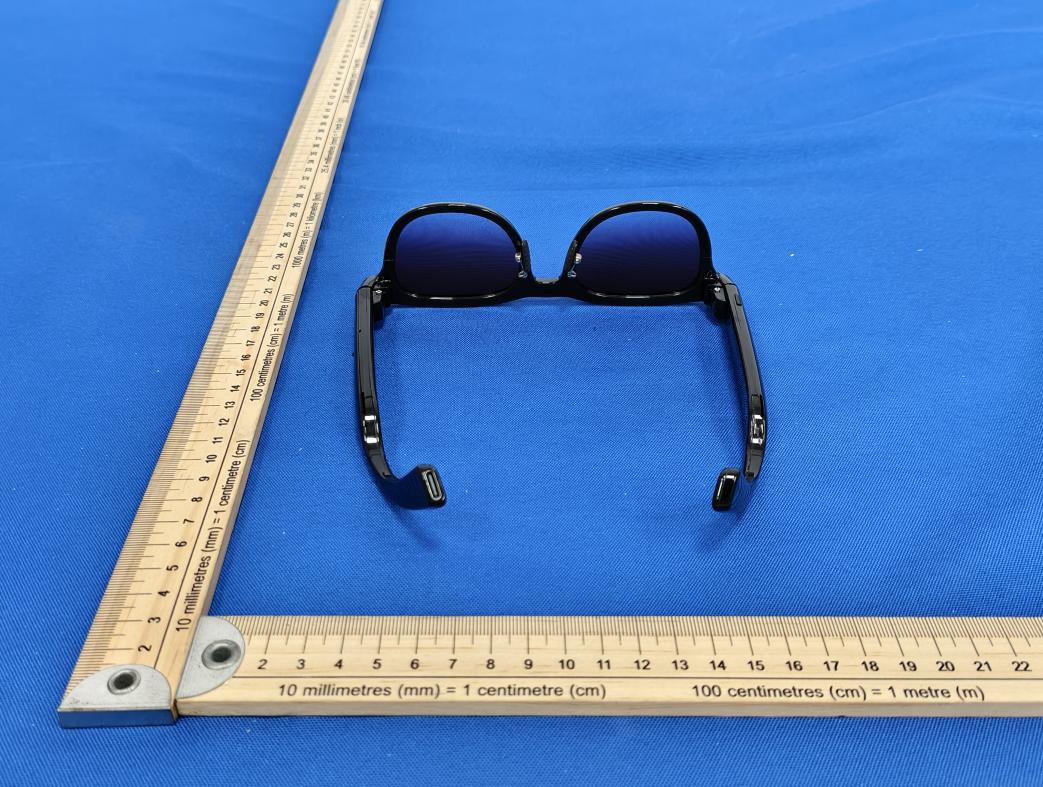

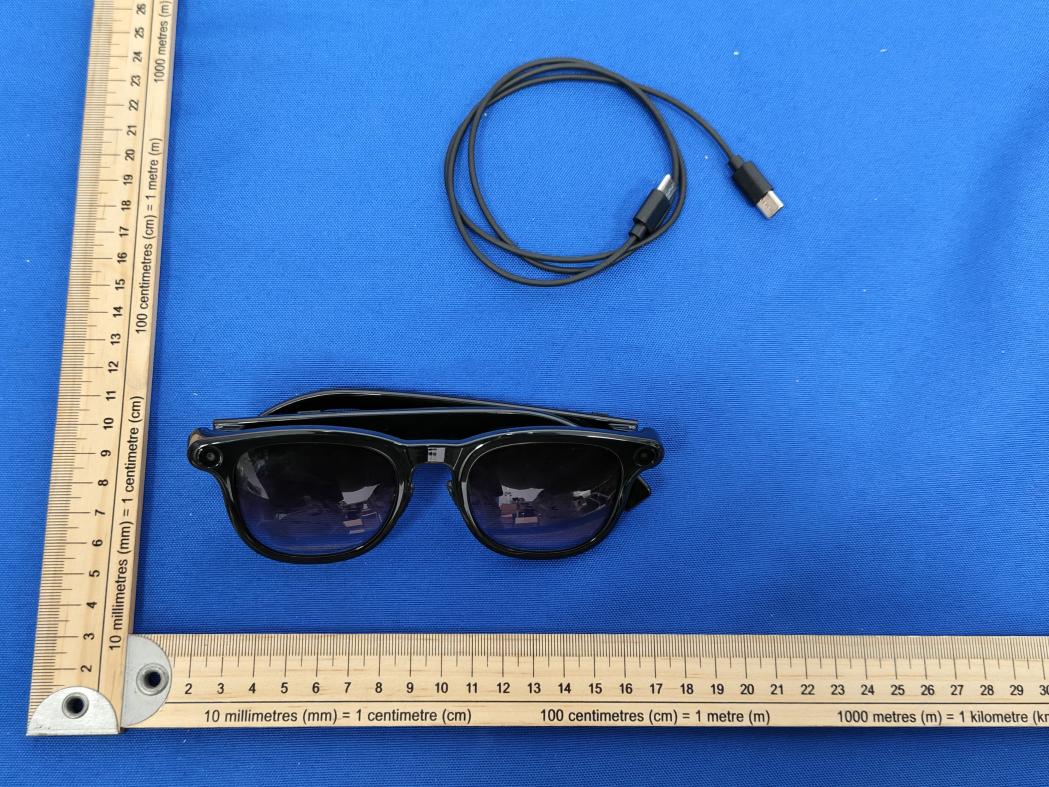

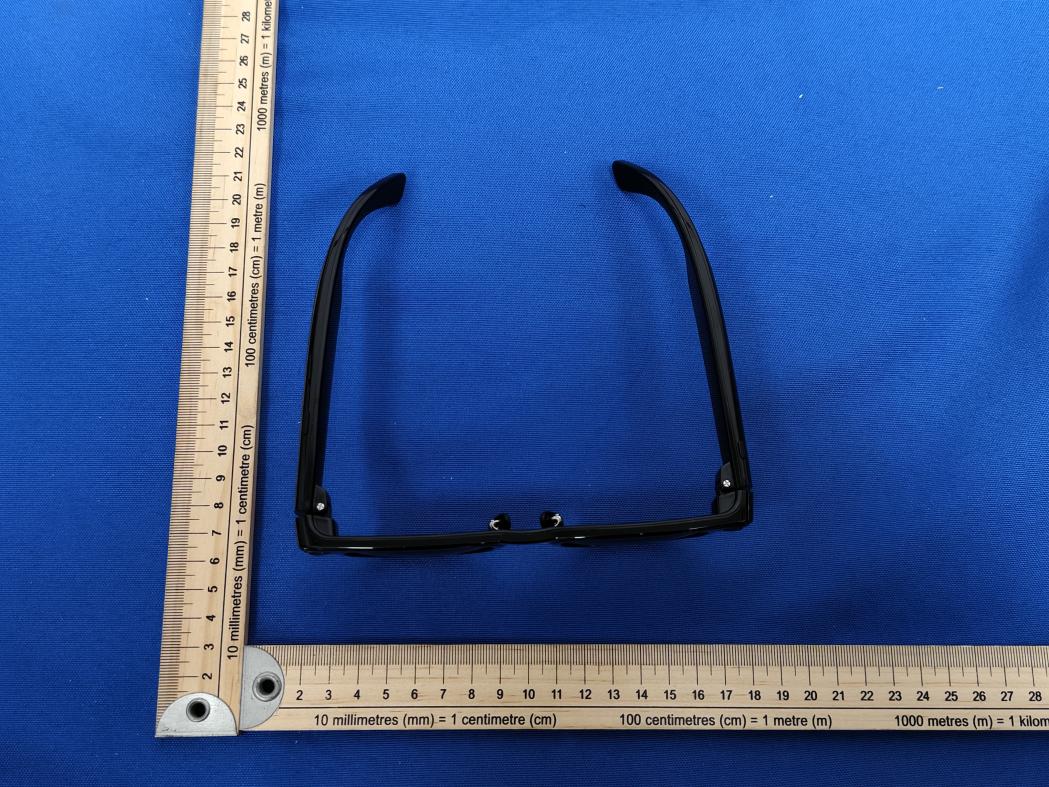

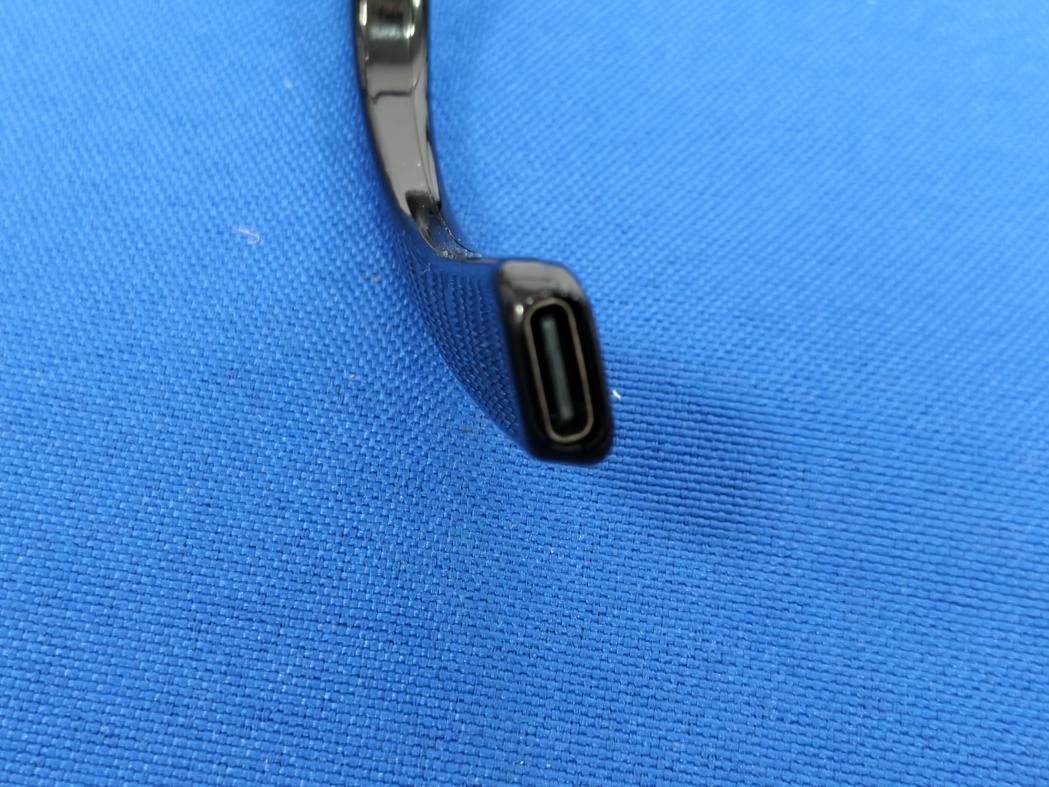

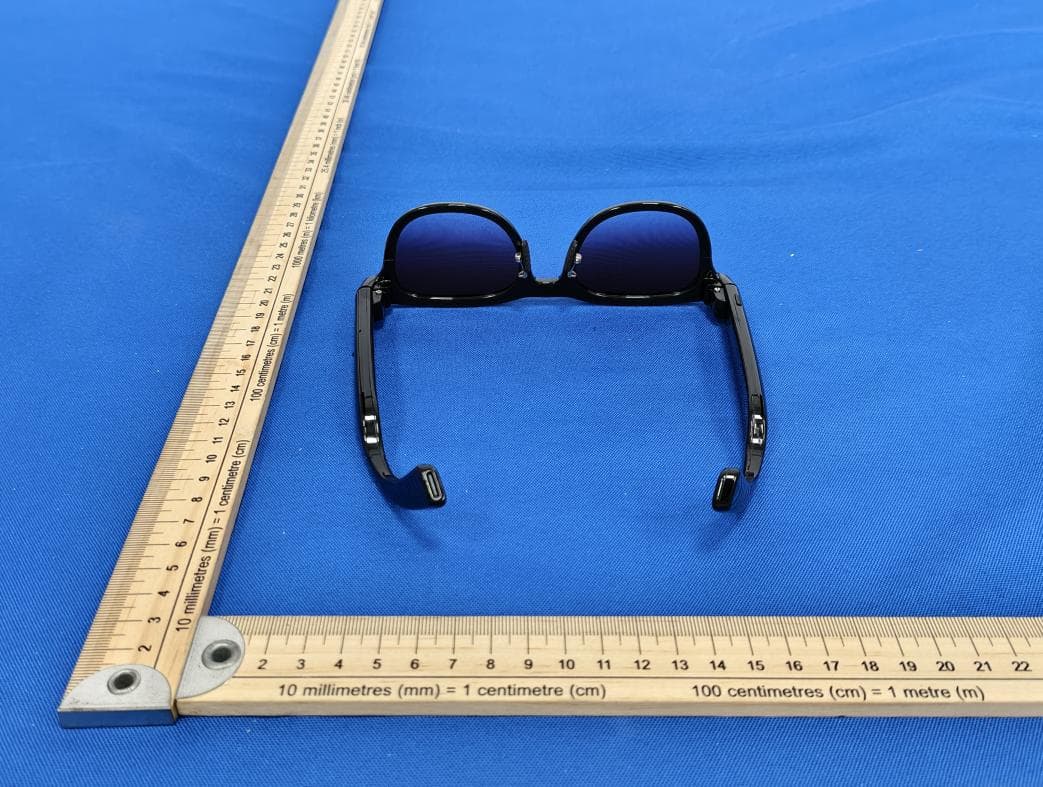

FCC ID: 2BSEJ-A2 Page 1 of 4 Report No.: CTL2509055011-WF External Photos of EUT FCC ID: 2BSEJ-A2 Page 2 of 4 Report No.: CTL2509055011-WF FCC ID: 2BSEJ-A2 Page 3 of 4 Report No.: CTL2509055011-WF FCC ID: 2BSEJ-A2 Page 4 of 4 Report No.: CTL2509055011-WF

FCC ID: 2BSEJ-A2 Page 1 of 1 Report No.: CTL2509055011-WF FCC ID Label Information Label location: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2BSEJ-A2

FCC ID: 2BSEJ-A2 Page 1 of 3 Report No.: CTL2509055011-WF Internal Photos of EUT BT ANT Wi-Fi ANT FCC ID: 2BSEJ-A2 Page 2 of 3 Report No.: CTL2509055011-WF FCC ID: 2BSEJ-A2 Page 3 of 3 Report No.: CTL2509055011-WF

Shenzhen CTL Testing Technology Co., Ltd. Tel:+86-755-89486194 E-Mail:[email protected] RF Exposure evaluation Report Reference No. ................ : CTL2509055011-WFH Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Lydia Ou (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : smart glasses Model/Type reference ................ : A2 List Model(s) ............................... : A3, A4, A5, A6, A7, A8, A9, A10 Trade Mark .................................. : N/A FCC ID ......................................... : 2BSEJ-A2 Applicant’s name ....................... : Shenzhen Yawell Intelligent Technology Co.,Ltd. Address of applicant ................. : A402, Wuhan University, Shenzhen Research Institute, No. 6 Yuexing 2nd Road, Gaoxin District, Yuehai Street, Nanshan District, Shenzhen, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2017-01 Date of receipt of test item ........ : Sep 11, 2025 Date of Test ............................... : Sep 11, 2025-Nov 14, 2025 Date of Issue .............................. : Nov 17, 2025 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 11 Report No.: CTL2509055011-WFH TEST REPORT Test Report No. : CTL2509055011-WFH Nov 17, 2025 Date of issue Product Name : smart glasses Sample No : CTL250905501003, CTL250905501005, CTL250905501006 Model /Type : A2 Listed Models : A3, A4, A5, A6, A7, A8, A9, A10 Applicant : Shenzhen Yawell Intelligent Technology Co.,Ltd. Address : A402, Wuhan University, Shenzhen Research Institute, No. 6 Yuexing 2nd Road, Gaoxin District, Yuehai Street, Nanshan District, Shenzhen, China Manufacturer : Shenzhen Yawell Intelligent Technology Co.,Ltd. Address : A402, Wuhan University, Shenzhen Research Institute, No. 6 Yuexing 2nd Road, Gaoxin District, Yuehai Street, Nanshan District, Shenzhen, China The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 11 Report No.: CTL2509055011-WFH ** Modified History ** Revision Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release Nov 17, 2025 CTL2509055011-WFH Tracy Qi V1.0 Page 4 of 11 Report No.: CTL2509055011-WFH Contents 1 GENERAL INFORMATION ................................................................................................................................................ 5 1.1 ENVIRONMENTAL CONDITIONS ............................................................................................................................................... 5 1.2 PRODUCT DESCRIPTION ........................................................................................................................................................ 5 1.3 TEST FACILITY ...................................................................................................................................................................... 7 1.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY ...................................................................................................................... 7 2 METHOD OF MEASUREMENT ......................................................................................................................................... 8 2.1 APPLICABLE STANDARD ......................................................................................................................................................... 8 2.2 EVALUATION METHOD AND LIMIT ........................................................................................................................................... 8 3 CONDUCTED POWER RESULTS ....................................................................................................................................... 9 4 MANUFACTURING TOLERANCE .................................................................................................................................... 10 5 EVALUATION RESULTS .................................................................................................................................................. 11 5.1 STANDALONE EVALUATION ................................................................................................................................................... 11 6 CONCLUSION ............................................................................................................................................................... 11 V1.0 Page 5 of 11 Report No.: CTL2509055011-WFH 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C -35°C Relative Humidity: 35%-55 % Air Pressure: 101 KPa 1.2 Product Description Product Name: smart glasses Model/Type reference: A2 Power supply: DC 3.8V fro…

Text truncated - open the document above for the full version.

深圳华讯视通科技有限公司 Shenzhen Huaxunshitong Technology Co.,Ltd. P73-BT 天线测试报告 2023-12-16 F3-005, No. 29, Huangtian Village Industrial Zone, Huangtian Community, Hangcheng Street, Baoan District, Shenzhen Antenna type: Internal antenna Antenna gain: 2.13 dBi 1. S 参数 （S- 1 .回波损耗 （Return Loss） 网络分析仪: Agilent E5071B parameter） 2 .电压驻波比（VSWR） HP 8753D 2. 有源测试 1 . 发射功率 （TRP） 1 . 暗室：ETS 7x4x3 m (3D) Chamber （Active ） 2 . 接收灵敏度（TIS） ETS 5x3x3 m (3D) Chamber 2. 综合测试仪: Agilent 8960 E5515B ×2 StarPoint SP6011 3. 无源测试 1.天线增益 （Gain） 1 .暗室：ETS 7x4x3 m (3D) Chamber （Passive）2.天线效率 （Efficiency） ETS 5x3x3 m (3D) Chamber 2 . 网络分析仪：Agilent E5071B HP 8753D Test itemequipment 深圳华讯视通科技有限公司 Shenzhen Huaxunshitong Technology Co.,Ltd. Test items and equipment 深圳华讯视通科技有限公司 Shenzhen Huaxunshitong Technology Co.,Ltd. 我司未对匹配电路做任何修改 深圳华讯视通科技有限公司 Shenzhen Huaxunshitong Technology Co.,Ltd. 匹配电路Matching circuit 深圳华讯视通通讯科技有限公司 Shenzhen Huaxunshitong Technology Co.,Ltd. 无源驻波图Passive standing wave pattern 深圳华讯视通通讯科技有限公司 Shenzhen Huaxunshitong Technology Co.,Ltd. BT增益与效率BT gain and efficiency Antenna type: Internal antenna Antenna gain: 2.13 dBi 深圳华讯视通通讯科技有限公司 Shenzhen Huaxunshitong Technology Co.,Ltd. 深圳华讯视通科技有限公司 Shenzhen Huaxunshitong Technology Co.,Ltd. Thanks！ m实物图Physical drawing 25mm length

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No.................: CTL2509055011-WF01 Compiled by: ( position+printed name+signature) Happy Guo (File administrator) Tested by: ( position+printed name+signature) Lydia Ou (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : smart glasses Model/Type reference ................ : A2 List Model(s) ............................... : A3, A4, A5, A6, A7, A8, A9, A10 Trade Mark .................................. : N/A FCC ID ......................................... : 2BSEJ-A2 Applicant’s name ....................... : Shenzhen Yawell Intelligent Technology Co.,Ltd. Address of applicant ................. : A402, Wuhan University, Shenzhen Research Institute, No. 6 Yuexing 2nd Road, Gaoxin District, Yuehai Street, Nanshan District, Shenzhen, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Sep 11, 2025 Date of Test Date ........................ : Sep 11, 2025-Nov 14, 2025 Date of Issue .............................. : Nov 17, 2025 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 44 Report No.: CTL2509055011-WF01 TEST REPORT Test Report No. : CTL2509055011-WF01 Nov 17, 2025 Date of issue Equipment under Test : smart glasses Sample No : CTL250905501003, CTL250905501005, CTL250905501006 Model /Type : A2 Listed Models : A3, A4, A5, A6, A7, A8, A9, A10 Applicant : Shenzhen Yawell Intelligent Technology Co.,Ltd. Address : A402, Wuhan University, Shenzhen Research Institute, No. 6 Yuexing 2nd Road, Gaoxin District, Yuehai Street, Nanshan District, Shenzhen, China Manufacturer : Shenzhen Yawell Intelligent Technology Co.,Ltd. Address : A402, Wuhan University, Shenzhen Research Institute, No. 6 Yuexing 2nd Road, Gaoxin District, Yuehai Street, Nanshan District, Shenzhen, China Test result Pass * *In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 44 Report No.: CTL2509055011-WF01 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release Nov 17, 2025 CTL2509055011-WF01 Tracy Qi V1.0 Page 4 of 44 Report No.: CTL2509055011-WF01 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE ...........................................................…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Tel: +86-755-89486194 E-mail: [email protected] Page 1 / 47 Annex for Bluetooth Test Report No.: CTL2509055011-WF01 TABLE OF CONTENTS 1. Bandwidth .......................................................................................................................................... 3 1.1 Test Result ............................................................................................................................... 3 1.1.1 OBW ............................................................................................................................... 3 1.1.2 20dB BW ........................................................................................................................ 3 1.2 Test Graph ................................................................................................................................ 4 1.2.1 OBW ............................................................................................................................... 4 1.2.2 20dB BW ........................................................................................................................ 9 2. Maximum Conducted Output Power ................................................................................................ 14 2.1 Test Result ............................................................................................................................. 14 2.1.1 Power ........................................................................................................................... 14 3. Carrier Frequency Separation .......................................................................................................... 15 3.1 Test Result ............................................................................................................................. 15 3.1.1 Ant1 .............................................................................................................................. 15 3.2 Test Graph .............................................................................................................................. 16 3.2.1 Ant1 .............................................................................................................................. 16 4. Number of Hopping Frequencies ..................................................................................................... 18 4.1 Test Result ............................................................................................................................. 18 4.1.1 HoppNum ..................................................................................................................... 18 4.2 Test Graph .............................................................................................................................. 19 4.2.1 HoppNum ..................................................................................................................... 19 Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Tel: +86-755-89486194 E-mail: [email protected] Page 2 / 47 5. Time of Occupancy (Dwell Time) ..................................................................................................... 21 5.1 Test Result ............................................................................................................................. 21 5.1.1 Ant1 .............................................................................................................................. 21 5.2 Test Graph .............................................................................................................................. 22 5.2.1 Ant1 .............................................................................................................................. 22 6. Unwanted Emissions In Non-restricted Frequency Bands ................................................................ 31 6.1 Test Result ............................................................................................................................. 31 6.1.1 Ref ................................................................................................................................ 31 6.1.2 CSE .............................................................................................................................. 31 6.2 Test Graph .............................................................................................................................. 32 6.2.1 Ref ................................................................................................................................ 32 6.2.2 CSE .............................................................................................................................. 37 Annex for Bluetooth Test Report No.: CTL2509055011-WF01 FCCID: 2AOM3-A2 Page 3 / 47 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.863 / Pass 2441 DH5 1 0.861 / Pass 2480 DH5 1 0.867 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.167 / Pass 2441 2DH5 1 1.166 / Pass 2480 2DH5 1 1.168 / Pass 8DPSK SISO 2402 3DH5 1 1.179 / Pass 2441 3DH5 1 1.176 / Pass 2480 3DH5 1 1.175 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.957 / Pass 2441 DH5 1 0.955 / Pass 2480 DH5 1 0.958 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.286 / Pass 2441 2DH5 1 1.285 / Pass 2480 2DH5 1 1.283 / Pass 8DPSK SISO 2402 3DH5 1 1.301 / Pass 2441 3DH5 1 1.300 / Pass 2480 3DH5 1 1.308 / Pass Annex for Bluetooth Test Report No.: CTL2509055011-WF01 FCCID: 2AOM3-A2 Page 4 / 47 1.2 Test Graph 1.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Ann…

Text truncated - open the document above for the full version.

FCC ID: 2BSEJ-A2 Page 1 of 2 Report No.: CTL2509055011-WF Test Setup Photos of the EUT FCC ID: 2BSEJ-A2 Page 2 of 2 Report No.: CTL2509055011-WF
