2BSPZ-CM-620Wireless controller CM-620

本产品是一款带1.47 英寸LCD屏同时兼容多平台手柄，本产品属于无线蓝控制手柄 （采用无线蓝牙技术），可远距离遥控，操作便捷； 通过蓝牙支持Switch，安卓,IOS，PS4，PC 通过有线支持Switch,XINPUT/DINPUT,PS4 使用说明书 无线手柄 CM-620 1.手柄支持不同平台各种连接方式，有线连接模式、蓝牙连接模式 2.手柄支持PS4主机，并且支持六轴、支持3.5mm耳机孔语音功能 3.手柄支持SWITCH主机，并且支持六轴、支持3.5mm耳机孔有线语音功能 4.手柄支持有线各平台自动识别功能 5.手柄机身3D带彩灯装饰功能，并且支持切换灯色 6.手柄带2个自定义背键功能，可设置宏定义 7.手柄配置高精度霍尔3D、霍尔扳机 将手柄在菜单上切换至PS4模式 手柄先用USB线与PS4主机连接配对，短按HOME键，连接成功后为有线连接，拨 开数据线，手柄自动；再次短按HOME键自动回连上主机连接成功后，屏显自动跳 到模式主页，P4模式符号，并且有蓝牙或有线符合提示P4模式下丝印按键与键值 关系参考表。 R2键L2键 L1键 R1键 菜单键 A/B/X/Y键 十字键 视窗键 HOME键 L3键 (摇杆下按) R3键 (摇杆下按) 手柄各项基础操作可通过屏显示菜单完成，如设置手柄各平台模式配对、连接、 亮度、编程、连发、震动强弱、摇杆死区、映射、校准、键值、语言等各项操作 (主要的菜单为：模式切换（p4，pc，Switch，安卓，iOS），手柄功能（编程和 连发，体感映射，按键测试），手柄设置（摇杆死区，震动强度，屏幕亮度，手柄校 准，语言设置），手柄信息（软件版本信息） 注：一级二级菜单为切换页面选择，三级菜单为排序列表 手柄在休眠状态下，短按HOME键启动手柄, 在主页屏显状态下,长按Menu键2秒， 进入显示屏菜单，在菜单里上下左右为移动选项，A为确认键、B为返回键——在任 意状态/配对状态下也可以长按Menu键2秒，进入菜单 平台连接 左摇杆 右摇杆 正面中文 反面英文 Ps4/Switch/ios/Android/ PC 蓝牙模式 将手柄在菜单上切换至PC模式手柄长按Menu键约2秒进入菜单--模式切换--PC（A键 确认）--选择配对/回连（有线插入自动识别）在电脑上打开蓝牙找到蓝牙名【Xbox Wireless Controller】手动点击配对连接连接成功后，屏显自动跳到模式主页，PC 模式符号，并且有蓝牙符合提示若已配对连接，手柄休眠关机后，短按HOME键开机 自动进入上一次模式回连设备. 有线模式 手柄有线连接PC自动识别，默认XINPUT,通过长按视窗+菜单键2秒切换到 DINPUT模式，连接成功后，屏显自动跳到模式主页，PC模式符号，并且有有线符合 提示。 蓝牙模式 将手柄在菜单上切换至SWITCH模式手柄长按Menu键约2秒进入菜单--模式切换-- SWITCH（A键确认）--选择配对/回连（有线插入自动识别）打开Switch主机，进入 主页的【手柄】选项，点击【更改握法/顺序】，等待数秒，手柄配对成功后，屏显自 动跳到模式主页，SWITCH模式符号，并且有蓝牙符合提示若已配对连接，手柄休眠关 机后，短按HOME键可以唤醒主机和回连主机Switch主机. 手柄丝印 A B X Y 视窗 菜单 HOME 键值 B A Y X - + 主页 手柄丝印 A B X Y 视窗 菜单 HOME 键值 x SHARE OPTIONS PS 蓝牙模式 将手柄在菜单上切换至iOS模式 手柄长按Menu键约2秒进入菜单--模式切换--iOS（A键确认）--选择配对/回连 在iOS等主机打开蓝牙找到蓝牙名【Xbox Wireless Controller】手动点击配对连接 连接成功后，屏显自动跳到模式主页，iOS模式符号，并且有蓝牙符合提示 若已配对连接，手柄休眠关机后，短按HOME键开机自动进入上一次模式回连设备 有线模式 手柄长按Menu键约2秒进入菜单--模式切换--安卓（A键确认）--选择配对/回连 在安卓主机打开蓝牙找到蓝牙名【Gamepad】手动点击配对连接 连接成功后，屏显自动跳到模式主页，安卓模式符号，并且有蓝牙符合提示 若已配对连接，手柄休眠关机后，短按HOME键开机自动进入上一次模式回连设备 编程键：PR、PL，每个编程键可被录入最多20个功能键 可录入功能键为：A、B、X、Y、LB、LT、RB、RT、十字键 列如：将PR键录入A键， 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄功能--编程--PR,到此页面时是在处 于录入功能键页面，此页面下视窗键为返回、菜单键为确认，按下要录入的功能键， 如A 键，再按菜单键确认，界面自动跳转到上一级，PR键成功编程为A键功能 清除编程：此功能可一键清除所有编程键值，清除后4个编程键为空，操作如下：手柄 在开机状态下，长按Menu键约2秒进入菜单--手柄功能--编程--清除编程（A确认、B返回） 可调节左右摇杆死区效果，可调节范围：0--50 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄设置--摇杆死区 通过上下左右可移动选项实现调节左右摇杆死区范围（A确认、B返回） 可调节马达震动强度效果，可调节范围：0% 、30% 、70% 、100%（默认70%） 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄设置--震动强度通过左右可移动选项 实现调节马达震动强度（A确认、B返回） 可切换显示屏语言，可切换语言：简体中文、English、葡萄牙语手柄在开机状态下，长 按Menu键约2秒进入菜单--手柄设置--语言切换通过上下左右可移动选项实现切换显示屏 语言（A确认、B返回）注：语言切换带记忆保存 摇杆校准、体感校准、扳机校准 A确认， B返回 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄校准--摇杆校准； （按提示步骤校准时，请将左右摇杆同时贴边旋转，校准过程中，请勿操作其它按键） 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄校准--体感校准； （按提示步骤校准时，请手柄置于水平面，校准过程中，请勿操作其它按键） 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄校准--扳机校准； （按提示步骤校准时，请将扳机按下进行校准） 在此选项下可显示测试手柄机身按键键值 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄功能--按键测试 在按键测试界面下可进行机身按键键值测试显些（此界面下视窗键 为返回）测试键有 A、B、X、Y、L1、L2、R1、R2、L3、R3、菜单 、Menu、截屏键、方向键、左摇杆、右摇杆、Set、PR、PL 关闭体感映射、映射左摇杆、映射右摇杆 A确认， B返回 此功能可实现体感模拟左、右摇杆效果 （注意此功能体感不能同时模拟左右摇杆，只能单独摸左或右摇杆） 手柄在开机状态下，长按Menu键约2秒进入菜单-手柄功能-体感映射--关闭体感映射； （按步骤确认此选项后将实现关闭体感映射） Turbo设置： 此功能界面下可设置功能键半自动连发、全自动连发 此功能界面下可实现连发速度设置，可调节速度为：5、10、15 此功能设定可设置的功能键：A、B、X、Y、LB、LT、RB、RT 在Turbo设置界面上下左右为移动选项，视窗键为返回、菜单键为确认 列如将A键设置为半自动连发，速度10 ，操作如下： 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄功能--选择Turbo设置， 在Turbo设置界面，模式栏选择半自动，往下移动到Turbo速度栏，左右移动到速 度10，往下移动到Turbo键设置栏，此栏是录入功能键，如按下A键，下方栏将显示 设定的功能键，此时按菜单键确认完成设定，完成后A键实现速度10的半自动连发 列如将B键设置为全自动连发，速度5 ，操作如下： 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄功能--选择Turbo设置， 在Turbo设置界面，模式栏往右移动到全自动，往下移动到Turbo速度栏，左右移 动到速度5，往下移动到Turbo键设定栏，此栏是录入功能键，如按下B键，下方栏 将显示设定的功能键，此时按菜单键确认完成设定，完成后B键实现速度5的全自动连发 Turbo清除：此功能可一键清除所有功能键连发，操作如下： 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄功能--选择Turbo设置，往 下移动到Turbo清除选项，按菜单键确认，此时完成所有Turbo清除效果 此功能可实现关机休眠手柄 手柄手动按键关机：无线开机状态下，按HOME键 5 秒手柄关机 手柄自动关机：无线开机状态下，5分钟无动作自动关机、手柄电池低电量自动关机 手柄机身带有截屏按键：连接SWITCH模式下实现截屏功能； 机身自带左右摇杆彩色装饰灯，在连机状态下可短按背部Set键进行灯颜色切换 装饰灯颜色循环切换：混色彩灯--七彩渐变--红--橙--黄--绿--青--蓝--紫--白--关闭 1）.手柄固件可以通过USB数据线进行免驱动自动升级，升级工具:Windows系统的 电脑，升级系统支持：Win7/Win10。 A.使用PC打开升级软件。（打开升级软件之前，最好关闭电脑杀毒软件）。 B.手柄关机状态下，按住手柄的Y键，再插入USB数据线连接电脑。 C.连接成功后，点击工具中的开始升级按钮。进度条完成，手机升级成功。 1).当手柄出现异常时，可通过按压手柄后面的复位键进行复位。 手柄在开机状态下，长按Menu键约2秒进入菜单-手柄功能-体感映射--映射左摇杆； （按步骤确认此选项后将实现体感模拟左摇杆功能效果） 手柄在开机状态下，长按Menu键约2秒进入菜单-手柄功能-体感映射--映射右摇杆； （按步骤确认此选项后将实现体感模拟右摇杆功能效果） 可调节显示屏亮度效果，可调节范围：40% 、70% 、100%（默认100%） 手柄在开机状态下，长按Menu键约2秒进入菜单--手柄设置--屏幕亮度 通过左右可移动选项实现调节显示屏亮度（A确认、B返回） Game controller X1 Manual X1 Type-C USB cable X1 截屏健 MENU健 3.5mm 耳机孔 有线模式 在Switch底座上使用时，通过数据线连接手柄，手柄会自动连接Switch主 机识别使用，连接成功后，屏显自动跳到模式主页，SWITCH模式符号，并且有有线 符合提示Switch模式下丝印按键与键值关系参考表 Pr键 SET键 PL键 复位键 This product is a wireless blue control controller with a 1.47-inch LCD screen that is compatible with multiple platforms Using wireless Bluetooth technology, it can be remotely controlled and operated conveniently; Supports Switch and Android via Bluetooth, IOS，PS4， PC Through wired support for Switch, XINPUT/DINPUT, PS4 1Product Introduction and Application Scope Instruction Manual Wireless controller CM-620 R2 keyL2 key L1 key R1 key Menu key A/B/X/Ykey D-pad Window key HOME key L3 key (Press down the joystick) R3 key left stick Right stick Ps4/Switch/ios/Android/ PC A B X Y HOME B A Y X - + Homepage Screen printing A B X Y Windows HOME key-value x SHARE OPTIONS PS Game controller X1 Manual X1 Type-C USB cable X1 Screens hot Health MENU key 3.5mm headphone jack Pr key SET key PL key Reset button 2Product Features Packing List 3.Product appearance and structure 1. The controller supports various connection methods for different platforms, including wired connection mode and Bluetooth connection mode 2. The controller supports PS4 host and supports six axes, as well as 3.5mm headphone jack voice function 3. The controller supports SWITCH host and supports six axis, 3.5mm headphone jack wired voice function 4. The controller supports automatic recognition of wired platforms 5. The handle body is 3D with color light decoration function and supports switching light colors 6. The controller comes with 2 custom back key functions, which can be set with macro definitions 7. Handle configuration with high-precision Hall 3D and Hall trigger (Press down the joystick) 4.Product usage and operation steps The ba…

Text truncated - open the document above for the full version.

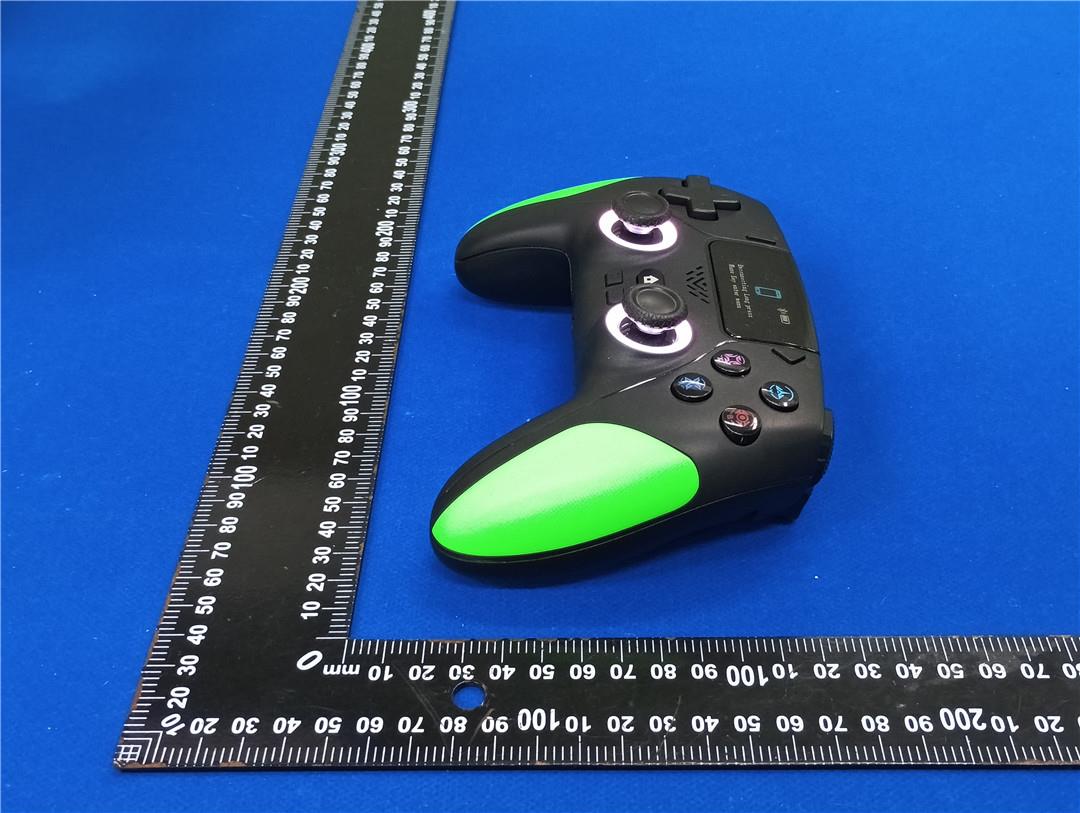

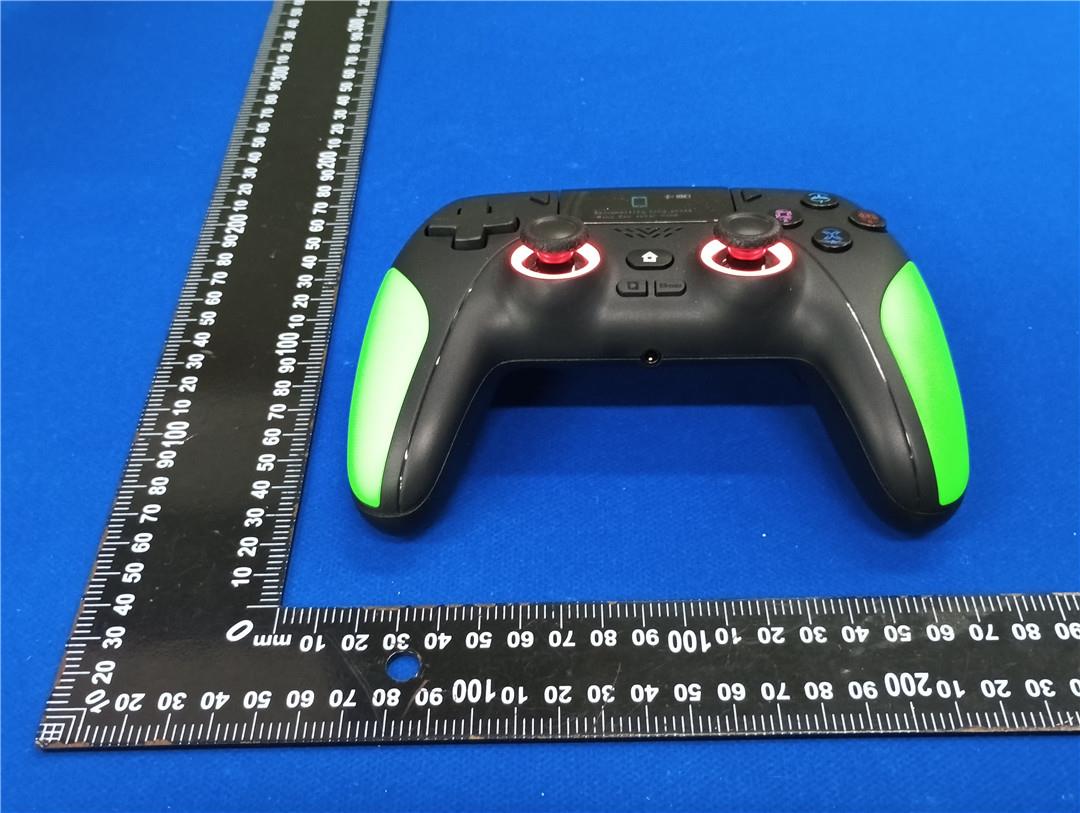

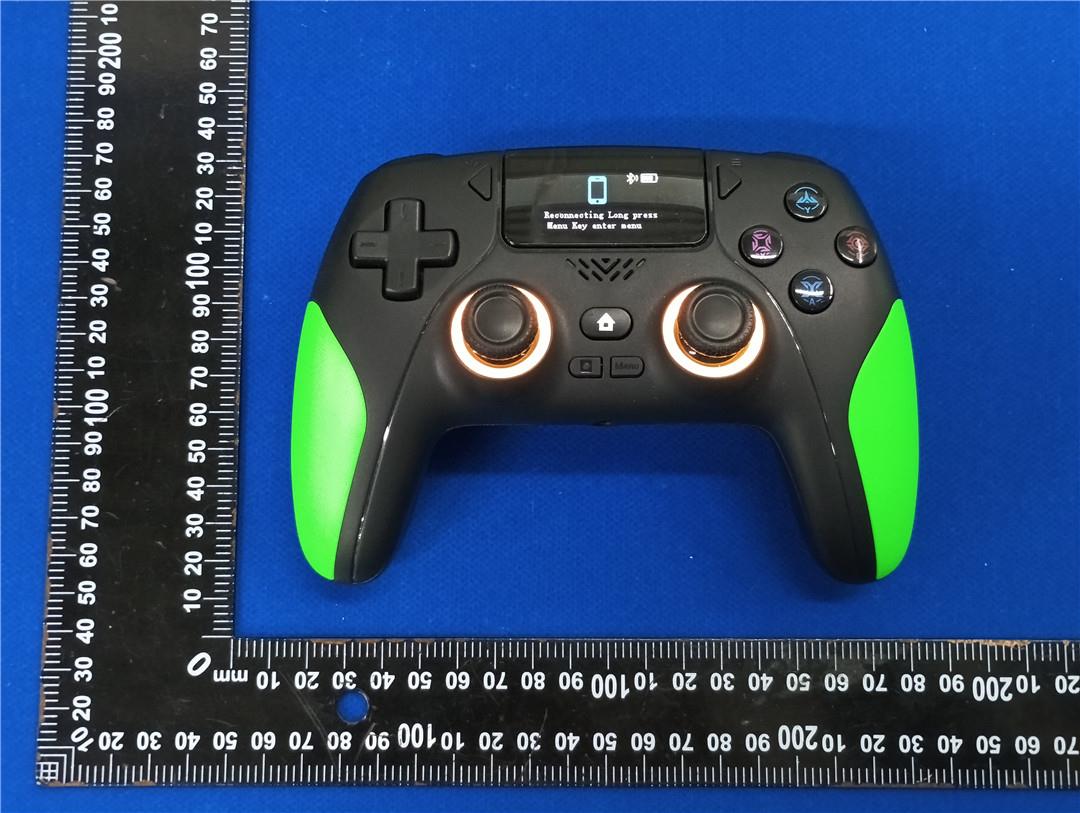

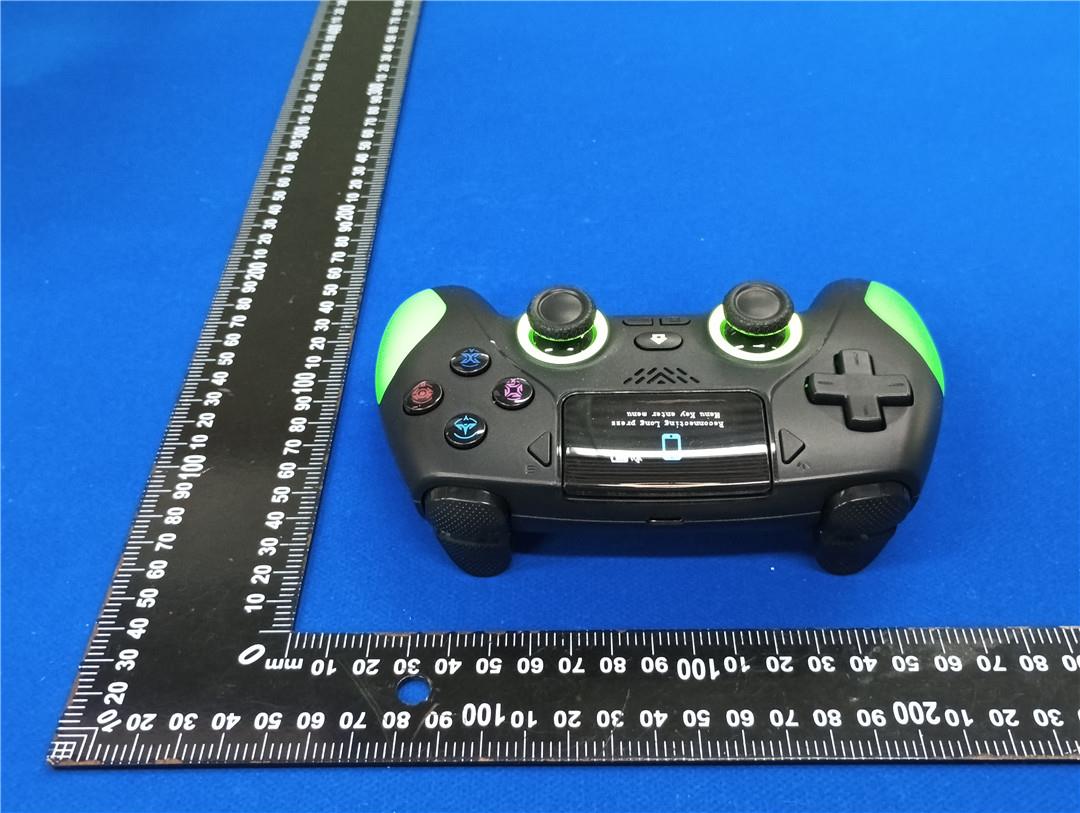

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2025101322 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Wireless controller CM-620 Model No.: CM-620 EUT Constructional Details External Photo Report No.: HTT2025101322 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT2025101322 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT2025101322 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------
