2BSVF-CY-0176th generation of under-pillow music box

*产品名称：枕下骨传导音乐盒6代 *产品型号：CY-017 *蓝牙名称：Sleep Box 6 *蓝牙版本:5.4 *产品重量:54g *产品电池:500mAh *产品充电:约1小时 *产品播放:10-16小时 *传输距离:蓝牙10米*输入:5V/200mA *产品协议:A2DP,AVRCP,HSP,HFP *产品尺寸:16cm*3.6cm*1.3cm ① TF卡卡槽② 音量减号键③ 模式切换键 ④ 音量加号键⑤ 开关键⑥ Type-C充电口 ⑦ LED显示屏 ⑥ ① ② ④ ③ ⑤ ⑦ ⑥ ① ② ④ ③ ⑤ ⑦ ① TF Card Slot② Volume Down Key ③ Mode Switch Key④ Volume Up Key ⑤ Power Button⑥ Type-C Charging Port ⑦ LED Display Screen * Product Name: Under-pillow Bone Conduction Music Box Gen 6 * Model No.: CY-017 * Bluetooth Name: Sleep Box 6 * Bluetooth Version: 5.4 * Net Weight: 54g * Built-in Battery: 500mAh * Charging Time: Approx. 1 hours * Playback Duration: 10–16 hours * Transmission Range: 10 meters (Bluetooth) * Input : 5V/200mA * Agreemant: A2DP, AVRCP, HSP, HFP * Unit size: 16cm × 3.6cm × 1.3cm 1.长按2秒“开/关机” 2.单击“插放/暂停” 1.单击:切换蓝牙模式/TF卡模式/白噪音模式 2.双击:切换定时模式，30分钟指示灯亮表示定时30分钟，60分 钟指示灯亮表示定时60分钟，30和60分钟指示灯同时亮表示90 分钟定时 ·开关机键 ·M模式键 ·蓝牙连接 首 次 使 用 ， CY-017 正 常 开 机 后 ， 会 进 入 蓝 牙 配 对 状 态 指示灯 闪烁 ， 此 时 手 机 蓝 牙 设 置 里 可 搜 索 到 SLEEP BOX 6 ， 连 接 成 功 及 播 放 状 态 指 示 灯 长亮 . 开 机 键单击 仅 支 持 暂 停 / 播 放 . 1.单击“音量减" 2.长按2秒"上一曲 3.双击"EQ切换”(音质:人声/动感) ·- 减号键 1.单击“音量加" 2.长按2秒"下一曲 3.双击"单曲循环”(TF卡模式下) ·+ 加号键 插 入 随 机 配 送 的 Type-c 充 电 线 及 任 意 5 V 充 电 头 即 可 充 电 , 充 电 过 程电量显示上涨， 充满电量显示常量。 ·充电 1. Press and hold for 2 seconds to power on / power off 2. Single tap to play / pause ·Power On /Off ·Bluetooth Connection First-time use of CY-017: After normal power-on, the unit enters Bluetooth pairing mode with the indicator light flashing. You may search for SLEEP BOX 6 in your phone’s Bluetooth settings. Once connected and in playback mode, the indicator light stays solid on. Short press the power key to pause or resume playback. ·M Mode Key 1. Single tap: Switch among Bluetooth Mode, TF Card Mode & White Noise Mode 2. Double tap: Switch to timer mode. When the 30-minute indicator light is on, the timer is set for 30 minutes; when the 60-minute indicator light is on, the timer is set for 60 minutes; when both the 30-minute and 60-minute indicator lights light up simultaneously, the timer is set for 90 minutes. ·- Minus Key 1. Single tap: Volume down 2.Press and hold for 2 seconds: Previous track 3.Double tap: Switch EQ modes (Vocal / Dynamic sound) ·+ Plus Key 1. Single tap: Volume up 2.Press and hold for 2 seconds: Next track 3.Double tap: Single loop (Only available under TF Card Mode) ·Charging Plug in the supplied Type-C charging cable and any 5V charger to start charging. The power indicator will rise during charging and stay solid when fully charged. 确定设备是否充满电量，同时开关键是否长按3秒以上 设备指示灯是否闪烁，如设备处于常亮阶段，表示设备与其他设备 已经连接，需要断开当前连接设备 Check if the device is fully charged, and confirm that the power button has been long pressed for more than 3 seconds. Check if the device indicator light is flashing. If the light stays solid, the device is already connected to another device; you need to disconnect the existing connected device first. 枕下骨传导音乐盒6代 人声 动感 30分钟定时指示 播放TF卡音乐指示 电量显示 音量显示 60分钟定时指示 蓝牙连接指示 循环播放指示 白噪音 指示 Voice Dynamic Mode 30min Timer Indicator TF Card Play Indicator Battery Display Volume Display 60min Timer Indicator Bluetooth Indicator Loop Indicator White Noise Indicator FCC Warming: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC IDModel name 2BSVF-CY-017CY-017 We hereby acknowledge as follows: i.both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii.the point of contact provides the physical U.S. address and email as listed below iii.both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv.An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of ContactApplicant/Approval Holder Signature Date: 2026-08-04 Signature Date: 2026-08-04 Company Name:GLOCERTS TECHNOLOGY INCDongguan Caiyun Technology Co., Ltd. FRN:00363397370037614401 Contact Name:Huiying FanJack bu Address:19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 ROOM 802, Yuanchen Building, No.3 Hanken Road Yanwu Dalingshan, Dongguan City,China Phone:(626) 588-803918906679427 Email:[email protected]@qq.com

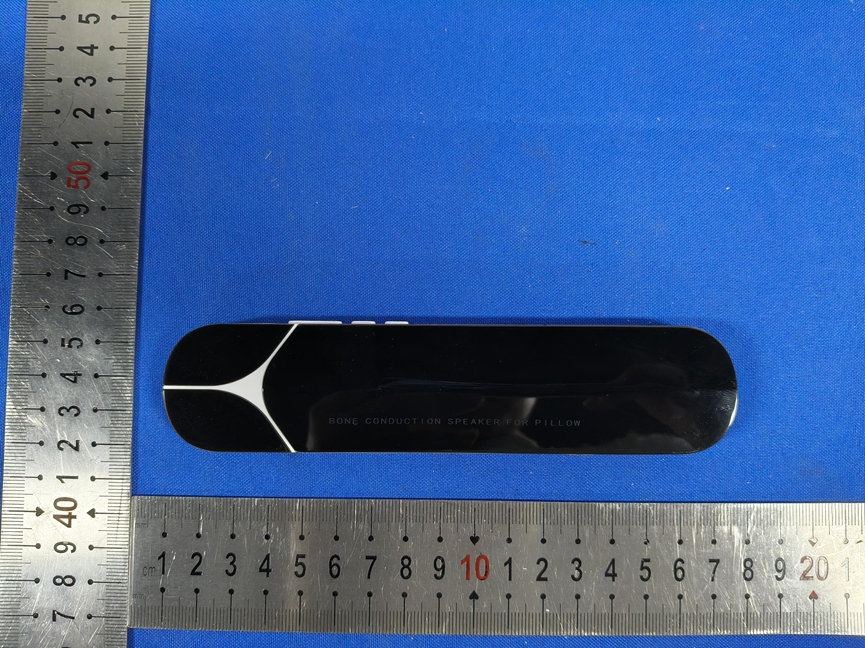

Page 1 of 3 FCC ID: 2BSVF-CY-017 External photos Page 2 of 3 FCC ID: 2BSVF-CY-017 Page 3 of 3 FCC ID: 2BSVF-CY-017

Label FCC ID: 2BSVF-CY-017

Page 1 of 2 FCC ID: 2BSVF-CY-017 Internal photos Page 2 of 2 FCC ID: 2BSVF-CY-017 PCB Antenna

Page 1 of 7 Report No.: AiTDG-260727007W2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited. If there is a need to alter or revise this document, the right belongs to Dongguan Yaxu (AiT) Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. RF Exposure evaluation Product Name : 6th generation of under-pillow music box Brand Name : N/A Model : CY-017 Series Model : N/A FCC ID : 2BSVF-CY-017 Applicant : Dongguan Caiyun Technology Co., Ltd. Address : ROOM 802, Yuanchen Building, No.3 Hanken Road Yanwu Dalingshan, Dongguan City,China Manufacturer : Dongguan Caiyun Technology Co., Ltd. Address : ROOM 802, Yuanchen Building, No.3 Hanken Road Yanwu Dalingshan, Dongguan City,China Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Jul. 14, 2026 Date of Test : Jul. 14, 2026~ Jul. 28, 2026 Issued Date : Jul. 28, 2026 Issued By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Reviewed by: Approved by: Emiya Lin Simba Huang Page 2 of 7 Report No.: AiTDG-260727007W2 Report Revise Record Report Version Issued Date Notes M0 Jul. 28, 2026 Initial Release Page 3 of 7 Report No.: AiTDG-260727007W2 Contents 1 GENERAL INFORMATION .......................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................... 6 2.1 APPLICABLE STANDARD.................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.: AiTDG-260727007W2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: 6th generation of under-pillow music box Model/Type reference: CY-017 Serial Model: N/A Power Supply: DC 3.7V 500mAh 1.85Wh from battery or DC 5V from external circuit Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTDG-260727007-1(Normal sample) AiTDG-260727007-2(Engineer sample) Bluetooth LE: Supported type: Bluetooth LE 1M/2M Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: PCB antenna Antenna gain: -0.58dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual.. Page 5 of 7 Report No.: AiTDG-260727007W2 1.3 Test Facility Test Laboratory: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: CNAS-Registration No: L6177 Dongguan Yaxu (AiT) technology Limited is accredited to ISO/IEC 17025:2017 general Requirements for the competence of testing and calibration laboratories (CNAS-CL01 Accreditation Criteria for the competence of testing and calibration laboratories) on April 18, 2022 FCC-Registration No.: 703111 Designation Number: CN1313 Dongguan Yaxu (AiT) Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC-Registration No.: 6819A CAB identifier: CN0122 The 3m Semi-anechoic chamber of Dongguan Yaxu (AiT) Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 6819A A2LA-Lab Cert. No.: 6317.01 Dongguan Yaxu (AiT) Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements …

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 24 50MHz2500MHz2400MHz 24 50MHz 2500MHz Center Frequency -1.26dBi-0.76dBi-0.58dBi-5.25dBi-2.46dBi-1.86dBi MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD No. 333, Kexing Road, Xiangzhou District, Zhuhai City Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Page 1 of 29 Report No.: AiTDG-260727007W1 Appendix RF test data for BLE Page 2 of 29 Report No.: AiTDG-260727007W1 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.103 2.500 84.12 0.75 0.07 2440 2.103 2.499 84.15 0.75 0.03 2480 2.103 2.499 84.15 0.75 0.03 2M SISO 2402 1.060 1.875 56.53 2.48 0.03 2440 1.060 1.875 56.53 2.48 0.01 2480 1.060 1.875 56.53 2.48 0.01 Page 3 of 29 Report No.: AiTDG-260727007W1 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 4 of 29 Report No.: AiTDG-260727007W1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 5 of 29 Report No.: AiTDG-260727007W1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 6 of 29 Report No.: AiTDG-260727007W1 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.037 / Pass 2440 1 1.036 / Pass 2480 1 1.036 / Pass 2M SISO 2402 1 2.068 / Pass 2440 1 2.068 / Pass 2480 1 2.068 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.669 >=0.5 Pass 2440 1 0.668 >=0.5 Pass 2480 1 0.669 >=0.5 Pass 2M SISO 2402 1 1.193 >=0.5 Pass 2440 1 1.202 >=0.5 Pass 2480 1 1.200 >=0.5 Pass Page 7 of 29 Report No.: AiTDG-260727007W1 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 29 Report No.: AiTDG-260727007W1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 9 of 29 Report No.: AiTDG-260727007W1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 10 of 29 Report No.: AiTDG-260727007W1 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 11 of 29 Report No.: AiTDG-260727007W1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 12 of 29 Report No.: AiTDG-260727007W1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 13 of 29 Report No.: AiTDG-260727007W1 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -0.83 <=30 Pass 2440 -0.50 <=30 Pass 2480 -0.43 <=30 Pass 2M SISO 2402 -0.77 <=30 Pass 2440 -0.43 <=30 Pass 2480 -0.37 <=30 Pass Note1: Antenna Gain: Ant1: -0.58dBi; Page 14 of 29 Report No.: AiTDG-260727007W1 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 29 Report No.: AiTDG-260727007W1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 16 of 29 Report No.: AiTDG-260727007W1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 17 of 29 Report No.: AiTDG-260727007W1 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit(dBm/3kHz) 1M SISO 2402 -0.93dBm/100kHz <=8 Pass 2440 -0.59dBm/100kHz <=8 Pass 2480 -0.55dBm/100kHz <=8 Pass 2M SISO 2402 -1.85dBm/100kHz <=8 Pass 2440 -1.47dBm/100kHz <=8 Pass 2480 -1.41dBm/100kHz <=8 Pass Note1: Antenna Gain: Ant1: -0.58dBi; Page 18 of 29 Report No.: AiTDG-260727007W1 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 19 of 29 Report No.: AiTDG-260727007W1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 20 of 29 Report No.: AiTDG-260727007W1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 21 of 29 Report No.: AiTDG-260727007W1 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -0.94 2440 1 -0.60 2480 1 -0.54 2M SISO 2402 1 -1.78 2440 1 -1.48 2480 1 -1.40 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -0.94 -20.94 Pass 2440 1 -0.60 -20.60 Pass 2480 1 -0.54 -20.54 Pass 2M SISO 2402 1 -1.78 -21.78 Pass 2440 1 -1.48 -21.48 Pass 2480 1 -1.40 -21.40 Pass Page 22 of 29 Report No.: AiTDG-260727007W1 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 23 of 29 Report No.: AiTDG-260727007W1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 24 of 29 Report No.: AiTDG-260727007W1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 25 of 29 Report No.: AiTDG-260727007W1 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 26 of 29 Report No.: AiTDG-260727007W1 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 27 of 29 Report No.: AiTDG-260727007W1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 28 of 29 Report No.: AiTDG-260727007W1 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV Page 29 of 29 Report No.: AiTDG-260727007W1 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV ********************** End of Report **********************

Page 1 of 35 Report No.: AiTDG-260727007W1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: Dongguan Caiyun Technology Co., Ltd. Applicant add.: ROOM 802, Yuanchen Building, No.3 Hanken Road Yanwu Dalingshan, Dongguan City,China Manufacturer: Dongguan Caiyun Technology Co., Ltd. Manufacturer add.: ROOM 802, Yuanchen Building, No.3 Hanken Road Yanwu Dalingshan, Dongguan City,China Product Information: Product Name: 6th generation of under-pillow music box Model No: CY-017 Brand Name: N/A FCC ID: 2BSVF-CY-017 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Jul. 14, 2026 Date of Test: Jul. 14, 2026~ Jul. 28, 2026 Date of Issue: Jul. 28, 2026 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Emiya Lin Simba Huang Page 2 of 35 Report No.: AiTDG-260727007W1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ......................................................................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................................... 4 2.1 Statement of the Measurement Uncertainty ................................................................................... 4 2.2 Measurement Uncertainty ............................................................................................................... 4 3 TEST FACILITY .................................................................................................................................................................. 5 3.1 Deviation from standard .................................................................................................................. 5 3.2 Abnormalities from standard conditions .......................................................................................... 5 3.3 Test Location ................................................................................................................................... 5 4 GENERAL INFORMATION .............................................................................................................................................. 6 4.1 Test frequencies .............................................................................................................................. 7 4.2 EUT Peripheral List ......................................................................................................................... 7 4.3 Test Peripheral List .......................................................................................................................... 7 4.4 TEST METHODOLOGY .................................................................................................................. 8 4.4.1 EUT Configuration ...................................................................................................................... 8 4.4.2 EUT Exercise ............................................................................................................................. 8 4.4.3 General Test Procedures ........................................................................................................... 8 4.5 Description of Test Modes ............................................................................................................... 9 5 EQUIPMENT USED DURING TEST ............................................................................................................................. 10 6 TEST RESULTS AND MEASUREMENT DATA ......................................................................................................... 10 6.1 Antenna requirement ..................................................................................................................... 12 6.2 On Time and Duty Cycle ............................................................................................................... 13 6.3 Maximum Conducted Output Power Measurement ...................................................................... 14 6.4 6 dB Spectrum Bandwidth Measurement...................................................................................... 15 6.5 Power Spectral Density ................................................................................................................. 16 6.6 Conducted Spurious Emissions and Band Edges Test ................................................................. 17 6.7 Restrict-band Band-edge Measurements ..................................................................................... 18 6.8 Radiated Emissions Measurement ............................................................................................... 20 6.9 Conducted Emissions .................................................................................................................... 29 7 TEST SETUP PHOTOGRAPHS OF EUT ..................…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BSVF-CY-017 Page 2 of 2 FCC ID: 2BSVF-CY-017
