2BSW3-H1CaosuBase mini

r备注说明 l Model：H1C11 HVIN：H1C (E This product complies with the radio interference requirements ofthe European Community. Declaration of Conformity H ereby, Glazero Limited declares that this device is in compliance with the e ssential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site: https:/ /www.aosuIife.com/. This product can b e used across EU member states. Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment. The suitable temperature aosuBase Mini and accessories is -10 ° C-45 ° C. The su itable temperature for Video Doorbell and accessories is -20 ° C - 40 ° c. When charging, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with a temperature 贮骂��二勹言::;;艺he Maximum Permissible Exposure (MPE) level has 匾 been calculated based on a distance of d=20 cm between the device and the h uman body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body. For aosuBase Mini: Wi-Fi Operating Frequency Range:2412~2472MHz; W ifi Max Output Power: 17 .13d8m(EIRP) W中Operating Frequency Range: 5150MHz ~ 5850MHz, W巾MaxOutput Power: 13.7d8m(EIRP) For Vi deo Doorbell : Wi-Fi Operating Frequency Range: 2412~2472MHz; Wi-Fi Max Output Power:18.30 dBm — 22 — Op erations in the 5.15-5.25GHz band are restricted to indoor usage only. Les opérations dans la bande 5.15-5.25GHz sont limitées à une utilisation à l’intér ieur seulement.

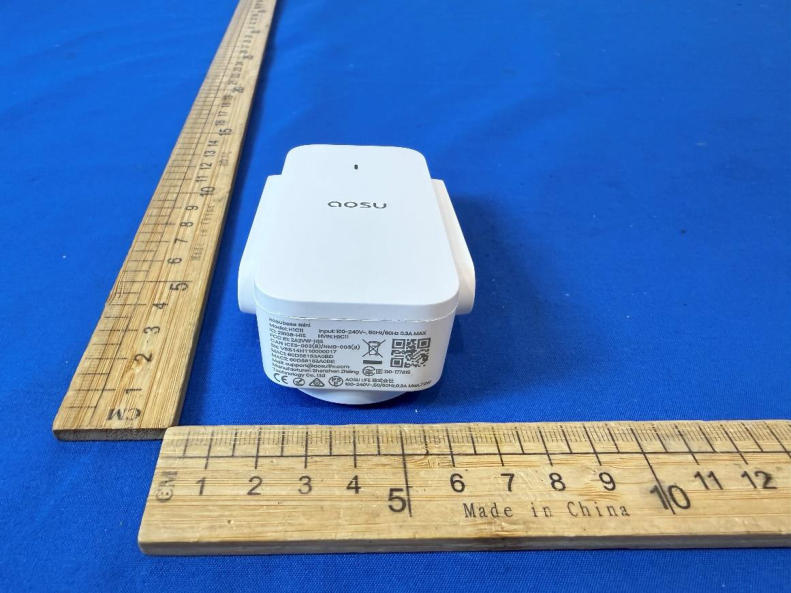

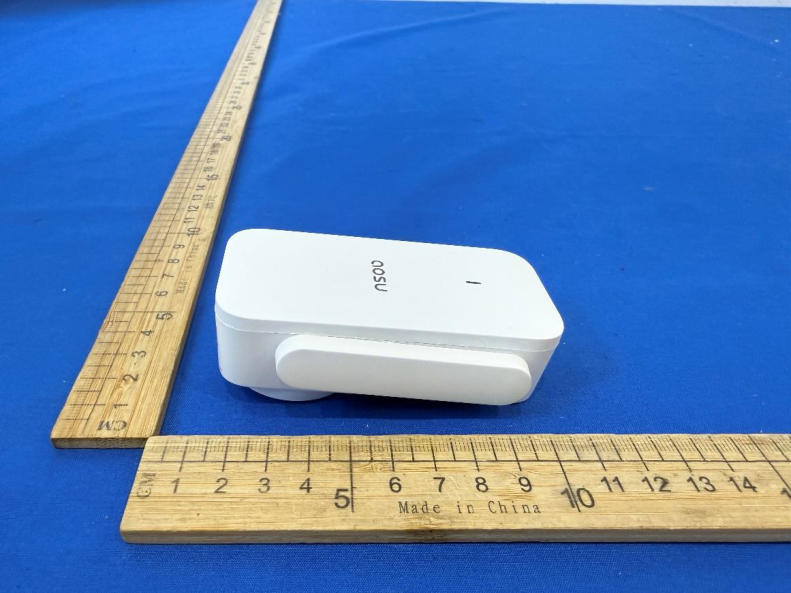

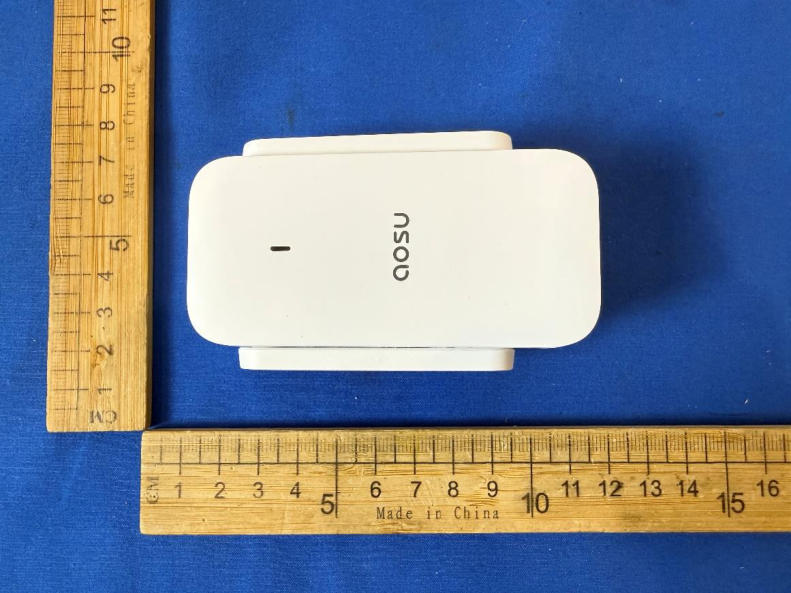

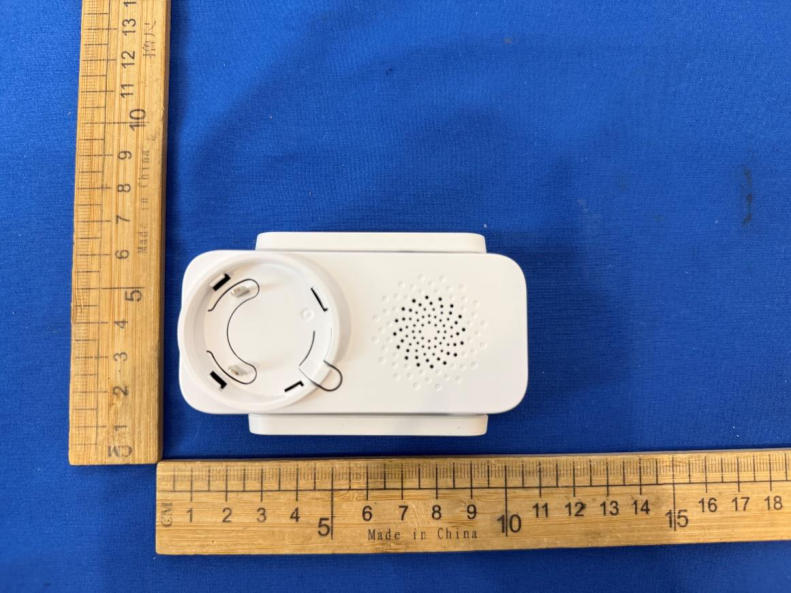

External Photographs View of EUT-1 View of EUT-2 Page 2 of 4 View of EUT-3 View of EUT-4 Page 3 of 4 View of EUT-5 View of EUT-6 Page 4 of 4 View of EUT-7

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 4 Internal View of EUT-3 Internal View of EUT-4 5G WIFI Antenna Page 3 of 4 Internal View of EUT-5 Internal View of EUT-6 Page 4 of 4 Internal View of EUT-7 2.4G WIFI Antenna2 2.4G WIFI Antenna1

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in ß1.1307(b) FCC ID: 2BSW3-H1C EUT Specification EUT aosuBase mini Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz BLE: 2.402GHz ~ 2.480GHz WIFI: 2.412GHz ~ 2.462GHz WIFI: 5.180GHz ~ 5.240GHz WIFI: 5.260GHz ~ 5.320GHz WIFI: 5.500GHz ~ 5.700GHz WIFI: 5.745GHz ~ 5.825GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power ANT1 2.4G WIFI IEEE 802.11b: 16.45 dBm IEEE 802.11g: 14.62 dBm IEEE 802.11n-HT20: 13.42 dBm ANT2 2.4G WIFI IEEE 802.11b: 16.49 dBm IEEE 802.11g: 14.51 dBm IEEE 802.11n-HT20: 13.37 dBm 5G WIFI U-NII-1 IEEE 802.11a: 15.85 dBm IEEE 802.11n HT20: 13.75 dBm U-NII-3 IEEE 802.11a: 14.02 dBm IEEE 802.11n HT20: 13.58 dBm 2 / 5 Antenna gain (Max) 2.4G WIFI 3.01 dBi for antenna 1 3.87 dBi for antenna 2 5G WIFI 1.76 dBi for antenna Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum 3 / 5 permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. 4 / 5 Measurement Result Operation Mode Channel Frequency (MHz) Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power (dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm2) Power density Limits (mW/ cm2) Results 2.4GHz WIFI (802.11b) 2462 16.49 16±1 17 50.119 3.87 2.438 0.024306 1 PASS 5180 MHz to 5240MHz (802.11a) 5180 15.85 16±1 17 50.119 1.76 1.500 0.014953 1 PASS 5745 MHz to 5825MHz (802.11a) 5745 14.02 14±1 15 31.623 1.76 1.500 0.009435 1 PASS 5 / 5 Maximum Simultaneous transmission MPE Ratio for 2.4G WIFI & 5G WIFI Maximum MPE ratio (2.4G WIFI) Maximum MPE ratio (5G WIFI) ∑ MPE ratios Limit Results 0.024306 0.014953 0.039259 1.000 Pass No need to test SAR. Signature: Alan He Date: 2026-07-9

SPECIFICATION ShenZhenTianDaCommunicationCo,LTD V8SBaseStation5.8GAntenna ProductSpecification CustomerZhiLingFrequencyband 5150-5850MHz ProjectnameV8SBaseStation EditionA ItemnumberZL-V8-S0-5G-A ColourNaturalcolor RFdesignWangxinchuang Structuraldesign Hesenlin Date 2022.01.19 Customerconfirmation： Whethertheassemblymeetsyourrequirements ：□ OK □ NG ShenZhenTianDaCommunicationCO.,LTD. ShenZhenTianDaCommunicationCO.,LTD. 5EBuildingL,NO26Alley2BaicaiSciencePark, LiuxianRoad,71District,BaoanDistrict,Shenzhen TEL:0755-22194566 FAX:0755-22194566 5EBuildingL,NO26Alley2BaicaiSciencePark, LiuxianRoad,71District,BaoanDistrict,Shenzhen TEL:0755-22194566 FAX:0755-22194566 ConfidentialInformation Page 2 Catalog 一、5.8Gantenna....................................................................................................................3 1、Specifications..................................................................................................................3 1.1、Electricalspecifications...............................................................................................3 1.1.1、Electricalperformanceindex....................................................................................3 1.1.2、Matchingcircuitdiagram..........................................................................................3 1.2、Testing..........................................................................................................................4 1.2.1、Passivetestdata........................................................................................................4 1.2.1.1、Standingwavepatternofantenna........................................................................4 1.2.1.2、Antennagainefficiency.........................................................................................4 1.2.1.3、Antennapattern......................................................................................................5 二、Structuralspecifications................................................................................................6 2.1、Antennacomposition...................................................................................................6 2.2、Drawings.....................................................................................................................7 ConfidentialInformation Page 3 一、5.8GAntenna 1、Specifications Thespecificationmainlyprovidestheteststatusofelectricalandstructural performanceparametersof5.8GHzantennainV8SBaseStationproject。Thepicture belowshowsthe5.8GHzantennadesignedbyTianda. 1.1、Electricalspecifications 1.1.1、Electricalperformanceindex Theoperatingfrequencybandoftheantenna5150MHz—5850MHz，Thefollowing istheelectricalperformanceindexoftheantennadesignedandproducedbyTianda. WIFI 频段频率（MHz） VSWR 5.8G5150~5850 ≤2.5 1.1.2 、 Matchingcircuitdiagram Thematchingcircuitof5.8GAntennaisaseries1.2nHinductance. ConfidentialInformation Page 4 1.2、Testing 1.2.1、Passivetest 1.2.1.1、VSWR 1.2.1.2、AntennaGainandEfficiency ConfidentialInformation Page 5 1.2.1.3、Antennapattern ConfidentialInformation Page 6 二、Structuralspecifications 2.1、Antennacomposition 5.8GAntennaismainlycomposedofCoppersheet. ConfidentialInformation Page 7 2.2、Drawings

Appendix A Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5180 Ant1 97.18 0.12 0.48 NVNT a 5200 Ant1 96.28 0.16 0.48 NVNT a 5240 Ant1 92.38 0.34 0.49 NVNT a 5745 Ant1 98.1 0.08 0.48 NVNT a 5785 Ant1 92.41 0.34 0.48 NVNT a 5825 Ant1 95.39 0.2 0.48 NVNT n20 5180 Ant1 97.96 0.09 0.52 NVNT n20 5200 Ant1 93.69 0.28 0.52 NVNT n20 5240 Ant1 94.12 0.26 0.52 NVNT n20 5745 Ant1 96.97 0.13 0.52 NVNT n20 5785 Ant1 96 0.18 0.52 NVNT n20 5825 Ant1 93.2 0.31 0.52 2 / 36 Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 3 / 36 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT a 5745MHz Ant1 4 / 36 Duty Cycle NVNT a 5785MHz Ant1 Duty Cycle NVNT a 5825MHz Ant1 5 / 36 Duty Cycle NVNT n20 5180MHz Ant1 Duty Cycle NVNT n20 5200MHz Ant1 6 / 36 Duty Cycle NVNT n20 5240MHz Ant1 Duty Cycle NVNT n20 5745MHz Ant1 7 / 36 Duty Cycle NVNT n20 5785MHz Ant1 Duty Cycle NVNT n20 5825MHz Ant1 8 / 36 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Conducted Power (W) FCC Limit Conducted (dBm) Antenna Gain (dBi) E.I.R.P. (dBm) ISED Conducted Limit (dBm) ISED E.I.R.P. Limit (dBm) Verdict NVNT a 5180 Ant1 15.85 0.03846 24 1.76 17.61 - 22.44 Pass NVNT a 5200 Ant1 15.68 0.03698 24 1.76 17.44 - 22.51 Pass NVNT a 5240 Ant1 15.8 0.03802 24 1.76 17.56 - 22.46 Pass NVNT a 5745 Ant1 14.02 0.02523 30 1.76 15.78 30.00 - Pass NVNT a 5785 Ant1 12.66 0.01845 30 1.76 14.42 30.00 - Pass NVNT a 5825 Ant1 11.91 0.01552 30 1.76 13.67 30.00 - Pass NVNT n20 5180 Ant1 13.12 0.02051 24 1.76 14.88 - 22.49 Pass NVNT n20 5200 Ant1 13.51 0.02244 24 1.76 15.27 - 22.51 Pass NVNT n20 5240 Ant1 13.75 0.02371 24 1.76 15.51 - 22.50 Pass NVNT n20 5745 Ant1 13.58 0.0228 30 1.76 15.34 30.00 - Pass NVNT n20 5785 Ant1 12.9 0.0195 30 1.76 14.66 30.00 - Pass NVNT n20 5825 Ant1 12.79 0.01901 30 1.76 14.55 30.00 - Pass 9 / 36 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) NVNT a 5180 Ant1 29.889 NVNT a 5200 Ant1 30 NVNT a 5240 Ant1 29.697 NVNT n20 5180 Ant1 21.222 NVNT n20 5200 Ant1 21.747 NVNT n20 5240 Ant1 21.312 10 / 36 -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 11 / 36 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 12 / 36 -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 13 / 36 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 17.557 NVNT a 5200 Ant1 17.818 NVNT a 5240 Ant1 17.629 NVNT a 5745 Ant1 20.686 NVNT a 5785 Ant1 18.301 NVNT a 5825 Ant1 17.62 NVNT n20 5180 Ant1 17.761 NVNT n20 5200 Ant1 17.809 NVNT n20 5240 Ant1 17.788 NVNT n20 5745 Ant1 19.465 NVNT n20 5785 Ant1 18.886 NVNT n20 5825 Ant1 18.52 14 / 36 OBW NVNT a 5180MHz Ant1 OBW NVNT a 5200MHz Ant1 15 / 36 OBW NVNT a 5240MHz Ant1 OBW NVNT a 5745MHz Ant1 16 / 36 OBW NVNT a 5785MHz Ant1 OBW NVNT a 5825MHz Ant1 17 / 36 OBW NVNT n20 5180MHz Ant1 OBW NVNT n20 5200MHz Ant1 18 / 36 OBW NVNT n20 5240MHz Ant1 OBW NVNT n20 5745MHz Ant1 19 / 36 OBW NVNT n20 5785MHz Ant1 OBW NVNT n20 5825MHz Ant1 20 / 36 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/MHz) Duty Factor (dB) Total Conducted PSD (dBm/MHz) FCC Limit Conducted (dBm/MHz) Antenna Gain (dBi) E.I.R.P PSD (dBm/MHz) ISED Conducted PSD Limit (30dBm/500KHz) ISED E.I.R.P PSD Limit (dBm/MHz) Verdict NVNT a 5180 Ant1 4.93 0.12 5.05 11 1.76 6.81 - 10 Pass NVNT a 5200 Ant1 4.91 0.16 5.07 11 1.76 6.83 - 10 Pass NVNT a 5240 Ant1 5.53 0.34 5.87 11 1.76 7.63 - 10 Pass NVNT a 5745 Ant1 3.25 0.08 3.33 30 1.76 5.09 30 - Pass NVNT a 5785 Ant1 1.14 0.34 1.48 30 1.76 3.24 30 - Pass NVNT a 5825 Ant1 1.78 0.2 1.98 30 1.76 3.74 30 - Pass NVNT n20 5180 Ant1 2.53 0.09 2.62 11 1.76 4.02 - 10 Pass NVNT n20 5200 Ant1 2.14 0.28 2.42 11 1.76 4.18 - 10 Pass NVNT n20 5240 Ant1 2.5 0.26 2.76 11 1.76 4.52 - 10 Pass NVNT n20 5745 Ant1 2.35 0.13 2.48 30 1.76 4.24 30 - Pass NVNT n20 5785 Ant1 0.96 0.18 1.14 30 1.76 2.9 30 - Pass NVNT n20 5825 Ant1 2.41 0.31 2.72 30 1.76 4.48 30 - Pass Note: For 5725-5850MHz, the limit of Power Spectral Density is 30dBm/500KHz. 21 / 36 PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 22 / 36 PSD NVNT a 5240MHz Ant1 PSD NVNT a 5745MHz Ant1 23 / 36 PSD NVNT a 5785MHz Ant1 PSD NVNT a 5825MHz Ant1 24 / 36 PSD NVNT n20 5180MHz Ant1 PSD NVNT n20 5200MHz Ant1 25 / 36 PSD NVNT n20 5240MHz Ant1 PSD NVNT n20 5745MHz Ant1 26 / 36 PSD NVNT n20 5785MHz Ant1 PSD NVNT n20 5825MHz Ant1 27 / 36 Frequency Stability Condition Mode Frequency (MHz) Antenna Measured Frequency (MHz) Frequency Error (Hz) Deviation (ppm) Limit (ppm) Verdict 20C 187V a 5180 Ant1 5180 0 0 5150-5250 Pass 20C 230V a 5180 Ant1 5180 0 0 5150-5250 Pass 20C 253V a 5180 Ant1 5180 0 0 5150-5250 Pass -10C 230V a 5180 Ant1 5180 0 0 5150-5250 Pass 0C 230V a 5180 Ant1 5180 0 0 5150-5250 Pass 10C 230V a 5180 Ant1 5180.04 40000 7.72 5150-5250 Pass 30C 230V a 5180 Ant1 5180 0 0 5150-5250 Pass 40C 230V a 5180 Ant1 5180 0 0 5150-5250 Pass 50C 230V a 5180 Ant1 5180.02 20000 3.86 5150-5250 Pass Note: Only the worst mode is recorded. 28 / 36 Freq. Stability 20C 187V a 5180MHz Ant1 Freq. Stability 20C 220V a 5180MHz Ant1 29 / 36 Freq. Stability 20C 253V a 5180MHz Ant1 Freq. Stability -10C 220V a 5180MHz Ant1 30 / 36 Freq. Stability 0C 220V a 5180MHz Ant1 Freq. Stability 10C 220V a 5180MHz Ant1 31 / 36 Freq. Stability 30C 220V a 5180MHz Ant1 Freq. Stability 40C 220V a 5180MHz Ant1 32 / 36 Freq. Stability 50C 220V a 5180MHz Ant1 33 / 36 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.302 0.5 Pass NVNT a 5785 Ant1 16.305 0.5 Pass NVNT a 5825 Ant1 16.332 0.5 Pass NVNT n20 5745 Ant1 17.526 0.5 Pass NVNT n20 5785 Ant1 16.89 0.5 Pass NVNT n20 5825 Ant1 17.031 0.5 Pass 34 / 36 -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 35 / 36 -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant1 36 / 36 -6dB …

Text truncated - open the document above for the full version.

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART E ISED RSS-247 Issue 4 TEST REPORT For aosuBase mini MODEL NUMBER: H1C11, H1C12, H1C13, DH1C11, DH1C12, DH1C13 REPORT NUMBER: E04A26040879F00401 ISSUE DATE: July 9, 2026 FCC ID: 2BSW3-H1C IC: 34835-H1C Prepared for AOSU LIFE PTE. LTD 9 North Buona Vista Drive, The Metropolis TowerOne, #02-01, Singapore 138588, North Buona, Singapore Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A26040879F00401 Page 2 of 48 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 July 9, 2026 Initial Issue REPORT NO.: E04A26040879F00401 Page 3 of 48 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result ON TIME AND DUTY CYCLE ANSI C63.10-2020, Clause 12.2 None; for reporting purposes only. Pass 6dB AND 26dB EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH KDB 789033 D02 v02r01 Section C.1 FCC Part 15.407 (a)/(e), RSS-247 Issue 4, Clause 7.3.5.2 RSS-Gen Clause 6.7 Pass CONDUCTED OUTPUT POWER KDB 789033 D02 v02r01 Section E.3.a (Method PM)/KDB 789033 D02 v02r01 Section E.3.b (Method PM) Section E.2.d (Method SA-2) FCC 15.407 (a) RSS-247 Clause 7.3 Pass POWER SPECTRAL DENSITY KDB 789033 D02 v02r01 Section F FCC 15.407 (a) RSS-247 Clause 7.3 Pass AC POWER LINE CONDUCTION EMISSION ANSI C63.10-2020, Clause 6.2 FCC 15.207, RSS-GEN Clause 8.8 Pass RADIATED EMISSIONS AND BAND EDGE MEASUREMENT KDB 789033 D02 v02r01 Section G.3, G.4, G.5, and G.6 FCC 15.407 (b) FCC 15.209 FCC 15.205 RSS-247 Clause 7.3 RSS-GEN Clause 8.9 Pass FREQUENCY STABILITY ANSI C63.10-2020, Clause 6.8 FCC 15.407 (g) Pass DYNAMIC FREQUENCY SELECTION (SLAVE) KDB 905462 D03 UNII Clients Without Radar Detection New Rules v01r02 FCC Part 15.407 (h), RSS-247 Issue 4 Clause 7.3.6 N/A DYNAMIC FREQUENCY SELECTION (MASTER) KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 FCC Part 15.407 (h), RSS-247 Issue 4 Clause 7.3.6 N/A ANTENNA REQUIREMENT N/A FCC 47 CFR Part 15.203/ 15.407(a)(1) (2), RSS-Gen Issue 5, Clause 6.8 Pass ADDITIONAL REQUIREMENTS N/A FCC Part 15.407 (c), RSS-247 Issue 4 Clause 7.3.7 Pass Note: 1. N/A: In this whole report not applicable. 2. For ISED, this report is also performed according to ANSI C63.10-2020 + Cor.1-2023 + C63.10a-2024 + Errata to C63.10a-2024 standards. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART E, ISED RSS-247 Issue 4 > when <Accuracy Method> decision rule is applied. REPORT NO.: E04A26040879F00401 Page 4 of 48 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM EIRP ....................................................................................................... 9 5.4. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.5. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.6. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 10 5.7. SETUP DIAGRAM .................................................................................................. 10 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 11 7. ANTENNA PORT TEST RESULTS ..................................................................................... 13 7.1. ON TIME AND DUTY CYCLE ................................................................................. 13 7.2. 6dB AND 26dB EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH..... 14 7.3. CONDUCTED OUTPUT POWER ........................................................................... 16 7.4. POWER SPECTRAL DENSITY .............................................................................. 18 7.5. FREQUENCY STABILITY ....................................................................................... 20 8. RADIATED TEST RESULTS ............................................................................................... 22 8.1. RADIATED EMISSIONS AND BAND EDGE MEASUREMENT .............................. 28 9. AC POWER LINE CONDUCTION EMISSION ..................................................................... 41 10. ANTENNA REQUIREMENT .............................…

Text truncated - open the document above for the full version.

Setup Photographs AC Power Line Conducted Emission Page 2 of 4 Radiated Band edge and Spurious Emission Page 3 of 4 Page 4 of 4 RF conducted method
