2BSW8-FORT5Smart Phone

RF Specification: Function Operation Frequency Max RF output power: BLE 2402MHz2480MHz 3.24dBm BT(BR+EDR) 2402MHz2480MHz 1.38dBm WIFI 2.4G 802.11b/n(20MHz): 802.11n(40MHz): 802.11b/n(20MHz):2412-2472MHz 802.11n(40MHz):2422~2462MHz 14.01dBm Wi-Fi 5.2G 802.11a/n/ac (20MHz): 802.11n/ac(40MHz): 802.11ac(80MHz): 802.11a/n/ac (20MHz):5180~5240MHZ 802.11n/ac(40MHz):5190~5230MHZ 802.11ac(80MHz):5210MHz 14.17dBm Wi-Fi 5.8G 802.11a/n/ac (20MHz): 802.11n/ac(40MHz): 802.11ac (80MHz): 802.11a/n/ac(20MHz):5745~5825MHz 802.11n /ac(40MHz):5755~5795MHz 802.11ac (80MHz):5775MHz 13.53dBm GSM/GPRS/EGPRS 900 TX(Uplink):8805MHZ; RX(Downlink):925960MHZ 32.82dBm GSM/GPRS/EGPRS 1800 TX(Uplink):1710785MHZ; RX(Downlink):1801880MHZ 29.70dBm WCDMA B1 TX(Uplink):1920-1980MHz; RX(Downlink):2110-2170MHz 23.10dBm WCDMA B8 TX(Uplink): 880-915MHz; RX(Downlink):925-960MHz 22.64dBm LTE FDD B1 TX(Uplink):1920-1980MHz; RX(Downlink):2110-2170MHz 23.58dBm LTE FDD B3 TX(Uplink) :1710-1785MHz; RX(Downlink):1805-1880MHz 23.36dBm LTE FDD B7 TX(Uplink) :2500-2570MHz; RX(Downlink):2620-2690MHz 23.07dBm LTE FDD B8 TX(Uplink): 880MHz to 915 MHz RX(Downlink): 925 MHz to 960 MHz 23.17dBm LTE FDD B20 TX(Uplink): 832MHz~862MHz; RX(Downlink):791MHz~821MHz 23.18dBm LTE FDD B28 TX(Uplink): 703 MHz to 748MHz RX(Downlink): 758 MHz to 803 MHz 23.28dBm GPS (RX) Rx(Downlink): 1.57542GHz -- NFC (RX) 13.56MHZ -44.81dBm WPT (RX) 110.5kHz~205kHz -- CE Maintenance 1.Use careful with the earphone maybe excessive sound pressure from earphones and headphones can cause hearing loss. 2.Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 3.The product shall only be connected to a USB interface of version USB2.0. 4.Adapter shall be installed near the equipment and shall be easily accessible. 5.EUT Operating temperature range: -10° C to 45°C. 6.Adapter The plug considered as disconnect device of adapter 7.The device complies with RF specifications when the device used at 5mm from your body. 8.To prevent possible hearing damage. Do not listen at high volume levels for long periods. 9.Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This Frequency the following Member States or the geographical area within a Member State where restrictions on putting into service or requirements for authorisation of use exist. (BE: Belgium, BG: Bulgaria, CZ: Czech Republic, DK: Denmark, DE: Germany, EE: Estonia, IE: Ireland, EL: Greece, ES: Spain, FR: France, HR: Croatia, IT: Italy, CY: Cyprus, LV: Latvia, LT: Lithuania, LU: Luxembourg, HU: Hungary, MT: Malta, NL: Netherlands, AT: Austria, PL: Poland, PT: Portugal, RO: Romania, SI: Slovenia, SK: Slovakia, FI: Finland, SE: Sweden, UK: United Kingdom) Declaration of Conformity Shenzhen Doke Electronic Co., LTD hereby declares that this Smart Phone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with Article 10(2) and Article 10(10), This product is allowed to be used in all EU member states. DECLARATION OF CONFORMITY 2. 4. 6. 8. 9.ETSI EN 303 417 V1.1.1 (2017-09) 10. 11.12. 13. 15. 17. 19. 21. 23. 25. 27.28. All essential radio test suites have been carried out. NOTIFIED BODY: MANUFACTURER AUTHORISED REPRESENTATIVE Accessories:

HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED 19HMaxgrandPlaza,No.3TaiYauStreet,SanPo Kong,Kowloon,HongKong FederalCommunicationsCommissionDate ： 2026-1-7 AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 FCCID:2BSW8-FORT5 FRN:0037627072 USAgent–AttestationStatement/Part2.911(d)(7) HONGKONGLELEGAOTECHNOLOGYCO.,LIMITEDcertifies,thatasof2026-1-7,wehave designatedFCCUSAgent,LLCtoacceptserviceofprocessonourbehalfforFCCID:2BSW8- FORT5. HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED,acceptstomaintainanagentofservice ofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingthe equipment,whicheverislater. FCCUSAgent,LLC,acceptsasofthedateofthefilingofthisapplication,theobligationofbeing thedesignatedagentforthepurposeofacceptingserviceofprocessonbehalfofHONGKONG LELEGAOTECHNOLOGYCO.,LIMITEDforFCCID:2BSW8-FORT5. DesignatedAgentInformation: CompanyName:FCCUSAgent,LLC FRN:0033402884 Address:3722IllinoisAvenue,SaintCharles,IL,60174,USA ContactPerson:TimPayne Phone:708-571-3148 Email:[email protected] Sincerely, Company:HONGKONGLELEGAO TECHNOLOGYCO.,LIMITED DesignatedAgent:FCCUSAgent,LLC CompanyRepresentative: XiuyingZou DesignatedAgentRepresentative:TimPayne Signature: Signature:

HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED 19HMaxgrandPlaza,No.3TaiYauStreet,SanPoKong,Kowloon,HongKong,China AttestationStatements NotCoveredEntityApplicant&NotCoveredEquipment To:FederalCommunicationsCommissionDate:Feb.10,26 7435OaklandMillsRoad, Columbia,MD21046,USA Ref:InformationRequiredbySection2.911(d)(5)(i)&(ii) FCCID:2BSW8-FORT5 HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED(“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredList,establishedpursuantto§ 1.50002ofreferencechapter,asanentityproducing“covered”communicationequipment.The equipmentforwhichauthorizationissoughtisnot“covered”telecommunicationsequipmentandvideo surveillanceequipmentproducedbyentitiesidentifiedontheCommission’sCoveredListthatprohibited fromreceivinganequipmentauthorizationpursuanttosection§2.903oftheFCCrules. Sincerelyyours, ApplicantSignature PrintedName:XiuyingZou Title:Manager Address:19HMaxgrandPlaza,No.3TaiYauStreet,SanPoKong,Kowloon,HongKong,China Tel.:75532909320 Email:[email protected]

HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED 19HMaxgrandPlaza,No.3TaiYauStreet,SanPoKong,Kowloon,HongKong,China 1|Page AttestationStatements To:FederalCommunicationsCommissionDate:Feb.10,26 7435OaklandMillsRoad, Columbia,MD21046,USA Subject:AttestationofCompliancewithFCCCoveredListSoftwareRequirements FCCID:2BSW8-FORT5 ProductName:SmartPhone Thisletterservesasanattestationthattheequipmentidentifiedabove☐is/☒isnot(selectone)"covered" softwareasdefinedundertheFederalCommunicationsCommission(FCC)CoveredListrequirements,as outlinedinFCC22-84andKDB986446. Specifically,theundersignedcertifiesthattheequipmentforwhichauthorizationissought: 1.Doesnotcontaincybersecurityoranti-virussoftwareproducedorprovidedbyKasperskyLab, Inc.oranyofitssuccessors,assignees,parents,subsidiaries,affiliates,oranyentitythathasrebranded orrelabeledsoftwareproducedbytheaforementionedentities. 2.Doesnothavethecapabilitytostore,run,ordeliveranysoftwareidentifiedontheFCCCoveredList, includingbutnotlimitedtocybersecurityandanti-virussoftware. Tosupportthisattestation,theappendixevaluationdocumentationhasbeenpreparedandisincludedinthe certificationfiling. Thisattestationisbasedonathoroughevaluationofthedevice'sdesign,functionality,andsoftware environment.Theundersignedaffirmsthattheinformationprovidedisaccurateandcompletetothebestof theirknowledge. Sincerelyyours, ApplicantSignature PrintedName:XiuyingZou Title:Manager Address:19HMaxgrandPlaza,No.3TaiYauStreet,SanPoKong,Kowloon,HongKong,China Tel.:75532909320 Email:[email protected] HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED 19HMaxgrandPlaza,No.3TaiYauStreet,SanPoKong,Kowloon,HongKong,China 2|Page EvaluationregardingtotheCoveredListSoftware: Compliance Methodology EvaluationProcessResults Deviceis Inherent compliance ☐ TheChipset(s)usedislimitedtorun theCybersecurityoranti-virus software. TheMCU“XXX“,TheRFchip “XXX“don’tsupportthe mentionedfunction. ☐ TheMemoryusedislimitedtorunthe Cybersecurityoranti-virussoftware. ThememorysizeisXXX,sodon’t supportthementionedfunction. ☐ Thereisstoragecapacitylimitationfor storeorinstalltheCybersecurityor anti-virussoftware. ThestoragecapacityisXXX,so don’tsupportthementioned function. ☐ Operatingsystemusedislimitedto run,installordelivertheCybersecurity oranti-virussoftware. TheOperatingsystem“XXX“don’t supportthementionedfunction. Deviceisnot Inherent compliance ☒ EvaluationBasedonSoftware BillofMaterials(SBoM) Seeattached“SBoM“ Note:TheSBoMcontentislimited tothescopeofcoveredlist software(e.g.antivirusand cybersecuritysoftware). ☐ EvaluationBasedonScanfor Softwareonthedevice ☐ EvaluationBasedonFilesystemscan ☐ EvaluationBasedonRunning softwarecheck SBOM(SoftwareBillofMaterials)[ForDeviceisnotInherentcompliance] Section Component Name VersionSupplier 1AndroidAuto1.2.551000-stub Android 2Chrome139.0.7258.143 Google 3Gboard 16.0.5.804347959- release-arm64-v8a Google 4Gmail 2025.09.22.8118567 20.Release Google 5Google 16.41.36.ve.arm6 4 Google 6 GooglePlay services 25.38.30(260400- 807569344) Google 8Maps25.38.02.806933749 Google 9YouTubeMusic8.38.52 Google 11Calendar 2025.38.0- 809757839-release Google 12Cantacts4.64.27.807337001 Google 13Drive2.25.380.0.all.alldpi Google 14Files 1.8662.804056183.0 -release Google 15FindHub3.1.337-2 Google HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED 19HMaxgrandPlaza,No.3TaiYauStreet,SanPoKong,Kowloon,HongKong,China 3|Page 16Google 16.41.36.ve.arm6 4 Google 17Photos7.47.0.810631069 Google 19Meet 326.0.810633361.du o.android_2025092 2.02_p1 Google 20Phone192.0.806919635 Google 21PlayStore 48.1.28-31[0][PR] 811267161 Google 22Safety 2025.08.06.7918600 33.0-release_gms Google 24YouTube20.38.37 Google 25Messages messages.android_2 0250907_01_RC07.p hone_dynamic Google

HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED 19HMaxgrandPlaza,No.3TaiYauStreet,SanPoKong,Kowloon,HongKong,China Feb.10,26 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestfor:FCCID:SmartPhone PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestpermanent confidentialtreatmentoftheexhibitsaccompanyingthiscertificationapplicationasoutlinedbelow:  BlockDiagram Schematics  OperationalDescription Tune-UpProcedure  PartsList  FCCSoftwareSecurityRequirementsforUNIIdevicesRev1.0 Theaboveexhibitscontaintradesecretsand/orproprietaryinformationthatarenotpubliclyavailableand materialsthattheApplicanthasspentconsiderableeffortsindeveloping.Publicdisclosureofthesemay beharmfultotheApplicantandgiveanunfairadvantagetocompetitorsonthemarket. Sincerely, PrintedName:XiuyingZou Title:Manager Address:19HMaxgrandPlaza,No.3TaiYauStreet,SanPoKong,Kowloon,HongKong,China Tel.:75532909320 Email:[email protected]

HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED 19HMaxgrandPlaza,No.3TaiYauStreet,SanPoKong,Kowloon,HongKong,China Feb.10,26 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:AgentAuthorizationforFCCID:2BSW8-FORT5 I,theundersigned,herebyauthorize(SHENZHENSTSTESTSERVICESCO.,LTD.)toactonourbehalf inallmattersrelatingtothisapplicationforequipmentcertification. Anyactcarriedoutby(SHENZHENSTSTESTSERVICESCO.,LTD.)shallhavethesameeffectasour ownandIacknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsofcertification, asspecifiedbyDERYCOMCERTIFICATIONSERVICES,INC.,stillresideswith(HONGKONG LELEGAOTECHNOLOGYCO.,LIMITED). WecertifythatwearenotsubjecttoadenialoffederalbenefitsthatincludesFCCbenefitspursuantto Section5301oftheAnti-DrugAbuseActof1988,21U.S.C.§862,andthatnopartytotheapplication,as definedin47CFR§1.2002(b),issubjecttoadenialoffederalbenefitsthatincludesFCCbenefits pursuanttothatsection. Sincerely, PrintedName:XiuyingZou Title:Manager Address:19HMaxgrandPlaza,No.3TaiYauStreet,SanPoKong,Kowloon,HongKong,China Tel.:75532909320 Email:[email protected]

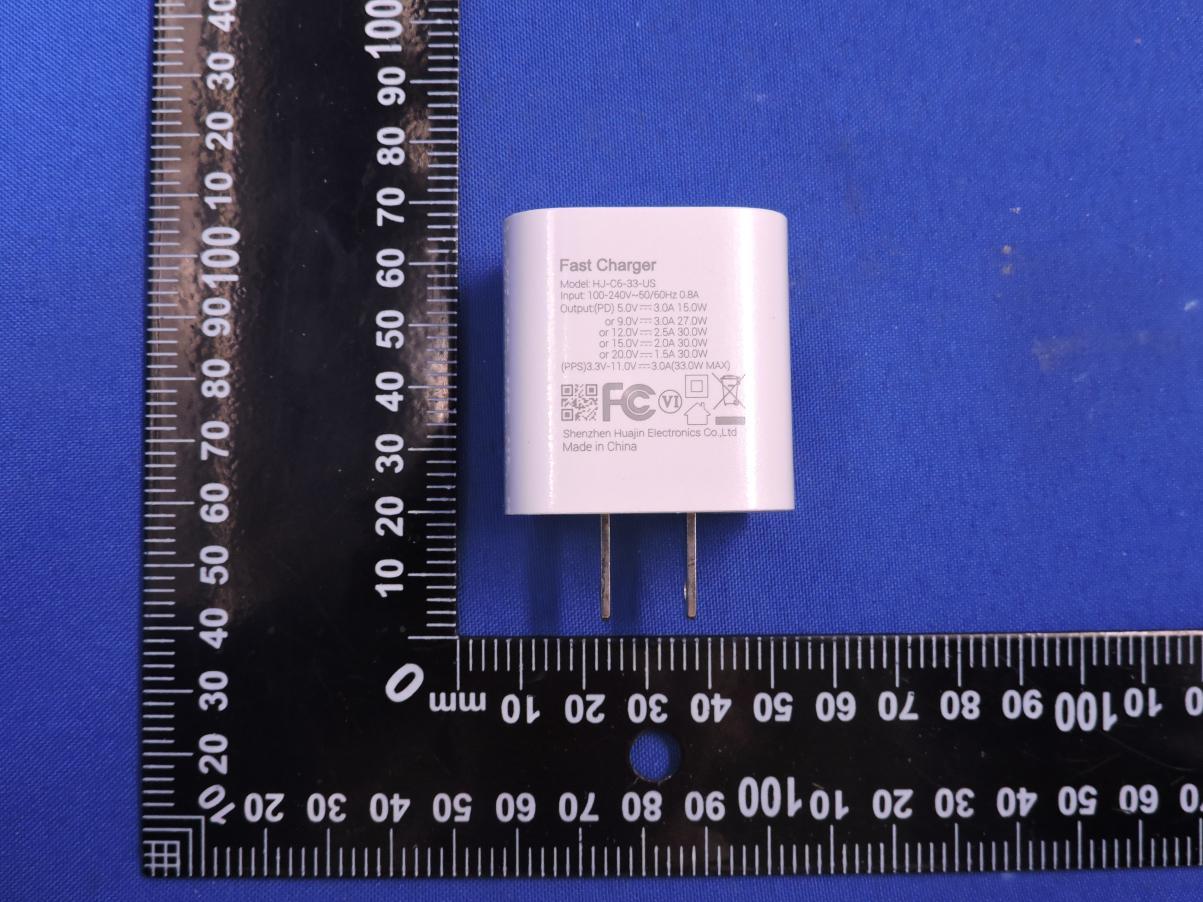

Page 1 of 5 Report No.: STS2512170 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 5 Report No.: STS2512170 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2512170 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2512170 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2512170 Photo 9

E-label User Manual:

Page 1 of 9 Report No.: STS2512170 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 9 Report No.: STS2512170 Photo 3 Photo 4 AUX Antenna GSM/WCDMA/LTE Antenna BT/WiFi Antenna NFC Antenna GSM1900,WCDMA Band 2,4,LTE Band 2,4,25,66 GSM850,WCDMA Band 5,LTE Band 5,12,17,26 Page 3 of 9 Report No.: STS2512170 Photo 5 Photo 6 Page 4 of 9 Report No.: STS2512170 Photo 7 Photo 8 Page 5 of 9 Report No.: STS2512170 Photo 9 Photo 10 Page 6 of 9 Report No.: STS2512170 Photo 11 Photo 12 Page 7 of 9 Report No.: STS2512170 Photo 13 Photo14 Page 8 of 9 Report No.: STS2512170 Photo15 Photo16 Page 9 of 9 Report No.: STS2512170 Photo17 Photo18

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. SAR Test Report Report No.: STS2512170H02 Issued for HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong, China Product Name: Smart Phone Brand Name: Blackview Model Name: FORT 5 Series Model(s): N/A FCC ID: 2BSW8-FORT5 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 (2.1093) IEEE Std. 1528-2013 Max. Report SAR (1g) Head: 1.167 W/kg Body: 0.605 W/kg Page 2 of 150 Report No.: STS2512170H02 TEST REPORT CERTIFICATION Applicant’s name ................. : HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED Address ................................. : 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong, China Manufacturer's Name .......... : Shenzhen Doke Electronic Co., LTD Address ................................. : 801, Building3, 7th Industrial Zone, Yulv Community, Yutang Road, Guangming District, Shenzhen, China Product description Product name ........................ : Smart Phone Brand name ......................... : Blackview Model name ......................... : FORT 5 Series Model .......................... : N/A Standards ............................. : ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 (2.1093) IEEE Std. 1528-2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 08 Jan. 2026 ~ 19 Jan. 2026 Date of Issue .......................................... : 19 Jan. 2026 Test Result.............................................. : Pass Testing Engineer : (Xin.Liu) Technical Manager : (Shifan. Long) Authorized Signatory : (Bovey Yang) Page 3 of 150 Report No.: STS2512170H02 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 7 1.3 Test Factory 7 2. Test Standards and Limits 8 3. SAR Measurement System 9 3.1 Definition of Specific Absorption Rate (SAR) 9 3.2 SAR System 9 4. Tissue Simulating Liquids 12 4.1 Simulating Liquids Parameter Check 12 5. SAR System Validation 16 5.1 Validation System 16 5.2 Validation Result 16 6. SAR Evaluation Procedures 17 7. EUT Antenna Location Sketch 18 7.1 SAR test exclusion consider table 19 8. EUT Test Position 22 8.1 Define Two Imaginary Lines on the Handset 22 8.2 Hotspot mode exposure position condition 23 9. Uncertainty 24 9.1 Measurement Uncertainty 24 10. Conducted Power Measurement 27 10.1 Test Result 27 11. EUT and Test Setup Photo 51 11.1 EUT Photo 51 11.2 Setup Photo 54 12. SAR Result Summary 60 12.1 Head SAR 60 12.2 Body-worn and Hotspot SAR 63 12.3 Repeated SAR 65 12.4 Repeated SAR measurement 66 12.5 Simultaneous Multi-band Transmission Evaluation 67 13. Equipment List 69 Appendix A. System Validation Plots 70 Appendix B. SAR Test Plots 86 Page 4 of 150 Report No.: STS2512170H02 Appendix C. Probe Calibration and Dipole Calibration Report 150 Revision History Rev. Issue Date Report No. Effect Page Contents 00 19 Jan. 2026 STS2512170H02 ALL Initial Issue Page 5 of 150 Report No.: STS2512170H02 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name Smart Phone Brand Name Blackview Model Name FORT 5 Series Model N/A Model Difference N/A Sample number 251215007-1 Battery Model: LiFHPS496487PFH Rated Voltage: 3.87V Charge Limit Voltage: 4.45 V Capacity: 5000mAh Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled Hardware Version E5J7_MAIN_PCB_V1.1 Software Version FORT_5_EEA_E5J7_V1.0_A16_01_20250107V02 Frequency Range GSM 850: 824 MHz ~ 849 MHz PCS1900: 1850 MHz ~ 1910 MHz WCDMA Band 2: 1850 MHz ~ 1910 MHz WCDMA Band 4:1710 MHz ~ 1755 MHz WCDMA Band 5: 824 MHz ~ 849 MHz LTE Band 2: 1850 MHz ~ 1910 MHz LTE Band 4: 1710 MHz ~ 1755 MHz LTE Band 5: 824 MHz ~ 849 MHz LTE Band 7:2500 MHz ~ 2570 MHz LTE Band 12: 699 MHz ~ 716 MHz LTE Band 17: 704 MHz ~ 716 MHz LTE Band 41: 2496 MHz ~ 2690 MHz LTE Band 66: 1710 MHz ~ 1780 MHz WLAN802.11b/g/n20: 2412 MHz ~ 2462 MHz WLAN 802.11n40: 2422 MHz ~ 2452 MHz WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5150 ~ 5250 MHz WLAN 802.11a/n20/n40/ac20/ac40/ac80: 5725 ~ 5850 MHz Bluetooth: 2402 MHz to 2480 MHz NFC: 13.56MHz Max. Reported SAR(1g): (Limit:1.6W/kg) Test distance: Head:0mm Body:10mm Band Mode Head (W/kg) Body Worn and Hotspot(W/kg) PCE GSM 850 0.395 0.128 PCE GSM 1900 0.759 0.342 PCE WCDMA Band 2 1.167 0.306 PCE WCDMA Band 4 1.162 0.223 PCE WCDMA Band 5 0.186 0.156 PCE LTE Band 2 0.881 0.226 PCE LTE Band 4 0.730 0.169 PCE LTE Band 5 0.228 0.254 PCE LTE Band 7 0.206 0.605 Page 6 of 150 Report No.: STS2512170H02 PCE LTE Band 12 0.133 0.164 PCE LTE Band 17 0.135 0.166 PCE LTE Band 41 0.134 0.246 PCE LTE Band 66 0.788 0.165 DTS 2.4G WLAN 0.103 0.310 DSS BT NOTE 0.070 0.014 NII 5.2G WLAN 0.153 0.086 NII 5.8G WLAN 0.180 0.087 1-g Sum SAR 1.347 0.915 FCC Equipment Class Licensed Portable Transmitter Held to Ear (PCE) Part 15 Spread Spectrum Transmitter (DSS) Digital Transmission System (DTS) Unlicensed National Information Infrastructure TX(NII) Operating Mode: GSM: GSM Voice; GPRS/EGPRS Class 12 WCDMA: RMC, HSDPA, HSUPA Release 6 LTE: QPSK, 16QAM 2.4G WLAN : 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFD…

Text truncated - open the document above for the full version.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2512170W21 Issued for HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong, China Product Name: Smart Phone Brand Name: Blackview Model Name: FORT 5 Series Model(s): N/A FCC ID: 2BSW8-FORT5 Test Standards: FCC Part15.225 Page 2 of 31 Report No.: STS2512170W21 TEST REPORT Applicant’s Name ................. : HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED Address ................................. : 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong, China Manufacturer's Name ........... : Shenzhen Doke Electronic Co., LTD Address ................................. : 801, Building3, 7th Industrial Zone, Yulv Community, Yutang Road, Guangming District, Shenzhen, China Product Description Product Name ........................ : Smart Phone Brand Name .......................... : Blackview Model Name .......................... : FORT 5 Series Model(s) ...................... : N/A Standards ............................. : FCC Part15.225 Test Procedure....................: ANSI C63.10: 2020 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 18 Dec. 2025 Date (s) of performance of tests ............. : 18 Dec. 2025~28 Jan. 2025 Date of Issue .......................................... : 28 Jan. 2025 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 31 Report No.: STS2512170W21 TABLE OF CONTENTS Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3. EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.2 TEST PROCEDURE 13 3.3 TEST SETUP 13 3.4 EUT OPERATING CONDITIONS 13 3.5 TEST RESULTS 14 4. RADIATED EMISSION MEASUREMENT 16 4.1 RADIATED EMISSION LIMITS 16 4.2 TEST PROCEDURE 18 4.3 TEST SETUP 19 4.4 EUT OPERATING CONDITIONS 19 4.5 FIELD STRENGTH CALCULATION 20 4.6 TEST RESULTS 21 5. FREQUENCY TOLERANCE 26 5.1 LIMIT 26 5.2 TEST PROCEDURE 26 5.3 TEST SETUP 26 5.4 EUT OPERATION CONDITIONS 26 5.5 TEST RESULTS 27 6. 20DB BANDWIDTH 28 6.1 LIMIT 28 6.2 TEST PROCEDURE 28 6.3 TEST SETUP 28 Page 4 of 31 Report No.: STS2512170W21 TABLE OF CONTENTS Page 6.4 EUT OPERATION CONDITIONS 28 6.5 TEST RESULTS 29 7. ANTENNA REQUIREMENT 30 7.1 STANDARD REQUIREMENT 30 7.2 EUT ANTENNA 30 APPENDIX 1- PHOTOS OF TEST SETUP 31 Page 5 of 31 Report No.: STS2512170W21 Revision History Rev. Issue Date Report No. Effect Page Contents 00 28 Jan. 2025 STS2512170W21 ALL Initial Issue Page 6 of 31 Report No.: STS2512170W21 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 15.225 , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.209 15.225(a)(b)(c)(d) Radiated Emission PASS -- 15.225(e) Frequency Tolerance PASS -- 15.203 Antenna Requirement PASS -- 15.215 20dB Bandwidth PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 7 of 31 Report No.: STS2512170W21 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.751dB 2 Unwanted Emissions, conducted ±2.888dB 3 All emissions, radiated 9K-30MHz ±2.48dB 4 All emissions, radiated 30M-1GHz ±2.52dB 5 All emissions, radiated 1G-18GHz ±3.48dB 6 All emissions, radiated>18GHz ±4.18dB 7 Conducted Emission (9KHz-150KHz) ±2.48dB 8 Conducted Emission (150KHz-30MHz) ±2.52dB 9 Occupied Channel Bandwidth ±3.6% 10 Power Spectral Density, conducted ±1.214dB 11 Duty Cycle ±3.2% Page 8 of 31 Report No.: STS2512170W21 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Smart Phone Brand Name Blackview Model Name FORT 5 Serial Model(s) N/A Model Difference N/A Product Description The EUT is a Smart Phone Operation Frequency: 13.56MHz Modulation Type: ASK Antenna Designation: Coil Antenna Antenna Gain (dBi) 0dBi Power Rating Input:11.0V3.0A (By Adapter), 9V1.67A (By WPT) Adapter Model: HJ-C6-33-US Input: 100-240~50/60Hz 0.8A Output: 5.0V3.0A 15.0W or 9.0V3.0A 27.0W or 12.0V 2.5A 30.0W or 15.0V2.0A 30.0W or 20.0V1.5A 30.0W PPS: 3.3V-11.0V3.0A 33.0W MAX Battery Model: LiFHPS496487PFH Rated Voltage: 3.87V Charge Limit Voltage: 4.45 V Capacity: 5000mAh Hardware version number E5J7_MAIN_PCB_V1.1 Software version number FORT_5_EEA_E5J7_V1.0_A16_01_20250107V02 Connecting I/O Port(s) Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. Table for filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) NOTE A Blackview FORT 5 Coil Antenna N/A 0 ANT Note: The antenna information refer the manufacturer provide report, …

Text truncated - open the document above for the full version.

Page 1 of 3 FCC ID: 2BSW8-FORT5 Setup photo AC Conduction RF Conduction Page 2 of 3 FCC ID: 2BSW8-FORT5 RE (Below 30MHz) RE (Below 1GHz) Page 3 of 3 FCC ID: 2BSW8-FORT5 RE (Above 1GHz)
