2BSW8-NEST21Digital Calendar

HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED Address: 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong Product Name: Digital Calendar FCC ID: 2BSW8-NEST21 Model(s): NEST 21 2.911(d)(5)(i) EquipmentType We, [HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED ] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Date: Yourssincerely, Name: Xiuying Zou 9/4/2026 Title and Company name: Manager / HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED 2.911 (d)(5)(i) Equipment Type Attestation v1.2 References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED Address: 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong Product Name: Digital Calendar FCC ID: 2BSW8-NEST21 Model(s): NEST 21 2.911(d)(5)(ii) Applicant filing We, [HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: zouxiuxing Date: 9/9/2026 Title and Company name: Manager / HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED 2.911 (d)(5)(ii) Applicant Attestation v1.3 References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED 19HMaxgrandPlaza,No.3TaiYauStreet,SanPo Kong,Kowloon,HongKong FederalCommunicationsCommissionDate ： 2026-09.03 AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 FCCID:2BSW8-NEST21 FRN:0037627072 USAgent–AttestationStatement/Part2.911(d)(7) HONGKONGLELEGAOTECHNOLOGYCO.,LIMITEDcertifies,thatasof2025-12-12,wehave designatedFCCUSAgent,LLCtoacceptserviceofprocessonourbehalfforFCCID:2BSW8- NEST21 [HONGKONGLELEGAOTECHNOLOGYCO.,LIMITED],acceptstomaintainanagentofservice ofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingthe equipment,whicheverislater. FCCUSAgent,LLC,acceptsasofthedateofthefilingofthisapplication,theobligationofbeing thedesignatedagentforthepurposeofacceptingserviceofprocessonbehalfofHONGKONG LELEGAOTECHNOLOGYCO.,LIMITEDforFCCID:2BSW8-NEST21. DesignatedAgentInformation: CompanyName:FCCUSAgent,LLC FRN:0033402884 Address:3722IllinoisAvenue,SaintCharles,IL,60174,USA ContactPerson:TimPayne Phone:708-571-3148 Email:[email protected] Sincerely, Company:HONGKONGLELEGAO TECHNOLOGYCO.,LIMITED DesignatedAgent:FCCUSAgent,LLC CompanyRepresentative: XiuyingZou DesignatedAgentRepresentative:TimPayne Signature: Signature:

HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2026/09/3 Subject; Request for Confidentiality FCC ID: 2BSW8-NEST21 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES Tune up In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED Name: Zouxuxing Title: Manager Email: [email protected]

Letter of Authorization Company name: HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED Address: 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong Product Name: Digital Calendar FCC ID: 2BSW8-NEST21 Model(s): NEST 21 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Date: 2026-09- Name: Xiuying Zou 04 Title: Manager Signature of applicant:

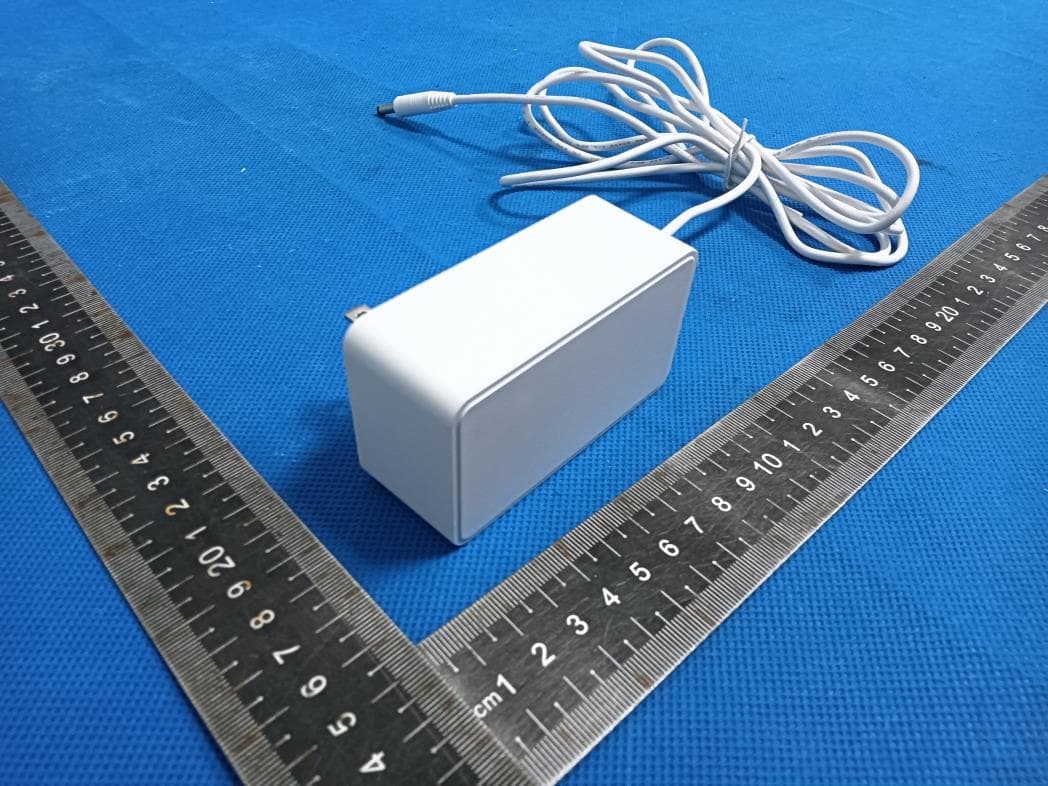

ATTACHMENT PHOTOGRAPHS OF EXT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

70*19mm

FCC ID: 2BSW8-NEST21 RF EXPOSURE EVALUATION According to FCC 2.1091，1.1310 and KDB 447498 D01 General RF Exposure Guidance v06, The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d G P * * 30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Antenna gain:3.14dBi; R=20cm BR+EDR conducted power Evaluation result Power density Limits (dBm) (mW) (dBi) Numeric 2402 8.59 9±1 10 10.000 3.14 2.06 0.0041 1 2441 8.85 9±1 10 10.000 3.14 2.06 0.0041 1 2480 9.45 9±1 10 10.000 3.14 2.06 0.0041 1 2402 7.88 8±1 9 7.943 3.14 2.06 0.0033 1 2441 8.14 8±1 9 7.943 3.14 2.06 0.0033 1 2480 8.85 8±1 9 7.943 3.14 2.06 0.0033 1 2402 8.48 9±1 10 10.000 3.14 2.06 0.0041 1 2441 8.59 9±1 10 10.000 3.14 2.06 0.0041 1 2480 9.31 9±1 10 10.000 3.14 2.06 0.0041 1 Gain Channel Freq. (MHz) modulation (mW/cm2) GFSK π/4- DQPSK 8-DPSK (dBm) Tune-up power (dBm) (mW/cm2 ) Max Antenna tune-up power BLE: Antenna gain: 3.14dBi; R=20cm conducted power Evaluation result Power density Limits (dBm) (mW) (dBi) Numeric 2402 5.74 6±1 7 5.012 3.14 2.06 0.0021 1 2440 5.93 6±1 7 5.012 3.14 2.06 0.0021 1 2480 6.73 6±1 7 5.012 3.14 2.06 0.0021 1 2402 5.66 6±1 7 5.012 3.14 2.06 0.0021 1 2440 5.84 6±1 7 5.012 3.14 2.06 0.0021 1 2480 6.65 6±1 7 5.012 3.14 2.06 0.0021 1 Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) BLE 2M (mW/cm2 ) (mW/cm2) Antenna Gain BLE 1M Max tune-up power 2.4G WIFI Antenna gain: 3.14dBi; R=20cm conducted power Evaluation result Power density Limits (dBm) (mW) (dBi) Numeric Ant 1 2412 13.62 13±1 14 25.119 3.14 2.06 0.0103 1 Ant 1 2437 13.88 13±1 14 25.119 3.14 2.06 0.0103 1 Ant 1 2462 13.95 13±1 14 25.119 3.14 2.06 0.0103 1 Ant 1 2412 14.13 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2437 15.05 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2462 15.11 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2412 14.57 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2437 15.08 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2462 14.54 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2422 14.56 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2437 15.47 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2452 15.03 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2412 14.42 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2437 15.06 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2462 14.71 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2422 14.45 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2437 15.5 15±1 16 39.811 3.14 2.06 0.0163 1 Ant 1 2452 15.18 15±1 16 39.811 3.14 2.06 0.0163 1 802.11g Antenna tune-up power Tune-up power (dBm) (dBm) Max 802.11b 802.11ax20 802.11ax40 (mW/cm2) Antenna Gain Channel Freq. (MHz) (mW/cm2 ) modulation 802.11n H40 802.11n H20 5G WIFI: Antenna gain :3.41dBi R=20cm 5.2G conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric Ant 15180 10.311±112.0015.8493.412.190.00691 Ant 15200 10.5511±112.0015.8493.412.190.00691 Ant 15240 11.4211±112.0015.8493.412.190.00691 Ant 15180 10.1411±112.0015.8493.412.190.00691 Ant 15200 10.5211±112.0015.8493.412.190.00691 Ant 15240 11.3111±112.0015.8493.412.190.00691 Ant 15190 10.1511±112.0015.8493.412.190.00691 Ant 15230 11.2111±112.0015.8493.412.190.00691 Ant 15180 10.1811±112.0015.8493.412.190.00691 Ant 15200 10.3111±112.0015.8493.412.190.00691 Ant 15240 11.5311±112.0015.8493.412.190.00691 Ant 15190 10.1311±112.0015.8493.412.190.00691 Ant 15230 11.2611±112.0015.8493.412.190.00691 Ant 15180 10.3411±112.0015.8493.412.190.00691 Ant 15200 10.5111±112.0015.8493.412.190.00691 Ant 15240 11.4511±112.0015.8493.412.190.00691 Ant 15190 10.3210±111.0012.5893.412.190.00551 Ant 15230 10.8410±111.0012.5893.412.190.00551 802.11a Channel Freq. (MHz) (dBm) Tune-up power (dBm) (mW/cm2 )(mW/cm2) Antenna MaxAntenna tune-up powerGain modulation 802.11ac20 802.11n40 802.11ax20 802.11ax40 802.11n20 802.11n40 5.8G conducted power Evaluation result Power density Limits (dBm) (mW) (dBi) Numeric Ant 1 5745 12.87 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5785 13.79 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5825 14.4 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5745 12.7 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5785 13.86 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5825 14.18 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5755 12.88 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5795 14 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5745 12.64 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5785 13.75 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5825 14.06 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5755 13.04 13±1 14.00 25.119 3.41 2.19 0.0110 1 Ant 1 5795 13.99 13±1 14.00 25.119 3.41 2.19 0.0110 1 Ant 1 5745 12.57 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5785 13.73 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5825 14.19 13.5±1 14.50 28.184 3.41 2.19 0.0123 1 Ant 1 5755 12.88 13±1 14.00 25.119 3.41 2.19 0.0110 1 Ant 1 5795 13.91 13±1 14.00 25.119 3.41 2.19 0.0110 1 Gain modulation (dBm) Tune-up power (dBm) (mW/cm2 ) (mW/cm2) 802.11n20 802.11n40 Antenna Max Antenna tune-up power 802.11ac20 802.11ac40 802.11ax20 802.11ax40 802.11a Channel Freq. (MHz) Conclusion: For the max result : 0.0163≤ 1.0, SAR is not required. Signature: Date: 2026-09-04 NAME AND TITLE (Please print or type): Judson Jia /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China

ShenzhenXinbinuoCommunicationTechnologyCo.,Ltd Customer:DUOKE Project:DK128 ME:XiaoXiang-13316888409 RF:RiXinHuang-13682667404 Date:JULY30,2026 ReportType: VersionNo.:V1.0 Status:T0 Frequencyband: 2.4G/5GWIFI/BT Antennamatchingcircuit: PassiveWifi/BTantenna： ShenzhenXinbinuoCommunicationTechnologyCo.,Ltd Antennagain: Frequency（MHZ)Gain(dBi） WIFI2.4G/BT3.14 WIFI5.8G3.41 ShenzhenXinbinuoCommunicationTechnologyCo.,Ltd WIFIOTA: ShenzhenXinbinuoCommunicationTechnologyCo.,Ltd 3DPattern Environmentaltreatment ShenzhenXinbinuoCommunicationTechnologyCo.,Ltd

Report No.: N26072109813E Version.1.3 Page 1 of 104 RADIO TEST REPORT FCC ID: 2BSW8-NEST21 Product: Digital Calendar Trade Mark: Blackview Model No.: NEST 21 Family Model: N/A Report No.: N26072109813E Issue Date: Aug. 24, 2026 Prepared for HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website: http://www.ntek.org.cn Report No.: N26072109813E Version.1.3 Page 2 of 104 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 34 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 35 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 36 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 38 7.7 PEAK OUTPUT POWER .............................................................................................................................. 39 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 40 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 41 7.10 ANTENNA APPLICATION .......................................................................................................................... 42 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 43 8 TEST RESULTS ................................................................................................................................................... 44 8.1 DWELL TIME .......................................................................................................................................................... 44 8.2 MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................................. 54 8.3 -20DB BANDWIDTH ............................................................................................................................................... 60 8.4 OCCUPIED CHANNEL BANDWIDTH ........................................................................................................................ 66 8.5 CARRIER FREQUENCIES SEPARATION ..................................................................................................................... 72 8.6 NUMBER OF HOPPING CHANNEL ........................................................................................................................... 78 8.7 BAND EDGE ........................................................................................................................................................... 81 8.8 BAND EDGE(HOPPING) .......................................................................................................................................... 88 8.9 CONDUCTED RF SPURIOUS EMISSION ................................................................................................................... 95 Report No.: N26072109813E Version.1.3 Page 3 of 104 1 TEST RESULT CERTIFICATION Applicant’s name .........................: HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED Address ........................................: 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong Manufacturer's Name ..................: Shenzhen Doke Communica…

Text truncated - open the document above for the full version.

Report No.: N26072109813E Version.1.3 Page 53 of 104 Dwell NVNT 3-DH5 2441MHz Ant1 One Burst Dwell NVNT 3-DH5 2441MHz Ant1 Accumulated Report No.: N26072109813E Version.1.3 Page 54 of 104 8.2 MAXIMUM CONDUCTED OUTPUT POWER Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH5 2402 Ant1 8.59 21 Pass NVNT 1-DH5 2441 Ant1 8.85 21 Pass NVNT 1-DH5 2480 Ant1 9.45 21 Pass NVNT 2-DH5 2402 Ant1 7.88 21 Pass NVNT 2-DH5 2441 Ant1 8.14 21 Pass NVNT 2-DH5 2480 Ant1 8.85 21 Pass NVNT 3-DH5 2402 Ant1 8.48 21 Pass NVNT 3-DH5 2441 Ant1 8.59 21 Pass NVNT 3-DH5 2480 Ant1 9.31 21 Pass Report No.: N26072109813E Version.1.3 Page 55 of 104 Test Graphs Power NVNT 1-DH5 2402MHz Ant1 Power NVNT 1-DH5 2441MHz Ant1 Report No.: N26072109813E Version.1.3 Page 56 of 104 Power NVNT 1-DH5 2480MHz Ant1 Power NVNT 2-DH5 2402MHz Ant1 Report No.: N26072109813E Version.1.3 Page 57 of 104 Power NVNT 2-DH5 2441MHz Ant1 Power NVNT 2-DH5 2480MHz Ant1 Report No.: N26072109813E Version.1.3 Page 58 of 104 Power NVNT 3-DH5 2402MHz Ant1 Power NVNT 3-DH5 2441MHz Ant1 Report No.: N26072109813E Version.1.3 Page 59 of 104 Power NVNT 3-DH5 2480MHz Ant1 Report No.: N26072109813E Version.1.3 Page 60 of 104 8.3 -20DB BANDWIDTH Condition Mode Frequency (MHz) Antenna -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 Ant1 0.926 Pass NVNT 1-DH5 2441 Ant1 0.962 Pass NVNT 1-DH5 2480 Ant1 0.946 Pass NVNT 2-DH5 2402 Ant1 1.312 Pass NVNT 2-DH5 2441 Ant1 1.318 Pass NVNT 2-DH5 2480 Ant1 1.328 Pass NVNT 3-DH5 2402 Ant1 1.324 Pass NVNT 3-DH5 2441 Ant1 1.334 Pass NVNT 3-DH5 2480 Ant1 1.332 Pass Report No.: N26072109813E Version.1.3 Page 61 of 104 Test Graphs -20dB Bandwidth NVNT 1-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 1-DH5 2441MHz Ant1 Report No.: N26072109813E Version.1.3 Page 62 of 104 -20dB Bandwidth NVNT 1-DH5 2480MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2402MHz Ant1 Report No.: N26072109813E Version.1.3 Page 63 of 104 -20dB Bandwidth NVNT 2-DH5 2441MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2480MHz Ant1 Report No.: N26072109813E Version.1.3 Page 64 of 104 -20dB Bandwidth NVNT 3-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 3-DH5 2441MHz Ant1 Report No.: N26072109813E Version.1.3 Page 65 of 104 -20dB Bandwidth NVNT 3-DH5 2480MHz Ant1 Report No.: N26072109813E Version.1.3 Page 66 of 104 8.4 OCCUPIED CHANNEL BANDWIDTH Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT 1-DH5 2402 Ant1 0.849 NVNT 1-DH5 2441 Ant1 0.871 NVNT 1-DH5 2480 Ant1 0.869 NVNT 2-DH5 2402 Ant1 1.197 NVNT 2-DH5 2441 Ant1 1.211 NVNT 2-DH5 2480 Ant1 1.205 NVNT 3-DH5 2402 Ant1 1.195 NVNT 3-DH5 2441 Ant1 1.197 NVNT 3-DH5 2480 Ant1 1.201 Report No.: N26072109813E Version.1.3 Page 67 of 104 Test Graphs OBW NVNT 1-DH5 2402MHz Ant1 OBW NVNT 1-DH5 2441MHz Ant1 Report No.: N26072109813E Version.1.3 Page 68 of 104 OBW NVNT 1-DH5 2480MHz Ant1 OBW NVNT 2-DH5 2402MHz Ant1 Report No.: N26072109813E Version.1.3 Page 69 of 104 OBW NVNT 2-DH5 2441MHz Ant1 OBW NVNT 2-DH5 2480MHz Ant1 Report No.: N26072109813E Version.1.3 Page 70 of 104 OBW NVNT 3-DH5 2402MHz Ant1 OBW NVNT 3-DH5 2441MHz Ant1 Report No.: N26072109813E Version.1.3 Page 71 of 104 OBW NVNT 3-DH5 2480MHz Ant1 Report No.: N26072109813E Version.1.3 Page 72 of 104 8.5 CARRIER FREQUENCIES SEPARATION Condition Mode Antenna Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH5 Ant1 2402.026 2402.998 0.972 0.617 Pass NVNT 1-DH5 Ant1 2441.024 2442.01 0.986 0.641 Pass NVNT 1-DH5 Ant1 2478.986 2480.036 1.05 0.631 Pass NVNT 2-DH5 Ant1 2401.832 2402.834 1.002 0.875 Pass NVNT 2-DH5 Ant1 2440.994 2441.996 1.002 0.879 Pass NVNT 2-DH5 Ant1 2478.978 2480.06 1.082 0.885 Pass NVNT 3-DH5 Ant1 2401.996 2403.062 1.066 0.883 Pass NVNT 3-DH5 Ant1 2440.994 2441.996 1.002 0.889 Pass NVNT 3-DH5 Ant1 2479.16 2480.156 0.996 0.888 Pass Report No.: N26072109813E Version.1.3 Page 73 of 104 Test Graphs CFS NVNT 1-DH5 2402MHz Ant1 CFS NVNT 1-DH5 2441MHz Ant1 Report No.: N26072109813E Version.1.3 Page 74 of 104 CFS NVNT 1-DH5 2480MHz Ant1 CFS NVNT 2-DH5 2402MHz Ant1 Report No.: N26072109813E Version.1.3 Page 75 of 104 CFS NVNT 2-DH5 2441MHz Ant1 CFS NVNT 2-DH5 2480MHz Ant1 Report No.: N26072109813E Version.1.3 Page 76 of 104 CFS NVNT 3-DH5 2402MHz Ant1 CFS NVNT 3-DH5 2441MHz Ant1 Report No.: N26072109813E Version.1.3 Page 77 of 104 CFS NVNT 3-DH5 2480MHz Ant1 Report No.: N26072109813E Version.1.3 Page 78 of 104 8.6 NUMBER OF HOPPING CHANNEL Condition Mode Antenna Hopping Number Limit Verdict NVNT 1-DH5 Ant1 79 15 Pass NVNT 2-DH5 Ant1 79 15 Pass NVNT 3-DH5 Ant1 79 15 Pass Report No.: N26072109813E Version.1.3 Page 79 of 104 Test Graphs Hopping No. NVNT 1-DH5 2402MHz Ant1 Hopping No. NVNT 2-DH5 2402MHz Ant1 Report No.: N26072109813E Version.1.3 Page 80 of 104 Hopping No. NVNT 3-DH5 2402MHz Ant1 Report No.: N26072109813E Version.1.3 Page 81 of 104 8.7 BAND EDGE Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 No-Hopping -57.32 -20 Pass NVNT 1-DH5 2480 Ant1 No-Hopping -59.49 -20 Pass NVNT 2-DH5 2402 Ant1 No-Hopping -53.31 -20 Pass NVNT 2-DH5 2480 Ant1 No-Hopping -56.49 -20 Pass NVNT 3-DH5 2402 Ant1 No-Hopping -54.97 -20 Pass NVNT 3-DH5 2480 Ant1 No-Hopping -55.53 -20 Pass Report No.: N26072109813E Version.1.3 Page 82 of 104 Test Graphs Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission Report No.: N26072109813E Version.1.3 Page 83 of 104 Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission Report No.: N26072109813E Version.1.3 Page 84 of 104 Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission Report No.: N26072109813E Version.1.3 Page 85 of 104 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Report No.: N26072109813E Version.1.3 Page 86 of 104 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Report No.: N26072109813…
