2BSXT-KSY3100AKorotkoff Sound Blood Pressure Monitor

Korotkoff Sound Blood Pressure Monitor User Manual KSY3100 | KSY3100B | KSY3120 | KSY3120B | KSY3128B | KSY3100A Beijing Hanvon Health Technology Co., Ltd. ● Thank you for purchasing Hanvon Korotkoff Sound Blood Pressure Monitor. ● To ensure safe usage of this product, please read this user manual carefully before use. ● After reading, please keep it carefully for future reference. ● This Blood Pressure Monitor utilizes the electronic Korotkoff sound method for measurement. ● This product is suitable for scenarios such as families, hospitals, and clinics, etc. Intended purpose: The device is a digital monitor intended for use in measuring the systolic pressure and diastolic pressure, as well as the pulse rate of adults and adolescents via a non-invasive auscultatory method in medical facilities or at home, with an inflatable cuff wrapped around the upper arm for arm circumfer- ences ranging from 22 to 42 cm. The measurement ranges of the device are systolic pressure 40 ~ 280 mmHg (supported by automatic mode for 40 to 210 mmHg and manual mode for 210 to 280 mmHg), diastolic pressure 20 ~ 220 mmHg, and pulse rate 40 ~ 240 beats/min. The device can detect Irregular Heart Beat(IHB) and Tachycardia. Models KSY3128B and KSY3100A additionally support Atrial Fibrillation detection. Intended Patient: Adults and adolescents （ ＞ 12 years） Clinical Benefit: Patient’s blood pressure can be measured non-invasively and simply in the home and clinical environment. Contraindications: DO NOT use this monitor on an injured arm or an arm under medical treatment. DO NOT apply the arm cuff on your arm while on an intravenous drip or blood transfusion. DO NOT use this monitor on infants, toddlers, children or persons who cannot express themselves. Structural Composition: It is composed of the main unit, the cuff, and the AC adapter (optional). 1.2 Component Description Main Unit (front)Main Unit (left) 1. Product Introduction 1.1 Packing List All products are packed inside the packaging box. Open the box to check whether the products are complete. The list of items included in the box is shown in the table below. If you find any missing items, please contact the after-sales service. Packing List Main Unit 1 unit Cuff 1 piece User Manual Quick Operation Guide 1 copy 1 copy Quantity Air Tube Connector Socket Backward Button Forward Button "Start/Stop" Button Volume Button 2.Safety Precautions The terms "Warning" and "Caution" used in this manual pertain to the safety of using this product, with the following specific meanings: Warning: Failure to comply may result in personal injury or death. Caution: Failure to comply may result in personal injury or damage to property. Main Unit(right)Main Unit (bottom) Cuff Air Tube Plug Cuff's Air Tube * This product only supports the dedicated cuff of Hanvon. Explanation of Symbols 1.3 Function Introduction Type-C Charging Port Cuff Malfunction Prompt Korotkoff Sound Playback Icon Suggestive of Atrial Fibrillation (AFib) Prompt Irregular Pulse Prompt Diastolic Blood Pressure (DIA) Time Display Data Transmission Icon Volume Icon Battery Level Icon Memory Icon High Blood Pressure Prompt Normal Blood Pressure Prompt Measurement Method Motion Prompt Average Value Icon Re-measure Prompt Tachycardia Prompt Inproper Wearing Prompt 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Value Unit Icon 17 18 Pulse Rate 19 Electronic Mercury Column Icon 20 21 Systolic Blood Pressure (SYS) 22 4321 5 6 7 8 20 22 9 11 10 12 13 14 15 1617 18 19 21 Refer to instruction manual/ booklet Temperature limit Humidity limitation Atmospheric pressure limitation Keep away from sunlight Keep dry Manufacturer Authorized representative in the European Community Unique Device Identifier Medical device Model number Warning Caution CLASS II equipment Device classification: Authorized EU type BF applied part Non-ionizing electromagnetic radiation Serial number Date of manufacture LOT number Ingress Protection Rating anesthetic gases mixed with air, oxygen, or nitrous oxide. 20. Do not use this device near televisions, microwave ovens, mobile phones, X-ray equipment, or other sources of strong electromagnetic fields, as these may interfere with measurements. 21. This Blood Pressure Monitor and cuff are not waterproof, so avoid rain, sweat, and water. Do not use in damp or splash-prone areas. 22. This Blood Pressure Monitor is a precision instrument; avoid excessive use in unsuitable environments such as high temperatures, low temperatures, humidity, direct sunlight, vibration, or dust. 23. When the ambient temperature is 20°C, the Electronic Blood Pressure Monitor requires a 4-hour stabilization period after being moved from the minimum or maximum storage temperature before it is ready for measurement. 24. Operating environment: Temperature: 5°C - 40°C, relative humidity: 15% - 90%, non-condensing, atmospheric pressure: 700hPa - 1060hPa. 25. Transport and storage environment: Temperature: -20°C - 55°C, relative humidity: <93%, non-condensing, atmospheric pressure: 500hPa - 1060hPa. 26. If stored or used outside the manufacturer's specified temperature, relative humidity, and atmospheric pressure ranges, the system may not achieve the claimed performance specifications. 27. This device can be charged via a Type-C interface, charging input: DC 5V 1A. Please use an AC adapter that complies with the require- ments of IEC 60601-1 standard. 28. Non-transit- operable. 29. Cuff is the applied part. 30. This Blood Pressure Monitor has undergone clinical investigation in accordance with the requirements of ISO 81060-2:2018+AMD 1:2020. Warning 1. Do not frequently measure blood pressure unless medically necessary. Excessive frequent measurements may injure the patient due to blood flow interference, potentially leading to poor circula- tion or bruising. 2. If symptoms such as skin irritation occur during use, discontinue use and consult a physician; otherwise, symptoms may worsen. 3. If the Blood Pressure Monitor malfunctions or f…

Text truncated - open the document above for the full version.

(Beijing Hanvon Health Technology Co., Ltd.) (2025.11.28) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2BSXT-KSY3100A) [Beijing Hanvon Health Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Jack Yi (Beijing Hanvon Health Technology Co., Ltd.) (2025.11.28) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2BSXT-KSY3100A) [Beijing Hanvon Health Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Jack Yi

Beijing Hanvon Health Technology Co., Ltd. 2025.11.28 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Korotkoff Sound Blood Pressure Monitor Trademark: hanvon MODEL : KSY3100A, KSY3100B, KSY3120B, KSY3128B FCC ID : 2BSXT-KSY3100A To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Jack Yi / Manager Contact information / address: Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China

Beijing Hanvon Health Technology Co., Ltd. 2025.11.28 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen STS Test Services Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Jack Yi / Manager Contact information / address: Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China

Beijing Hanvon Health Technology Co., Ltd. Model Difference 2025-11-28 EUT NAME: Korotkoff Sound Blood Pressure Monitor FCC ID: 2BSXT-KSY3100A MODEL : KSY3100A, KSY3100B, KSY3120B, KSY3128B All the model are the same circuit and RF module, except model names, panel and button. Model KSY3100A, KSY3100B KSY3128B, KSY3120B Differences Regards Sincerely Client’s signature: Client’s name / title : Jack Yi / Manager Contact information / address: Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China

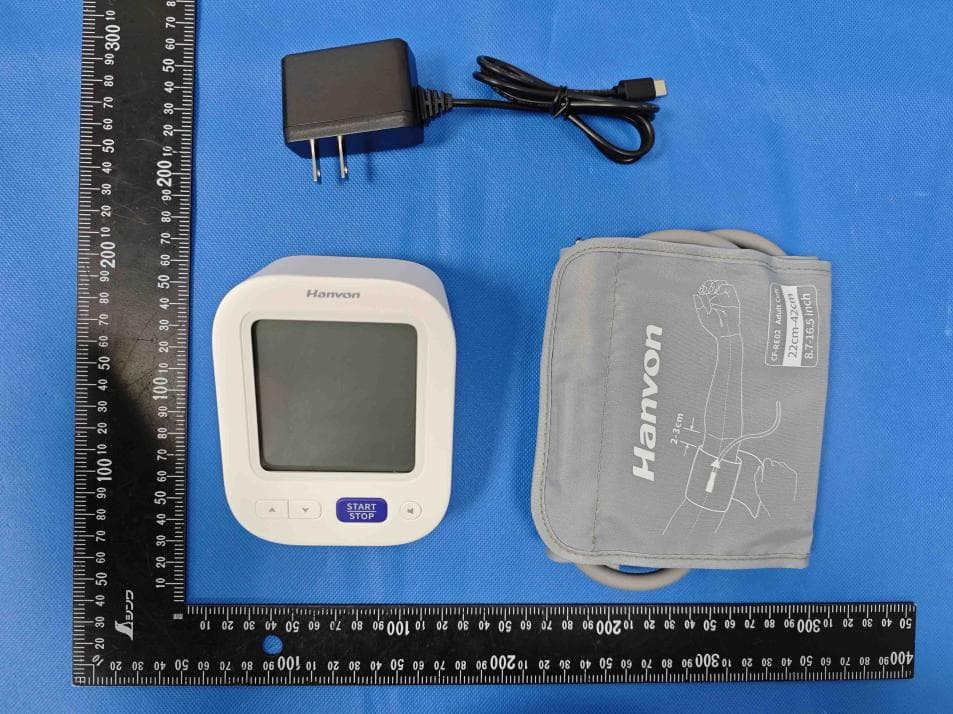

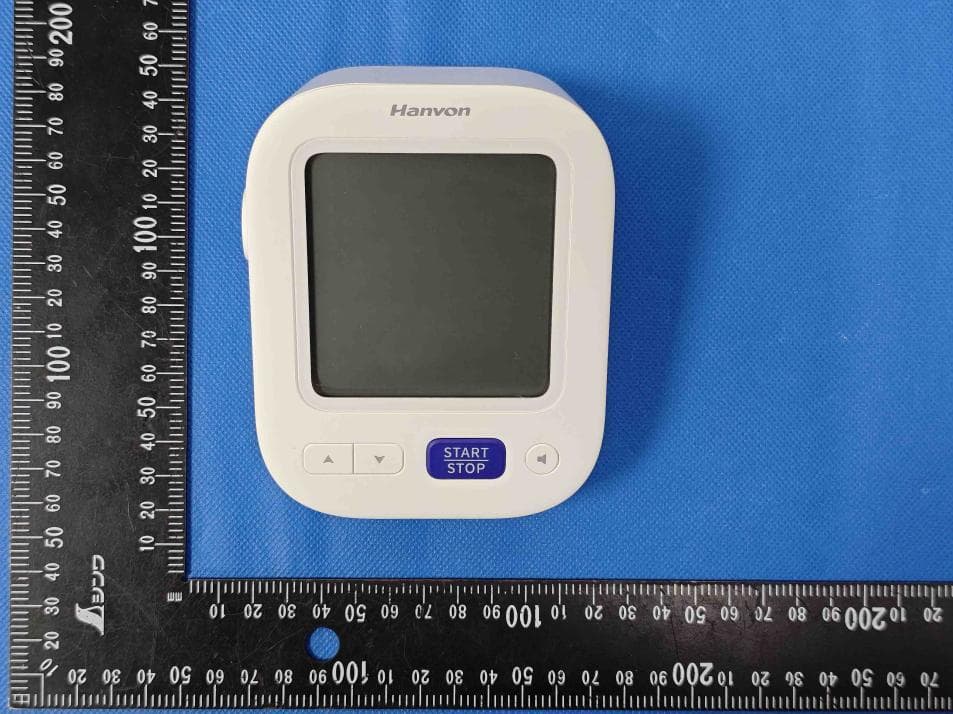

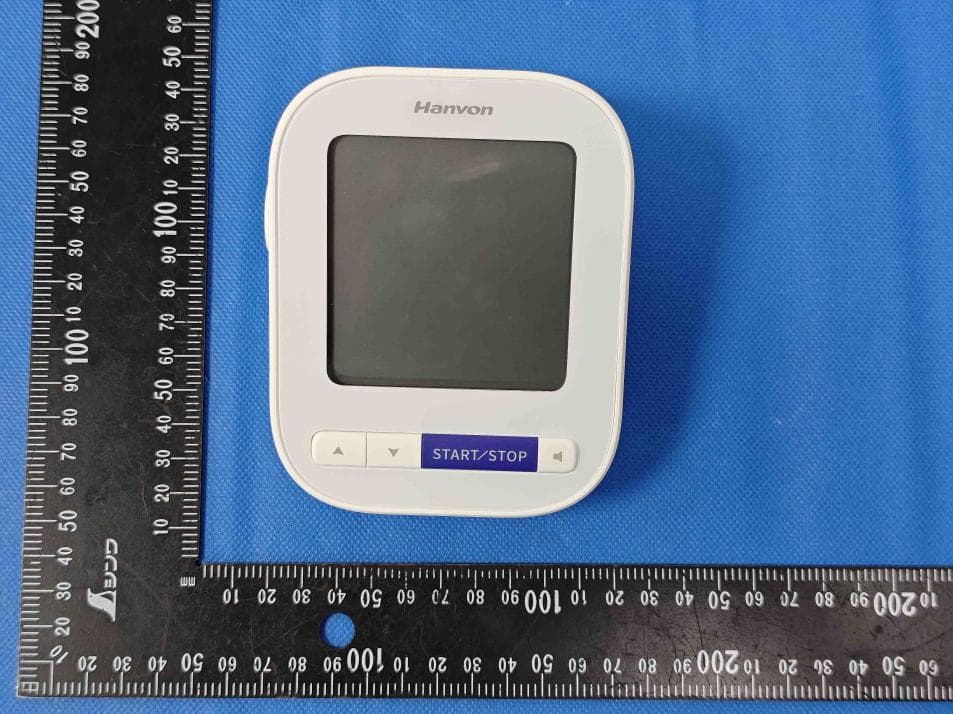

Page 1 of 13 FCC ID: 2BSXT-KSY3100A External Photos Model：KSY3100A, KSY3100B Page 2 of 13 FCC ID: 2BSXT-KSY3100A Page 3 of 13 FCC ID: 2BSXT-KSY3100A Page 4 of 13 FCC ID: 2BSXT-KSY3100A Page 5 of 13 FCC ID: 2BSXT-KSY3100A Model：KSY3128B, KSY3120B Page 6 of 13 FCC ID: 2BSXT-KSY3100A Page 7 of 13 FCC ID: 2BSXT-KSY3100A Page 8 of 13 FCC ID: 2BSXT-KSY3100A Page 9 of 13 FCC ID: 2BSXT-KSY3100A

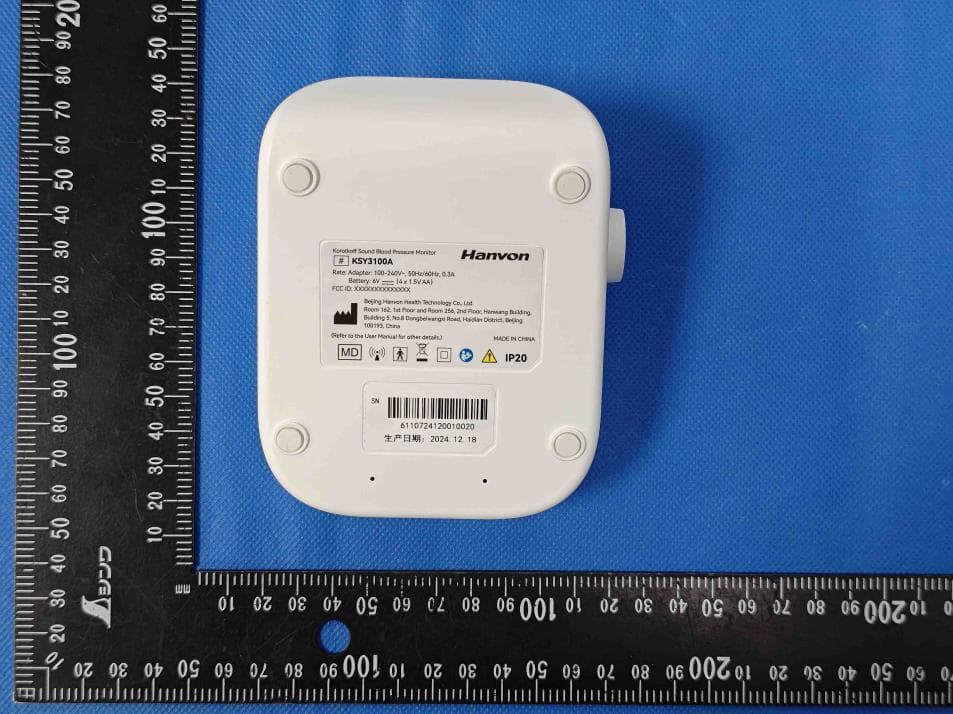

Size:50*30mm Korotkoff Sound Blood Pressure Monitor FCC ID: 2BSXT-KSY3100A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Label location

Report No.: BL-SZ2590540-AA 1 / 1 EUT PHOTO --BLANK BELOW-- Antenna

Page 10 of 13 FCC ID: 2BSXT-KSY3100A Internal Photos Page 11 of 13 FCC ID: 2BSXT-KSY3100A Antenna Page 12 of 13 FCC ID: 2BSXT-KSY3100A Page 13 of 13 FCC ID: 2BSXT-KSY3100A

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. MPE Report Report No.: STS2512341H01 Issued for Beijing Hanvon Health Technology Co., Ltd. Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China Product Name: Korotkoff Sound Blood Pressure Monitor Brand Name: hanvon Model Name: KSY3100A Series Model(s): KSY3100B, KSY3120B, KSY3128B FCC ID: 2BSXT-KSY3100A Test Standards: FCC 47CFR §2.1093 Page 2 of 8 Report No.: STS2512341H01 TEST REPORT Applicant’s Name ................. : Beijing Hanvon Health Technology Co., Ltd. Address ................................. : Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China Manufacturer's Name ........... : Beijing Hanvon Health Technology Co., Ltd. Address ................................. : Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China Product Description Product Name ........................ : Korotkoff Sound Blood Pressure Monitor Brand Name .......................... : hanvon Model Name .......................... : KSY3100A Series Model(s) ...................... : KSY3100B, KSY3120B, KSY3128B Test Standards ..................... : FCC 47CFR §2.1093 447498 D01 Interim General RF Exposure Guidance v06 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 1 Dec. 2025 Date (s) of performance of tests ............. : 1 Dec. 2025 to 19 Dec. 2025 Date of Issue .......................................... : 19 Dec. 2025 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 8 Report No.: STS2512341H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 Page 4 of 8 Report No.: STS2512341H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 19 Dec. 2025 STS2512341H01 ALL Initial Issue Page 5 of 8 Report No.: STS2512341H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Korotkoff Sound Blood Pressure Monitor Brand Name hanvon Model Name KSY3100A Series Model(s) KSY3100B, KSY3120B, KSY3128B Model Difference All the model are the same circuit and RF module, except model names, panel and button. Product Description The EUT is a Korotkoff Sound Blood Pressure Monitor Operation Frequency: 2402 – 2480 MHz Modulation Type: GFSK Antenna gain: 3.78dBi Antenna Designation: PCB antenna Power Rating DC 3.7V from battery, DC 5V from adapter Adapter Model: GJ12WA-0500100UW Input: AC 100-240V 50/60Hz 0.3A Output: DC 5V 1A Battery 3.7V Hardware Version N/A Software Version N/A 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 8 Report No.: STS2512341H01 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Page 7 of 8 Report No.: STS2512341H01 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 8 of 8 Report No.: STS2512341H01 2.3 TEST RESULT Maximum measured transmitter power. Worst Case Mode frequency Maximum Output Power Tune up tolerance Max Tune up GHz dBm dBm dBm GFSK(BLE) 2.440 0.11 0±1 1 Evaluation Result Mode Frequency Antenna Distance RF output power including tune up (dBm) SAR Test Exclusion Threshold SAR Test Exclusion Estimated SAR GHz mm dBm mw GFSK(BLE) 2.48 5 1 1.259 0.397 Yes / Note: 1. Remark: The worst case gain of the antenna is 3.78dBi. 2. Threshold at which no SAR required is 0.397≤ 3.0 for 1-g SAR, Separation distance ≤ 5mm. ※※※※※END OF THE REPORT※※※※※

Report No.: BL-SZ2590540-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Beijing Hanvon Health Technology Co., Ltd. Address: Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China Equipment Type: PCB antenna Model Name: KSY Brand Name: N/A Test Standard: IEEE Std 149-2021 Sample Arrival Date: Sep. 10, 2025 Test Date: Sep. 12, 2025 Date of Issue: Oct. 30, 2025 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Xia Long Approved by: Sunny Zou (Technical Director) _______________ _______________ _______________ Report No.: BL-SZ2590540-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Oct. 30, 2025 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory .................................................................................................................. 3 1.2 Test Location ...................................................................................................................... 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information .......................................................................................................... 4 2.2 Manufacturer Information .................................................................................................... 4 2.3 General Description for Equipment under Test (EUT) ......................................................... 4 2.4 Ancillary Equipment ............................................................................................................ 4 3 SUMMARY OF TEST RESULTS ............................................................................................... 5 3.1 Test Standards ................................................................................................................... 5 3.2 Test Verdict ........................................................................................................................ 5 3.3 Test Uncertainty ................................................................................................................. 5 4 GENERAL TEST CONFIGURATIONS ...................................................................................... 6 4.1 Test Condition .................................................................................................................... 6 4.2 Test Equipment List ............................................................................................................ 6 4.3 Test Setup .......................................................................................................................... 7 4.4 Test Frequencies ................................................................................................................ 7 ANNEX A TEST RESULTS .......................................................................................................... 8 A.1 Gain and Efficiency ............................................................................................................. 8 A.2 VSWR ................................................................................................................................. 8 ANNEX B RADIATION PATTERN ............................................................................................... 9 ANNEX C TEST SETUP PHOTOS ............................................................................................ 13 ANNEX D EUT PHOTO.............................................................................................................. 13 Report No.: BL-SZ2590540-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Report No.: BL-SZ2590540-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Beijing Hanvon Health Technology Co., Ltd. Address Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China 2.2 Manufacturer Information Manufacturer Beijing Hanvon Health Technology Co., Ltd. Address Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China 2.3 General Description…

Text truncated - open the document above for the full version.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2512341W01 Issued for Beijing Hanvon Health Technology Co., Ltd. Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China Product Name: Korotkoff Sound Blood Pressure Monitor Brand Name: hanvon Model Name: KSY3100A Series Model(s): KSY3100B, KSY3120B, KSY3128B FCC ID: 2BSXT-KSY3100A Test Standards: FCC Part15.247 Page 2 of 59 Report No.: STS2512341W01 TEST REPORT Applicant’s Name ................. : Beijing Hanvon Health Technology Co., Ltd. Address ................................. : Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China Manufacturer's Name .......... : Beijing Hanvon Health Technology Co., Ltd. Address ................................. : Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China Product Description Product Name ....................... : Korotkoff Sound Blood Pressure Monitor Brand Name .......................... : hanvon Model Name .......................... : ... : KSY3100A Series Model(s) .................... : KSY3100B, KSY3120B, KSY3128B Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the IC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ..................... : 1 Dec. 2025 Date (s) of performance of tests ............. : 1 Dec. 2025 to 19 Dec. 2025 Date of Issue .......................................... : 19 Dec. 2025 Test Result.............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 59 Report No.: STS2512341W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 11 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 TEST PROCEDURE 15 3.3 TEST SETUP 15 3.4 EUT OPERATING CONDITIONS 15 3.5 TEST RESULTS 16 4. RADIATED EMISSION MEASUREMENT 18 4.1 RADIATED EMISSION LIMITS 18 4.2 TEST PROCEDURE 20 4.3 TEST SETUP 21 4.4 EUT OPERATING CONDITIONS 21 4.5 FIELD STRENGTH CALCULATION 22 4.6 TEST RESULTS 23 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 TEST SETUP 32 5.4 EUT OPERATION CONDITIONS 32 5.5 TEST RESULTS 32 6. POWER SPECTRAL DENSITY TEST 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 Page 4 of 59 Report No.: STS2512341W01 Table of Contents Page 6.3 TEST SETUP 33 6.4 EUT OPERATION CONDITIONS 33 6.5 TEST RESULTS 33 7. BANDWIDTH TEST 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 7.3 TEST SETUP 34 7.4 EUT OPERATION CONDITIONS 34 7.5 TEST RESULTS 34 8. PEAK OUTPUT POWER TEST 35 8.1 LIMIT 35 8.2 TEST PROCEDURE 35 8.3 TEST SETUP 35 8.4 EUT OPERATION CONDITIONS 35 8.5 TEST RESULTS 35 9. ANTENNA REQUIREMENT 36 9.1 STANDARD REQUIREMENT 36 9.2 EUT ANTENNA 36 APPENDIX 1-TEST DATA 37 DUTY CYCLE 37 APPENDIX 2- EUT TEST PHOTO 59 Page 5 of 59 Report No.: STS2512341W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 19 Dec. 2025 STS2512341W01 ALL Initial Issue Page 6 of 59 Report No.: STS2512341W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- Note: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 59 Report No.: STS2512341W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.751dB 2 Unwanted Emissions, conducted ±2.888dB 3 All emissions, radiated 9K-30MHz ±2.48dB 4 All emissions, radiated 30M-1GHz ±2.52dB 5 All emissions, radiated 1G-18GHz ±3.48dB 6 All emissions, radiated>18GHz ±4.18dB 7 Conducted Emission (9KHz-150KHz) ±2.48dB 8 Conducted Emission (150KHz-30MHz) ±2.52dB 9 Occupied Channel Bandwidth ±3.6% 10 Power Spectral Density, conducted ±1.214dB 11 Duty Cycle ±3.2% Page 8 of 59 Report No.: STS2512341W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF T…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2590540-AO 1 / 1 TEST SETUP PHOTOS --BLANK BELOW--

Page 1 of 2 FCC ID: 2BSXT-KSY3100A Conducted emissions 30MHz-1GHz Page 2 of 2 FCC ID: 2BSXT-KSY3100A Spurious emissions
