Korotkoff Sound Blood Pressure Monitor User Manual KSY3500/KSY3500B/KSY3500A Beijing Hanvon Health Technology Co., Ltd. ● Thank you for purchasing Hanvon Korotkoff Sound Blood Pressure Monitor. ● To ensure safe usage of this product, please read this user manual carefully before use. ● After reading, please keep it carefully for future reference. ● This Blood Pressure Monitor utilizes the electronic Korotkoff sound method for measurement. ● This product is suitable for scenarios such as families, hospitals, and clinics, etc. Intended purpose: The device is a digital monitor intended for use in measuring the systolic pressure and diastolic pressure, as well as the pulse rate of adults and adolescents via a non-invasive auscultatory method in medical facilities or at home, with an inflatable cuff wrapped around the upper arm for arm circumfer- ences ranging from 22 to 42 cm. The measurement ranges of the device are systolic pressure 40 ~ 280 mmHg (supported by automatic mode for 40 to 210 mmHg and manual mode for 210 to 280 mmHg), diastolic pressure 20 ~ 220 mmHg, and pulse rate 40 ~ 240 beats/min. The device can detect Irregular Heart Beat(IHB), Atrial Fibrillation, Tachycardia, and evaluate Blood Pressure Variability (BPV), Time in Target Range (TTR) according to the measured blood pressure values. Intended Patient: Adults and adolescents （ ＞ 12 years） Clinical Benefit: Patient’s blood pressure can be measured non-invasively and simply in the home and clinical environment. Contraindications: DO NOT use this monitor on an injured arm or an arm under medical treatment. DO NOT apply the arm cuff on your arm while on an intravenous drip or blood transfusion. DO NOT use this monitor on infants, toddlers, children or persons who cannot express themselves. Structural Composition: It is composed of the main unit, the cuff, and the AC adapter (optional). 1. Product Introduction 1.1 Packing List All products are packed inside the packaging box. Open the box to check whether the products are complete. The list of items included in the box is shown in the table below. If you find any missing items, please contact the after-sales service. Main Unit (front)Main Unit (left) Packing List Main Unit 1 unit Cuff 1 piece User Manual Quick Operation Guide 1 copy 1 copy Quantity 1.2 Component Description "Start/Stop" Button User Button Air Tube Connector Socket Main Unit(right)Main Unit (bottom) Backward Button Forward Button Type-C Charging Port Volume Button 2.Safety Precautions The terms "Warning" and "Caution" used in this manual pertain to the safety of using this product, with the following specific meanings: Warning: Failure to comply may result in personal injury or death. Caution: Failure to comply may result in personal injury or damage to property. Cuff * This product only supports the dedicated cuff of Hanvon. Explanation of Symbols Warning 1. Do not frequently measure blood pressure unless medically necessary. Excessive frequent measurements may injure the patient due to blood flow interference, potentially leading to poor circula- tion or bruising. 2. If symptoms such as skin irritation occur during use, discontinue use and consult a physician; otherwise, symptoms may worsen. 3. If the Blood Pressure Monitor malfunctions or feels abnormal, discontinue use and arrange for inspection and repair. 4. Do not use simultaneously with other medical electrical equip- ment on the same limb. Cuff inflation may temporarily impair the function of monitoring ME equipment used concurrently on the same limb. 5. Do not apply the cuff to an arm with wounds or inflammation; otherwise, symptoms may worsen. 6. Do not use this product on an arm where other catheters are inserted, or on any limb undergoing intravascular intervention or treatment, or an arteriovenous (A-V) shunt, as this may temporarily interfere with blood flow and potentially injure the patient. 7. Do not use this device on the arm on the side of a mastectomy or lymph node dissection. 8. Do not use simultaneously with other medical electrical equip- ment, as there is a risk of this product malfunctioning. 9. Ensure (e.g., by observing the relevant limb) that this product does not cause persistent damage to the patient's blood circula- tion. Patients with circulatory disorders or blood diseases shall use this product under medical supervision. 10. When measuring blood pressure, please note whether there is continuous cuff pressure caused by internal tubing kinking; if so, please stop the measurement. 11. Do not use in locations prone to fire or explosion, such as environments with flammable gases or high concentrations of oxygen. 12.Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the Blood Pressure Monitor, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. 1.3 Function Introduction Measurement Method Cuff Malfunction Prompt Inproper Wearing Prompt Re-measure Prompt Irregular Pulse Prompt Normal Blood Pressure Prompt Electronic Mercury Column Icon Time Display Value Unit Icon Data Transmission Icon Volume Icon Battery Level Icon User ID Icon Memory Icon Blood Pressure Variability Icon Last Systolic Blood Pressure (SYS) Last Diastolic Blood Pressure (DIA) Motion Prompt Last Pulse Rate 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Target Range Attainment Time 17 18 Korotkoff Sound Playback Icon 19 High Blood Pressure Prompt 20 21 Tachycardia Prompt 22 Diastolic Blood Pressure (DIA) Suggestive of Atrial Fibrillation (AFib) Prompt 23 24 Pulse Rate 25 Average Value Icon 26 27 Systolic Blood Pressure (SYS) 28 4567321 8 9 26 28 10 12 11 13 14 1516 1817201921 22 23 24 25 27 Refer to instruction manual/ booklet Temperature limit Humidity limitation Atmospheric pressure limitation Keep away from sunlight Keep dry Manufacturer Authorized representative in the European Community Un…

Text truncated - open the document above for the full version.

Beijing Hanvon Health Technology Co., Ltd. 2025.11.28 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen STS Test Services Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Jack Yi / Manager Contact information / address: Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China

(Beijing Hanvon Health Technology Co., Ltd.) (2025.11.28) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2BSXT-KSY3500A) [Beijing Hanvon Health Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Jack Yi (Beijing Hanvon Health Technology Co., Ltd.) (2025.11.28) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2BSXT-KSY3500A) [Beijing Hanvon Health Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Jack Yi

Beijing Hanvon Health Technology Co., Ltd. 2025.11.28 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Korotkoff Sound Blood Pressure Monitor Trademark: hanvon MODEL : KSY3500A, KSY3500B FCC ID : 2BSXT-KSY3500A To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Jack Yi / Manager Contact information / address: Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China

Beijing Hanvon Health Technology Co., Ltd. Model Difference 2025-11-28 EUT NAME: Korotkoff Sound Blood Pressure Monitor FCC ID: 2BSXT-KSY3500A MODEL : KSY3500A, KSY3500B All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Jack Yi / Manager Contact information / address: Room 162, 1st Floor and Room 256, 2nd Floor, Hanwang Building, Building 5, No.8 Dongbeiwangxi Road, Haidian District, Beijing 100193, China

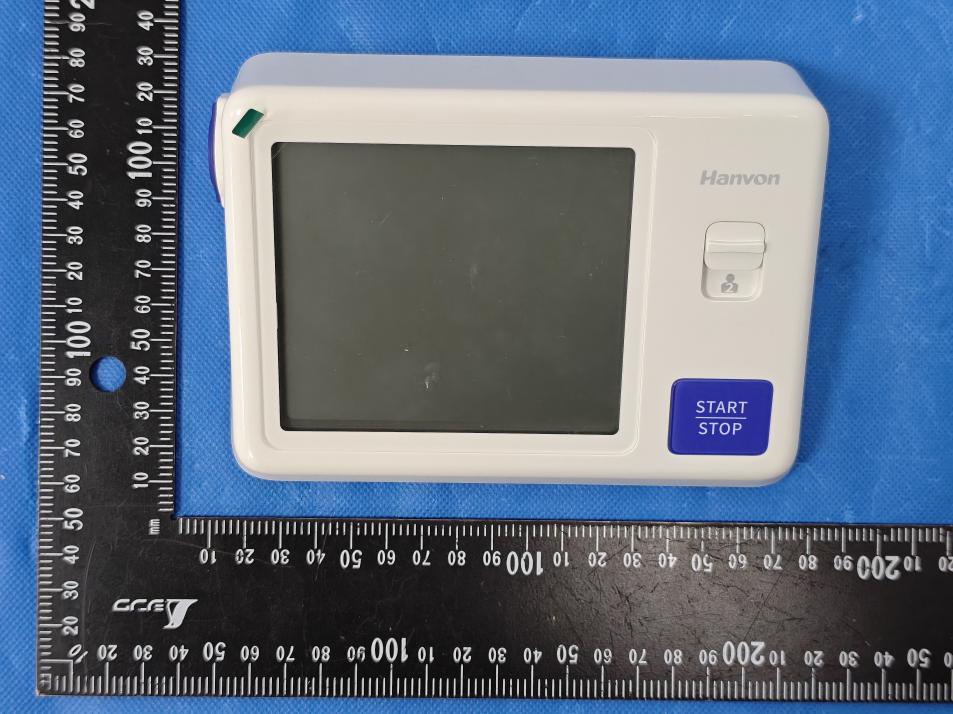

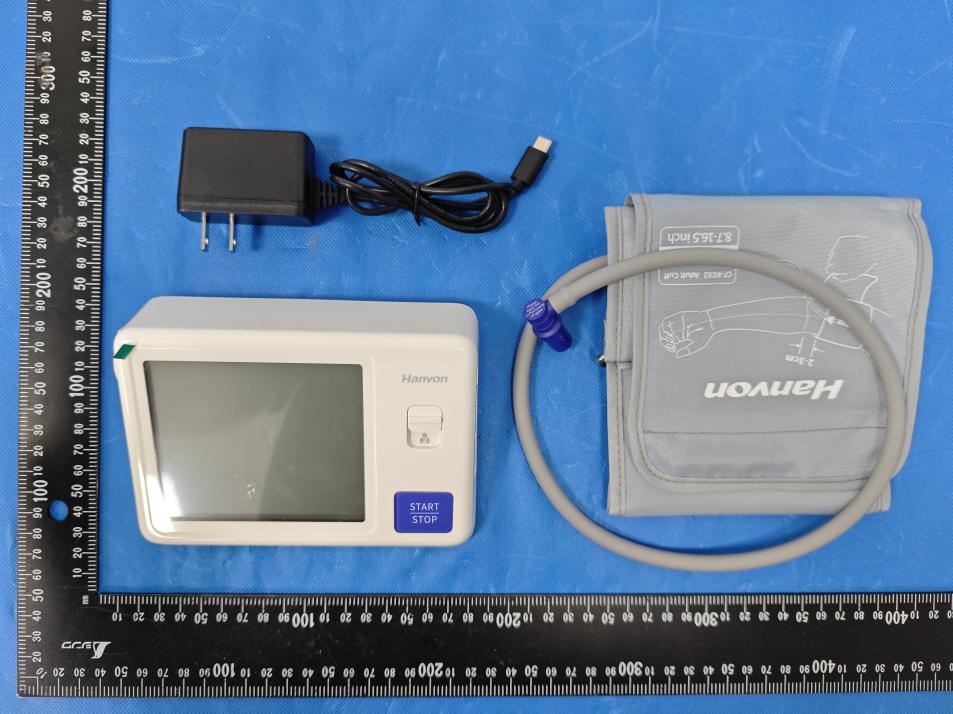

Page 1 of 9 FCC ID: 2BSXT-KSY3500A External Photos Page 2 of 9 FCC ID: 2BSXT-KSY3500A Page 3 of 9 FCC ID: 2BSXT-KSY3500A Page 4 of 9 FCC ID: 2BSXT-KSY3500A Page 5 of 9 FCC ID: 2BSXT-KSY3500A

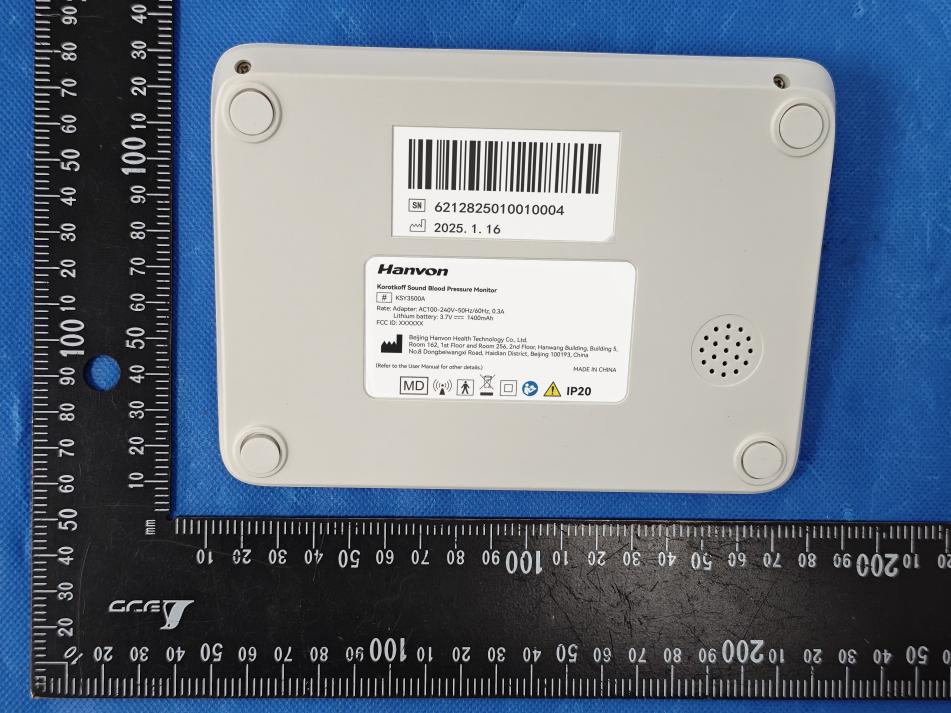

Size:60*40mm Korotkoff Sound Blood Pressure Monitor FCC ID: 2BSXT-KSY3500A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Label location

Page 6 of 9 FCC ID: 2BSXT-KSY3500A Internal Photos Page 7 of 9 FCC ID: 2BSXT-KSY3500A Antenna Page 8 of 9 FCC ID: 2BSXT-KSY3500A Page 9 of 9 FCC ID: 2BSXT-KSY3500A
