2BTLU-000001The IoT BOX model is a device which permits the emission and reception of data via BLE and LTE

CIXI SAS

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Mar 09, 2026
Application Purpose: Original Equipment
Equipment Note: The IoT BOX model is a device which permits the emission and reception of data via BLE and LTE
Frequency Range: 2402.00000000 - 2480.00000000
Company: CIXI SAS
Country: France

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 INSTRUCTION MANUAL CIXI COMMUNICATION MODULE Manufacturer, CIXI Dec. 2025 www.cixi.life 2 1. Introduction This communication module is designed to equip the PERS (Pedaling Energy Recovering System). It ensures the link between the vehicle, the user's smartphone, and external data servers to enable associated connectivity services and to gather and transmit data and to be controlled remotely. 2. Safety Before usage, please read the safety precautions carefully: WARNING: Failure to comply with the safety rules releases Cixi company from any responsibility for damages caused to persons or equipment. ➢ Avoid exposing the device to moisture or extreme temperatures. ➢ Never open the casing. ➢ Children should not approach the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The IoT is already integrated into the PERS, which eliminates the need for any intervention at this level. 3. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help This portable equipment with it’s antenna complies with FCC’s radiation exposure limits set forth for an uncontrolled environment. To maintain compliance, follow the instructions below : 1. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. Avoid direct contact to the antenna, or keep contact to a minimum while using this equipment. 3. In usage, keep a distance of at least 3.3 cms from the equipment www.cixi.life 3 4. ISED Statement This portable equipment with it’s antenna complies with RSS102’s radiation exposure limits set forth for an uncontrolled environment. To maintain compliance, follow the instructions below : 1. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. Avoid direct contact to the antenna, or keep contact to a minimum while using this equipment. 3. In usage, keep a distance of at least 3.3 cms from the equipment This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. 5. Installation This device must be professionally installed. The installation is performed by CIXI directly on the PERS. Do not remove the IoT Box from the PERS. If you need to do so, CIXI strongly recommend you to contact us (see contact information in chap. 10). Any IoT box removed from its PERS without CIXI’s written permission will void the warranty of the PERS. A detailed replacement procedure can be found in chapter 12. www.cixi.life 4 6. Technical specifications Reference CPN-00203227-E Power supply Max voltage 4.2V DC Current: 1.4 A max Battery The product contains a 18650 Li-ion battery 2900mAh – 3.6V Power 6 W max Connectivity LTE-FDD : B2/B3/B4/B5/B7/B8/B28/B66 (GSM : EGSM900/DCS1800) Power Class 3 : 23 dBm ±2 dB Bluetooth protocol version : 5.0 Bluetooth LE Frequencies : 2402-2480 MHz Max emitting power : class 1 +20 dBm GNSS Constellations : GPS L1 ; GLONASS L1 Galileo E1 BDS B1I / BDS B1C QZSS L1 C/A SBAS L1 Dimensions Weight 125g Operating temperature -20°C / +60°C Certifications FCC ID: 2BTLU-000001 IC ID: 34964-000001 www.cixi.life 5 7. Label contents 8. Communication Peripherals The module communicates with the following peripherals: ➢ The vehicle's PCU (Power Control Unit) board via a CAN or UART interface. ➢ A smartphone via Bluetooth LE. ➢ External servers via the LTE cellular network. 9. Declaration of Conformity Add final FCC and ISED declarations of conformity and specific warnings. 10. Technical support CIXI offers several channels to assist you and answer your questions. You can also connect with our community on social media to share your experience and stay up to date. Find answers to the most frequently asked questions about your connected vehicle, including usage, maintenance, and troubleshooting tips. Scan the QR code or visit our FAQ page: https://www.cixi.life/ You can also check out our ‘anti’ tutorials to learn about the different features your PERS has to offer: www.instagram.com/cixilife/ Go on www.cixi.life or on your Active Pilot App or go on our CIXI Service Center : www.service.cixi.life Need more help? Reach out to us directly: Email: [email protected] 11. Maintenance Check for updates: refer regularly to the manufacturer’s app or website for firmware updates or maintenance alerts. At around 1100 hours of using the IoT Box, a midlife maintenance check is recommended. Schedule maintenance with authorized deale…

Text truncated - open the document above for the full version.

Attestation Statements

CIXI 315 Novus Parc, 74330 POISY, France [email protected] SAS au capital de 1 313 651 € RCS Annecy 821 036 514 00023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02-17-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BTLU-000001 CIXI SAS (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. CIXI SAS (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely,

Attestation Statements

CIXI SAS 315 Novus Parc, 74330 POISY, France [email protected] SAS au capital de 1 313 651 € RCS Annecy 821 036 514 00023Date: 02-11-2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BTLU-000001 FRN: 0037723145 US Agent – Attestation Statement / Part 2.911(d)(7) CIXI SAS certifies, that as of 02/11/2026, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2BTLU-000001. CIXI SAS, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of CIXI SAS for FCC ID: 2BTLU-000001. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: CIXI SAS Designated Agent: FCC US Agent, LLC Company Representative: FRANCIS Pierre Designated Agent Representative: Tim Payne Signature: Signature:

Cover Letter(s)

www.cixi.life 1 CIXI 315 Novus Parc, 74330 POISY, France [email protected] SAS au capital de 1 313 651 € RCS Annecy 821 036 514 00023 Date: 12/16/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: 2BTLU-000001 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the supplier Declaration of Conformity procedure to the Class B digital devices portion of this composite filing. Note: We understand that devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telecom MRA are not recognized by the FCC to test for the SDoC procedure. Regards, Date: By (Name, Title): Signature:

Cover Letter(s)

www.cixi.life 1 CIXI 315 Novus Parc, 74330 POISY, France [email protected] SAS au capital de 1 313 651 € RCS Annecy 821 036 514 00023 Attn: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Confidentiality Request regarding application for certification of FCC ID: 2BTLU-000001 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit TypeFile Name Block DiagramBlkDia.pdf SchematicsSchem.pdf Operational DescriptionOpDes.pdf Part listPartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Date: By (Name, Title): Signature:

Cover Letter(s)

CIXI 315 Novus Parc, 74330 POISY, France [email protected] SAS au capital de 1 313 651 € RCS Annecy 821 036 514 00023 Attn: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Authority to Act as Agent FCC ID: 2BTLU-000001 On our behalf, I appoint M. Thomas LEDRESSEUR from Emitech Chassieu, 7 rue Georges MELIES, 69680 Chassieu FRANCE, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by IIA Lab Services, LLC., still resides with CIXI. This authorization is valid until further written notice from CIXI. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862.” Date 02/24/2026 By (Name, Title) : Pierre FRANCIS CEO Signature:

External Photos

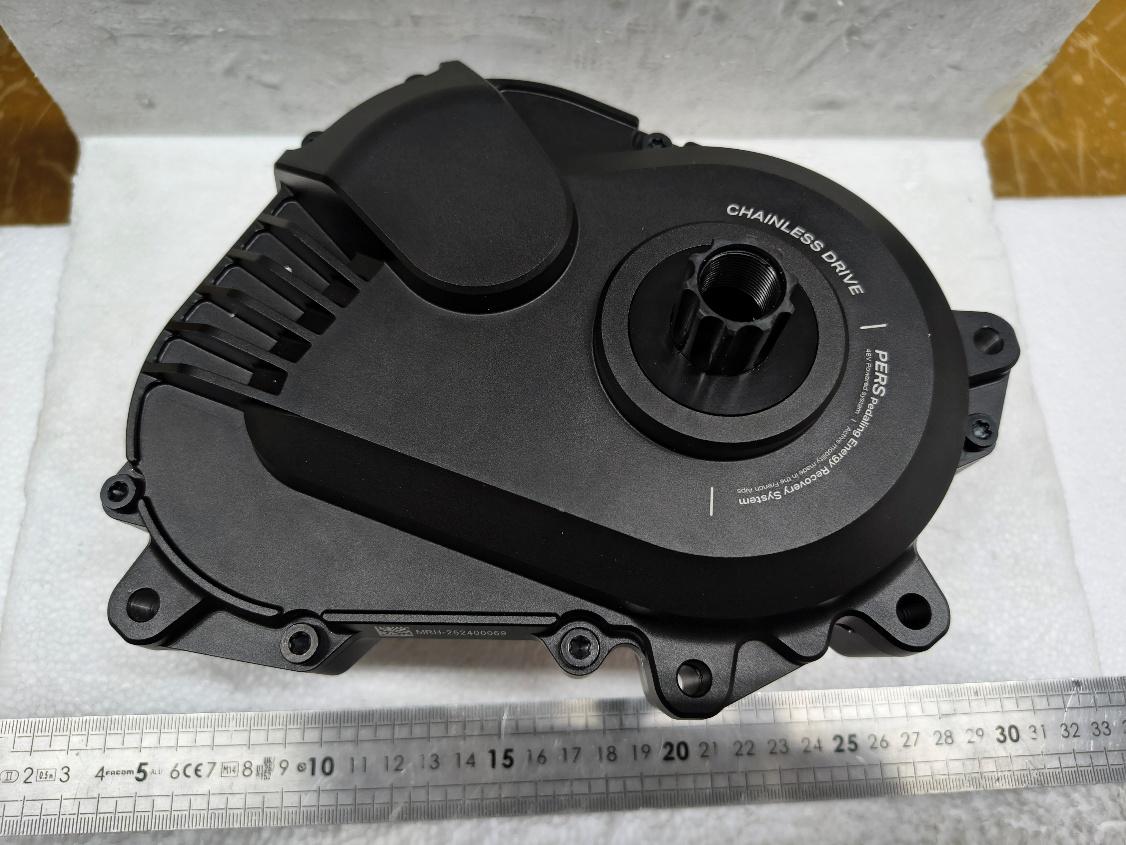

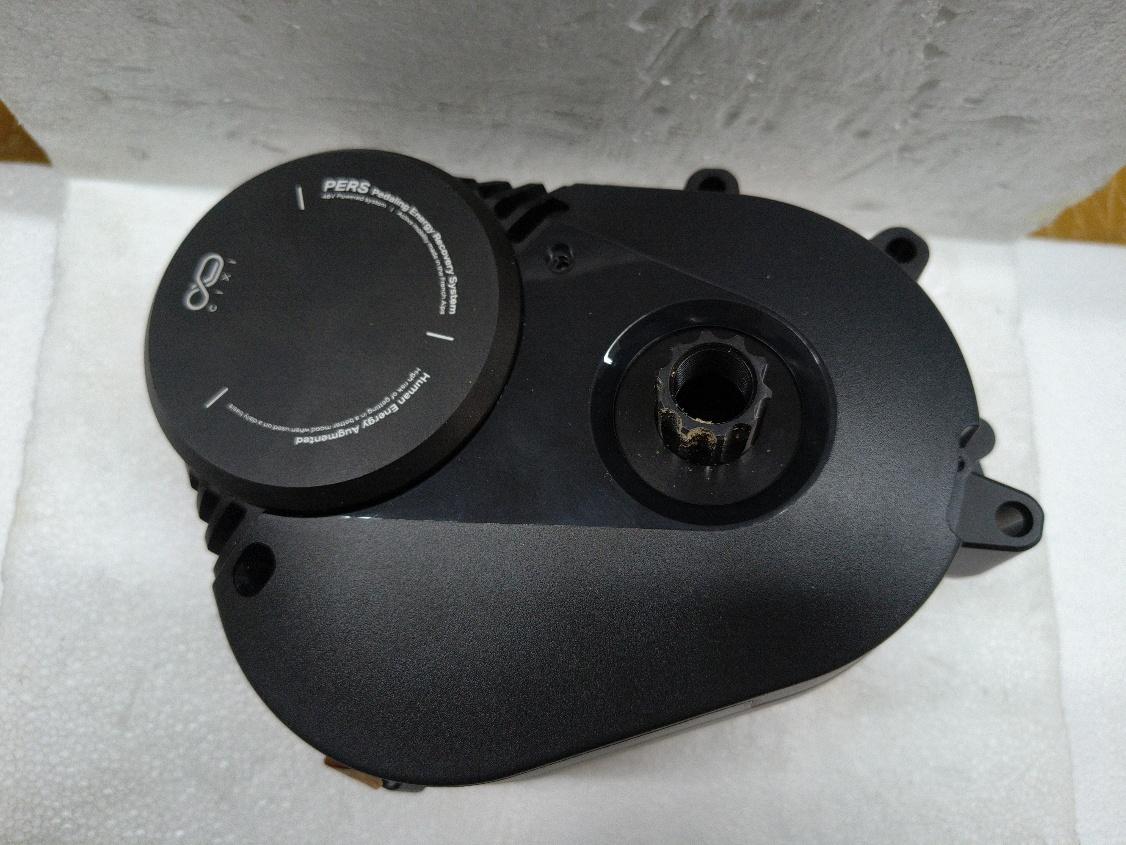

FCC ID: 2BTLU-000001 IC NUMBER: 34964-000001 IoT BOX PERS

ID Label/Location Info

FCC ID: 2BTLU-000001 PERS : www.cixi.life 1 CIXI 315 Novus Parc, 74330 POISY, France [email protected] SAS au capital de 1 313 651 € RCS Annecy 821 036 514 00023 FCC ID: 2BTLU-000001 PERS external cover : www.cixi.life 2 CIXI 315 Novus Parc, 74330 POISY, France [email protected] SAS au capital de 1 313 651 € RCS Annecy 821 036 514 00023 FCC ID: 2BTLU-000001 IoT Box : www.cixi.life 3 CIXI 315 Novus Parc, 74330 POISY, France [email protected] SAS au capital de 1 313 651 € RCS Annecy 821 036 514 00023

ID Label/Location Info

Internal Photos

FCC ID: 2BTLU-000001 IC NUMBER: 34964-000001 LTE antenna BLE antenna

RF Exposure Info

S 51 RTY 000 EMF 00006 [ 0 4 ] Siège Social : Emitech – 3 avenue des Coudriers - Z.A. de l’Observatoire - 78180 MONTIGNY LE BX - France Siret : 344 545 645 00022 - Tél. : 33 (0)1 30 57 55 55 - Fax : 33 (0)1 30 43 74 48 - E-mail : [email protected] - URL : www.emitech.fr SAS au capital de 1 560 000 € - R.C.S. VERSAILLES B 344 545 645 - APE 7112B REM- EMIESS25D943CIX-02Av0 MPE test report According to the standard: CFR 47 FCC PART 15 Equipment under test: IoT BOX Mounted on a PERS FCC ID: 2BTLU-000001 Company: CIXI SAS Distribution: Mr Clément GRANDY (Company: CIXI SAS) Number of pages: 10 with 1 appendix Technical Verification and Quality Approval Ed. Date Modified Page(s) Name and Function Visa 0 3-Mar-26 Creation J.C. BOGA, Laboratories Manager Duplication of this document is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. Information in italics are declared by the manufacturer/customer and are under his responsibility REM- EMIESS25D943CIX-02Av0 Page 2/10 DESIGNATION OF PRODUCT: IoT BOX Serial number (S/N): PERS-C4-A-00000070 Reference / model (P/N): CPN-00148920-C1 Software/Firmware version: PERS: 4.245 / IOT Box: 1.2-16 MANUFACTURER: CIXI SAS COMPANY SUBMITTING THE PRODUCT: Company: CIXI SAS Address: 315 rue Novus Parc, 74330 POISY FRANCE Responsible: Mr Clément GRANDY DATE(S) OF TEST: From 21-Nov-25 to 24-Nov-25 TESTING LOCATION: EMITECH CHASSIEU laboratory at CHASSIEU (69) FRANCE FCC Accredited under US-EU MRA Designation Number: FR0013 Test Firm Registration Number: 807590 TESTED BY: T. LEDRESSEUR VISA: WRITTEN BY: T. LEDRESSEUR REM- EMIESS25D943CIX-02Av0 Page 3/10 CONTENTS TITLE PAGE 1. INTRODUCTION ....................................................................................................................................... 4 2. PRODUCT DESCRIPTION ....................................................................................................................... 4 3. NORMATIVE REFERENCE ...................................................................................................................... 5 4. RF EXPOSURE ......................................................................................................................................... 6 APPENDIX 1: MINIMUM DISTANCE FOR NORMAL USE ................................................................................................. 8 REVISIONS HISTORY Revision Date Modified pages Modifications 0 17-Feb-26 / Creation REM- EMIESS25D943CIX-02Av0 Page 4/10 1. INTRODUCTION This report presents the results of radio test carried out on the following radio equipment: IoT BOX, in accordance with normative reference. The equipment under test integrates a Bluetooth Low Energy radio function In addition, on the IoT BOX the LTE module, FCCID: XMR2023EG915QNA is integrated. 2. PRODUCT DESCRIPTION Category of equipment (ISED): I Class: B Utilization: Residential use Antenna type and gain: -1 dBi / integral chip antenna, ceramic Operating frequency range: From 2400 MHz to 2483.5 MHz Number of channels: 40 Channel spacing: 2MHz Modulation: GFSK Power source: External battery 48 Vdc. Test frequencies: Frequencies tested: Sample N°= 1  2402 MHz Full tests Sample N°= 1  2440 MHz Full tests Sample N°= 1  2480 MHz Full tests Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. REM- EMIESS25D943CIX-02Av0 Page 5/10 3. NORMATIVE REFERENCE The standards and testing methods related throughout this report are those listed below. They are applied on the whole test report even though the extensions (version, date and amendment) are not repeated. CFR 47 (2025) Radio Frequency Devices ANSI C63.10 2013 Procedures for ComplianceTesting of Unlicensed Wireless Devices. 447498 D01 General RF RF Exposure procedures and equipment authorization policies for mobile and Exposure Guidance v06 portable equipment 447498 D04 Interim General RF Exposure Pocedures and Equipment Authorization Policies for Mobile and RF Exposure Guidance v01 Portable Devices REM- EMIESS25D943CIX-02Av0 Page 6/10 4. RF EXPOSURE BLE standalone. Maximum measured power F = 2480 MHz Electro- magnetic field (dBμV/m): Maximum Peak conducted output power (1) Limit (W) Maximum Peak EIRP Limit (W) (dBm) (W) (dBm) (W) Nominal supply voltage: 86.39 -7.87 0.0001633 1 -8.87 0.0001298 4 Maximum Peak conducted output power: EIRP(dBm) = E (dBμV/m) + 20log(D) - 104.8 - G; where D is the measurement distance in meters and antenna Gain = -1 dBi. The maximum is the conducted power, this value is used for this exemption. P = 0.16mW SAR-Based Exemption according paragraph 2.1.3 The test separation distance declared is 3.3 cm with the leg of the user. (With a minimum value of 5 mm). According §1.1307, at frequency 2480 MHz for this distance, the exemption threshold is 98.9 mW. According §2.1.1 of KDB 447498 D04 Interim General RF Exposure Guidance v01, this exemption threshold is based on a threshold for exposure for 1-g SAR (head and body). For a threshold corresponding to a 10-g extremity SAR exposure, it is necessary to apply a factor of 2.5 to the determined exemption threshold. Therefore, 10-g extremity SAR threshold resulting is 98.9 mW ERP x 2.5 = 247.25 mW The maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW). The equipment fulfils the requirements on SAR-Based Exemption according §1.1307(b)(3)(i)(B). The MPE ratio is then calculated for the simultaneous transmission. MPE ratio(BLE) = 0.00000000017243 0.98 = 0.00065 REM- EMIESS25D943CIX-02Av0 Page 7/10 LTE standalone. The results are extracted from the original certification, o…

Text truncated - open the document above for the full version.

Test Report

Siège Social : Emitech – 3 avenue des Coudriers - Z.A. de l’Observatoire - 78180 MONTIGNY LE BX - France Siret : 344 545 645 00022 - Tél. : 33 (0)1 30 57 55 55 - E-mail : [email protected] - URL : www.emitech.fr SAS au capital de 1 560 000 € - R.C.S. VERSAILLES B 344 545 645 - APE 7112B S51 RTY 000 INT 00015 [ 0 6 ] RRA-EMIESS25D943CIX-05Av0 Certification Radio test report According to the standard: CFR 47 FCC PART 15 RSS GEN – Issue 5 RSS 247 – Issue 3 Equipment under test: IoT BOX Mounted on a PERS FCC ID: 2BTLU-000001 IC NUMBER: 34964-000001 Company: CIXI SAS Distribution: Mr Clément GRANDY (Company: CIXI SAS) Number of pages: 35 with 3 appendixes Technical Verification and Quality Approval Ed. Date Modified Page(s) Name and Function Visa 0 17-Feb-26 Creation J.C. BOGA, Laboratories Manager Duplication of this document is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. Information in italics are declared by the manufacturer/customer and are under his responsibility LIST OF ACCREDITED SITES AND SCOPE AVALAIBLE ON WWW.COFRAC.FR TESTING ACCREDITATIONS N° 1-7460 RRA-EMIESS25D943CIX-05Av0 Page 2/35 DESIGNATION OF PRODUCT: IoT BOX Serial number (S/N): PERS-C4-A-00000070 Reference / model (P/N): CPN-00148920-C1 Software/Firmware version: PERS: 4.245 / IOT Box: 1.2-16 MANUFACTURER: CIXI SAS COMPANY SUBMITTING THE PRODUCT: Company: CIXI SAS Address: 315 rue Novus Parc, 74330 POISY FRANCE Responsible: Mr Clément GRANDY DATE(S) OF TEST: From 21-Nov-25 to 24-Nov-25 TESTING LOCATION: EMITECH CHASSIEU laboratory at CHASSIEU (69) FRANCE FCC Accredited under US-EU MRA Designation Number: FR0013 Test Firm Registration Number: 807590 ISED Accredited under CANADA-EU MRA Designation Number: FR0007 Industry Canada Registration Number: 4379D TESTED BY: T. LEDRESSEUR VISA: WRITTEN BY: T. LEDRESSEUR RRA-EMIESS25D943CIX-05Av0 Page 3/35 CONTENTS TITLE PAGE 1. INTRODUCTION ....................................................................................................................................... 4 2. PRODUCT DESCRIPTION ....................................................................................................................... 4 3. NORMATIVE REFERENCE ...................................................................................................................... 5 4. TEST METHODOLOGY ............................................................................................................................ 6 5. TEST EQUIPMENT CALIBRATION DATES ............................................................................................ 7 6. TESTS RESULTS SUMMARY .................................................................................................................. 8 7. MEASUREMENT UNCERTAINTY ...........................................................................................................10 8. OCCUPIED BANDWIDTH .......................................................................................................................12 9. BAND EDGE ............................................................................................................................................17 10. PEAK CONDUCTED OUTPUT POWER .................................................................................................19 11. RADIATED SPURIOUS EMISSIONS ......................................................................................................22 12. PEAK CONDUCTED POWER SPECTRAL DENSITY ............................................................................27 APPENDIX 1: CALCULATION EXAMPLE FOR RADIATED SPURIOUS EMISSION ...................................................... 31 APPENDIX 2: TEST EQUIPMENT LIST ........................................................................................................................... 32 APPENDIX 3: RADIATED TEST SETUP .......................................................................................................................... 34 REVISIONS HISTORY Revision Date Modified pages Modifications 0 17-Feb-26 / Creation RRA-EMIESS25D943CIX-05Av0 Page 4/35 1. INTRODUCTION This report presents the results of radio test carried out on the following radio equipment: IoT BOX, in accordance with normative reference. The equipment under test integrates a Bluetooth Low Energy radio function This IoT box is destined to be used only on a PERS, so the tests are realized directly, with the IoT BOX mounted on a PERS. The IoT BOX is not functional alone, without the PERS. 2. PRODUCT DESCRIPTION Category of equipment (ISED): I Class: B Utilization: Residential use Antenna type and gain: -1 dBi / integral chip antenna, ceramic Operating frequency range: From 2400 MHz to 2483.5 MHz Number of channels: 40 Channel spacing: 2MHz Modulation: GFSK Power source: External battery 48 Vdc. Test frequencies: Frequencies tested: Sample N°= 1  2402 MHz Full tests Sample N°= 1  2440 MHz Full tests Sample N°= 1  2480 MHz Full tests Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. RRA-EMIESS25D943CIX-05Av0 Page 5/35 3. NORMATIVE REFERENCE The standards and testing methods related throughout this report are those listed below. They are applied on the whole test report even though the extensions (version, date and amendment) are not repeated. CFR 47 FCC Part 15 (2026) Radio Frequency Devices ANSI C63.10 2020 + Corrigendum (2023) + Amendment 1 (2024) Procedures for ComplianceTesting of Unlicensed Wireless Devices. 558074 D01 15.247 Meas Guidance v05r02 Guidance for compliance measurements on digital transmission system, frequency hopping spread spectrum syste…

Text truncated - open the document above for the full version.

Test Report

P/N: 2450AT42E010B001E Legacy P/N: 2450AT42E010B Doc# 36S0021A Page 1 of 12 / Revision 6.0 Datasheet: 2450AT42E010B001E johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012, USA • +1.805-389-1166 2024 Johanson Technology, Inc. All Rights Reserved 2.44 GHz RF Chip Antenna, Above Metal* •2.4 – 2.48 GHz operational frequency •Bluetooth, WLAN •SMD, 5.0x2.0x1.5mm (LxWxT) •Center-edge mount, circular PCB •RoHS compliant and AEC-Q200 Qualified available Johanson Technology, Inc. (JTI) miniature RF ceramic chip antennas are made using Low Temperature Co-fired Ceramic (LTCC) technology which has the ability to embed low and high dielectric constants inside our antenna. This enables our components to have high detuning resilience and stability over extreme temperatures (~2ppm). *This antenna will generally have a metal layer directly underneath for proper operation, exceptions may apply. General Specifications 1 2 Maximum Ratings 1 Typical value represents average measurement at 25°C. Min./Max. values represent measurements over specified operating temperature. 2 General specifications measured on Johanson’s evaluation board P/N 2450AT42E010B001CE1. Operational Frequency (MHz) 2400 - 2480 Impedance (Ω) 50 Mounting Configuration 1 (See pages 3-4) Mounting Configuration 2 (See pages 5-6) Return Loss (dB) 2.7 Min. 3.5 Min. Peak Gain (dBi) -1.0 Typ.-1.0 Typ. Average Gain (dBi) -3.5 Typ.-5.0 Typ. Average Radiated Efficiency (%) 2632 Power Capacity (W) 2 Max. (CW) Operating Temperature (°C) -40 to +85 Recommended Storage Conditions post-installation (°C) -40 to +85 Recommended Storage Conditions and Period for Unused T&R Product 45% - 75% RH +5 to +35 °C 18 Months Max. Recommended mounting locations for this antenna Circular PCB Center-edge P/N: 2450AT42E010B001E Legacy P/N: 2450AT42E010B Doc# 36S0021A Page 2 of 12 / Revision 6.0 Datasheet: 2450AT42E010B001E johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012, USA • +1.805-389-1166 2024 Johanson Technology, Inc. All Rights Reserved Mechanical Dimensions Terminal Configuration 3 3 The termination type is Nickel Tin. Go to: https://www.johansontechnology.com/ipcsoldering-profile for Typical Soldering Profile.  This terminal must be soldered for anchoring and mechanical stability. Pin Number Function 1 Feed 2 NC  3 GND 4 GND Bottom view Side view Top view b T a W L b ④ ③ c L 0.197 ± 0.008 5.00 ± 0.2 W 0.079 ± 0.008 2.00 ± 0.2 T 0.059 ± 0.008 1.50 ± 0.2 a 0.020 ± 0.008 0.50 ± 0.2 b 0.059 ± 0.008 1.50 ± 0.2 c 0.012 0.30 I nches Millimeters Max. Max. ① ② P/N: 2450AT42E010B001E Legacy P/N: 2450AT42E010B Doc# 36S0021A Page 3 of 12 / Revision 6.0 Datasheet: 2450AT42E010B001E johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012, USA • +1.805-389-1166 2024 Johanson Technology, Inc. All Rights Reserved Evaluation Board and Recommended Mounting Configuration 1 (P/N 2450AT42E010B001CE1) JTI P/N’s for Matching Network 4 Inductor (1.5nH): LRC0402CS1N5GV001T *Note: Ground Vias are highly recommended to have better antenna efficiency. If you’d like the CAD PCB layout or have any questions, contact our application engineers at https://www.johansontechnology.com/ask-a-question 4 It is recommended that the designer leave available slots for the topology of the network. The antenna matching network values above are used when antenna is mounted on Johanson's evaluation board. The matching values on client’s PCB will be different, depending on the layout, thickness, material, etc. Go to: https://www.johansontechnology.com/tuning and see how to obtain the new values. Metal bottom GND plane to be placed directly underneath yellow solder mask zone, c…

Text truncated - open the document above for the full version.
