2BTXP-T8-001Tablet computer

User Operating Manual T8-001 Tablet computer About This User Guide • Some of the contents of this guide may appear differently on your device. Your actual device may differ from the illustration, depending on the software and your service provider. All information in this document is subject to change without prior notice. • Your device's applications and their functions may vary by region, or hardware specifications. CPC cannot be held liable for performance or incompatibility issues resulting from edited registry settings being edited or operating system software being modified. Any attempt to customize your operating system may cause the device or its applications to not work as they should. Important • We do not suggest you reinstalling the system. You may contact CPC support if reinstallation is necessary. • You may not disassemble the device in any circumstance. • Please keep your device away from fire, water or any extreme weather condition. • Please avoid any heavy object or hard press on front face of your device. Disclaimer of Warranties CPC shall not be liable for any damages of any kind resulting from the purchase or use the product or arising from the breach of the express warranty, including incidental, special or consequential damages, or loss of anticipated profits or benefits. CPC is not liable for performance issues or incompatibilities caused by your editing or registry settings, or your modification of operating system software. Using custom operating system software may cause your device and applications to work improperly. 1. Getting started Hold the power button for 3 seconds, devices start up directly. 2. Wi-Fi connection Tap settings-Wireless& Networks-Wi-Fi-tap to turn it to “ON”. After a moment, your Wi-Fi network nearby will be listed. If you need to rescan for available networks, tap the menu on right top corner, and tap “Refresh”. You device lists the networks it finds within range. Tap the network you have access to, enter password, and tap “Connect”. When you tablet is connected to the network, the wireless indicator appears in the status bar. Waves indicate connection strength. 3. Bluetooth Turn on Bluetooth. You must pair your device with another device before you can transfer files between them. Under “Settings”, choose “Bluetooth”. Tap Bluetooth to “ON”. The Bluetooth indicator then appears in the status bar. It will start searching available devices nearby. If you need to rescan, tap the menu on top right corner, and tap “Refresh”. 4. Camera/Video Click and select the camera; The system enters into the camera interface; Click and select the Photo button and easily take the photos; In the camera mode, move the mouse to the right, it can choose the video mode. Click the button and easily take the video. 5. Gallery You can view your digital pictures or videos in Gallery. 6. Device factory mode You may reset your tablet when necessary. This will clear all info in your tablet and get your device back to factory mode. WARNING! If you perform factory mode, all user applications, user data will be deleted. Please remember to backup any important data before performing factory mode. Troubleshooting 1. Device crash ⚫ Hold the power buttons for 10 seconds to restart. 2. Error message during operation ⚫ Delete and clear the system to factory mode with a system reset. 3. Device can’t be connected with Wi-Fi ⚫ Make sure you turn Wi-Fi to “ON” status. ⚫ Unplug Wi-Fi router, wait for 2 minutes and plug to connect again. ⚫ Make sure you input correct password by selecting “show password when your input it. ⚫ Check and make sure there is no filtering setting or device connection limit in your router setting. ⚫ Forget original Wi-Fi connection, reset Wi-Fi router, and connect again. Memo Model number: T8-001 FCC ID: 2BTXP-T8-001 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. This device meets the government's requirements for exposure to radiowaves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exp…

Text truncated - open the document above for the full version.

(Combined Public Communications, LLC) (2026/3/4) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BTXP-T8-001) [Combined Public Communications, LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Dan Labin (Combined Public Communications, LLC) (2026/3/4) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BTXP-T8-001) [Combined Public Communications, LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Dan Labin

Attestation Statements (2026/3/4) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BTXP-T8-001) (Combined Public Communications, LLC), the undersigned, hereby authorize Combined Public Communications, LLC to act as our designated U.S. agent for service of process, (Combined Public Communications, LLC) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Combined Public Communications, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: Combined Public Communications, LLC Address: 100 Aqua Drive, Cold Spring, Kentucky 41076, United States Contact Name: Dan Labin FRN: 0037801032 Telephone No: 859 441 5554 Email: [email protected] Signature [Dan Labin] U.S. Agent Information: Company Name: Combined Public Communications, LLC Address: 100 Aqua Drive, Cold Spring, Kentucky 41076, United States Contact Name: Dan Labin FRN: 0037801032 Telephone No: 859 441 5554 Email: [email protected] Signature [Dan Labin]

Combined Public Communications, LLC 2026/3/4 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Tablet computer Trademark: N/A MODEL: T8-001 FCC ID: 2BTXP-T8-001 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description - FCC Software security operational description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Dan Labin / CEO Contact information / address: 100 Aqua Drive, Cold Spring, Kentucky 41076, United States

Combined Public Communications, LLC 2026/3/4 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen STS Test Services Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Dan Labin / CEO Contact information / address: 100 Aqua Drive, Cold Spring, Kentucky 41076, United States

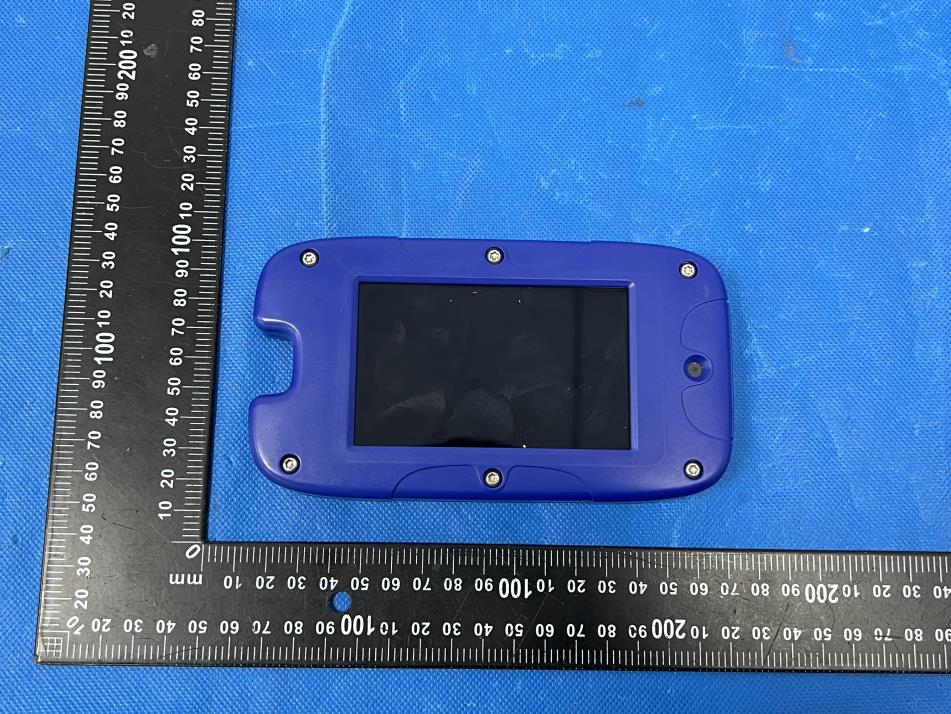

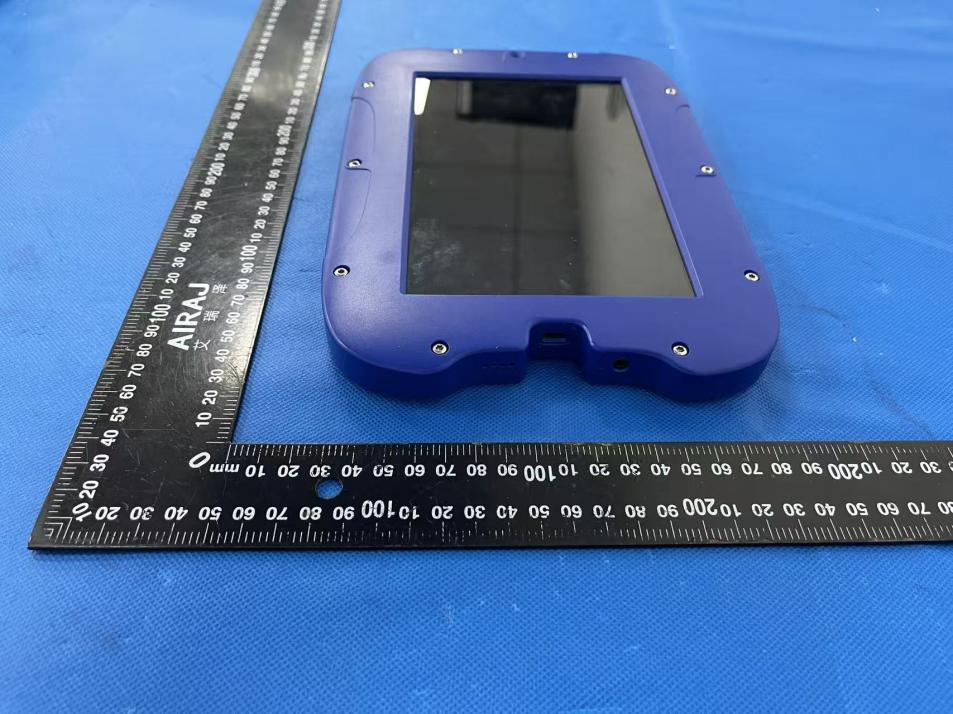

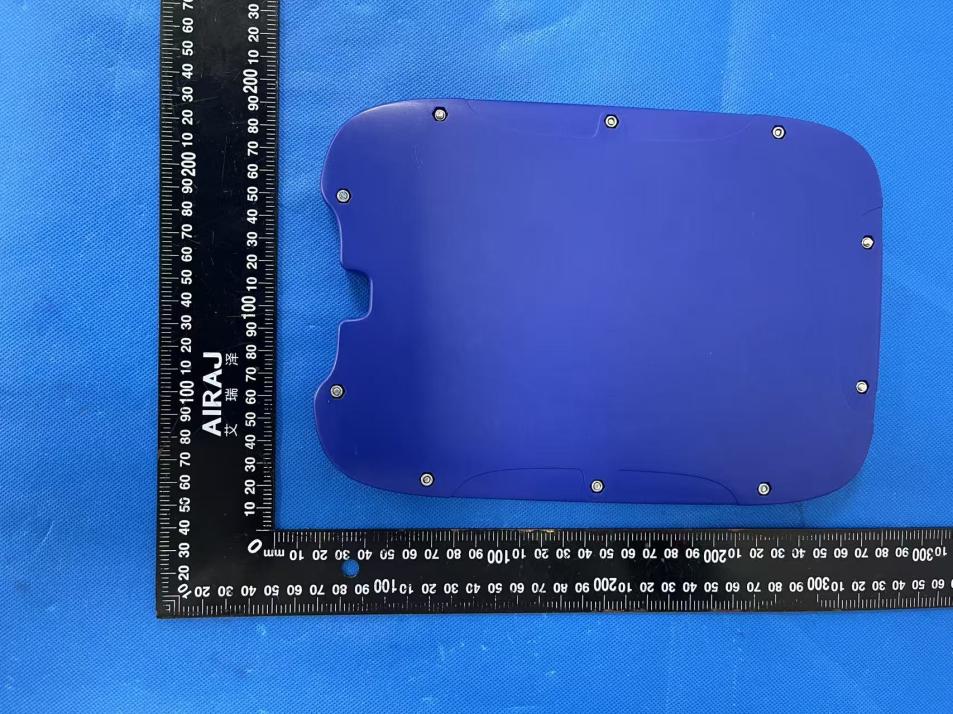

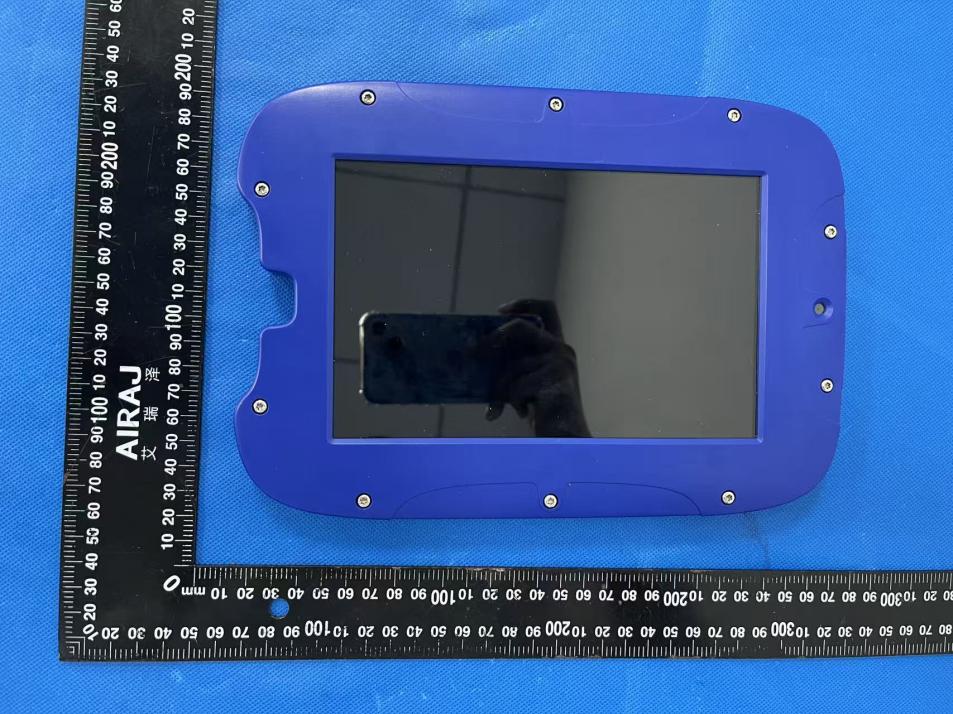

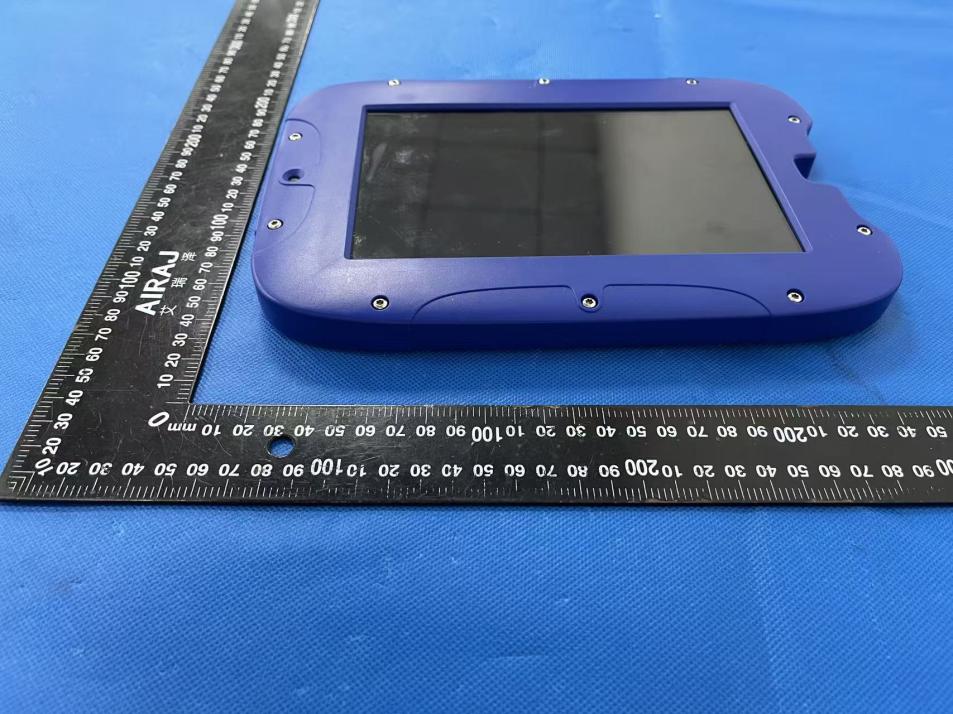

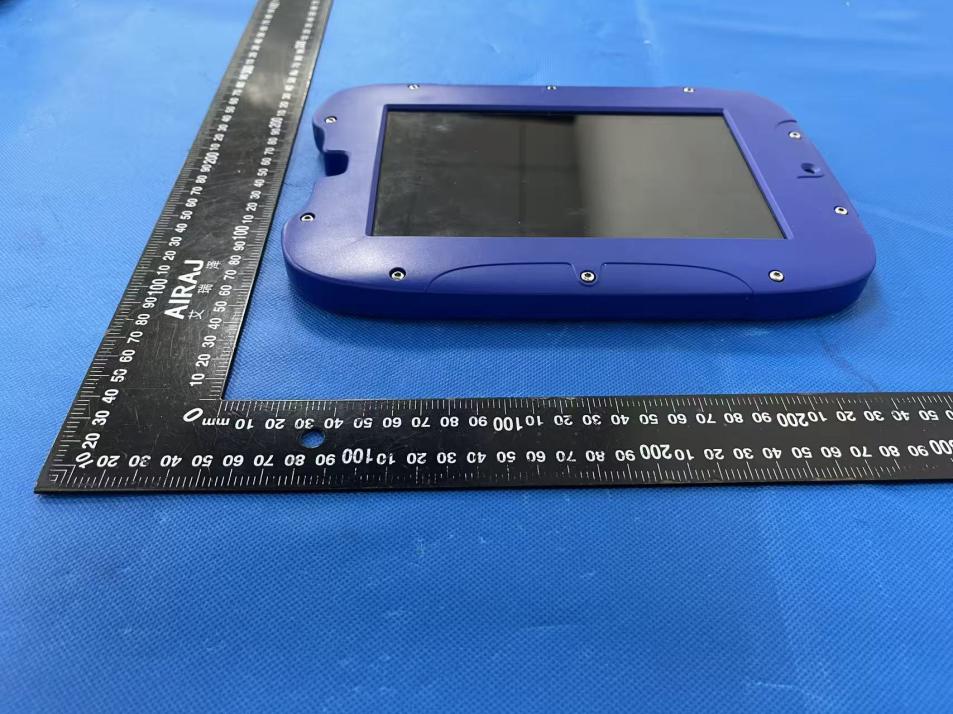

Page 1 of 11 FCC ID: 2AFK5-T8-001 External Photos Page 2 of 11 FCC ID: 2AFK5-T8-001 Page 3 of 11 FCC ID: 2AFK5-T8-001 Page 4 of 11 FCC ID: 2AFK5-T8-001

Label & label location Location: Label: FCC ID: 2BTXP-T8-001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Page 5 of 11 FCC ID: 2AFK5-T8-001 Internal Photos NFC RX Antenna BT/WIFI Antenna Page 6 of 11 FCC ID: 2AFK5-T8-001 Page 7 of 11 FCC ID: 2AFK5-T8-001 Page 8 of 11 FCC ID: 2AFK5-T8-001 Page 9 of 11 FCC ID: 2AFK5-T8-001 Page 10 of 11 FCC ID: 2AFK5-T8-001 Page 11 of 11 FCC ID: 2AFK5-T8-001

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 44 TEST REPORT Reference No. .................... : WTX26X01016655W FCC ID ................................ : 2BTXP-T8-001 Applicant ........................... : Combined Public Communications, LLC Address.............................. : 100 Aqua Drive, Cold Spring, Kentucky 41076, United States Manufacturer ..................... Hatch international limited Address.............................. Unit 906A, 9/F, First Group Centre, 23 Wang Chiu Road, Kowloon Bay, Hong Kong Product Name ................... : Tablet computer Model No.. .......................... : T8-001 Standards .......................... : FCC Part 2.1093, IEEE Std C95.1: 2019 IEEE C95.3: 2021 Date of Receipt sample .... : 2026-01-27 Date of Test........................ : 2026-01-27 to 2026-02-03 Date of Issue ..................... : 2026-02-03 Test Report Form No. ....... : WTX_Part2_1093W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Lily Yang /Project Engineer Jason Su/Manager Reference No.: WTX26X01016655W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 44 TABLE OF CONTENTS 1. General Information ...................................................................................................................................................4 1.1 Product Description for Equipment Under Test (EUT) .........................................................................................4 1.2 Test Standards ....................................................................................................................................................6 1.3 Test Methodology ................................................................................................................................................6 1.4 Test Facility .........................................................................................................................................................6 2. Summary of Test Results ..........................................................................................................................................7 3. Specific Absorption Rate (SAR) ................................................................................................................................8 3.1 Introduction ..........................................................................................................................................................8 3.2 SAR Definition .....................................................................................................................................................8 4. SAR Measurement System ........................................................................................................................................9 4.1 The Measurement System ..................................................................................................................................9 4.2 Probe ...................................................................................................................................................................9 4.3 Probe Calibration Process ................................................................................................................................. 11 4.4 Phantom ............................................................................................................................................................ 11 4.5 Device Holder .................................................................................................................................................... 12 4.6 Test Equipment List ........................................................................................................................................... 13 5. Tissue Simulating Liquids ....................................................................................................................................... 14 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 14 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 15 5.3 Tissue Calibration Result ................................................................................................................................... 16 6. SAR Measurement Evaluation ................................................................................................................................ 17 6.1 Purpose of System Performance Check ............................................................................................................ 17 6.2 System Setup .................................................................................................................................................... 17 6.3 Validation Results .............................................................................................................................................. 18 7. EUT Testing Position ............................................................................................................................................... 19 7.1 Body Position ..........................................................................................................................…

Text truncated - open the document above for the full version.

Page: 1/10 Ref : ACR.49.6.25.BES.A WALTEK TESTING GROUP (SHENZHEN) CO., LTD 1/F., ROOM 101, BUILDING 1, HONGWEI INDUSTRIAL PARK, LIUXIAN 2ND ROAD, BLOCK 70 BAO'AN DISTRICT, SHENZHEN, GUANGDONG, 518101 CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: 0725-EPGO-446 Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise – 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 02/12/2025 Accreditations #2-6789 Scope available on www.cofrac.fr The use of the Cofrac brand and the accreditation references is prohibited from any reproduction. Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed at MVG, using the CALIPROBE test bench, for use with a MVG COMO SAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report


          COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 2/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Pedro Ruiz Technical Manager 02/18/2025 Checked & approved by: Pedro Ruiz Technical Manager 02/18/2025 Authorized by: Geraldine Toutain Quality Manager Customer Name Distribution : WALTEK TESTING GROUP (SHENZHEN) CO., LTD Issue Name Date Modifications A Pedro Ruiz 2/18/2025 Initial release




 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 3/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Sensitivity _______________________________________________________________ 4 3.2 Linearity ________________________________________________________________ 5 3.3 Isotropy _________________________________________________________________ 5 3.4 Boundary Effect __________________________________________________________ 5 3.5 Probe Modulation Response _________________________________________________ 6 4 Measurement Uncertainty .......................................................................................... 6 5 Calibration Results ..................................................................................................... 6 5.1 Calibration in air __________________________________________________________ 6 5.2 Calibration in liquid _______________________________________________________ 7 6 Verification Results ................................................................................................... 8 7 List of Equipment ...................................................................................................... 9


          COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 4/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number 0725-EPGO-446 Product Condition (new / used) New Frequency Range of Probe 0.15 GHz-7.5GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.248 M: Dipole 2: R2= 0.215 M: Dipole 3: R3=0.224 M: 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards. Figure 1 – MVG COMOSAR Dosimetric E field Probe Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their effect. All calibrations / measurements performed meet the fore-mentioned standards. 3.1 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards for frequency range 600- 7500MHz and using the calorimeter cell method (transfer method) as outlined in the standards for frequency 150-450 MHz.


          COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 5/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 LINEARITY The evaluatio…

Text truncated - open the document above for the full version.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2512393W01 Issued for Combined Public Communications, LLC 100 Aqua Drive, Cold Spring, Kentucky 41076, United States Product Name: Tablet computer Brand Name: N/A Model Name: T8-001 Series Model(s): N/A FCC ID: 2BTXP-T8-001 Test Standards: FCC Part15.247 Page 2 of 97 Report No.: STS2512393W01 TEST REPORT Applicant’s Name ................. : Combined Public Communications, LLC Address ................................. : 100 Aqua Drive, Cold Spring, Kentucky 41076, United States Manufacturer's Name .......... : Hatch international limited Address ................................. : Unit 906A, 9/F, First Group Centre, 23 Wang Chiu Road, Kowloon Bay, Hong Kong Product Description Product Name........................ : Tablet computer Brand Name .......................... : N/A Model Name .......................... : T8-001 Series Model(s) .................... : N/A Standards ............................. : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ............................... : Date of receipt of test item ......... : 05 Dec. 2025 Date (s) of performance of tests . : 05 Dec. 2025 to 22 Dec. 2025 Date of Issue .............................. : 22 Dec. 2025 Test Result.................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 97 Report No.: STS2512393W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 13 2.7 EQUIPMENTS LIST 14 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 33 4.1 LIMIT 33 4.2 TEST PROCEDURE 33 4.3 TEST SETUP 34 4.4 EUT OPERATION CONDITIONS 34 4.5 TEST RESULTS 34 5. NUMBER OF HOPPING CHANNEL 35 5.1 LIMIT 35 5.2 TEST PROCEDURE 35 5.3 TEST SETUP 35 5.4 EUT OPERATION CONDITIONS 35 5.5 TEST RESULTS 35 6. AVERAGE TIME OF OCCUPANCY 36 6.1 LIMIT 36 6.2 TEST PROCEDURE 36 6.3 TEST SETUP 36 6.4 EUT OPERATION CONDITIONS 36 6.5 TEST RESULTS 36 7. HOPPING CHANNEL SEPARATION MEASUREMEN 37 Page 4 of 97 Report No.: STS2512393W01 Table of Contents Page 7.1 LIMIT 37 7.2 TEST PROCEDURE 37 7.3 TEST SETUP 37 7.4 EUT OPERATION CONDITIONS 37 7.5 TEST RESULTS 37 8. BANDWIDTH TEST 38 8.1 LIMIT 38 8.2 TEST PROCEDURE 38 8.3 TEST SETUP 38 8.4 EUT OPERATION CONDITIONS 38 8.5 TEST RESULTS 38 9. OUTPUT POWER TEST 39 9.1 LIMIT 39 9.2 TEST PROCEDURE 39 9.3 TEST SETUP 40 9.4 EUT OPERATION CONDITIONS 40 9.5 TEST RESULTS 40 10. ANTENNA REQUIREMENT 41 10.1 STANDARD REQUIREMENT 41 10.2 EUT ANTENNA 41 APPENDIX 1-TEST DATA 42 MAXIMUM CONDUCTED OUTPUT POWER 42 -20DB BANDWIDTH 48 CARRIER FREQUENCIES SEPARATION 54 BAND EDGE 60 BAND EDGE(HOPPING) 67 CONDUCTED RF SPURIOUS EMISSION 74 NUMBER OF HOPPING CHANNEL 84 DWELL TIME 87 APPENDIX 2-PHOTOS OF TEST SETUP 97 Page 5 of 97 Report No.: STS2512393W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 22 Dec. 2025 STS2512393W01 ALL Initial Issue Page 6 of 97 Report No.: STS2512393W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- Note: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 97 Report No.: STS2512393W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.751dB 2 Unwanted Emissions, conducted ±2.888dB 3 All emissions, radiated 9K-30MHz ±2.48dB 4 All emissions, radiated 30M-1GHz ±2.52dB 5 All emissions, radiated 1G-18GHz ±3.48dB 6 All emissions, radiated>18GHz ±4.18dB 7 Conducted Emission (9KHz-150KHz) ±2.48dB 8 Conducted Emission (150KHz-30MHz) ±2.52dB 9 Occupied Channel Bandwidth ±3.6% 10 Duty Cycle ±3.2% Page 8 of 97 Report No.: STS2512393W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Tablet computer Brand Name N/A Model Name T8-001 Series Model(s) N/A …

Text truncated - open the document above for the full version.

Page 51 of 97 Report No.: STS2512393W01 -20dB Bandwidth NVNT 2-DH1 2441MHz -20dB Bandwidth NVNT 2-DH1 2480MHz Page 52 of 97 Report No.: STS2512393W01 -20dB Bandwidth NVNT 3-DH1 2402MHz -20dB Bandwidth NVNT 3-DH1 2441MHz Page 53 of 97 Report No.: STS2512393W01 -20dB Bandwidth NVNT 3-DH1 2480MHz Page 54 of 97 Report No.: STS2512393W01 Carrier Frequencies Separation Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH1 2401.84 2402.84 1.000 0.526 Pass NVNT 1-DH1 2440.84 2441.84 1.000 0.571 Pass NVNT 1-DH1 2478.84 2479.84 1.000 0.573 Pass NVNT 2-DH1 2401.84 2402.84 1.000 0.832 Pass NVNT 2-DH1 2440.84 2441.84 1.000 0.807 Pass NVNT 2-DH1 2478.84 2479.84 1.000 0.831 Pass NVNT 3-DH1 …

Text truncated - open the document above for the full version.
