2BU5R-L2030EPAC Bicycle

L2O 3.O Before you enjoy your ride, please read this user manual carefully. IMPORTANT SAFETY INSTRUCTIONS DANGER: Ignoring this notice may result in serious injury or death. Follow all required instructions. WARNING: Ignoring this warning may cause damage to the vehicle or its components. Follow all required instructions. CAUTION: Ignoring this caution may result in minor damage or reduced performance. Follow the recommended instructions. SAVE THESE INSTRUCTIONS Please read and follow all safety instructions in this manual. When riding in public areas, obey all national and local traffic laws, stay alert, and maintain a safe distance from pedestrians and vehicles. Read all the instructions before using the product.Do not modify or unlock the speed limit without authorization. Any damage caused by improper or unauthorized operation is the user's responsibility. To reduce the risk of injury, close supervision is necessary when the product is used near children. Do not put fingers or hands into the product. Do not use this product if the flexible power cord or output cable is frayed, has broken insulation, or any other signs of damage. This product is not designed for professional off-road or stunt riding. Do not ride up or down stairs, jump, perform wheelies, or attempt similar actions. For your first ride, practice in a safe, traffic-free area. Only ride on public roads after becoming fully familiar with the product. Before each ride, check for loose fasteners or damaged parts. If you hear abnormal sounds or notice damaged cables or insulation, stop riding immediately and contact our service team. Do not ride at excessive speed. When riding on public roads, always obey local traffic regulations and keep a safe distance from motor vehicles. For safety reasons, this product must not be used by persons under 14 years old. Do not ride if you are under the influence of alcohol or drugs, have medical conditions that limit physical activity, cannot maintain balance, exceed the maximum load limit, or are pregnant. Use extra caution when riding in rain, snow, on wet, icy, or slippery surfaces, or in any other adverse conditions. Do not charge the product if the charger or power outlet is wet. When charging in public places, comply with local safety regulations. Only use manufacturer-approved parts and accessories to ensure proper performance and safety. Do not modify the product without consulting our service team and ensuring compliance with local laws. The manufacturer is not responsible for any injury or damage caused by unauthorized modifications. Follow all “Caution,” “Danger,” and “Warning” notices in this manual to reduce the risk of injury. The battery is intended to be charged when the ambient temperature is between 0°C（32°F）and 40°C（104°F）Never charge the battery when ambient temperatures are outside this range. This equipment is not intended to be used at ambient temperatures less than 0°C（32°F）or above ambient temperatures of 40°C（104°F） WARNING When using this product, basic safety precautions should always be followed: 4. Service guide 4.1 After-sales service and warranty coverage 4.2 Warranty card and repair record 4.3 Product parameters 3. User maintenance Instructions2. Quick guide 2.1 Installation guide 2.2 How to fold 2.3 How to remove the battery 2.4 How to charge 2.5 Battery activation 2.6 Quick operation instructions 2.6 Instrument setting 1. Product Introduction 1.1 Packing list 1.2 Components 1.3 Functions 1.4 Display functions Contents 3.1 Notes for operation 3.2 Maintenance and self-inspection 3.3 Troubleshooting 3.4 Rear derailleur cage precautions Assembly videoAPP Download Screwdriver Spare parts kit Wrench SaddleKickstand Handlebar Foldable riser / Stem Front Mudguard Charger Manual 8-1013-1514-15 Pedal x 2Front tireFrame body Screwdrivers Air Pump 1.Product Introduction 1.1 Packing list M4M5M6 Saddle Seat post Seat post quick-release Rear mudguard Headlight IOT Module Suspension fork Front mudguard Battery compartment Handlebar Foldable riser Mid-motor Reflector Rear wheel Chain Front wheel Front brake Rear brake Taillight Crank set Rear derailleur Rear rack Pedal Crank Riser foldable handle Stem Stem quick-release 1.Product Introduction 1.2 Components Frame foldable handle All images are for reference only. The actual product may vary. Front brake lever Shift indicator Shift lever Assist gear Display Ride data switching button on/off Electric Bell Rear brake lever 1.Product Introduction 1.3 Functions Thumb throttle 1.Product Introduction 1.4 Display Functions Battery level indicator Lamp display Speed display Bluetooth indicator Assist gear display Ride data display Fault indicator Assist mode indicator Power-on/off: press for 2s to power on, and hold for 2 s to power off. Assist gear adjustment: press / to adjust the gear. Assist: press and hold the button to enter the assist mode. The speed is 3MPH, and the screen display the assist mode icon . Release the button , then the assist mode stops immediately, and the assist mode icon disappears. Electric horn: press to alert. Headlight switch: press button about 2 s, the lights turn on, and instrument brightness will dim; Press the button again, then the lights are turned off and instrument brightness is restored. Riding data switching: after the instrument screen is turned on, the instrument screen will display the real-time speed and trip meter by default. Press the button to switch the display information between the trip meter, odometer, maximum speed and average speed. Fault code indication: when the electronic control system of the electric bike fails, the instrument will automatically display the fault code. For the definitions of fault codes, see 3.3 Fault codes. Common functions Warning: The bike shall be disassembled and assembled by two individuals. Before assembling, make sure that the power system is turned off and will not be turn…

Text truncated - open the document above for the full version.

Page1of46ReportNo.:VOP20260327003ER2-R02 ShenzhenVOPTestingTechnologyCo.,Ltd. Add:103,Building5,WanyanIndustrialParkQiaotouCommunity,FuhaiStreet,BaoanDistrictShenzhen,GuangdongPeople'sRepublicofChina TEL:+86-75523090787Website:www.vop-lab.comE-mail:[email protected] RadioTestReport FCCLicensedDevice-4G Applicant’sname:ShenzhenZhiquVehicleIndustryCo.,Ltd Address: 1001,BuildingB,No.7HuanpingRoad,CentralCommunity,PingdiStreet, LonggangDistrict,Shenzhen Manufacture'sName:ShenzhenZhiquVehicleIndustryCo.,Ltd Address: 1001,BuildingB,No.7HuanpingRoad,CentralCommunity,PingdiStreet, LonggangDistrict,Shenzhen Productdescription Tradermark:ENGWE ProductName::EPACBicycle Modeland/ortypereference:L203.0 SerialModel:N/A Rating(s): chargerinput:100-240VAC,50/60Hz,3AMax Output:DC54.6V⎓8A Battery:DC48V14.25Ah684Wh Standards:47CFRPart22H,47CFRPart24E,47CFRPart27 FCCID:2BU5R-L2030 TheEUTdescribedabovehasbeentestedbyuswiththelistedstandardsandfoundincompliancewiththeFCC requirements.ItispossibletouseFCCmarkingtodemonstratethecompliancewiththisFCCrequirements. Note:Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen VOPTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial.ShenzhenVOP TestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamagesresultingfromthe reader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. DateofTest Date(s)ofperformanceoftests:2026-03-23~2026-05-07 DateofIssue:2026-05-07 TestResult:Pass Preparedby: ProjectEngineer Reviewedby: ProjectSupervisor Approvedby: TechnicalDirector $5*1&V Page2of46ReportNo.:VOP20260327003ER2-R02 ShenzhenVOPTestingTechnologyCo.,Ltd. Add:103,Building5,WanyanIndustrialParkQiaotouCommunity,FuhaiStreet,BaoanDistrictShenzhen,GuangdongPeople'sRepublicofChina TEL:+86-75523090787Website:www.vop-lab.comE-mail:[email protected] REPORTREVISERECORD ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/2026-05-07ValidInitialRelease Page3of46ReportNo.:VOP20260327003ER2-R02 ShenzhenVOPTestingTechnologyCo.,Ltd. Add:103,Building5,WanyanIndustrialParkQiaotouCommunity,FuhaiStreet,BaoanDistrictShenzhen,GuangdongPeople'sRepublicofChina TEL:+86-75523090787Website:www.vop-lab.comE-mail:[email protected] Contents Contents..........................................................................................................................................................................3 1.TESTSUMMARY........................................................................................................................................................5 2.MEASUREMENTUNCERTAINTY..............................................................................................................................6 3.TESTFACILITY...........................................................................................................................................................7 3.1.DeviationfromStandard...................................................................................................................................7 3.2.AbnormalitiesfromStandardConditions..........................................................................................................7 4.GENERALINFORMATION.........................................................................................................................................8 4.1.GeneralDescriptionofEUT..............................................................................................................................8 4.2.EUTFrequencyListofLow/Middle/HighChannels..........................................................................................9 4.3.EUTTestMode...............................................................................................................................................12 4.4.AuxiliaryEquipmentUsedDuringTest...........................................................................................................14 5.EQUIPMENTSLISTFORALLTESTITEMS............................................................................................................15 6.TESTRESULTS........................................................................................................................................................17 6.1.Effective(Isotropic)RadiatedPowerOutput..................................................................................................17 6.1.1.EUTOperation......................................................................................................................................18 6.1.2.TestSetupDiagram:.............................................................................................................................18 6.1.3.TestData...............................................................................................................................................18 6.2.PeakToAverageRatio...................................................................................................................................19 6.2.1.EUTOperation......................................................................................................................................19 6.2.2.TestSetupDiagram:.............................................................................................................................20 6.2.3.TestData...............................................................................................................................................20 6.3.Bandwidth.......................................................................................................................................................21 6.3.1.EUTOperation......................................................................................................................................22 6.3.2.TestSetupDiagram:..........................................................................................................................…

Text truncated - open the document above for the full version.

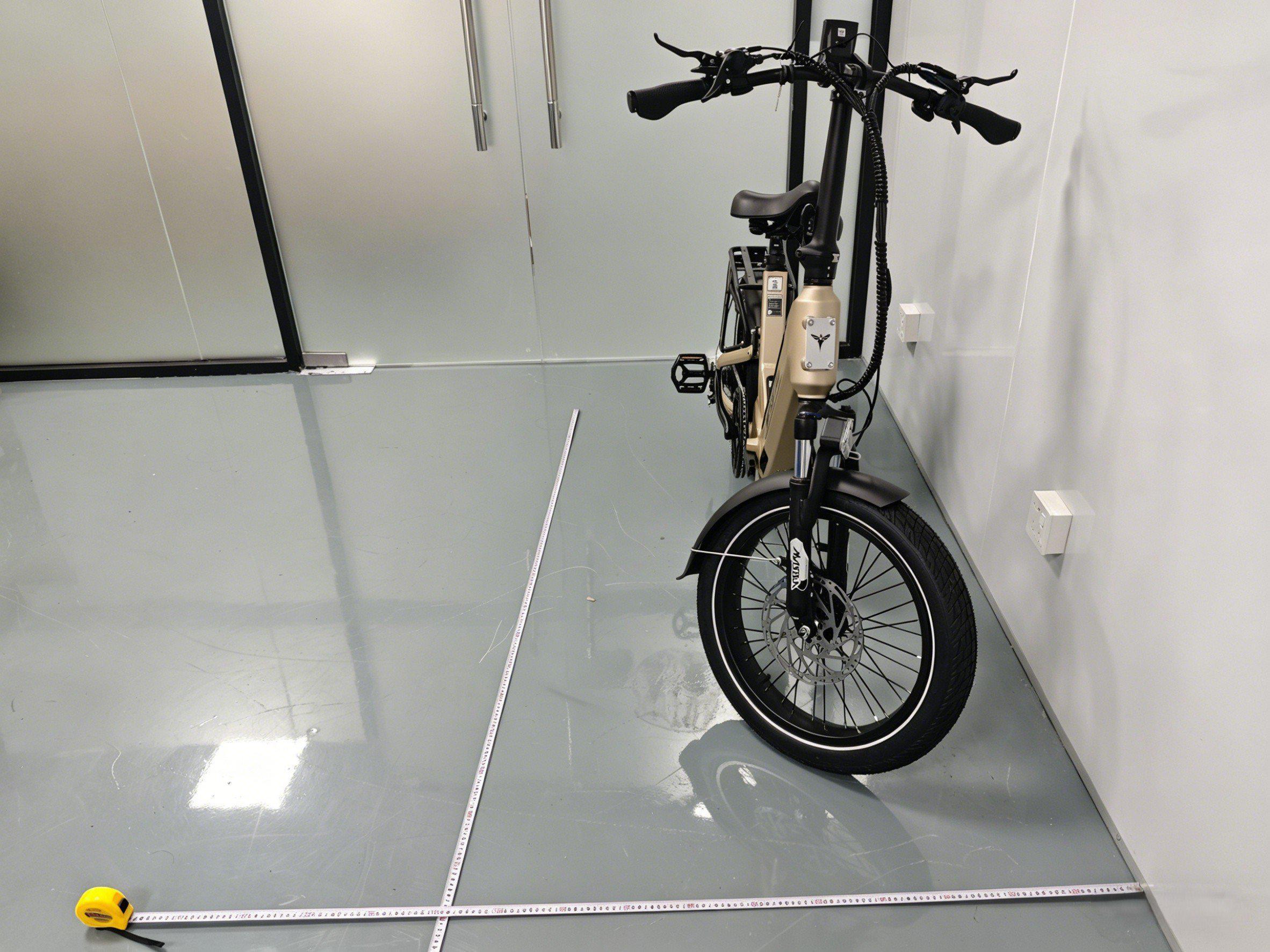

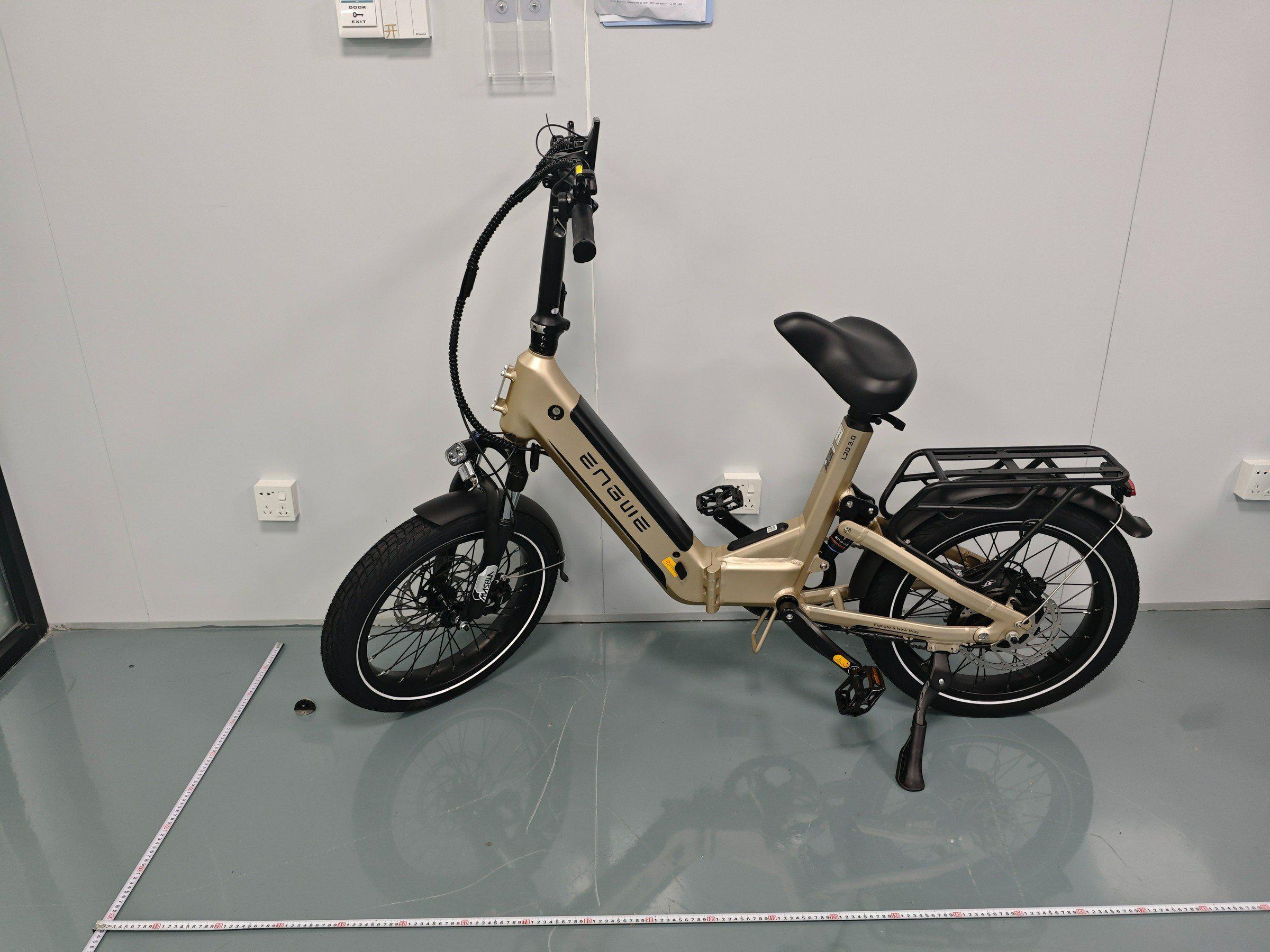

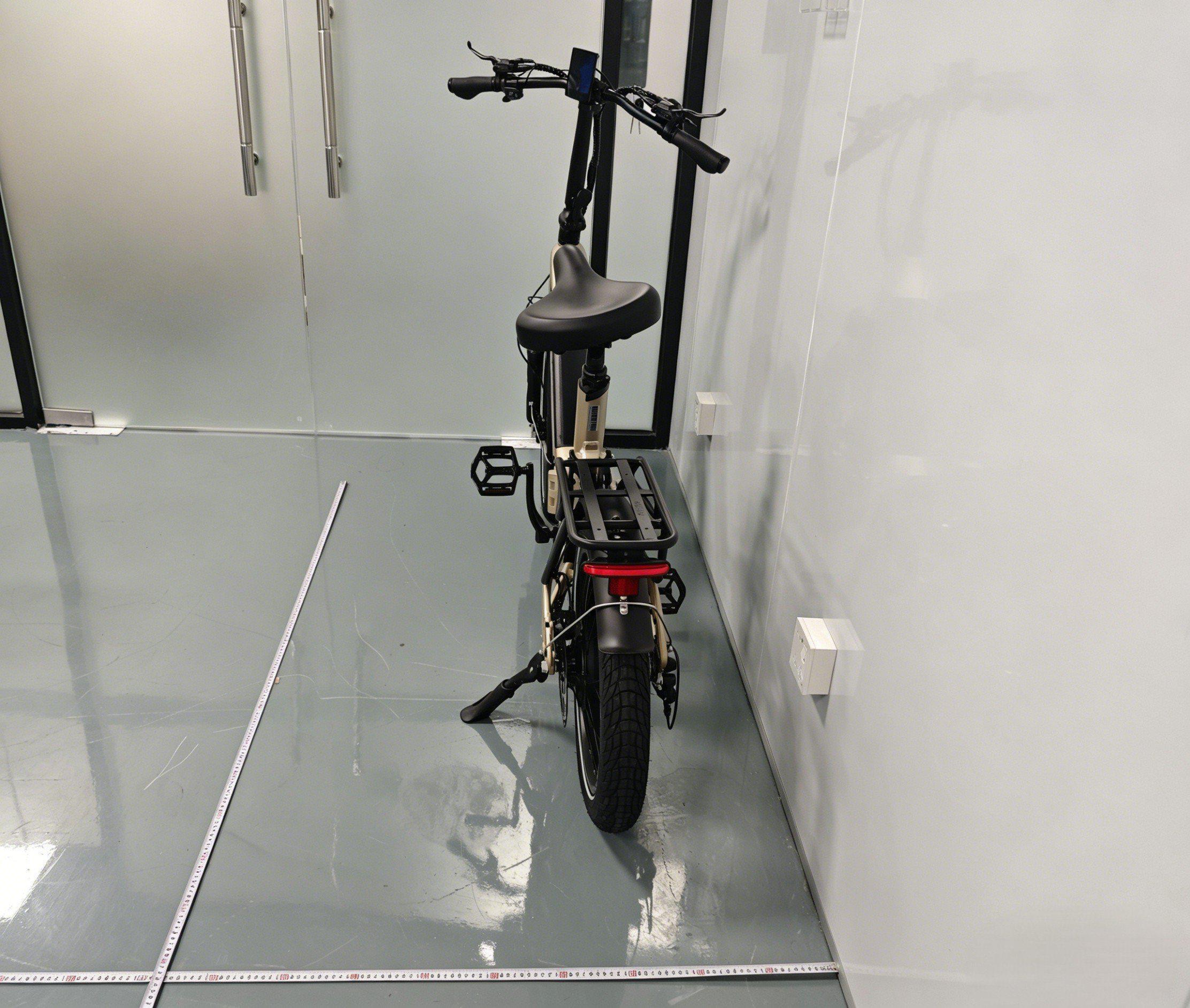

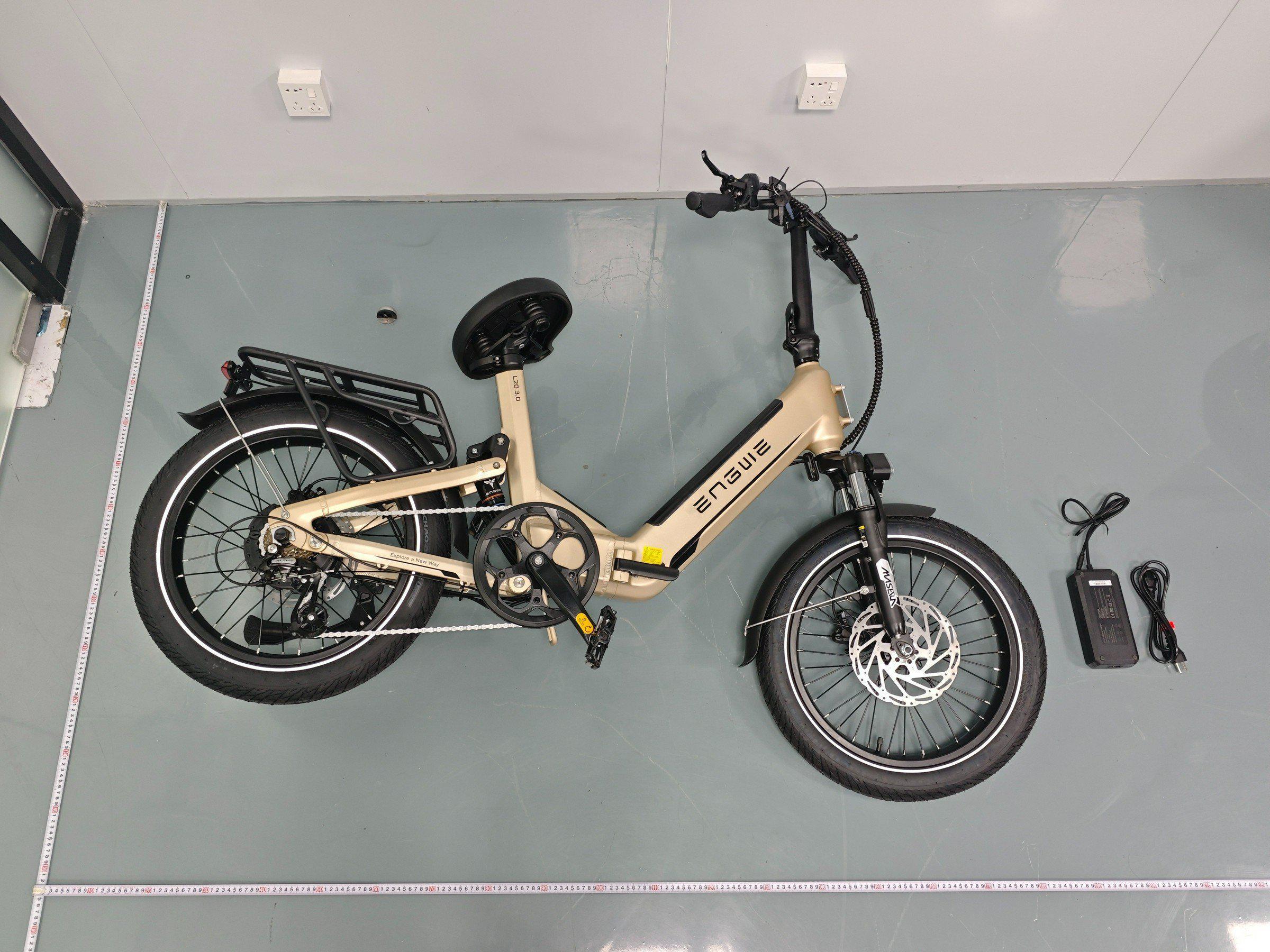

TESTSETUPPHOTOS ConductedEmissionatACpowerline Emissionsinfrequencybands(below1GHz) Emissionsinfrequencybands(above1GHz)

Page 1 of 81 ReportNo.:VOP20260327003ER2-R02 1.Effective(Isotropic)RadiatedPowerOutputData 1.1TestResult 1.1.1B71_5MHz_ERP Band:71/Bandwidth:5MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) ERP(dBm) Verdict SizeOffsetResultLimit QPSK 665.5 1 023.26-5.0516.06<=34.77Pass 1324.12-5.0516.92<=34.77Pass 2423.32-5.0516.12<=34.77Pass 12 022.78-5.0515.58<=34.77Pass 622.83-5.0515.63<=34.77Pass 1322.53-5.0515.33<=34.77Pass 25022.39-5.0515.19<=34.77Pass 680.5 1 024.51-5.0517.31<=34.77Pass 1323.71-5.0516.51<=34.77Pass 2422.98-5.0515.78<=34.77Pass 12 023.02-5.0515.82<=34.77Pass 622.77-5.0515.57<=34.77Pass 1322.24-5.0515.04<=34.77Pass 25022.63-5.0515.43<=34.77Pass 695.5 1 023.39-5.0516.19<=34.77Pass 1324.43-5.0517.23<=34.77Pass 2424.26-5.0517.06<=34.77Pass 12 022.83-5.0515.63<=34.77Pass 623.36-5.0516.16<=34.77Pass 1323.43-5.0516.23<=34.77Pass 25023.28-5.0516.08<=34.77Pass 16QAM 665.5 1 022.40-5.0515.20<=34.77Pass 1323.19-5.0515.99<=34.77Pass 2422.39-5.0515.19<=34.77Pass 12 021.73-5.0514.53<=34.77Pass 621.91-5.0514.71<=34.77Pass 1321.57-5.0514.37<=34.77Pass 25021.38-5.0514.18<=34.77Pass 680.5 1 023.20-5.0516.00<=34.77Pass 1322.49-5.0515.29<=34.77Pass 2421.77-5.0514.57<=34.77Pass 12 022.04-5.0514.84<=34.77Pass 621.76-5.0514.56<=34.77Pass 1321.19-5.0513.99<=34.77Pass 25021.69-5.0514.49<=34.77Pass 695.5 1 022.41-5.0515.21<=34.77Pass 1323.55-5.0516.35<=34.77Pass 2423.42-5.0516.22<=34.77Pass 12 021.92-5.0514.72<=34.77Pass 622.42-5.0515.22<=34.77Pass 1322.52-5.0515.32<=34.77Pass 25022.38-5.0515.18<=34.77Pass Note1:ERP=ConductedPower+AntennaGain-2.15 Page 2 of 81 ReportNo.:VOP20260327003ER2-R02 1.1.2B71_10MHz_ERP Band:71/Bandwidth:10MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) ERP(dBm) Verdict SizeOffsetResultLimit QPSK 668 1 023.170.6021.62<=34.77Pass 2522.640.6021.09<=34.77Pass 4922.830.6021.28<=34.77Pass 25 021.910.6020.36<=34.77Pass 1321.660.6020.11<=34.77Pass 2521.320.6019.77<=34.77Pass 50021.580.6020.03<=34.77Pass 680.5 1 023.990.6022.44<=34.77Pass 2523.130.6021.58<=34.77Pass 4921.860.6020.31<=34.77Pass 25 022.570.6021.02<=34.77Pass 1322.140.6020.59<=34.77Pass 2521.310.6019.76<=34.77Pass 50022.000.6020.45<=34.77Pass 693 1 021.740.6020.19<=34.77Pass 2522.860.6021.31<=34.77Pass 4924.060.6022.51<=34.77Pass 25 021.080.6019.53<=34.77Pass 1322.030.6020.48<=34.77Pass 2522.780.6021.23<=34.77Pass 50022.020.6020.47<=34.77Pass 16QAM 668 1 022.120.6020.57<=34.77Pass 2521.490.6019.94<=34.77Pass 4921.840.6020.29<=34.77Pass 12 022.460.6020.91<=34.77Pass 1921.540.6019.99<=34.77Pass 3821.550.6020.00<=34.77Pass 27020.840.6019.29<=34.77Pass 680.5 1 023.190.6021.64<=34.77Pass 2522.340.6020.79<=34.77Pass 4921.020.6019.47<=34.77Pass 12 022.960.6021.41<=34.77Pass 1922.230.6020.68<=34.77Pass 3821.070.6019.52<=34.77Pass 27021.690.6020.14<=34.77Pass 693 1 021.300.6019.75<=34.77Pass 2522.550.6021.00<=34.77Pass 4923.660.6022.11<=34.77Pass 12 020.940.6019.39<=34.77Pass 1922.010.6020.46<=34.77Pass 3823.270.6021.72<=34.77Pass 272321.850.6020.30<=34.77Pass Note1:ERP=ConductedPower+AntennaGain-2.15 Page 3 of 81 ReportNo.:VOP20260327003ER2-R02 1.1.3B71_15MHz_ERP Band:71/Bandwidth:15MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) ERP(dBm) Verdict SizeOffsetResultLimit QPSK 670.5 1 023.420.6021.87<=34.77Pass 3822.490.6020.94<=34.77Pass 7424.290.6022.74<=34.77Pass 36 021.860.6020.31<=34.77Pass 1821.700.6020.15<=34.77Pass 3922.430.6020.88<=34.77Pass 75022.120.6020.57<=34.77Pass 680.5 1 023.590.6022.04<=34.77Pass 3823.420.6021.87<=34.77Pass 7421.830.6020.28<=34.77Pass 36 022.870.6021.32<=34.77Pass 1822.500.6020.95<=34.77Pass 3921.310.6019.76<=34.77Pass 75022.200.6020.65<=34.77Pass 690.5 1 023.290.6021.74<=34.77Pass 3822.890.6021.34<=34.77Pass 7424.760.6023.21<=34.77Pass 36 021.710.6020.16<=34.77Pass 1821.910.6020.36<=34.77Pass 3922.960.6021.41<=34.77Pass 75022.280.6020.73<=34.77Pass 16QAM 670.5 1 022.470.6020.92<=34.77Pass 3821.620.6020.07<=34.77Pass 7423.320.6021.77<=34.77Pass 12 022.270.6020.72<=34.77Pass 3121.440.6019.89<=34.77Pass 6322.920.6021.37<=34.77Pass 27020.970.6019.42<=34.77Pass 680.5 1 022.570.6021.02<=34.77Pass 3822.420.6020.87<=34.77Pass 7420.960.6019.41<=34.77Pass 12 022.540.6020.99<=34.77Pass 3122.370.6020.82<=34.77Pass 6320.700.6019.15<=34.77Pass 27021.960.6020.41<=34.77Pass 690.5 1 022.270.6020.72<=34.77Pass 3822.110.6020.56<=34.77Pass 7423.950.6022.40<=34.77Pass 12 021.430.6019.88<=34.77Pass 3121.600.6020.05<=34.77Pass 6323.430.6021.88<=34.77Pass 274822.260.6020.71<=34.77Pass Note1:ERP=ConductedPower+AntennaGain-2.15 Page 4 of 81 ReportNo.:VOP20260327003ER2-R02 1.1.4B71_20MHz_ERP Band:71/Bandwidth:20MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) ERP(dBm) Verdict SizeOffsetResultLimit QPSK 673 1 023.770.6022.22<=34.77Pass 5023.550.6022.00<=34.77Pass 9923.360.6021.81<=34.77Pass 50 022.060.6020.51<=34.77Pass 2522.580.6021.03<=34.77Pass 5023.010.6021.46<=34.77Pass 100022.530.6020.98<=34.77Pass 683 1 023.790.6022.24<=34.77Pass 5022.880.6021.33<=34.77Pass 9922.790.6021.24<=34.77Pass 50 022.800.6021.25<=34.77Pass 2522.000.6020.45<=34.77Pass 5021.270.6019.72<=34.77Pass 100022.100.6020.55<=34.77Pass 688 1 024.360.6022.81<=34.77Pass 5022.280.6020.73<=34.77Pass 9924.470.6022.92<=34.77Pass 50 021.870.6020.32<=34.77Pass 2521.560.6020.01<=34.77Pass 5022.210.6020.66<=34.77Pass 100022.080.6020.53<=34.77Pass 16QAM 673 1 023.300.6021.75<=34.77Pass 5022.950.6021.40<=34.77Pass 9922.750.6021.20<=34.77Pass 12 022.640.6021.09<=34.77Pass 4422.450.6020.90<=34.77Pass 8822.430.6020.88<=34.77Pass 27021.230.6019.68<=34.77Pass 683 1 022.870.6021.32<=34.77Pass 5021.960.6020.41<=34.77Pass 9921.960.6020.41<=34.77Pass 12 022.770.6021.22<=34.77Pass 4421.690.6020.14<=34.77Pass 8821.300.6019.75<=34.77Pass 27022.030.6020.48<=34.77Pass 688 1 023.370.6021.82<=34.77Pass 5021.400.6019.85<=34.77Pass 9923.660.6022.11<=34.77Pass 12 022.640.6021.09<=34.77Pass 4421.260.6019.71<=34.77Pass 8823.260.6021.71<=34.77Pass 277321.870.6020.32<=…

Text truncated - open the document above for the full version.

Page 1 of 140 ReportNo.:VOP20260327003ER2-R02 1.Effective(Isotropic)RadiatedPowerOutputData 1.1TestResult 1.1.1B66_1.4MHz_EIRP Band:66/Bandwidth:1.4MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) EIRP(dBm) Verdict SizeOffsetResultLimit QPSK 1710.7 1 014.910.5115.42<=30Pass 214.910.5115.42<=30Pass 514.910.5115.42<=30Pass 3 014.910.5115.42<=30Pass 214.880.5115.39<=30Pass 314.910.5115.42<=30Pass 6013.850.5114.36<=30Pass 1745 1 016.200.5116.71<=30Pass 216.180.5116.69<=30Pass 516.290.5116.80<=30Pass 3 016.270.5116.78<=30Pass 216.290.5116.80<=30Pass 316.250.5116.76<=30Pass 6015.280.5115.79<=30Pass 1779.3 1 014.480.5114.99<=30Pass 214.320.5114.83<=30Pass 514.280.5114.79<=30Pass 3 014.260.5114.77<=30Pass 214.170.5114.68<=30Pass 314.220.5114.73<=30Pass 6013.490.5114.00<=30Pass 16QAM 1710.7 1 013.760.5114.27<=30Pass 213.800.5114.31<=30Pass 513.910.5114.42<=30Pass 3 013.840.5114.35<=30Pass 213.890.5114.40<=30Pass 313.870.5114.38<=30Pass 6012.790.5113.30<=30Pass 1745 1 015.400.5115.91<=30Pass 215.410.5115.92<=30Pass 515.440.5115.95<=30Pass 3 015.260.5115.77<=30Pass 215.270.5115.78<=30Pass 315.270.5115.78<=30Pass 6014.270.5114.78<=30Pass 1779.3 1 013.600.5114.11<=30Pass 213.490.5114.00<=30Pass 513.450.5113.96<=30Pass 3 013.530.5114.04<=30Pass 213.540.5114.05<=30Pass 313.500.5114.01<=30Pass 6012.420.5112.93<=30Pass Note1:EIRP=ConductedPower+AntennaGain Page 2 of 140 ReportNo.:VOP20260327003ER2-R02 1.1.2B66_3MHz_EIRP Band:66/Bandwidth:3MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) EIRP(dBm) Verdict SizeOffsetResultLimit QPSK 1711.5 1 014.840.5115.35<=30Pass 714.860.5115.37<=30Pass 1414.640.5115.15<=30Pass 8 013.820.5114.33<=30Pass 413.770.5114.28<=30Pass 713.760.5114.27<=30Pass 15013.760.5114.27<=30Pass 1745 1 016.080.5116.59<=30Pass 716.270.5116.78<=30Pass 1416.080.5116.59<=30Pass 8 015.210.5115.72<=30Pass 415.260.5115.77<=30Pass 715.250.5115.76<=30Pass 15015.200.5115.71<=30Pass 1778.5 1 014.540.5115.05<=30Pass 714.270.5114.78<=30Pass 1413.930.5114.44<=30Pass 8 013.760.5114.27<=30Pass 413.560.5114.07<=30Pass 713.440.5113.95<=30Pass 15013.570.5114.08<=30Pass 16QAM 1711.5 1 013.690.5114.20<=30Pass 713.870.5114.38<=30Pass 1413.710.5114.22<=30Pass 8 012.900.5113.41<=30Pass 412.920.5113.43<=30Pass 712.850.5113.36<=30Pass 15012.860.5113.37<=30Pass 1745 1 015.200.5115.71<=30Pass 715.420.5115.93<=30Pass 1415.230.5115.74<=30Pass 8 014.140.5114.65<=30Pass 414.220.5114.73<=30Pass 714.190.5114.70<=30Pass 15014.160.5114.67<=30Pass 1778.5 1 014.340.5114.85<=30Pass 714.100.5114.61<=30Pass 1413.740.5114.25<=30Pass 8 012.900.5113.41<=30Pass 412.790.5113.30<=30Pass 712.610.5113.12<=30Pass 15012.630.5113.14<=30Pass Note1:EIRP=ConductedPower+AntennaGain Page 3 of 140 ReportNo.:VOP20260327003ER2-R02 1.1.3B66_5MHz_EIRP Band:66/Bandwidth:5MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) EIRP(dBm) Verdict SizeOffsetResultLimit QPSK 1712.5 1 014.980.5115.49<=30Pass 1314.720.5115.23<=30Pass 2414.820.5115.33<=30Pass 12 013.800.5114.31<=30Pass 613.820.5114.33<=30Pass 1313.840.5114.35<=30Pass 25013.800.5114.31<=30Pass 1745 1 016.200.5116.71<=30Pass 1316.200.5116.71<=30Pass 2415.820.5116.33<=30Pass 12 015.170.5115.68<=30Pass 615.160.5115.67<=30Pass 1314.970.5115.48<=30Pass 25015.070.5115.58<=30Pass 1777.5 1 014.570.5115.08<=30Pass 1314.610.5115.12<=30Pass 2414.150.5114.66<=30Pass 12 013.870.5114.38<=30Pass 613.900.5114.41<=30Pass 1313.560.5114.07<=30Pass 25013.740.5114.25<=30Pass 16QAM 1712.5 1 013.890.5114.40<=30Pass 1313.900.5114.41<=30Pass 2413.970.5114.48<=30Pass 12 012.750.5113.26<=30Pass 612.860.5113.37<=30Pass 1312.810.5113.32<=30Pass 25012.860.5113.37<=30Pass 1745 1 015.470.5115.98<=30Pass 1315.330.5115.84<=30Pass 2415.040.5115.55<=30Pass 12 014.060.5114.57<=30Pass 614.130.5114.64<=30Pass 1314.040.5114.55<=30Pass 25013.970.5114.48<=30Pass 1777.5 1 013.720.5114.23<=30Pass 1313.700.5114.21<=30Pass 2413.290.5113.80<=30Pass 12 012.780.5113.29<=30Pass 612.870.5113.38<=30Pass 1312.580.5113.09<=30Pass 25012.810.5113.32<=30Pass Note1:EIRP=ConductedPower+AntennaGain Page 4 of 140 ReportNo.:VOP20260327003ER2-R02 1.1.4B66_10MHz_EIRP Band:66/Bandwidth:10MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) EIRP(dBm) Verdict SizeOffsetResultLimit QPSK 1715 1 015.150.5115.66<=30Pass 2514.270.5114.78<=30Pass 4915.250.5115.76<=30Pass 25 013.440.5113.95<=30Pass 1313.660.5114.17<=30Pass 2513.880.5114.39<=30Pass 50013.540.5114.05<=30Pass 1745 1 015.940.5116.45<=30Pass 2515.630.5116.14<=30Pass 4915.360.5115.87<=30Pass 25 014.500.5115.01<=30Pass 1314.580.5115.09<=30Pass 2514.340.5114.85<=30Pass 50014.400.5114.91<=30Pass 1775 1 015.290.5115.80<=30Pass 2514.530.5115.04<=30Pass 4914.050.5114.56<=30Pass 25 014.060.5114.57<=30Pass 1313.760.5114.27<=30Pass 2513.490.5114.00<=30Pass 50013.710.5114.22<=30Pass 16QAM 1715 1 013.880.5114.39<=30Pass 2513.600.5114.11<=30Pass 4914.170.5114.68<=30Pass 12 013.830.5114.34<=30Pass 1913.580.5114.09<=30Pass 3814.120.5114.63<=30Pass 27012.560.5113.07<=30Pass 1745 1 014.900.5115.41<=30Pass 2514.810.5115.32<=30Pass 4914.370.5114.88<=30Pass 12 014.570.5115.08<=30Pass 1914.650.5115.16<=30Pass 3814.200.5114.71<=30Pass 27013.590.5114.10<=30Pass 1775 1 015.090.5115.60<=30Pass 2514.140.5114.65<=30Pass 4913.610.5114.12<=30Pass 12 014.410.5114.92<=30Pass 1913.740.5114.25<=30Pass 3813.540.5114.05<=30Pass 272312.470.5112.98<=30Pass Note1:EIRP=ConductedPower+AntennaGain 1.1.5B66_15MHz_EIRP Band:66/Bandwidth:15MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) EIRP(dBm) Verdict SizeOffsetResultLimit QPSK1717.51 014.940.5115.45<=30Pass 3814.520.5115.03<=30Pass 7416.620.5117.13<=30Pass Page 5 of 140 ReportNo.:VOP20260327003ER2-R02 36 013.640.5114.15<=30Pass 1813.930.5114.44<=30Pass 3915.010.5115.52<=30Pass 75014.270.5114.78<=30Pass 1745 1 016.260.5116.77<=30Pass 3816.190.5116.70<=30Pass 7415.600.5116.11<=30Pass 36 015.210.5115.72<=30Pass 1815.110.5115.62<=30Pass 3914.720.5115.…

Text truncated - open the document above for the full version.

Page 1 of 33 ReportNo.:VOP20260327003ER2-R02 1.Effective(Isotropic)RadiatedPowerOutputData 1.1TestResult 1.1.1B13_5MHz_ERP Band:13/Bandwidth:5MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) ERP(dBm) Verdict SizeOffsetResultLimit QPSK 779.5 1 020.19-1.0616.98<=34.77Pass 1321.00-1.0617.79<=34.77Pass 2422.54-1.0619.33<=34.77Pass 12 019.31-1.0616.10<=34.77Pass 619.97-1.0616.76<=34.77Pass 1320.76-1.0617.55<=34.77Pass 25020.26-1.0617.05<=34.77Pass 782 1 021.05-1.0617.84<=34.77Pass 1322.86-1.0619.65<=34.77Pass 2421.86-1.0618.65<=34.77Pass 12 020.92-1.0617.71<=34.77Pass 621.70-1.0618.49<=34.77Pass 1321.60-1.0618.39<=34.77Pass 25021.43-1.0618.22<=34.77Pass 784.5 1 022.72-1.0619.51<=34.77Pass 1321.41-1.0618.20<=34.77Pass 2419.86-1.0616.65<=34.77Pass 12 021.43-1.0618.22<=34.77Pass 620.76-1.0617.55<=34.77Pass 1319.73-1.0616.52<=34.77Pass 25020.52-1.0617.31<=34.77Pass 16QAM 779.5 1 019.44-1.0616.23<=34.77Pass 1320.41-1.0617.20<=34.77Pass 2421.92-1.0618.71<=34.77Pass 12 018.24-1.0615.03<=34.77Pass 619.00-1.0615.79<=34.77Pass 1319.78-1.0616.57<=34.77Pass 25019.16-1.0615.95<=34.77Pass 782 1 020.03-1.0616.82<=34.77Pass 1321.82-1.0618.61<=34.77Pass 2420.86-1.0617.65<=34.77Pass 12 019.86-1.0616.65<=34.77Pass 620.65-1.0617.44<=34.77Pass 1320.48-1.0617.27<=34.77Pass 25020.41-1.0617.20<=34.77Pass 784.5 1 021.94-1.0618.73<=34.77Pass 1320.66-1.0617.45<=34.77Pass 2419.12-1.0615.91<=34.77Pass 12 020.36-1.0617.15<=34.77Pass 619.64-1.0616.43<=34.77Pass 1318.64-1.0615.43<=34.77Pass 25019.49-1.0616.28<=34.77Pass Note1:ERP=ConductedPower+AntennaGain-2.15 Page 2 of 33 ReportNo.:VOP20260327003ER2-R02 1.1.2B13_10MHz_ERP Band:13/Bandwidth:10MHz/NTNV Modulation Frequency (MHz) RBAllocation ConductedPower (dBm) Gain (dBi) ERP(dBm) Verdict SizeOffsetResultLimit QPSK782 1 020.141.0819.07<=34.77Pass 2522.971.0821.90<=34.77Pass 4920.421.0819.35<=34.77Pass 25 020.261.0819.19<=34.77Pass 1321.611.0820.54<=34.77Pass 2521.001.0819.93<=34.77Pass 50020.861.0819.79<=34.77Pass 16QAM782 1 019.111.0818.04<=34.77Pass 2521.961.0820.89<=34.77Pass 4919.361.0818.29<=34.77Pass 12 019.421.0818.35<=34.77Pass 1921.771.0820.70<=34.77Pass 3820.271.0819.20<=34.77Pass 27019.361.0818.29<=34.77Pass Note1:ERP=ConductedPower+AntennaGain-2.15 2.ModulationCharacteristics 2.1TestResult 2.1.1B13_5MHz Band:13/Bandwidth:5MHz/NTNV Modulation Frequency (MHz) RBAllocationModulationCharacteristics Verdict SizeOffsetResultLimit QPSK782250ReferToTestGraphPass 16QAM782250ReferToTestGraphPass 2.1.2B13_10MHz Band:13/Bandwidth:10MHz/NTNV Modulation Frequency (MHz) RBAllocationModulationCharacteristics Verdict SizeOffsetResultLimit QPSK782500ReferToTestGraphPass 16QAM782270ReferToTestGraphPass Page 3 of 33 ReportNo.:VOP20260327003ER2-R02 2.2TestGraph 2.2.1B13_5MHz Band13_5MHz_QPSK_MCH_782MHz_RB_25_0_NTNV Band13_5MHz_16QAM_MCH_782MHz_RB_25_0_NTNV Page 4 of 33 ReportNo.:VOP20260327003ER2-R02 2.2.2B13_10MHz Band13_10MHz_QPSK_MCH_782MHz_RB_50_0_NTNV Band13_10MHz_16QAM_MCH_782MHz_RB_27_0_NTNV Page 5 of 33 ReportNo.:VOP20260327003ER2-R02 3.99%&26dBBandwidth 3.1TestResult 3.1.1Band13_OBW Band:13/NTNV Bandwidth(MHz)Modulation Frequency (MHz) RBAllocation99%OccupiedBandwidth(MHz) Verdict SizeOffsetResultLimit 5 QPSK 779.52504.509/Pass 7822504.515/Pass 784.52504.499/Pass 16QAM 779.52504.532/Pass 7822504.493/Pass 784.52504.505/Pass 10 QPSK7825008.910/Pass 16QAM7822704.908/Pass 3.1.2Band13_XDB Band:13/NTNV Bandwidth(MHz)Modulation Frequency (MHz) RBAllocation26dBBandwidth(MHz) Verdict SizeOffsetResultLimit 5 QPSK 779.52504.961/Pass 7822504.952/Pass 784.52504.894/Pass 16QAM 779.52504.955/Pass 7822504.919/Pass 784.52504.946/Pass 10 QPSK7825009.451/Pass 16QAM7822705.549/Pass Page 6 of 33 ReportNo.:VOP20260327003ER2-R02 3.2TestGraph 3.2.1Band13_OBW Band13_5MHz_QPSK_LCH_779.5MHz_RB_25_0_NTNV Band13_5MHz_QPSK_MCH_782MHz_RB_25_0_NTNV Page 7 of 33 ReportNo.:VOP20260327003ER2-R02 Band13_5MHz_QPSK_HCH_784.5MHz_RB_25_0_NTNV Band13_5MHz_16QAM_LCH_779.5MHz_RB_25_0_NTNV Page 8 of 33 ReportNo.:VOP20260327003ER2-R02 Band13_5MHz_16QAM_MCH_782MHz_RB_25_0_NTNV Band13_5MHz_16QAM_HCH_784.5MHz_RB_25_0_NTNV Page 9 of 33 ReportNo.:VOP20260327003ER2-R02 Band13_10MHz_QPSK_MCH_782MHz_RB_50_0_NTNV Band13_10MHz_16QAM_MCH_782MHz_RB_27_0_NTNV Page 10 of 33 ReportNo.:VOP20260327003ER2-R02 3.2.2Band13_XDB Band13_5MHz_QPSK_LCH_779.5MHz_RB_25_0_NTNV Band13_5MHz_QPSK_MCH_782MHz_RB_25_0_NTNV Page 11 of 33 ReportNo.:VOP20260327003ER2-R02 Band13_5MHz_QPSK_HCH_784.5MHz_RB_25_0_NTNV Band13_5MHz_16QAM_LCH_779.5MHz_RB_25_0_NTNV Page 12 of 33 ReportNo.:VOP20260327003ER2-R02 Band13_5MHz_16QAM_MCH_782MHz_RB_25_0_NTNV Band13_5MHz_16QAM_HCH_784.5MHz_RB_25_0_NTNV Page 13 of 33 ReportNo.:VOP20260327003ER2-R02 Band13_10MHz_QPSK_MCH_782MHz_RB_50_0_NTNV Band13_10MHz_16QAM_MCH_782MHz_RB_27_0_NTNV Page 14 of 33 ReportNo.:VOP20260327003ER2-R02 4.Peak-AverageRatio 4.1TestResult 4.1.1B13_5MHz Band:13/Bandwidth:5MHz/NTNV Modulation Frequency (MHz) RBAllocationPeak-AverageRatio(dB) Verdict SizeOffsetResultLimit QPSK 779.52505.90<=13Pass 7822505.42<=13Pass 784.52505.44<=13Pass 16QAM 779.52506.54<=13Pass 7822506.12<=13Pass 784.52506.21<=13Pass 4.1.2B13_10MHz Band:13/Bandwidth:10MHz/NTNV Modulation Frequency (MHz) RBAllocationPeak-AverageRatio(dB) Verdict SizeOffsetResultLimit QPSK7825005.20<=13Pass 16QAM7822706.54<=13Pass Page 15 of 33 ReportNo.:VOP20260327003ER2-R02 4.2TestGraph 4.2.1B13_5MHz Band13_5MHz_QPSK_LCH_779.5MHz_RB_25_0_NTNV Band13_5MHz_QPSK_MCH_782MHz_RB_25_0_NTNV Page 16 of 33 ReportNo.:VOP20260327003ER2-R02 Band13_5MHz_QPSK_HCH_784.5MHz_RB_25_0_NTNV Band13_5MHz_16QAM_LCH_779.5MHz_RB_25_0_NTNV Page 17 of 33 ReportNo.:VOP20260327003ER2-R02 Band13_5MHz_16QAM_MCH_782MHz_RB_25_0_NTNV Band13_5MHz_16QAM_HCH_784.5MHz_RB_25_0_NTNV Page 18 of 33 ReportNo.:VOP20260327003ER2-R02 4.2.2B13_10MHz Band13_10MHz_QPSK_MCH_782MHz_RB_50_0_NTNV Band13_10MHz_16QAM_MCH_782MHz_RB_27_0_NTNV Page 19 of 33 R…

Text truncated - open the document above for the full version.
