2BU9I-ET0154Electronic Shelf Label

Third-Generation Four-Color Price Tag User Manual Overview The price tag is installed on a dedicated guide rail. With the eRetail 3.2 system and base stations such as ETAP05, the price tag can communicate with the base station to update screen display content and enable light-flashing functions. It can also be used with a mobile phone via NFC, allowing NFC-based control of page refresh and light flashing through the mobile app. Includes Size Model Image 1.54 ET0154-80 Equipment One ETAP05 base station, several third-generation four-color price tags, and one price tag guide rail. Operating Procedure 1 Device Installation （1） The price tag can be installed directly on the shelf guide rail, or used together with price tag accessories such as brackets, clamps, hooks, and bases. （2） When installing on the guide rail, align the snap-fit structure on the back of the price tag with the rail slot, then slide or press it into place, and adjust it to the corresponding product position. （3） When used with accessories, select suitable accessories according to the actual scenario, and complete installation by snap-fitting, clamping, hanging, or fixing. （4） After installation, make sure the price tag is securely fixed, the display direction is correct, the screen is not blocked, and the price tag ID corresponds to the product information. Base Station Installation 2 System Procedure （1） Enter the base station configuration backend to configure the base station, and configure it to the corresponding server. （2） Open the deployed eRetail 3.2 computer backend, and batch-add the price tags to be used into the backend. （3） Use the test tool or mobile app to bind products and push data. （4） The price tag receives data normally and displays the bound product image. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm(8 inches)during normal operation.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: CLF Import and Export Limited Contact Name: David Chen FRN: 0033489683 Address: 1312 17th Street #692,Denver,CO 80202,Unite States Telephone No: (949)254-2565 Email: [email protected] EIN: 98-1720547 Applicant: Company name: Zhuhai Suny Technology Co.,Ltd Product Description: Electronic Shelf Label Grantee code: 2BU9I FCC ID: 2BU9I-ET0154 FRN: 0038171716 Contact Name: Sam Lai Address: Room 901, 9th Floor, Sihai Building, Phase l, No. 3 Jinhua Road, Hongqi Town, jinwan District, Zhuhai, 519000, Guangdong, China Telephone No: 15919170159 Fax No: / Email: [email protected] [Zhuhai Suny Technology Co.,Ltd] certifies that, as of the date of this filing of the application with the TCB, [CLF Import and Export Limited]is our designated US agent for service of process for the above referenced FCC ID. [Zhuhai Suny Technology Co.,Ltd] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [CLF Import and Export Limited]accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2026/07/02 Applicant’s Name: Sam Lai US Agent’s Name: David Chen Title: warehouse keeper Title: Manager Signature Signature

TCBCALLpágina1 FileFCCID:2BU9I-ET0154 PleaseuploadanexhibitthatexplainshowdoestheTCBverifythenewagentinformation: 1-IstheaddressoftheagentavalidphysicalUSmailingaddress(notaUSpostofficebox,notavirtualmailbox,notP.O.Boxes,notavacantlot,notapublicbuilding, etc.) ○Wehavecheckediftheaddressexistsinarealandpotentialbuilding(Googlemaps)+officialUSregister,afterthisverificationandtheevidencebelowwecan guaranteethefollowing: notaUSpostofficebox notavirtualmailbox notP.O.Boxes notavacantlot notapublicbuilding(note) ►WecheckedtheFCCFRNSearchbasedontheinformationprovidedbythegrantee. Ontheofficialregisterfrom:https://opencorporates.com/companies/us_co/20231240414 Ingoogle: TCBCALLpágina2 ►CONCLUSIONbyTCB:TheASOPdefinedandprovidedbygranteeisVALIDandconfirmed.Thereforetheexhibit"2BOVE-HK-712USAgentforServiceofProcess LETTEROFATTESTATION"includedinthefileisok. 2-IstheagentphysicallylocatedatthatvalidUSaddresssuchthattheagentcanbelegallyservedatthataddress? Yes,checkabove 3-Hasthelistedagentclearlyagreedinwritingtoserveastheagentforthegranteeatthataddress? Yes,itisincludedintheexhibit"2BOVE-HK-712USAgentforServiceofProcessLETTEROFATTESTATION" >

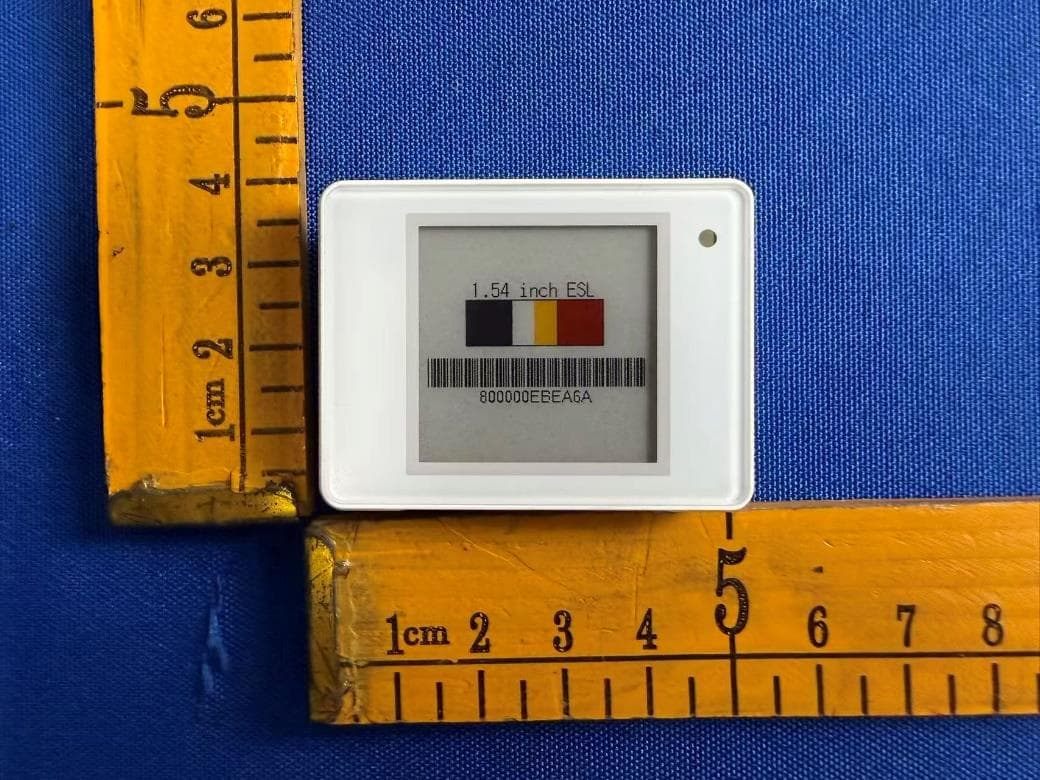

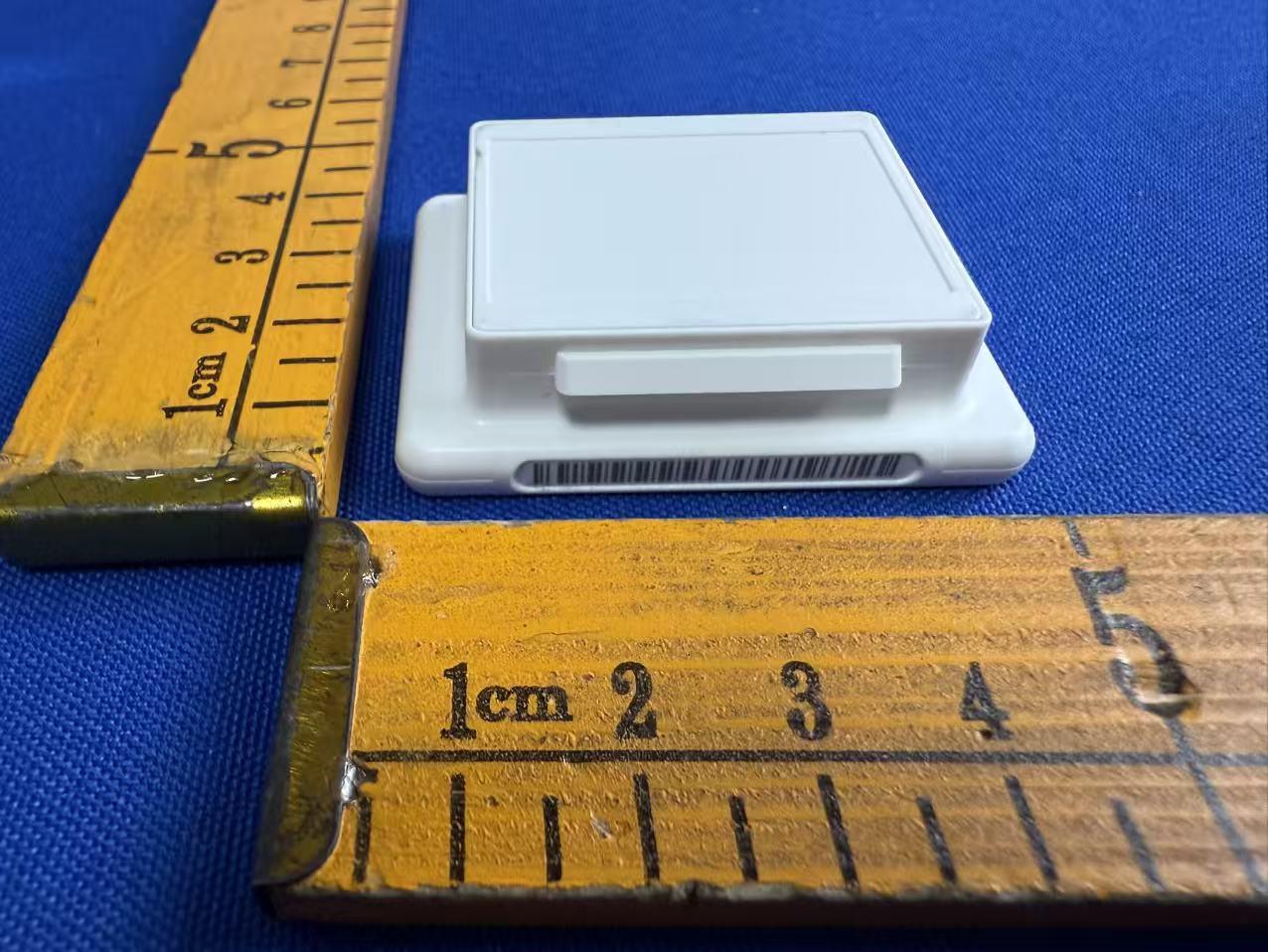

Shenzhen QC Testing Laboratory Co., Ltd. Page 1 of3 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn Product Name: E l e c t r o n i c S h e l f L a b e l Test Model No.: ET0154-80 EUT Constructional Details Shenzhen QC Testing Laboratory Co., Ltd. Page 2 of3 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn Shenzhen QC Testing Laboratory Co., Ltd. Page 3 of3 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn ------End------

Shenzhen QC Testing Laboratory Co., Ltd. Page 1 of4 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn Product Name: E l e c t r o n i c S h e l f L a b e l Test Model No.: ET0154-80 EUT Constructional Details： Shenzhen QC Testing Laboratory Co., Ltd. Page 2 of4 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn NFC Antenna Only receive Shenzhen QC Testing Laboratory Co., Ltd. Page 3 of4 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn Antenna Shenzhen QC Testing Laboratory Co., Ltd. Page 4 of4 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn -----End------

Shenzhen QC Testing Laboratory Co., Ltd. Page 1 of 2 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn FCC ID: 2BU9I-ET0154 RF Exposure Evaluation FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, and highest channel individually. Shenzhen QC Testing Laboratory Co., Ltd. Page 2 of 2 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn Test Result of RF Exposure Evaluation For worst case Antenna Gain: -1.4dBi Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2440 20 -4.24 -4±1 0.50 0.72 1 0.0001 Pass The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure.

Shenzhen QC Testing Laboratory Co., Ltd. Report No.: QCT26FR-1727E-01 Page 1 of 38 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn FCC PART 15.247 TEST REPORT On Behalf of Zhuhai Suny Technology Co.,Ltd Room 901, 9th Floor, Sihai Building, Phase l, No. 3 Jinhua Road, Hongqi Town, jinwan District, Zhuhai, 519000, Guangdong, China FCC ID: 2BU9I-ET0154 Model: ET0154-80 July 1, 2026 T hi s Repor t Concer ns: Or iginal Report Equi pm ent T ype: Elec tr onic Shelf Label Test Engineer: Fan Yang / Report Number: QCT26FR-1727E-01 Test Date: June 24-29, 2026 Test Result: Pass Reviewed By: Vincent Yang / Approved By: Kendy Wang / Prepared By: Shenzhen QC Testing Laboratory Co., Ltd. East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 Shenzhen QC Testing Laboratory Co., Ltd. Report No.: QCT26FR-1727E-01 Page 2 of 38 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn Table of Contents 1. GENERAL INFORMATION ................................................................................................. 5 1.1 Product Description for Equipment under Test (EUT) ............................................................. 5 1.2 System Test Configuration ...................................................................................................... 6 1.3 Test Facility.............................................................................................................................. 7 1.4 Measurement Uncertainty ........................................................................................................ 7 2. SUMMARY OF TEST RESULTS ........................................................................................ 8 3. LIST OF TEST AND MEASUREMENT INSTRUMENTS .................................................... 9 3.1 Radiated Emission Test ........................................................................................................... 9 3.2 RF Conducted test ................................................................................................................... 9 4. ANTENNA REQUIREMENT .............................................................................................. 10 5. CONDUCTED EMISSIONS ............................................................................................... 11 5.1 Applicable Standard............................................................................................................... 11 5.2 Limit ....................................................................................................................................... 11 5.3 Test setup .............................................................................................................................. 11 5.4 EMI Test Receiver Setup ....................................................................................................... 11 5.5 Test procedure....................................................................................................................... 11 5.6 Test Data ............................................................................................................................... 11 6. CONDUCTED PEAK OUTPUT POWER ........................................................................... 12 6.1 Applicable Standard............................................................................................................... 12 6.2 Limit ....................................................................................................................................... 12 6.3 Test setup .............................................................................................................................. 12 6.4 Test Procedure ...................................................................................................................... 13 6.5 Test Data ............................................................................................................................... 13 7. CHANNEL BANDWIDTH & 99% OCCUPIED BANDWIDTH ........................................... 16 7.1 Applicable Standard............................................................................................................... 16 7.2 Limit ....................................................................................................................................... 16 7.3 Test setup .............................................................................................................................. 16 7.4 Test Procedure ...................................................................................................................... 16 7.5 Test Data ............................................................................................................................... 17 8. POWER SPECTRAL DENSITY ........................................................................................ 22 8.1 Applicable Standard............................................................................................................... 22 8.2 Limit ....................................................................................................................................... 22 8.3 Test setup .............................................................................................................................. 22 8.4 Test Procedure ...................................................................................................................... 22 8.5 Test Data .........................................................…

Text truncated - open the document above for the full version.

Manufacturer:Suzhou Etag-Technology Corporation Antenna drawing： Standing wave ratio： Return loss： PCB Antenna Address:Room 501, Building D2, Phase II, Suzhou Nano-tech National University Science Park, 333 Songbei Road, Suzhou Industrial Park, Suzhou, Jiangsu Avg Gain： Model 01132021_#1 Test / Position Free Space Communication System Gain Frequently(MHz) 2400 2440 2480 Avg Gain (dBi) -5.6 -5.7 -6.0 Peak Gain (dBi) -1.5 -1.4 -1.7 Directivity (dBi) 4.1 4.3 4.3 Efficiency (dBi) -5.6 -5.7 -6.0 Efficiency (%) 27.5 26.8 25.3 Gain (dBi) -1.5 -1.4 -1.7 Note Antenna lobe pattern: E2 Total Po wer (d Bm ) Angl e (? Scal e: 2/di v Mi n: -16 Max : -2 0 180 30 210 60 240 90 270 120 300 150 330 2400 MHz 2440 MHz 2480 MHz Total Po wer (d Bm ) Angl e (? Scal e: 1/di v Mi n: -9 Max : -1 0 180 30 210 60 240 90 270 120 300 150 330 2400 MHz 2440 MHz 2480 MHz Total Po wer (d Bm ) Angl e (? Scal e: 2/di v Mi n: -16 Max : -4 0 180 30 210 60 240 90270 120 300 150 330 2400 MHz 2440 MHz 2480 MHz

Shenzhen QC Testing Laboratory Co., Ltd. Page 1 of 2 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn Product Name: E l e c t r o n i c S h e l f L a b e l Test Model No.: ET0154-80 Photograph of Test Setup Radiated Emissions (30 MHz - 1 GHz) Radiated Emissions (Above 1 GHz) Shenzhen QC Testing Laboratory Co., Ltd. Page 2 of 2 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 http://www.qctest.com.cn RF Conducted measurement ------End------
