2BU9I-ET0266-82ESL (Electronic Shelf Label)

一、What is an Electronic Shelf Label solution? 2.4GHz Electronic Shelf Label solution consists of three components, including an Electronic Shelf Label management system (ESL Software), a wireless Base Station/AP and an Electronic Shelf Label. Integrate the Electronic Shelf Label management system with the POS system/ERP system/CRM system/MCR system of the supermarket, the information of the customer database is sent to the Electronic Shelf Label management system, the Electronic Shelf Label management system will send the information to the wireless base station through LAN and the wireless base station will send the content to be displayed to the Electronic Shelf Label through the 2.4GHz communication frequency to realize the commodify information in real time update. ESL Solution Benefits ⚫ Wireless RFID technology for real-time updating of bulk price tags. ⚫ Reducing labor costs and achieving profit growth in supermarkets. ⚫ Reducing paper waste and protecting the environment. ⚫ Improving operational efficiency and saving time costs. ⚫ Online and offline, timely synchronization of product information across multiple stores. ⚫ Reducing error rates, customer complaints and merchant compensation. 3.1 Software Introduction 3.1.1 Software Product Matrix Free test software ⚫ eDesigner 3.0 (For eRetail 3.0) ⚫ Config Tool 3.0 (For Base Station) Pay to use software ⚫ eRetail 3.0 (For multiple stores) ⚫ eShop 3.0 (For single store) 3.1.2 Steps to deploy eRetail 3.0 Confirm customer data type → Deploy eRetail Software → Design Template → Electronic Label Display When interfacing with the customer management system, you need to confirm the data type of the customer management system (Excel/CSV/Word/XML/TXT/Database/WebAPI/Web Service/ JSON ...) and then confirm the data interfacing method. 3.1.3 Multiple Network Architectures Available ❖ Local LAN Advantage: Faster and more secure information transfer ❖ Cloud Advantage: Product information can be updated anytime and anywhere,multi-store management is more convenient. 3.1.4 Advantages of Suny eRtail Server ➢ Server : NET 6.0, cross-platform, Windows, Linux, or macOS. Also support Docker deploy; ➢ Client App: Android 5.0+, iOS 14.0+; ➢ 100% Customize interface or UI support. 3.2 Introduction of Base Station 3.2.1 Base station Parameters: Item Parameters Product Model ETAP03-2.5 H*V*D 190×190×39(mm) Weight 285g Color White Operating Voltage DC 5V [using original power supply Operating Current Less than 200mA Operating Temperature -10~55°C Communication Method 2.4Ghz Storage Temperature -20~70°C Communication Distance 13-15m Storage Humidity 45%~70%RH Data Interface Standard Network Cable Interface 3.2.2 Base Station Characteristics ➢ Over-the-Air (OTA) firmware upgrade: Firmware upgrade via over-the-air download. spectrum technology and ensure 100% label update. ➢ POE : Support POE technology to simplify wiring and save costs. ➢ Encrypt on-the-fly: Automatically encrypt data in real time to ensure data security. 3.2.3 Working principle and status of the base station: ◼ Working principle: 1. A fter Base Station power on, the ARM processor to start working, initialize the network chip and wireless chip 2. A fter initialization, Base Station enters the network receiving state and waits for data from the server 3. When the server has tag data, it sends the data to Base Station through the network. 4. B ase Station receives the data and sends it to the corresponding tag by wireless ◼ Base station status： 1. P ower on: plug in the power supply and network cable, the base station screen display "----" 2. O nline: computer running ESL software, the base station screen display "H-01" FHSS: Improve the anti-interference of data transmission through frequency hopping spread ➢ 3. Communicating: software sending data and the base station screen display "C--01" 4. Communication completed: the base station screen display changes from "C--01" back to "H- 01" 3.2.4 Base station control range: ◼ Connection method: TCP/IP(Private Protocol) ◼ Control area: Circle with a radius of 13-15m (43-50 ft) (Area 530-706m² (5705-7599ft²)) 3.3 2.4GHz Electronic Shelf Label 3.3.1 Electronic Shelf Label Sizes & Parameters 3.3.2 2.4GHz Electronic Shelf Label Structure Electronic Shelf Label composition: front cover plate, e-ink display, PCBA board, battery, back cover plate. ⚫ The front cover plate is made of 4H hardness acrylic, which has good anti-drop and anti- scratch characteristics. ⚫ E-ink display: bistable characteristics, still displaying information after power failure, low power consumption, clear without backlight. ⚫ PCBA board: using STMicroelectronics chips. ⚫ Battery: Use high-performance batteries, life ≥ 6 years . Note: The waterproof label back cover plate is welded by ultrasonic machine, the battery can not be replaced. In addition to 4.2 inch label is fully waterproof, other sizes of labels are surface waterproof, if you need full waterproof label can contact us to customize. 3.3.3 ESL Characteristics ⚫ Appearance. Thin and light design with extremely narrow frame for a better visual experience Labeling bottom design, simpler and more beautiful ⚫ Function. Information display: support for multiple languages, graphics, text, symbols, etc NFC function: support NFC communication function (optional) Temperature detection: support for temperature sampling, system readable Power detection: each tag supports power sampling and can be read by the system LED indicators: support 3-color independent control lights, user-defined blinking frequency and color of the indicators 3.3.4 Accessories and Installation Note: This picture listed is regular accessories, if you have other needs, please contact us. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip…

Text truncated - open the document above for the full version.

Date: 2026/02/25 Attestation Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: Our ESL (Electronic Shelf Label) products (Model Numbers: ET0266-82 , ET0266-5B. FCC ID: 2BU9I- ET0266-82) are equipped with chips that support only BLE (1M) / BLE (2M) (2402–2480 MHz); NFC functionality is limited to passive mode, and all other frequency bands are disabled via software configuration. Please contact me if there is need for any additional clarification or information. Company: Zhuhai Suny Technology Co.,Ltd Add: Room 901, 9th Floor, sihal Building, Phase 1, No.3 jinhua Road, HonggiTown,Zhuhai,Guangdong,519000,China Tel: 15919170159 FAX: N/A Email: [email protected] Sincerely, Signature Contact Person: Sam Lai Titl e : warehouse keeper

Zhuhai Suny Technology Co.,Ltd CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 03/18/2026 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID: 2BU9I-ET0266-82 Zhuhai Suny Technology Co.,Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Zhuhai Suny Technology Co.,Ltd (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Zhuhai Suny Technology Co.,Ltd (“the applicant”) certifies that the equipment does not use Kaspersky's software information. Sincerely, Signature Contact Person: Sam Lai Title : warehouse keeper Company Name & Address: Zhuhai Suny Technology Co.,Ltd &Room 901, 9th Floor, sihal Building, Phase 1, No.3 jinhua Road, Honggi Town,Zhuhai,Guangdong,519000,China

QA-FR-170-B 7/29/2014 Zhuhai Suny Technology Co.,Ltd FCC Authorization (2026/03/18) FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Zhuhai Suny Technology Co.,Ltd the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Client’s name/ title: Sam Lai/warehouse keeper Contact information/address: Zhuhai Suny Technology Co.,Ltd /Room 901, 9th Floor, sihal Building, Phase 1, No.3 jinhua Road, Honggi Town,Zhuhai,Guangdong,519000,China

QA-FR-171-A (Zhuhai Suny Technology Co.,Ltd) FCC Confidential Authorization (2026/03/18) FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2BU9I-ET0266-82 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Zhuhai Suny Technology Co.,Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Client’s signature Client’s name/ title: Sam Lai /warehouse keeper Contact information/address: Zhuhai Suny Technology Co.,Ltd /Room 901, 9th Floor, sihal Building, Phase 1, No.3 jinhua Road, Honggi Town,Zhuhai,Guangdong,519000,China

QA-FR-227-A 11/05/2013 Zhuhai Suny Technology Co.,Ltd DECLARATION OF SIMILARITY May 8, 2026 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Zhuhai Suny Technology Co., Ltd., hereby state that the differences between the products: ESL (Electronic Shelf Labels), models ET0266-82 and ET0266-5B are as described below. The relevant test results are documented in the report issued by Bay Area Compliance Laboratory Co., Ltd. (New Taipei City Laboratory), Project No.: RXZ260319063. A description of the differences between the tested model and those that are declared similar are as follows: FCC ID: 2BU9I-ET0266-82 The differences of them are as follows: 1 model name 2 Appearance color shell color(white) shell color(blue) QA-FR-227-A 11/05/2013 3 PCB board routing Please contact me should there be need for any additional clarification or information. Best Regards, Responsible Party Signature Name, and Title: Sam Lai /warehouse keeper Company Legal Address: Zhuhai Suny Technology Co.,Ltd /Room 901, 9th Floor, sihal Building, Phase 1, No.3 jinhua Road, Honggi Town,Zhuhai,Guangdong,519000,China The differences in the welding holes of battery spring pieces and the size of surface mount capacitor packages do not affect the RF part The following different traces only affect the power supply of the battery and do not affect the RF part

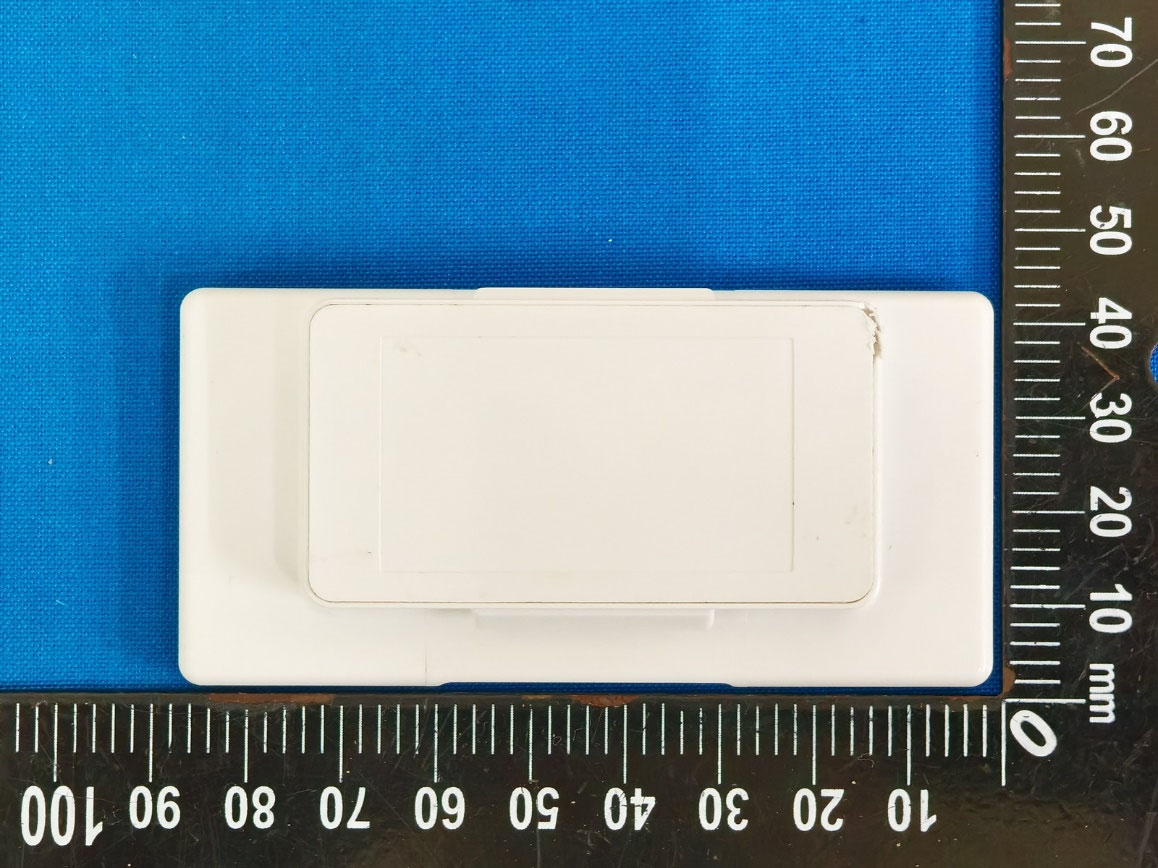

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 1 of 6 External Photographs ET0266-82 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 2 of 6 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 3 of 6 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 4 of 6 ET0266-5B Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 5 of 6 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 6 of 6 ***** END *****

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 1 of 13 Internal Photographs ET0266-82 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 2 of 13 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 3 of 13 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 4 of 13 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 5 of 13 NFC Coil BT chip Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 6 of 13 NFC Chip BT Antenna Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 7 of 13 ET0266-5B Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 8 of 13 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 9 of 13 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 10 of 13 NFC Coil Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 11 of 13 BT Chip / NFC Chip BT Antenna Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 12 of 13 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 13 of 13 ***** END *****

Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 1 of 9 FCC Part 1.1310 RF Exposure Evaluation REPORT For FCC ID：2BU9I-ET0266-82 Model：ET0266-82 Report Type：Original Report Product Name：ESL（Electronic Shelf Label） Report Number：RXZ260319063SA01 Report Date：2026-04-13 Prepared By：Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) 70, Lane 169, Sec. 2, Datong Road, Xizhi Dist., New Taipei City 221, Taiwan, R.O.C. Tel：+886 (2)2647 6898 Fax：+886 (2)2647 6895 www.bacl.com.tw Facilities：The test site used by Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) to collect test data is located on 70, Lane 169, Sec. 2, Datong Road, Xizhi Dist., New Taipei City 221, Taiwan, R.O.C. Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260319063SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 2 of 9 Statem ent of Compliance Applicant (Certification Holder) Zhuhai Suny Technology Co.,Ltd Room 901, 9th Floor, sihal Building, Phase 1, No.3 jinhua Road, Honggi Town,Zhuhai,Guangdong,519000,China Brand (Trade) Name N/A Product (Equipment) Name ESL（Electronic Shelf Label） Main Model Name ET0266-82 Series Model Name ET0266-5B Model Discrepancy The differences between the models lie in their appearance and PCB board routing. Please refer to the difference declaration letter provided by the Applicant. Measurement Procedures and Standards Used: ☒ FCC Part 2.1091 ☒ FCC Part 1.1310 The measurement results i n this report were performed at Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. The determination of the test results does not require consideration of the uncertainty of the measurement, unless the assessment is required by customer agreement, regulation or standard document specification. Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) is not responsible for the authenticity of the information provided by the applicant that affects the test results. Report Issued Date ：2026-04-13 Reviewed By：Anson Lu Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260319063SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 3 of 9 Revision History Revision No. Report Number Issue Date Description Author/ Revised by 0.0 RXZ260319063 RXZ260319063SA01 2026.04.13 Original Report Anson Lu Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260319063SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 4 of 9 TABLE OF CONTENTS 1.General Information ............................................................................................................................. 5 2.RF Output Power Evaluation .............................................................................................................. 6 3.FCC §1.1310 - RF Exposure ................................................................................................................. 7 4.RF Exposure Evaluation Result Project info: .................................................................................... 9 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260319063SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 5 of 9 1.General Information Product Description for Equipment under Test (EUT) Product Name ESL（Electronic Shelf Label） Frequency Range BLE(1M) / BLE(2M)：2402 ~ 2480 MHz Conducted Tune-Up Power (dBm) BLE(1M)：-2.50 dBm BLE(2M)：-2.50 dBm Modulation Technique BLE(1M) / BLE(2M)：GFSK Antenna Specification Type：PCB Antenna Gain：-1.40 dBi Received Date 2026/03/20 *All measurement and test data in this report was gathered from production sample serial number: RXZ260319063-1 (Assigned by BACL (New Taipei Laboratory)). Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260319063SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 6 of 9 2.RF Output Power Evaluation Please refer to RF report No: RXZ260319063RF01. Conducted Peak Output Power： Mode Channel Frequency (MHz) Conducted Peak Output Power (dBm) BLE(1M)Low2402-2 .91 BLE(1M)Middl e2440-2 .96 BLE(1M)High2480-2 .87 BLE(2M)Low2402-3 .32 BLE(2M)Middl e2440-3 .15 BLE(2M)High2480-2 .99 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260319063SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 7 of 9 3.FCC §1.1310 - RF Exposure Applicable Standard According to subpart §1.1310 (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). §1.1310 (d)(2) For operations within the frequency range of 300 kHz and 6 GHz (inclusive), the limits for maximum permissible exposure (MPE), derived from whole-body SAR limits and listed in Table 1 in paragraph (e)(1) of this section, may be used instead of whole-body SAR limits as set forth in paragraphs (a) through (c) of this section to evaluate the environmental impact of human exposure to RF radiation as specified in § 1.1307(b) of this part,…

Text truncated - open the document above for the full version.

Plate Antenna, Manufacturer:Suzhou Etag-Technology Corporation Address:Room 236,2/F Ming De Building, No.166 Ren ai Road,Suzhou Industrial Park,Suzhou,China Antenna drawing： Standing wave ratio： Return loss： L W Avg Gain： Model 01132021_#1 Test / Position Free Space Communication System Gain Frequently(MHz) 2400 2440 2480 Avg Gain (dBi) -5.6 -5.7 -6.0 Peak Gain (dBi) -1.5 -1.4 -1.7 Directivity (dBi) 4.1 4.3 4.3 Efficiency (dBi) -5.6 -5.7 -6.0 Efficiency (%) 27.5 26.8 25.3 Gain (dBi) -1.5 -1.4 -1.7 Note Antenna lobe pattern: E2 Total Po wer (d Bm ) Angl e (? Scal e: 2/di v Mi n: -16 Max : -2 0 180 30 210 60 240 90 270 120 300 150 330 2400 MHz 2440 MHz 2480 MHz Total Po wer (d Bm ) Angl e (? Scal e: 1/di v Mi n: -9 Max : -1 0 180 30 210 60 240 90 270 120 300 150 330 2400 MHz 2440 MHz 2480 MHz Total Po wer (d Bm ) Angl e (? Scal e: 2/di v Mi n: -16 Max : -4 0 180 30 210 60 240 90270 120 300 150 330 2400 MHz 2440 MHz 2480 MHz

Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 1 of 45 FCC Part 15.247 TEST REPORT For Zhuhai Suny Technology Co.,Ltd Room 901, 9th Floor, sihal Building, Phase 1, No.3 jinhua Road, Honggi Town,Zhuhai,Guangdong,519000,China FCC ID: 2BU9I-ET0266-82 Report Type: Original Report Product Type: ESL (Electronic Shelf Label) Report Producer : Coco Lin Report Number : RXZ260319063RF01 Report Date : 2026-04-28 Reviewed By: Andy Shih Prepared By: Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) 70, Lane 169, Sec. 2, Datong Road, Xizhi Dist., New Taipei City 221, Taiwan, R.O.C. Tel: +886 (2) 2647 6898 Fax: +886 (2) 2647 6895 www.baclcorp.com.tw Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260319063RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 2 of 45 Revision History Revision No. Report Number Issue Date Description Author/ Revised by 0.0 RXZ260319063 RXZ260319063RF01 2026-04-28 Original Report Coco Lin Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260319063RF01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 3 of 45 TABLE OF CONTENTS 1 General Information ....................................................................................................... 4 1.1 Product Description for Equipment under Test (EUT) ......................................................... 4 1.2 Objective ............................................................................................................................... 5 1.3 Test Methodology .................................................................................................................. 5 1.4 Statement ............................................................................................................................... 5 1.5 Measurement Uncertainty ..................................................................................................... 6 1.6 Environmental Conditions ..................................................................................................... 6 1.7 Test Facility ........................................................................................................................... 6 2 System Test Configuration ............................................................................................. 7 2.1 Description of Test Configuration ......................................................................................... 7 2.2 EUT Exercise Software ......................................................................................................... 7 2.3 Equipment Modifications ...................................................................................................... 7 2.4 Test Mode .............................................................................................................................. 7 2.5 Support Equipment List and Details ...................................................................................... 8 2.6 External Cable List and Details ............................................................................................. 8 2.7 Block Diagram of Test Setup ................................................................................................ 8 2.8 Duty Cycle ............................................................................................................................. 9 3 Summary of Test Results .............................................................................................. 11 4 Test Equipment List and Details ................................................................................. 12 5 FCC §15.203 – Antenna Requirements ....................................................................... 13 5.1 Applicable Standard ............................................................................................................ 13 5.2 Antenna List and Details ..................................................................................................... 13 6 FCC §15.209, §15.205 , §15.247(d) – Spurious Emissions ......................................... 14 6.1 Applicable Standard ............................................................................................................ 14 6.2 EUT Setup ........................................................................................................................... 15 6.3 EMI Test Receiver & Spectrum Analyzer Setup................................................................. 16 6.4 Test Procedure ..................................................................................................................... 17 6.5 Corrected Factor & Margin Calculation .............................................................................. 17 6.6 Test Results ......................................................................................................................... 18 7 FCC §15.247(a)(2) – 6 dB Emission Bandwidth ......................................................... 30 7.1 Applicable Standard ............................................................................................................ 30 7.2 Test Procedure ..................................................................................................................... 30 7.3 Test Results ......................................................................................................................... 31 8 FCC §15.247(b)(3) – Maximum Output Power .......................................................... 38 8.1 Applicable Standard ............................................................................................................ 38 8.2 Test Proc…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 1 of 4 EUT Setup Photographs Radiated Emission (Below 1GHz)： Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 2 of 4 Radiated Emission (1~18GHz)： Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 3 of 4 Radiated Emission (Above 18GHz)： Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260319063 Page 4 of 4 LOOP： ***** END *****
