2BUHI-PBX01mPulse power box subassembly

M P U L S E T E C H G U I D E V E R S I O N 1 2 2 0 2 0 2 5 B L A U P U N K T mPulse 2 2 Welcome to your in-sauna entertainment! Inthis guide, you will be walkedthrough how to setup your sauna account and utilize your mobile app,Android Control Pad and mPulsePower box(PB). For optimal guidance, confirm thatyourAndroidControl Pad and mPulse Powerbox(PB) matche withthe image featured onthe cover ofthis guide.To maximizethebenefits of your sauna sessions and customizethe experienceto suit your preferences,kindlyfollowthese instructions. The Sunlighten App Welcometothe SunlightenApp!This guidewilltakeyouthroughthe registration and setup of your account and the most common and usefulfunctions of your Android Control Pad in operatingyour mPulse Smart Sauna. mPulse M P U L S E T E C H G U I D E V E R S I O N 1 2 2 0 2 0 2 5 TABLE OF CONTENTS Sunlighten Mobile App ..................................................................... 4 Control Pad Screen/Initial Setup .................................................. 5 Account Registration ........................................................................ 9 Profile Setup ......................................................................................... 10 Welcome Screen ................................................................................. 11 Wellness Programs ............................................................................. 12 Schedule ............................................................................................... 13 Custom Programs .............................................................................. 14 More .......................................................................................................... 15 Media & Applications ........................................................................... 16 FAQ ............................................................................................................ 17 Troubleshooting ................................................................................... 18 Error Codes/Diagnostics .................................................................... 19 FCC Warning ............................................................................................. 21 Warranty ................................................................................................... 22 Additional guides, including the mPulse owner’s manual, can be found at sunlighten.com/customer-service/guides-and-specs. 4 USING THE SUNLIGHTEN MOBILE APP Available ontheApp Storefor iPhone 12 (or later) and Google Play storeforAndroid 8 (or later) isthe Sunlighten app. Currently,this is afoundationalversion. • Schedule sessions with our upgraded scheduling tool • View calendar of upcoming sessionsto easily integrate into your routine • Choose pre-set wellness programs that help you pursue your health goals • Create custom programsfor a personalized option • Set specific health goals soyou stayfocused • Access your sauna from 500 meters, or 1/3 of a mile • View wavelength animation during selected programsto understand what wavelengths are emittingto create specific health benefits Allthese amazing features arejust the beginning. Features around the corner include notifications, exclusive sauna content, milestonetracking, gamification, and so much more! Stay connected with us soyou don’t miss an update.Asthe most advanced sauna onthe market, ourvisionforyou to have access to your sauna from your phone is to make it a more seamless and pleasurable part ofyour daily life. It easily supportsyour health goals and wellness routinetofeel better soyou can do more and liveyour fullest life. How to Get the Sunlighten Mobile App Step 1. Make sure your in-sauna tablet has the latest version (3.2.1 or higher)In order to use the mobile app,you’ll need to updateyour in-saunatablet to 3.2.1 or higher.This update is only available forAndroid 10tablets. Ifyou’re interested in upgrade options, please contact our Customer Careteam at (877) 292-0020 or Submit aTicket here: sunlighten.com/customer-service. HOW:To make sure you havethe latest version, clickthe “More” icon atthe bottom ofthe screen and look attheversion numberthat isvery small inthe bottom center ofthe next screen. Ifyou did not get a pop-up message to updatetothe latestversion,you will need to manually update tothe latestversionfrom the Google Play store.You can accessthat from the Google Play store icon onyourtablet home screen. Step 2. Download the Sunlighten mobile app to your phone. 5 ANDROID CONTROL PAD GUIDE ANDROID CONTROL PAD Power ON/OFF & Mute To turn on:Press To mute:PresswhileACP is on To turn off:Press and holdfor 3seconds 1 2 3 4 5 6 7 8 9 10 1.MICROPHONE 2.RESET BUTTON . RESTORE TO DEFA ULT FACTORY SETTING S OF T HE DEVICE . CA UTION: ALL PERSONAL SETTINGS WILL BE LOST . 3.POWER/MUTE BUTTON . SHORT PRESS: TURN ON DEVICE; IN OPERATION: MUTE AUDIO SOURCE; LONG PRESS: TURN OFF DEVICE 4.HOME BUTTON . SHORT PRESS: GO TO SOURCE MENU 5.BACK BUTTON . PRESS TO RETURN TO PREVIOUS MENU 6.PRESS THIS BUTTON TO INCREASE A UDIO VOL UME 7.PRESS THIS BUTTON TO DECREASE A UDIO VOL UME 8.BACK BUTTON . PRESS TO RETURN TO PREVIOUS MENU 9.HOME BUTTON . SHORT PRESS: GO TO SOURCE MENU LONG PRESS: OPEN APPS IN BACKGROUND 10.OVERLAID SQUARES BUTTON . PRESS THIS BUTTON TO BRING UP A SELECTION OF ALL APPS THAT ARE CURRENTLY OPEN 6 SETUP SCREEN 1 On activatingyour Control Pad,you’ll be greeted by ascreen with some starter Android app icons. To view additional apps installed on the tablet, swipe left.You cantapthe lotus logoto returntothe SunlightenApp at anytime to see your AppTray. SCREEN 2 Swipe down from the top of the screen to: • Adjust screen brightness andvolume. • Hold Wi-Fi button down to connect. NOTE: the Sunlighten app requires a 2.4GHz Wi-Fi line. 5GHz will also work with the tablet if you are in range (about 20-30 ft from your router). • Screenshot will take a picture of your screen. • “Clean” and “Res…

Text truncated - open the document above for the full version.

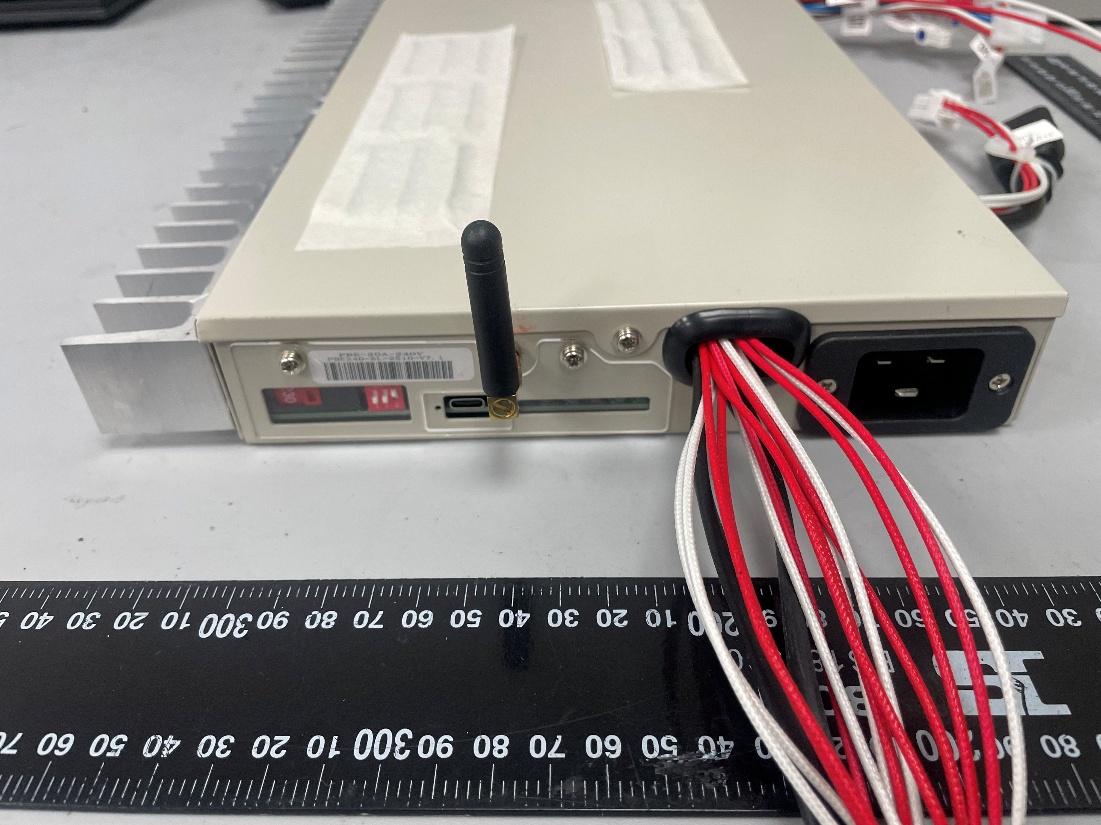

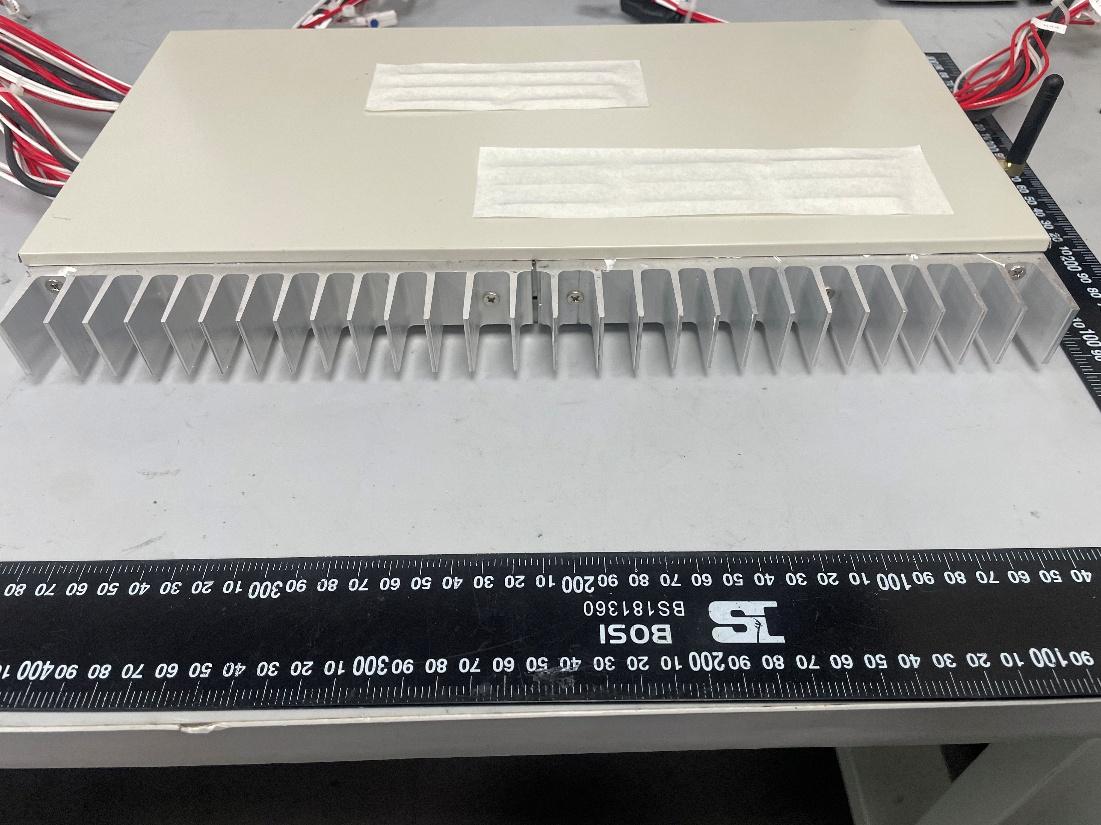

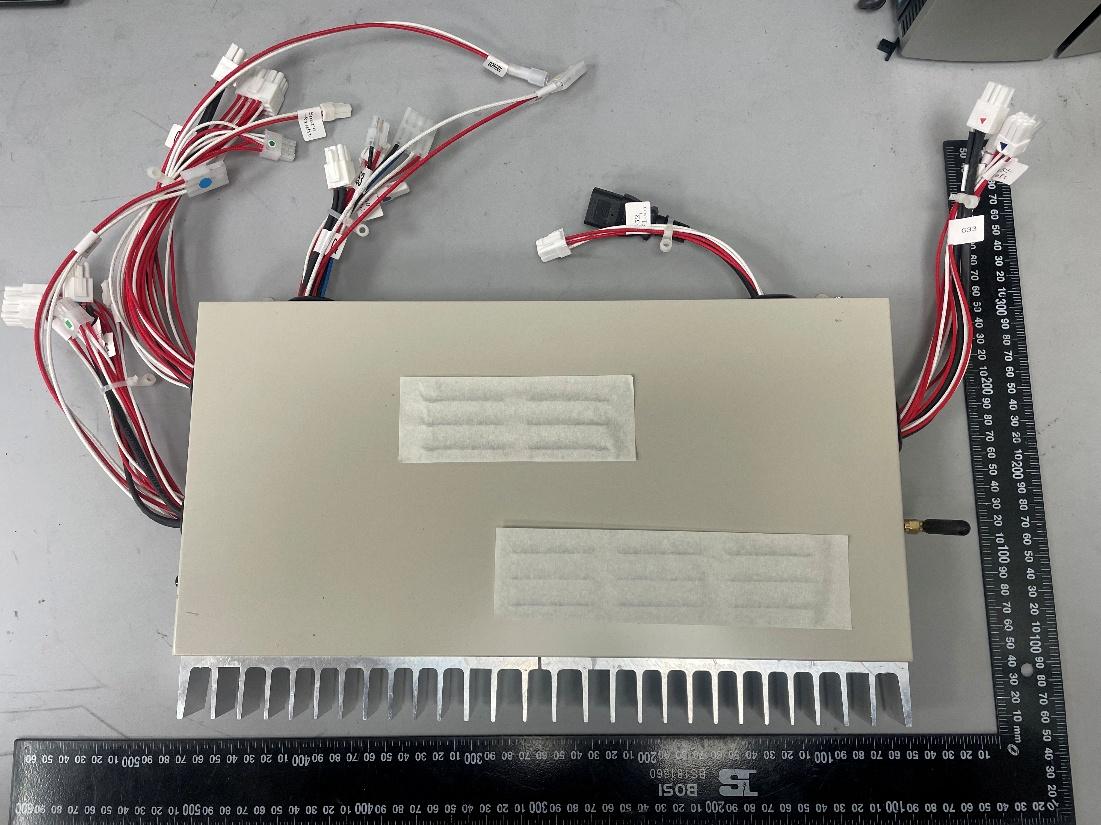

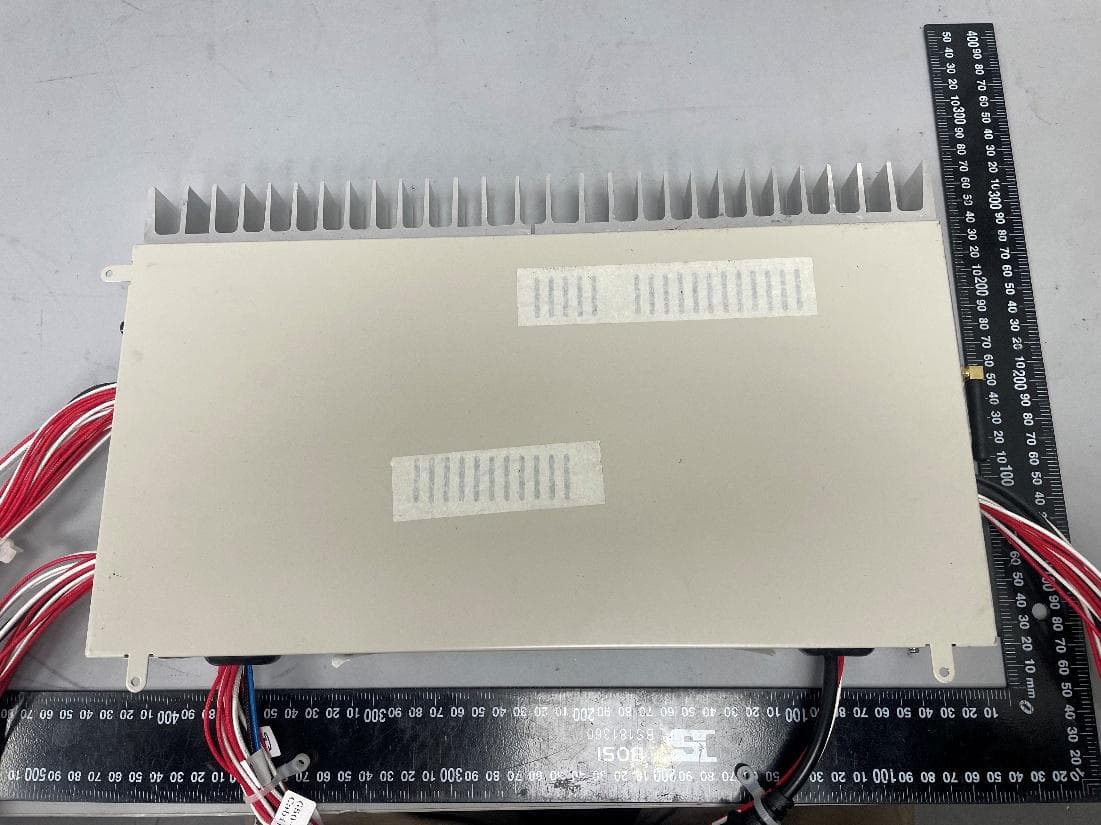

Page 1 of 4 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label (52*16.5MM): Location Model: mPulse PB FCC ID: 2BUHI-PBX01

Page 1 of 4 Internal Photos Page 2 of 4 Antenna Page 3 of 4 Page 4 of 4

Sunlighten, Inc. MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: mPulse PB REPORT NUMBER: 2510B1660SHA-003 ISSUE DATE: January 29, 2026 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 9 Report no.: 2510B1660SHA-003 Applicant: Sunlighten, Inc. 10975 EI Monte Street, Leawood, KS 66211, United States Manufacturer: Sunlighten, Inc. 10975 EI Monte Street, Leawood, KS 66211, United States Product Name: mPulse power box subassembly Type/Model: mPulse PB FCC ID: 2BUHI-PBX01 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Scout Gong Reviewer Eric Li Report No.: 2510B1660SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 9 Revision History Report No. Version Description Issued Date 2510B1660SHA-003 Rev. 01 Initial issue of report January 29, 2026 Report No.: 2510B1660SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 9 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: mPulse power box subassembly Type/Model: mPulse PB Description of EUT: The EUT is power box which supports Wi-Fi/BLE function. Rating: 240V AC Category of EUT: Class B EUT type: Table top Floor standing Software Version: - Hardware Version: - Serial numbers: A251029-33-001 Sample received date: October 29, 2025 Date of test: October 29, 2025, to December 5, 2025 Report No.: 2510B1660SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 9 1.2 Technical Specification Frequency Range: 2402-2480MHz Support Standards: Bluetooth LE Type of Modulation: GFSK Channel Number: 40 Data Rate: 1Mbps Antenna Information: 3.78 dBi, External antenna Frequency Band: 2400MHz ~ 2483.5MHz Support Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n(HT20), IEEE 802.11n(HT40) Type of Modulation: IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n(HT20): OFDM (64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n(HT40): OFDM (64-QAM, 16-QAM, QPSK, BPSK) Operating Frequency: 2412MHz to 2462MHz for IEEE 802.11b/g/n(HT20) 2422MHz to 2452MHz for IEEE 802.11n(HT40) Channel Number: 11 Channels for 802.11b, 802.11g ,802.11n(HT20) 7 Channels for 802.11n(HT40) Channel Separation: 5 MHz Antenna: External antenna: 3.78 dBi Gain Report No.: 2510B1660SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 9 1.3 Description of Test Facility Name: Intertek Testing Services (Shanghai FTZ) Co., Ltd Address: Building 86, No. 1198 Qinzhou Road (North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L21189 FCC Accredited Lab Designation Number: CN0175 IC Registration Lab CAB identifier.: CN0014 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 2510B1660SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 9 2 MPE Assessment Test Result: Pass 2.1 MPE Assessment Limit Mobile device exposure for standalone operations: Frequency range E-field strength (V/m) H-field strength (A/m) B-field (uT) Equivalent plane wave power density S eq (W/m 2 ) 0-1 Hz - 3,2 × 10 4 4 × 10 4 - 1-8 Hz 10 000 3,2 × 10 4 /f 2 4 × 10 4 /f 2 - 8-25 Hz 10 000 4 000/f 5 000/f - 0,025-0,8 kHz 250/f 4/f 5/f - 0,8-3 kHz 250/f 5 6,25 - 3-150 kHz 87 5 6,25 - 0,15-1 MHz 87 0,73/f 0,92/f - 1-10 MHz 87/f 1/2 0,73/f 0,92/f - 10-400 MHz 28 0,073 0,092 2 400-2 000 MHz 1,375 f 1/2 0,0037 f 1/2 0,0046 f 1/2 f/200 2-300 GHz 61 0,16 0,20 10 Mobile device exposure for simultaneous transmission operations: the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 2510B1660SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 8 of 9 2.2 Assessment Results Power density (S) is calculated according to the formula: S = PG / (4πR²) Where S = power density in mW/cm² P = Radiated transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report 2510B1660SHA-001, 2510B1660SHA-002: The calculations in the table below use the highest gain of antenna for client EUT. These calculations represent worst case in terms of the exposure levels. Note: 1 mW/cm2 from 1.310 Table 1. BLE, WIFI cannot simultaneous transmitting, so the maximum rate of MPE is: 0.0577 mW/cm 2 ≤ 1.0 mW/cm 2 Mode Work Frequency Power Antenna Gain R S Limits (MHz) dBm mW dBi (Numeric) (cm) (mW/cm2) (mW/cm2) BLE 2402 – 2480 8.16 6.546 3.78 2.388 20 0.0031 1.0000 Wi-Fi 2412 – 2462 20.84 121.339 3.78 2.388 20 0.0577 1.0000 Report No.: 2510B1660SHA-003 TEST REPOR…

Text truncated - open the document above for the full version.

深圳市优信无线科技有限公司 终端天线Mobile Antenna YX-P2425WZ3-050 型号 YX-P2425WZ3-050 Model YX-P2425WZ3-050 主要技术参数 Main Technical Specifications 频率范围 驻波比 输入阻抗 增益 极化形式 最大功率 输入接口 高度 重量 天线颜色 工作温度 2400-2500MHz ≤2.0 50Ω 3dBi 垂直极化 50W SMA-弯公头 (50±2)mm 10g 黑色 -40~70°C Frequency Range VSWR Input Impedance Gain Polarization type Max. Power Input Connector Length Weight Antenna Color Working Temperature 2400-2500MHz ≤2.0 50Ω 3dBi 垂直极化 50W SMA-WJ (50±2)mm 10g 黑色 -40~70°C 深圳市优信无线科技有限公司 深圳市优信无线科技有限公司

Sunlighten, Inc. RF TEST REPORT Report Type: FCC Part 15.247 RF report MODEL: mPulse PB REPORT NUMBER: 2510B1660SHA-001 ISSUE DATE: January 29, 2026 DOCUMENT CONTROL NUMBER: TTRF15.247-02_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-02_V1 © 2018 Intertek Page 2 of 45 Report no.: 2510B1660SHA-001 Applicant: Sunlighten, Inc. 10975 EI Monte Street, Leawood, KS 66211, United States Manufacturer: Sunlighten, Inc. 10975 EI Monte Street, Leawood, KS 66211, United States Product Name: mPulse power box subassembly Type/Model: mPulse PB FCC ID: 2BUHI-PBX01 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2024): Radio Frequency Devices (Subpart C) C63.10-2020 +Cor. 1-2023 +C63.10a-2024 +Errata to C63.10a-2024: American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Device – Corrigendum 1 PREPARED BY: REVIEWED BY: Project Engineer Scout Gong Reviewer Eric Li Report No.: 2510B1660SHA-001 TEST REPORT TTRF15.247-02_V1 © 2018 Intertek Page 3 of 45 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ................................................................................................ 7 1.2 TECHNICAL SPECIFICATION ................................................................................................................................ 7 1.3 DESCRIPTION OF TEST FACILITY .......................................................................................................................... 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 STANDARDS OR SPECIFICATION .......................................................................................................................... 9 2.2 MODE OF OPERATION DURING THE TEST ............................................................................................................ 9 2.3 TEST SOFTWARE LIST ..................................................................................................................................... 10 2.4 TEST PERIPHERALS LIST .................................................................................................................................. 10 2.5 TEST ENVIRONMENT CONDITION: .................................................................................................................... 10 2.6 INSTRUMENT LIST ......................................................................................................................................... 11 2.7 MEASUREMENT UNCERTAINTY ........................................................................................................................ 12 3 MINIMUM 6DB BANDWIDTH ..................................................................................................................... 13 3.1 LIMIT ......................................................................................................................................................... 13 3.2 MEASUREMENT PROCEDURE .......................................................................................................................... 13 3.3 TEST CONFIGURATION ................................................................................................................................... 13 3.4 TEST RESULTS OF MINIMUM 6DB BANDWIDTH ................................................................................................... 13 4 MAXIMUM CONDUCTED OUTPUT POWER AND E.I.R.P. ............................................................................. 14 4.1 LIMIT ......................................................................................................................................................... 14 4.2 MEASUREMENT PROCEDURE .......................................................................................................................... 14 4.3 TEST CONFIGURATION ................................................................................................................................... 14 4.4 TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER ................................................................................. 14 5 POWER SPECTRUM DENSITY ..................................................................................................................... 15 5.1 LIMIT ...............…

Text truncated - open the document above for the full version.

Sunlighten, Inc. RF TEST REPORT Report Type: FCC Part 15.247 RF report MODEL: mPulse PB REPORT NUMBER: 2510B1660SHA-002 ISSUE DATE: January 29, 2026 DOCUMENT CONTROL NUMBER: TTRF15.247-03_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-03_V1 © 2018 Intertek Page 2 of 61 Report no.: 2510B1660SHA-002 Applicant: Sunlighten, Inc. 10975 EI Monte Street, Leawood, KS 66211, United States Manufacturer: Sunlighten, Inc. 10975 EI Monte Street, Leawood, KS 66211, United States Product Name: mPulse power box subassembly Type/Model: mPulse PB FCC ID: 2BUHI-PBX01 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2024): Radio Frequency Devices (Subpart C) C63.10-2020 +Cor. 1-2023 +C63.10a-2024 +Errata to C63.10a-2024: American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Device – Corrigendum 1 PREPARED BY: REVIEWED BY: Project Engineer Scout Gong Reviewer Eric Li Report No.: 2510B1660SHA-002 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 3 of 61 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ................................................................................................ 7 1.2 TECHNICAL SPECIFICATION ................................................................................................................................ 8 1.3 ANTENNA INFORMATION .................................................................................................................................. 8 1.4 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 9 2 TEST SPECIFICATIONS ................................................................................................................................. 10 2.1 STANDARDS OR SPECIFICATION ........................................................................................................................ 10 2.2 MODE OF OPERATION DURING THE TEST .......................................................................................................... 10 2.3 TEST SOFTWARE LIST ..................................................................................................................................... 11 2.4 TEST PERIPHERALS LIST .................................................................................................................................. 11 2.5 TEST ENVIRONMENT CONDITION: .................................................................................................................... 11 2.6 INSTRUMENT LIST ......................................................................................................................................... 12 2.7 MEASUREMENT UNCERTAINTY ........................................................................................................................ 13 3 MINIMUM 6DB BANDWIDTH ..................................................................................................................... 14 3.1 LIMIT ......................................................................................................................................................... 14 3.2 MEASUREMENT PROCEDURE .......................................................................................................................... 14 3.3 TEST CONFIGURATION ................................................................................................................................... 14 3.4 TEST RESULTS OF MINIMUM 6DB BANDWIDTH ................................................................................................... 14 4 MAXIMUM CONDUCTED OUTPUT POWER AND E.I.R.P. ............................................................................. 15 4.1 LIMIT ......................................................................................................................................................... 15 4.2 MEASUREMENT PROCEDURE .......................................................................................................................... 15 4.3 TEST CONFIGURATION ................................................................................................................................... 16 4.4 TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER ................................................................................. 16 5 POWER SPECTRUM D…

Text truncated - open the document above for the full version.

Report No.: 2510B1660SHA-002 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 56 of 61 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS Report No.: 2510B1660SHA-002 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 57 of 61 Duty Cycle Test Result Test Mode Antenna Frequency [MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Factor 11B Ant1 2412 8.38 8.42 99.52 0.02 11B Ant2 2412 8.38 8.42 99.52 0.02 11B Ant1 2437 8.37 8.42 99.41 0.03 11B Ant2 2437 8.38 8.41 99.64 0.02 11B Ant1 2462 8.39 8.42 99.64 0.02 11B Ant2 2462 8.38 8.41 99.64 0.02 11G Ant1 2412 1.40 1.44 97.22 0.12 11G Ant2 2412 1.39 1.44 96.53 0.15 11G Ant1 2437 1.39 1.44 96.53 0.15 11G Ant2 2437 1.40 1.44 97.22 0.12 11G Ant1 2462 1.39 1.44 96.53 0.15 11G Ant2 2462 1.39 1.44 96.53 0.15 11N20MIMO Ant1 2412 1.30 1.35 96.30 0.16 11N20MIMO Ant2 2412 1.30 1.34 97.01 0.13 11N20MIMO Ant1 2437 1.30 1.35 96.30 0.16 11N20MIMO Ant2 2437 1.30 1.35 96.30 0.16 11N20MIMO Ant1 2462 1.30 1.35 96.30 0.16 11N20MIMO Ant2 2462 1.30 1.35 96.30 0.16 11N40MIMO Ant1 2422 0.65 0.70 92.86 0.32 11N40MIMO Ant2 2422 0.64 0.69 92.75 0.33 11N40MIMO Ant1 2437 0.64 0.69 92.75 0.33 11N40MIMO Ant2 2437 0.65 0.69 94.20 0.26 11N40MIMO Ant1 2452 0.65 0.69 94.20 0.26 11N40MIMO Ant2 2452 0.64 0.69 92.75 0.33 Report No.: 2510B1660SHA-002 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 58 of 61 Test Graphs NTNV-11B-Ant1-2412 NTNV-11B-Ant1-2437 NTNV-11B-Ant1-2462 NTNV-11G-Ant1-2412 Report No.: 2510B1660SHA-002 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 59 of 61 NTNV-11G-Ant1-2437 NTNV-11G-Ant1-2462 NTNV-11N20SISO-Ant1-2412 Report No.: 2510B1660SHA-002 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 60 of 61 NTNV-11N20SISO-Ant1-2437 NTNV-11N20SISO-Ant1-2462 NTNV-11N40SISO-Ant1-2422 Report No.: 2510B1660SHA-002 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 61 of 61 NTNV-11N40SISO-Ant1-2437 NTNV-11N40SISO-Ant1-2452 **************************************** END ***************************************

Page 1 of 5 Setup Photos Page 2 of 5 1. Conducted Emission Page 3 of 5 2. Radiated Emission Below 1GHz Page 4 of 5 Above 1GHz Page 5 of 5 3. RF
