2BUNQ-SENSERGRW10Coiliiot Sense Gateway

Coiliiot Sense Gateway Sense-RG-RW10 QUICK START GUIDE 1. Product Overview The Coiliiot Sense Gateway is a plug-in gateway designed to receive sensor data via sub-1G radio frequency signal and upload data to the cloud through 2.4 GHz Wi-Fi. The gateway supports Bluetooth Low Energy (BLE) for mobile app provisioning. Key features • 2.4 GHz Wi-Fi connectivity (ESP32-C3 module) • BLE provisioning for Wi-Fi setup • 433.92 MHz RF receiver (RX only) for sensor data reception • USB Type-C power input (5 VDC) 2. In the box • 1 × Coiliiot Sense Gateway • 1 × USB Type-C Cable • 1 × USB Power Adapter (AC-DC) • 1 × Quick User Guide 3. Power & Interface Power Input • Power via USB Type-C, 5 VDC • Use the included USB power adapter and cable, or an equivalent 5 V USB power supply. Buttons / Indicators • Power LED: indicate power • Internet LED: network status (see Section 6) • Button: used for provisioning/reset (see Section 5) Note: The actual LED behavior may vary by firmware version. For certification testing, please contact Coiliiot for the specified test firmware and operating mode. 4. Installation 1. Place the gateway indoors in an open area, away from large metal objects. 2. Plug the gateway into power using the included USB adapter and USB-C cable. 3. Wait for the Status LED to indicate that the gateway is ready for provisioning. 4. Search for Coiliiot Sense application in App store or Play store and install it. 5. Create an account and login into the Coiliiot Sense app. 5. Wi-Fi Provisioning (BLE) The gateway is provisioned through the Coiliiot mobile application using BLE. Steps 1. Install and open Coiliiot Sense App on your phone. 2. Enable Bluetooth on your phone. 3. In the app, select Add Gateway. 4. Select the gateway from the BLE device list. 5. Enter the target 2.4 GHz Wi-Fi SSID and password. 6. Send credentials to the gateway. 7. The gateway will reboot and attempt to connect to Wi-Fi automatically. Notes • Only 2.4 GHz Wi-Fi is supported. • Make sure your Wi-Fi router uses WPA/WPA2 (typical home settings). • If provisioning fails, move the phone and gateway closer to the router and retry. 6. Internet LED status • Blinking slow: BLE on, Provisioning mode / waiting for Wi-Fi credentials • Blinking fast: Connecting to Wi-Fi / cloud • Solid ON (stable): Connected and working normally 7. Normal Operation After connecting to Wi-Fi, the gateway will: • Listen for RF sensor transmissions (RF receiver). • Decode received sensor data. • Upload data to the configured cloud service automatically. RF Notice This gateway’s radio module and antenna is used for receiving only (RX only) in normal operation. 8. Contact Coiliiot LLC [email protected] https://coiliiot.com FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

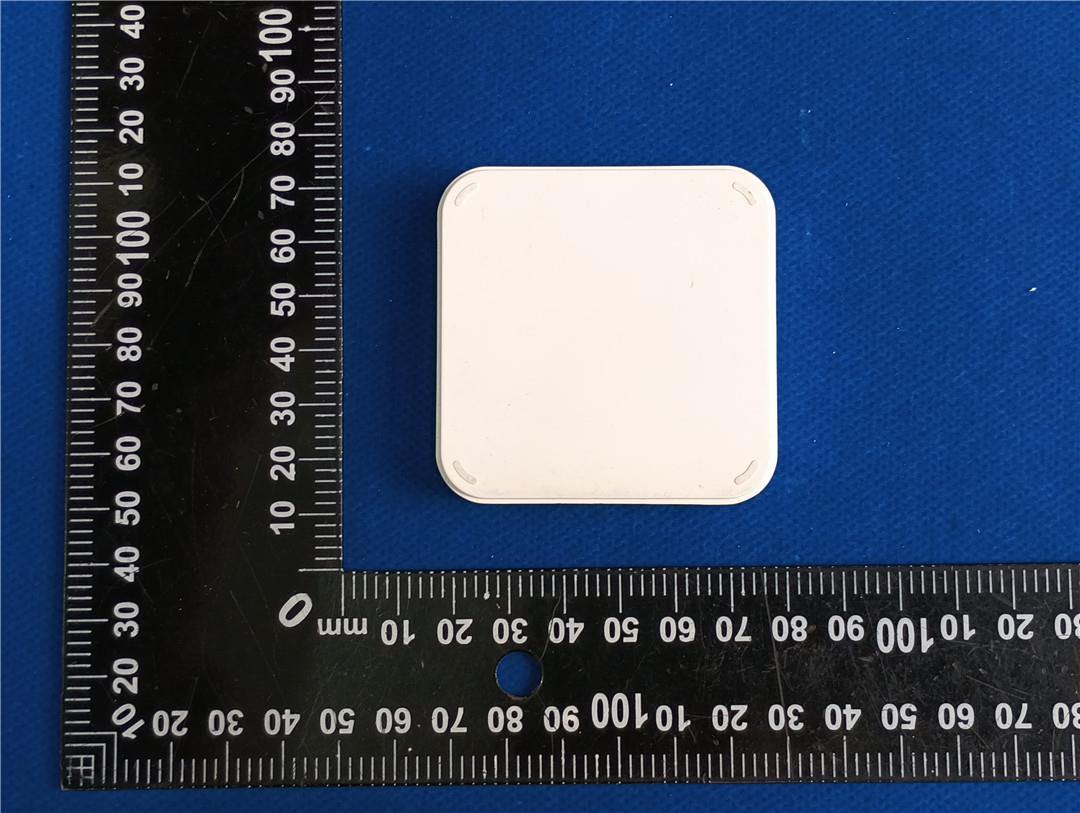

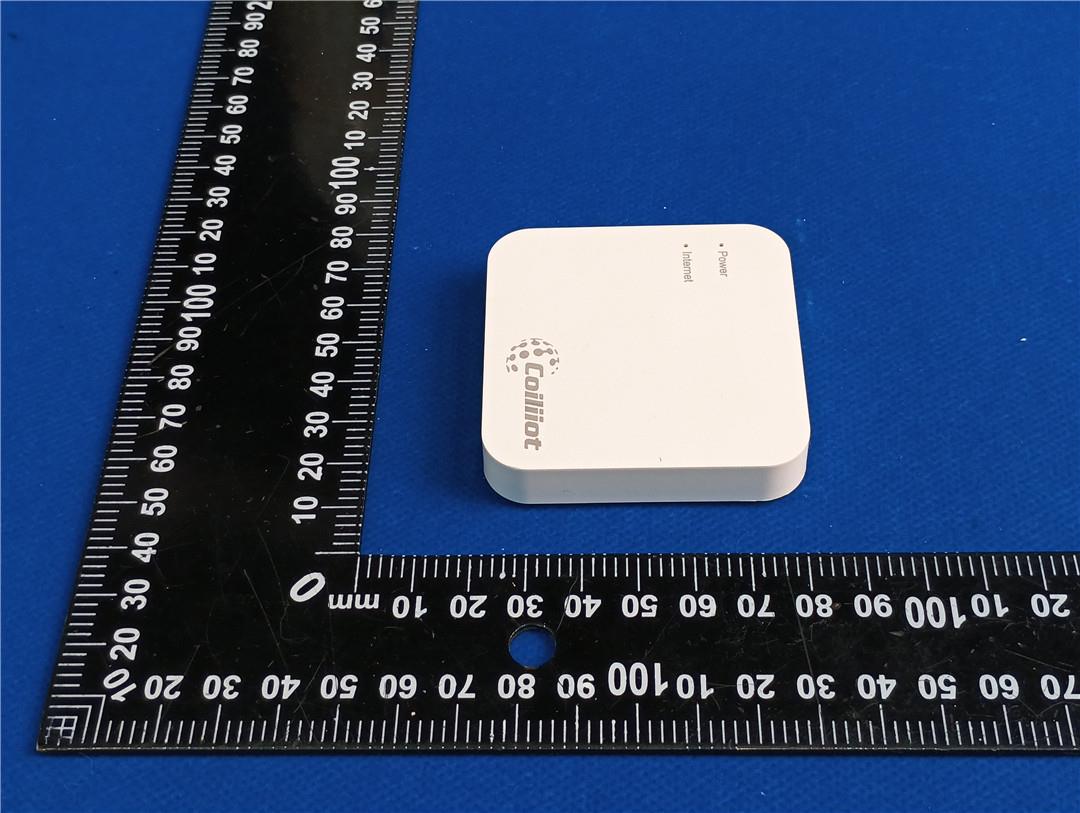

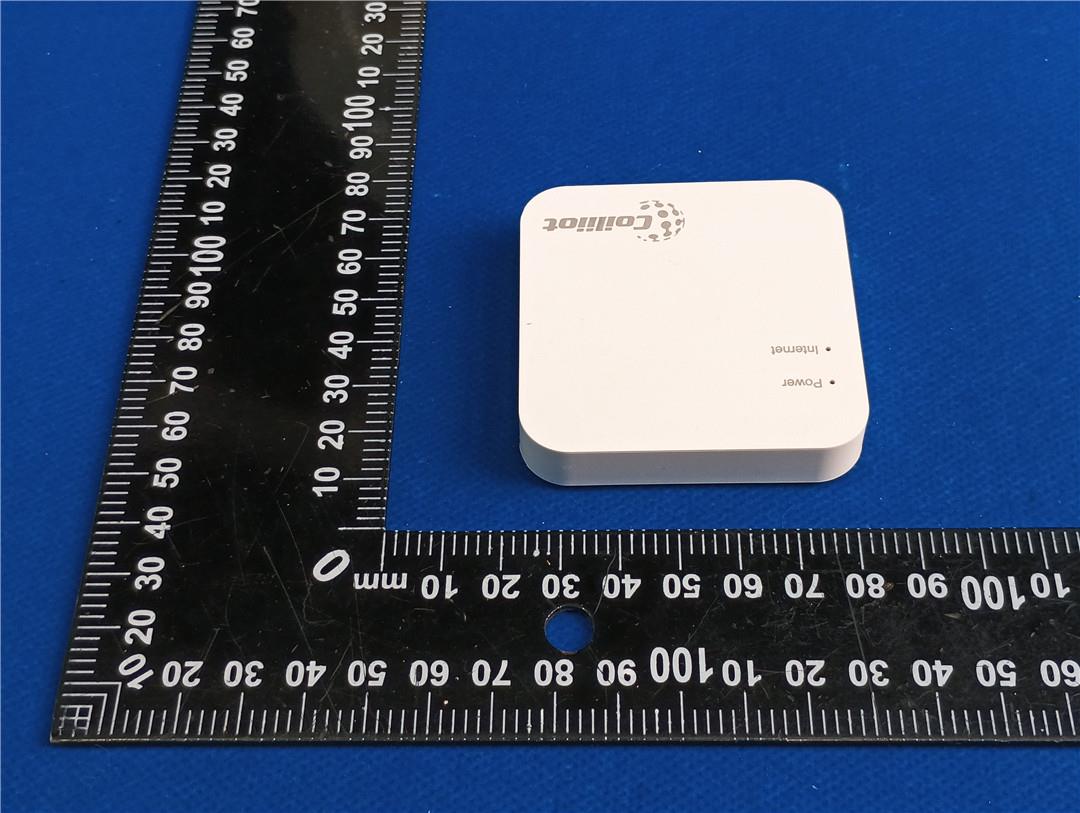

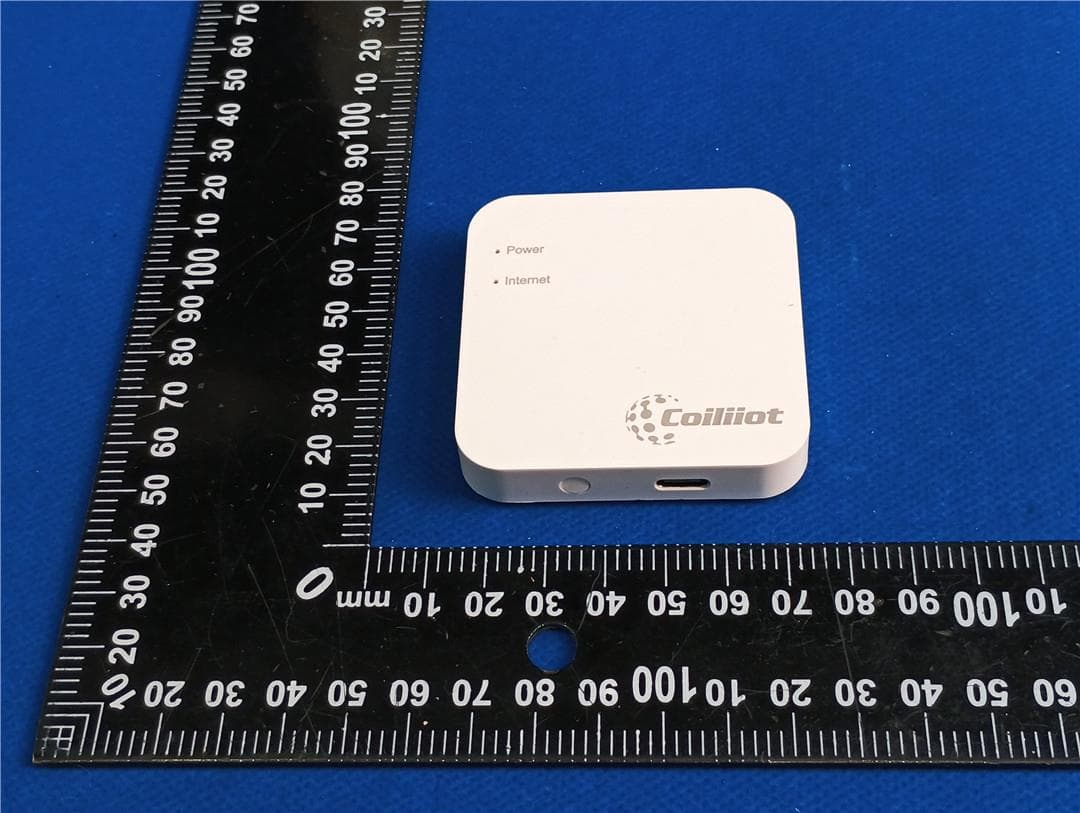

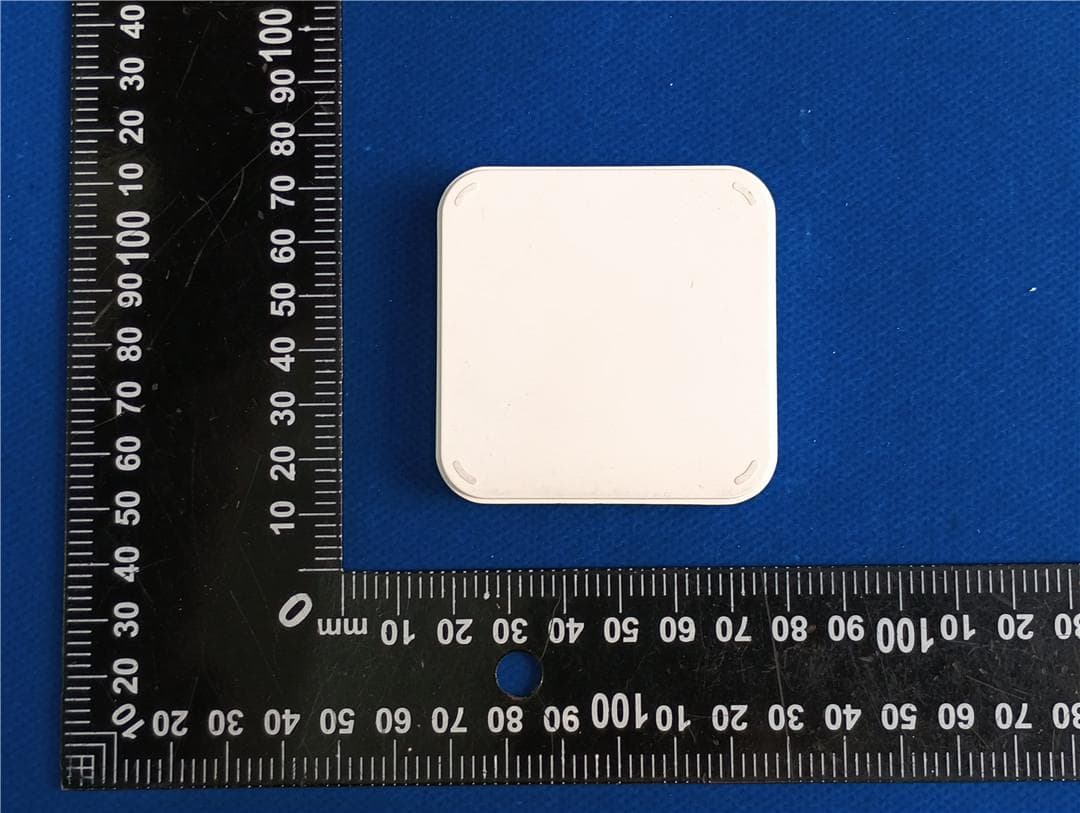

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202601203 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Coiliiot Sense Gateway Model No.: Sense-RG-RW10 EUT Constructional Details External Photo Report No.: HTT202601203 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202601203 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202601203 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BUNQ-SENSERGRW10

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202601203 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Coiliiot Sense Gateway Model No.: Sense-RG-RW10 EUT Constructional Details Internal Photo Report No.: HTT202601203 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 WIFI 2.4G/BLE ANT 433 RX ANT Report No.: HTT202601203 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 10 RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : HTT202601203F03 2BUNQ-SENSERGRW10 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Jan. 16, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Coiliiot LLC Address............................................ : 8 The Green Suite B, Dover, Delaware,US,19901 Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Coiliiot Sense Gateway Manufacturer .................................... : Shanghai Keyilian Co,Ltd Trade Mark ........................................ Model/Type reference ...................... : Sense-RG-RW10 Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: HTT202601203F03 Page 2 of 10 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 10 T E S T R E P O R T Equipment under Test : Coiliiot Sense Gateway Model /Type : Sense-RG-RW10 Listed Models : Sense-RG Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Coiliiot LLC Address : 8 The Green Suite B, Dover, Delaware,US,19901 Manufacturer : Shanghai Keyilian Co,Ltd Address : Shanghai, Huangpu, 838, Huangpi Rd (S), 838, Bd B, Floor 18,Room 111 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202601203F03 Page 3 of 10 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 10 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 6 2.4 Modifications 6 3 T E S T E N V I R O N M E N T 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Statement of the measurement uncertainty 7 4 T E S T L I M I T 8 4.1 Requirement 8 4.2 MPE Calculation Method 8 4.3 Conducted Power Results 8 4.4 Manufacturing tolerance 9 4.5 Standalone MPE Result 9 4.6 Simultaneous Transmission for MPE Result 9 5 C O N C L U S I O N .......................................................... 9 Report No.: HTT202601203F03 Page 4 of 10 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 10 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Report No.: HTT202601203F03 Page 5 of 10 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 10 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jan. 06, 2026 Testing commenced on : Jan. 06, 2026 Testing concluded on : Jan. 16, 2026 2.2 Product Description Product description: Coiliiot Sense Gateway Model/Type reference: Sense-RG-RW10 Power supply: DC 5.0V From external circuit Adapter Information: Mode: TEKA-UCA10US Input: 100-240V50/60HZ 0.2A MAX Output: 5.0V1.0A Testing sample ID： HTT202601203-1# (Engineer sample) HTT202601203-2# (Normal sample) Hardware version: / Software version: / WIFI : Supported type: 802.11b/802.11g/802.11n(HT20)/ 802.11n(HT40) Modulation: 802.11b: DSSS 802.11g/802.11n(HT20)/ 802.11n(HT40): OFDM Operation frequency: 802.11b/802.11g/802.11n(H20): 2412MHz~2462MHz 802.11n(H40): 2422MHz~2452MHz Channel number: 802.11b/802.11g/802.11n(HT20): 11 802.11n(HT40):7 Channel separation: 5MHz Antenna type: PCB Antenna Antenna…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Frequency range 2400-2500MHz Manufacturer Shanghai Keyilian Co,Ltd Address Shanghai, Huangpu, 838, Huangpi Rd (S), 838, Bd B, Floor 18,Room 111 ANT Peak Gain 1.50 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

1 Appendix RF Test Data for 2.4G WIFI Company: : Coiliiot LLC EUT : Coiliiot Sense Gateway FCC ID: : 2BUNQ-SENSERGRW10 Model Number : Sense-RG-RW10 Report No. : HTT202601203F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 32.953 32.973 99.94 0.00 0.00 2437 32.953 32.973 99.94 0.00 0.01 2462 32.953 32.973 99.94 0.00 0.01 802.11g SISO 2412 5.484 5.510 99.53 0.02 0.03 2437 5.485 5.510 99.55 0.02 0.04 2462 5.486 5.510 99.56 0.02 0.00 802.11n (HT20) SISO 2412 5.079 5.105 99.49 0.02 0.04 2437 5.079 5.105 99.49 0.02 0.04 2462 5.080 5.106 99.49 0.02 0.04 802.11n (HT40) SISO 2422 2.469 2.494 99.00 0.04 0.03 2437 2.469 2.494 99.00 0.04 0.04 2452 2.469 2.494 99.00 0.04 0.03 3 1.2 Test Graph 1.2.1 Ant1 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 4 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 5 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 6 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 7 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 8 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 9 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 12.984 / Pass 2437 1 12.995 / Pass 2462 1 13.011 / Pass 802.11g SISO 2412 1 17.219 / Pass 2437 1 17.226 / Pass 2462 1 17.255 / Pass 802.11n (HT20) SISO 2412 1 17.803 / Pass 2437 1 17.811 / Pass 2462 1 17.825 / Pass 802.11n (HT40) SISO 2422 1 36.236 / Pass 2437 1 36.252 / Pass 2452 1 36.126 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 10.044 >=0.5 Pass 2437 1 9.958 >=0.5 Pass 2462 1 9.242 >=0.5 Pass 802.11g SISO 2412 1 16.804 >=0.5 Pass 2437 1 16.755 >=0.5 Pass 2462 1 16.604 >=0.5 Pass 802.11n (HT20) SISO 2412 1 17.631 >=0.5 Pass 2437 1 17.546 >=0.5 Pass 2462 1 17.559 >=0.5 Pass 802.11n (HT40) SISO 2422 1 35.893 >=0.5 Pass 2437 1 35.883 >=0.5 Pass 2452 1 35.539 >=0.5 Pass 10 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 11 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 12 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 13 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 14 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 15 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 16 2.2.2 6dB BW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 17 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 18 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 19 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 20 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 21 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 22 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 802.11b SISO 2412 16.28 <=30 Pass 2437 15.34 <=30 Pass 2462 13.33 <=30 Pass 802.11g SISO 2412 16.79 <=30 Pass 2437 15.91 <=30 Pass 2462 14.22 <=30 Pass 802.11n (HT20) SISO 2412 16.06 <=30 Pass 2437 15.19 <=30 Pass 2462 13.28 <=30 Pass 802.11n (HT40) SISO 2422 15.11 <=30 Pass 2437 14.72 <=30 Pass 2452 13.85 <=30 Pass 23 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 802.11b SISO 2412 1.56 <=8 Pass 2437 1.01 <=8 Pass 2462 -0.63 <=8 Pass 802.11g SISO 2412 -2.10 <=8 Pass 2437 -3.12 <=8 Pass 2462 -5.14 <=8 Pass 802.11n (HT20) SISO 2412 -3.39 <=8 Pass 2437 -3.74 <=8 Pass 2462 -5.28 <=8 Pass 802.11n (HT40) SISO 2422 -6.80 <=8 Pass 2437 -7.16 <=8 Pass 2452 -7.90 <=8 Pass 24 4.2 Test Graph 4.2.1 PSD 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 25 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 26 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 27 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 28 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 29 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 30 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 802.11b SISO 2412 1 1.80 2437 1 1.12 2462 1 -1.20 802.11g SISO 2412 1 -2.01 2437 1 -3.01 2462 1 -4.15 802.11n (HT20) SISO 2412 1 -2.91 2437 1 -3.63 2462 1 -5.24 802.11n (HT40) SISO 2422 1 -6.19 2437 1 -7.41 2452 1 -7.45 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 802.11b SISO 2412 1 1.80 -18.20 Pass 2437 1 1.12 -18.88 Pass 2462 1 -1.20 -21.20 Pass 802.11g SISO 2412 1 -2.01 -22.01 Pass 2437 1 -3.01 -23.01 Pass 2462 1 -4.15 -24.15 Pass 802.11n (HT20) SISO 2412 1 -2.91 -22.91 Pass 2437 1 -3.63 -23.63 Pass 2462 1 -5.24 -25.24 Pass 802.11n (HT40) SISO 2422 1 -6.19 -26.19 Pass 2437 1 -7.41 -27.41 Pass 2452 1 -7.45 -27.45 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 31 5.2 Test Graph 5.2.1 Ref 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 32 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 33 802…

Text truncated - open the document above for the full version.

1 Appendix RF Test Data for BLE Company: : Coiliiot LLC EUT : Coiliiot Sense Gateway FCC ID: : 2BUNQ-SENSERGRW10 Model Number : Sense-RG-RW10 Report No. : HTT202601203F02 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.100 2.500 84.00 0.76 0.03 2440 2.100 2.500 84.00 0.76 12.02 2480 2.100 2.500 84.00 0.76 0.03 2M SISO 2402 1.064 1.875 56.75 2.46 0.03 2440 1.064 1.875 56.75 2.46 21.63 2480 1.064 1.875 56.75 2.46 0.02 3 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 4 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 5 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 6 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.074 / Pass 2440 1 1.073 / Pass 2480 1 1.073 / Pass 2M SISO 2402 1 2.096 / Pass 2440 1 2.095 / Pass 2480 1 2.091 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.641 >=0.5 Pass 2440 1 0.636 >=0.5 Pass 2480 1 0.631 >=0.5 Pass 2M SISO 2402 1 1.080 >=0.5 Pass 2440 1 1.116 >=0.5 Pass 2480 1 1.116 >=0.5 Pass 7 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 8 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 9 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 10 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 11 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 12 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 13 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 4.08 <=30 Pass 2440 2.56 <=30 Pass 2480 -1.61 <=30 Pass 2M SISO 2402 4.21 <=30 Pass 2440 2.91 <=30 Pass 2480 -1.27 <=30 Pass 14 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 1M SISO 2402 3.81 <=8 Pass 2440 2.24 <=8 Pass 2480 -1.84 <=8 Pass 2M SISO 2402 4.01 <=8 Pass 2440 2.69 <=8 Pass 2480 -1.61 <=8 Pass 15 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 16 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 17 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 18 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 3.89 2440 1 2.28 2480 1 -1.95 2M SISO 2402 1 3.96 2440 1 2.63 2480 1 -1.66 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 3.89 -16.11 Pass 2440 1 2.28 -17.72 Pass 2480 1 -1.95 -21.95 Pass 2M SISO 2402 1 3.96 -16.04 Pass 2440 1 2.63 -17.37 Pass 2480 1 -1.66 -21.66 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 19 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 20 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 21 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 22 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV 23 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV 24 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 25 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV 26 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : HTT202601203F01 2BUNQ-SENSERGRW10 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Jan. 16, 2026 Testing Laboratory Name ............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ........................... : Coiliiot LLC Address ............................................ : 8 The Green Suite B, Dover, Delaware,US,19901 Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen HTT Technology Co.,Ltd. Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Coiliiot Sense Gateway Trade Mark ....................................... : Manufacturer .................................... : Shanghai Keyilian Co,Ltd Model/Type reference ...................... : Sense-RG-RW10 Listed Models ................................... : Sense-RG Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: HTT202601203F01 Page 2 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Coiliiot Sense Gateway Model /Type : Sense-RG-RW10 Listed Models : Sense-RG Applicant : Coiliiot LLC Address : 8 The Green Suite B, Dover, Delaware,US,19901 Manufacturer : Shanghai Keyilian Co,Ltd Address : Shanghai, Huangpu, 838, Huangpi Rd (S), 838, Bd B, Floor 18,Room 111 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202601203F01 Page 3 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 6 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions ........................................................................................................................ 7 3.4 Test Description ...................................................................................................................................... 8 3.5 Statement of the measurement uncertainty ..............…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : HTT202601203F02 2BUNQ-SENSERGRW10 Compiled by ( position+printed name+signature) : File administrators Supervised by ( position+printed name+signature) : Project Engineer Approved by ( position+printed name+signature) : RF Manager Date of issue ...................................: Jan. 16, 2026 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ..........................................: 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name...........................: Coiliiot LLC Address ...........................................: 8 The Green Suite B, Dover, Delaware,US,19901 Test specification ......…

Text truncated - open the document above for the full version.
