2BUNQ-SENSERGTH10Coiliiot Sense Thermo-hygrometer

Coiliiot Sense Thermo-Hygrometer Sense-RS-TH10 QUICK START GUIDE 1. Product Overview The Coiliiot Sense RF Thermometer is a battery-powered temperature monitoring device designed to measure temperature and transmit data to a compatible Coiliiot gateway using sub-1G FSK radio. The device supports long-range transmission with an expected line-of- sight signal coverage of around half a mile under typical open-area conditions. The device can be used indoors or outdoors, but it is not water resistant and must be protected from rain, splashes, and condensation. 2. Intended Use This product is used to monitor temperature in typical residential or light commercial environments. The thermometer transmits temperature data to a gateway for cloud upload and viewing in the Coiliiot application or integrated cloud platform. 3. In the Box • 1x One RF Thermo-hygrometer • 1x One CR2450 battery (may be pre-installed depending on packaging) • 1x Quick User Guide • 1x Pin for reset button • 1x Plastic coin for opening the battery cap 4. Power and Battery Battery type is CR2450 lithium coin cell. Nominal battery voltage is 3.0 VDC. Install the battery with correct polarity as marked in the battery compartment. If the device will not be used for a long period, remove the battery to avoid potential leakage damage. 5. Installation • Open the battery compartment and insert one CR2450 battery with the correct polarity. • Close the battery compartment securely. • Place the device in the location where temperature should be monitored. Avoid placing the device directly against metal surfaces or inside fully enclosed metal containers, as this can reduce RF transmission performance. • Keep the device away from direct water exposure, condensation, and direct heat sources such as heaters or ovens. 6. Pairing and Setup with Gateway • Ensure the Coiliiot Sense gateway is powered on and connected to Wi-Fi. • Place the thermometer close to the gateway during initial setup to ensure reliable reception, after pairing, you can put the sensor within its half mile signal range. • From the Coiliiot Sense app o Go to Device tab o Locate the gateway you want to pair the sensor with o Click Add sensor button o In the redirected sensor list screen, the sensor would automatically show up if its signal has been received by the gateway. • You can use the pin and hold the button for around 10 seconds, the sensor will transmit signal for a shorter interval to make sure the signal will be received by the gateway. • After successful discovery, assign a name or location to the thermometer in the application. 7. Normal Operation After power-up, the thermometer will transmit several initial messages to improve discovery reliability. During normal operation, the thermometer sends periodic temperature updates. If a rapid temperature change is detected, the thermometer may transmit updates more frequently for a short period. Actual reporting intervals and behavior depend on firmware configuration and the gateway system settings. 8. Radio Information Operating frequency is 433.92 MHz. Modulation is FSK. Data rate is 2.4 kbps. Frequency deviation is 5 kHz. Antenna type is an internal spring antenna. The radio output power is fixed at the design value. 9. Signal Coverage and Placement Recommendations • Expected signal coverage is around half a mile in open areas with clear line of sight. Actual range depends on terrain, obstacles, mounting height, antenna orientation, and local RF interference. • The device can be used indoors or outdoors, but outdoor use requires a dry, sheltered location because the device is not water resistant. • For best RF performance, keep a clear path between the thermometer and the gateway where possible. • Avoid placing the thermometer inside closed metal cabinets, behind large appliances, or directly next to thick reinforced concrete walls. • If you experience missing data, move the gateway closer, reposition the thermometer, or reduce obstacles between them. 10. Contact Coiliiot LLC [email protected] https://coiliiot.com FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BUNQ-SENSERGTH10 Sense-RG-TH10, Sense-RS We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2026-2-10 Signature Date: 2026-2-10 Company Name: HOORAY INDUSTRY LLC Coiliiot LLC FRN: 0033926106 0037941655 Contact Name: Cindy Wu Lai Zhang Address: 1408 Pinon Place Fullerton, CA 92835 United States 8 The Green Suite B Dover Delaware United States Phone: (626) 910-5808 (857) 272-2613 Email: [email protected] [email protected]

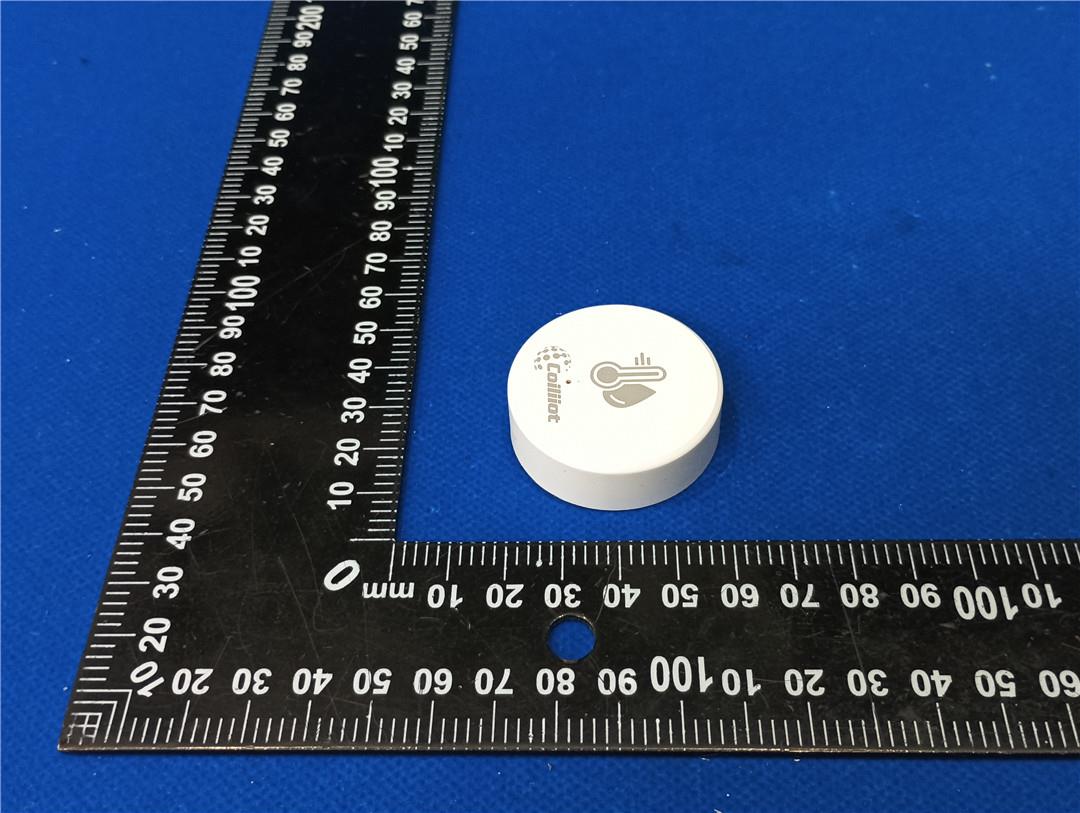

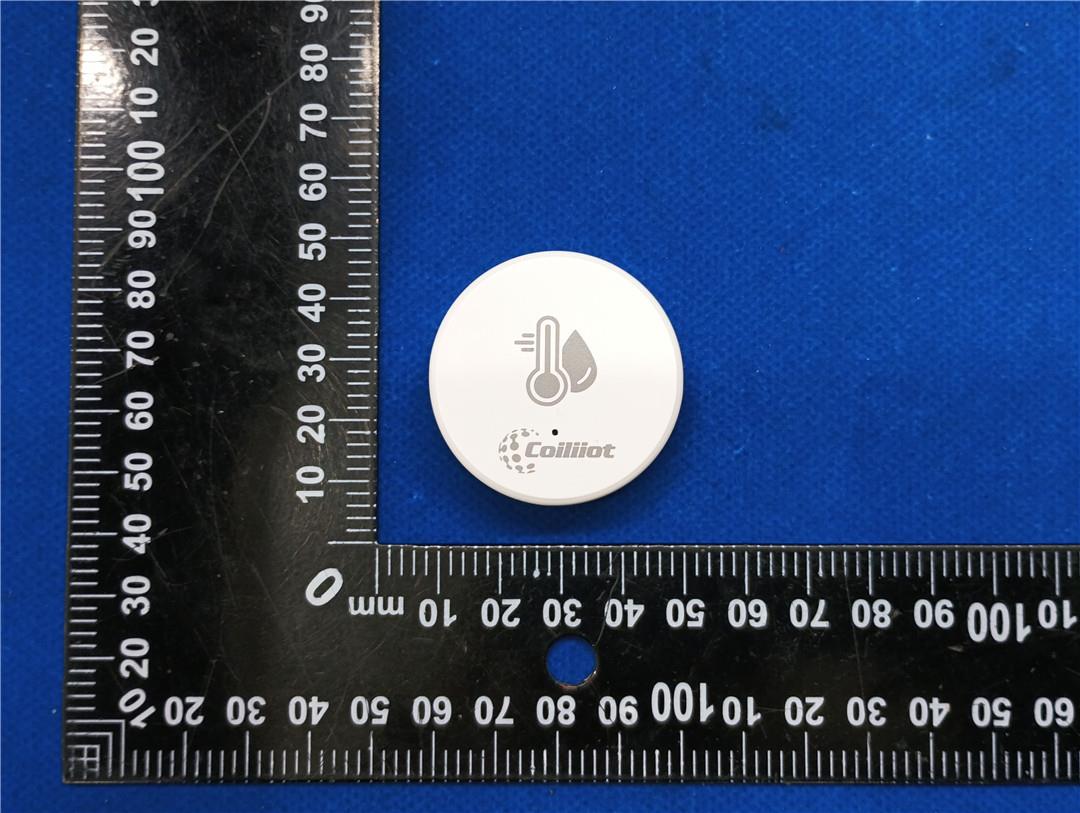

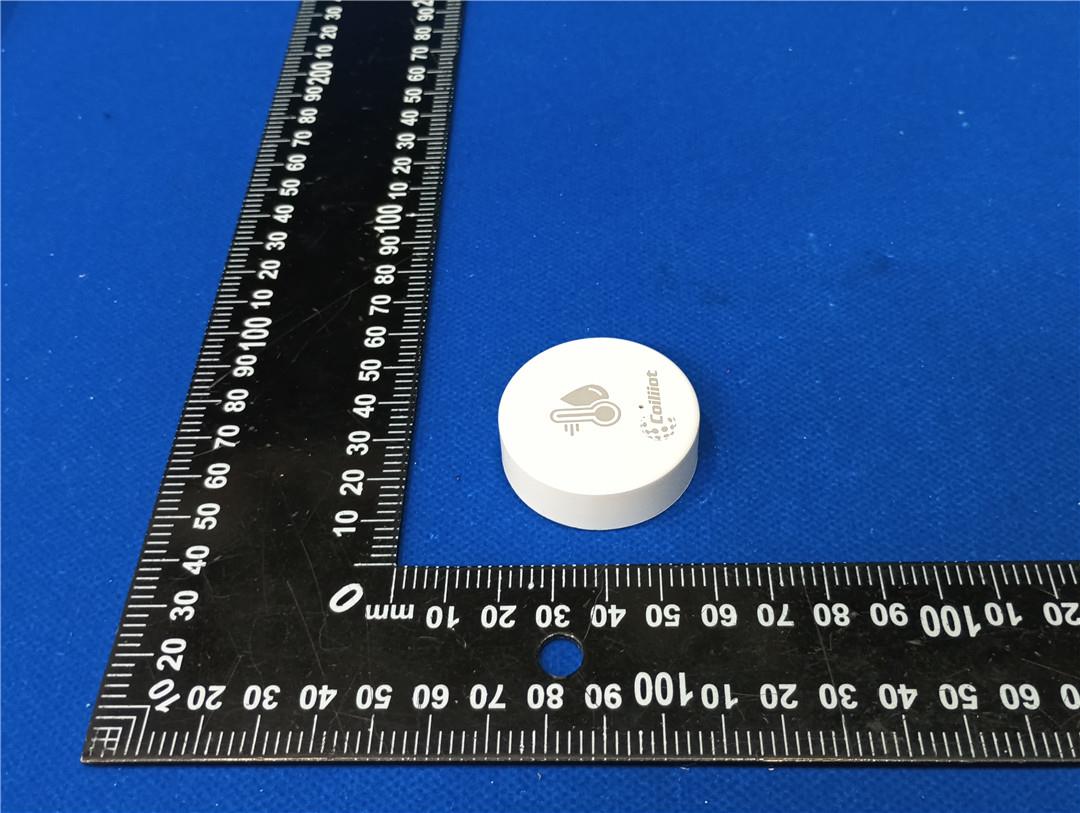

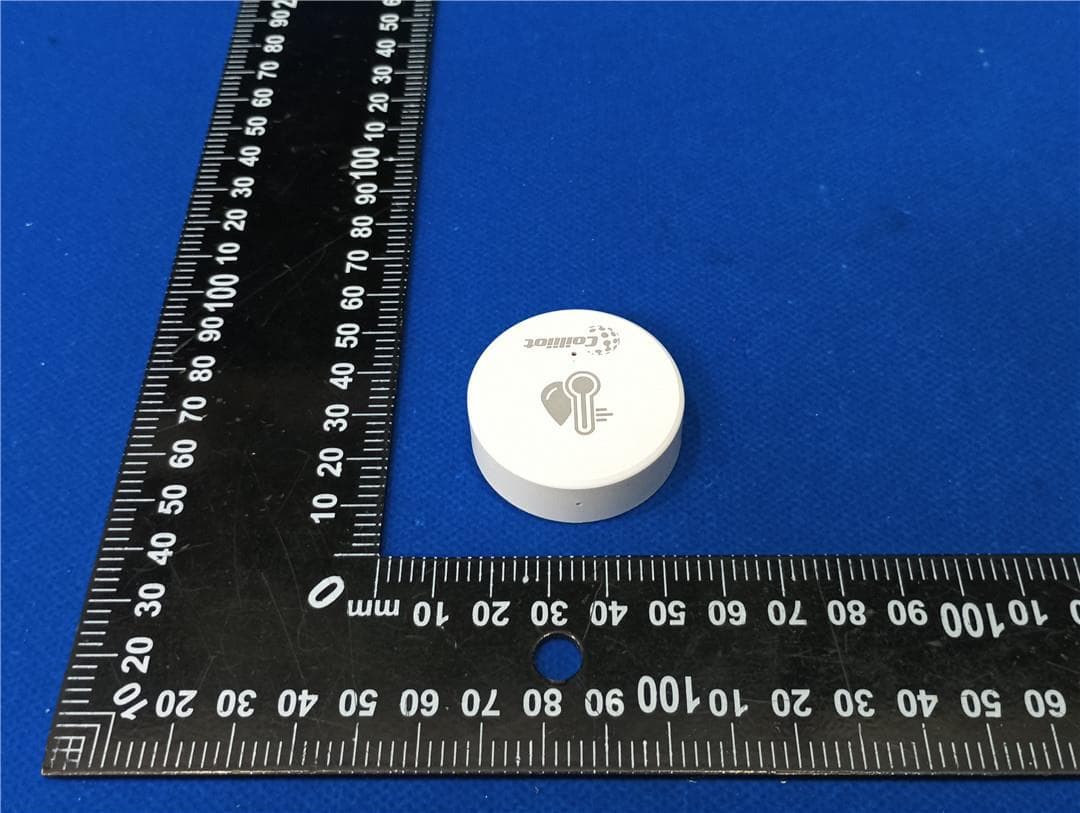

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202601204 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Coiliiot Sense Thermo-hygrometer Model No.: Sense-RG-TH10 EUT Constructional Details External Photo Report No.: HTT202601204 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202601204 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2BUNQ-SENSERGTH10

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202601204 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Coiliiot Sense Thermo-hygrometer Model No.: Sense-RG-TH10 EUT Constructional Details Internal Photo Report No.: HTT202601204 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 ------End------ ANTENNA

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : HTT202601204F02 2BUNQ-SENSERGTH10 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Jan. 27, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Coiliiot LLC Address............................................ : 8 The Green Suite B, Dover, Delaware, US, 19901 Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Coiliiot Sense Thermo-hygrometer Manufacturer .................................... : Shanghai Keyilian Co,Ltd Trade Mark ........................................ Model/Type reference ...................... : Sense-RG-TH10 Rating ............................................... : DC 3.0V From Battery Result ............................................... : PASS Report No.: HTT202601204F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Coiliiot Sense Thermo-hygrometer Model /Type : Sense-RG-TH10 Listed Models : Sense-RS Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Coiliiot LLC Address : 8 The Green Suite B, Dover, Delaware, US, 19901 Manufacturer : Shanghai Keyilian Co,Ltd Address : Shanghai, Huangpu, 838, Huangpi Rd (S), 838, Bd B, Floor 18,Room 111 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202601204F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 MPE Calculation Method 7 4.3 Conducted Power Results 8 4.4 Manufacturing tolerance 8 4.5 Standalone MPE Result 8 4.6 Simultaneous Transmission for MPE Result 8 5 C O N C L U S I O N .......................................................... 8 Report No.: HTT202601204F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Report No.: HTT202601204F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jan. 06, 2026 Testing commenced on : Jan. 06, 2026 Testing concluded on : Jan. 27, 2026 2.2 Product Description Product Name: Coiliiot Sense Thermo-hygrometer Model/Type reference: Sense-RG-TH10 Testing sample ID： HTT202601204-1# (Engineer sample), HTT202601204-2#(Normal sample) Power supply: DC 3.0V From Battery Modulation: GFSK Operation frequency: 433.9000MHz Channel number: 1 Antenna type: Internal antenna Antenna gain: 0.2 dBi 2.3 Special Accessories The following is the EUT test of the auxiliary equipment provided by the laboratory: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / 2.4 Modifications No modifications were implemented to meet testing criteria. Report No.: HTT202601204F02 Page 6 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200…

Text truncated - open the document above for the full version.

弹簧天线 型号: BW433SNX21-5W2 描述: 弯脚弹簧天线 特性: 433MHz频率 结构: 360º全向辐射 尺寸: 21mm x ⌀5mm x 2mm 符合 RoHS & REACH 规定 天线规格书 蝙蝠无线 BAT WIRELESS 1 / 13 Antenna Datasheet www.batwireless.cn 本着为用户提供更好服务的原则，深圳市蝙蝠无线技术有限公司（下称“蝙蝠无线”）在本手册中将尽可能地为用户 呈现详 实、准确的产品信息。但介于本手册的内容具有一定的时效性，蝙蝠无线不能完全保证该文档在任何时段的时效性与适 用性。 蝙蝠无线有权在没有通知的情况下对本手册上的内容进行更新，恕不另行通知。为了得到最新版本的信息，请尊敬的 用户定时 访问蝙蝠无线官方网站或者与蝙蝠无线工作人员联系。感谢您的包容与支持！ 目 录 July-29-2025-A01 2 / 13 蝙蝠无线 BAT WIRELESS www.batwireless.cn 1. 产品描述3 2. 产品规格4 3. 实物图5 4. 尺寸图6 5. 测试设备7-8 6. 性能数据9-10 6.1 电压驻波比9 6.2 回波损耗9 6.3 增益10 6.4 效率10 6.5 天线增益与效率10 7. 辐射模式图11-12 7.1 2D辐射模式图11 7.2 3D辐射模式图12 经典应用场景： 无线遥控领域：车库门遥控器、汽车钥匙、智能家居设备 安防与报警系统：无线门磁、红外探测器、烟雾报警器 物联网：智能水表/电表 蝙蝠无线BW433SNX21-5W2是一款是一种专为433MHz频段无线通信设计的紧凑型天线，采用弹簧状螺旋结构，兼具机 械柔韧性与电气性能，抗震动、耐弯折，适合车载或移动设备。体积小巧，重量轻，支持PCB焊接，便于嵌入智能家居设备、 无线模块。螺旋结构可降低多径干扰，增强复杂环境下的信号稳定性。 1. 产品描述 / Description www.batwireless.cn July-29-2025-A01 蝙蝠无线提供定制化服务以优化您的设备，我们拥有成熟的研发团队，能够迅速响应以满足您的需求。如果您有任何要 求，请联系我们的销售和 FAE。 3 / 13 零件编号说明 BW 公司 / Company 蝙蝠无线 / Bat Wireless 433 频段 / Frequency 433MHz / 433MHz S 名称 / Name 弹簧天线 / Spring Antenna N 类型 / Type 内置 / Internal X 常数 / Constant X / X 21-5 尺寸 / Dimensions 21-5mm / 21-5mm W 特点 / Feature 弯脚 / Bent 2 脚长 / Length 2 / 2 BW433SNX21-5W2 蝙蝠无线 BAT WIRELESS 参数 / Parameters 典型值 / Typ.单位 / Unites 备注 / Notes 类型 / Antenna Type弹簧天线 / Spring Antenna 频率 / Frequency Range433MHz 输入阻抗 / Input Impendence 50 Ω 驻波比 / V.S.W.R <1.3 增益 / Gain 0.2 dBi 极化方式 / Polarization Type垂直 / Vertical 功率容量 / Power Capacity 50W 雷电保护 / Lightning Protection - 工作电压 / DC Voltage -V 辐射体 / Radiator - 尺寸 / Dimensions 21 x ⌀5 x 2 mm 接口形式 / Connector Type - 电缆型号 / Cable Type - 电缆长度 / Cable Length - mm 安装方式 / Mount way - 颜色 / Color金黄色 材料 / Meterial 磷铜镀金 重量 / Weight 0.65 g 防护等级 / Waterproof Rating - ROHS标准 / ROHS Complaint 符合 工作温度 / Operating Temperature -45~ +85 °C 存储温度 / Storage Temperature -45~ +85 °C 2. . 产品规格 / Specification www.batwireless.cn July-29-2025-A01 电气特性 / Electrical Characteristics 机械特性 / Mechanical Characteristics 环境特性 / Environmental Characteristics 4 / 13 蝙蝠无线 BAT WIRELESS 3. . 实物图 / Dimensions www.batwireless.cn July-29-2025-A01 5 / 13 蝙蝠无线 BAT WIRELESS 4. . 尺寸图 / Mechanical Drawing www.batwireless.cn July-29-2025-A01 6 / 13 蝙蝠无线 BAT WIRELESS Testing Capability / 测试能力 Description / 能力描述 Active measurement 有源测试 Capability /测试指标: TRP 、TIS 、EIRP 、EIS,. etc Mode /测试制式: 2G/3G/4G/5G 、Wi-Fi b/g/n/a/ac/ax 、BT 、NB-IOT 、 Cat-M(eMTC) 、GPS/BEIDOU/GLONASS 、ZigBee 、LoRa(Non- Signaling),.etc Pasive measurement 无源测试 Test category /测试类型: Gain 、Efficiency 、2D pattern 、3D pattern 、 Pattern roundness、Axial Ratio, ECC,Phase center,. etc Polarization /极化方式: Circular polarization, linear polarization, elliptical polarization DT-3500 Datasheet / 系统规格 Specification:Description Test Frequency /测试频域: 400MHz-8.5GMHz System Size /系统尺寸: L*W*H=4*3.5*3.5m Number of Probes /探头数目:23 (Probe) + 1 (link) Interval Angle /采样夹脚: 15º Sampling Diameter /采样直径: 2200mm Carring Capacity /承载能力: ≦40kg 5. . 测试设备 / Test Equipment Keysight/E5071C 网络分析仪 R&S/CMW500 综测仪 R&S/SMBV100B 信号源 www.batwireless.cn July-29-2025-A01 7 / 13 蝙蝠无线 BAT WIRELESS RF Link diaram of multi probe spherical near-field testing system 多探头球面近场测试系统射频链路图 RF Link Overview RF Link Passive measurement www.batwireless.cn July-29-2025-A01 RF Link Overview 总射频链路图 RF Link of Passive measurement 无源测试链路图 RF Link Overview 总射频链路图 RF Link of Passive measurement 无源测试链路图 8 / 13 蝙蝠无线 BAT WIRELESS www.batwireless.cn 6.1 电压驻波比 / VSWR July-29-2025-A01 6.2 回波损耗 / Return Loss 9 / 13 蝙蝠无线 BAT WIRELESS 6. . 性能数据 / Performance Data 6. . 性能数据 / Performance Data www.batwireless.cn 6.3 增益 / Gain July-29-2025-A01 6.4 效率 / Efficiency 10 / 13 蝙蝠无线 BAT WIRELESS 频率 / Frequency (MHz)430433440 最大增益 / Gain (dBi) -1.04-0.410.20 效率 / Efficiency (%)21.63 24.8327.54 6.5 天线增益与效率 0.00 10.00 20.00 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 4 2 0 . 0 4 2 1 . 0 4 2 2 . 0 4 2 3 . 0 4 2 4 . 0 4 2 5 . 0 4 2 6 . 0 4 2 7 . 0 4 2 8 . 0 4 2 9 . 0 4 3 0 . 0 4 3 1 . 0 4 3 2 . 0 4 3 3 . 0 4 3 4 . 0 4 3 5 . 0 4 3 6 . 0 4 3 7 . 0 4 3 8 . 0 4 3 9 . 0 4 4 0 . 0 4 4 1 . 0 4 4 2 . 0 4 4 3 . 0 4 4 4 . 0 4 4 5 . 0 4 4 6 . 0 4 4 7 . 0 4 4 8 . 0 4 4 9 . 0 4 5 0 . 0 Efficiency (%) -8.68 -6.68 -4.68 -2.68 -0.68 1.32 4 2 0 . 0 4 2 1 . 0 4 2 2 . 0 4 2 3 . 0 4 2 4 . 0 4 2 5 . 0 4 2 6 . 0 4 2 7 . 0 4 2 8 . 0 4 2 9 . 0 4 3 0 . 0 4 3 1 . 0 4 3 2 . 0 4 3 3 . 0 4 3 4 . 0 4 3 5 . 0 4 3 6 . 0 4 3 7 . 0 4 3 8 . 0 4 3 9 . 0 4 4 0 . 0 4 4 1 . 0 4 4 2 . 0 4 4 3 . 0 4 4 4 . 0 4 4 5 . 0 4 4 6 . 0 4 4 7 . 0 4 4 8 . 0 4 4 9 . 0 4 5 0 . 0 Efficiency (dBi)Gain (dBi) 7. . 辐射模式 / Radiation Patterns www.batwireless.cn July-29-2025-A01 7.1 2D 辐射模式图 / Radiation Patterns 11 / 13 蝙蝠无线 BAT WIRELESS www.batwireless.cn July-29-2025-A01 7.2 . 3D辐射模式图 / 3D Radiation Patterns 12 / 13 蝙蝠无线 BAT WIRELESS 版本： July-29-2025-A01 日期： 2025-7-29 备注： 首次更新 作者： Carly 文档记录 / Documentation www.batwireless.cn July-29-2025-A01 13 / 13 变更记录 / Change Log 蝙蝠无线 BAT WIRELESS Office Add：Room 1301, 13th Floor, No. 8 Langhua Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen 蝙蝠无线 BAT WIRELESS 地址：深圳市龙华区大浪街道新石社区浪花路8号1301 深圳市蝙蝠无线技术有限公司 Shenzhen Bat Wireless Technology Co,.Ltd Tel：+86-0755-21031236 Email：[email protected]

Shenzhen HTT Technology Co., Ltd. FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ............................................ : HTT202601204F01 2BUNQ-SENSERGTH10 Compiled by ( position+printed name+signature) .. : File administrators Supervised by ( position+printed name+signature) .. : Project Engineer Approved by ( position+printed name+signature) .. : RF Manager Date of issue ..................................... : Jan. 27, 2026 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Coiliiot LLC Address ............................................ : 8 The Green Suite B, Dover, Delaware, US, 19901 Test specification ...........................: Standard ........................................... : FCC Part 15.231 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Coiliiot Sense Thermo-hygrometer Trade Mark ....................................... : Manufacturer .................................... : Shanghai Keyilian Co,Ltd Model/Type reference....................... : Sense-RG-TH10 Listed Models .................................. : Sense-RS Ratings ............................................. : DC 3.0V From Battery Modulation ....................................... : FSK Frequency .......................................... 433.9000MHz Result................................................ : PASS Report No.: HTT202601204F01 Page 2 of 20 T E S T R E P O R T Equipment under Test : Coiliiot Sense Thermo-hygrometer Model /Type : Sense-RG-TH10 Listed Models : Sense-RS Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Applicant : Coiliiot LLC Address : 8 The Green Suite B, Dover, Delaware, US, 19901 Manufacturer : Shanghai Keyilian Co,Ltd Address : Shanghai, Huangpu, 838, Huangpi Rd (S), 838, Bd B, Floor 18,Room 111 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202601204F01 Page 3 of 20 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 5 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 17 4.4 Duration of each Transmission and the silent period 18 4.5 Antenna Requirement 19 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 20 6 P H O T O S O F T H E E U T ........................................................... 20 Report No.: HTT202601204F01 Page 4 of 20 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2020 : American National Standard for Testing Unlicensed Wireless Devices Report No.: HTT202601204F01 Page 5 of 20 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jan. 06, 2026 Testing commenced on : Jan. 06, 2026 Testing concluded on : Jan. 27, 2026 2.2 Product Description Product Name: Coiliiot Sense Thermo-hygrometer Model/Type reference: Sense-RG-TH10 Testing sample ID： HTT202601204-1# (Engineer sample), HTT202601204-2#(Normal sample) Power supply: DC 3.0V From Battery Modulation: FSK Operation frequency: 433.9000MHz Channel number: 1 Antenna type: Internal antenna Antenna gain: 0.2 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.0V From Battery 2.4 Short description of the Equipment under Test (EUT) This is a Coiliiot Sense Thermo-hygrometer. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / / / / / / / EUT Battery Report No.: HTT202601204F01 Page 6 of 20 2.7 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for the device filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. 2.8 Modifications No modifications were implemented to meet testing criteria. Report No.: HTT202601204F01 Page 7 of 20 3 T E S T E N V I R O N M E N T 3.1 Address of the test laboratory Shenzhen HTT Technology Co.,Ltd. 1F, Building B, Huafeng International Robotics Industrial Park, Han…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202601204 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Coiliiot Sense Thermo-hygrometer Model No.: Sense-RG-TH10 Test Setup Photo Radiated Emission Report No.: HTT202601204 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 RF TEST ------End------
