2BUQK-OR4120Orphek OR4 iCon LED Bars

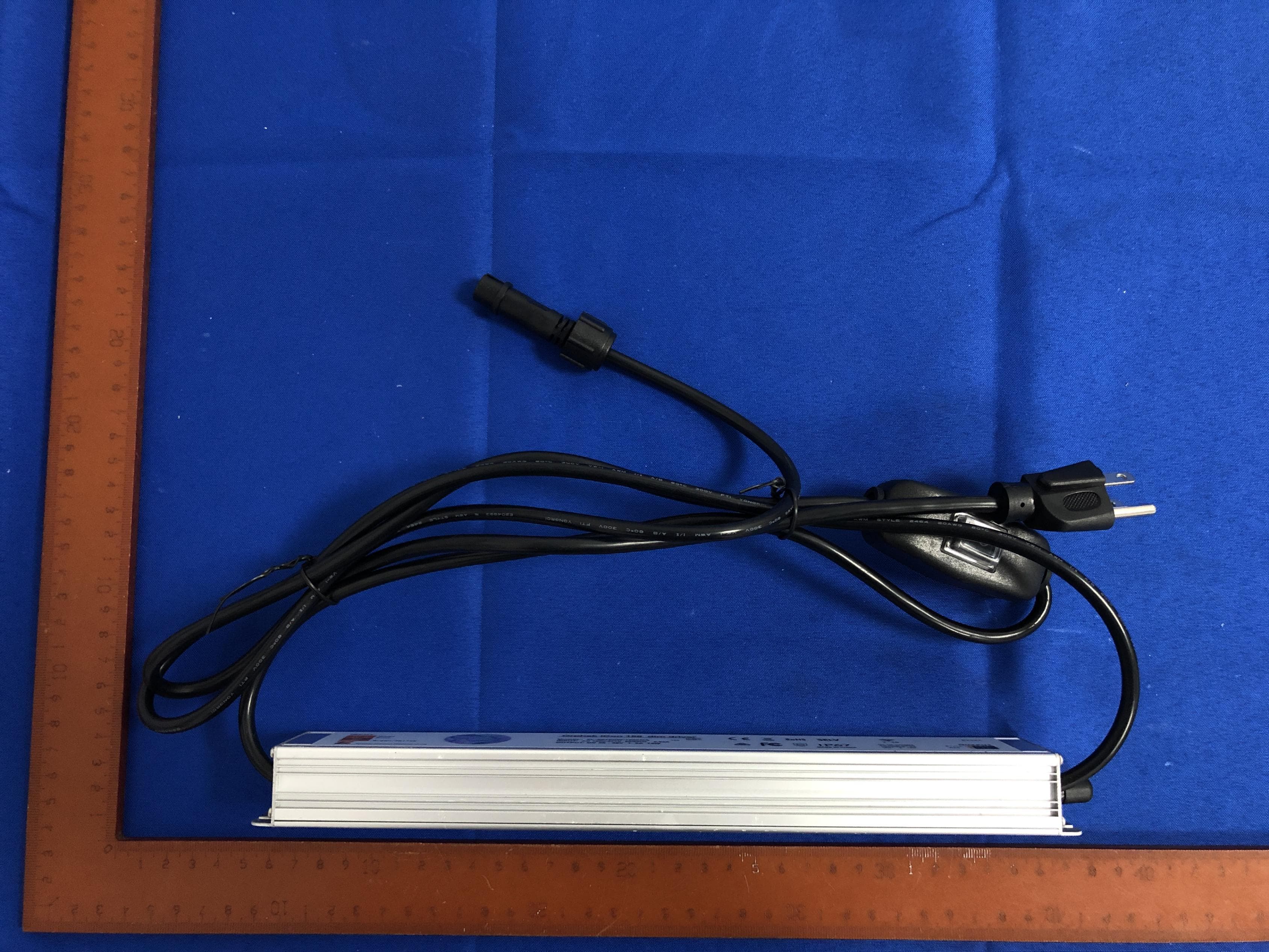

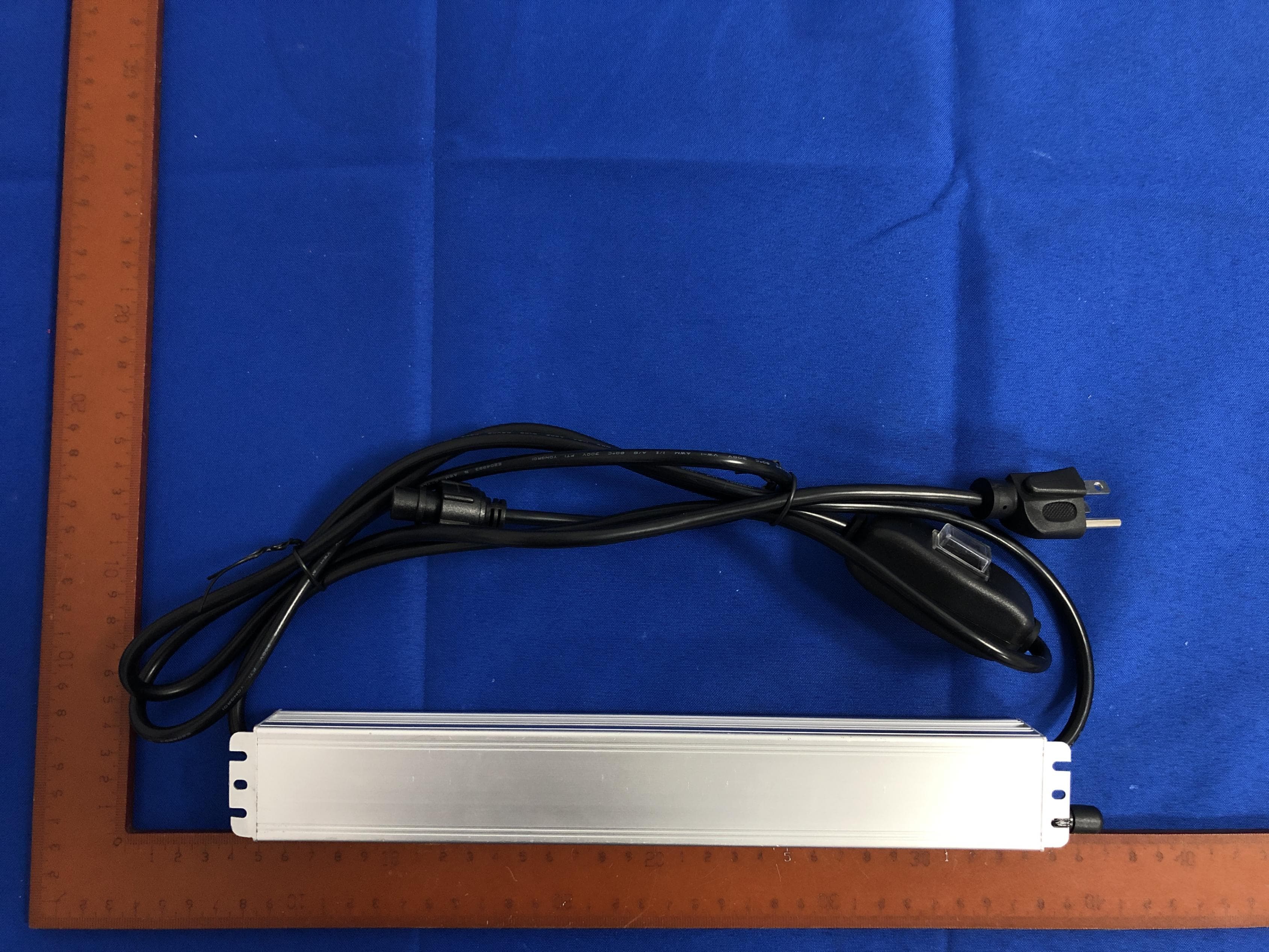

Orphek OR4 iCon Product Brief OR4 iCon LED Bars Proprietary Technologies & Features: ● New! Groundbreaking Sun & Moon Synchronization. ● New! iCon technology that allows you to program, control, monitor and dim your OR4 Reef Aquarium LED Bars and integrate them with all other Orphek iCon LED solutions. ● New! Unmatched 10,000% dimming control technology. ● New! Game-changing Orphek 6 watt Mixed Colors Dual-Chip Power LEDs. /New proprietary 70° reflectors. ● New! The all-in-one groundbreaking Orphek power supply - Orphek customized dim power supply (most advanced technology /best electricity transfer & stability). ● New! Incredible new Orphek App compatible with IOS & Android/ iCloud support, free of charge. ● Exceptional Easy setup & Plug and Play technology. ● Full customization: Compatible with Osix Smart Device - With Osix you can combine up to 6 OR4 LED Bars of your choice to create your own fixture. ● The jaw-dropping spectrums ever achieved. ● Maximum photochemical efficiency & blending perfection. ● Safe maintenance: Top opening capacity for lens adjustment and LEDs substitution, without loosing its waterproof protection. ● Exceptional durability – An IP67 certificated LED BAR made of high quality aluminum alloy, 8mm acrylic top cover and silicon gasket, excelling in performance even in extreme humid environments, salinity, and complete protection against ingress of dust and airborne particles. Applications ■ SPS/LPS coral coral growth, color and illumination. ■ Reef salted water tanks/ Planted freshwater aquariums. ■ Designed to enhance beauty of both natural and synthetic compositions. ■ Replace T5/T8 lighting technology for aquariums. ■ Public venues / Private aquariums. ■ Indoors/ opened or closed areas or canopies, such as gallery displays. ■ Perfect for coral shops, coral farming, educational facilities, research centers, nurseries, refugium. Best for: ● Achievement of your desired light spectrum. ● Customization - Create your own light fixture by choosing up to 6 LED Bars. ● Supplemental light coverage. ● Boost of coral color pop, health & growth. ● Boost fluorescent color. ● Boost photosynthesis. ● Perfect for coral spawning; micro/macro-biology and biological clock correction; and stabilization. OR4 iCon LED Bars Series - LED Configuration for Each Model: OR4 30 iCon: Featuring 9 LEDs / offering 15 watts of power for each LED. OR4 60 iCon: Featuring 18 LEDs / offering 30 watts of power for each LED. OR4 90 iCon: Featuring 24 LEDs / offering 40 watts of power for each LED. OR4 120 iCon: Featuring 36 LEDs / offering 60 watts of power for each LED. OR4 150 iCon: Featuring 42 LEDs / offering 75 watts of power for each LED. OR4 180 iCon: Featuring 48 LEDs / offering 80 watts of power for each LED. What‘s in the box 1. OR4 60 iCON light unit 2. Power cable from light unit to power supply featuring waterproof connectors 3. Fanless IP65-rated Power Supply with power cords featuring waterproof connectors 4. Hanging Kit 5. Mounting Brackets * The displayed photograph serves as a reference for the OR4 60, but all models of the OR4 series are equipped with identical components. Specifications Color /Materials Light Unit Body Material: Black acrylic front panel/ Silver Aluminum back cover. Electrical Information Model OR4 30 iConOR4 60 iConOR4 90 iConOR4 120 iConOR4 150 iConOR4 180 iCon Power Consumption15W 30W 40W60W75W80W Input VoltageAC 100V-230VAC 100V-230VAC 100V-230VAC 100V-230VAC 100V-230VAC 100V-230V Frequency50-60Hz50-60Hz50-60Hz50-60Hz50-60Hz50-60Hz Power Factor95%95%95%95%95%95% Input Voltage/Current AC 110V/0.2A AC 220V/0.1A AC 110V/0.28A AC 220V/0.14A AC 110V/0.37A AC 220V/0.18A AC 110V/0.56A AC 220V/0.27A AC 110V/0.64A AC 220V/0.32A AC 110V/0.73A AC 220V/0.37A Output Voltage/Current DC 20-30V/0.5A DC 40-58V/0.5A DC 20-40V/1ADC 40-58V/1ADC 26-50V/1.5A DC 24-40V/2A Cords ● Power Extension Cord with waterproof connector from light unit to Power Box: total 98.43 ̋ (2.5m) ● Power Cord: 59 ̋(1.5m) 1 2 3 4 5 OR4 iCON Dimensions Draw OR4 iCON Wires Map Ratio Maps OR4 - Reef Day Plus OR4 - Blue Sky Note: OR4 180 iCON and OR4 90 iCON share the same ratio map. Ratio Maps OR4 - Blue Plus OR4 - UV Violet Note: OR4 180 iCON and OR4 90 iCON share the same ratio map. Ratio Maps OR4 - Freshwater Planted OR4 - Red Plus Note: OR4 180 iCON and OR4 90 iCON share the same ratio map. Spectrum Graph PAR Map 3x OR4 120 Blue Plus - 22cm / 6.6" from the water surface 6x OR4 120 Blue Plus - 22cm / 6.6" from the water surface FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF…

Text truncated - open the document above for the full version.

Page1of4FCCID:2BUQK-OR4120 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2BUQK-OR4120 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2BUQK-OR4120 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2BUQK-OR4120 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7

Page1of5FCCID:2BUQK-OR4120 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhotosoftheEUT Model:OrphekOR4180iCon TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 Page2of5FCCID:2BUQK-OR4120 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3 Model:OrphekOR490iCon TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Page3of5FCCID:2BUQK-OR4120 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.2 TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3 Page4of5FCCID:2BUQK-OR4120 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Model:OrphekOR430iCon TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 Page5of5FCCID:2BUQK-OR4120 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3

Page1of42FCCID:2BUQK-OR4120ReportNo.:LCSA05215266EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For ORPHEKLIMITED OrphekOR4iConLEDBars TestModel:OR4180iCon AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:ORPHEKLIMITED Address:UNITA7,12/F,ASTORIABUILDING,34ASHLEYROAD,TSIMSHA TSUI,HK,China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:May28,2025 Numberoftestedsamples:2 SampleNo.:A250526091-1,A250526091-2 Serialnumber:Prototype DateofTest:May28,2025~January19,2026 DateofReport:January20,2026 Page2of42FCCID:2BUQK-OR4120ReportNo.:LCSA05215266EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA05215266EA DateofIssue.......................................:January20,2026 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ORPHEKLIMITED Address................................................:UNITA7,12/F,ASTORIABUILDING,34ASHLEYROAD,TSIM SHATSUI,HK,China TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:TRF-4-E-145A/0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceof thematerial.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:OrphekOR4iConLEDBars TradeMark..........................................:Orphek TestModel...........................................:OR4180iCon Ratings.................................................:PleaseRefertoPage6 Result...................................................:PASS Compiledby:Supervisedby:Approvedby: DiamondLu/AdministratorsKevinHuang/RFManagerGavinLiang/Manager Page3of42FCCID:2BUQK-OR4120ReportNo.:LCSA05215266EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestResultPASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA05215266EA January20,2026 Dateofissue TestModel.............................. : OR4180iCon EUT......................................... : OrphekOR4iConLEDBars Applicant...............................:ORPHEKLIMITED Address...................................:UNITA7,12/F,ASTORIABUILDING,34ASHLEYROAD, TSIMSHATSUI,HK,China Telephone...............................:/ Fax..........................................:/ Manufacturer.........................:ORPHEKLIMITED Address...................................:UNITA7,12/F,ASTORIABUILDING,34ASHLEYROAD, TSIMSHATSUI,HK,China Telephone...............................:/ Fax..........................................:/ Factory...................................:ORPHEKLIMITED Address...................................:UNITA7,12/F,ASTORIABUILDING,34ASHLEYROAD, TSIMSHATSUI,HK,China Telephone...............................:/ Fax..........................................:/ Page4of42FCCID:2BUQK-OR4120ReportNo.:LCSA05215266EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000January20,2026InitialIssue--- Page5of42FCCID:2BUQK-OR4120ReportNo.:LCSA05215266EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)........................................................................................................................6 1.2.SUPPORTEQUIPMENTLIST.................................................................................................................................7 1.3.EXTERNALI/OCABLE..........................................................................................................................................7 1.4.DESCRIPTIONOFTESTFACILITY....................................................…

Text truncated - open the document above for the full version.

Page1of44FCCID:2BUQK-OR4120ReportNo.:LCSA05215266EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For ORPHEKLIMITED OrphekOR4iConLEDBars TestModel:OR4180iCon AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:ORPHEKLIMITED Address:UNITA7,12/F,ASTORIABUILDING,34ASHLEYROAD,TSIMSHA TSUI,HK,China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:May28,2025 Numberoftestedsamples:2 Samplenumber:A250526091-1,A250526091-2 Serialnumber:Prototype DateofTest:May28,2025~January19,2026 DateofReport:January20,2026 Page2of44FCCID:2BUQK-OR4120ReportNo.:LCSA05215266EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA05215266EB DateofIssue.......................................:January20,2026 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ORPHEKLIMITED Address................................................:UNITA7,12/F,ASTORIABUILDING,34ASHLEYROAD,TSIM SHATSUI,HK,China TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:OrphekOR4iConLEDBars TradeMark..........................................:Orphek TestModel...........................................:OR4180iCon Ratings.................................................:PleaseRefertoPage6 Result...................................................:PASS Compiledby:Supervisedby:Approvedby: DiamondLu/AdministratorsKevinHuang/RFManagerGavinLiang/Manager Page3of44FCCID:2BUQK-OR4120ReportNo.:LCSA05215266EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA05215266EB January20,2026 Dateofissue TestModel.............................. : OR4180iCon EUT......................................... : OrphekOR4iConLEDBars Applicant...............................:ORPHEKLIMITED Address...................................:UNITA7,12/F,ASTORIABUILDING,34ASHLEYROAD, TSIMSHATSUI,HK,China Telephone...............................:/ Fax..........................................:/ Manufacturer.........................:ORPHEKLIMITED Address...................................:UNITA7,12/F,ASTORIABUILDING,34ASHLEYROAD, TSIMSHATSUI,HK,China Telephone...............................:/ Fax..........................................:/ Factory...................................:ORPHEKLIMITED Address...................................:UNITA7,12/F,ASTORIABUILDING,34ASHLEYROAD, TSIMSHATSUI,HK,China Telephone...............................:/ Fax..........................................:/ Page4of44FCCID:2BUQK-OR4120ReportNo.:LCSA05215266EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000January20,2026InitialIssue-- Page5of44FCCID:2BUQK-OR4120ReportNo.:LCSA05215266EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)........................................................................................................................6 1.2.SUPPORTEQUIPMENTLIST.................................................................................................................................7 1.3.EXTERNALI/OCABLE..........................................................................................................................................7 1.4.DESCRIPTIONOFTESTFACILITY..................................................…

Text truncated - open the document above for the full version.

Page 1 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix B RF Test Data for 2.4GWIFI (Conducted Measurement) Product Name: Orphek OR4 iCon LED Bars Test Model: OR4 180 iCon Environmental Conditions Temperature: 23.9C Relative Humidity: 52.4% ATM Pressure: 100.0 kPa Test Engineer: Jerry Chu Supervised by: Can Kun Page 2 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 9.082 0.5 Pass NVNT b 2437 Ant1 9.102 0.5 Pass NVNT b 2462 Ant1 9.106 0.5 Pass NVNT g 2412 Ant1 16.27 0.5 Pass NVNT g 2437 Ant1 16.33 0.5 Pass NVNT g 2462 Ant1 16.34 0.5 Pass NVNT n20 2412 Ant1 17.13 0.5 Pass NVNT n20 2437 Ant1 17.21 0.5 Pass NVNT n20 2462 Ant1 17.32 0.5 Pass Note: offset=System attenuation +cabal loss Page 3 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 Page 4 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 Page 5 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 Page 6 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 Page 7 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n20 2462MHz Ant1 Page 8 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.2 Maximum Average Conducted Output Power Condition Mode Frequency (MHz) Antenna Average Conducted Power (dBm) Duty Factor (dB) Total Average Conducted Power (dBm) Limit Conducted(dBm) Verdict NVNT b 2412 Ant1 14.26 0.01 14.27 30 Pass NVNT b 2437 Ant1 13.32 0.01 13.33 30 Pass NVNT b 2462 Ant1 12.9 0.01 12.91 30 Pass NVNT g 2412 Ant1 13.22 0.1 13.32 30 Pass NVNT g 2437 Ant1 12.65 0.1 12.75 30 Pass NVNT g 2462 Ant1 12.13 0.1 12.23 30 Pass NVNT n20 2412 Ant1 13.34 0.12 13.46 30 Pass NVNT n20 2437 Ant1 12.95 0.12 13.07 30 Pass NVNT n20 2462 Ant1 12.35 0.12 12.47 30 Pass Note: offset=System attenuation +cabal loss Page 9 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/30kHz) Duty Factor (dB) Total PSD (dBm/30kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -17.35 0.01 -17.34 8 Pass NVNT b 2437 Ant1 -18.46 0.01 -18.45 8 Pass NVNT b 2462 Ant1 -18.89 0.01 -18.88 8 Pass NVNT g 2412 Ant1 -20.69 0.1 -20.59 8 Pass NVNT g 2437 Ant1 -21.93 0.1 -21.83 8 Pass NVNT g 2462 Ant1 -22.32 0.1 -22.22 8 Pass NVNT n20 2412 Ant1 -21.49 0.12 -21.37 8 Pass NVNT n20 2437 Ant1 -22.27 0.12 -22.15 8 Pass NVNT n20 2462 Ant1 -22.1 0.12 -21.98 8 Pass Note: offset=System attenuation +cabal loss Page 10 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 Page 11 of 44 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziw…

Text truncated - open the document above for the full version.

Page 1 of 23 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A RF Test Data for BT LE (Conducted Measurement) Product Name: Orphek OR4 iCon LED Bars Test Model: OR4 180 iCon Environmental Conditions Temperature: 23.9C Relative Humidity: 52.4% ATM Pressure: 100.0 kPa Test Engineer: Jerry Chu Supervised by: Can Kun Page 2 of 23 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.6496 0.5 Pass NVNT BLE 1M 2440 Ant1 0.6571 0.5 Pass NVNT BLE 1M 2480 Ant1 0.6613 0.5 Pass Page 3 of 23 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 Page 4 of 23 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 Page 5 of 23 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.2 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit Conducted(dBm) Verdict NVNT BLE 1M 2402 Ant1 -0.55 30 Pass NVNT BLE 1M 2440 Ant1 -0.22 30 Pass NVNT BLE 1M 2480 Ant1 -1.19 30 Pass Page 6 of 23 FCC ID: 2BUQK-OR4120 Report No.: LCSA05215266EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Peak …
