2BV8U-WIF01USB Wireless Adapter

WIFI01 150Mbps Wireless USB Adapter Version：V1.0 Date: 2018-10-6 HL-WA102-T 11N is designed to provide a high-speed and unrivaled wireless performance for your computer. With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming, video streaming and so on. Wireless-N USB 2.0 Adapter allows you to connect your laptop or desktop to any Wireless-N networks in your home or office. The Wireless-N (802.11n) USB 2.0 Adapter is great for those who want to upgrade older computers to be able to access the internet over a Wireless-N network. At 5 times faster than traditional Wireless-G (802.11b) networks, Wireless-N networks allow for high speed data transfers, online gaming, and lightning fast downloads. The Wireless-N USB 2.0 Adapter gives you access to all the high-speed features of Wireless-N networks on older and newer computers. Its simple and easy setup means you'll be surfing the internet, downloading movies, and e-mail in no time. ➢ 150Mbps wireless transmission rate ➢ Provides two methods of operation: Infrastructure and Ad-Hoc ➢ Quick Secure Setup, complies with WPS for worry free wireless security ➢ Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X ➢ Supports Sony PSP for online game ➢ Supports Windows XP/Vista/win7/win8/Mac OS ➢ Seamlessly compatible with 802.11b/g/n devices ➢ Equipped with an elegant and stylish USB Cradle for flexible deployment Standard IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Chipset MT7601 Interface 1* USB2.0 Antenna Type Fixed 2dBi Antenna Wireless Speed 150Mbps Frequency Range 2.4-2.4835GHz Wireless Transmit Power 20dBm(MAX EIRP) Modulation Type OFDM/CCK/16-QAM/64-QAM Wireless Speed 11n: Up to 150Mbps 11g: Up to 54Mbps 11b: Up to 11Mbps Frequency Range 2.4-2.4835GHz Wireless Transmit Power 20dBm(MAX EIRP) Modulation Type OFDM/CCK/16-QAM/64-QAM Receiver Sensitivity (without Standards antenna) 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER Work Mode Ad-Hoc Infrastructure Wireless Security 64/128 bits WEP WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) Support Operating System Windows XP/Vista/Linux/ Win 7/Win 8/Win 10 / Mac OS Operating Temperature 0°C~40°C (32°F~104°F) Storage Temperature -40°C~70°C (-40°F~158°F) Relative Humidity 10% ~ 90%, non-condensation Storage Humidity 5%~95% non-condensing FCC Warning: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Sino-Memory Electronics Co., Ltd 507, Block 12, Lishan Industrial Park, No. 8 Yanshan Road, Liwan Community, Nanshan District, Shenzhen 518066, Guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/05/22 U.S. Agent Designation Shenzhen Sino-Memory Electronics Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BV8U-WIF01): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Sino-Memory Electronics Co., Ltd with the FRN [0038450557] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Mingli Zhang Manager Shenzhen Sino-Memory Electronics Co., Ltd Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

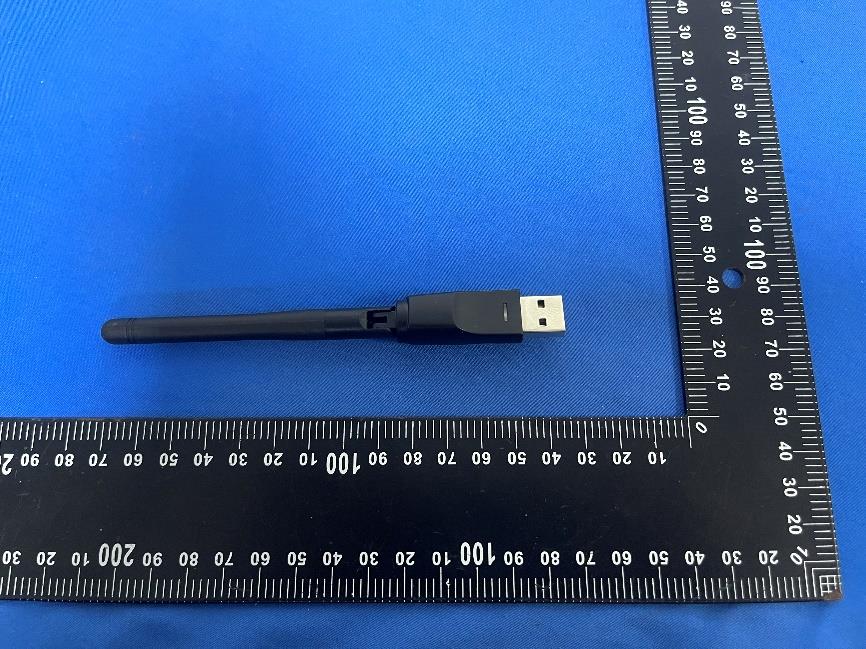

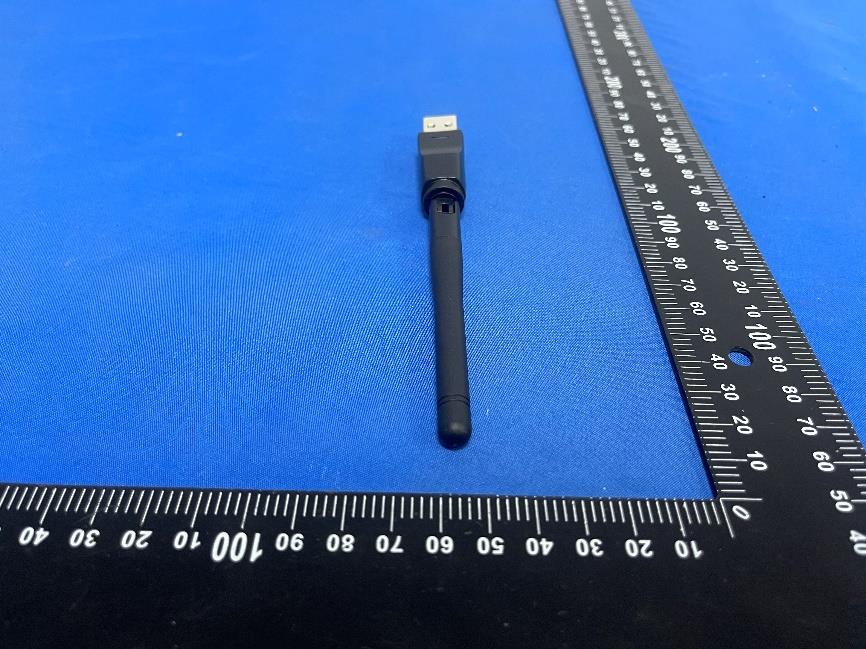

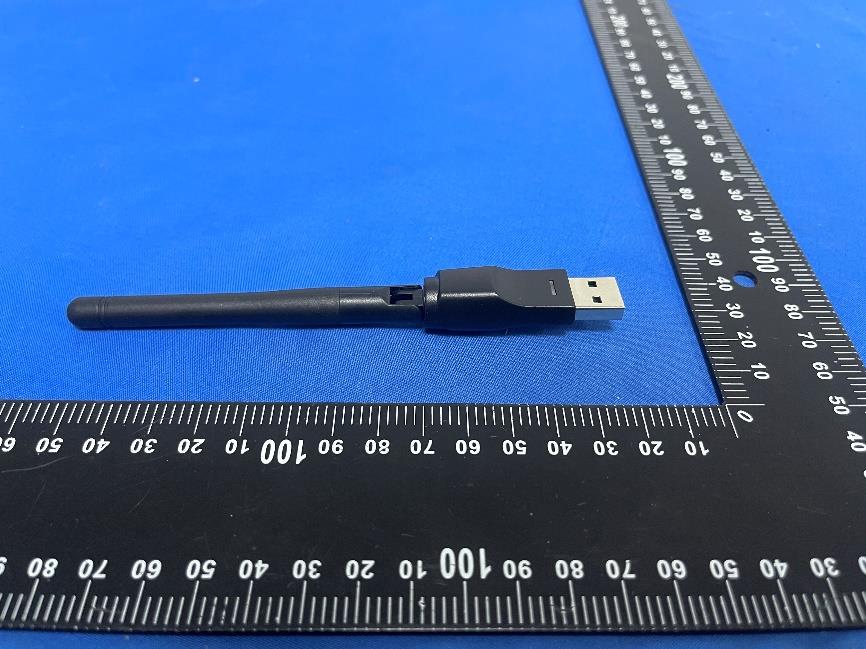

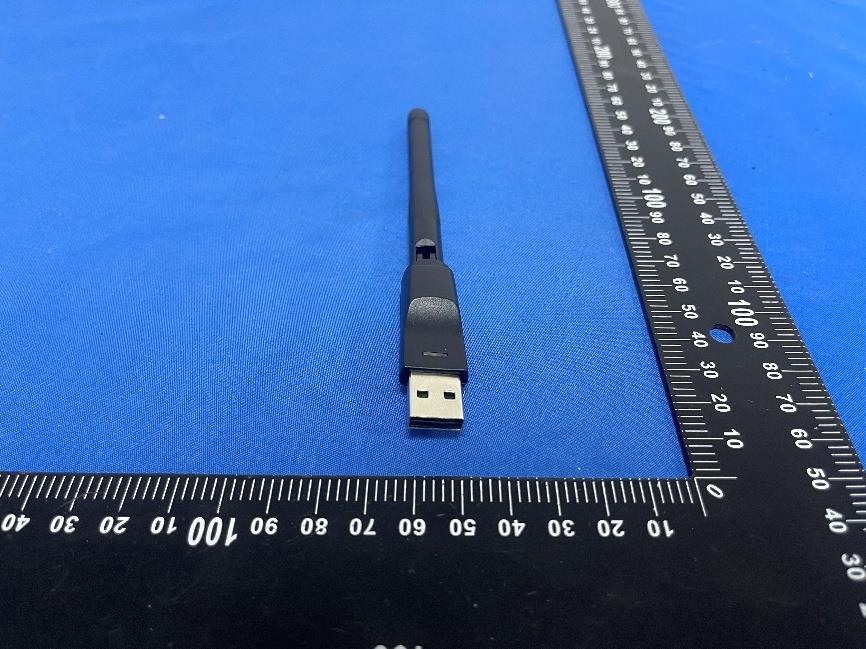

FCC ID: 2BV8U-WIF01 External Photos of the EUT FCC ID: 2BV8U-WIF01

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID: 2BV8U-WIF01

FCC ID: 2BV8U-WIF01 Internal Photos of the EUT Antenna FCC ID: 2BV8U-WIF01

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26051100102 2BV8U-WIF01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 16, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Sino-Memory Electronics Co., Ltd Address............................................ : 507, Block 12, Lishan Industrial Park, No. 8 Yanshan Road, Liwan Community, Nanshan District, Shenzhen 518066, Guangdong, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : USB Wireless Adapter Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Sino-Memory Electronics Co., Ltd Model/Type reference ...................... : WIF01 Listed Models ................................... : WIFI03, WIFI05, WIFI07, WIFI08 Rating ............................................... : DC 5.0V From computer Result ............................................... : PASS Report No.: CTA26051100102 Page 2 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : USB Wireless Adapter Model /Type : WIF01 Listed Models : WIFI03, WIFI05, WIFI07, WIFI08 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model WIF01 and the test results for the main test model can cover the listed models. Applicant : Shenzhen Sino-Memory Electronics Co., Ltd Address : 507, Block 12, Lishan Industrial Park, No. 8 Yanshan Road, Liwan Community, Nanshan District, Shenzhen 518066, Guangdong, China Manufacturer : Shenzhen Sino-Memory Electronics Co., Ltd Address : 507, Block 12, Lishan Industrial Park, No. 8 Yanshan Road, Liwan Community, Nanshan District, Shenzhen 518066, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26051100102 Page 3 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Conducted Power Results ....................................................................................... 8 4.3 Manufacturing tolerance .......................................................................................... 9 4.4 Evaluation Result ..................................................................................................... 9 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 9 5 Conclusion ......................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26051100101 2BV8U-WIF01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 16, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Sino-Memory Electronics Co., Ltd Address ............................................ : 507, Block 12, Lishan Industrial Park, No. 8 Yanshan Road, Liwan Community, Nanshan District, Shenzhen 518066, Guangdong, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : USB Wireless Adapter Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Sino-Memory Electronics Co., Ltd Model/Type reference ...................... : WIF01 Listed Models ................................... : WIFI03, WIFI05, WIFI07, WIFI08 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5.0V From computer Result ............................................... : PASS Report No.: CTA26051100101 Page 2 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : USB Wireless Adapter Model /Type : WIF01 Listed Models : WIFI03, WIFI05, WIFI07, WIFI08 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model WIF01 and the test results for the main test model can cover the listed models. Applicant : Shenzhen Sino-Memory Electronics Co., Ltd Address : 507, Block 12, Lishan Industrial Park, No. 8 Yanshan Road, Liwan Community, Nanshan District, Shenzhen 518066, Guangdong, China Manufacturer : Shenzhen Sino-Memory Electronics Co., Ltd Address : 507, Block 12, Lishan Industrial Park, No. 8 Yanshan Road, Liwan Community, Nanshan District, Shenzhen 518066, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26051100101 Page 3 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 …

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BV8U-WIF01 Company : Shenzhen Sino-Memory Electronics Co., Ltd EUT : USB Wireless Adapter Model Number : WIF01 Report No. : CTA26051100101 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.960 2404.080 2420.040 0.5 PASS 2437 15.840 2429.000 2444.840 0.5 PASS 2462 15.720 2454.280 2470.000 0.5 PASS 11N20SISO Ant1 2412 16.280 2404.120 2420.400 0.5 PASS 2437 16.440 2428.680 2445.120 0.5 PASS 2462 16.000 2454.440 2470.440 0.5 PASS 11N40SISO Ant1 2422 35.760 2404.240 2440.000 0.5 PASS 2437 35.760 2419.240 2455.000 0.5 PASS 2452 35.760 2434.400 2470.160 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.459 2405.2999 2418.7589 --- --- 2437 13.468 2430.2847 2443.7527 --- --- 2462 13.450 2455.2895 2468.7395 --- --- 11G Ant1 2412 16.843 2403.6043 2420.4473 --- --- 2437 16.836 2428.6205 2445.4565 --- --- 2462 16.934 2453.5310 2470.4650 --- --- 11N20SISO Ant1 2412 17.880 2403.0848 2420.9648 --- --- 2437 17.899 2428.0755 2445.9745 --- --- 2462 17.838 2453.1089 2470.9469 --- --- 11N40SISO Ant1 2422 36.086 2404.0805 2440.1665 --- --- 2437 36.102 2419.1017 2455.2037 --- --- 2452 36.143 2434.0562 2470.1992 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 6.83 ≤30.00 PASS 2437 7.14 ≤30.00 PASS 2462 7.21 ≤30.00 PASS 11G Ant1 2412 6.96 ≤30.00 PASS 2437 7.00 ≤30.00 PASS 2462 6.67 ≤30.00 PASS 11N20SISO Ant1 2412 6.83 ≤30.00 PASS 2437 6.78 ≤30.00 PASS 2462 6.48 ≤30.00 PASS 11N40SISO Ant1 2422 7.63 ≤30.00 PASS 2437 7.50 ≤30.00 PASS 2452 7.45 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -18.83 ≤8.00 PASS 2437 -19.33 ≤8.00 PASS 2462 -19.24 ≤8.00 PASS 11G Ant1 2412 -24.63 ≤8.00 PASS 2437 -24.30 ≤8.00 PASS 2462 -25.84 ≤8.00 PASS 11N20SISO Ant1 2412 -24.95 ≤8.00 PASS 2437 -24.04 ≤8.00 PASS 2462 -25.05 ≤8.00 PASS 11N40SISO Ant1 2422 -26.88 ≤8.00 PASS 2437 -26.33 ≤8.00 PASS 2452 -27.68 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -5.62 -56.14 ≤-25.62 PASS High 2462 -5.05 -58.32 ≤-25.05 PASS 11G Ant1 Low 2412 -9.48 -40.61 ≤-29.48 PASS High 2462 -9.88 -57.98 ≤-29.88 PASS 11N20SIS O Ant1 Low 2412 -9.62 -40.9 ≤-29.62 PASS High 2462 -9.96 -57.84 ≤-29.96 PASS 11N40SIS O Ant1 Low 2422 -12.43 -40.06 ≤-32.43 PASS High 2452 -12.61 -58.47 ≤-32.61 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -5.37 -5.37 --- PASS 30~1000 -5.37 -68.46 ≤-25.37 PASS 1000~26500 -5.37 -55.5 ≤-25.37 PASS 2437 Reference -5.45 -5.45 --- PASS 30~1000 -5.45 -67.57 ≤-25.45 PASS 1000~26500 -5.45 -55.71 ≤-25.45 PASS 2462 Reference -4.97 -4.97 --- PASS 30~1000 -4.97 -67.35 ≤-24.97 PASS 1000~26500 -4.97 -56.1 ≤-24.97 PASS 11G Ant1 2412 Reference -9.64 -9.64 --- PASS 30~1000 -9.64 -67.84 ≤-29.64 PASS 1000~26500 -9.64 -55.56 ≤-29.64 PASS 2437 Reference -10.82 -10.82 --- PASS 30~1000 -10.82 -68.43 ≤-30.82 PASS 1000~26500 -10.82 -55.73 ≤-30.82 PASS 2462 Reference -10.40 -10.40 --- PASS 30~1000 -10.40 -66.96 ≤-30.4 PASS 1000~26500 -10.40 -54.63 ≤-30.4 PASS 11N20SISO Ant1 2412 Reference -9.91 -9.91 --- PASS 30~1000 -9.91 -67.28 ≤-29.91 PASS 1000~26500 -9.91 -56.2 ≤-29.91 PASS 2437 Reference -10.51 -10.51 --- PASS 30~1000 -10.51 -67.35 ≤-30.51 PASS 1000~26500 -10.51 -56.18 ≤-30.51 PASS 2462 Reference -11.89 -11.89 --- PASS 30~1000 -11.89 -68.46 ≤-31.89 PASS 1000~26500 -11.89 -55.78 ≤-31.89 PASS 11N40SISO Ant1 2422 Reference -12.47 -12.47 --- PASS 30~1000 -12.47 -68.15 ≤-32.47 PASS 1000~26500 -12.47 -55.71 ≤-32.47 PASS 2437 Reference -12.70 -12.70 --- PASS 30~1000 -12.70 -67.58 ≤-32.7 PASS 1000~26500 -12.70 -56.11 ≤-32.7 PASS 2452 Reference -12.71 -12.71 --- PASS 30~1000 -12.71 -68.23 ≤-32.71 PASS 1000~26500 -12.71 -55.99 ≤-32.71 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.36 8.40 99.52 0.02 0.12 2437 8.35 8.39 99.52 0.02 0.12 2462 8.36 8.40 99.52 0.02 0.12 11G Ant1 2412 0.14 0.19 73.68 1.33 7.14 2437 0.15 0.20 75.00 1.25 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.17 0.22 77.27 1.12 5.88 2437 0.18 0.23 78.26 1.06 5.56 2462 0.18 0.23 78.26 1.06 5.56 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -60.05 2.36 0.02 37.53 ≤54 PASS AV 2376.960 -59.14 2.36 0.02 38.44 ≤54 PASS AV 2390.000 -59.95 2.36 0.02 37.63 ≤54 PASS Peak 2310.000 -52.35 2.36 0.00 45.21 ≤74 PASS Peak 2371.240 -48.38 2.36 0.00 49.18 ≤74 PASS Peak 2390.000 -51.49 2.36 0.00 46.07 ≤74 PASS High 2462 AV 2483.500 -58.98 2.36 0.02 38.6 ≤54 PASS AV 2488.290 -58.46 2.36 0.02 39.12 ≤54 PASS AV 2500.000 -59.16 2.36 0.02 38.42 ≤54 PASS Peak 2483.500 -51.62 2.36 0.00 45.94 ≤74 PASS Peak 2485.870 -49.23 2.36 0.00 48.33 ≤74 PASS Peak 2500.000 -52.13 2.36 0.00 45.43 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.01 2.36 1.33 38.88 ≤54 PASS AV 2388.920 -59.04 2.36 1.33 39.85 ≤54 PASS AV 2390.000 -59.7 2.36 1.33 39.19 ≤54 PASS Peak 2310.000 -52.1 2.36 0.00 45.46 ≤74 PASS Peak 2364.740 -48.5 2.36 0.00 49.06 ≤74 PASS Peak 2390.000 -51.95 2.36 0.00 45.61 ≤74 PASS High 2462 AV 2483.500 -59.39 2.36 1.25 39.42 ≤54 PASS AV 2488.400 -58.97 2.36 1.25 39.84 ≤54 PASS AV 2500.000 -60.62 2.36 1.25 38.19 ≤54 PASS Peak 2483.500 -52.37 2.36 0.00 45.19 ≤74 PASS Peak 2495.440 -49.29 2.36 0.00 48.27 ≤74 PASS Peak 2500.000 -51.52 2.36 0.00 46.04 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.43 2.36 1.12 38.25 ≤54 PASS AV 2381.900 -59.06 2.36 1.12 39.62 ≤54 PASS AV 2390.000 -59.73 2.36 1.12 38.95 ≤54 PASS Peak 2310.000 -51.48 2.36 0.00 46.08 ≤74 PASS Peak 2355.900 -49.17 2.36 0.00 48.39 ≤74 PASS Peak 2390.000 -51.57 2.36 0.00 45.99 ≤74 PASS High 2462 AV 2483.500 -60.05 2.36 1.06 38.57 ≤54 PASS AV 2487.630 -58.56 2.36 1.06 40.06 ≤54 PASS AV 2500.000 -60.05 2.36 1.06 38.57 ≤54 PASS Peak 2483.500 -51.52 2.36 0.00 46.04 ≤74 PASS Peak 2494.560 -49.39 2.36 0.00 48.17 ≤74 PASS Peak 2500.000 -50.52 2.36 0.00 47.04 ≤74 PASS 49 11N40SI SO Ant1 Low 2422 AV 2310.000 -60.38 2.36 1.06 38.24 ≤54 PASS AV 2387.300 -58.97 2.36 1.06 39.65 ≤54 PASS AV 2390.000 -59.47 2.36 1.06 39.15 ≤54 PASS Peak 2310.000 -51.36 2.36 0.00 46.2 ≤74 PASS Peak 2385.950 -48.84 2.36 0.00 48.72 ≤74 PASS Peak 2390.000 -51.17 2.36 0.00 46.39 ≤74 PASS High 2452 AV 2483.500 -59.09 2.36 1.06 39.53 ≤54 PASS AV 2488.500 -58.6 2.36 1.06 40.02 ≤54 PASS AV 2500.000 -59.8 2.36 1.06 38.82 ≤54 PASS Peak 2483.500 -49.15 2.36 0.00 48.41 ≤74 PASS Peak 2483.625 -49.16 2.36 0.00 48.4 ≤74 PASS Peak 2500.000 -51.9 2.36 0.00 45.66 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 51 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 52 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 53 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 54 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 55 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 56 11N40SISO_Ant1_High_2452_Peak

1. Antenna Description: Antenna type External antenna Model WIF01 Frequency range 2400-2500MHz Manufacturer Shenzhen Sino-Memory Electronics Co., Ltd Address 507, Block 12, Lishan Industrial Park, No. 8 Yanshan Road, Liwan Community, Nanshan District, Shenzhen 518066, Guangdong, China ANT Peak Gain 2.36 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz
