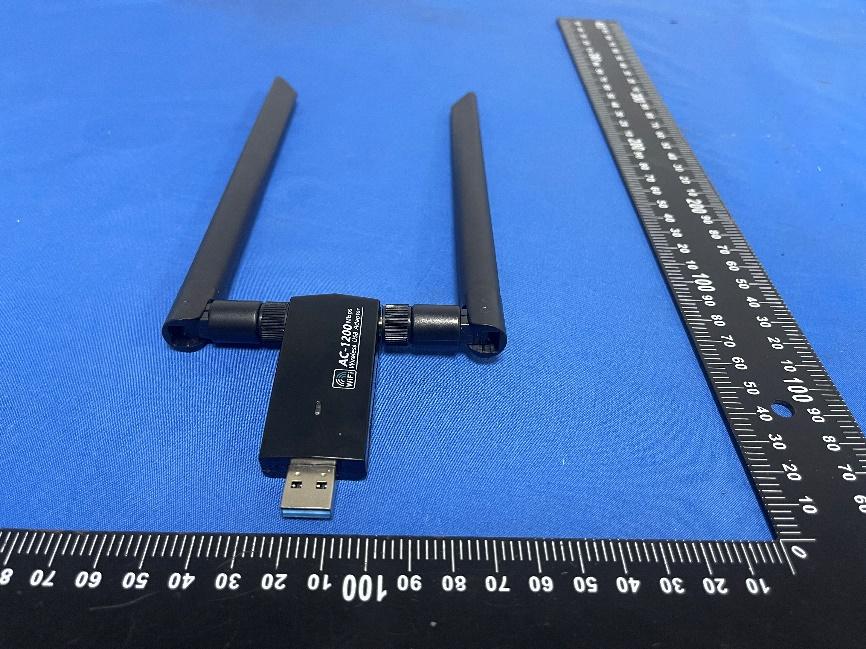

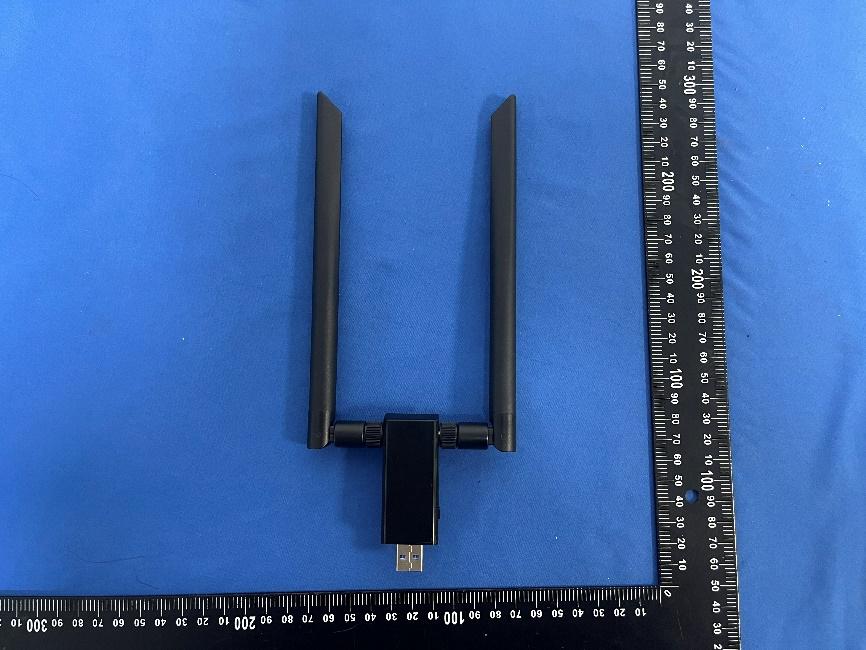

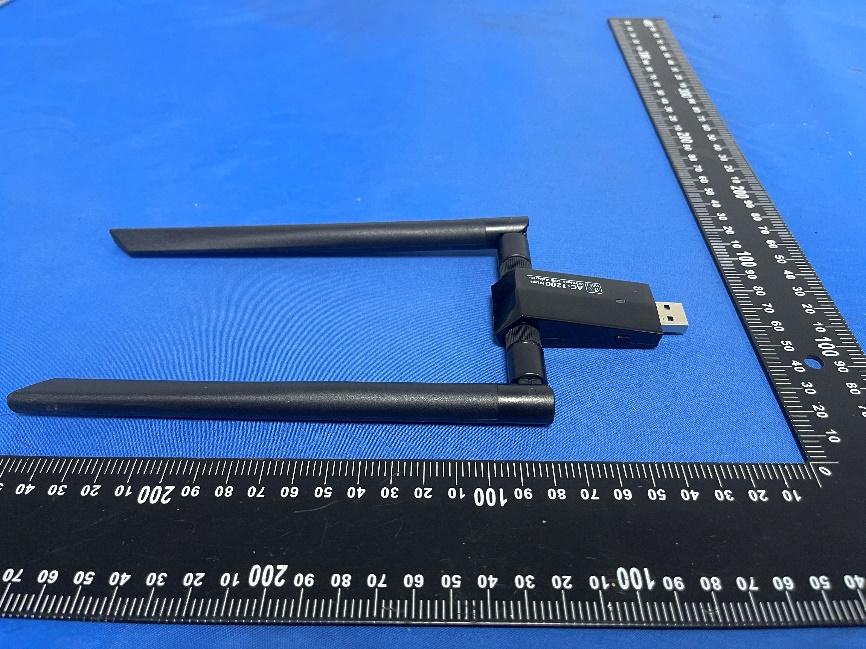

2BV8U-WIF02USB Wireless Adapter

WIF02 Page1 of 3 AC1300MDual Ban d Wireless USB Adap ter V 1. WIF02 0 WIF02 Page2 of 3 1.Introduction WIF02 Wireless AC1300M Dual Band Adapter based on 802.11ac technology delivers next generation WiFi speeds. The device enables multiple HD video streams throughout and on-line gaming. With speed up to 867Mbps(5G)+ 400Mbps(2.4G) and dual band technology, the WIF02 effectively avoid interference, ensuring blistering wifi speeds and reliable network performance. 2. Main Features Compliant with IEEE 802.11b/g/n/a/ac standards Support 2.4G/5G dual band connection, data rate of up to 867Mbps at 5GHz band, 400Mbps at 2.4GHz band, ideal for HD video streaming, on-line gaming,music download,etc. Compatible with Windows XP/WIN7/8/10 /11/LINUX/MAC operation systems Capable of up to 128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, 802.1x encryption With CCAtechnology, channel interference is effectively avoided With MIMO technology, data throughput and range are highly improved SmartAPswitch function, easily share network resource SupportAd-Hoc and Infrastructure working modes User-friendly setup and hassle-free configuration 3. Applications Tablet TV Android TV Drones Laptops/Desktops MID Tablet PC Smart Phones Network Cameras STB GPS Car DVR Other device WIF02 Page3 of 3 4.Specifications ChipsetRTL8812AU Wireless Standards IEEE 802.11ac/a/n/g/b Interface USB3.0/2.0 RF Frequency 2.4～2.4835GHz/5.15-5.25GHz,5.47~5.825GHz Data Rate 11ac: up to 867Mbps(5G); 400Mbps(2.4G) 11n ： up to 300Mbps 11g：54/48/36/24/18/12/9/6Mbps auto fallback 11b：11/5.5/2/1Mbps auto fallback Radio Channels 14 TR2T2R Modulation 802.11ac: MU-MIMO 802.11a: 5G OFDM 802.11n: MIMO-OFDM/CCK/DSSS 802.11g: CCK/DSSS/OFDM 802.11b: CCK/DSSS RF Output Power 2.4G: 6dBm(Max.) 5G: 4.5 dBm(Max.) Antenna Type Two External A n t e nn a LED Indicator Link/Active Operating Environment Operating Temperature：0°C~40°C Storage Temperature ： -40 °C ~70 °C Operating Humidity ： 10%~90%RH (Non Condensing) Storage Humidity：5%~90%RH (Non Condensing) Operating System windowsXP/win7/vista/win8/win10/win11 MacOS:10.6~10.14 Linux: (kernel 2.6.18 ~ 4.15) Android 1.6 ~ 2.3, 4.0 ~ 7.0 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

1 FCC Appendix RF Test Data for 5GWIFI FCC ID : 2BV8U-WIF02 Company : Shenzhen Sino-Memory Electronics Co., Ltd EUT : USB Wireless Adapter Model Number : WIF02 Report No. : CTA26051100202 Reviewed By : Eric Wang 2 FCC Appendix RF Test Data for 5GWIFI Antenna 1 Appendix A1: Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 23.280 5168.200 5191.480 --- --- 5220 23.480 5208.160 5231.640 --- --- 5240 22.560 5228.800 5251.360 --- --- 5745 23.800 5733.160 5756.960 --- --- 5785 25.000 5772.560 5797.560 --- --- 5825 23.680 5813.000 5836.680 --- --- 11N20SISO Ant1 5180 24.240 5167.960 5192.200 --- --- 5220 23.320 5208.360 5231.680 --- --- 5240 23.160 5228.480 5251.640 --- --- 5745 25.760 5732.200 5757.960 --- --- 5785 24.600 5772.680 5797.280 --- --- 5825 24.280 5812.960 5837.240 --- --- 11N40SISO Ant1 5190 43.760 5168.400 5212.160 --- --- 5230 43.040 5208.960 5252.000 --- --- 5755 44.480 5733.320 5777.800 --- --- 5795 44.960 5773.160 5818.120 --- --- 11AC20SISO Ant1 5180 22.800 5168.680 5191.480 --- --- 5220 22.320 5208.600 5230.920 --- --- 5240 22.360 5229.000 5251.360 --- --- 5745 23.280 5733.440 5756.720 --- --- 5785 24.800 5772.080 5796.880 --- --- 5825 24.600 5812.680 5837.280 --- --- 11AC40SISO Ant1 5190 43.120 5168.240 5211.360 --- --- 5230 43.040 5208.800 5251.840 --- --- 5755 44.800 5732.920 5777.720 --- --- 5795 45.120 5772.840 5817.960 --- --- 11AC80SISO Ant1 5210 86.400 5167.760 5254.160 --- --- 5775 85.600 5732.440 5818.040 --- --- 3 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 4 11A_Ant1_5745 11A_Ant1_5785 5 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 6 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 7 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 8 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 9 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 10 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 11 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 12 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 13 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 14 15 Appendix A2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 17.244 5171.4439 5188.6879 --- --- 5220 17.224 5211.4208 5228.6448 --- --- 5240 17.269 5231.3974 5248.6664 --- --- 5745 17.656 5736.1750 5753.8310 --- --- 5785 17.662 5776.1949 5793.8569 --- --- 5825 17.596 5816.2275 5833.8235 --- --- 11N20SISO Ant1 5180 18.233 5170.9057 5189.1387 --- --- 5220 18.286 5210.8843 5229.1703 --- --- 5240 18.252 5230.9430 5249.1950 --- --- 5745 18.696 5735.6336 5754.3296 --- --- 5785 18.667 5775.6809 5794.3479 --- --- 5825 18.624 5815.7162 5834.3402 --- --- 11N40SISO Ant1 5190 36.233 5171.9213 5208.1543 --- --- 5230 36.334 5211.9406 5248.2746 --- --- 5755 36.989 5736.6096 5773.5986 --- --- 5795 37.007 5776.6278 5813.6348 --- --- 11AC20SISO Ant1 5180 19.112 5170.4962 5189.6082 --- --- 5220 19.085 5210.4803 5229.5653 --- --- 5240 19.127 5230.4957 5249.6227 --- --- 5745 19.410 5735.3086 5754.7186 --- --- 5785 19.372 5775.3389 5794.7109 --- --- 5825 19.455 5815.3118 5834.7668 --- --- 11AC40SISO Ant1 5190 37.809 5171.1110 5208.9200 --- --- 5230 37.842 5211.1370 5248.9790 --- --- 5755 38.400 5735.8464 5774.2464 --- --- 5795 38.361 5775.9132 5814.2742 --- --- 11AC80SISO Ant1 5210 77.121 5171.5653 5248.6863 --- --- 5775 77.012 5736.6585 5813.6705 --- --- 16 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 17 11A_Ant1_5745 11A_Ant1_5785 18 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 19 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 20 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 21 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 22 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 23 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 24 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 25 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 26 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 27 28 Appendix A3: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.320 5736.840 5753.160 0.5 PASS 5785 16.280 5776.840 5793.120 0.5 PASS 5825 16.320 5816.840 5833.160 0.5 PASS 11N20SISO Ant1 5745 17.280 5736.240 5753.520 0.5 PASS 5785 17.360 5776.400 5793.760 0.5 PASS 5825 17.280 5816.480 5833.760 0.5 PASS 11N40SISO Ant1 5755 36.320 5736.840 5773.160 0.5 PASS 5795 36.320 5776.840 5813.160 0.5 PASS 11AC20SISO Ant1 5745 18.720 5735.560 5754.280 0.5 PASS 5785 18.520 5775.760 5794.280 0.5 PASS 5825 18.720 5815.560 5834.280 0.5 PASS 11AC40SISO Ant1 5755 37.840 5736.040 5773.880 0.5 PASS 5795 37.600 5776.280 5813.880 0.5 PASS 11AC80SISO Ant1 5775 75.200 5737.400 5812.600 0.5 PASS 29 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 30 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 31 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 32 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785

FCC ID: 2BV8U-WIF02 Test Setup Photos of the EUT FCC ID: 2BV8U-WIF02

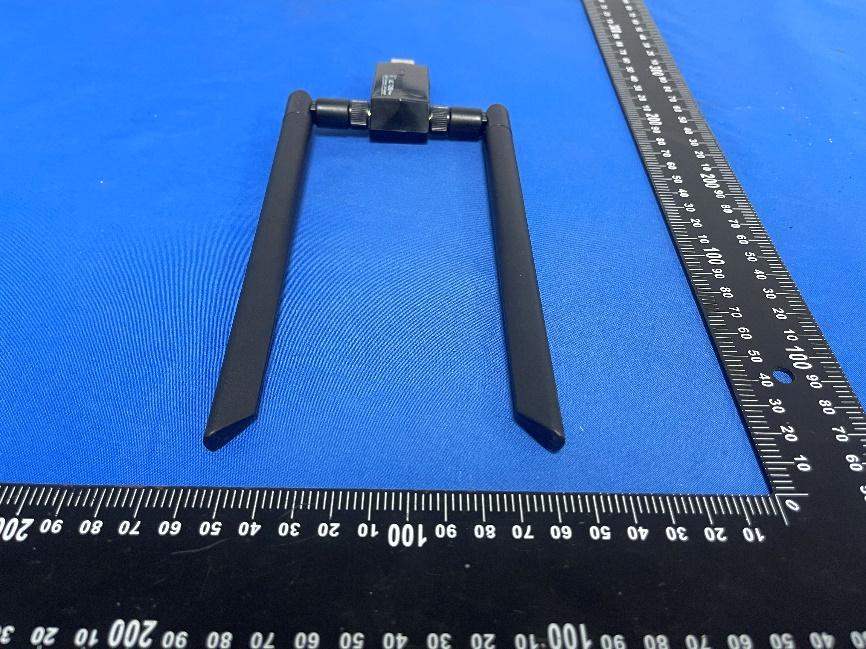

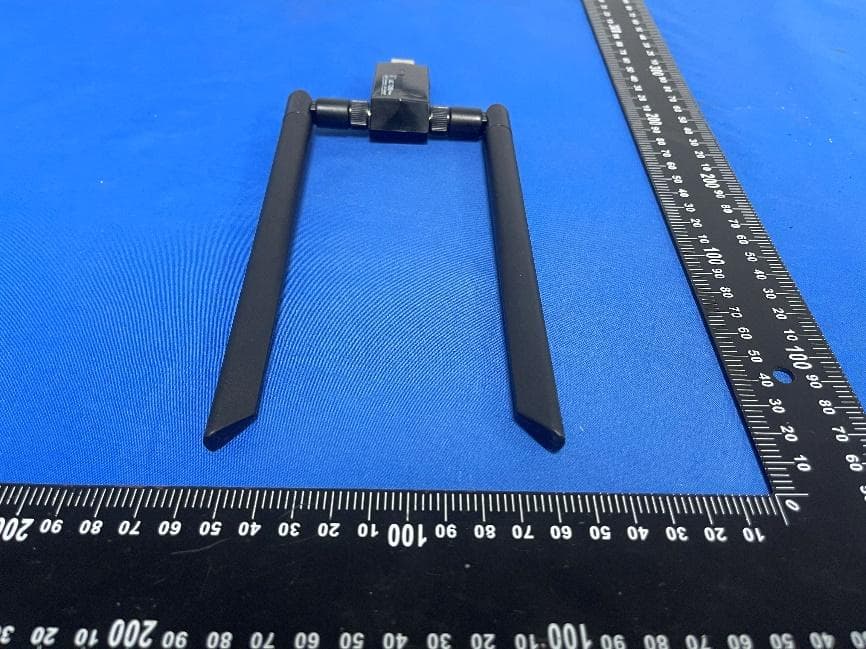

1. Antenna Description: Antenna type External antenna Model WIF02 Frequency range 2412 - 2462MHz 5180MHz-5240MHz, 5745MHz-5825MHz Manufacturer Shenzhen Sino-Memory Electronics Co., Ltd Address 507, Block 12, Lishan Industrial Park, No. 8 Yanshan Road, Liwan Community, Nanshan District, Shenzhen 518066, Guangdong, China ANT Peak Gain 1.49 dBi for 2412 - 2462MHz 1.27 dBi for 5180-5240MHz 1.19 dBi for 5745-5825MHz 2. Antenna Photo: Length :176.52mm Width:12.97mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz 5180MHz 5220MHz 5240MHz 5745MHz 5785MHz 5825MHz

214 11AC80SISO_Ant2_5775_5925~40000 215 Appendix G: Emissions in Restricted Bands Test Result TestMode Antenn a ChName Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] EIRP [dBm] Limit [dBm] Verdict 11A Ant2 Low 5180 AV 4500.000 -62.61 2.00 1.03 -59.58 ≤-41.20 PASS AV 5148.900 -57.65 2.00 1.03 -54.62 ≤-41.20 PASS AV 5150.000 -57.59 2.00 1.03 -54.56 ≤-41.20 PASS Peak 4500.000 -53.33 2.00 0.00 -51.33 ≤-27.00 PASS Peak 5140.500 -45.97 2.00 0.00 -43.97 ≤-27.00 PASS Peak 5150.000 -48.52 2.00 0.00 -46.52 ≤-27.00 PASS High 5240 AV 5350.000 -58.16 2.00 1.03 -55.13 ≤-41.20 PASS AV 5353.680 -57.77 2.00 1.03 -54.74 ≤-41.20 PASS AV 5460.000 -59.32 2.00 1.03 -56.29 ≤-41.20 PASS Peak 5350.000 -49.09 2.00 0.00 -47.09 ≤-27.00 PASS Peak 5362.800 -47.44 2.00 0.00 -45.44 ≤-27.00 PASS Peak 5460.000 -49.87 2.00 0.00 -47.87 ≤-27.00 PASS Low 5745 Peak 5650.000 -50.615 2.00 0.00 -48.615 ≤-27.00 PASS Peak 5700.000 -50.8 2.00 0.00 -48.8 ≤10.00 PASS Peak 5720.000 -48.93 2.00 0.00 -46.93 ≤15.60 PASS Peak 5725.000 -48.36 2.00 0.00 -46.36 ≤27.00 PASS High 5825 Peak 5850.000 -48.313 2.00 0.00 -46.313 ≤27.00 PASS Peak 5855.000 -49.42 2.00 0.00 -47.42 ≤15.60 PASS Peak 5875.000 -51.4 2.00 0.00 -49.4 ≤10.00 PASS Peak 5925.000 -51.23 2.00 0.00 -49.23 ≤-27.00 PASS 11N20SI SO Ant2 Low 5180 AV 4500.000 -62.32 2.00 1.06 -59.26 ≤-41.20 PASS AV 5141.200 -57.41 2.00 1.06 -54.35 ≤-41.20 PASS AV 5150.000 -57.77 2.00 1.06 -54.71 ≤-41.20 PASS Peak 4500.000 -54.88 2.00 0.00 -52.88 ≤-27.00 PASS Peak 5134.200 -46.96 2.00 0.00 -44.96 ≤-27.00 PASS Peak 5150.000 -48.49 2.00 0.00 -46.49 ≤-27.00 PASS High 5240 AV 5350.000 -61.77 2.00 1.06 -58.71 ≤-41.20 PASS AV 5449.440 -60.21 2.00 1.06 -57.15 ≤-41.20 PASS AV 5460.000 -60.96 2.00 1.06 -57.9 ≤-41.20 PASS Peak 5350.000 -50.83 2.00 0.00 -48.83 ≤-27.00 PASS Peak 5450.400 -50.6 2.00 0.00 -48.6 ≤-27.00 PASS Peak 5460.000 -53.96 2.00 0.00 -51.96 ≤-27.00 PASS Low 5745 Peak 5650.000 -51.493 2.00 0.00 -49.493 ≤-27.00 PASS Peak 5700.000 -51.05 2.00 0.00 -49.05 ≤10.00 PASS Peak 5720.000 -47.39 2.00 0.00 -45.39 ≤15.60 PASS Peak 5725.000 -48.44 2.00 0.00 -46.44 ≤27.00 PASS 216 High 5825 Peak 5850.000 -51.856 2.00 0.00 -49.856 ≤27.00 PASS Peak 5855.000 -52.33 2.00 0.00 -50.33 ≤15.60 PASS Peak 5875.000 -52.48 2.00 0.00 -50.48 ≤10.00 PASS Peak 5925.000 -53.37 2.00 0.00 -51.37 ≤-27.00 PASS 11N40SI SO Ant2 Low 5190 AV 4500.000 -62.56 2.00 0.87 -59.69 ≤-41.20 PASS AV 5148.200 -56.68 2.00 0.87 -53.81 ≤-41.20 PASS AV 5150.000 -57.3 2.00 0.87 -54.43 ≤-41.20 PASS Peak 4500.000 -54.08 2.00 0.00 -52.08 ≤-27.00 PASS Peak 5147.500 -46.59 2.00 0.00 -44.59 ≤-27.00 PASS Peak 5150.000 -46.99 2.00 0.00 -44.99 ≤-27.00 PASS High 5230 AV 5350.000 -58.65 2.00 1.06 -55.59 ≤-41.20 PASS AV 5357.040 -57.75 2.00 1.06 -54.69 ≤-41.20 PASS AV 5460.000 -59.11 2.00 1.06 -56.05 ≤-41.20 PASS Peak 5350.000 -50.57 2.00 0.00 -48.57 ≤-27.00 PASS Peak 5390.060 -47.04 2.00 0.00 -45.04 ≤-27.00 PASS Peak 5460.000 -49.56 2.00 0.00 -47.56 ≤-27.00 PASS Low 5755 Peak 5650.000 -52.099 2.00 0.00 -50.099 ≤-27.00 PASS Peak 5700.000 -49.48 2.00 0.00 -47.48 ≤10.00 PASS Peak 5720.000 -48.44 2.00 0.00 -46.44 ≤15.60 PASS Peak 5725.000 -48.79 2.00 0.00 -46.79 ≤27.00 PASS High 5795 Peak 5850.000 -50.661 2.00 0.00 -48.661 ≤27.00 PASS Peak 5855.000 -51.29 2.00 0.00 -49.29 ≤15.60 PASS Peak 5875.000 -48.02 2.00 0.00 -46.02 ≤10.00 PASS Peak 5925.000 -51.94 2.00 0.00 -49.94 ≤-27.00 PASS 11AC20S ISO Ant2 Low 5180 AV 4500.000 -62.76 2.00 0.76 -60 ≤-41.20 PASS AV 5148.200 -56.9 2.00 0.76 -54.14 ≤-41.20 PASS AV 5150.000 -57.24 2.00 0.76 -54.48 ≤-41.20 PASS Peak 4500.000 -54.57 2.00 0.00 -52.57 ≤-27.00 PASS Peak 5144.700 -46.47 2.00 0.00 -44.47 ≤-27.00 PASS Peak 5150.000 -50.02 2.00 0.00 -48.02 ≤-27.00 PASS High 5240 AV 5350.000 -58.41 2.00 0.76 -55.65 ≤-41.20 PASS AV 5369.040 -57.56 2.00 0.76 -54.8 ≤-41.20 PASS AV 5460.000 -59.16 2.00 0.76 -56.4 ≤-41.20 PASS Peak 5350.000 -47.97 2.00 0.00 -45.97 ≤-27.00 PASS Peak 5356.320 -46.73 2.00 0.00 -44.73 ≤-27.00 PASS Peak 5460.000 -50.76 2.00 0.00 -48.76 ≤-27.00 PASS Low 5745 Peak 5650.000 -53.292 2.00 0.00 -51.292 ≤-27.00 PASS Peak 5700.000 -53.12 2.00 0.00 -51.12 ≤10.00 PASS Peak 5720.000 -52.91 2.00 0.00 -50.91 ≤15.60 PASS Peak 5725.000 -52.07 2.00 0.00 -50.07 ≤27.00 PASS High 5825 Peak 5850.000 -48.191 2.00 0.00 -46.191 ≤27.00 PASS Peak 5855.000 -49.45 2.00 0.00 -47.45 ≤15.60 PASS Peak 5875.000 -49.89 2.00 0.00 -47.89 ≤10.00 PASS 217 Peak 5925.000 -51.22 2.00 0.00 -49.22 ≤-27.00 PASS 11AC40S ISO Ant2 Low 5190 AV 4500.000 -62.53 2.00 1.06 -59.47 ≤-41.20 PASS AV 5148.900 -56.8 2.00 1.06 -53.74 ≤-41.20 PASS AV 5150.000 -56.94 2.00 1.06 -53.88 ≤-41.20 PASS Peak 4500.000 -54.66 2.00 0.00 -52.66 ≤-27.00 PASS Peak 5146.800 -46.3 2.00 0.00 -44.3 ≤-27.00 PASS Peak 5150.000 -47.85 2.00 0.00 -45.85 ≤-27.00 PASS High 5230 AV 5350.000 -57.95 2.00 1.12 -54.83 ≤-41.20 PASS AV 5354.700 -57.76 2.00 1.12 -54.64 ≤-41.20 PASS AV 5460.000 -59.28 2.00 1.12 -56.16 ≤-41.20 PASS Peak 5350.000 -47.87 2.00 0.00 -45.87 ≤-27.00 PASS Peak 5359.900 -46.64 2.00 0.00 -44.64 ≤-27.00 PASS Peak 5460.000 -50.59 2.00 0.00 -48.59 ≤-27.00 PASS Low 5755 Peak 5650.000 -49.871 2.00 0.00 -47.871 ≤-27.00 PASS Peak 5700.000 -50.33 2.00 0.00 -48.33 ≤10.00 PASS Peak 5720.000 -49.11 2.00 0.00 -47.11 ≤15.60 PASS Peak 5725.000 -48.43 2.00 0.00 -46.43 ≤27.00 PASS High 5795 Peak 5850.000 -50.954 2.00 0.00 -48.954 ≤27.00 PASS Peak 5855.000 -51.43 2.00 0.00 -49.43 ≤15.60 PASS Peak 5875.000 -50.25 2.00 0.00 -48.25 ≤10.00 PASS Peak 5925.000 -51.02 2.00 0.00 -49.02 ≤-27.00 PASS 11AC80S ISO Ant2 Low 5210 AV 4500.000 -62.74 2.00 1.18 -59.56 ≤-41.20 PASS AV 5144.250 -57.17 2.00 1.18 -53.99 ≤-41.20 PASS AV 5150.000 -57.51 2.00 1.18 -54.33 ≤-41.20 PASS Peak 4500.000 -54.33 2.00 0.00 -52.33 ≤-27.00 PASS Peak 5145.000 -46.15 2.00 0.00 -44.15 ≤-27.00 PASS Peak 5150.000 -48.13 2.00 0.00 -46.13 ≤-27.00 PASS High 5210 AV 5350.000 -58.3 2.00 1.18 -55.12 ≤-41.20 PASS AV 5371.240 -57.62 2.00 1.18 -54.44 ≤-41.20 PASS AV 5460.000 -58.85 2.00 1.18 -55.67 ≤-41.20 PASS Peak 5350.000…

Text truncated - open the document above for the full version.

186 11N20SISO_Ant2_High_5825 11N40SISO_Ant2_Low_5755 187 11N40SISO_Ant2_High_5795 11AC20SISO_Ant2_Low_5745 11AC20SISO_Ant2_High_5825 188 11AC40SISO_Ant2_Low_5755 11AC40SISO_Ant2_High_5795 189 11AC80SISO_Ant2_Low_5775 11AC80SISO_Ant2_High_5775 190 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant2 5180 30~5140 5134.04 -48.96 ≤-27 PASS 5360~40000 6475.18 -49.28 ≤-27 PASS 5220 30~5140 5138.64 -49.84 ≤-27 PASS 5360~40000 5363.61 -48.41 ≤-27 PASS 5240 30~5140 5115.3 -51.35 ≤-27 PASS 5360~40000 5365.05 -48.73 ≤-27 PASS 5745 30~5650 5585.56 -50.45 ≤-27 PASS 5925~40000 5962.94 -53.12 ≤-27 PASS 5785 30~5650 5640.07 -51.88 ≤-27 PASS 5925~40000 5945.37 -49.39 ≤-27 PASS 5825 30~5650 5625.27 -51.41 ≤-27 PASS 5925~40000 5934.84 -50.88 ≤-27 PASS 11N20SISO Ant2 5180 30~5140 5124.67 -49.19 ≤-27 PASS 5360~40000 6475.18 -49 ≤-27 PASS 5220 30~5140 5120.41 -51 ≤-27 PASS 5360~40000 5380.2 -48.48 ≤-27 PASS 5240 30~5140 5130.12 -56.4 ≤-27 PASS 5360~40000 26575.13 -55.68 ≤-27 PASS 5745 30~5650 5580.87 -50.38 ≤-27 PASS 5925~40000 5938.35 -52.49 ≤-27 PASS 5785 30~5650 5621.9 -52.32 ≤-27 PASS 5925~40000 5938.35 -52.49 ≤-27 PASS 5825 30~5650 2430.68 -57.2 ≤-27 PASS 5925~40000 11652.48 -51.46 ≤-27 PASS 11N40SISO Ant2 5190 30~5140 5134.04 -48.42 ≤-27 PASS 5360~40000 6487.44 -49.19 ≤-27 PASS 5230 30~5140 5132.51 -49.83 ≤-27 PASS 5360~40000 5367.93 -48.29 ≤-27 PASS 5755 30~5650 5628.27 -51.64 ≤-27 PASS 5925~40000 5943.27 -53.44 ≤-27 PASS 5795 30~5650 5648.88 -52.18 ≤-27 PASS 5925~40000 5950.99 -52.38 ≤-27 PASS 11AC20SISO Ant2 5180 30~5140 5117.35 -48.43 ≤-27 PASS 5360~40000 5361.44 -48 ≤-27 PASS 5220 30~5140 5124.16 -49.14 ≤-27 PASS 5360~40000 5377.31 -49.21 ≤-27 PASS 191 5240 30~5140 5138.47 -49.03 ≤-27 PASS 5360~40000 5360.72 -47.64 ≤-27 PASS 5745 30~5650 4309.44 -59.04 ≤-27 PASS 5925~40000 11488.1 -50.85 ≤-27 PASS 5785 30~5650 5545.84 -51.38 ≤-27 PASS 5925~40000 5942.56 -50.63 ≤-27 PASS 5825 30~5650 5640.63 -51.91 ≤-27 PASS 5925~40000 6033.89 -52.66 ≤-27 PASS 11AC40SISO Ant2 5190 30~5140 5137.1 -48.88 ≤-27 PASS 5360~40000 6488.17 -48.8 ≤-27 PASS 5230 30~5140 5136.08 -49.25 ≤-27 PASS 5360~40000 6537.94 -49.36 ≤-27 PASS 5755 30~5650 5626.21 -51.26 ≤-27 PASS 5925~40000 5934.84 -53.25 ≤-27 PASS 5795 30~5650 5647.19 -52.07 ≤-27 PASS 5925~40000 5939.05 -51.21 ≤-27 PASS 11AC80SISO Ant2 5210 30~5140 5130.97 -48.72 ≤-27 PASS 5360~40000 6512.69 -46.02 ≤-27 PASS 5775 30~5650 5616.09 -50.93 ≤-27 PASS 5925~40000 5965.04 -51.94 ≤-27 PASS 192 Test Graphs 11A_Ant2_5180_30~5140 11A_Ant2_5180_5360~40000 11A_Ant2_5220_30~5140 193 11A_Ant2_5220_5360~40000 11A_Ant2_5240_30~5140 194 11A_Ant2_5240_5360~40000 11A_Ant2_5745_30~5650 11A_Ant2_5745_5925~40000 195 11A_Ant2_5785_30~5650 11A_Ant2_5785_5925~40000 196 11A_Ant2_5825_30~5650 11A_Ant2_5825_5925~40000 11N20SISO_Ant2_5180_30~5140 197 11N20SISO_Ant2_5180_5360~40000 11N20SISO_Ant2_5220_30~5140 198 11N20SISO_Ant2_5220_5360~40000 11N20SISO_Ant2_5240_30~5140 11N20SISO_Ant2_5240_5360~40000 199 11N20SISO_Ant2_5745_30~5650 11N20SISO_Ant2_5745_5925~40000 200 11N20SISO_Ant2_5785_30~5650 11N20SISO_Ant2_5785_5925~40000 11N20SISO_Ant2_5825_30~5650 201 11N20SISO_Ant2_5825_5925~40000 11N40SISO_Ant2_5190_30~5140 202 11N40SISO_Ant2_5190_5360~40000 11N40SISO_Ant2_5230_30~5140 11N40SISO_Ant2_5230_5360~40000 203 11N40SISO_Ant2_5755_30~5650 11N40SISO_Ant2_5755_5925~40000 204 11N40SISO_Ant2_5795_30~5650 11N40SISO_Ant2_5795_5925~40000 11AC20SISO_Ant2_5180_30~5140 205 11AC20SISO_Ant2_5180_5360~40000 11AC20SISO_Ant2_5220_30~5140 206 11AC20SISO_Ant2_5220_5360~40000 11AC20SISO_Ant2_5240_30~5140 11AC20SISO_Ant2_5240_5360~40000 207 11AC20SISO_Ant2_5745_30~5650 11AC20SISO_Ant2_5745_5925~40000 208 11AC20SISO_Ant2_5785_30~5650 11AC20SISO_Ant2_5785_5925~40000 11AC20SISO_Ant2_5825_30~5650 209 11AC20SISO_Ant2_5825_5925~40000 11AC40SISO_Ant2_5190_30~5140 210 11AC40SISO_Ant2_5190_5360~40000 11AC40SISO_Ant2_5230_30~5140 11AC40SISO_Ant2_5230_5360~40000 211 11AC40SISO_Ant2_5755_30~5650 11AC40SISO_Ant2_5755_5925~40000 212 11AC40SISO_Ant2_5795_30~5650 11AC40SISO_Ant2_5795_5925~40000 11AC80SISO_Ant2_5210_30~5140 213 11AC80SISO_Ant2_5210_5360~40000 11AC80SISO_Ant2_5775_30~5650

155 11N20SISO_Ant2_5240 11N20SISO_Ant2_5745 156 11N20SISO_Ant2_5785 11N20SISO_Ant2_5825 11N40SISO_Ant2_5190 157 11N40SISO_Ant2_5230 11N40SISO_Ant2_5755 158 11N40SISO_Ant2_5795 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5220 159 11AC20SISO_Ant2_5240 11AC20SISO_Ant2_5745 160 11AC20SISO_Ant2_5785 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5190 161 11AC40SISO_Ant2_5230 11AC40SISO_Ant2_5755 162 11AC40SISO_Ant2_5795 11AC80SISO_Ant2_5210 11AC80SISO_Ant2_5775 163 164 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Freq(MHz) Channel Power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant2 5180 2.68 78.95 1.03 3.71 ≤30.00 PASS 5220 2.99 78.95 1.03 4.02 ≤30.00 PASS 5240 2.62 78.95 1.03 3.65 ≤30.00 PASS 5745 2.50 75.00 1.25 3.75 ≤30.00 PASS 5785 2.48 75.00 1.25 3.73 ≤30.00 PASS 5825 2.43 73.68 1.33 3.76 ≤30.00 PASS 11N20SISO Ant2 5180 2.85 78.26 1.06 3.91 ≤30.00 PASS 5220 3.11 78.26 1.06 4.17 ≤30.00 PASS 5240 2.84 78.26 1.06 3.90 ≤30.00 PASS 5745 2.65 77.27 1.12 3.77 ≤30.00 PASS 5785 2.61 77.27 1.12 3.73 ≤30.00 PASS 5825 2.49 77.27 1.12 3.61 ≤30.00 PASS 11N40SISO Ant2 5190 2.80 81.82 0.87 3.67 ≤30.00 PASS 5230 2.93 78.26 1.06 3.99 ≤30.00 PASS 5755 2.71 78.26 1.06 3.77 ≤30.00 PASS 5795 2.81 78.26 1.06 3.87 ≤30.00 PASS 11AC20SISO Ant2 5180 2.85 83.87 0.76 3.61 ≤30.00 PASS 5220 3.06 83.87 0.76 3.82 ≤30.00 PASS 5240 2.94 83.87 0.76 3.70 ≤30.00 PASS 5745 2.76 83.87 0.76 3.52 ≤30.00 PASS 5785 2.65 83.33 0.79 3.44 ≤30.00 PASS 5825 2.64 86.67 0.62 3.26 ≤30.00 PASS 11AC40SISO Ant2 5190 2.40 78.26 1.06 3.46 ≤30.00 PASS 5230 2.67 77.27 1.12 3.79 ≤30.00 PASS 5755 2.33 78.26 1.06 3.39 ≤30.00 PASS 5795 2.42 78.26 1.06 3.48 ≤30.00 PASS 11AC80SISO Ant2 5210 2.84 76.19 1.18 4.02 ≤30.00 PASS 5775 2.66 80.00 0.97 3.63 ≤30.00 PASS 165 Appendix D: Maximum power spectral density Test Result Note:The Result and Limit Unit is dBm/500 kHz in the band 5.725−5.85 GHz. P.S.D(dBm/500KHz)= P.S.D(dBm/300KHz)+10 log (500 kHz/300KHz) +Duty factor. RBW factor= 10 log (500 KHz /300 KHz) = 2.22 dB TestMode Antenna Freq(MHz) RawData [dBm/MHz] DC Factor [dBm] RBW Factor [dBm] For 5.2G [dBm/MHz] For 5.2G [dBm/MHz] Verdict For 5.8G [dBm/500KHz] For 5.8G [dBm/500KHz] 11A Ant2 5180 -7.47 1.03 0.00 -6.44 ≤17.00 PASS 5220 -6.99 1.03 0.00 -5.96 ≤17.00 PASS 5240 -7.61 1.03 0.00 -6.58 ≤17.00 PASS 5745 -13.2 1.25 2.22 -9.73 ≤30.00 PASS 5785 -12.88 1.25 2.22 -9.41 ≤30.00 PASS 5825 -12.94 1.33 2.22 -9.39 ≤30.00 PASS 11N20SISO Ant2 5180 -7.26 1.06 0.00 -6.20 ≤17.00 PASS 5220 -7.26 1.06 0.00 -6.20 ≤17.00 PASS 5240 -7.23 1.06 0.00 -6.17 ≤17.00 PASS 5745 -12.88 1.12 2.22 -9.54 ≤30.00 PASS 5785 -12.87 1.12 2.22 -9.53 ≤30.00 PASS 5825 -13.14 1.12 2.22 -9.80 ≤30.00 PASS 11N40SISO Ant2 5190 -10.56 0.87 0.00 -9.69 ≤17.00 PASS 5230 -10.73 1.06 0.00 -9.67 ≤17.00 PASS 5755 -14.96 1.06 2.22 -11.68 ≤30.00 PASS 5795 -15.89 1.06 2.22 -12.61 ≤30.00 PASS 11AC20SISO Ant2 5180 -7.48 0.76 0.00 -6.72 ≤17.00 PASS 5220 -7.25 0.76 0.00 -6.49 ≤17.00 PASS 5240 -7.56 0.76 0.00 -6.80 ≤17.00 PASS 5745 -13.12 0.76 2.22 -10.14 ≤30.00 PASS 5785 -13.7 0.79 2.22 -10.69 ≤30.00 PASS 5825 -13.93 0.62 2.22 -11.09 ≤30.00 PASS 11AC40SISO Ant2 5190 -11.2 1.06 0.00 -10.14 ≤17.00 PASS 5230 -10.83 1.12 0.00 -9.71 ≤17.00 PASS 5755 -16.7 1.06 2.22 -13.42 ≤30.00 PASS 5795 -16.33 1.06 2.22 -13.05 ≤30.00 PASS 11AC80SISO Ant2 5210 -13.86 1.18 0.00 -12.68 ≤17.00 PASS 5775 -19 0.97 2.22 -15.81 ≤30.00 PASS 166 Test Graphs 11A_Ant2_5180 11A_Ant2_5220 11A_Ant2_5240 167 11A_Ant2_5745 11A_Ant2_5785 168 11A_Ant2_5825 11N20SISO_Ant2_5180 11N20SISO_Ant2_5220 169 11N20SISO_Ant2_5240 11N20SISO_Ant2_5745 170 11N20SISO_Ant2_5785 11N20SISO_Ant2_5825 11N40SISO_Ant2_5190 171 11N40SISO_Ant2_5230 11N40SISO_Ant2_5755 172 11N40SISO_Ant2_5795 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5220 173 11AC20SISO_Ant2_5240 11AC20SISO_Ant2_5745 174 11AC20SISO_Ant2_5785 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5190 175 11AC40SISO_Ant2_5230 11AC40SISO_Ant2_5755 176 11AC40SISO_Ant2_5795 11AC80SISO_Ant2_5210 11AC80SISO_Ant2_5775 177 178 Appendix E: Band edge measurements Test Result B1/2/3 TestMode Antenna ChName Freq(MHz) Result[dBm] Limit[dBm] Verdict 11A Ant2 Low 5180 -46.35 ≤-27 PASS High 5240 -45.93 ≤-27 PASS 11N20SISO Ant2 Low 5180 -46.47 ≤-27 PASS High 5240 -49.48 ≤-27 PASS 11N40SISO Ant2 Low 5190 -46.13 ≤-27 PASS High 5230 -46.88 ≤-27 PASS 11AC20SISO Ant2 Low 5180 -46.26 ≤-27 PASS High 5240 -47.14 ≤-27 PASS 11AC40SISO Ant2 Low 5190 -46.95 ≤-27 PASS High 5230 -46.09 ≤-27 PASS 11AC80SISO Ant2 Low 5210 -46.96 ≤-27 PASS High 5210 -46.18 ≤-27 PASS Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant2 Low 5745 5645~5650 -50.09 ≤-27 PASS 5650~5700 -49.6 ≤-26.70 PASS 5700~5720 -48.47 ≤10.51 PASS 5720~5725 -48.55 ≤16.08 PASS High 5825 5850~5855 -48.68 ≤15.73 PASS 5855~5875 -48.25 ≤10.51 PASS 5875~5925 -49.31 ≤-25.91 PASS 5925~5935 -48.95 ≤-27 PASS 11N20SI SO Ant2 Low 5745 5645~5650 -49.36 ≤-27 PASS 5650~5700 -49.6 ≤-26.62 PASS 5700~5720 -49.02 ≤10.09 PASS 5720~5725 -47.8 ≤17.13 PASS High 5825 5850~5855 -50.17 ≤17.57 PASS 5855~5875 -50.75 ≤10.06 PASS 5875~5925 -50.71 ≤-26.81 PASS 5925~5935 -50.5 ≤-27 PASS 11N40SI SO Ant2 Low 5755 5645~5650 -49.51 ≤-27 PASS 5650~5700 -49.85 ≤-26.90 PASS 5700~5720 -47.38 ≤11.31 PASS 5720~5725 -47.62 ≤16.04 PASS 179 High 5795 5850~5855 -48.94 ≤17.16 PASS 5855~5875 -48.24 ≤11.22 PASS 5875~5925 -49.76 ≤-26.34 PASS 5925~5935 -48.52 ≤-27 PASS 11AC20S ISO Ant2 Low 5745 5645~5650 -52 ≤-27 PASS 5650~5700 -52.5 ≤-26.79 PASS 5700~5720 -51.07 ≤10.54 PASS 5720~5725 -51.91 ≤16.08 PASS High 5825 5850~5855 -49.47 ≤15.73 PASS 5855~5875 -49.25 ≤10.10 PASS 5875~5925 -49.87 ≤-26.51 PASS 5925~5935 -48.77 ≤-27 PASS 11AC40S ISO Ant2 Low 5755 5645~5650 -49.2 ≤-27 PASS 5650~5700 -49.66 ≤-26.80 PASS 5700~5720 -47.59 ≤10.55 PASS 5720~5725 -45.93 ≤16.04 PASS High 5795 5850~5855 -49.23 ≤15.66 PASS 5855~5875 -48.05 ≤10.34 PASS 5875~5925 -50.37 ≤-26.95 PASS 5925~5935 -49.11 ≤-27 PASS 11AC80S ISO Ant2 Low 5775 5645~5650 -49.3 ≤-27 PASS 5650~5700 -49.19…

Text truncated - open the document above for the full version.

123 11N20SISO_Ant2_5785 11N20SISO_Ant2_5825 11N40SISO_Ant2_5190 124 11N40SISO_Ant2_5230 11N40SISO_Ant2_5755 125 11N40SISO_Ant2_5795 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5220 126 11AC20SISO_Ant2_5240 11AC20SISO_Ant2_5745 127 11AC20SISO_Ant2_5785 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5190 128 11AC40SISO_Ant2_5230 11AC40SISO_Ant2_5755 129 11AC40SISO_Ant2_5795 11AC80SISO_Ant2_5210 11AC80SISO_Ant2_5775 130 131 Appendix A2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5180 17.258 5171.3985 5188.6565 --- --- 5220 17.251 5211.3814 5228.6324 --- --- 5240 17.351 5231.3884 5248.7394 --- --- 5745 17.593 5736.2201 5753.8131 --- --- 5785 17.622 5776.2085 5793.8305 --- --- 5825 17.714 5816.1698 5833.8838 --- --- 11N20SISO Ant2 5180 18.295 5170.9194 5189.2144 --- --- 5220 18.243 5210.8942 5229.1372 --- --- 5240 18.240 5230.8791 5249.1191 --- --- 5745 18.633 5735.7031 5754.3361 --- --- 5785 18.684 5775.6335 5794.3175 --- --- 5825 18.660 5815.6965 5834.3565 --- --- 11N40SISO Ant2 5190 36.332 5171.9047 5208.2367 --- --- 5230 36.274 5211.9479 5248.2219 --- --- 5755 37.024 5736.6066 5773.6306 --- --- 5795 36.954 5776.6418 5813.5958 --- --- 11AC20SISO Ant2 5180 19.148 5170.4433 5189.5913 --- --- 5220 19.140 5210.4431 5229.5831 --- --- 5240 19.121 5230.4902 5249.6112 --- --- 5745 19.390 5735.2956 5754.6856 --- --- 5785 19.386 5775.3150 5794.7010 --- --- 5825 19.424 5815.3175 5834.7415 --- --- 11AC40SISO Ant2 5190 37.808 5171.1484 5208.9564 --- --- 5230 37.847 5211.2032 5249.0502 --- --- 5755 38.310 5735.9150 5774.2250 --- --- 5795 38.377 5775.9064 5814.2834 --- --- 11AC80SISO Ant2 5210 77.096 5171.5899 5248.6859 --- --- 5775 76.989 5736.6457 5813.6347 --- --- 132 Test Graphs 11A_Ant2_5180 11A_Ant2_5220 11A_Ant2_5240 133 11A_Ant2_5745 11A_Ant2_5785 134 11A_Ant2_5825 11N20SISO_Ant2_5180 11N20SISO_Ant2_5220 135 11N20SISO_Ant2_5240 11N20SISO_Ant2_5745 136 11N20SISO_Ant2_5785 11N20SISO_Ant2_5825 11N40SISO_Ant2_5190 137 11N40SISO_Ant2_5230 11N40SISO_Ant2_5755 138 11N40SISO_Ant2_5795 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5220 139 11AC20SISO_Ant2_5240 11AC20SISO_Ant2_5745 140 11AC20SISO_Ant2_5785 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5190 141 11AC40SISO_Ant2_5230 11AC40SISO_Ant2_5755 142 11AC40SISO_Ant2_5795 11AC80SISO_Ant2_5210 11AC80SISO_Ant2_5775 143 144 Appendix A3: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5745 16.320 5736.840 5753.160 0.5 PASS 5785 16.320 5776.840 5793.160 0.5 PASS 5825 16.320 5816.840 5833.160 0.5 PASS 11N20SISO Ant2 5745 17.560 5736.200 5753.760 0.5 PASS 5785 17.560 5776.240 5793.800 0.5 PASS 5825 17.560 5816.200 5833.760 0.5 PASS 11N40SISO Ant2 5755 36.320 5736.840 5773.160 0.5 PASS 5795 36.320 5776.840 5813.160 0.5 PASS 11AC20SISO Ant2 5745 18.640 5735.680 5754.320 0.5 PASS 5785 18.200 5776.200 5794.400 0.5 PASS 5825 18.440 5815.680 5834.120 0.5 PASS 11AC40SISO Ant2 5755 37.600 5736.280 5773.880 0.5 PASS 5795 37.600 5776.280 5813.880 0.5 PASS 11AC80SISO Ant2 5775 75.200 5737.400 5812.600 0.5 PASS 145 Test Graphs B4 11A_Ant2_5745 11A_Ant2_5785 11A_Ant2_5825 146 11N20SISO_Ant2_5745 11N20SISO_Ant2_5785 147 11N20SISO_Ant2_5825 11N40SISO_Ant2_5755 11N40SISO_Ant2_5795 148 11AC20SISO_Ant2_5745 11AC20SISO_Ant2_5785 149 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5755 11AC40SISO_Ant2_5795 150 11AC80SISO_Ant2_5775 151 Appendix B: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] Limit Verdict 11A Ant2 5180 0.15 0.19 78.95 1.03 --- --- 5220 0.15 0.19 78.95 1.03 --- --- 5240 0.15 0.19 78.95 1.03 --- --- 5745 0.15 0.20 75.00 1.25 --- --- 5785 0.15 0.20 75.00 1.25 --- --- 5825 0.14 0.19 73.68 1.33 --- --- 11N20SISO Ant2 5180 0.18 0.23 78.26 1.06 --- --- 5220 0.18 0.23 78.26 1.06 --- --- 5240 0.18 0.23 78.26 1.06 --- --- 5745 0.17 0.22 77.27 1.12 --- --- 5785 0.17 0.22 77.27 1.12 --- --- 5825 0.17 0.22 77.27 1.12 --- --- 11N40SISO Ant2 5190 0.18 0.22 81.82 0.87 --- --- 5230 0.18 0.23 78.26 1.06 --- --- 5755 0.18 0.23 78.26 1.06 --- --- 5…

Text truncated - open the document above for the full version.
