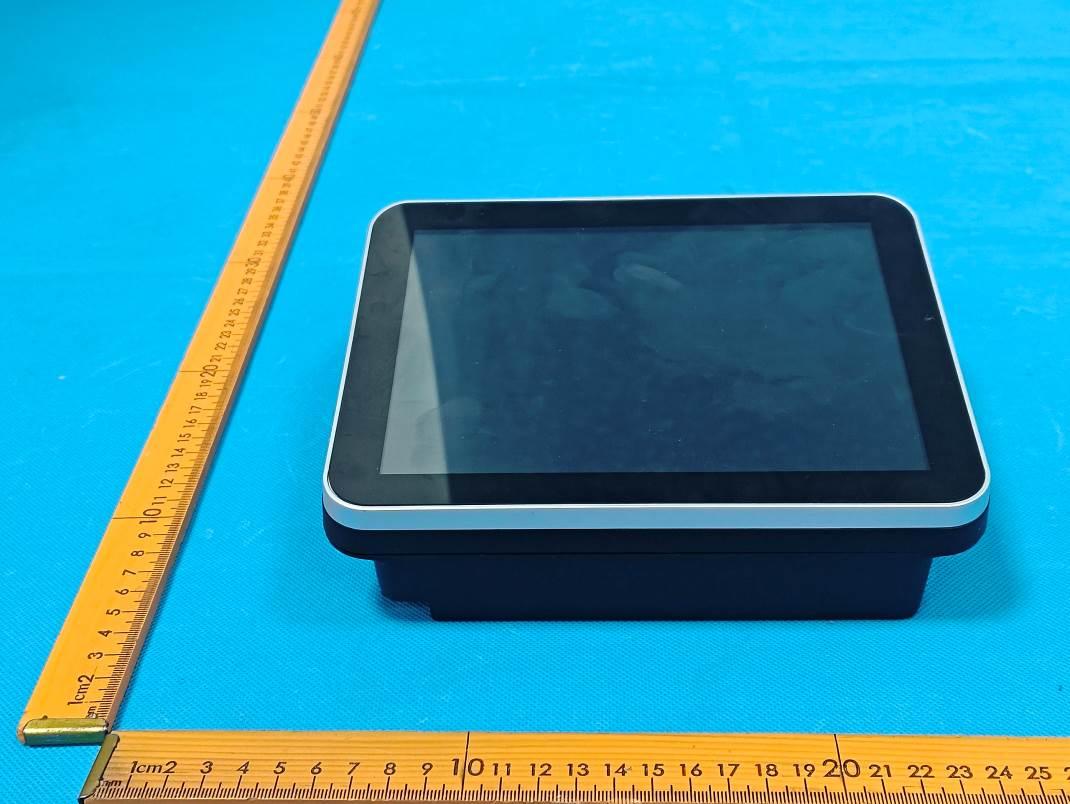

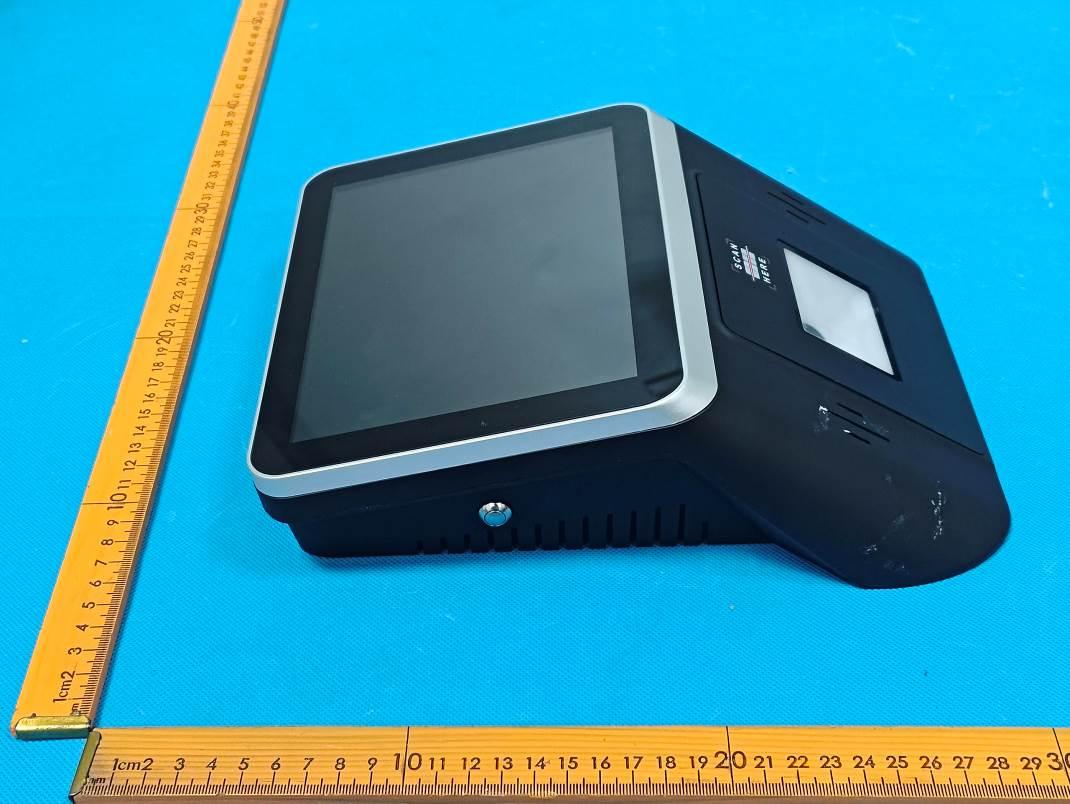

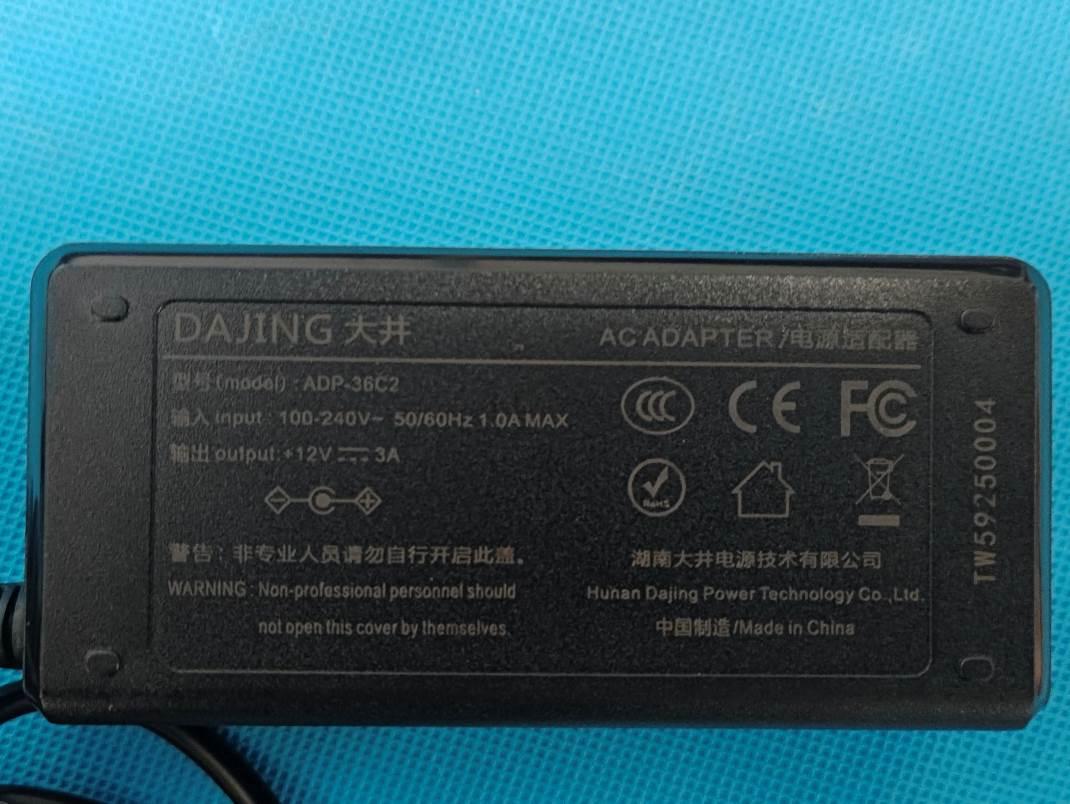

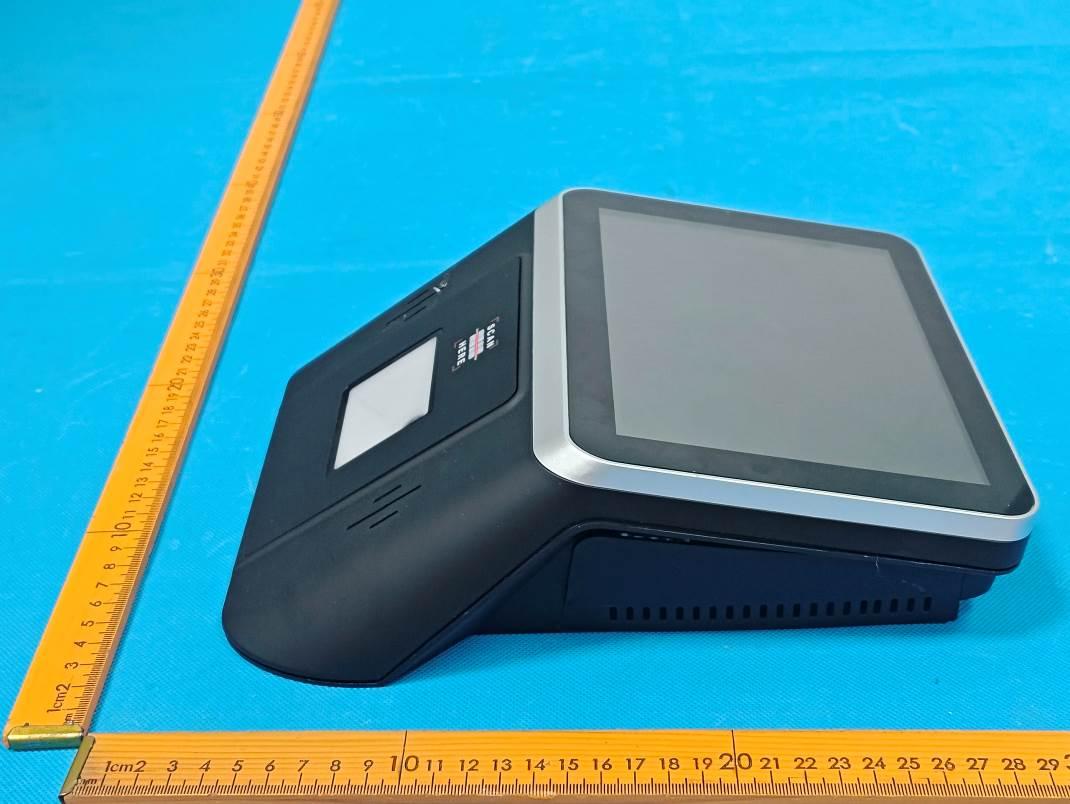

2BVFG-WLL-A100Cash register

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: This device has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the This device kept 0mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain an 0mm separation distance between the user's body and the back of This device. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. SAR Test Report Report No.: STS2603424H01 Issued for Guangzhou Licon Intelligent Technology Co., LTD 2nd Floor, No. 415, Xintang Avenue West, Xintang Town, Ze ngcheng District, Guangzhou Guangdong, China Product Name: Cash register Brand Name: N/A Model Name: WLL-A100 Series Model(s): N/A FCC ID: 2BVFG-WLL-A100 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 (2.1093) IEEE Std. 1528-2013 Max. Report SAR (1g) Body: 0.446 W/kg STLABS Page 2 of 47 Report No.: STS2603424H01 TEST REPORT CERTIFICATION Applicant’s name .................... : Guangzhou Licon Intelligent Technology Co., LTD Address......................................: 2nd Floor, No. 415, Xintang Avenue West, Xintang Town, Zengcheng District, Guangzhou Guangdong, China Manufacturer's Name.............: Guangzhou Licon Intelligent Technology Co., LTD Address ...................................... : 2nd Floor, No. 415, Xintang Avenue West, Xintang Town, Zengcheng District, Guangzhou Guangdong, China Product description Product name............................: Cash register Brand name.............................: N/A Model name ............................. : WLL-A100 Series Model(s) : ........................ N/A Standards..................................: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 (2.1093) IEEE Std. 1528-2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ............................................... : Date (s) of performance of tests ............... : 01 Apr. 2026 Date of Issue..............................................: 07 Apr. 2026 Test Result..................................................:Pass Testing Engineer: (Xin.Liu) Technical Manager: (Shifan. Long) Authorized Signatory: (Bovey Yang) Page 3 of 47 Report No.: STS2603424H01 Table of Contents 1. General Information5 1.1 EUT Description5 1.2 Test Environment6 1.3 Test Factory6 2. Test Standards and Limits7 3. SAR Measurement System8 3.1 Definition of Specific Absorption Rate (SAR)8 3.2 SAR System8 4. Tissue Simulating Liquids11 4.1 Simulating Liquids Parameter Check11 5. SAR System Validation14 5.1 Validation System14 5.2 Validation Result15 6. SAR Evaluation Procedures16 7. EUT Antenna Location Sketch17 7.1 SAR test exclusion consider table18 8. EUT Test Position21 8.1 Body-worn Position Conditions21 9. Uncertainty22 9.1 Measurement Uncertainty22 10. Conducted Power Measurement25 10.1 Test Result25 11. EUT and Test Setup Photo27 11.1 Setup Photo27 11.2 Setup Photo30 12. SAR Result Summary32 12.1 Body SAR32 12.2 Simultaneous Multi-band Transmission Evaluation33 13. Equipment List34 Appendix A. System Validation Plots35 Appendix B. SAR Test Plots41 Appendix C. Probe Calibration and Dipole Calibration Report47 Page 4 of 47 Report No.: STS2603424H01 Revision History Rev.Issue DateReport No.Effect PageContents 0007 Apr. 2026STS2603424H01ALLInitial Issue Page 5 of 47 Report No.: STS2603424H01 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product NameCash register Brand NameN/A Model NameWLL-A100 Series ModelN/A Model DifferenceN/A Sample number260333004-1 Device CategoryPortable Product stageProduction unit RF Exposure Environment General Population / Uncontrolled Hardware Version WLL-A100 Software VersionWLL-A100 Frequency Range 2.4G WIFI: 802.11b/g/n 20: 2412~2462 MHz 802.11n40:2422~2452MHz 5.2G WIFI: IEEE 802.11 a/n/ac (20MHz):5.180GHz-5.240GHz IEEE 802.11 n/ac (40MHz):5.190GHz-5.230GHz IEEE 802.11 ac (80MHz): 5.210GHz 5.8G WIFI: IEEE 802.11 a/n/ac (20MHz):5.745GHz-5.825GHz IEEE 802.11 n/ac (40MHz):5.755GHz-5.795GHz IEEE 802.11 ac (80MHz): 5.775GHz Page 6 of 47 Report No.: STS2603424H01 Max. Reported SAR(1g): (Limit:1.6W/kg) Test distance: Body:0mm BandModeBody (W/kg) DTS2.4G WLAN0.214 NII 5.2G WLAN0.446 NII5.8G WLAN0.395 Limit1.6W/kg FCC Equipment Class Digital Transmission System (DTS) Unlicensed National Information Infrastructure TX(NII) Operating Mode: 2.4G WLAN : 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 5G WLAN: 802.11a(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11ac(OFDM): BPSK,QPSK,16-QAM,64-QAM,256-QAM Antenna Specification: WLAN: FPC Antenna Hotspot ModeNot Support DTM ModeNot Support 1.2 Test Environment Ambient conditions in the SAR laboratory: ItemsRequired Temperature ( °C ) 18-25 Humidity (%RH)30-70 1.3 Test Factory ShenZhen STS Test Services Co.,Ltd. 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-Dis trict, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration No.: 625569 IC Registration No.: 12108A A2LA Certificate No.: 4338.01 Page 7 of 47 Report No.: STS2603424H01 2. Test Standards and Limits No.IdentityDocument Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 IEEE Std C95.1, 2019 IEEE Standard for Safety Levels with Respect to Human Exposure to Electric,Magnetic, and Electromagnetic Fields,0 Hz to 300 GHz. It specifies the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20 cm of the user in the uncontrolled environment. 3 IEEE Std. 1528-2013…

Text truncated - open the document above for the full version.

Page1of2FCCID:2BVFG-WLL-A100 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 Page2of2FCCID:2BVFG-WLL-A100 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3 TestSetupPhoto(s)ofRFConductedMeasurement Fig.4

SAR Setup photos for FCC ID: 2BVFG-WLL-A100 Body Front Side (separation distance is 0mm) Body Left Edge (separation distance is 0mm)

Page1of40FCCID:2BVFG-WLL-A100ReportNo.:LCSC02246001EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCCTESTREPORT For GuangzhouLiconIntelligentTechnologyCo.,LTD Cashregister TestModel:WLL-A100 Preparedfor:GuangzhouLiconIntelligentTechnologyCo.,LTD Address: 2ndFloor,No.415,XintangAvenueWest,XintangTown,Zengcheng District,GuangzhouGuangdong,China Preparedby:GuangzhouLCSComplianceTestingLaboratoryLtd. Address: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China Tel:(+86)020-39166689 Fax:(+86)020-39166619 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:February24,2026 Numberoftestedsamples:2 SampleNo.:C260209019-1,C260209019-2 Serialnumber:Prototype DateofTest:February24,2026~March24,2026 DateofReport:March25,2026 Page2of40FCCID:2BVFG-WLL-A100ReportNo.:LCSC02246001EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCCTESTREPORT FCCCFR47PART15E(15.407) ReportReferenceNo......................:LCSC02246001EC DateofIssue.......................................:March25,2026 TestingLaboratoryName..............:GuangzhouLCSComplianceTestingLaboratoryLtd. Address................................................: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:GuangzhouLiconIntelligentTechnologyCo.,LTD Address................................................: 2ndFloor,No.415,XintangAvenueWest,XintangTown, ZengchengDistrict,GuangzhouGuangdong,China TestSpecification Standard..............................................:FCCCFR47PART15E(15.407) TestReportFormNo......................:TRF-4-E-118A/0 TRFOriginator....................................:GuangzhouLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 GuangzhouLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe GuangzhouLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceof thematerial.GuangzhouLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................: Cashregister TradeMark..........................................: N/A TestModel...........................................: WLL-A100 Ratings.................................................:PleaseRefertoPage6 Result...................................................: Pass Compiledby:Supervisedby:Approvedby: AceYao/AdministratorJustinZhu/TechniqueDirectorGavinLiang/Manager Page3of40FCCID:2BVFG-WLL-A100ReportNo.:LCSC02246001EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCC--TESTREPORT TestResult:Pass Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSC02246001EC March25,2026 Dateofissue TestModel.............................. : WLL-A100 EUT......................................... : Cashregister Applicant...............................:GuangzhouLiconIntelligentTechnologyCo.,LTD Address...................................:2ndFloor,No.415,XintangAvenueWest,XintangTown, ZengchengDistrict,GuangzhouGuangdong,China Telephone...............................:/ Fax..........................................:/ Manufacturer.........................:GuangzhouLiconIntelligentTechnologyCo.,LTD Address...................................: 2ndFloor,No.415,XintangAvenueWest,XintangTown, ZengchengDistrict,GuangzhouGuangdong,China Telephone...............................:/ Fax..........................................:/ Factory...................................:GuangzhouLiconIntelligentTechnologyCo.,LTD Address...................................: 2ndFloor,No.415,XintangAvenueWest,XintangTown, ZengchengDistrict,GuangzhouGuangdong,China Telephone...............................:/ Fax..........................................:/ Page4of40FCCID:2BVFG-WLL-A100ReportNo.:LCSC02246001EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000March25,2026InitialIssue--- Page5of40FCCID:2BVFG-WLL-A100ReportNo.:LCSC02246001EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TABLEOFCONTENTS 1.GENERALINFORMATION......................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)........................................................................................................................6 1.2.SUPPORTEQUIPMENTLIST.................................................................................................................................7 1.3EXTERNALI/OCABLE...........................................................................................................................................7 1.4.DESCRIPTIONOFTESTFACILITY........................................................................................................................7 1.5.STATEMENTOFTHEMEASUREMENTUNCERTAIN…

Text truncated - open the document above for the full version.

Page1of41FCCID:2BVFG-WLL-A100ReportNo.:LCSC02246001EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCCTESTREPORT For GuangzhouLiconIntelligentTechnologyCo.,LTD Cashregister TestModel:WLL-A100 Preparedfor:GuangzhouLiconIntelligentTechnologyCo.,LTD Address: 2ndFloor,No.415,XintangAvenueWest,XintangTown,Zengcheng District,GuangzhouGuangdong,China Preparedby:GuangzhouLCSComplianceTestingLaboratoryLtd. Address: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China Tel:(+86)020-39166689 Fax:(+86)020-39166619 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:February24,2026 Numberoftestedsamples:2 SampleNo.:C260209019-1,C260209019-2 Serialnumber:Prototype DateofTest:February24,2026~March24,2026 DateofReport:March25,2026 Page2of41FCCID:2BVFG-WLL-A100ReportNo.:LCSC02246001EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCCTESTREPORT FCCCFR47PART15E(15.407) ReportReferenceNo......................:LCSC02246001EB DateofIssue.......................................:March25,2026 TestingLaboratoryName..............:GuangzhouLCSComplianceTestingLaboratoryLtd. Address................................................: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:GuangzhouLiconIntelligentTechnologyCo.,LTD Address................................................:2ndFloor,No.415,XintangAvenueWest,XintangTown,Zengcheng District,GuangzhouGuangdong,China TestSpecification Standard..............................................:FCCCFR47PART15E(15.407) TestReportFormNo......................:TRF-4-E-146A/0 TRFOriginator....................................:GuangzhouLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 GuangzhouLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe GuangzhouLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.GuangzhouLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................: Cashregister TradeMark..........................................: N/A TestModel...........................................: WLL-A100 Ratings.................................................:PleaseRefertoPage6 Result...................................................: Pass Compiledby:Supervisedby:Approvedby: AceYao/AdministratorJustinZhu/TechniqueDirectorGavinLiang/Manager Page3of41FCCID:2BVFG-WLL-A100ReportNo.:LCSC02246001EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCC--TESTREPORT TestResult:Pass Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSC02246001EB March25,2026 Dateofissue TestModel.............................. : WLL-A100 EUT......................................... : Cashregister Applicant...............................:GuangzhouLiconIntelligentTechnologyCo.,LTD Address...................................:2ndFloor,No.415,XintangAvenueWest,XintangTown, ZengchengDistrict,GuangzhouGuangdong,China Telephone...............................:/ Fax..........................................:/ Manufacturer.........................:GuangzhouLiconIntelligentTechnologyCo.,LTD Address...................................: 2ndFloor,No.415,XintangAvenueWest,XintangTown, ZengchengDistrict,GuangzhouGuangdong,China Telephone...............................:/ Fax..........................................:/ Factory...................................:GuangzhouLiconIntelligentTechnologyCo.,LTD Address...................................: 2ndFloor,No.415,XintangAvenueWest,XintangTown, ZengchengDistrict,GuangzhouGuangdong,China Telephone...............................:/ Fax..........................................:/ Page4of41FCCID:2BVFG-WLL-A100ReportNo.:LCSC02246001EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000March25,2026InitialIssue--- Page5of41FCCID:2BVFG-WLL-A100ReportNo.:LCSC02246001EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TABLEOFCONTENTS 1.GENERALINFORMATION................................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)...................................................................................................................................6 1.2.SUPPORTEQUIPMENTLIST............................................................................................................................................7 1.3EXTERNALI/OCABLE......................................................................................................................................................7 1.4.DESCRIPTIONOFTESTFACILITY....................................................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix E RF Test Data for 5.8GWIFI(Conducted Measurement) Product Name: Cash register Test Model: WLL-A100 Environmental Conditions Temperature: 24.6 C Relative Humidity: 53.5% ATM Pressure: 100.0 kPa Test Engineer: Zhang Hai Supervised by: Fengliu Tang Page 2 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com C.1 Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.320 5736.800 5753.120 0.5 PASS 5785 16.280 5776.800 5793.080 0.5 PASS 5825 16.480 5816.720 5833.200 0.5 PASS 11N20SISO Ant1 5745 17.640 5736.160 5753.800 0.5 PASS 5785 17.640 5776.120 5793.760 0.5 PASS 5825 17.640 5816.120 5833.760 0.5 PASS 11N40SISO Ant1 5755 36.400 5736.760 5773.160 0.5 PASS 5795 36.400 5776.760 5813.160 0.5 PASS 11AC20SISO Ant1 5745 17.680 5736.080 5753.760 0.5 PASS 5785 17.640 5776.120 5793.760 0.5 PASS 5825 17.680 5816.120 5833.800 0.5 PASS 11AC40SISO Ant1 5755 36.400 5736.760 5773.160 0.5 PASS 5795 36.400 5776.760 5813.160 0.5 PASS 11AC80SISO Ant1 5775 76.160 5736.760 5812.920 0.5 PASS Note: offset=System attenuation +cabal loss Page 3 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 Page 4 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 Page 5 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 Page 6 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 Page 7 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 Page 8 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC80SISO_Ant1_5775 Page 9 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com C.2 Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq(MHz) TPC Mode Measured Power [dBm] DC Factor [dB] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 NA 17.32 0.00 17.32 ≤30.00 PASS 5785 NA 16.00 0.00 16.00 ≤30.00 PASS 5825 NA 16.22 0.00 16.22 ≤30.00 PASS 11N20SISO Ant1 5745 NA 17.46 0.00 17.46 ≤30.00 PASS 5785 NA 16.71 0.00 16.71 ≤30.00 PASS 5825 NA 16.06 0.00 16.06 ≤30.00 PASS 11N40SISO Ant1 5755 NA 17.21 0.00 17.21 ≤30.00 PASS 5795 NA 16.50 0.00 16.50 ≤30.00 PASS 11AC20SISO Ant1 5745 NA 17.46 0.00 17.46 ≤30.00 PASS 5785 NA 16.66 0.00 16.66 ≤30.00 PASS 5825 NA 15.98 0.00 15.98 ≤30.00 PASS 11AC40SISO Ant1 5755 NA 17.26 0.00 17.26 ≤30.00 PASS 5795 NA 16.53 0.00 16.53 ≤30.00 PASS 11AC80SISO Ant1 5775 NA 16.75 0.00 16.75 ≤30.00 PASS Note: offset=System attenuation +cabal loss Page 10 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com C.3 Maximum power spectral density Test Result TestMode Antenna Freq (MHz) Raw Data [dBm/300kHz] DC Factor RBW Factor Result [dBm/500kHz] Limit [dBm/500kHz] Verdict 11A Ant1 5745 -1.86 0.00 2.22 0.36 ≤30.00 PASS 5785 -3.14 0.00 2.22 -0.92 ≤30.00 PASS 5825 -3.5 0.00 2.22 -1.28 ≤30.00 PASS 11N20SISO Ant1 5745 -0.53 0.00 2.22 1.69 ≤30.00 PASS 5785 -1.58 0.00 2.22 0.64 ≤30.00 PASS 5825 -1.91 0.00 2.22 0.31 ≤30.00 PASS 11N40SISO Ant1 5755 -3.71 0.00 2.22 -1.49 ≤30.00 PASS 5795 -4.72 0.00 2.22 -2.50 ≤30.00 PASS 11AC20SISO Ant1 5745 -0.55 0.00 2.22 1.67 ≤30.00 PASS 5785 -1.36 0.00 2.22 0.86 ≤30.00 PASS 5825 -1.94 0.00 2.22 0.28 ≤30.00 PASS 11AC40SISO Ant1 5755 -3.42 0.00 2.22 -1.20 ≤30.00 PASS 5795 -4.66 0.00 2.22 -2.44 ≤30.00 PASS 11AC80SISO Ant1 5775 -6.22 0.00 2.22 -4.00 ≤30.00 PASS Note: offset=System attenuation +cabal loss Page 11 of 35 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 |…

Text truncated - open the document above for the full version.

Page 1 of 40 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix B RF Test Data for 5.2GWIFI(Conducted Measurement) Product Name: Cash register Test Model: WLL-A100 Environmental Conditions Temperature: 24.6 C Relative Humidity: 53.5% ATM Pressure: 100.0 kPa Test Engineer: Zhang Hai Supervised by: Fengliu Tang Page 2 of 40 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com B.1 Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 22.000 5169.120 5191.120 --- --- 5200 21.360 5189.080 5210.440 --- --- 5240 22.040 5229.040 5251.080 --- --- 11N20SISO Ant1 5180 21.680 5169.080 5190.760 --- --- 5200 21.080 5189.440 5210.520 --- --- 5240 21.880 5228.800 5250.680 --- --- 11N40SISO Ant1 5190 41.360 5169.360 5210.720 --- --- 5230 42.080 5208.720 5250.800 --- --- 11AC20SISO Ant1 5180 21.800 5168.880 5190.680 --- --- 5200 21.360 5188.960 5210.320 --- --- 5240 21.240 5229.240 5250.480 --- --- 11AC40SISO Ant1 5190 44.960 5165.600 5210.560 --- --- 5230 41.840 5208.720 5250.560 --- --- 11AC80SISO Ant1 5210 83.040 5169.040 5252.080 --- --- Note: offset=System attenuation +cabal loss Page 3 of 40 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 Page 4 of 40 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 Page 5 of 40 FCC ID: 2BVFG-WLL-A100 Report No.: LCSC02246001EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 Page 6 of 40 FCC ID: 2BVFG-WLL-A10…

Text truncated - open the document above for the full version.
