2BVQG-BE-252QGNSS module

BE-252Q Shenzhen Beitian Communication Co., Ltd. www.beitian.com 1 / 17 BE-252Q GNSS Module User Manual Shenzhen Beitian Communication Co., Ltd. Whole Floor 9, Building 1, Phase 5, Fucheng Digital Innovation Park, Shijing Road,Fucheng Street, Longhua District, Shenzhen Tel: 0755-22225474 Fax: 0755-22225474 www.beitian.com BE-252Q Shenzhen Beitian Communication Co., Ltd. www.beitian.com 2 / 17 Revision History Revisions Revision History Date P1.0 Updated version 2025-04-25 P2.0 Updated Baud rate 2025-07-08 Declaration Beitian owns the copyright of this non-publicly published instruction manual and has the right to treat it as confidential information. This instruction manual is only used as a reference for operating, maintaining and repairing the product, and no one else has the right to disclose this instruction manual to others. This instruction manual contains proprietary information protected by copyright law. All rights reserved. No part of this instruction manual may be photographed, copied or translated into other languages without Beitian's written consent. The contents of this instruction manual may be changed without notice. Manufacturer's Responsibilities Beitian is responsible for the safety, reliability and performance of the module only in the following cases: Assembly, expansion, readjustment, improvement or repair are performed by personnel approved by the company; the equipment is used in accordance with the operating requirements. BE-252Q Shenzhen Beitian Communication Co., Ltd. www.beitian.com 3 / 17 Catalog GNSS Module User Manual ..................................................................................................................... 1 Declaration ............................................................................................................................................... 2 Manufacturer's Responsibilities ................................................................................................................ 2 1. FUNCTIONAL DESCRIPTION ....................................................................................................... 4 1.1. OVERVIEW ...................................................................................................................................... 4 1.3. PERFORMANCE .............................................................................................................................. 5 .................................................................................................................................................................... Figure 1-3 Module size diagram ............................................................................................................... 9 2. Module interface description ................................................................................................................ 9 2.2.0 MODULE INTERFACE DESCRIPTION .................................................................................. 10 3. Mechanical properties ...................................................................................................................... 16 4. Precautions ....................................................................................................................................... 16 4.1. Other ................................................................................................................................................ 16 BE-252Q Shenzhen Beitian Communication Co., Ltd. www.beitian.com 4 / 17 1. FUNCTIONAL DESCRIPTION 1.1. OVERVIEW The BE-252Q GNSS module is a high-performance satellite positioning module that provides superior sensitivity and acquisition time for all L1 GNSS systems. The extremely low power consumption of < 15 milliwatts in continuous tracking mode enables all battery-powered devices such as asset trackers to have strong endurance without sacrificing GNSS performance. The BE-252Q supports simultaneous reception of four GNSS (GPS, GLONASS, Galileo and BeiDou). The high number of visible satellites allows the receiver to select the best signal to maximize position availability, especially in challenging conditions such as deep canyons in cities. BE-252Q (Super Signal) technology provides excellent RF sensitivity and can improve dynamic position accuracy by up to 25% with small antennas or non-line-of-sight scenarios. BE-252Q detects jamming and spoofing events and reports them to the host so that the system can react to such events. Advanced filtering algorithms mitigate the effects of RF interference and interference, allowing the product to operate as intended. 1.2. PRODUCT FEATURES  sumption is less than 15 mW without compromising GNSS performance  availability   jamming detection   4mm.   the serial port.   QMC5883L BE-252Q Shenzhen Beitian Communication Co., Ltd. www.beitian.com 5 / 17 1.3. PERFORMANCE Table 1-1 BE-252Q module main performance indicators Item Description Electrical Characteristic Chip M10050 Receiver type GPS L1 C/A, QZSS L1 C/A/S,BDS B1I/B1C, Galileo E1B/C,SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN Default position system GPS, BDS, GALILEO Augmentation system SBAS, QZSS Channel N/A Sensitivity Tracking & Navigation -166dBm Reacquisition -160dBm Cold start -148dBm Hot Start -160dBm Accuracy Horizontal position 2.0m CEP Velocity 0.05m/s Dynamic heading 0.3 deg Time pulse RMS 30ns 99% 60ns Acquisition Cold start 27s Hot start 1s Aided start 1s Data Output Baud rate 4800bps - 921600bps,default 115200bps Level TTL level UBX messages PVT Protocol NMEA,UBX NMEA messages RMC,VTG,GGA,GSA,GSV,GLL Update rate 0.25Hz-18Hz,default 10Hz FLASH With FLASH, the configuration can be changed, and the power will not be lost Frequency of time pulse signal Configurable from 0.25 Hz to 10 MHz, the default period is 1s, and the high level lasts for 100ms Operational Limits Altitude 80,000m Velocity 500m/s Dynamics <4g Power Consumption Voltage DC 3.6V-5.5V, typical: 5.0V Current 30mA/5…

Text truncated - open the document above for the full version.

Shenzhen Beitian Communication Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Beitian Communication Co., Ltd Address: Floor 9, Unit 1, Fucheng Digital Innovation Park, No. 15, Shijing Road, Fumin Community, Fucheng Street, Longhua District, Shenzhen, China Product Name: GNSS module FCC ID: 2BVQG-BE-252Q Model(s): BE-252Q, BE-222P, BE-220P, BE-252P, BE-881, BE-881P, BE-250P, BK-250P, BK-220P, BK-280U, BK-252P, BK-881, BK-881P, BE-190, BE-126, BE-450, BK-450, BT-980M2, BT-980G2, BT-980M3, BT-980M4, BT-F9PM4, BT-F9PG3, BT-F9PM2, BT-F9PG1, BT-980G4, BT-980M1, BT-980G1, BT-F9PM3, BT-F9PG4, BT-F9PG2, BT-980G3, BT-922M4, BT-922G3, BT-922G4, BT-922G2, BT-922M3, BT-922M1, BT-922M2, BT-922G1, BT-982G1, BT-982G1, BT-982G2, BT-982G3, BT-982G4, BT-982M1, BT-982M2, BT-982M3, BT-982M4, BH-252, BH-250, BH-220, BH-222, BF-220, BF-222, BT-F9PK4, BT-F9PK3, BT-F9PK2, BT-F9PK8, BT-F9PK7, BT-F9PK1, BF-880, BH-880, BF-280B, BE-289, BE-289B, BE-359X, BE-359, BE-359B, BE-359U, BK-289X, BK-289, BK-289B, BK-359X, BK-359, BK-359B, BK-359U 2.911(d)(5)(i) Equipment Type We, [Shenzhen Beitian Communication Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Sally Zhong Date: Apr. 25, 2026 Signature: Title and Company name: Manager; Shenzhen Beitian Communication Co., Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 Shenzhen Beitian Communication Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Beitian Communication Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Beitian Communication Co., Ltd Address: Floor 9, Unit 1, Fucheng Digital Innovation Park, No. 15, Shijing Road, Fumin Community, Fucheng Street, Longhua District, Shenzhen, China Product Name: GNSS module FCC ID: 2BVQG-BE-252Q Model(s): BE-252Q, BE-222P, BE-220P, BE-252P, BE-881, BE-881P, BE-250P, BK-250P, BK-220P, BK-280U, BK-252P, BK-881, BK-881P, BE-190, BE-126, BE-450, BK-450, BT-980M2, BT-980G2, BT-980M3, BT-980M4, BT-F9PM4, BT-F9PG3, BT-F9PM2, BT-F9PG1, BT-980G4, BT-980M1, BT-980G1, BT-F9PM3, BT-F9PG4, BT-F9PG2, BT-980G3, BT-922M4, BT-922G3, BT-922G4, BT-922G2, BT-922M3, BT-922M1, BT-922M2, BT-922G1, BT-982G1, BT-982G1, BT-982G2, BT-982G3, BT-982G4, BT-982M1, BT-982M2, BT-982M3, BT-982M4, BH-252, BH-250, BH-220, BH-222, BF-220, BF-222, BT-F9PK4, BT-F9PK3, BT-F9PK2, BT-F9PK8, BT-F9PK7, BT-F9PK1, BF-880, BH-880, BF-280B, BE-289, BE-289B, BE-359X, BE-359, BE-359B, BE-359U, BK-289X, BK-289, BK-289B, BK-359X, BK-359, BK-359B, BK-359U 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Beitian Communication Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Sally Zhong Date: Apr. 25, 2026 Signature: Title and Company name: Manager; Shenzhen Beitian Communication Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 Shenzhen Beitian Communication Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Beitian Communication Co., Ltd Agent Authorization Company: Shenzhen Beitian Communication Co., Ltd Address: Floor 9, Unit 1, Fucheng Digital Innovation Park, No. 15, Shijing Road, Fumin Community, Fucheng Street, Longhua District, Shenzhen, China Product Name: GNSS module Model Number(s): BE-252Q, BE-222P, BE-220P, BE-252P, BE-881, BE-881P, BE-250P, BK-250P, BK-220P, BK-280U, BK-252P, BK-881, BK-881P, BE-190, BE-126, BE-450, BK-450, BT-980M2, BT-980G2, BT-980M3, BT-980M4, BT-F9PM4, BT-F9PG3, BT-F9PM2, BT-F9PG1, BT-980G4, BT-980M1, BT-980G1, BT-F9PM3, BT-F9PG4, BT-F9PG2, BT-980G3, BT-922M4, BT-922G3, BT-922G4, BT-922G2, BT-922M3, BT-922M1, BT-922M2, BT-922G1, BT-982G1, BT-982G1, BT-982G2, BT-982G3, BT-982G4, BT-982M1, BT-982M2, BT-982M3, BT-982M4, BH-252, BH-250, BH-220, BH-222, BF-220, BF-222, BT-F9PK4, BT-F9PK3, BT-F9PK2, BT-F9PK8, BT-F9PK7, BT-F9PK1, BF-880, BH-880, BF-280B, BE-289, BE-289B, BE-359X, BE-359, BE-359B, BE-359U, BK-289X, BK-289, BK-289B, BK-359X, BK-359, BK-359B, BK-359U Product Description: GNSS module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 25, 2026 Name: Sally Zhong Title: Manager Company: Shenzhen Beitian Communication Co., Ltd

< Shenzhen Beitian Communication Co., Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Apr. 25, 2026 Subject; Request for Long Term Confidentiality FCC ID: 2BVQG-BE-252Q To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sally Zhong Title: Manager

Model Difference Declaration To Whom It May Concern, We, Shenzhen Beitian Communication Co., Ltd Product name: GNSS module Trade name: Model name: BE-252Q, BE-222P, BE-220P, BE-252P, BE-881, BE-881P, BE-250P, BK-250P, BK-220P, BK-280U, BK-252P, BK-881, BK-881P, BE-190, BE-126, BE-450, BK-450, BT-980M2, BT-980G2, BT-980M3, BT-980M4, BT-F9PM4, BT-F9PG3, BT-F9PM2, BT-F9PG1, BT-980G4, BT-980M1, BT-980G1, BT-F9PM3, BT-F9PG4, BT-F9PG2, BT-980G3, BT-922M4, BT-922G3, BT-922G4, BT-922G2, BT-922M3, BT-922M1, BT-922M2, BT-922G1, BT-982G1, BT-982G1, BT-982G2, BT-982G3, BT-982G4, BT-982M1, BT-982M2, BT-982M3, BT-982M4, BH-252, BH-250, BH-220, BH-222, BF-220, BF-222, BT-F9PK4, BT-F9PK3, BT-F9PK2, BT-F9PK8, BT-F9PK7, BT-F9PK1, BF-880, BH-880, BF-280B, BE-289, BE-289B, BE-359X, BE-359, BE-359B, BE-359U, BK-289X, BK-289, BK-289B, BK-359X, BK-359, BK-359B, BK-359U All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: BE-252Q. Please contact me if you have any question. Name: Sally Zhong Date: Apr. 25, 2026 Title: Manager Signature of applicant:

Model: BE-252Q Model: BE-252Q Model: BE-252Q Model: BE-252Q

FCC ID LABEL: Label Location: FCC ID: 2BVQG-BE-252Q 0.8cm 2.4cm

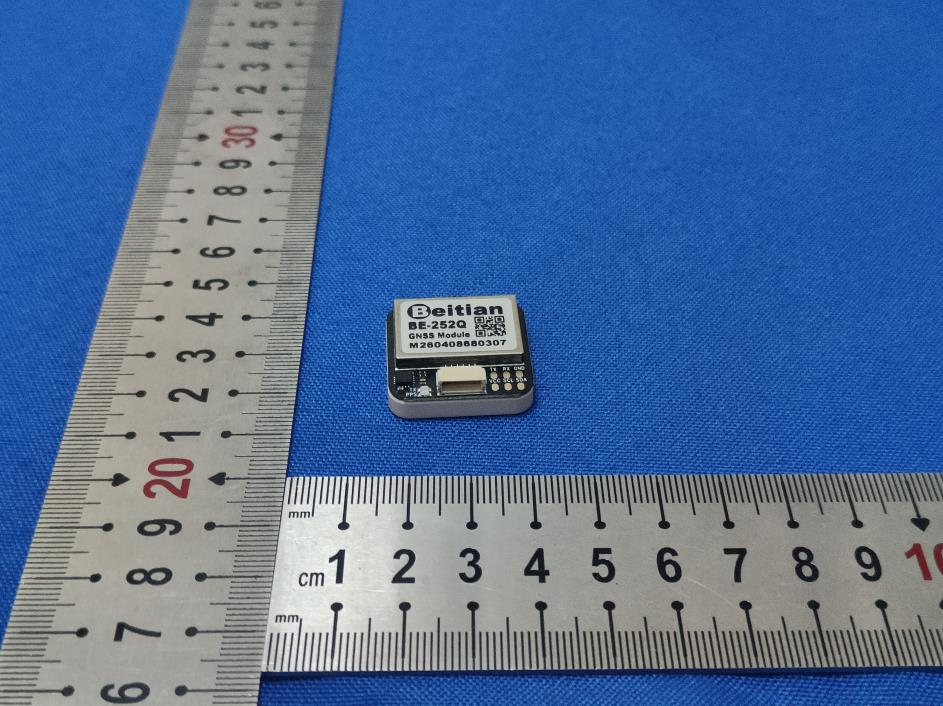

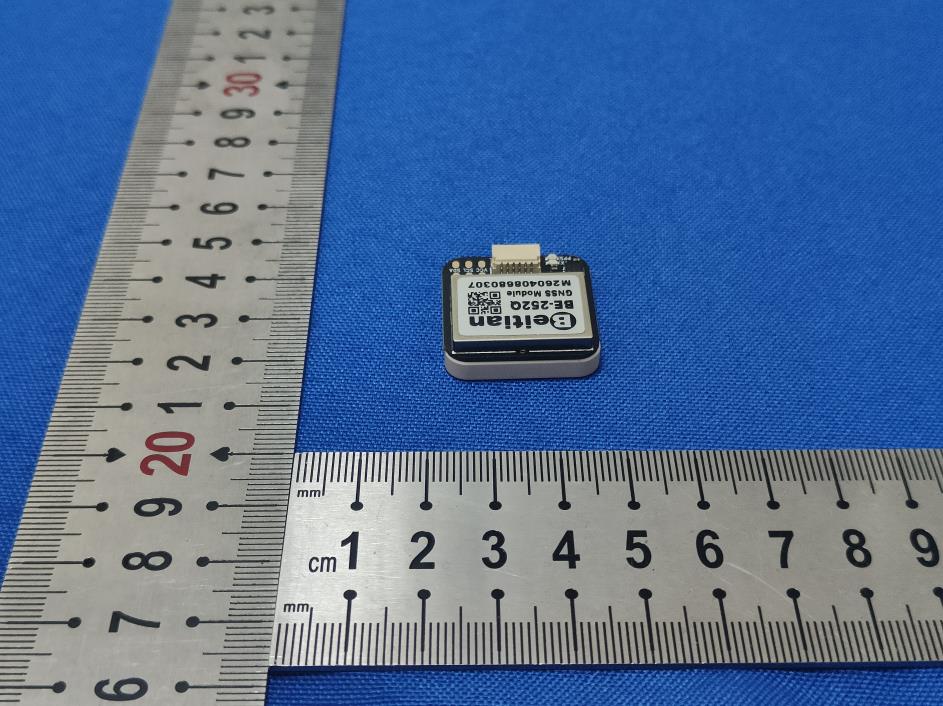

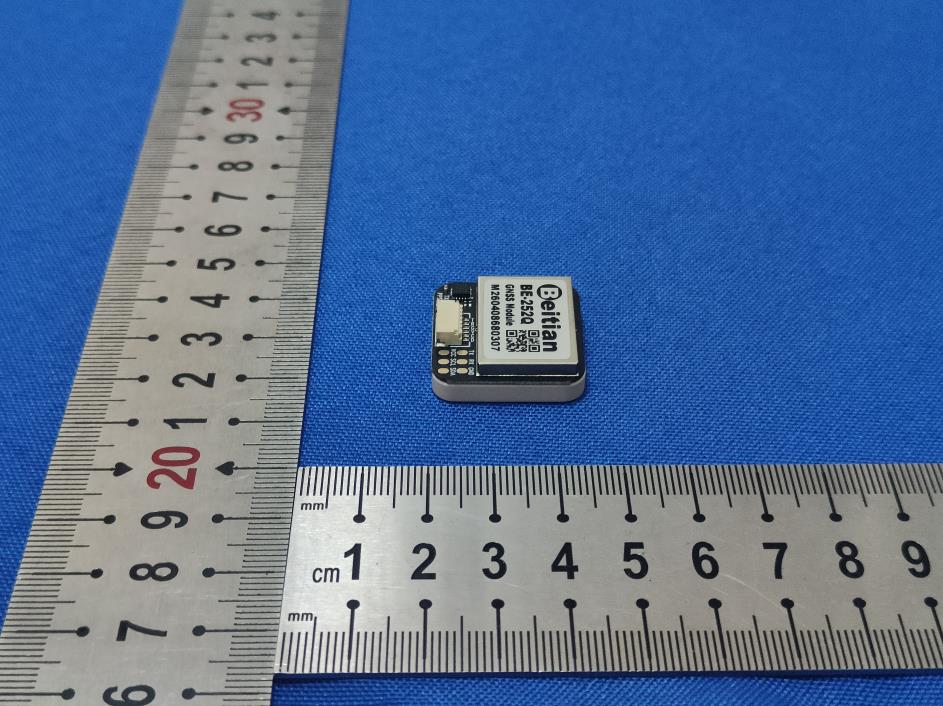

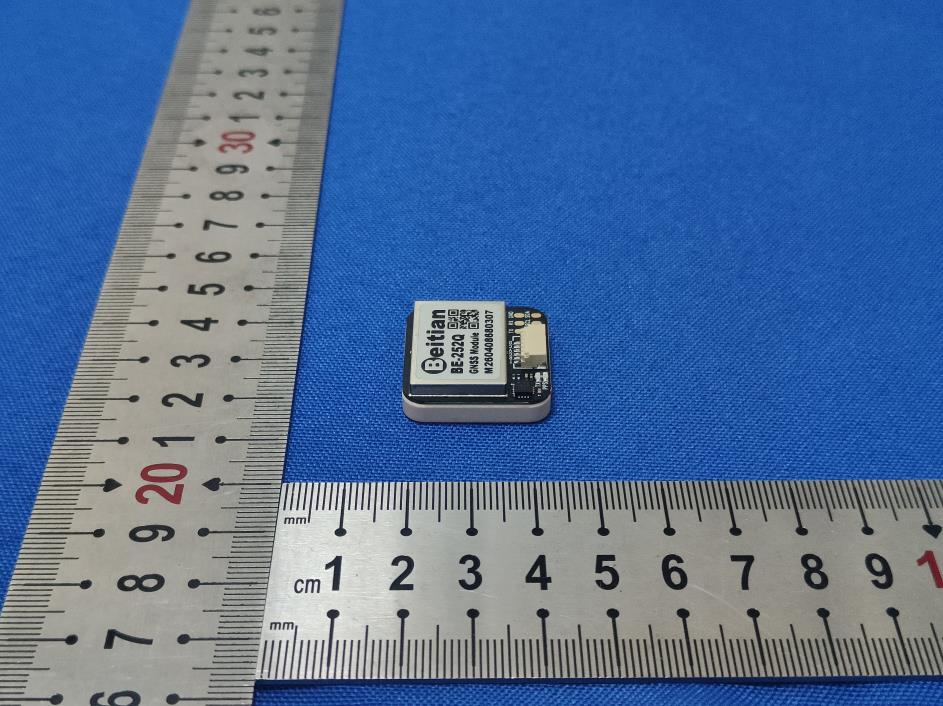

Model: BE-252Q Ceramic Antenna Model: BE-252Q Model: BE-252Q

Page 1 of 27 Report No.: UNIA26041503ER-61 FCC TEST REPORT FCC ID: 2BVQG-BE-252Q Sample : GNSS module Trade Mark : Main Model : BE-252Q Additional Model : Please see the table in page 5. Report No. : UNIA26041503ER-61 Prepared for Shenzhen Beitian Communication Co., Ltd Floor 9, Unit 1, Fucheng Digital Innovation Park, No. 15, Shijing Road, Fumin Community, Fucheng Street, Longhua District, Shenzhen, China Prepared by Shenzhen United Testing Technology Co., Ltd. D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China Page 2 of 27 Report No.: UNIA26041503ER-61 TEST RESULTCERTIFICATION Applicant ................................... : Shenzhen Beitian Communication Co., Ltd Address ....................................... : Floor 9, Unit 1, Fucheng Digital Innovation Park, No. 15, Shijing Road, Fumin Community, Fucheng Street, Longhua District, Shenzhen, China Manufacturer ............................. : Shenzhen Beitian Communication Co., Ltd Address ....................................... : Floor 9, Unit 1, Fucheng Digital Innovation Park, No. 15, Shijing Road, Fumin Community, Fucheng Street, Longhua District, Shenzhen, China Product description Product ....................................... : GNSS module Trade Mark.................................. : Model Name ............................... : BE-252Q, Additional model see the table in page 5. Standards .................................. : FCC CFR Title 47 Part 15 Subpart B ANSI C63.4:2014 Date of Test Date (s) of performance of tests .................... : Apr. 17, 2026 ~ Apr. 22, 2026 Date of Issue ................................................. : Apr. 23, 2026 Test Result ..................................................... : Pass Edited by: Jason Ye Reviewed by: Kelly Cheng Approved by: Liuze Page 3 of 27 Report No.: UNIA26041503ER-61 Table of Contents Page 1 TEST SUMMARY ................................................................................................................... 4 1.1 TEST PROCEDURES AND RESULTS ............................................................................ 4 1.2 TEST LOCATION ............................................................................................................. 4 1.3 MEASUREMENT UNCERTAINTY ................................................................................... 4 1.4 ENVIRONMENTAL CONDITIONS ................................................................................... 4 2 GENERAL INFORMATION .................................................................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................................. 5 2.2 DESCRIPTION OF THE TEST MODES ........................................................................... 6 2.3 DESCRIPTION OF TEST SETUP .................................................................................... 6 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL ....................................... 6 2.5 MEASUREMENT INSTRUMENTS LIST .......................................................................... 7 3 CONDUCTED EMISSIONS MEASUREMENT ...................................................................... 8 3.1 TEST LIMIT ...................................................................................................................... 8 3.2 TEST SETUP .................................................................................................................... 8 3.3 TEST PROCEDURE ........................................................................................................ 9 3.4 TEST RESULT ................................................................................................................. 9 4 RADIATED EMISSION MEASUREMENT ........................................................................... 12 4.1 TEST LIMIT .................................................................................................................... 12 4.2 TEST SETUP .................................................................................................................. 12 4.3 TEST PROCEDURE ...................................................................................................... 13 4.4 TEST RESULT ............................................................................................................... 13 5 PHOTO OF EUT ................................................................................................................... 18 6 PHOTO OF TEST ................................................................................................................. 25 Page 4 of 27 Report No.: UNIA26041503ER-61 1 TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS Standard Test Item Class Result FCC Part 15 Subpart B ANSI C63.4:2014 Conducted Emission Class B PASS Radiated Emission Class B PASS Note: (1) “N/A” denotes test is not applicable in this test report. (2) For client’s request and manual description, the test will not be executed. (3) “--” means “no” in this test report. 1.2 TEST LOCATION Test Laboratory : Shenzhen United Testing Technology Co., Ltd. Address : D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China 1.3 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95%. A. Conducted Measurement: Test Site Measurement Frequency Range U, (dB) NOTE UNI 9kHz ~ 150kHz 2.96 -- 150kHz ~ 30MHz 2.44 -- B. Radiated Measurement: Test Site Measurement Frequency Range U, (dB) NOTE UNI 9kHz ~ 30MHz 2.50 -- 30MHz ~ 1000MHz 4.80 -- 1000MHz ~ 6000MHz 4.13 -- 1.4 ENVIRONMENTAL CONDITIONS During the measurement the environmental conditions were within the listed ranges: Temperature:…

Text truncated - open the document above for the full version.

Model: BE-252Q Radiated Emission test Model: BE-252Q Conducted Emission test
