2BVWM-S30SEReal-Scene 3D LiDAR Scanner

SHARE3DCAM S30 SE User Manual V1.0 2026.04 SHARE3DCAM LIMITED Disclaimer and Warning The copyright of this document and all other collateral documents belong to SHARE3DCAM LIMITED (abbreviated as “SHARE3DCAM ”). SHARE3DCAM has the final interpretation right of this document and all other collateral documents. By using SHARE3DCAM products, user agree to SHARE3DCAM 's relevant disclaimer terms SHARE3DCAM has right to update, modify or terminate the content of this document without prior notice. For update information, visit website “www.SHARE3DCAM.com” and click on the product page for this product. This product is not a toy. Do not allow people under the age of 18 to touch or use the SHARE3DCAM S30 PRO handheld LiDAR device . Do not modify or disassemble the SHARE3DCAM S30 PRO handheld LiDAR device. The user shall bear full responsibility for any product malfunctions, safety incidents, or economic losses resulting from self-disassembly, modification, or alteration of the product. Please read and understand the operating documents and precautions carefully before installing, setting up and using this product, and understand user's legal rights, responsibilities and safety instructions; otherwise, SHARE3DCAM has the right to exempt itself from any responsibility and incidental liability for safety issues and property losses caused by failure to accurately understand the product safety use rules. Before using the product, users have promised to be responsible for their own actions and all consequences arising therefrom. The user agrees to use this product for legitimate purposes and accepts these terms and all applicable laws and regulations established by national authorities pertaining to this product. To the maximum extent permitted by law, in no case shall SHARE3DCAM be liable for any indirect, consequential, punitive, incidental, special or punitive damages, including liability for losses suffered due to user's purchase, use or inability to use this product (even if SHARE3DCAM has been informed of the possibility of such loss). Please use this product in compliance with the relevant national laws and regulations on drones and related products. SHARE3DCAM does not assume any responsibility for any consequences of using this product in violation of relevant national laws and regulations, including but not limited to legal disputes, civil liability, criminal liability, economic losses, etc. Catalog 1 Product Overview .................................................................... 1 1.1 Product Introduction .......................................................... 1 1.2 Features ............................................................................. 1 1.3 In the Box ........................................................................... 2 1.4 Product Parameter ............................................................. 3 2 Installation ............................................................................... 6 2.1 Device Components ........................................................... 6 2.2 Installation ......................................................................... 6 2.3 Disassembly ........................................................................ 8 2.4 Charge ................................................................................ 9 3 Scanning Operation ............................................................... 10 3.1 Power On ......................................................................... 12 3.2 Device Starting Up ............................................................ 13 3.3 Device Connect Mobile APP ............................................. 13 3.4 Start Scanning .................................................................. 16 3.5 Parameter Setting ............................................................ 16 3.6 New Project ...................................................................... 17 3.7 Control Point Collection ................................................... 20 3.8 Data Collection ................................................................. 22 3.9 Data Saving ....................................................................... 24 3.10 Power Off ....................................................................... 25 4 SHARE Capture Data Manager ............................................... 26 4.1 Data Storage ..................................................................... 26 4.2 Local ................................................................................. 28 4.3 Review Data ..................................................................... 29 5 SHARE PointClouds Studio ..................................................... 30 5.1 Software Configuration Requirements ............................ 30 5.2 Data Processing ................................................................ 31 6 Device Maintenance .............................................................. 34 6.1 Precaution ........................................................................ 34 7 After Sales .............................................................................. 36 7.1 Shipment .......................................................................... 36 7.2 After-sales Service ............................................................ 37 1 1 Product Overview 1.1 Product Introduction SHARE3DCAM S30 SE is a handheld 3D LiDAR scanner designed and developed by SHARE3DCAM. It integrates high-precision LiDAR, surveying and mapping wide-angle camera. It deeply integrates LiDAR and image, and cooperates with self- developed point cloud algorithm. Single person operation can obtain accurate color point cloud data by scanning with a SHARE3DCAM S30 SE, which complete spatial mapping in a short time. Whether they are architectural designers, construction workers or surveying professionals, they can quickly obtain real-scene 3D information by using SHARE3DCAM S30 SE. 1.2 Featur…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWiFi FCC ID : 2BVWM-S30SE Company : SHARE3DCAM LIMITED EUT : Real-Scene 3D LiDAR Scanner Model Number : SHARE3DCAM S30 SE Report No. : CTA26040801102 Reviewed By : Eric Wang 2 FCC Appendix RF Test Data for Antenna 1 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.160 2431.960 2442.120 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.840 2404.120 2419.960 0.5 PASS 2437 15.400 2429.440 2444.840 0.5 PASS 2462 15.720 2454.080 2469.800 0.5 PASS 11N20SISO Ant1 2412 16.840 2403.760 2420.600 0.5 PASS 2437 16.640 2428.720 2445.360 0.5 PASS 2462 16.560 2454.000 2470.560 0.5 PASS 11N40SISO Ant1 2422 35.280 2404.400 2439.680 0.5 PASS 2437 34.880 2419.960 2454.840 0.5 PASS 2452 36.000 2434.080 2470.080 0.5 PASS 11AX20SISO Ant1 2412 17.680 2403.200 2420.880 0.5 PASS 2437 18.560 2427.920 2446.480 0.5 PASS 2462 18.440 2452.840 2471.280 0.5 PASS 11AX40SISO Ant1 2422 34.480 2406.160 2440.640 0.5 PASS 2437 34.720 2419.000 2453.720 0.5 PASS 2452 33.440 2437.120 2470.560 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 8 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 9 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 10 11 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.423 2405.3088 2418.7318 --- --- 2437 13.410 2430.3098 2443.7198 --- --- 2462 13.434 2455.2913 2468.7253 --- --- 11G Ant1 2412 16.839 2403.6323 2420.4713 --- --- 2437 16.857 2428.5843 2445.4413 --- --- 2462 16.881 2453.6089 2470.4899 --- --- 11N20SISO Ant1 2412 17.909 2403.0761 2420.9851 --- --- 2437 17.840 2428.1001 2445.9401 --- --- 2462 17.882 2453.0635 2470.9455 --- --- 11N40SISO Ant1 2422 36.027 2404.1221 2440.1491 --- --- 2437 36.000 2419.1104 2455.1104 --- --- 2452 36.031 2434.0923 2470.1233 --- --- 11AX20SISO Ant1 2412 18.902 2402.5952 2421.4972 --- --- 2437 18.951 2427.5302 2446.4812 --- --- 2462 18.908 2452.5430 2471.4510 --- --- 11AX40SISO Ant1 2422 37.629 2403.2872 2440.9162 --- --- 2437 37.577 2418.3127 2455.8897 --- --- 2452 37.506 2433.4206 2470.9266 --- --- 12 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 13 11G_Ant1_2412 11G_Ant1_2437 14 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 15 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 16 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 17 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 18 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 19 20 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.38 ≤30.00 PASS 2437 14.54 ≤30.00 PASS 2462 14.64 ≤30.00 PASS 11G Ant1 2412 13.56 ≤30.00 PASS 2437 13.59 ≤30.00 PASS 2462 13.75 ≤30.00 PASS 11N20SISO Ant1 2412 13.39 ≤30.00 PASS 2437 13.49 ≤30.00 PASS 2462 13.53 ≤30.00 PASS 11N40SISO Ant1 2422 13.72 ≤30.00 PASS 2437 14.00 ≤30.00 PASS 2452 14.00 ≤30.00 PASS 11AX20SISO Ant1 2412 13.75 ≤30.00 PASS 2437 13.88 ≤30.00 PASS 2462 14.16 ≤30.00 PASS 11AX40SISO Ant1 2422 13.67 ≤30.00 PASS 2437 13.94 ≤30.00 PASS 2452 13.82 ≤30.00 PASS 21 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.92 ≤8.00 PASS 2437 -11.52 ≤8.00 PASS 2462 -11.52 ≤8.00 PASS 11G Ant1 2412 -17.16 ≤8.00 PASS 2437 -18.47 ≤8.00 PASS 2462 -17.30 ≤8.00 PASS 11N20SISO Ant1 2412 -18.27 ≤8.00 PASS 2437 -17.32 ≤8.00 PASS 2462 -17.02 ≤8.00 PASS 11N40SISO Ant1 2422 -20.81 ≤8.00 PASS 2437 -20.49 ≤8.00 PASS 2452 -20.00 ≤8.00 PASS 11AX20SISO Ant1 2412 -19.35 ≤8.00 PASS 2437 -19.30 ≤8.00 PASS 2462 -19.19 ≤8.00 PASS 11AX40SISO Ant1 2422 -21.80 ≤8.00 PASS 2437 -21.36 ≤8.00 PASS 2452 -22.00 ≤8.00 PASS 22 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 23 11G_Ant1_2412 11G_Ant1_2437 24 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 25 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 26 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 27 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 28 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 29 30 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dB m] Verdic t 11B Ant1 Low 2412 2.48 -46.76 ≤-17.52 PASS High 2462 2.68 -53.12 ≤-17.32 PASS 11G Ant1 Low 2412 -3.14 -35.73 ≤-23.14 PASS High 2462 -2.92 -57.67 ≤-22.92 PASS 11N20SISO Ant1 Low 2412 -3.05 -36.18 ≤-23.05 PASS High 2462 -2.82 -57.47 ≤-22.82 PASS 11N40SISO Ant1 Low 2422 -6.13 -34.53 ≤-26.13 PASS High 2452 -6.05 -57.96 ≤-26.05 PASS 11AX20SIS O Ant1 Low 2412 -3.46 -33.24 ≤-23.46 PASS High 2462 -3.20 -57.53 ≤-23.2 PASS 11AX40SIS O Ant1 Low 2422 -6.60 -36.25 ≤-26.6 PASS High 2452 -6.53 -57.92 ≤-26.53 PASS 31 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 32 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412

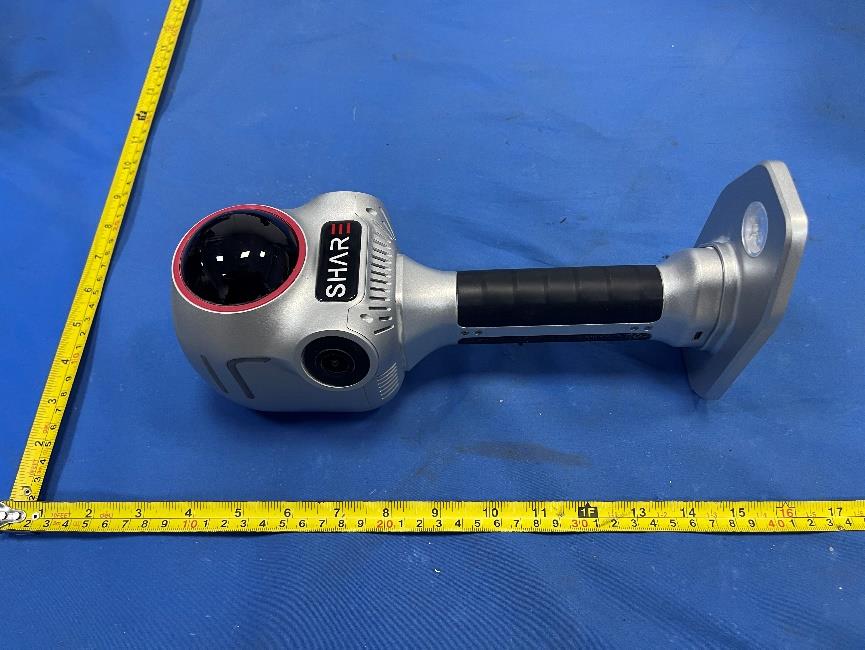

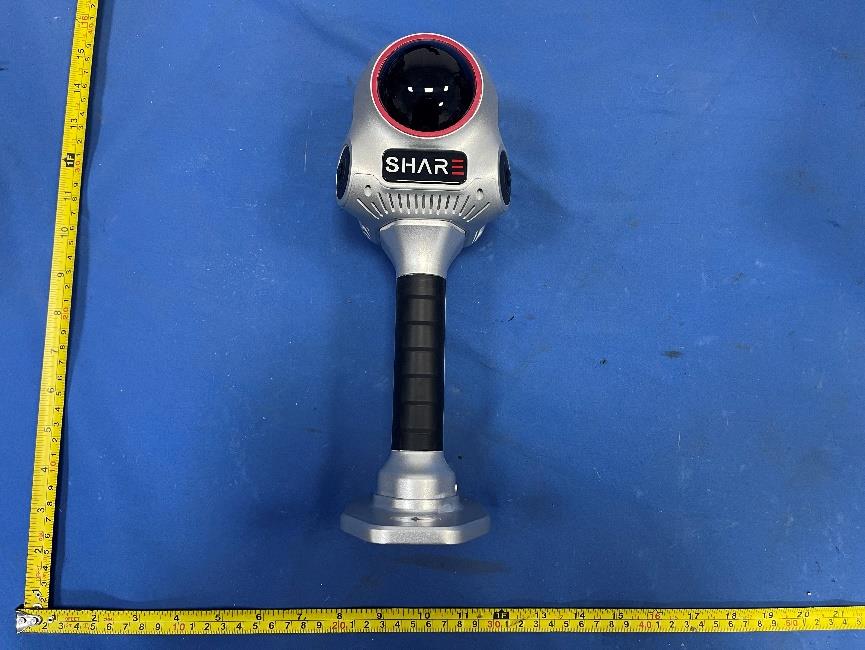

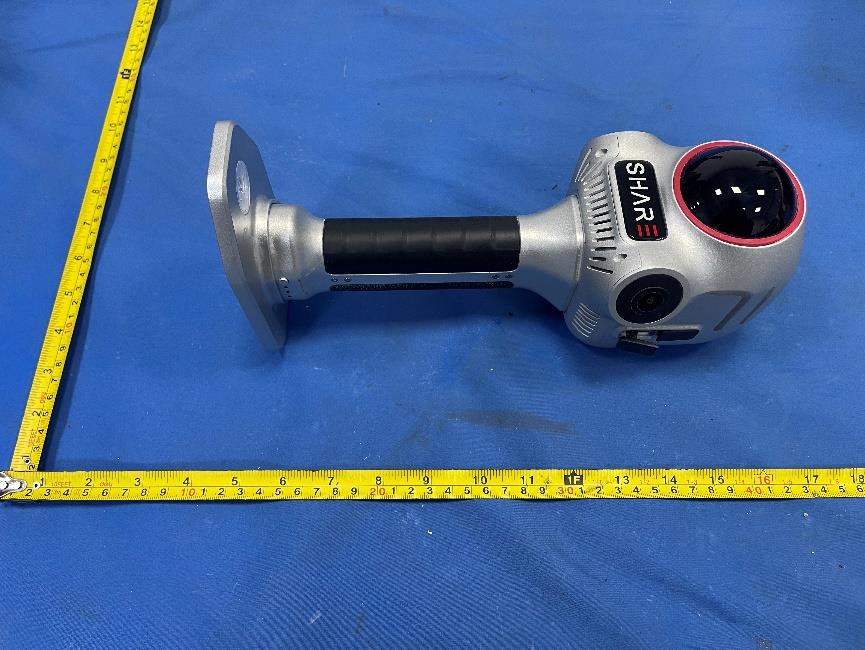

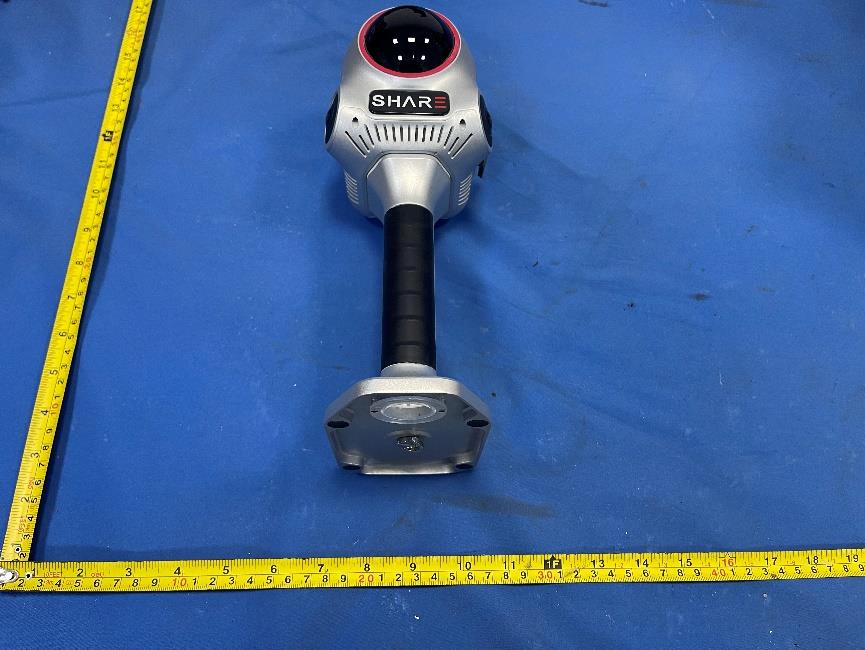

FCC ID: 2BVWM-S30SE Test Setup Photos of the EUT FCC ID: 2BVWM-S30SE

1. Antenna Description: Antenna type PIFA antenna Model SHARE3DCAM S30 SE Frequency range 2402MHz~2480MHz Manufacturer SHARE3DCAM LIMITED Address Room 3502, Yuehai Landmark Building, No. 2018, Buxin Road, Dongxiao Community, Dongxiao Sub-district, Luohu District, Shenzhen, China ANT Peak Gain 1.12 dBi for 5745-5825MHz for 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5745MHz 5785MHz 5825MHz

144 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 11AX20SISO_Ant2_2412 145 11AX20SISO_Ant2_2437 11AX20SISO_Ant2_2462 146 11AX40SISO_Ant2_2422 11AX40SISO_Ant2_2437 11AX40SISO_Ant2_2452 147 148 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant2 Low 2412 AV 2310.000 -59.24 3.09 0.02 37.98 ≤54 PASS AV 2386.450 -52.55 3.09 0.02 44.67 ≤54 PASS AV 2390.000 -56.33 3.09 0.02 40.89 ≤54 PASS Peak 2310.000 -51.82 3.09 0.00 45.38 ≤74 PASS Peak 2386.320 -45.2 3.09 0.00 52.00 ≤74 PASS Peak 2390.000 -47.82 3.09 0.00 49.38 ≤74 PASS High 2462 AV 2483.500 -53.96 3.09 0.02 43.26 ≤54 PASS AV 2487.850 -53.73 3.09 0.02 43.49 ≤54 PASS AV 2500.000 -58.37 3.09 0.02 38.85 ≤54 PASS Peak 2483.500 -46.79 3.09 0.00 50.41 ≤74 PASS Peak 2484.330 -46.04 3.09 0.00 51.16 ≤74 PASS Peak 2500.000 -49.7 3.09 0.00 47.50 ≤74 PASS 11G Ant2 Low 2412 AV 2310.000 -60.21 3.09 1.03 38.02 ≤54 PASS AV 2387.360 -58.62 3.09 1.03 39.61 ≤54 PASS AV 2390.000 -58.92 3.09 1.03 39.31 ≤54 PASS Peak 2310.000 -50.31 3.09 0.00 46.89 ≤74 PASS Peak 2386.840 -48.95 3.09 0.00 48.25 ≤74 PASS Peak 2390.000 -52.53 3.09 0.00 44.67 ≤74 PASS High 2462 AV 2483.500 -58.74 3.09 1.25 39.71 ≤54 PASS AV 2484.990 -58.26 3.09 1.25 40.19 ≤54 PASS AV 2500.000 -59.22 3.09 1.25 39.23 ≤54 PASS Peak 2483.500 -49.94 3.09 0.00 47.26 ≤74 PASS Peak 2486.860 -47.93 3.09 0.00 49.27 ≤74 PASS Peak 2500.000 -50.49 3.09 0.00 46.71 ≤74 PASS 11N20SI SO Ant2 Low 2412 AV 2310.000 -59.47 3.09 1.12 38.85 ≤54 PASS AV 2386.060 -58.47 3.09 1.12 39.85 ≤54 PASS AV 2390.000 -59.14 3.09 1.12 39.18 ≤54 PASS Peak 2310.000 -52.52 3.09 0.00 44.68 ≤74 PASS Peak 2353.040 -48.1 3.09 0.00 49.10 ≤74 PASS Peak 2390.000 -49.45 3.09 0.00 47.75 ≤74 PASS High 2462 AV 2483.500 -58.36 3.09 1.12 39.96 ≤54 PASS AV 2484.440 -58.28 3.09 1.12 40.04 ≤54 PASS AV 2500.000 -58.89 3.09 1.12 39.43 ≤54 PASS Peak 2483.500 -49.91 3.09 0.00 47.29 ≤74 PASS Peak 2484.770 -48.26 3.09 0.00 48.94 ≤74 PASS Peak 2500.000 -50.39 3.09 0.00 46.81 ≤74 PASS 149 11N40SI SO Ant2 Low 2422 AV 2310.000 -59.49 3.09 0.87 38.58 ≤54 PASS AV 2389.850 -57.59 3.09 0.87 40.48 ≤54 PASS AV 2390.000 -58.19 3.09 0.87 39.88 ≤54 PASS Peak 2310.000 -50.65 3.09 0.00 46.55 ≤74 PASS Peak 2384.450 -48 3.09 0.00 49.20 ≤74 PASS Peak 2390.000 -49.68 3.09 0.00 47.52 ≤74 PASS High 2452 AV 2483.500 -58.2 3.09 1.06 40.06 ≤54 PASS AV 2483.625 -58.17 3.09 1.06 40.09 ≤54 PASS AV 2500.000 -59.11 3.09 1.06 39.15 ≤54 PASS Peak 2483.500 -51.09 3.09 0.00 46.11 ≤74 PASS Peak 2492.750 -46.82 3.09 0.00 50.38 ≤74 PASS Peak 2500.000 -51.34 3.09 0.00 45.86 ≤74 PASS 11AX20 SISO Ant2 Low 2412 AV 2310.000 -59.85 3.09 0.76 38.11 ≤54 PASS AV 2387.100 -58.19 3.09 0.76 39.77 ≤54 PASS AV 2390.000 -58.95 3.09 0.76 39.01 ≤54 PASS Peak 2310.000 -50.99 3.09 0.00 46.21 ≤74 PASS Peak 2378.780 -49.15 3.09 0.00 48.05 ≤74 PASS Peak 2390.000 -49.97 3.09 0.00 47.23 ≤74 PASS High 2462 AV 2483.500 -58.34 3.09 0.79 39.65 ≤54 PASS AV 2483.560 -57.77 3.09 0.79 40.22 ≤54 PASS AV 2500.000 -59.11 3.09 0.79 38.88 ≤54 PASS Peak 2483.500 -50.97 3.09 0.00 46.23 ≤74 PASS Peak 2486.200 -48.16 3.09 0.00 49.04 ≤74 PASS Peak 2500.000 -50.14 3.09 0.00 47.06 ≤74 PASS 11AX40 SISO Ant2 Low 2422 AV 2310.000 -59.73 3.09 0.87 38.34 ≤54 PASS AV 2387.600 -57.03 3.09 0.87 41.04 ≤54 PASS AV 2390.000 -57.84 3.09 0.87 40.23 ≤54 PASS Peak 2310.000 -50.18 3.09 0.00 47.02 ≤74 PASS Peak 2389.550 -46.65 3.09 0.00 50.55 ≤74 PASS Peak 2390.000 -48.36 3.09 0.00 48.84 ≤74 PASS High 2452 AV 2483.500 -57.85 3.09 0.87 40.22 ≤54 PASS AV 2483.625 -58.1 3.09 0.87 39.97 ≤54 PASS AV 2500.000 -59.23 3.09 0.87 38.84 ≤54 PASS Peak 2483.500 -50.77 3.09 0.00 46.43 ≤74 PASS Peak 2485.875 -47.62 3.09 0.00 49.58 ≤74 PASS Peak 2500.000 -52.06 3.09 0.00 45.14 ≤74 PASS Note： 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 150 Test Graphs 11B_Ant2_Low_2412_AV 11B_Ant2_Low_2412_Peak 11B_Ant2_High_2462_AV 151 11B_Ant2_High_2462_Peak 11G_Ant2_Low_2412_AV 152 11G_Ant2_Low_2412_Peak 11G_Ant2_High_2462_AV 11G_Ant2_High_2462_Peak 153 11N20SISO_Ant2_Low_2412_AV 11N20SISO_Ant2_Low_2412_Peak 154 11N20SISO_Ant2_High_2462_AV 11N20SISO_Ant2_High_2462_Peak 11N40SISO_Ant2_Low_2422_AV 155 11N40SISO_Ant2_Low_2422_Peak 11N40SISO_Ant2_High_2452_AV 156 11N40SISO_Ant2_High_2452_Peak 11AX20SISO_Ant2_Low_2412_AV 11AX20SISO_Ant2_Low_2412_Peak 157 11AX20SISO_Ant2_High_2462_AV 11AX20SISO_Ant2_High_2462_Peak 158 11AX40SISO_Ant2_Low_2422_AV 11AX40SISO_Ant2_Low_2422_Peak 11AX40SISO_Ant2_High_2452_AV 159 11AX40SISO_Ant2_High_2452_Peak

144 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 11AX20SISO_Ant2_2412 145 11AX20SISO_Ant2_2437 11AX20SISO_Ant2_2462 146 11AX40SISO_Ant2_2422 11AX40SISO_Ant2_2437 11AX40SISO_Ant2_2452 147 148 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant2 Low 2412 AV 2310.000 -59.24 3.09 0.02 37.98 ≤54 PASS AV 2386.450 -52.55 3.09 0.02 44.67 ≤54 PASS AV 2390.000 -56.33 3.09 0.02 40.89 ≤54 PASS Peak 2310.000 -51.82 3.09 0.00 45.38 ≤74 PASS Peak 2386.320 -45.2 3.09 0.00 52.00 ≤74 PASS Peak 2390.000 -47.82 3.09 0.00 49.38 ≤74 PASS High 2462 AV 2483.500 -53.96 3.09 0.02 43.26 ≤54 PASS AV 2487.850 -53.73 3.09 0.02 43.49 ≤54 PASS AV 2500.000 -58.37 3.09 0.02 38.85 ≤54 PASS Peak 2483.500 -46.79 3.09 0.00 50.41 ≤74 PASS Peak 2484.330 -46.04 3.09 0.00 51.16 ≤74 PASS Peak 2500.000 -49.7 3.09 0.00 47.50 ≤74 PASS 11G Ant2 Low 2412 AV 2310.000 -60.21 3.09 1.03 38.02 ≤54 PASS AV 2387.360 -58.62 3.09 1.03 39.61 ≤54 PASS AV 2390.000 -58.92 3.09 1.03 39.31 ≤54 PASS Peak 2310.000 -50.31 3.09 0.00 46.89 ≤74 PASS Peak 2386.840 -48.95 3.09 0.00 48.25 ≤74 PASS Peak 2390.000 -52.53 3.09 0.00 44.67 ≤74 PASS High 2462 AV 2483.500 -58.74 3.09 1.25 39.71 ≤54 PASS AV 2484.990 -58.26 3.09 1.25 40.19 ≤54 PASS AV 2500.000 -59.22 3.09 1.25 39.23 ≤54 PASS Peak 2483.500 -49.94 3.09 0.00 47.26 ≤74 PASS Peak 2486.860 -47.93 3.09 0.00 49.27 ≤74 PASS Peak 2500.000 -50.49 3.09 0.00 46.71 ≤74 PASS 11N20SI SO Ant2 Low 2412 AV 2310.000 -59.47 3.09 1.12 38.85 ≤54 PASS AV 2386.060 -58.47 3.09 1.12 39.85 ≤54 PASS AV 2390.000 -59.14 3.09 1.12 39.18 ≤54 PASS Peak 2310.000 -52.52 3.09 0.00 44.68 ≤74 PASS Peak 2353.040 -48.1 3.09 0.00 49.10 ≤74 PASS Peak 2390.000 -49.45 3.09 0.00 47.75 ≤74 PASS High 2462 AV 2483.500 -58.36 3.09 1.12 39.96 ≤54 PASS AV 2484.440 -58.28 3.09 1.12 40.04 ≤54 PASS AV 2500.000 -58.89 3.09 1.12 39.43 ≤54 PASS Peak 2483.500 -49.91 3.09 0.00 47.29 ≤74 PASS Peak 2484.770 -48.26 3.09 0.00 48.94 ≤74 PASS Peak 2500.000 -50.39 3.09 0.00 46.81 ≤74 PASS 149 11N40SI SO Ant2 Low 2422 AV 2310.000 -59.49 3.09 0.87 38.58 ≤54 PASS AV 2389.850 -57.59 3.09 0.87 40.48 ≤54 PASS AV 2390.000 -58.19 3.09 0.87 39.88 ≤54 PASS Peak 2310.000 -50.65 3.09 0.00 46.55 ≤74 PASS Peak 2384.450 -48 3.09 0.00 49.20 ≤74 PASS Peak 2390.000 -49.68 3.09 0.00 47.52 ≤74 PASS High 2452 AV 2483.500 -58.2 3.09 1.06 40.06 ≤54 PASS AV 2483.625 -58.17 3.09 1.06 40.09 ≤54 PASS AV 2500.000 -59.11 3.09 1.06 39.15 ≤54 PASS Peak 2483.500 -51.09 3.09 0.00 46.11 ≤74 PASS Peak 2492.750 -46.82 3.09 0.00 50.38 ≤74 PASS Peak 2500.000 -51.34 3.09 0.00 45.86 ≤74 PASS 11AX20 SISO Ant2 Low 2412 AV 2310.000 -59.85 3.09 0.76 38.11 ≤54 PASS AV 2387.100 -58.19 3.09 0.76 39.77 ≤54 PASS AV 2390.000 -58.95 3.09 0.76 39.01 ≤54 PASS Peak 2310.000 -50.99 3.09 0.00 46.21 ≤74 PASS Peak 2378.780 -49.15 3.09 0.00 48.05 ≤74 PASS Peak 2390.000 -49.97 3.09 0.00 47.23 ≤74 PASS High 2462 AV 2483.500 -58.34 3.09 0.79 39.65 ≤54 PASS AV 2483.560 -57.77 3.09 0.79 40.22 ≤54 PASS AV 2500.000 -59.11 3.09 0.79 38.88 ≤54 PASS Peak 2483.500 -50.97 3.09 0.00 46.23 ≤74 PASS Peak 2486.200 -48.16 3.09 0.00 49.04 ≤74 PASS Peak 2500.000 -50.14 3.09 0.00 47.06 ≤74 PASS 11AX40 SISO Ant2 Low 2422 AV 2310.000 -59.73 3.09 0.87 38.34 ≤54 PASS AV 2387.600 -57.03 3.09 0.87 41.04 ≤54 PASS AV 2390.000 -57.84 3.09 0.87 40.23 ≤54 PASS Peak 2310.000 -50.18 3.09 0.00 47.02 ≤74 PASS Peak 2389.550 -46.65 3.09 0.00 50.55 ≤74 PASS Peak 2390.000 -48.36 3.09 0.00 48.84 ≤74 PASS High 2452 AV 2483.500 -57.85 3.09 0.87 40.22 ≤54 PASS AV 2483.625 -58.1 3.09 0.87 39.97 ≤54 PASS AV 2500.000 -59.23 3.09 0.87 38.84 ≤54 PASS Peak 2483.500 -50.77 3.09 0.00 46.43 ≤74 PASS Peak 2485.875 -47.62 3.09 0.00 49.58 ≤74 PASS Peak 2500.000 -52.06 3.09 0.00 45.14 ≤74 PASS Note： 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 150 Test Graphs 11B_Ant2_Low_2412_AV 11B_Ant2_Low_2412_Peak 11B_Ant2_High_2462_AV 151 11B_Ant2_High_2462_Peak 11G_Ant2_Low_2412_AV 152 11G_Ant2_Low_2412_Peak 11G_Ant2_High_2462_AV 11G_Ant2_High_2462_Peak 153 11N20SISO_Ant2_Low_2412_AV 11N20SISO_Ant2_Low_2412_Peak 154 11N20SISO_Ant2_High_2462_AV 11N20SISO_Ant2_High_2462_Peak 11N40SISO_Ant2_Low_2422_AV 155 11N40SISO_Ant2_Low_2422_Peak 11N40SISO_Ant2_High_2452_AV 156 11N40SISO_Ant2_High_2452_Peak 11AX20SISO_Ant2_Low_2412_AV 11AX20SISO_Ant2_Low_2412_Peak 157 11AX20SISO_Ant2_High_2462_AV 11AX20SISO_Ant2_High_2462_Peak 158 11AX40SISO_Ant2_Low_2422_AV 11AX40SISO_Ant2_Low_2422_Peak 11AX40SISO_Ant2_High_2452_AV 159 11AX40SISO_Ant2_High_2452_Peak

119 11B_Ant2_2437_1000~26500 11B_Ant2_2462_0~Reference 11B_Ant2_2462_30~1000 120 11B_Ant2_2462_1000~26500 11G_Ant2_2412_0~Reference 121 11G_Ant2_2412_30~1000 11G_Ant2_2412_1000~26500 11G_Ant2_2437_0~Reference 122 11G_Ant2_2437_30~1000 11G_Ant2_2437_1000~26500 123 11G_Ant2_2462_0~Reference 11G_Ant2_2462_30~1000 11G_Ant2_2462_1000~26500 124 11N20SISO_Ant2_2412_0~Reference 11N20SISO_Ant2_2412_30~1000 125 11N20SISO_Ant2_2412_1000~26500 11N20SISO_Ant2_2437_0~Reference 11N20SISO_Ant2_2437_30~1000 126 11N20SISO_Ant2_2437_1000~26500 11N20SISO_Ant2_2462_0~Reference 127 11N20SISO_Ant2_2462_30~1000 11N20SISO_Ant2_2462_1000~26500 11N40SISO_Ant2_2422_0~Reference 128 11N40SISO_Ant2_2422_30~1000 11N40SISO_Ant2_2422_1000~26500 129 11N40SISO_Ant2_2437_0~Reference 11N40SISO_Ant2_2437_30~1000 11N40SISO_Ant2_2437_1000~26500 130 11N40SISO_Ant2_2452_0~Reference 11N40SISO_Ant2_2452_30~1000 131 11N40SISO_Ant2_2452_1000~26500 11AX20SISO_Ant2_2412_0~Reference 11AX20SISO_Ant2_2412_30~1000 132 11AX20SISO_Ant2_2412_1000~26500 11AX20SISO_Ant2_2437_0~Reference 133 11AX20SISO_Ant2_2437_30~1000 11AX20SISO_Ant2_2437_1000~26500 11AX20SISO_Ant2_2462_0~Reference 134 11AX20SISO_Ant2_2462_30~1000 11AX20SISO_Ant2_2462_1000~26500 135 11AX40SISO_Ant2_2422_0~Reference 11AX40SISO_Ant2_2422_30~1000 11AX40SISO_Ant2_2422_1000~26500 136 11AX40SISO_Ant2_2437_0~Reference 11AX40SISO_Ant2_2437_30~1000 137 11AX40SISO_Ant2_2437_1000~26500 11AX40SISO_Ant2_2452_0~Reference 11AX40SISO_Ant2_2452_30~1000 138 11AX40SISO_Ant2_2452_1000~26500 139 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant2 2412 8.35 8.39 99.52 0.02 0.12 2437 8.35 8.39 99.52 0.02 0.12 2462 8.35 8.39 99.52 0.02 0.12 11G Ant2 2412 0.15 0.19 78.95 1.03 6.67 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant2 2412 0.17 0.22 77.27 1.12 5.88 2437 0.17 0.22 77.27 1.12 5.88 2462 0.17 0.22 77.27 1.12 5.88 11N40SISO Ant2 2422 0.18 0.22 81.82 0.87 5.56 2437 0.18 0.22 81.82 0.87 5.56 2452 0.18 0.23 78.26 1.06 5.56 11AX20SISO Ant2 2412 0.26 0.31 83.87 0.76 3.85 2437 0.26 0.31 83.87 0.76 3.85 2462 0.25 0.30 83.33 0.79 4.00 11AX40SISO Ant2 2422 0.18 0.22 81.82 0.87 5.56 2437 0.17 0.22 77.27 1.12 5.88 2452 0.18 0.22 81.82 0.87 5.56 140 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 141 11G_Ant2_2412 11G_Ant2_2437 142 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 143 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422

86 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 11AX20SISO_Ant2_2412 87 11AX20SISO_Ant2_2437 11AX20SISO_Ant2_2462 88 11AX40SISO_Ant2_2422 11AX40SISO_Ant2_2437 11AX40SISO_Ant2_2452 89 90 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 13.398 2405.3275 2418.7255 --- --- 2437 13.408 2430.3122 2443.7202 --- --- 2462 13.414 2455.3074 2468.7214 --- --- 11G Ant2 2412 16.885 2403.5566 2420.4416 --- --- 2437 16.894 2428.6090 2445.5030 --- --- 2462 16.872 2453.5848 2470.4568 --- --- 11N20SISO Ant2 2412 17.859 2403.0875 2420.9465 --- --- 2437 17.841 2428.0912 2445.9322 --- --- 2462 17.911 2453.0375 2470.9485 --- --- 11N40SISO Ant2 2422 36.099 2404.0836 2440.1826 --- --- 2437 36.063 2419.1094 2455.1724 --- --- 2452 36.026 2434.0941 2470.1201 --- --- 11AX20SISO Ant2 2412 18.972 2402.5519 2421.5239 --- --- 2437 18.927 2427.5393 2446.4663 --- --- 2462 18.953 2452.5443 2471.4973 --- --- 11AX40SISO Ant2 2422 37.590 2403.3528 2440.9428 --- --- 2437 37.603 2418.3428 2455.9458 --- --- 2452 37.512 2433.4123 2470.9243 --- --- 91 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 92 11G_Ant2_2412 11G_Ant2_2437 93 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 94 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 95 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 11AX20SISO_Ant2_2412 96 11AX20SISO_Ant2_2437 11AX20SISO_Ant2_2462 97 11AX40SISO_Ant2_2422 11AX40SISO_Ant2_2437 11AX40SISO_Ant2_2452 98 99 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant2 2412 13.50 ≤30.00 PASS 2437 13.68 ≤30.00 PASS 2462 13.79 ≤30.00 PASS 11G Ant2 2412 13.60 ≤30.00 PASS 2437 13.72 ≤30.00 PASS 2462 13.82 ≤30.00 PASS 11N20SISO Ant2 2412 13.44 ≤30.00 PASS 2437 13.73 ≤30.00 PASS 2462 13.76 ≤30.00 PASS 11N40SISO Ant2 2422 13.87 ≤30.00 PASS 2437 14.24 ≤30.00 PASS 2452 14.06 ≤30.00 PASS 11AX20SISO Ant2 2412 13.75 ≤30.00 PASS 2437 14.00 ≤30.00 PASS 2462 14.22 ≤30.00 PASS 11AX40SISO Ant2 2422 14.02 ≤30.00 PASS 2437 14.35 ≤30.00 PASS 2452 14.16 ≤30.00 PASS 100 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant2 2412 -12.76 ≤8.00 PASS 2437 -12.30 ≤8.00 PASS 2462 -12.38 ≤8.00 PASS 11G Ant2 2412 -17.96 ≤8.00 PASS 2437 -17.51 ≤8.00 PASS 2462 -16.89 ≤8.00 PASS 11N20SISO Ant2 2412 -18.36 ≤8.00 PASS 2437 -17.89 ≤8.00 PASS 2462 -17.32 ≤8.00 PASS 11N40SISO Ant2 2422 -21.00 ≤8.00 PASS 2437 -19.54 ≤8.00 PASS 2452 -20.67 ≤8.00 PASS 11AX20SISO Ant2 2412 -19.45 ≤8.00 PASS 2437 -19.58 ≤8.00 PASS 2462 -18.76 ≤8.00 PASS 11AX40SISO Ant2 2422 -22.39 ≤8.00 PASS 2437 -21.68 ≤8.00 PASS 2452 -21.51 ≤8.00 PASS 101 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 102 11G_Ant2_2412 11G_Ant2_2437 103 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 104 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 105 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 11AX20SISO_Ant2_2412 106 11AX20SISO_Ant2_2437 11AX20SISO_Ant2_2462 107 11AX40SISO_Ant2_2422 11AX40SISO_Ant2_2437 11AX40SISO_Ant2_2452 108 109 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dB m] Verdic t 11B Ant2 Low 2412 1.43 -48.13 ≤-18.57 PASS High 2462 1.51 -54.05 ≤-18.49 PASS 11G Ant2 Low 2412 -2.86 -35.49 ≤-22.86 PASS High 2462 -2.66 -58.05 ≤-22.66 PASS 11N20SISO Ant2 Low 2412 -3.23 -34.68 ≤-23.23 PASS High 2462 -2.72 -57.01 ≤-22.72 PASS 11N40SISO Ant2 Low 2422 -6.16 -34.62 ≤-26.16 PASS High 2452 -5.85 -57.7 ≤-25.85 PASS 11AX20SIS O Ant2 Low 2412 -3.31 -34.77 ≤-23.31 PASS High 2462 -3.04 -57.21 ≤-23.04 PASS 11AX40SIS O Ant2 Low 2422 -6.47 -35.79 ≤-26.47 PASS High 2452 -6.40 -57.12 ≤-26.4 PASS 110 Test Graphs 11B_Ant2_Low_2412 11B_Ant2_High_2462 11G_Ant2_Low_2412 111 11G_Ant2_High_2462 11N20SISO_Ant2_Low_2412 112 11N20SISO_Ant2_High_2462 11N40SISO_Ant2_Low_2422 11N40SISO_Ant2_High_2452 113 11AX20SISO_Ant2_Low_2412 11AX20SISO_Ant2_High_2462 114 11AX40SISO_Ant2_Low_2422 11AX40SISO_Ant2_High_2452 115 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant2 2412 Reference 0.46 0.46 --- PASS 30~1000 0.46 -67.6 ≤-19.54 PASS 1000~26500 0.46 -54.2 ≤-19.54 PASS 2437 Reference -0.01 -0.01 --- PASS 30~1000 -0.01 -67.71 ≤-20.01 PASS 1000~26500 -0.01 -53.97 ≤-20.01 PASS 2462 Reference -0.15 -0.15 --- PASS 30~1000 -0.15 -67.68 ≤-20.15 PASS 1000~26500 -0.15 -54.27 ≤-20.15 PASS 11G Ant2 2412 Reference -3.35 -3.35 --- PASS 30~1000 -3.35 -68.16 ≤-23.35 PASS 1000~26500 -3.35 -55.01 ≤-23.35 PASS 2437 Reference -2.95 -2.95 --- PASS 30~1000 -2.95 -68.01 ≤-22.95 PASS 1000~26500 -2.95 -55.63 ≤-22.95 PASS 2462 Reference -3.37 -3.37 --- PASS 30~1000 -3.37 -67.97 ≤-23.37 PASS 1000~26500 -3.37 -55.78 ≤-23.37 PASS 11N20SISO Ant2 2412 Reference -4.06 -4.06 --- PASS 30~1000 -4.06 -67.69 ≤-24.06 PASS 1000~26500 -4.06 -55.37 ≤-24.06 PASS 2437 Reference -3.36 -3.36 --- PASS 30~1000 -3.36 -68.54 ≤-23.36 PASS 1000~26500 -3.36 -54.76 ≤-23.36 PASS 2462 Reference -2.79 -2.79 --- PASS 30~1000 -2.79 -67.83 ≤-22.79 PASS 1000~26500 -2.79 -55.38 ≤-22.79 PASS 11N40SISO Ant2 2422 Reference -6.99 -6.99 --- PASS 30~1000 -6.99 -67.85 ≤-26.99 PASS 1000~26500 -6.99 -55.55 ≤-26.99 PASS 2437 Reference -6.06 -6.06 --- PASS 30~1000 -6.06 -68.44 ≤-26.06 PASS 1000~26500 -6.06 -55.62 ≤-26.06 PASS 2452 Reference -6.18 -6.18 --- PASS 30~1000 -6.18 -68.31 ≤-26.18 PASS 1000~26500 -6.18 -54.97 ≤-26.18 PASS 11AX20SISO Ant2 2412 Reference -3.81 -3.81 --- PASS 116 30~1000 -3.81 -67.93 ≤-23.81 PASS 1000~26500 -3.81 -53.98 ≤-23.81 PASS 2437 Reference -3.83 -3.83 --- PASS 30~1000 -3.83 -67.7 ≤-23.83 PASS 1000~26500 -3.83 -55.88 ≤-23.83 PASS 2462 Reference -3.50 -3.50 --- PASS 30~1000 -3.50 -68.13 ≤-23.5 PASS 1000~26500 -3.50 -55.81 ≤-23.5 PASS 11AX40SISO Ant2 2422 Reference -7.05 -7.05 --- PASS 30~1000 -7.05 -66.73 ≤-27.05 PASS 1000~26500 -7.05 -55.34 ≤-27.05 PASS 2437…

Text truncated - open the document above for the full version.

59 11AX40SISO_Ant1_2452_1000~26500 60 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.39 99.52 0.02 0.12 24…
