2BW4C-AIRTAP01Wireless Virtual Keyboard & Mouse

Airtap01 user manual The dongle include a PD charge protocol chip & a BLE chip for charge and BLE connections. This is a dongle that can be plug to your phone. USB c male connector plug to your phone, USB C female can be plug a PD charger, the phone can be charge via this dongle. Press the button, the BLE chip will be the pair status, connected your phone to the dongle. PD charge protocol: Input voltage: 5 -- 20V Input current: 1 -- 5A Output voltage: 5 -- 20V Output current: 1 -- 5A FCC Warming: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC IDModel name 2BW4C-AIRTAP01Airtap01 We hereby acknowledge as follows: i.both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii.the point of contact provides the physical U.S. address and email as listed below iii.both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv.An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of ContactApplicant/Approval Holder Signature Date: 2026-07-14 Signature Date: 2026-07-14 Company Name:GLOCERTS TECHNOLOGY INCBlue Whale Advisory Services Private Limited FRN:00363397370038643276 Contact Name:Huiying FanSaurabh Goel Address:19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 Cowrks, 2nd Floor, Tower B, Paras Twin Towers, Sector 54, Gurugram, India, 122011 Phone:(626) 588-8039+919873033378 Email:[email protected]@airtap.ai

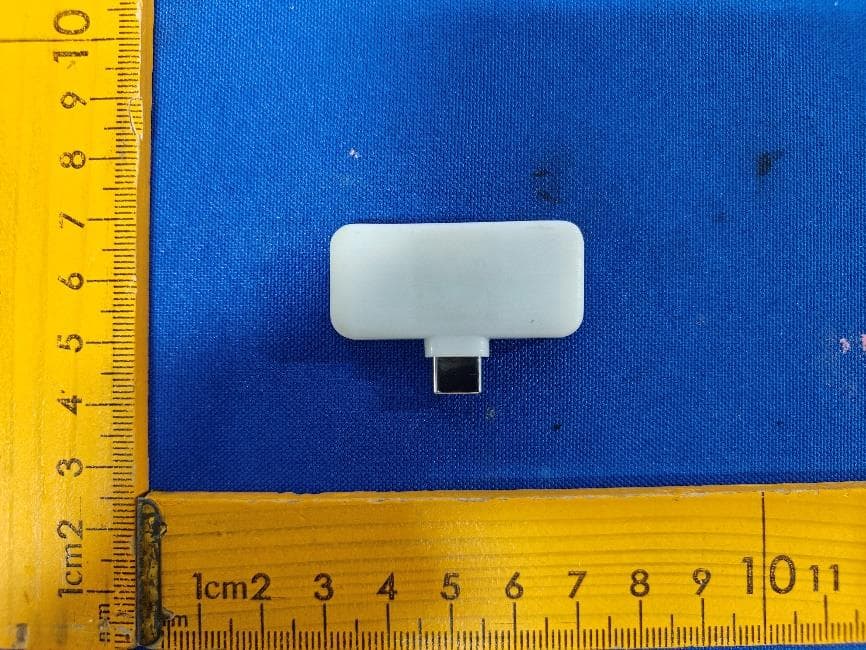

Page 1 of 2 FCC ID: 2BW4C-AIRTAP01 External photos Page 2 of 2 FCC ID: 2BW4C-AIRTAP01

Label FCC ID: 2BW4C-AIRTAP01

Page 1 of 2 FCC ID: 2BW4C-AIRTAP01 Internal photos Ceramic Antenna Page 2 of 2 FCC ID: 2BW4C-AIRTAP01

Page 1 of 7 Report No.: AiTSZ-260630111FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : Wireless Virtual Keyboard & Mouse Brand Name : Airtap Model : Airtap01 Series Model : N/A FCC ID : 2BW4C-AIRTAP01 Applicant : Blue Whale Advisory Services Private Limited Address : Cowrks, 2nd Floor, Tower B, Paras Twin Towers, Sector 54, Gurugram, India, 122011 Manufacturer : Foneric Technology co.,Ltd. Address : 5F,Fuxing Bldg,Binglang Road,Futian Free Trade Zone,Shenzhen, PR China 518038 Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Jun. 30, 2026 Date of Test : Jun. 30, 2026~ Jul. 06, 2026 Issued Date : Jul. 06, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Nels Wang Allen Wang Page 2 of 7 Report No.: AiTSZ-260630111FW2 Report Revise Record Report Version Issued Date Notes M0 Jul. 06, 2026 Initial Release Page 3 of 7 Report No.: AiTSZ-260630111FW2 Contents 1 GENERAL INFORMATION .......................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................... 6 2.1 APPLICABLE STANDARD.................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.: AiTSZ-260630111FW2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: Wireless Virtual Keyboard & Mouse Model/Type reference: Airtap01 Serial Model: N/A Model Difference N/A Power Ratings: Input voltage: DC 5V-20V; Input current: 1A-5A Output voltage: DC 5-20V; Output current: 1A-5A Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-260630111-1(Normal sample) AiTSZ-260630111-2(Engineer sample) Bluetooth LE: Supported type: Bluetooth LE 1M/2M Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: Ceramic Antenna Antenna gain: 2.7dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 7 Report No.: AiTSZ-260630111FW2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Test…

Text truncated - open the document above for the full version.

Page 1 of 30 Report No.: AiTSZ-260630111FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Wireless Virtual Keyboard & Mouse Brand Name : Airtap Model : Airtap01 Series Model : N/A FCC ID : 2BW4C-AIRTAP01 Applicant : Blue Whale Advisory Services Private Limited Address : Cowrks, 2nd Floor, Tower B, Paras Twin Towers, Sector 54, Gurugram, India, 122011 Manufacturer : Foneric Technology co.,Ltd. Address : 5F,Fuxing Bldg,Binglang Road,Futian Free Trade Zone,Shenzhen, PR China 518038 Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Jun. 30, 2026 Date of Test : Jun. 30, 2026~ Jul. 06, 2026 Issued Date : Jul. 06, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Nels Wang Allen Wang Page 2 of 30 Report No.: AiTSZ-260630111FW1 Report Revise Record Report Version Issued Date Notes M0 Jul. 06, 2026 Initial Release Page 3 of 30 Report No.: AiTSZ-260630111FW1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION .......................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 20 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 21 3.5 6DB BANDWIDTH ....................................................................................................................................................... 22 3.6 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 23 3.7 ANTENNA REQUIREMENT ............................................................................................................................................. 25 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 26 5 PHOTOS OF EUT ..................................................................................................................................................... 27 Page 4 of 30 Report No.: AiTSZ-260630111FW1 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10-2020+Cor 1-2023: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spreda Sp…

Text truncated - open the document above for the full version.

- 1 - 产 品 技 术 规 格 书 SPECIFICATION 拟制Prepared by： 审核Checked by ： 批准Approved by： 送样日期Formed On 产品版本Document Version ( V1.0 ) 产品型号 PAR T NO： 客户料号CUSTOMER PART NO： 客户确认CUSTOM ER APPROVED BY： 确认日期APPROVED DATE： 13510385948 [email protected] JIA XING GLEAD ELECTRONICS CO.,LTD LTA212450-P20A No. 707, Building 1, Wanzhong City Fashion Creative Park (Shangzuo Spark), Xinzhou Community, Dalong Subdistrict, Longhua District, Shenzhen City 2026-03-21 2026-04-02 - 2 - 目 录 Table of contents 规格书版本更改记录 Version rejigger track record ..............................3 1. 概述 Introduction..................................................................4 2. 型号 Part Number...............................................................4 3. 外形尺寸及焊盘尺寸 Dimension.............................................4 4. 测试电路和匹配电路 Evaluation Board and Matching Circuits......... 5 5. 电气性能 Electrical Characteristics..........................................5 6. 特性曲线 Characteristic curve..........................................5 7. 方向图 Radiation Pattern ... ................................................6 8. 可靠性试验后允许误差 Post Dependability Tolerance ..................7 9. 可靠性试验 Dependability Test..........................................7～8 10. 回流焊温度 Reflow Soldering Standard Condition........................9 11. 包装尺寸 Packaging and Dimensions ....................................9～10 深圳市森美嘉电子有限公司 13510385948 [email protected] JIA XING GLEAD ELECTRONICS CO.,LTD - 3 - 产品规格书版本更改记录 Version rejigger track record 版本号 Versi on 更改记录 Rejigger 拟制 Pre pared 批准 Approve 日期 Date V1.0 首次发行 孙超 陆德龙 20 26.3.27 备注： 1、更改产 品电性能指标时，版本号需更换（V1.0换为V2.0、V3.0......）； 2、更改产品测试方法（包括可靠性测试条件），或更改使用条件时，当前版本号加系列（V1.0 换为V1.1、V1.2......）。 深圳市森美嘉电子有限公司 13510385948 [email protected] JIA XING GLEAD ELECTRONICS CO.,LTD - 4 - 产品尺寸/Size：2.0×1.25 ×0.6 1. 概述 INTRODUCTION "佳利"微波多层陶瓷 天线LA 系列产品设计用于WLAN 、WiFi 、蓝牙、PHS，手机 多频天线, FM等小体积SMD 片式设计。 "GLEAD" Microwave Multi-Layer Ceramic Antenna LA series are designed to be used in WLAN、WiFi 、Bluetooth、PHS 、 Multiple-band Mobile phone antenna, FM, etc and compact size SMD chip design. 2. 型号 Part Number LTA 21 2450 -P20A 3. 外型尺寸及焊盘尺寸Dimensions（Unit：mm） 天线频率/ Antenna Frequency: 2450 MHz 多层结构天线/Multi-layer Antenna 产品名称，编号/Proudct Name L W T a ① ② ① ② input GND Top View Bottem View SideView L:2.0±0.1 W:1.25±0.1 T:0.6±0.1 a:0.6±0.1 Unit：mm Unit: m m GND PI Type Matching Network 50Ω Feeding Line Cleara nce Area GND VIA 3.0 5.0 1.15 1.20 1.40 0.55 0.55 深圳市森美嘉电子有限公司 13510385948 [email protected] JIA XING GLEAD ELECTRONICS CO.,LTD - 5 - 4. 测试板和匹配电路Evaluation Board and Matching Circuits 5. 电气性能 Electrical Characteristics No. Item （项目） Specifications （特性） 5.1 W orking Central Frequency 中心工作频率 (After matching) 2450 MHz 5.2 Band Width 通带宽度 2400-2500MHz 5.3 Peak Gain 峰值增益 2.7 dBi 5.4 V .S.W.R (in BW) 驻波比≤2.0 5.5 Polarizat ion 极化方式 Linear 线性 5.6 Azi muth Beam width 方位角 Omni-directional 全向 5.7 Impedance 阻抗 50 Ω 6. 特性曲线 Characteristic curve 6.5nH 0.5pF 深圳市森美嘉电子有限公司 13510385948 [email protected] JIA XING GLEAD ELECTRONICS CO.,LTD - 6 - 7 方向图 Radiation Pattern 深圳市森美嘉电子有限公司 13510385948 [email protected] JIA XING GLEAD ELECTRONICS CO.,LTD - 7 - 8 可靠性试验后允许误差 Post Dependability Tolerance 经可靠性试验后允许比起始读数偏差见下表 Post Dependability Tolerance ( Refer to the table ) No. Item （项目） Post Dependability Tolerance (可靠性试验后允许附加误差) 8.1 Central Frequency 中心频率 ±5 MHz 8.2 Band Width 通带宽度 ±5 MHz 8.3 Gain 增益 ±0.1 dBi 8.4 V.S.W.R (in BW) 驻波比 ±0.1 9 可靠性试验 Dependability Test 基准条件：温度范围 Temperature range 25±5°C 相对湿度范围 Relative Humidity range 55~75%RH 工作温度 Operating Temperature range -40°C~+85°C 贮藏温度 Storage Temperature range -40°C~+85°C 9.1 耐振动 Vibration Resist 在振动频率为10~55Hz振幅为 1.5mm 沿X.Y.Z 方向各振动2 小时后测试符合表7.1~7.4规定。 The device should satisfy the electrical characteristics specified in paragraph 7.1~7.4 after applied to the vibration of 10 to 55Hz with amplitude of 1.5mm for 2 hours each in X , Y and Z directions. 9.2 耐跌落冲击 Drop Shock 在100cm 高度处按X，Y，Z 三个面分别自由跌落在木制地板上共3 次后测试符合表7.1~7.4规 定。 The device should satisfy the electrical characteristics specified in paragraph 7.1~7.4 after dropping onto the hard wooden board from the height of 100cm for 3 times each facet of the 3 dimensions of the device. 9.3 耐焊接热 Solder Heat Proof 能承受经120~150°C的温度预热120 秒后，在255°C +10°C的焊锡浸5± 0.5 秒，或 300°C-10°C的 电烙铁焊接3± 0.5 秒，焊接面无损伤。 The device should be satisfied after preheating at 120°C~150°C for 120 seconds and dipping in soldering Sn at 255°C+10°C for 5±0.5 seconds，or electric iron 300°C-10°C for 3±0.5 seconds， without damnify. 9.4 结合力试验 Tensile Strength of Terminal 在产品电极端子上或表面上应能承受1kg垂直拉力10±1秒。 深圳市森美嘉电子有限公司 13510385948 [email protected] JIA XING GLEAD ELECTRONICS CO.,LTD - 8 - The device should not be broken after tensile force of 1.0kg is slowly applied to pull a lead pin of the fixed device in the lead axis direction for 10±1 seconds. 9.5 耐弯曲试验 Bending Resist Test 将产品按图焊在1.6±0.2mm的 PCB 板中间，由箭头方向 施力：1mm/S，弯曲距离：1.0mm，保持5±1S，产品金属层无 脱落。 Weld the product to the center part of the PCB with the thickness 1.6±0.2mm as the illustration shows, and keep exerting force arrow-ward on it at speed of :1mm/S , and hold for 5±1S at the position of 1.5mm bending distance , so far , any peeling off of the product metal coating should not be detected . 9.6 耐湿热特性 Moisture Proof 在温度为60 ±2°C，相对湿度90~95%的恒温湿箱中放置96 小时，在常温中恢复1~2小时后测试， 符合表 7.1~7.4规定。 The device should satisfy the electrical characteristics specified in paragraph 7.1~7.4 after exposed to the temperature 60±2°Cand the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time under normal condlition. 9.7 高温特性 High Temperature Endurance 在温度为85 ±5°C的恒温箱中放置96± 2 小时，在常温中恢复1~2 小时后测试。符合表7.1~7.4规 定。 The device should satisfy the electrical characteristics specified in paragraph 7.1~7.4 after exposed to temperature 85±5°C for 96±2 hours and 1~2 hours recovery time under normal temperature. 9.8 低温特性 Low Temperature Endurance 在温度为 -40°C±5°C低温箱中放置96±2 小时后恢复1~2 小时测试符合表7.1~7.4规定。 The device should also satisfy the electrical characteristics specified in paragraph 7.1~…

Text truncated - open the document above for the full version.

Page 1 of 29 Report No.: AiTSZ-260630111FW1 Appendix RF test data for BLE Page 2 of 29 Report No.: AiTSZ-260630111FW1 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 0.105 0.625 16.80 7.75 0.05 2440 0.105 0.625 16.80 7.75 0.03 2480 0.105 0.625 16.80 7.75 0.00 2M SISO 2402 0.058 0.625 9.28 10.32 0.00 2440 0.069 0.625 11.04 9.57 0.03 2480 0.069 0.625 11.04 9.57 0.00 Page 3 of 29 Report No.: AiTSZ-260630111FW1 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 4 of 29 Report No.: AiTSZ-260630111FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 5 of 29 Report No.: AiTSZ-260630111FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 6 of 29 Report No.: AiTSZ-260630111FW1 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.019 / Pass 2440 1 1.025 / Pass 2480 1 1.080 / Pass 2M SISO 2402 1 2.034 / Pass 2440 1 2.037 / Pass 2480 1 2.054 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.510 >=0.5 Pass 2440 1 0.506 >=0.5 Pass 2480 1 0.515 >=0.5 Pass 2M SISO 2402 1 0.871 >=0.5 Pass 2440 1 0.865 >=0.5 Pass 2480 1 0.878 >=0.5 Pass Page 7 of 29 Report No.: AiTSZ-260630111FW1 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 29 Report No.: AiTSZ-260630111FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 9 of 29 Report No.: AiTSZ-260630111FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 10 of 29 Report No.: AiTSZ-260630111FW1 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 11 of 29 Report No.: AiTSZ-260630111FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 12 of 29 Report No.: AiTSZ-260630111FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 13 of 29 Report No.: AiTSZ-260630111FW1 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 3.55 <=30 Pass 2440 3.97 <=30 Pass 2480 4.14 <=30 Pass 2M SISO 2402 3.55 <=30 Pass 2440 3.97 <=30 Pass 2480 4.15 <=30 Pass Note1: Antenna Gain: Ant1: 2.7dBi; Page 14 of 29 Report No.: AiTSZ-260630111FW1 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 29 Report No.: AiTSZ-260630111FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 16 of 29 Report No.: AiTSZ-260630111FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 17 of 29 Report No.: AiTSZ-260630111FW1 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit(dBm/3kHz) 1M SISO 2402 -0.26dBm/30kHz <=8 Pass 2440 0.14dBm/30kHz <=8 Pass 2480 1.05dBm/30kHz <=8 Pass 2M SISO 2402 -1.04dBm/30kHz <=8 Pass 2440 -0.65dBm/30kHz <=8 Pass 2480 0.03dBm/30kHz <=8 Pass Note1: Antenna Gain: Ant1: 2.7dBi; Page 18 of 29 Report No.: AiTSZ-260630111FW1 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 19 of 29 Report No.: AiTSZ-260630111FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 20 of 29 Report No.: AiTSZ-260630111FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 21 of 29 Report No.: AiTSZ-260630111FW1 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 3.46 2440 1 3.87 2480 1 4.07 2M SISO 2402 1 3.17 2440 1 3.58 2480 1 3.78 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 3.46 -16.54 Pass 2440 1 3.87 -16.13 Pass 2480 1 4.07 -15.93 Pass 2M SISO 2402 1 3.17 -16.83 Pass 2440 1 3.58 -16.42 Pass 2480 1 3.78 -16.22 Pass Page 22 of 29 Report No.: AiTSZ-260630111FW1 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 23 of 29 Report No.: AiTSZ-260630111FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 24 of 29 Report No.: AiTSZ-260630111FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 25 of 29 Report No.: AiTSZ-260630111FW1 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 26 of 29 Report No.: AiTSZ-260630111FW1 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 27 of 29 Report No.: AiTSZ-260630111FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 28 of 29 Report No.: AiTSZ-260630111FW1 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV Page 29 of 29 Report No.: AiTSZ-260630111FW1 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV ********************** End of Report **********************
