2BWCS-CAMERALow power monitoring camera

- 1 - Low power monitoring camera Please read this manual thoroughly before operating the device, and keep it for future reference. Product User Manual & Installation Instructions HD-M729W -CAMERA -2- PACKAGECONTENTS WhatYouGet ColorCCDWeatherproofWirelessBackupCamera WirelessAntennas 7"WirelessColorLCDMonitor Carcigarettelighter Sunshade UniversalMountWithAdhesivePad ButterflyBracket CameraPowerCable ScrewKitforCameraInstallation NOTE:Thequantityandappearanceofthecameraswillvarydependingonthe productmodel. -3- TABLEOFCONTENTS INTRODUCTION............................................................................................4 INSTALLATION:.............................................................................................5 CameraConnection:....................................................................................6 MonitorConnection:...................................................................................6 OPERATIONGUIDE.......................................................................................7 SystemOperations.................................................................................7-13 MonitorSpecification................................................................................14 CameraSpecification.................................................................................14 Troubleshooting.........................................................................................15 ONEYEARWARRANTY...............................................................................16 WARRANTYPERFORMANCE......................................................................16 -4- INTRODUCTION NOTE! Pleasereadalloftheinstallationinstructionscarefullybeforeinstallingtheproduct. Improperinstallationwillvoidmanufacturewarranty. ThanksonpurchasingoursDigitalWirelessBackupCameraDVRSystem!Withthismanual,you willbeabletoproperlyinstallandoperatetheunit. TheBackupCameraSystemisintendedtobeinstalledasasupplementaidtoyourstandard rearviewmirror&drivingrecorderthatalreadyexistsinyourvehicle.TheBackupCamera Systemshouldnotbeusedasasubstituteforthestandardrearviewmirrororforanyother mirrorthatexistsinyourvehicle. Insomejurisdictions,itisunlawfulforapersontodriveamotorvehicleequippedwithaTV viewerorscreenlocatedforwardofthebackofthedriver’sseatorinanylocationthatis visible,directlyorindirectly,tothedriverwhileoperatingthevehicle. Pleasereadtheentiremanualandfollowtheinstructionsandwarningscarefully.Failuretodo socancauseseriousdamageand/orinjury,includinglossoflife.Besuretoobeyallapplicable localtrafficandmotorvehicleregulationsasitpertainstothisproduct. Improperinstallationwillvoidmanufacturewarranty. Usage: TheRearViewCameraDVRSystemisdesignedtohelpthedriversafetydetectpeople and/orobjectshelpingtoavoiddamageorinjury.However,youthedriver,mustuseit properly.Useofthissystemisnotasubstituteforsafe,peopleorlegaldriving. Neverbackupwhilelookingatthemonitoralone.Youshouldalwayscheckbehind andaroundthevehiclewhenbackingup,inthesamewayasyouwouldifthevehicle didnothavetheRearViewCameraSystem.Ifyoubackupwhilelookingonlyatthe monitor,youmaycausedamageorinjury.Alwaysbackupslowly. TheRearViewCameraSystemisnotintendedforuseduringextensiveback-up maneuversorbackingintocrosstrafficorpedestrianwalkways. Please,alwaysremember,theareadisplayedbytheRearViewCameraSystemis limited.Itdoesnotdisplaytheentirepanoramathatisbehindyou. -5- INSTALLATION Electricshockorproductmalfunctionmayoccurifthisproductisinstalledincorrectly. Usethisproductwithinthevoltagerangespecified.Failuretodosocancause electronicshockorproductmalfunction. Takespecialcarewhencleaningthemonitor. Makesuretofirmlyaffixtheproductbeforeuse. Ifsmokeorburningsmellisdetected,disconnectthesystemimmediately. Wherethepowercablemaytouchametalcase,coverthecablewithfrictiontape.A shortcircuitordisconnectedwiremaycauseafire. WhileinstallingtheRearViewSystembecarefulwiththewirepositioninginorderto avoidwiredamage. Donotwatchmoviesoroperatethemonitorwhiledriving;asitmaycausean accident. Donotinstallthemonitorwhereitmayobstructdriversvieworobstructanairbag device. Droppingtheunitmaycausepossiblemechanicalfailure. Beforedrillingpleasecheckthatnocableorwiringisontheothersideofthewall.Please clampallwiressecurelytorecyclethepossibilityofthembeingdamagedwhilevehicleisinuse. Keepallcablesawayfromhot/movingpartsandelectricalnoisycomponents. Werecommenddoingabenchmarktestbeforeinstallationtoinsurethatallcomponentsare workingproperly. Step1:Choosethemonitorandcameralocations. Step2:Installallcablesinvehicle,whennecessarya0.8(20mm)holeshouldbedrilledfor passingcameracablethroughvehicleswalls.Installsplitgrommetswhereapplicable. Step3:Onceallcablesandwiringhavebeenproperlyrouted,performasystemfunctiontest bytemporarilyconnectingthesystem. OperatingPrecautions 1.Thedevicemaybepoweredbya12-36voltbatteryorthevehicle'selectricalsystem. 2.Makesureallcablesareconnectedproperly.Impropercableconnectionsmaydamagethe monitor.Removethepowercableconnectionswhennotusingthedevice. -6- Warning! 1.Thismonitorishighvoltage.Onlyprofessionalsshouldopenthemonitor'scase. 2.Donotwatchthevideowhiledrivingunlessyouaremonitoringtherearview cameradisplay. SpecialNote Occasionally,afewhighlightsordarkspotsmayappearontheLCDscreen.This doesnotnecessarilyindicateanymonitordefects.Nevertrytorepairthisdevice yourself.Ifanyproblemsoccur,immediatelyturnthedisplayoffandnotifyour companyoranauthorizeddealer.Anydisassemblyormodificationmayleadto damageandwillalsovoidthewarranty. CameraConnection: Locatetheclearancelightswiringonyourvehicle.Youmayneedtoremovetheinteriorpanel inordertolocate.Connectthepowercablesforcamera:Redwiretolight'spositive;Blackwire tochassisground. MonitorConnection: Cigarettelighteradapter:firmlyinsertthelighterplugtothecigarettelightersocket. Looseleadwire:Topowerthesystemconnectthepower(RED)12V+wiretoignitionpower andtheground(BLACK)wiretothechassisground.Thesearetheonlywiresneededtopower thesystem.Press"left"or"right"key…

Text truncated - open the document above for the full version.

Shenzhen Jucheng Video Communication Co., Ltd Covered Equipment Certification Attestation Letter 6/5/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BWCS-CAMERA Shenzhen Jucheng Video Communication Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Jucheng Video Communication Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Jucheng Video Communication Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Ligang WANG Title: General Manager Company Name: Shenzhen Jucheng Video Communication Co., Ltd Date: 6/5/2026

The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. 48_[model] US_Agent_2.911(d)(7) - U, V05 Shenzhen Jucheng Video Communication Co., Ltd Room 1403-1, YouSong Technology Building, No. 108, Donghuan 1st Road, Songhe Community, Longhua Street, Longhua District, Shenzhen, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: Jun. 5, 26 U.S. Agent Designation Shenzhen Jucheng Video Communication Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BWCS-CAMERA) Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] Telephone of U.S.agent: (626) 588-8039 GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Jucheng Video Communication Co., Ltd. Shenzhen Jucheng Video Communication Co., Ltd with the FRN [0038476693] accepts its obligation to maintain an agent for service of process in the United States for no less than 1 year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Signature Ligang WANG Huiying Fan General Manager Director Shenzhen Jucheng Video Communication Co., Ltd GLOCERTS TECHNOLOGY INC

Shenzhen Jucheng Video Communication Co., Ltd DATE: 6/5/2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongzhou Testing Co.,Ltd. (1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Jucheng Video Communication Co., Ltd (Room 1403-1, YouSong Technology Building, No. 108, Donghuan 1st Road, Songhe Community, Longhua Street, Longhua District, Shenzhen, Guangdong Province, China) <Signature> Name: Ligang WANG Title: General Manager Applicant Company: Shenzhen Jucheng Video Communication Co., Ltd

Date: 6/5/2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Ligang WANG Title: General Manager Company: Shenzhen Jucheng Video Communication Co., Ltd

DATE: 6/5/2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BWCS-CAMERA Product Name: Low power monitoring camera Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Ligang WANG Title: General Manager Company: Shenzhen Jucheng Video Communication Co., Ltd

Shenzhen Jucheng Video Communication Co., Ltd Room 1403-1, YouSong Technology Building, No. 108, Donghuan 1st Road, Songhe Community, Longhua Street, Longhua District, Shenzhen, Guangdong Province, China Date: 2026/6/5 Dear Sir/Madam, We, Shenzhen Jucheng Video Communication Co., Ltd, Hereby declares the following statement, PCB board, circuit, structure and internal of these model(s) are the same, Only model name is different for these model: FCC ID: 2BWCS-CAMERA Product name: Low power monitoring camera Model no.: HD-M729W -CAMERA, HD-M1010W –CAMERA, HD-M729W -Solar CAMERA, HD-M1010W -Solar CAMERA, HD-M719W, HD-M1010W, HD-C10, HD-C19 Sincerely, Name/Title： Ligang WANG / General Manager Company: Shenzhen Jucheng Video Communication Co., Ltd Address: Room 1403-1, YouSong Technology Building, No. 108, Donghuan 1st Road, Songhe Community, Longhua Street, Longhua District, Shenzhen, Guangdong Province, China Phone: 18926866856 Fax: N/A E-Mail: [email protected]

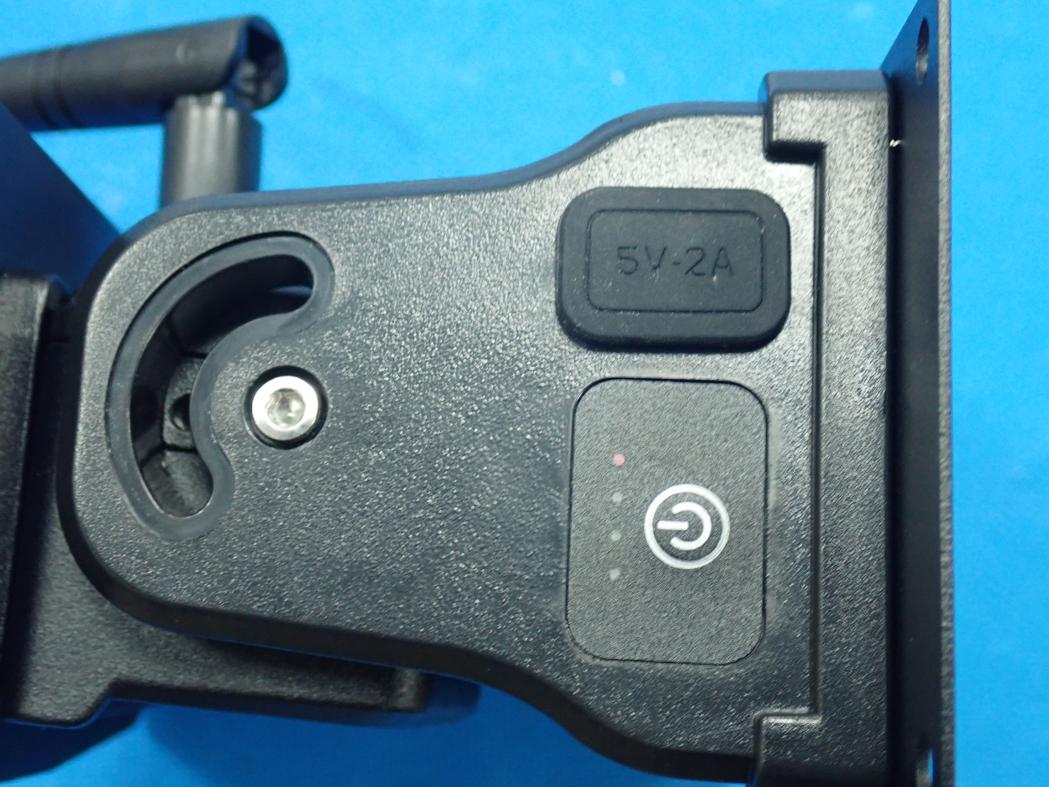

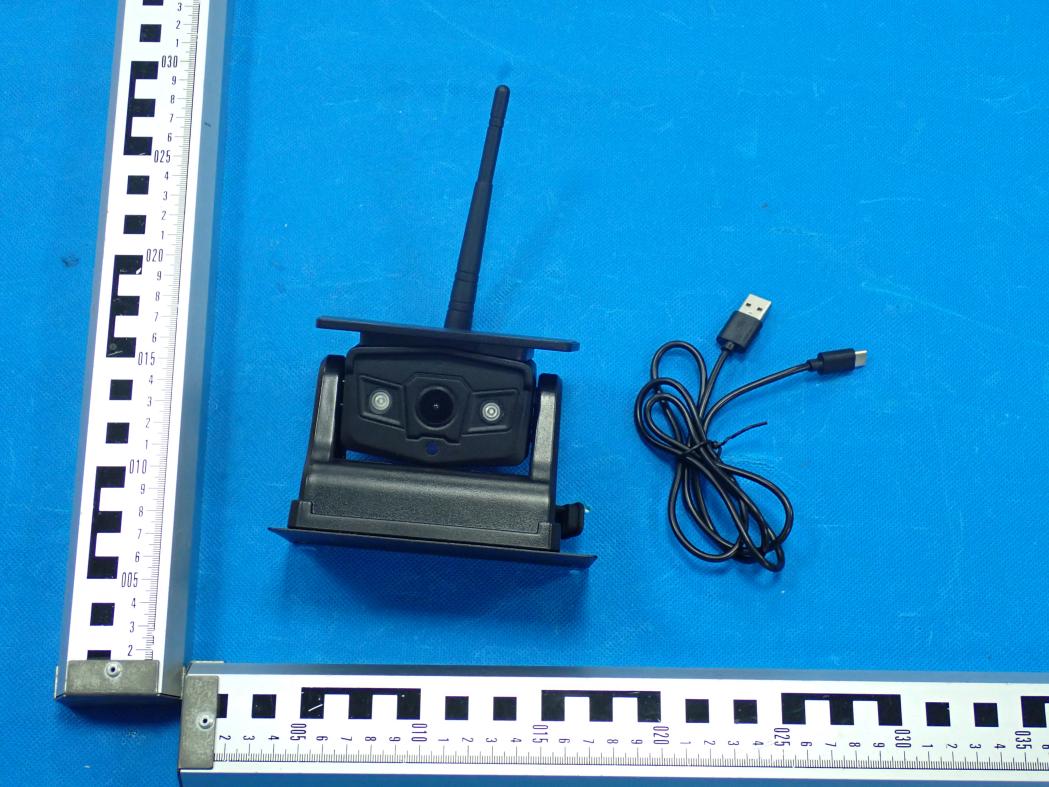

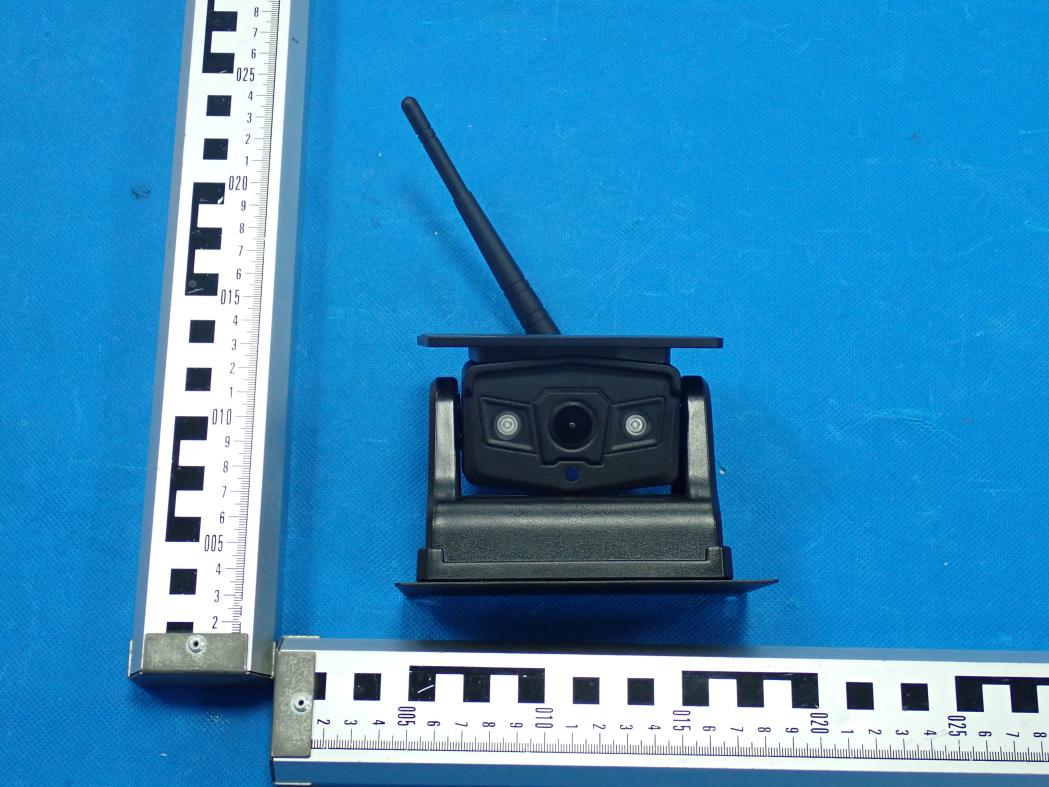

Report No.: TZ0071260502PH02 Page 1 of 5 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0071260502PH02 Page 2 of 5 External Photo 3 External Photo 4 WIFI 2.4G Antenna Report No.: TZ0071260502PH02 Page 3 of 5 External Photo 5 External Photo 6 Report No.: TZ0071260502PH02 Page 4 of 5 External Photo 7 External Photo 8 Report No.: TZ0071260502PH02 Page 5 of 5 External Photo 9 External Photo 10

The size of the label is 15mm*10mm with White forecolor. The size of the logo is 5mm*5mm. FCC ID: 2BWCS-CAMERA

Report No.: TZ0071260502PH03 Page 1 of 7 Internal Photographs of EUT Internal Photo 1 Internal Photo 2 Report No.: TZ0071260502PH03 Page 2 of 7 Internal Photo 3 Internal Photo 4 Report No.: TZ0071260502PH03 Page 3 of 7 Internal Photo 5 Internal Photo 6 Report No.: TZ0071260502PH03 Page 4 of 7 Internal Photo 7 Internal Photo 8 Report No.: TZ0071260502PH03 Page 5 of 7 Internal Photo 9 Internal Photo 10 Report No.: TZ0071260502PH03 Page 6 of 7 Internal Photo 11 Internal Photo 12 Report No.: TZ0071260502PH03 Page 7 of 7 Internal Photo 13

FCC ID: 2BWCS-CAMERA Page 1 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). FCC ID: 2BWCS-CAMERA Page 2 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Results RF Exposure at Separation distance (cm): 20 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up MPE- based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] 11B Ant1 2412 12.8 12.5 1 3.5 14.85 30.55 3060.00 11B Ant1 2437 12.87 12.5 1 3.5 14.85 30.55 3060.00 11B Ant1 2462 12.95 12.5 1 3.5 14.85 30.55 3060.00 11G Ant1 2412 13.3 13 1 3.5 15.35 34.28 3060.00 11G Ant1 2437 13.49 13 1 3.5 15.35 34.28 3060.00 11G Ant1 2462 13 12.5 1 3.5 14.85 30.55 3060.00 11N20SISO Ant1 2412 13.23 12.5 1 3.5 14.85 30.55 3060.00 11N20SISO Ant1 2437 13.34 13 1 3.5 15.35 34.28 3060.00 11N20SISO Ant1 2462 12.85 12.5 1 3.5 14.85 30.55 3060.00 11N40SISO Ant1 2422 14.13 13.5 1 3.5 15.85 38.46 3060.00 11N40SISO Ant1 2437 13.48 13 1 3.5 15.35 34.28 3060.00 11N40SISO Ant1 2452 13.46 13 1 3.5 15.35 34.28 3060.00 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.
