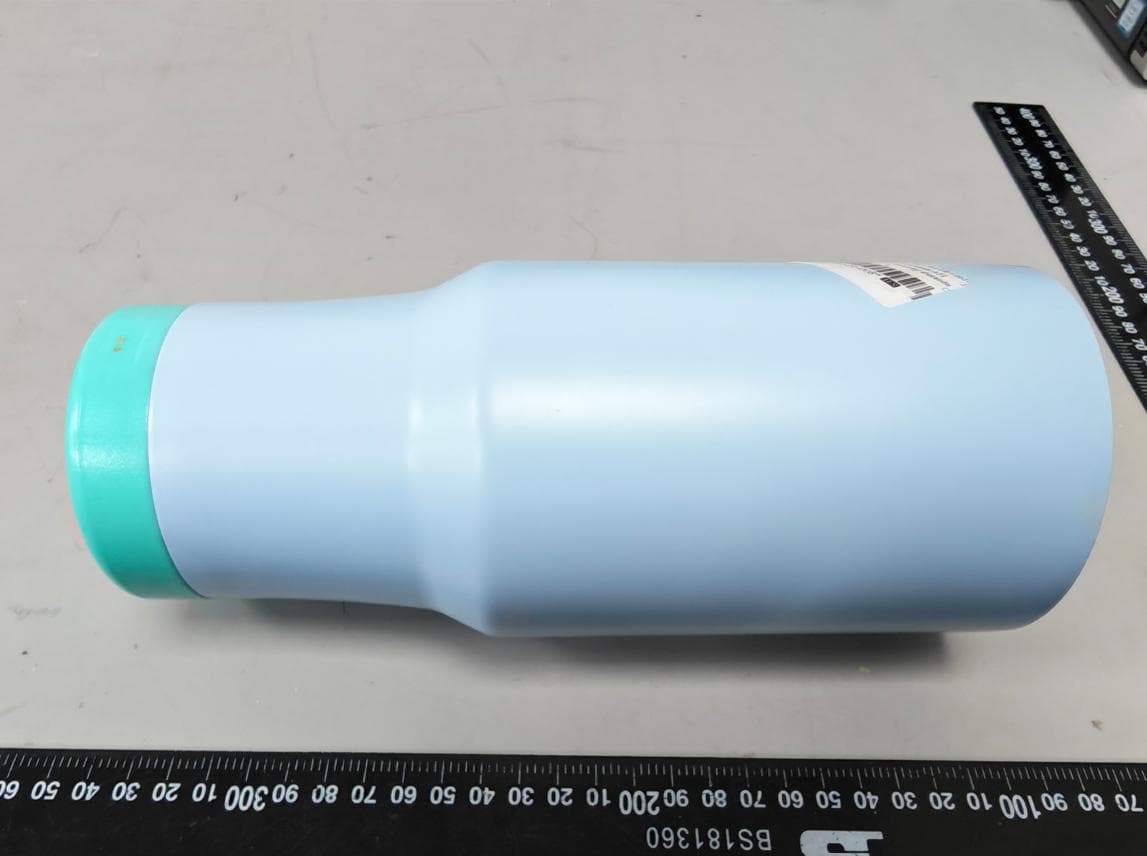

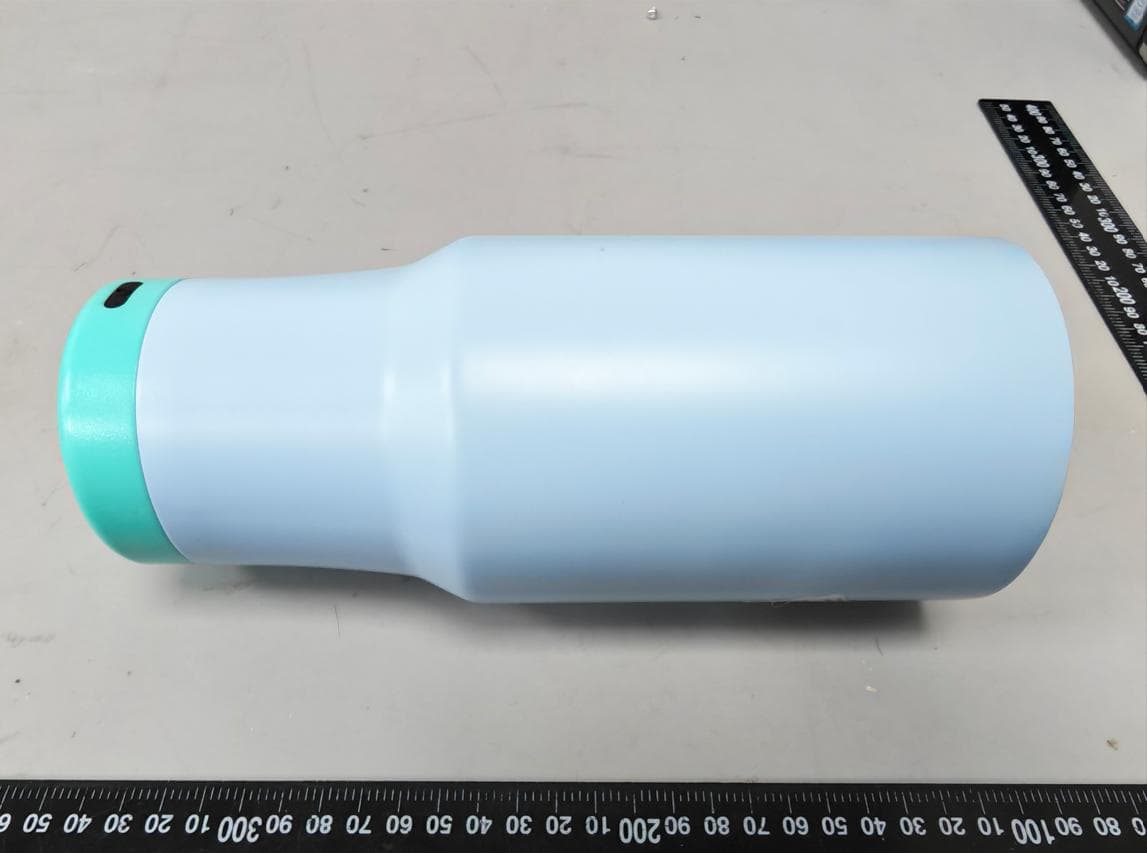

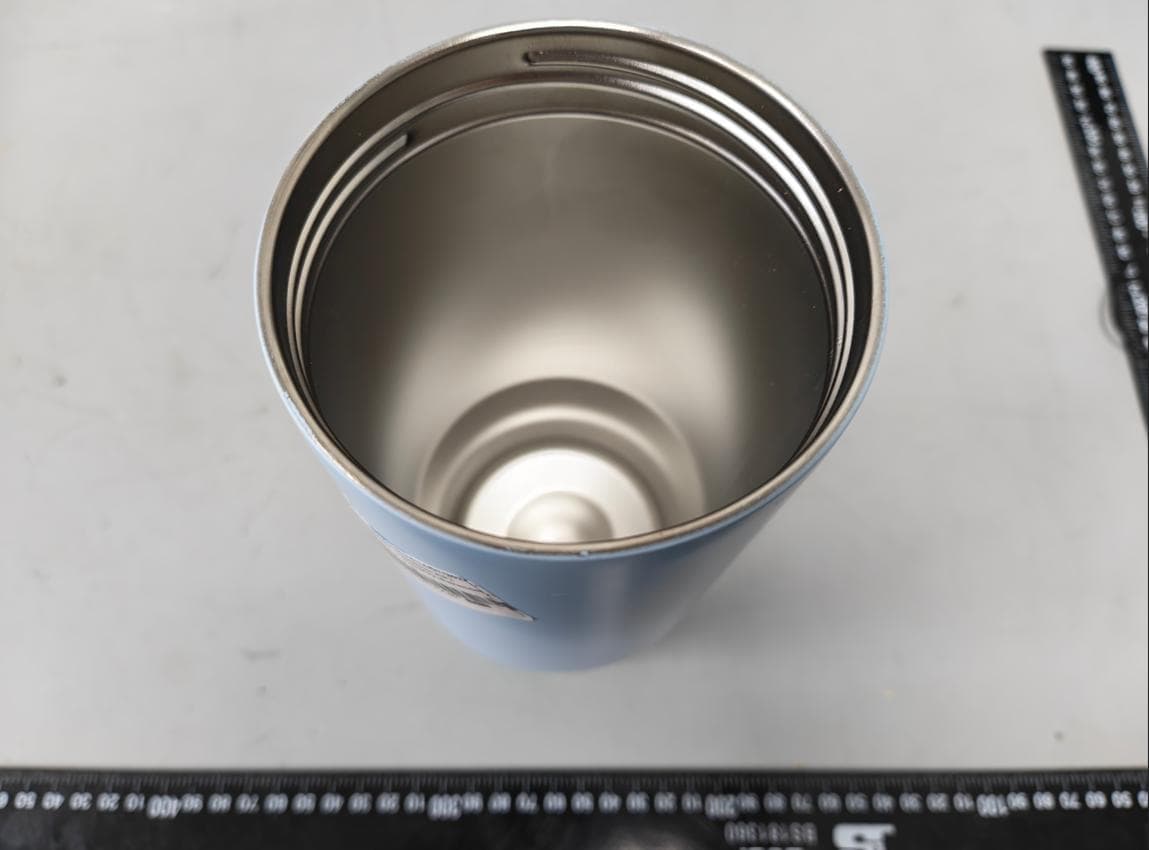

2BXTQ-WSST01Warmey Sip Smart Tumbler

Warmey Sip Smart Water Bottle – Full Text User Manual Product Manual Instructions for Use To enjoy the full experience of Warmey brand Warmey Sip smart water bottle, please read all the important information below carefully before use. Usage Methods • Before first use, clean all components with warm water mixed with neutral detergent. If your bottle comes with a lid, tighten it fully after filling liquid to achieve optimal heat retention performance. • If equipped with a lid, place the bottle upright and fasten the lid tightly after drinking. If putting the bottle inside a bag, double-check that the lid is completely secured. • Before filling liquid, pour a small amount of hot or cold water into the bottle to preheat or pre-chill the interior for 1–3 minutes, which greatly improves heat and cold insulation effects. • After use, thoroughly clean the bottle, wipe it dry with a soft cloth, and store it in a ventilated place only after all moisture has fully drained away. • Remove the base during cleaning as much as possible. Do not soak the base for a long time, and never wash it together with the bottle body in dishwashers or disinfection cabinets. Precautions This series of products is only designed to keep beverages and food warm or cold. Do not use it for any other purposes. WARNING 1. 1Do not keep dairy products or baby food warm for an extended period, as this poses a risk of bacterial growth. 2. To prevent accidents during use, comply with the following requirements: (1) Keep the product out of the reach of children and pets to avoid crush injuries and scalds. Some products contain small parts; take precautions to prevent accidental ingestion. (2) Children must use this product under adult supervision. (3) If the product label indicates it is only for cold storage, do not fill it with hot water to prevent scalding. (4) If the bottle is fitted with a lid, check that the silicone gasket is installed correctly after cleaning. Improper installation will cause the lid to tilt, leak water, and may even lead to scald injuries. 3. For bottles equipped with a lid, the following substances must NOT be filled inside: (1) Carbonated drinks, sparkling beverages, dry ice, etc. Increased internal pressure may cause liquid splashing or product damage, which endangers personal safety. (2) Milk, dairy beverages, fruit juice, and similar liquids. Long-term constant-temperature storage will easily spoil these drinks. In addition, temperature fluctuations and spoilage generate gas that raises internal bottle pressure, resulting in liquid splashing, product damage, personal injury and property loss. (3) Acidic beverages such as lemon juice and vinegar. 4. Exercise caution when using the bottle after filling it with hot drinks to avoid scalding. 5. Do not heat this product in microwaves or any other heating appliances. 6. Keep the product away from heat sources and open flames. Avoid all forms of direct heating and high-temperature steaming, which will damage the vacuum insulation layer and deform or discolor plastic components, hindering normal operation. 7. Do not touch the bottle mouth and rim with boiling hot kettles. Tilting of the bottle may cause scalds, and excessive heat may crack or deform the bottle body. 8. Dishwasher cleaning is prohibited, except for specially marked product models. 9. The lid, inner cap, bottle body and other components cannot be directly heated, steamed at high temperatures, or disinfected under sustained high heat. Such operations will deform and discolor plastic parts and destroy the bottle’s vacuum layer, affecting regular use. 10. If the bottle has a lid, overfilling beverages may cause leakage; fill liquid in appropriate amounts only. 11. Do not store salty food or soup inside the bottle for long periods, as salt corrosion may damage the product. For lidded bottles, condensation forming on the plastic lid due to temperature differences between the bottle interior and ambient air is a normal phenomenon. 12. Do not subject the bottle body to heavy impact. Surface dents from collision will damage or reduce the product’s heat retention performance. 13. Do not place the bottle in the freezer compartment of refrigerators or freezers. 14. Do not use abrasive scouring powder, metal scrub pads, degreasers, or chlorine-containing cleaners, as these substances will scratch, rust or corrode the product surface. Product Introduction Schematic Diagram of Warmey Sip Water Bottle English Translation [Bottle Lid] [Bottle Body] [Smart Base] [Power Button] [Sound Outlet] [Anti-slip Pad] [Magnetic Charging Port] [LED Light Ring] It is recommended to display the base and bottle body separately for clearer presentation. Material Specifications Materials of stainless steel parts in direct contact with drinks/food: • Bottle Liner: Austenitic Stainless Steel 06Cr19Ni10 (SUS304) • Outer Bottle Shell: Austenitic Stainless Steel 06Cr19Ni10 (SUS304) • Bottle Lid: PP Polypropylene • Straw: PP Polypropylene • Bottle Base: ABS+PC Compliance Standards China Standards • GB/T29606-2013 Stainless Steel Vacuum Flasks • GB 4806.1-2023 National Food Safety Standard: General Safety Requirements for Food Contact Materials and Products • GB 4806.7-2023 National Food Safety Standard: Plastic Materials and Products for Food Contact • GB 4806.9-2023 National Food Safety Standard: Metal Materials and Products for Food Contact • GB 4806.11-2023 National Food Safety Standard: Rubber Materials and Products for Food Contact International Certifications • US FDA Registration Number • FCC Certificate Number • CE Certificate • RoHS Certificate 3. Charging Instructions • Built-in 1500mAh lithium battery. Use a DC 5V 1A or 5V 2A power adapter. The indicator light turns red during charging and switches off once fully charged. Only use the original magnetic charging cable; align the positive and negative poles of the magnetic connector for full attachment to the charging port. • Do not use damaged power cords, plugs or wirel…

Text truncated - open the document above for the full version.

Intertek Report No.: 260908037SZN-001-Appendix B Page 22 of 31 Intertek Report No.: 260908037SZN-001-Appendix B Page 23 of 31 Intertek Report No.: 260908037SZN-001-Appendix B Page 24 of 31 Intertek Report No.: 260908037SZN-001-Appendix B Page 25 of 31 Intertek Report No.: 260908037SZN-001-Appendix B Page 26 of 31 Intertek Report No.: 260908037SZN-001-Appendix B Page 27 of 31 Intertek Report No.: 260908037SZN-001-Appendix B Page 28 of 31 Intertek Report No.: 260908037SZN-001-Appendix B Page 29 of 31 Intertek Report No.: 260908037SZN-001-Appendix B Page 30 of 31 Intertek Report No.: 260908037SZN-001-Appendix B Page 31 of 31

Conducted emission test Radiated emission test below 1GHz Radiated emission test above 1GHz RF conducted test

INTELVO INC. RF TEST REPORT Report Type: FCC Part 15.247 RF report Model: SP-AI-006,SP-AI-007,SP-AI-008,SP-AI-009 REPORT NUMBER: 2607B1372SHA-002 ISSUE DATE: September 18, 2026 DOCUMENT CONTROL NUMBER: TTRF15.247-03_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd. Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-03_V1 © 2018 Intertek Page 2 of 35 Report no.: 2607B1372SHA-002 Applicant: INTELVO INC. 8 the green ste a, dover, kent, delaware, united states 19901 Manufacturer: INTELVO INC. 8 the green ste a, dover, kent, delaware, united states 19901 FCC ID: 2BXTQ-WSST01 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2024): Radio Frequency Devices (Subpart C) ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024: American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices PREPARED BY: REVIEWED BY: Project Engineer Alexander Li Reviewer Wakeyou Wang Report No.: 2607B1372SHA-002 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 3 of 35 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ................................................................................................ 7 1.2 TECHNICAL SPECIFICATION ................................................................................................................................ 7 1.3 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 STANDARDS OR SPECIFICATION .......................................................................................................................... 9 2.2 MODE OF OPERATION DURING THE TEST .............................................................................................................. 9 2.3 TEST SOFTWARE LIST ..................................................................................................................................... 10 2.4 TEST PERIPHERALS LIST................................................................................................................................... 10 2.5 TEST ENVIRONMENT CONDITION: ..................................................................................................................... 10 2.6 INSTRUMENT LIST ......................................................................................................................................... 11 2.7 MEASUREMENT UNCERTAINTY ......................................................................................................................... 13 3 MINIMUM 6DB BANDWIDTH ..................................................................................................................... 14 3.1 LIMIT ......................................................................................................................................................... 14 3.2 MEASUREMENT PROCEDURE .......................................................................................................................... 14 3.3 TEST CONFIGURATION ................................................................................................................................... 14 3.4 TEST RESULTS OF MINIMUM 6DB BANDWIDTH ................................................................................................... 14 4 MAXIMUM CONDUCTED OUTPUT POWER AND E.I.R.P. ............................................................................. 15 4.1 LIMIT ......................................................................................................................................................... 15 4.2 MEASUREMENT PROCEDURE .......................................................................................................................... 15 4.3 TEST CONFIGURATION ................................................................................................................................... 16 4.4 TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 16 5 POWER SPECTRUM DENSITY ..................................................................................................................... 17 5.1 LIMIT .............................................…

Text truncated - open the document above for the full version.

INTELVO INC. RF TEST REPORT Report Type: FCC Part 15.247 RF report Model: SP-AI-006,SP-AI-007,SP-AI-008,SP-AI-009 REPORT NUMBER: 2607B1372SHA-001 ISSUE DATE: September 18, 2026 DOCUMENT CONTROL NUMBER: TTRF15.247-02_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd. Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-02_V1 © 2018 Intertek Page 2 of 33 Report no.: 2607B1372SHA-001 Applicant: INTELVO INC. 8 the green ste a, dover, kent, delaware, united states 19901 Manufacturer: INTELVO INC. 8 the green ste a, dover, kent, delaware, united states 19901 FCC ID: 2BXTQ-WSST01 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2024): Radio Frequency Devices (Subpart C) ANSI C63.10 (2020) +Cor.1(2023) +C63.10a (2024) +Errata to C63.10a(2024): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices PREPARED BY: REVIEWED BY: Project Engineer Alexander Li Reviewer Wakeyou Wang Report No.: 2607B1372SHA-001 TEST REPORT TTRF15.247-02_V1 © 2018 Intertek Page 3 of 33 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ................................................................................................ 7 1.2 TECHNICAL SPECIFICATION ................................................................................................................................ 7 1.3 DESCRIPTION OF TEST FACILITY .......................................................................................................................... 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 STANDARDS OR SPECIFICATION .......................................................................................................................... 9 2.2 MODE OF OPERATION DURING THE TEST .............................................................................................................. 9 2.3 TEST SOFTWARE LIST ..................................................................................................................................... 10 2.4 TEST PERIPHERALS LIST................................................................................................................................... 10 2.5 TEST ENVIRONMENT CONDITION: ..................................................................................................................... 10 2.6 INSTRUMENT LIST ......................................................................................................................................... 11 2.7 MEASUREMENT UNCERTAINTY ......................................................................................................................... 12 3 MINIMUM 6DB BANDWIDTH ..................................................................................................................... 13 3.1 LIMIT ......................................................................................................................................................... 13 3.2 MEASUREMENT PROCEDURE .......................................................................................................................... 13 3.3 TEST CONFIGURATION ................................................................................................................................... 13 3.4 TEST RESULTS OF MINIMUM 6DB BANDWIDTH ................................................................................................... 13 4 MAXIMUM CONDUCTED OUTPUT POWER AND E.I.R.P. ............................................................................. 14 4.1 LIMIT ......................................................................................................................................................... 14 4.2 MEASUREMENT PROCEDURE .......................................................................................................................... 14 4.3 TEST CONFIGURATION ................................................................................................................................... 15 4.4 TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 15 5 POWER SPECTRUM DENSITY ..................................................................................................................... 16 5.1 LIMIT ......................................…

Text truncated - open the document above for the full version.

FCC ID: 2BXTQ-WSST01 11N40SISO-Ant1-2422-30~1000-PASS 11N40SISO-Ant1-2422-1000~26500-PASS 11N40SISO-Ant1-2437-30~1000-PASS FCC ID: 2BXTQ-WSST01 11N40SISO-Ant1-2437-1000~26500-PASS 11N40SISO-Ant1-2452-30~1000-PASS 11N40SISO-Ant1-2452-1000~26500-PASS FCC ID: 2BXTQ-WSST01 Appendix H: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Factor 11B Ant1 2412 1.01 1.11 90.99 0.41 11B Ant1 2437 1.01 1.11 90.99 0.41 11B Ant1 2462 1.01 1.11 90.99 0.41 11G Ant1 2412 0.62 0.67 92.54 0.34 11G Ant1 2437 0.62 0.67 92.54 0.34 11G Ant1 2462 0.62 0.67 92.54 0.34 11N20SISO Ant1 2412 0.62 0.67 92.54 0.34 11N20SISO Ant1 2437 0.61 0.67 91.04 0.41 11N20SISO Ant1 2462 0.61 0.66 92.42 0.34 11N40SISO Ant1 2422 0.32 0.37 86.49 0.63 11N40SISO Ant1 2437 0.32 0.40 80.00 0.97 11N40SISO Ant1 2452 0.32 0.37 86.49 0.63 FCC ID: 2BXTQ-WSST01 Test Graphs NTNV-11B-Ant1-2412 NTNV-11B-Ant1-2437 FCC ID: 2BXTQ-WSST01 NTNV-11B-Ant1-2462 NTNV-11G-Ant1-2412 NTNV-11G-Ant1-2437 NTNV-11G-Ant1-2462 FCC ID: 2BXTQ-WSST01 NTNV-11N20SISO-Ant1-2412 NTNV-11N20SISO-Ant1-2437 NTNV-11N20SISO-Ant1-2462 FCC ID: 2BXTQ-WSST01 NTNV-11N40SISO-Ant1-2422 NTNV-11N40SISO-Ant1-2437 NTNV-11N40SISO-Ant1-2452

FCC ID: 2BXTQ-WSST01 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS FCC ID: 2BXTQ-WSST01 Appendix F: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 2.76 -45.23 ≤-17.24 PASS 11B Ant1 High 2462 2.55 -46.72 ≤-17.45 PASS 11G Ant1 Low 2412 -3.29 -40.93 ≤-23.29 PASS 11G Ant1 High 2462 -3.39 -47.31 ≤-23.39 PASS 11N20SIS O Ant1 Low 2412 -4.35 -42.79 ≤-24.35 PASS 11N20SIS O Ant1 High 2462 -5.24 -47.68 ≤-25.24 PASS 11N40SIS O Ant1 Low 2422 -6.97 -40.95 ≤-26.97 PASS 11N40SIS O Ant1 High 2452 -8.47 -46.72 ≤-28.47 PASS FCC ID: 2BXTQ-WSST01 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS FCC ID: 2BXTQ-WSST01 11G-Ant1-2462-PASS 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2452-PASS FCC ID: 2BXTQ-WSST01 Appendix G: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 30~1000 2.92 -39.01 ≤-17.08 PASS 11B Ant1 2412 1000~26500 2.92 -38.21 ≤-17.08 PASS 11B Ant1 2437 30~1000 2.45 -38.37 ≤-17.55 PASS 11B Ant1 2437 1000~26500 2.45 -22.28 ≤-17.55 PASS 11B Ant1 2462 30~1000 2.16 -40.15 ≤-17.84 PASS 11B Ant1 2462 1000~26500 2.16 -19.38 ≤-17.84 PASS 11G Ant1 2412 30~1000 -2.21 -37.78 ≤-22.21 PASS 11G Ant1 2412 1000~26500 -2.21 -38.4 ≤-22.21 PASS 11G Ant1 2437 30~1000 -3.28 -37.7 ≤-23.28 PASS 11G Ant1 2437 1000~26500 -3.28 -38.43 ≤-23.28 PASS 11G Ant1 2462 30~1000 -3.12 -38.19 ≤-23.12 PASS 11G Ant1 2462 1000~26500 -3.12 -38.11 ≤-23.12 PASS 11N20SISO Ant1 2412 30~1000 -4.61 -43.27 ≤-24.61 PASS 11N20SISO Ant1 2412 1000~26500 -4.61 -39.28 ≤-24.61 PASS 11N20SISO Ant1 2437 30~1000 -4.58 -43.9 ≤-24.58 PASS 11N20SISO Ant1 2437 1000~26500 -4.58 -38.5 ≤-24.58 PASS 11N20SISO Ant1 2462 30~1000 -5.29 -36.39 ≤-25.29 PASS 11N20SISO Ant1 2462 1000~26500 -5.29 -37.77 ≤-25.29 PASS 11N40SISO Ant1 2422 30~1000 -7.01 -37.78 ≤-27.01 PASS 11N40SISO Ant1 2422 1000~26500 -7.01 -39.33 ≤-27.01 PASS 11N40SISO Ant1 2437 30~1000 -7.25 -37.24 ≤-27.25 PASS 11N40SISO Ant1 2437 1000~26500 -7.25 -38.77 ≤-27.25 PASS 11N40SISO Ant1 2452 30~1000 -7.96 -42.27 ≤-27.96 PASS 11N40SISO Ant1 2452 1000~26500 -7.96 -38.53 ≤-27.96 PASS FCC ID: 2BXTQ-WSST01 Test Graphs 11B-Ant1-2412-30~1000-PASS 11B-Ant1-2412-1000~26500-PASS 11B-Ant1-2437-30~1000-PASS FCC ID: 2BXTQ-WSST01 11B-Ant1-2437-1000~26500-PASS 11B-Ant1-2462-30~1000-PASS 11B-Ant1-2462-1000~26500-PASS FCC ID: 2BXTQ-WSST01 11G-Ant1-2412-30~1000-PASS 11G-Ant1-2412-1000~26500-PASS 11G-Ant1-2437-30~1000-PASS FCC ID: 2BXTQ-WSST01 11G-Ant1-2437-1000~26500-PASS 11G-Ant1-2462-30~1000-PASS 11G-Ant1-2462-1000~26500-PASS FCC ID: 2BXTQ-WSST01 11N20SISO-Ant1-2412-30~1000-PASS 11N20SISO-Ant1-2412-1000~26500-PASS 11N20SISO-Ant1-2437-30~1000-PASS FCC ID: 2BXTQ-WSST01 11N20SISO-Ant1-2437-1000~26500-PASS 11N20SISO-Ant1-2462-30~1000-PASS 11N20SISO-Ant1-2462-1000~26500-PASS

FCC ID: 2BXTQ-WSST01 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.080 2407.480 2416.560 0.5 PASS 11B Ant1 2437 9.040 2432.440 2441.480 0.5 PASS 11B Ant1 2462 9.040 2457.480 2466.520 0.5 PASS 11G Ant1 2412 16.320 2403.840 2420.160 0.5 PASS 11G Ant1 2437 16.280 2428.880 2445.160 0.5 PASS 11G Ant1 2462 16.320 2453.840 2470.160 0.5 PASS 11N20SISO Ant1 2412 17.280 2403.240 2420.520 0.5 PASS 11N20SISO Ant1 2437 17.520 2428.240 2445.760 0.5 PASS 11N20SISO Ant1 2462 17.520 2453.240 2470.760 0.5 PASS 11N40SISO Ant1 2422 35.120 2404.480 2439.600 0.5 PASS 11N40SISO Ant1 2437 34.960 2419.560 2454.520 0.5 PASS 11N40SISO Ant1 2452 35.120 2434.480 2469.600 0.5 PASS FCC ID: 2BXTQ-WSST01 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS FCC ID: 2BXTQ-WSST01 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.068 2405.4799 2418.5479 --- --- 11B Ant1 2437 13.084 2430.4634 2443.5474 --- --- 11B Ant1 2462 13.110 2455.4676 2468.5776 --- --- 11G Ant1 2412 17.266 2403.4213 2420.6873 --- --- 11G Ant1 2437 17.251 2428.4121 2445.6631 --- --- 11G Ant1 2462 17.281 2453.4485 2470.7295 --- --- 11N20SISO Ant1 2412 18.258 2402.8799 2421.1379 --- --- 11N20SISO Ant1 2437 18.321 2427.8198 2446.1408 --- --- 11N20SISO Ant1 2462 18.284 2452.8705 2471.1545 --- --- 11N40SISO Ant1 2422 36.509 2403.8724 2440.3814 --- --- 11N40SISO Ant1 2437 36.552 2418.7846 2455.3366 --- --- 11N40SISO Ant1 2452 36.642 2433.8720 2470.5140 --- --- FCC ID: 2BXTQ-WSST01 Test Graphs 11B-Ant1-2412 11B-Ant1-2437 11B-Ant1-2462 FCC ID: 2BXTQ-WSST01 11G-Ant1-2412 11G-Ant1-2437 11G-Ant1-2462 FCC ID: 2BXTQ-WSST01 11N20SISO-Ant1-2412 11N20SISO-Ant1-2437 11N20SISO-Ant1-2462 FCC ID: 2BXTQ-WSST01 11N40SISO-Ant1-2422 11N40SISO-Ant1-2437 11N40SISO-Ant1-2452 FCC ID: 2BXTQ-WSST01 Appendix C: Maximum conducted output power Test Result Average Test Mode Antenna Frequenc y[MHz] Average power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 15.15 90.99 0.41 15.56 ≤30.0 0 PASS 11B Ant1 2437 14.65 90.99 0.41 15.06 ≤30.0 0 PASS 11B Ant1 2462 14.00 90.99 0.41 14.41 ≤30.0 0 PASS 11G Ant1 2412 16.20 92.54 0.34 16.54 ≤30.0 0 PASS 11G Ant1 2437 15.85 92.54 0.34 16.19 ≤30.0 0 PASS 11G Ant1 2462 15.27 92.54 0.34 15.61 ≤30.0 0 PASS 11N20SI SO Ant1 2412 14.22 92.54 0.34 14.56 ≤30.0 0 PASS 11N20SI SO Ant1 2437 13.62 91.04 0.41 14.03 ≤30.0 0 PASS 11N20SI SO Ant1 2462 13.27 92.42 0.34 13.61 ≤30.0 0 PASS 11N40SI SO Ant1 2422 13.55 86.49 0.63 14.18 ≤30.0 0 PASS 11N40SI SO Ant1 2437 13.26 80.00 0.97 14.23 ≤30.0 0 PASS 11N40SI SO Ant1 2452 12.73 86.49 0.63 13.36 ≤30.0 0 PASS FCC ID: 2BXTQ-WSST01 Test Graphs Average 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS FCC ID: 2BXTQ-WSST01 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.94 ≤8.00 PASS 11B Ant1 2437 -12.34 ≤8.00 PASS 11B Ant1 2462 -12.71 ≤8.00 PASS 11G Ant1 2412 -16.78 ≤8.00 PASS 11G Ant1 2437 -17.25 ≤8.00 PASS 11G Ant1 2462 -17.65 ≤8.00 PASS 11N20SISO Ant1 2412 -18.62 ≤8.00 PASS 11N20SISO Ant1 2437 -19.42 ≤8.00 PASS 11N20SISO Ant1 2462 -19.57 ≤8.00 PASS 11N40SISO Ant1 2422 -21.02 ≤8.00 PASS 11N40SISO Ant1 2437 -21.33 ≤8.00 PASS 11N40SISO Ant1 2452 -21.86 ≤8.00 PASS FCC ID: 2BXTQ-WSST01 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS FCC ID: 2BXTQ-WSST01 Appendix E: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] 11B Ant1 2412 2411.51 2.92 11B Ant1 2437 2437.50 2.45 11B Ant1 2462 2461.51 2.16 11G Ant1 2412 2413.27 -2.21 11G Ant1 2437 2439.52 -3.28 11G Ant1 2462 2466.99 -3.12 11N20SISO Ant1 2412 2407.00 -4.61 11N20SISO Ant1 2437 2430.75 -4.58 11N20SISO Ant1 2462 2463.26 -5.29 11N40SISO Ant1 2422 2425.74 -7.01 11N40SISO Ant1 2437 2440.72 -7.25 11N40SISO Ant1 2452 2455.74 -7.96 FCC ID: 2BXTQ-WSST01 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS FCC ID: 2BXTQ-WSST01 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS

BLE_1M-Ant1-2480-0~Reference-PASS BLE_1M-Ant1-2480-30~1000-PASS BLE_1M-Ant1-2480-1000~26500-PASS BLE_2M-Ant1-2402-0~Reference-PASS BLE_2M-Ant1-2402-30~1000-PASS BLE_2M-Ant1-2402-1000~26500-PASS BLE_2M-Ant1-2440-0~Reference-PASS BLE_2M-Ant1-2440-30~1000-PASS BLE_2M-Ant1-2440-1000~26500-PASS BLE_2M-Ant1-2480-0~Reference-PASS BLE_2M-Ant1-2480-30~1000-PASS BLE_2M-Ant1-2480-1000~26500-PASS Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] BLE_1M Ant1 2440 2.10 2.50 84.00 0.76 BLE_1M Ant1 2480 2.10 2.50 84.00 0.76 BLE_2M Ant1 2402 1.06 1.87 56.68 2.47 BLE_2M Ant1 2440 1.06 1.88 56.38 2.49 BLE_2M Ant1 2480 1.06 1.87 56.68 2.47 Test Graphs NTNV-BLE_1M-Ant1-2440 NTNV-BLE_1M-Ant1-2480 NTNV-BLE_2M-Ant1-2402 NTNV-BLE_2M-Ant1-2440 NTNV-BLE_2M-Ant1-2480 Appendix I: Emissions in Restricted Bands Test Result TestMode Antenna ChName Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict TestMode Antenna ChName Channel Detector Freq Result Limit E Limit1 Verdict Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Test Graphs

Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.648 2401.684 2402.332 0.5 PASS BLE_1M Ant1 2440 0.660 2439.676 2440.336 0.5 PASS BLE_1M Ant1 2480 0.636 2479.688 2480.324 0.5 PASS BLE_2M Ant1 2402 1.096 2401.472 2402.568 0.5 PASS BLE_2M Ant1 2440 1.100 2439.468 2440.568 0.5 PASS BLE_2M Ant1 2480 1.100 2479.468 2480.568 0.5 PASS Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Appendix B: Occupied Channel Bandwidth Test Result TestMod…
