A25-TX003EFan Remote Controller

OPERATION INSTRUCTION MODEL:TX003 TX003-R TX003-E TX003-ER Back Front Back 6 Back 5 Back Remote control functions: 1.Fan speed control button To control the ceiling fan speed 1 6 2.Fan off button To turn the fan off 3.Reverse function button To control fan direction 4.Light control button To control light on and off. 5.CODE setting button With fan power off arrange code switch to desired code setting.Turn fan power on. : - ：. :. : :, Remote control functions: 1.Fan speed control button To control the ceiling fan speed 1 6 2.Fan off button To turn the fan off 3.Reverse function button To control fan direction 4.Light control button To control light on and off. 5.CODE setting button With fan power off arrange code switch to desired code setting.Turn fan power on. 6.Extended Function Button. : - ：. :. : :, Remote control functions: 1.Fan speed control button To control the ceiling fan speed 1 6. 2.Fan off button To turn the fan off 3.Reverse function button To control fan direction 4.Light control button To control light on and off. : - ：. :. : Remote control functions: 1.Fan speed control button To control the ceiling fan speed 1 6. 2.Fan off button To turn the fan off 3.Reverse function button To control fan direction 4.Light control button To control light on and off. 5.Extended Function Button. : - ：. :. : ● . Learning Code Pairing: Within 30 seconds after power on, press and hold Button2&5atthesame time for 5 seconds. The light will signify pairing is done Light will on when it was off, vice versa. ● . Learning Code Pairing: Within 30 seconds after power on, press and hold Button2&5atthesame time for 5 seconds. The light will signify pairing is done Light will on when it was off, vice versa. Note:Install the 12-volt battery(not included) to the remote control. TX003 TX003-R TX003-E TX003-ER OPERATION INSTRUCTION Note: The receiver(inside the motor)provides the function of multiplicative protection. 1.Lock position: The DC motor has a built-in safety feature against obstruction during operation. If this occurs, the motor will discontinue operation within 3 seconds of interruption. To reset, simply disable power supply to the fan motor and re-start. 2.Over 80W protection: When the receiver detects power consumption is greater the 80W, the receiver power will immediately discontinue. To reset, simply disable power supply to the fan motor and re-start. 3.Blade setup of motor is arrange according to loading condition; please only install approved blades from a certified dealer or this may avoid the factory warranty. ●Products shall be subject to any changes without additional notices due to DawnSun will keep innovation and optimization on the products. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference This device must accept any interference received including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment . . ,(2) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and use in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1.Reorient or relocate the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. , Caution: Changes or modifications not expressly approved by the party responsible for compliance

SchDiagram Transmitter Circuit Reference Oscillation Source (315MHz) Button/Coding Indicating Circuit MCU Battery/Power Supply Circuit

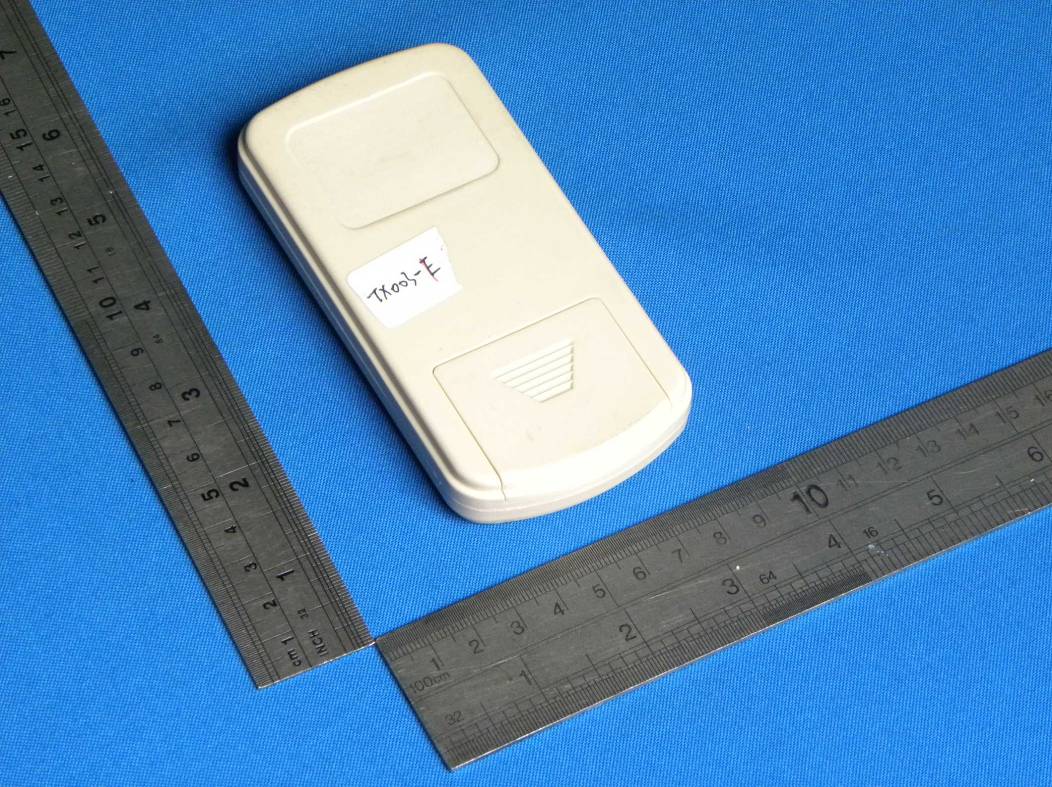

General Appearance of the EUT

FCC ID Label FCC ID: A25-TX003E This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This devices may not cause harmful interference, (2)This device must accept any interference received, including interference that may cause undesired operation. 30 40 MODEL:TX003 TX003-R TX003-E TX003-ER

Internal Photo

Operation Description All are “OOK” modulation transmitter circuit, transmission frequency is 315Mz, consists of Power Supply Circuit (12V), Master Control MCU, Transmitter Circuit (315Mz), Reference Oscillation Source, Keyboard Scanning Circuit and Indicating Circuit.

Operation Description All are “OOK” modulation transmitter circuit, transmission frequency is 315Mz, consists of Power Supply Circuit (12V), Master Control MCU, Transmitter Circuit (315Mz), Reference Oscillation Source, Keyboard Scanning Circuit and Indicating Circuit.

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2011/11/25 Sheet of File: E:\ 产品开发管理 \..\TX002,TX003.SchDoc Drawn By: S9recerseS7off +12V 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 IC1TI1107-CD21 LED1RED- Φ 3 S53S3 2 C11104 GND R21K C1104 2 31 S10INC/CFL S1 1 S2 4 S4 5 S6 6 S8dim 1234 5678 SW1SW-DIP4 VCC C10104 VSS R4 200(0603) R5100~180K(0603) C4 30P(0603) C3 8P(0603) SAW1315MHZ R3 68~240R(0603) C2221/25V(0603) R1 15R(0603) 1 2 L1Φ 0.42QA- Φ 1.2*5.75T C57P(0603) C6 1.5P(0603) C724P(0603) C8 30P(0603) C9 2.5P(0603) GND GND GND GND GND 1 23 Q3 R25 R64.7M R74.7M Q1 2SK3018 TX002/-R/-E/-ERTX003/-R/-E/-ER S10TX002-R √ TX002-ER √ TX003-R √ TX003-ER √ SW1TX002 √ TX002-R √ TX003 √ TX003-R √

REPORT NO.: FTS11GR-055E FCC ID: A25-TX003E DATE: 11/25/2011 Page 1 of 23 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF FAN REMOTE CONTROLLER MODEL No.: TX002,TX002-R,TX002-E,TX002-ER, TX003,TX003-R,TX003-E, TX003-ER FCC ID: A25-TX003E REPORT NO: FTS11GR-055E ISSUE DATE: Nov. 25, 2011 Prepared for DawnSun Electronic Technology.Co.,Ltd.ZhongShan NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN,GUANGDONG 528471 CHINA Prepared by Future Test Services (Zhongshan)Co., Ltd. 2/F,NO.33 Xiangfeng South Road, Xiaolan Town, Zhongshan City, Guangdong Province, China. Tel : +86-760-22582758 Fax: +86-760-22582768 REPORT NO.: FTS11GR-055E FCC ID: A25-TX003E DATE: 11/25/2011 Page 2 of 23 VERIFICATION OF COMPLIANCE Applicant: DawnSun Electronic Technology.Co.,Ltd.ZhongShan NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN, GUANGDONG 528471 CHINA Manufacturer DawnSun Electronic Technology.Co.,Ltd.ZhongShan NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN, GUANGDONG 528471 CHINA Product Description: FAN REMOTE CONTROLLER Integral PCB antenna 0dBi Pulse train modulation OOK Model Number: Basic Model: TX003-E Additional Model: TX002,TX002-R,TX002-E,TX002-ER,TX003, TX003-R, TX003-ER Serial Number: N/A File Number: FTS11GR-055E Date of Test: Nov.16, 2011 to Nov.25 2011 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC 15 Paragraph 15.205, Paragraph 15.209, Paragraph 15.231,Paragraph 15.31, Paragraph 15.33, Paragraph 15.35. The test results of this report relate only to the tested sample identified in this report. Approved By Henry Wang / Manager Future Test Services (Zhongshan)Co., Ltd. REPORT NO.: FTS11GR-055E FCC ID: A25-TX003E DATE: 11/25/2011 Page 3 of 23 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................... 10 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT).......... 11 5.1 MEASUREMENT PROCEDURE:................................................................................................................ 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 11 5.4 MEASUREMENT RESULT:....................................................................................................................... 11 5.5 CONDUCTED MEASUREMENT PHOTOS:.................................................................................................... 11 6. RADIATED EMISSION TEST ............................................................................................ 12 6.1 MEASUREMENT PROCEDURE................................................................................................................. 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 13 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 14 6.4 MEASUREMENT RESULT........................................................................................................................ 15 7. DEACTIVATION TESTING ............................................................................................... 17 7.1 REQUIREMENT....................................................................................................................................... 17 7.2 TEST SET-UP .....................................…
