A25-TX007RFan remote Controller

OPERATION INSTRUCTION ① ② ③ ④ Front ●Learning Code -With the main power on, press the &button on the transmitter at the same time and hold for 5 seconds could achieve the learning code. MODEL: TX007 TX007-R Remote Functions: ● ● Light Source Auto-recognition Technique :Be able to recognize incandescent and CFL automatically. Switch Off Memory - when power is off and back again, resume the status of both light and fan before switch off. Back Back : , ◎ ◎ : . 1.Fan speed control button To control the ceiling fan speed HIGH MEDIUM,LOW. 2.FAN/OFF button:Turn off the fan; Press and hold for 5 seconds to enter Light Delay Off mode. 3.LIGHT ON/OFF/DIMMER button To control light on,off and dimmer : , ◎ ◎ : . 1.Fan speed control button To control the ceiling fan speed HIGH MEDIUM,LOW. 2.FAN/OFF button:Turn off the fan; Press and hold for 5 seconds to enter Light Delay Off mode. 3.LIGHT ON/OFF/DIMMER button To control light on,off and dimmer 4. Extended FunctionSwitch. Note:Install the 12-volt battery( included) to the remote control. TX007 TX007-R ●Products shall be subject to any changes without additional notices due to DawnSun will keep innovation and optimization on the products. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference This device must accept any interference received including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment . ,(2) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and use in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1.Reorient or relocate the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. , OPERATION INSTRUCTION

SchDiagram Transmitter Circuit Reference Oscillation Source (315MHz) Button/Coding Indicating Circuit MCU Battery/Power Supply Circuit

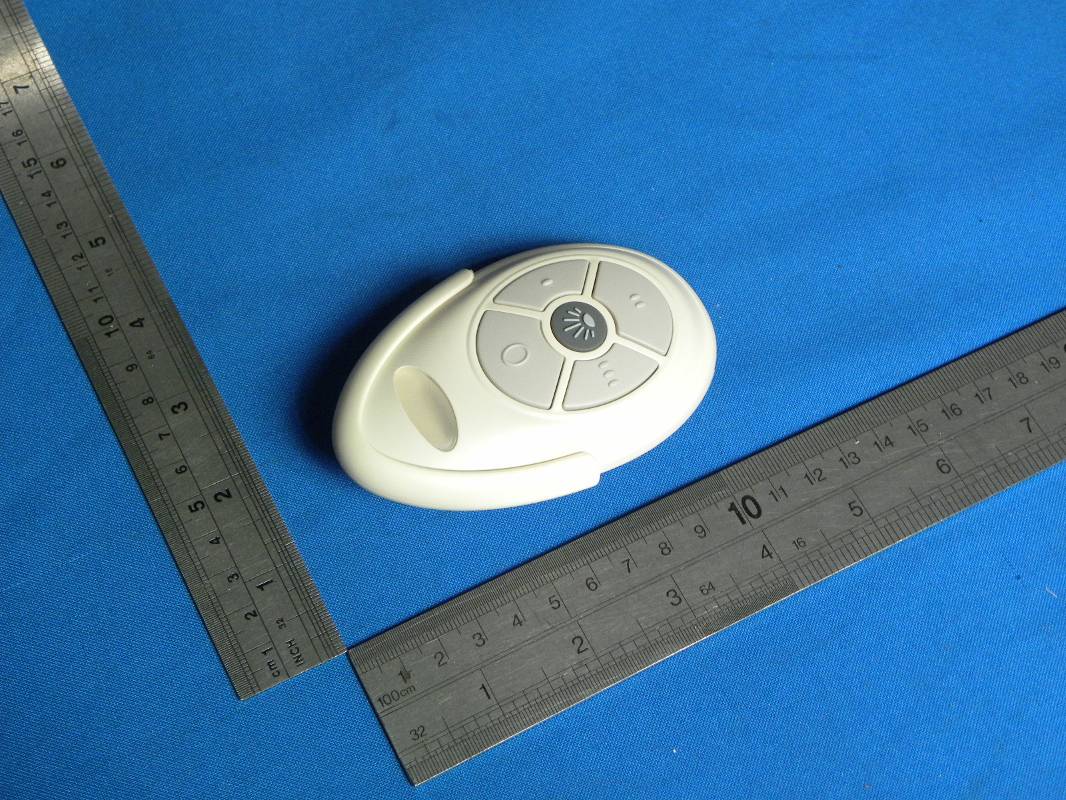

General Appearance of the EUT

FCC ID Label MODEL: TX007 TX007-R FCC ID: A25-TX007R FCC ID: A25-TX007R 21.5mm 2mm

Internal Photo

All are “OOK” modulation transmitter circuit, transmission frequency is 315Mz, consists of Power Supply Circuit (12V), Master Control MCU, Transmitter Circuit (315Mz), Reference Oscillation Source, Keyboard Scanning Circuit and Indicating Circuit.

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2012/4/14 Sheet of File: C:\Users\..\TX007.TX007-R-FCC.SchDoc Drawn By: S1LightS2HIS3Med +12VVSS R3 100 Ω -3K R510K-1M C3 10PF-100PF C2 1PF-10PF C1 100PF-1000PF SAW1315MHZ Q29018 S4LowS5OFF C50.1uF-1uF/25V R4NA C4100PF-0.1uF R110 Ω -100 Ω 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 IC1TI11xx R7 100 Ω -5.1K 2 31 S10MODEL:TX007(NA) R8 100 Ω -5.1K L1/L3 led L2/L4 led C60.1uF-1uF/25V HT71XX Vin GND Vout U1HT7150 C70.1uF-1uF/25V R6MODEL:TX007-R(NA) MODEL:TX007-R(SW) MODEL:TX007-R(0 Ω

REPORT NO.: FTS12DR-058E FCC ID: A25-TX007R DATE: 4/16/2012 Page 1 of 23 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF FAN REMOTE CONTROLLER MODEL No.: TX007-R,TX007 FCC ID: A25-TX007R REPORT NO: FTS12DR-058E ISSUE DATE: Apr.16, 2012 Prepared for DawnSun Electronic Technology.Co.,Ltd.ZhongShan NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN,GUANGDONG 528471 CHINA Prepared by Future Test Services (Zhongshan)Co., Ltd. 2/F,NO.33 Xiangfeng South Road, Xiaolan Town, Zhongshan City, Guangdong Province, China. Tel : +86-760-22582758 Fax: +86-760-22582768 REPORT NO.: FTS11GR-055E FCC ID: A25-TX007R DATE: 4/16/2012 Page 2 of 23 VERIFICATION OF COMPLIANCE Applicant: DawnSun Electronic Technology.Co.,Ltd.ZhongShan NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN, GUANGDONG 528471 CHINA Manufacturer DawnSun Electronic Technology.Co.,Ltd.ZhongShan NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN, GUANGDONG 528471 CHINA Product Description: FAN REMOTE CONTROLLER Integral PCB antenna 0dBi Pulse train modulation OOK Model Number: Basic Model: TX007-R Additional Model: TX007 Serial Number: N/A File Number: FTS12DR-058E Date of Test: Apr.12, 2012 to Apr.16 2012 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC 15 Paragraph 15.205, Paragraph 15.209, Paragraph 15.231,Paragraph 15.31, Paragraph 15.33, Paragraph 15.35. The test results of this report relate only to the tested sample identified in this report. Approved By Henry Wang / Manager Future Test Services (Zhongshan)Co., Ltd. REPORT NO.: FTS11GR-055E FCC ID: A25-TX007R DATE: 4/16/2012 Page 3 of 23 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................... 10 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT).......... 11 5.1 MEASUREMENT PROCEDURE:................................................................................................................ 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 11 5.4 MEASUREMENT RESULT:....................................................................................................................... 11 5.5 CONDUCTED MEASUREMENT PHOTOS:.................................................................................................... 11 6. RADIATED EMISSION TEST ............................................................................................ 12 6.1 MEASUREMENT PROCEDURE................................................................................................................. 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 13 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 14 6.4 MEASUREMENT RESULT........................................................................................................................ 15 7. DEACTIVATION TESTING ............................................................................................... 17 7.1 REQUIREMENT....................................................................................................................................... 17 7.2 TEST SET-UP ........................................................................................................................................... 1…

Text truncated - open the document above for the full version.

Setup Photos
