A25-TX007R1FAN REMOTE CONTROLLER

FCC ID Label MODEL: TX007-N TX007-L TX007-S TX007-LS TX007-R1 TX007-LR FCC ID: A25-TX007R1 FCC ID: A25-TX007R1 22mm 2mm OPERATION INSTRUCTION ① ② ③ ④ Front Back Back : , ◎ ◎ : . 1.Fan speed control button To control the ceiling fan speed HIGH MEDIUM,LOW. 2.FAN/OFF button:Turn off the fan; Press and hold for 5 seconds to enter Light Delay Off mode. 3.LIGHT ON/OFF/DIMMER button To control light on,off and dimmer : , ◎ ◎ : . 1.Fan speed control button To control the ceiling fan speed HIGH MEDIUM,LOW. 2.FAN/OFF button:Turn off the fan; Press and hold for 5 seconds to enter Light Delay Off mode. 3.LIGHT ON/OFF/DIMMER button To control light on,off and dimmer Tact Switch: Press to learn code. 4. Note:Install the 12-volt battery( included) to the remote control. TX007-N TX007-L 12V 12V MODEL: TX007-N TX007-L TX007-S TX007-LS TX007-R1 TX007-LR 12V 12V ④ ④ ④ ④ Back Back Back Back : , ◎ ◎ : . 1.Fan speed control button To control the ceiling fan speed HIGH MEDIUM,LOW. 2.FAN/OFF button:Turn off the fan; Press and hold for 5 seconds to enter Light Delay Off mode. 3.LIGHT ON/OFF/DIMMER button To control light on,off and dimmer 4.DIP Switch: Slide DIP switches to the same position as set on your receiver. The code on receiver and transmitter must be the same. : , ◎ ◎ : . 1.Fan speed control button To control the ceiling fan speed HIGH MEDIUM,LOW. 2.FAN/OFF button:Turn off the fan; Press and hold for 5 seconds to enter Light Delay Off mode. 3.LIGHT ON/OFF/DIMMER button To control light on,off and dimmer Extended Function Switch 4. : , ◎ ◎ : . 1.Fan speed control button To control the ceiling fan speed HIGH MEDIUM,LOW. 2.FAN/OFF button:Turn off the fan; Press and hold for 5 seconds to enter Light Delay Off mode. 3.LIGHT ON/OFF/DIMMER button To control light on,off and dimmer Tact Switch: Press to learn code. 5. DIP Switch: Slide DIP switches to the same position as set on your receiver. The code on receiver and transmitter must be the same. 4. : , ◎ ◎ : . 1.Fan speed control button To control the ceiling fan speed HIGH MEDIUM,LOW. 2.FAN/OFF button:Turn off the fan; Press and hold for 5 seconds to enter Light Delay Off mode. 3.LIGHT ON/OFF/DIMMER button To control light on,off and dimmer Tact Switch: Press to learn code. 5. Extended Function Switch. 4. TX007-S TX007-R1 TX007-LS TX007-LR OPERATION INSTRUCTION ⑤ ⑤ 12V 12V Note:Install the 12-volt battery( included) to the remote control. ●Products shall be subject to any changes without additional notices due to DawnSun will keep innovation and optimization on the products. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference This device must accept any interference received including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment . ,(2) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and use in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1.Reorient or relocate the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4.Consultthedealeroranexperiencedradio/TVtechnicianforhelp. , OPERATION INSTRUCTION Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Block Diagram 发射电路 Transmitter Circuit 基准振荡源 Reference Oscillation Source (315MHz) 按键/编码 Button/Coding 指示电路 Indicating Circuit MCU 电池/供电电路 Battery/Power Supply Circuit

DawnSun Electronic Technology Co., Ltd] FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name DawnSun Electronic Technology.Co.,Ltd.ZhongShan Addresss NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN,GUANGDONG 528471 CHINA City ZHONGSHAN,GUANGDONG Country China declare that the following representative (agent): Name (person) Yaoming huang Company name Manager Addresss NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN,GUANGDONG 528471 CHINA City ZHONGSHAN,GUANGDONG Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description FAN REMOTE CONTROLLER Type or Model(s) TX007-LR ,TX007-LR, TX007-N,TX007-L,TX007-S,TX007-LS,TX007-R1 Tradename or Brand(s) N/A We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) ZHONGSHAN, GUANGDONG 06-12-2012 Yaoming huang Manager DawnSun Electronic Technology Co., Ltd

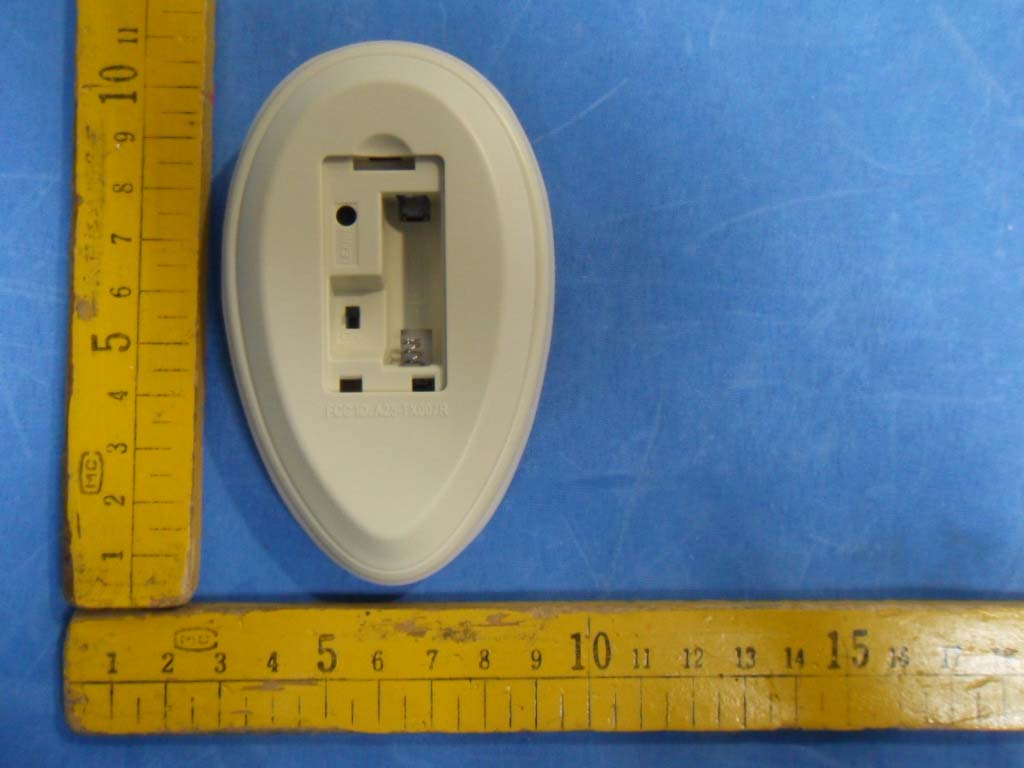

General Appearance of the EUT

FCC ID Label MODEL: TX007-N TX007-L TX007-S TX007-LS TX007-R1 TX007-LR FCC ID: A25-TX007R1 FCC ID: A25-TX007R1 22mm 2mm

Internal Photo

Operation Description All are “OOK” modulation transmitter circuit, transmission frequency is 315Mz, consists of Power Supply Circuit (12V), Master Control MCU, Transmitter Circuit (315Mz), Reference Oscillation Source, Keyboard Scanning Circuit and Indicating Circuit.

REPORT NO.: FTS12FR-088E FCC ID: A25-TX007R1 DATE: 06/08/2012 Page 1 of 23 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF FAN REMOTE CONTROLLER MODEL No.: TX007-LR, TX007-N,TX007-L,TX007-S, TX007-LS,TX007-R1, TX007-LR FCC ID: A25-TX007R1 REPORT NO: FTS12FR-088E ISSUE DATE: Jun. 08, 2012 Prepared for DawnSun Electronic Technology.Co.,Ltd.ZhongShan NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN,GUANGDONG 528471 CHINA Prepared by Future Test Services (Zhongshan)Co., Ltd. 2/F,NO.33 Xiangfeng South Road, Xiaolan Town, Zhongshan City, Guangdong Province, China. Tel : +86-760-22582758 Fax: +86-760-22582768 REPORT NO.: FTS12FR-088E FCC ID: A25-TX007R1 DATE: 06/08/2012 Page 2 of 23 VERIFICATION OF COMPLIANCE Applicant: DawnSun Electronic Technology.Co.,Ltd.ZhongShan NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN, GUANGDONG 528471 CHINA Manufacturer DawnSun Electronic Technology.Co.,Ltd.ZhongShan NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN ZHONGSHAN, GUANGDONG 528471 CHINA Product Description: FAN REMOTE CONTROLLER Integral PCB antenna 0dBi Pulse train modulation OOK Model Number: Basic Model: TX007-LR Additional Model: TX007-LR, TX007-N,TX007-L,TX007-S, TX007-LS,TX007-R1 Serial Number: N/A File Number: FTS12FR-088E Date of Test: Jun.02, 2012, to Jun.08, 2012 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC 15 Paragraph 15.205, Paragraph 15.209, Paragraph 15.231,Paragraph 15.31, Paragraph 15.33, Paragraph 15.35. The test results of this report relate only to the tested sample identified in this report. Approved By Henry Wang / Manager Future Test Services (Zhongshan)Co., Ltd. REPORT NO.: FTS12FR-088E FCC ID: A25-TX007R1 DATE: 06/08/2012 Page 3 of 23 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................... 10 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT).......... 11 5.1 MEASUREMENT PROCEDURE:................................................................................................................ 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 11 5.4 MEASUREMENT RESULT:....................................................................................................................... 11 5.5 CONDUCTED MEASUREMENT PHOTOS: ...................................................................................................... 11 6. RADIATED EMISSION TEST ............................................................................................ 12 6.1 MEASUREMENT PROCEDURE................................................................................................................. 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 13 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 14 6.4 MEASUREMENT RESULT........................................................................................................................ 15 7. DEACTIVATION TESTING ............................................................................................... 17 7.1 REQUIREMENT....................................................................................................................................... 17 7.2 TEST SET-UP ...............................…

Text truncated - open the document above for the full version.

Setup Photos
