A25TX008-LFan Remote Control

User Manual Fan Remote Control Note: Install the 12-volt battery(included)to the remote control. BATTERY INFORMATION AND REPLACEMENT: 1. On the bottom of the remote use your finger to slide out the battery holder. 2. Remove the used battery and insert a new 12-volt battery with the “+” polarity mark facing up. 3. Slide the battery holder back inside so that it sets in place. 4. Dispose of old battery properly. WARNING: Keep batteries away from children and pets. Follow the battery manufacturer’s safety and usage instructions. • Remove battery if product is to be left unused for a long time. • Clean the battery contacts prior to battery installation. • Do not dispose of batteries in fire. Batteries may explode or leak. NOTE: In case of power failure, the system will need to be reset. WARNING: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. CAUTION: FCC INFORMATION: FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

Authorization Letter We, (the approval holder) Company name DawnSun Electronic Technology.Co.,Ltd.ZhongShan Addresss NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN City ZHONGSHAN,GUANGDONG Country China declare that the following representative (agent): Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description Fan Remote Control Type or Model(s) TX008-N, TX008-L, TX008-R, TX008-LR, TX009-N, TX009-L, TX009-S, TX009-R, TX009-LR, TS009-LS,TS009-RS,TX009-LRS,TX101-N,TX010-L,TX010-S,TX010-R,TX010-LR, TX010-LS,TX010-RS,TX010-LRS,TX011-N,TX011-L,TX011-S,TX011-R,TX011-LS,TX011-LR Tradename or Brand(s) N/A We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) ZHONGSHAN 2012-12-06 Yaoming Huang Manger DawnSun Electronic Technology.Co.,Ltd.ZhongShan

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name DawnSun Electronic Technology.Co.,Ltd.ZhongShan Addresss NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN City ZHONGSHAN,GUANGDONG Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: A25 TX008-L of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) ZHONGSHAN 2012-12-06 Yaoming Huang Manger DawnSun Electronic Technology.Co.,Ltd.ZhongShan

Model Difference Fan Remote Control Model colour TX008-L White TX008-N, TX008-R, TX008-LR, TX009-N, TX009-L, TX009-S, TX009-R,TX009-LR,TS009-LS,TS009-RS, TX009-LRS,TX101-N,TX010-L,TX010-S,TX010-R,TX010-L R,TX010-LS,TX010-RS,TX010-LRS,TX011-N,TX011-L,TX0 11-S,TX011-R,TX011-LS,TX011-LR White All the models anr identical except the model name. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) ZHONGSHAN 2012-12-06 Yaoming Huang Manger

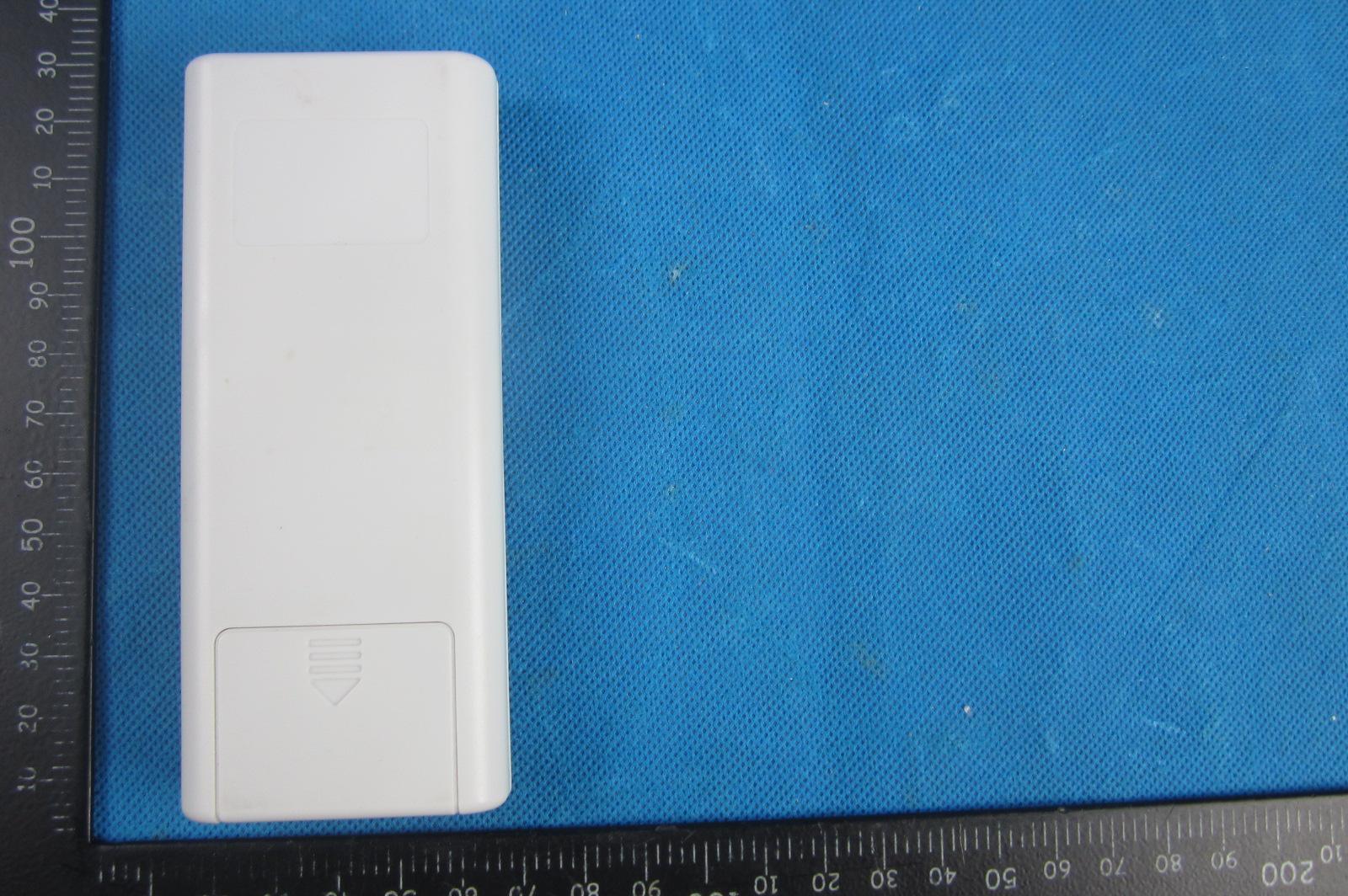

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

W*L 30mm* 29.5 FCC ID:A25TX008-L This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1)This devices may notcause harmful interference, (2)This device must accept any interference received, including interference that may cause undesired operation.

Photo 7 Photo 8 Photo 9

FCC RADIO TEST REPORT FCC ID: A25TX008-L Product： Fan Remote Control Trade Name： N/A Model Name： TX008-L Serial Model： TX008-N, TX008-R, TX008-LR, TX009-N, TX009-L, TX009-S, TX009-R,TX009-LR,TS009-LS,TS009-RS, TX009-LRS,TX101-N,TX010-L,TX010-S,TX010-R,TX010-LR, TX010-LS,TX010-RS,TX010-LRS,TX011-N,TX011-L,TX011-S, TX011-R,TX011-LS,TX011-LR Report No.： NTEK-2012NT1206016F Prepared for DawnSun Electronic Technology.Co.,Ltd.ZhongShan NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN,ZHONGSHAN,GUANGDONG,CHINA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 26 Report No.: NTEK-2012NT1206016F ` TEST RESULT CERTIFICATION Applicant’s name ................. : DawnSun Electronic Technology.Co.,Ltd.ZhongShan Address ................................. : NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN,ZHONGSHAN,GUANGDONG,China Manufacture's Name ............ : DawnSun Electronic Technology.Co.,Ltd.ZhongShan Address ................................. : NO.8 NANYI STREET ,XINGGONG RD SHAXI TOWN,ZHONGSHAN,GUANGDONG,China Product description Product name ........................... : Fan Remote Control Model and/or type reference : TX008-L Serial Model： TX008-N, TX008-R, TX008-LR, TX009-N, TX009-L, TX009-S, TX009-R,TX009-LR,TS009-LS,TS009-RS, TX009-LRS,TX101-N,TX010-L,TX010-S,TX010-R,TX010-LR, TX010-LS,TX010-RS,TX010-LRS,TX011-N,TX011-L,TX011-S, TX011-R,TX011-LS,TX011-LR Rating(s) ................................ : DC 12V Standards ............................. : FCC Part15.231 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 15 Nov. 2012 ~26Nov. 2012 Date of Issue ........................................... : 27 Nov. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 26 Report No.: NTEK-2012NT1206016F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 3 . TEST RESULT 11 3.1 ANTENNA REQUIREMENT 错误！未定义书签。 3.1.1 STANDARD REQUIREMENT 11 3.1.2 EUT ANTENNA 11 3.2 CONDUCTED EMISSION MEASUREMENT 12 3.2.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.2.2 TEST PROCEDURE 13 3.2.3 DEVIATION FROM TEST STANDARD 13 3.2.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.3 RADIATED EMISSION MEASUREMENT 15 3.3.1 RADIATED EMISSION LIMITS 15 3.3.2 TEST PROCEDURE 16 3.3.3 DEVIATION FROM TEST STANDARD 16 3.3.4 TEST SETUP 17 3.3.5 TEST RESULTS (BLOW 30MHZ) 19 3.3.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 3.3.7 TEST RESULTS (ABOVE 1000 MHZ) 错误！未定义书签。 4 . BANDWIDTH TEST 23 4.1 TEST PROCEDURE 23 4.2 DEVIATION FROM STANDARD 23 4.3 TEST SETUP 23 4.4 TEST RESULTS 24 5 . EUT TEST PHOTO 26 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 26 Report No.: NTEK-2012NT1206016F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 26 Report No.: NTEK-2012NT1206016F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 26 Report No.: NTEK-2012NT1206016F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Fan Remote Control Trade Name N/A Model Name TX008-L Serial Model TX008-N, TX008-R, TX008-LR, TX009-N, TX009-L, TX009-S, TX009-R,TX009-LR,TS009-LS,TS009-RS, TX009-LRS,TX101-N,TX010-L,TX010-S,TX010-R, TX010-LR,TX010-LS,TX010-RS,TX010-LRS,TX011-N, TX011-L,TX011-S,TX011-R,TX011-LS,TX011-LR Model Difference All the model are identical except the model name. Product Description The EUT is a Fan Remote Control Product Type Remote Control Operation Frequency: 315MHz Modulation Type: ASK Number Of Channel 1CH. Antenna Designation: PCB antenna Antenna Gain(Peak) 0.65 dBi Output Power: 72.18 dBuV/m (AV Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery DC 12V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Mod…

Text truncated - open the document above for the full version.

Page 26 of 26 Report No.: NTEK-2012NT1206016F ` 6. EUT TEST PHOTO Radiated Measurement Photos
