A2DA9T7013G3G Mobile Phone

1 T701 User Manual 2 Contents For Your Safety ........................................................ 3 Getting Started ....................................................... 11 Phone Calls ............................................................ 18 Messaging .............................................................. 20 Getting Connected to the Internet ........................ 22 Browsing the Internet ............................................ 24 Bluetooth ................................................................ 26 Making the Most of Multimedia ............................. 27 Using Your Google Applications .......................... 29 Sorting out Your Phone Settings .......................... 32 3 For Your Safety Distraction Driving Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while driving (even with a hands free kit) can cause distraction and lead to an accident. You must comply with local laws and regulations restricting the use of wireless devices while driving. Operating Machinery Full attention must be given to operating the machinery in order to reduce the risk of an accident. Product Handling General Statement on Handling and Use You alone are responsible for how you use your phone and any consequences of its use. You must always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment.  Always treat your phone and its accessories with care 4 and keep it in a clean and dust-free place.  Do not expose your phone or its accessories to open flames or lit tobacco products.  Do not expose your phone or its accessories to liquid, moisture or high humidity.  Do not drop, throw or try to bend your phone or its accessories.  Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories.  Do not paint your phone or its accessories.  Do not attempt to disassemble your phone or its accessories, only authorized personnel can do so.  Do not expose your phone or its accessories to extreme temperatures, minimum - [5] and maximum + [50] degrees Celsius.  Please check local regulations for disposal of electronic products.  Do not carry your phone in your back pocket as it could break when you sit down. Small Children Do not leave your phone and its accessories within the reach of small children or allow them to play with it. They could hurt themselves or others, or could accidentally damage the phone. 5 Your phone contains small parts with sharp edges that may cause an injury or may become detached and create a choking hazard. Demagnetization To avoid the risk of demagnetization, do not allow electronic devices or magnetic media close to your phone for a long time. Electrostatic Discharge (ESD) Do not touch the SIM card‟s metal connectors. Antenna Do not touch the antenna unnecessarily. Normal Use Position When placing or receiving a phone call, hold your phone to your ear, with the bottom towards your mouth. Air Bags Do not place a phone in the area over an air bag or in the air bag deployment area. Store the phone safely before driving your vehicle. Seizures/ Blackouts The phone can produce a bright or flashing light. 6 Repetitive Motion Injuries To minimize the risk of RSI when texting or playing games with your phone:  Do not grip the phone too tightly.  Press the buttons lightly.  Use the special features which are designed to minimize the times of pressing buttons, such as Message Templates and Predictive Text.  Take lots of breaks to stretch and relax. Emergency Calls This phone, like any wireless phone, operates using radio signals, which cannot guarantee connection in all conditions. Therefore, you must never rely solely on any wireless phone for emergency communications. Loud Noise This phone is capable of producing loud noises, which may damage your hearing. Turn down the volume before using headphones, Bluetooth stereo headsets or other audio devices. Phone Heating Your phone may become warm during charging and during normal use. 7 Electrical Safety Accessories Use only approved accessories. Do not connect with incompatible products or accessories. Take care not to touch or allow metal objects, such as coins or key rings, to contact or short-circuit in the battery terminals. Connection to a Car Seek professional advice when connecting a phone interface to the vehicle electrical system. Faulty and Damaged Products Do not attempt to disassemble the phone or its accessory. Only qualified personnel can service or repair the phone or its accessory. If your phone or its accessory has been submerged in water, punctured, or subjected to a severe fall, do not use it until you have taken it to be checked at an authorized service centre. 8 Interference General Statement on Interface Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids. Pacemakers Pacemaker manufacturers recommend that a minimum separation of 15 cm be maintained between a mobile phone and a pacemaker to avoid potential interference with the pacemaker. To achieve this, use the phone on the opposite ear to your pacemaker and do not carry it in a breast pocket. Hearing Aids People with hearing aids or other cochlear implants may experience interfering noises when using wireless devices or when one is nearby. The level of interference will depend on the type of hearing device and the distance from the interference source, increasing the separation between them may reduce the interference. You may also consult your hearing aid manufacturer to discuss alternatives. Medical Devices Please consult your doctor and the device manufacturer 9 to determine if operation of your phone may interfere with the operation of your medical device. Hospitals Switch off your wireless device when requested to do so in hospitals, clinics or health …

Text truncated - open the document above for the full version.

Authorization Letter We, (the approval holder) Company name Shenzhen Telacom Science & Technology Co., Ltd. Addresss 28/F Building B, The Pavilion Hotel, Huaqiangbei Road, Futian District, City Shenzhen, Guangdong Country China declare that the following representative (agent): Name (person) Mark Wen Company name Most Technology Service Co., Ltd. Addresss No.5, 2nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, City Guangdong Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description 3G Mobile Phone Type or Model(s) T701, A7073A Tradename or Brand(s) Cellacom /Telacom We also authorize Teleconformity (Mr. M. K oop, Rietven 31, 7534 NH Enschede, The Netherlands) to act on our belhalf and process (apply and sign) the application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) shenzhen 2012/10/1 YanGuang Fu Manager Shenzhen Telacom Science & Technology Co., Ltd.

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Shenzhen Telacom Science & Technology Co., Ltd. Addresss 28/F Building B, The Pavilion Hotel, Huaqiangbei Road, Futian District, City Shenzhen, Guangdong Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: A2D A9T7013G of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) shenzhen 2012/10/1 YanGuang Fu Manager Shenzhen Telacom Science & Technology Co., Ltd. x

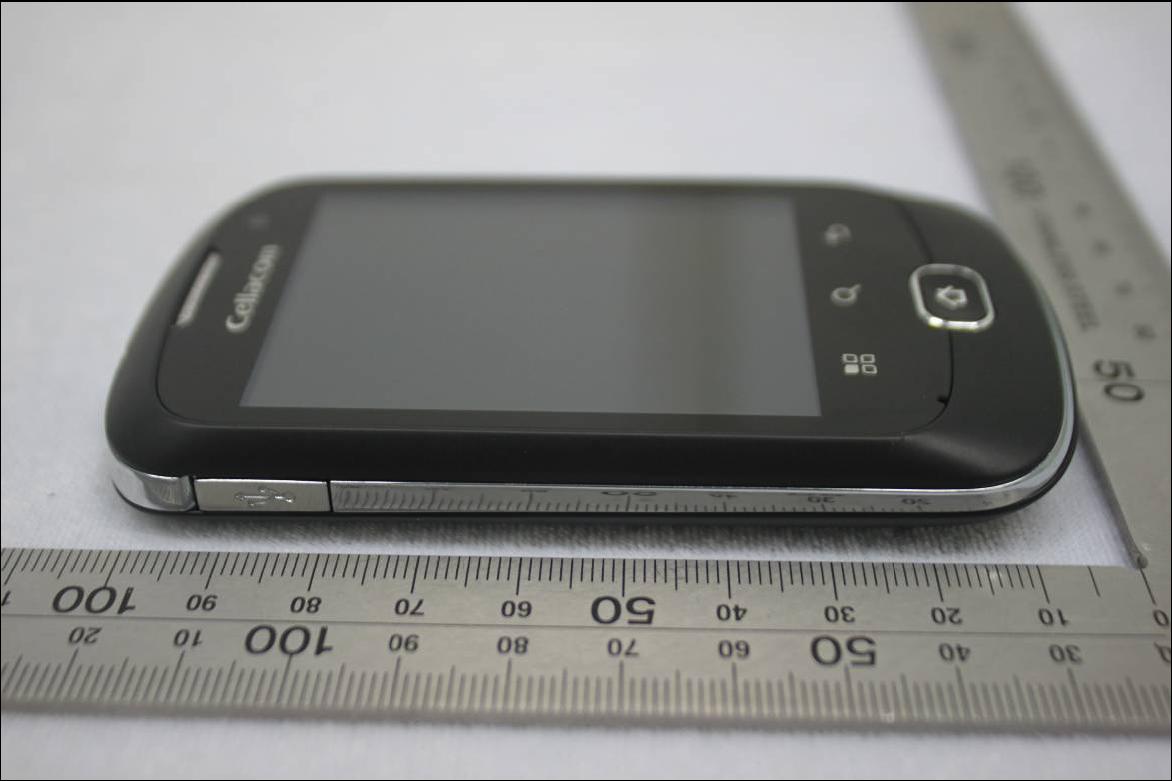

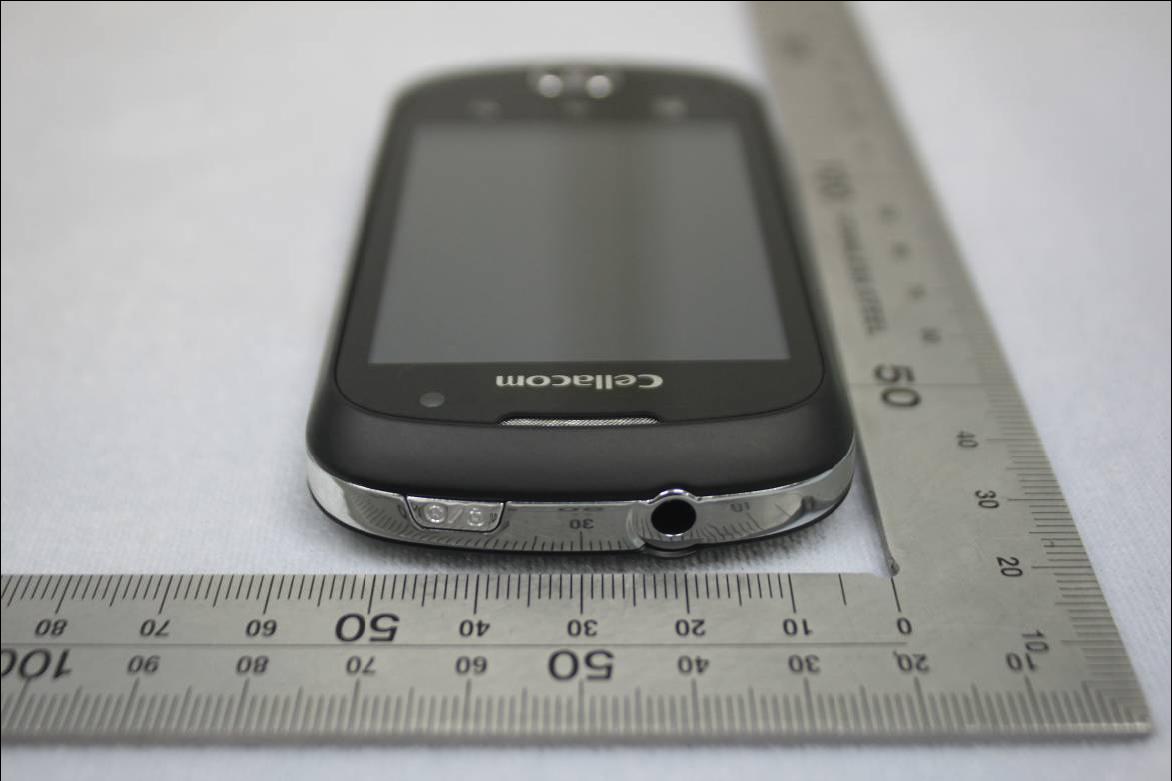

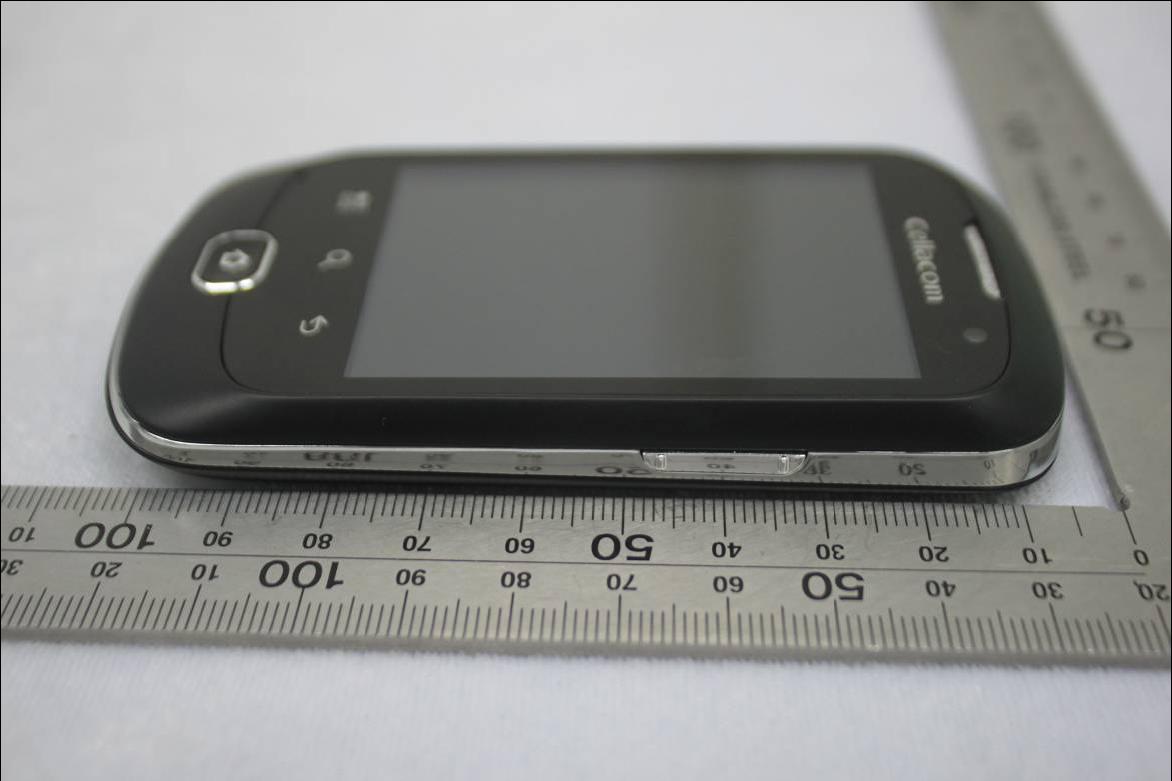

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

4*3 cm

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12

ComplianceCertification ServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 1 of 114Rev. 01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANSI/IEEE Std. C95.1-1999 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Product Name: 3G Mobile Phone Brand Name: Cellacom /Telacom Model No.: T701 Series Model: A7073A Test Report Number: KS120913A01-SF Issued for Shenzhen Telacom Science & Technology Co., Ltd 28/F Building B, The Pavilion Hotel, Huaqiangbei Road, Futian District, Shenzhen, Guangdong, China Issued by Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. ComplianceCertification ServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 2 of 114Rev. 01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION)...........................................................3 2. EUT DESCRIPTION....................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC................................5 4. TEST METHODOLOGY..............................................................................................................5 5. TEST CONFIGURATION............................................................................................................5 6. DOSIMETRIC ASSESSMENT SETUP........................................................................................6 6.1 MEASUREMENT SYSTEM DIAGRAM...........................................................................................................7 6.2 SYSTEM COMPONENTS...............................................................................................................................8 7. EVALUATION PROCEDURES.................................................................................................11 8. MEASUREMENT UNCERTAINTY............................................................................................14 9. EXPOSURE LIMIT....................................................................................................................15 10. EUT ARRANGEMENT..............................................................................................................16 10.1 ANTHROPOMORPHIC HEAD PHANTOM .................................................................................................16 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION...................................................................................17 10.3 DEFINITION OF THE “TILTED” POSITION ................................................................................................18 11. MEASUREMENT RESULTS.....................................................................................................19 11.1 TEST LIQUIDS CONFIRMATION ...............................................................................................................19 11.2 LIQUID MEASUREMENT RESULTS..........................................................................................................20 11.3 SYSTEM PERFORMANCE CHECK ...........................................................................................................26 11.4 EUT TUNE-UP PROCEDURES AND TEST MODE....................................................................................29 11.5 SAR HANDSETS MULTI XMITER ASSESSMENT.....................................................................................35 11.6 EUT SETUP PHOTOS................................................................................................................................39 11.7 SAR MEASUREMENT RESULTS...............................................................................................................40 12. EUT PHOTO .............................................................................................................................49 13. EQUIPMENT LIST & CALIBRATION STATUS ........................................................................53 14. FACILITIES...............................................................................................................................53 15. REFERENCES..........................................................................................................................54 16. ATTACHMENTS.......................................................................................................................55 Appendix A: Plots of Performance Check.....................................................................................56 Appendix B: DASY Calibration Certificate ....................................................................................63 Appendix C: Plots of SAR Test Result ........................................................................................114 ComplianceCertification ServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 3 of 114Rev. 01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. CERTIFICATE OF COMPLIANCE (SAR EV…

Text truncated - open the document above for the full version.

ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 76 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 77 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 78 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 79 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 80 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 81 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 82 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 83 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 84 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 85 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 86 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 87 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 88 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 89 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 90 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 91 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 92 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 93 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 94 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 95 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 96 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 97 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 98 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 99 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationServicesInc. Report No: KS120913A01-SFFCCID: A2DA9T7013GDate of Issue : September 20, 2012 Page 100 of 114Rev. 01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. ComplianceCertificationS…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT FCC ID: A2DA9T7013G Product： 3G Mobile Phone Trade Name： Cellacom /Telacom Model Name： T701 Serial Model： A7073A Report No.： MTE/EAH/D12100599-3 Prepared for Shenzhen Telacom Science & Technology Co., Ltd 28/F Building B, The Pavilion Hotel, Huaqiangbei Road, Futian District, Shenzhen, Guangdong, China Prepared by Most Technology Service Co., Ltd. No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel.: 86-755-8617 0306 Fax.: 86-755-8617 0310 Page 2 of 72 Report No.: MTE/EAH/D12100599-3 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Telacom Science & Technology Co., Ltd Address ................................. : 28/F Building B, The Pavilion Hotel, Huaqiangbei Road, Futian District, Shenzhen, Guangdong, China Manufacture's Name ............ : FINMEK ELECTRONIC (SHENZHEN) CO., LTD Address ................................. : 5/F, South Block 23, Shatoukok Free Trade Zone, Shenzhen, China Product description Product name ........................... : 3G Mobile Phone Model and/or type reference : T701 Serial Model： A7073A Standards ............................. : FCC Part15.247 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by MOST, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of MOST, this document may be altered or revised by MOST, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 10 Sep. 2012 ~24 Otc. 2012 Date of Issue ........................................... : 24 Otc. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 72 Report No.: MTE/EAH/D12100599-3 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 54 4.1 APPLIED PROCEDURES / LIMIT 54 4.1.1 TEST PROCEDURE 54 4.1.2 DEVIATION FROM STANDARD 54 4.1.3 TEST SETUP 54 4.1.4 EUT OPERATION CONDITIONS 54 4.1.5 TEST RESULTS 55 5 . BANDWIDTH TEST 61 5.1 APPLIED PROCEDURES / LIMIT 61 5.1.1 TEST PROCEDURE 61 Page 4 of 72 Report No.: MTE/EAH/D12100599-3 Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 61 5.1.3 TEST SETUP 61 5.1.4 EUT OPERATION CONDITIONS 61 5.1.5 TEST RESULTS 62 6 . PEAK OUTPUT POWER TEST 68 6.1 APPLIED PROCEDURES / LIMIT 68 6.1.1 TEST PROCEDURE 68 6.1.2 DEVIATION FROM STANDARD 68 6.1.3 TEST SETUP 68 6.1.4 EUT OPERATION CONDITIONS 68 6.1.5 TEST RESULTS 69 7 . ANTENNA REQUIREMENT 70 7.1 STANDARD REQUIREMENT 70 7.2 EUT ANTENNA 70 8 . EUT TEST PHOTO 71 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 72 Report No.: MTE/EAH/D12100599-3 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 72 Report No.: MTE/EAH/D12100599-3 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 72 Report No.: MTE/EAH/D12100599-3 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 3G Mobile Phone Trade Name Cellacom /Telacom Model Name T701 Serial Model A7073A Model Difference All the model are identical except the model name. Product Description The EUT is a 3G Mobile Phone Operation Frequency: 2412~2462 MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n: 72.2/65/58.5/57.8/52/ 43.3/39/28.9/26/21.7/19.5/14.4/13/7.2 /6.5Mbps Number Of Channel 11 CH, Please see Note 2. Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 14.67 dBm (Max.) 802.11g: 12.62 dBm (Max.) 802.11n: 11.27 dBm (Max.) Antenna Gain (dBi) 0dbi EIRP 802.11b: 14.67 dBm (Max.) 802.11g: 12.62 dBm (Max.) 802.11n: 11.27 dBm (Max.) Based on the application, features, or specification exhibited in Us…

Text truncated - open the document above for the full version.

Page 71 of 72 Report No.: MTE/EAH/D12100599-3 8. EUT TEST PHOTO Radiated Measurement Photos Page 72 of 72 Report No.: MTE/EAH/D12100599-3 Conducted Measurement Photos
