A3L-EFNG988LED View Cover

English Copyright © 2019 Samsung Electronics America, Inc. Other marks are the property of their respective owners. • Please read this guide before using the device to ensure safe and proper use. • Images may differ in appearance from the actual product. Content is subject to change without prior notice. Visit www.samsung.com to view device information, the latest guide, and more. • Before using the LED View Cover, make sure it is compatible with your device. • Verify that the NFC function is working properly before using the device with the LED window functions, Auto Screen On/Off feature, or Theme Curation Service feature active. • If your device is running Mobile Device Management (MDM) or is located near a metallic object, the NFC function may not work properly. • If you flip the front cover and block the back of the mobile device, the NFC function may not work properly. • Your consumer rights are governed by the law of the country in which you purchased the product. Please contact your service provider for more information. To stop an alarm or timer, drag your finger to the right on the LED window. •You cannot answer or reject an incoming call on the LED View Cover during a video call. •The LED window may not work while wireless charging. •Remove the cover for optimal Wireless Power Share results. Unlocking the mobile device’s screen automatically You can set your mobile device to unlock automatically when the LED View Cover is opened. On your mobile device, tap Settings → Advanced features → Accessories, and then activate the automatic unlock feature. This feature is available only when secure lock is disabled. Setting LED images Using your mobile device, you can create and set LED images to display for contacts during incoming calls or for notifications on the LED window. On your mobile device, tap Settings → Advanced features → Accessories, and then use the LED icon editor feature. You can also use the LED icon editor app that appears when you attach the LED View Cover to the mobile device. Safety information Read all safety information before using the device to ensure safe and proper use. To view the full safety information, refer to the Samsung website. Use only charging devices that are approved by Samsung. Samsung charging devices are designed for your device to maximize battery life. Using other charging devices may void your warranty and may cause damage Do not touch the device with wet hands Do not drop or cause an impact to the charger or the device The device can be used in locations with an ambient temperature of 0 °C / 32 °F to 35 °C / 95 °F. You can store the device at an ambient temperature of -20 °C / -4 °F to 50 °C / 122 °F. Using or storing the device outside of the recommended temperature ranges may damage the device Do not allow children or animals to chew or suck the device Do not disassemble, modify, or repair your device FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. Attaching or detaching the LED View Cover Open the LED View Cover and attach it to your mobile device. To detach the LED View Cover, open the LED View Cover and pull on the bottom of it to remove it from the mobile device. Answering or rejecting calls You can answer or reject a call on your mobile device using the LED window without opening the LED View Cover. To answer a call, drag your finger to the right on the LED window. To reject a call, drag your finger to the left on the LED window. Samsung Mobile Products and Recycling Samsung cares for the environment and encourages its customers to properly dispose of Devices and Samsung accessories in accordance with local regulations. In some areas, disposal of these items in household or business trash may be prohibited. Dispose of other unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call 1-877- 278-0799. Samsung Electronics America, Inc 85 Challenger Road, Ridgefield Park, New Jersey, 07660 Phone: 1-800-SAMSUNG (726-7864) Printed in Korea A00685 Rev.1.0 USA Type 01/2019 QUICK ST ART GUIDE EF-NG988 LED View Cover

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 6, 2020 FCC ID: A3L-EFNG988 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea Jan. 3 rd , 2019 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L-EFNG988 Gentlemen: The device is compliant in accordance to the FCC rules about identification of equipment, stated in 47 CFR Part 2.925(d) The label statement is as follows: The FCC ID label is located inside the LED cover. Users must open the LED cover in order to install the Phone and operate the device. At this time the FCC ID is readily visible to the user without the aid of magnification. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you or it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

SAMS UNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 6, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L-EFNG988 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

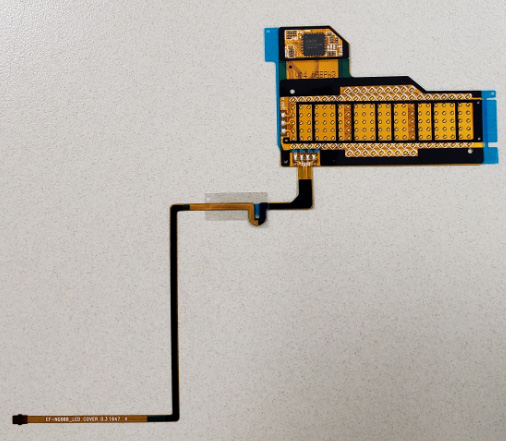

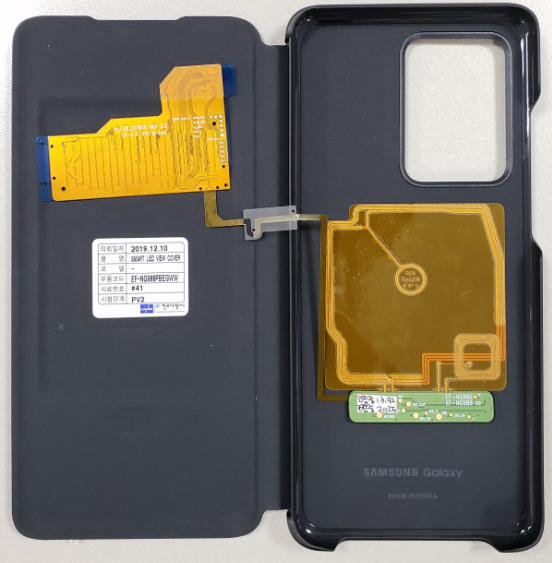

ANT Module(Front)ANT Module(Back)Internal Samsung Electronics Co., Ltd. Photos of Product SLIDE UP/FOLDER OPEN Top Left Front Back BottomRight LED Module(Front)LED Module(Back) FCC ID A3L-EFNG988 Name of Model EF-NG988

Label and Location Model Name: EF-NG988 FCC ID: A3L-EFNG988 Sample Label: Location: Top Inside view Bottom FCC ID is located inside the LED View Cover. Чехол SMART LED VIEW COVER МОДЕЛЬ : EF-NG988 ВХОД/ВХІД : 3.0 V 40 mA СДЕЛАНО В КОРЕЕ / ВИРОБЛЕНО В КОРЕЇ 기자재의 명칭 : RFID용 무선기기 (13.56MHz 대역 사용 기기) 모델명 : EF-NG988 식별부호 : R-R-SEC-EFNG988 상호명 : 삼성전자(주) 제조연월 : 별도표시 제조자 / 제조국가 : 삼성전자(주) / 한국 AS문의/예약 : 1588-3366 / www.3366.co.kr SMART LED VIEW COVER MODEL : EF-NG988 PO Box 12987, Dublin, IE IC : 649E-EFNG988 FCC ID : A3L-EFNG988 INPUT : 3.0 V 40 mA Чехол SMART LED VIEW COVER МОДЕЛЬ : EF-NG988 ВХОД/ВХІД : 3.0 V 40 mA СДЕЛАНО В КОРЕЕ / ВИРОБЛЕНО В КОРЕЇ 기자재의 명칭 : RFID용 무선기기 (13.56MHz 대역 사용 기기) 모델명 : EF-NG988 식별부호 : R-R-SEC-EFNG988 상호명 : 삼성전자(주) 제조연월 : 별도표시 제조자 / 제조국가 : 삼성전자(주) / 한국 AS문의/예약 : 1588-3366 / www.3366.co.kr SMART LED VIEW COVER MODEL : EF-NG988 PO Box 12987, Dublin, IE IC : 649E-EFNG988 FCC ID : A3L-EFNG988 INPUT : 3.0 V 40 mA

ANT Module(Front)ANT Module(Back)Internal Samsung Electronics Co., Ltd. Photos of Product SLIDE UP/FOLDER OPEN Top Left Front Back BottomRight LED Module(Front)LED Module(Back) FCC ID A3L-EFNG988 Name of Model EF-NG988

FCC ID: A3L-EFNG988 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 29 1M1912230224-04.A3L 12/18 - 12/24/2019 LED View Cover © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu, Suwon-si Gyeonggi-do, 16677, Korea Date of Testing: 12/18 - 12/24/2019 Test Site/Location: PCTEST Lab. Columbia, MD, USA Test Report Serial No.: 1M1912230224-04.A3L FCC ID: A3L-EFNG988 IC: 649E-EFNG988 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model/HVIN: EF-NG988 EUT Type: LED View Cover Frequency: 13.56MHz FCC Classification: Low Power Communications Device Transmitter (DXX) FCC Rule Part(s): Part 15 Subpart C (15.225) ISED Specification: RSS-210 Issue 9 Test Procedure(s): ANSI C63.10-2013 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctest.com MEASUREMENT REPORT FCC PART 15.225 / ISED RSS-210 NFC FCC ID: A3L-EFNG988 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 29 1M1912230224-04.A3L 12/18 - 12/24/2019 LED View Cover © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1.0 Introduction ...................................................................................................................................... 3 1.1 Scope ..................................................................................................................................................... 3 1.2 PCTEST Test Location .......................................................................................................................... 3 1.3 Test Facility / Accreditations .................................................................................................................. 3 2.0 PRODUCT INFORMATION ............................................................................................................. 4 2.1 Equipment Description ........................................................................................................................... 4 2.2 Test Configuration ................................................................................................................................. 4 2.3 EMI Suppression Device(s)/Modifications .............................................................................................. 4 3.0 DESCRIPTION OF TEST ................................................................................................................ 5 3.1 Evaluation Procedure ............................................................................................................................ 5 3.2 AC Line Conducted Emissions .............................................................................................................. 5 3.3 Radiated Emissions ............................................................................................................................... 6 3.4 Environmental Conditions ...................................................................................................................... 6 4.0 ANTENNA REQUIREMENTS .......................................................................................................... 7 5.0 MEASUREMENT UNCERTAINTY .................................................................................................. 8 6.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 7.0 TEST DATA ................................................................................................................................... 10 7.1 Summary ............................................................................................................................................. 10 7.2 Occupied Bandwidth Measurement ..................................................................................................... 11 7.3 Frequency Stability Test Data .............................................................................................................. 13 7.4 In-Band Radiated Spurious Emission Measurements .......................................................................... 16 7.5 Radiated Spurious Emission Measurements, Out-of-Band ..................................…
