A3LBT08PSWireless Photo Player

| Safety Symbols | Power | Installation | Using and Cleaning | Safety Symbols Make sure to follow the directions below to prevent accidents and damage to the product. Failure to follow the accompanying directions may lead to serious injury or death. Failure to follow the accompanying directions may lead to minor personal injury or property damage. | Safety Symbols | Power | Installation | Using and Cleaning | Power The images here are for reference only, and are not applicable in all cases (or countries). Insert the power plug correctly until it is firmly in place. zFailing to do so, may cause fire. Do not use a damaged power plug, cord or outlet, as this may cause electric shock or fire. Do not touch the power plug with wet hands, as this may cause electric shock. Do not connect more than one appliance to a single outlet, as an overheated outlet may cause fire. Do not use force to pull the power cord. zDon't place anything heavy on the power cord, as this may cause electric shock or fire. Make sure to turn the power off and disconnect the power plug from the outlet before moving the product. Make sure to disconnect the connection cables from other devices as well. zMoving the product without disconnecting the power cord may damage it while moving, and may cause electric shock or fire. Hold and pull out the plug by its body when disconnecting it from the outlet, as pulling the plug out by the cord may cause it to be damaged. zFailing to do so, may cause fire, or the product may not turn on normally. Ensure that the power plug is disconnected before cleaning the product. zFailing to do so, may cause electric shock or fire. Do not let water come into contact with or enter the power adapter,as this may cause electric shock or fire. zDo not use the product outdoors in snowy or rainy weather, or near any water. zWhen cleaning the floor with water, avoid any water contact with the power adapter. Do not place the power adapter near a heater, as this may cause fire. | Safety Symbols | Power | Installation | Using and Cleaning | Installation When installing the product on a cabinet or shelf, do not let the front end of the product project beyond its front edge. zFailing to do so, may cause the product to fall, resulting in a product malfunction or personal injury. Do not place the power cord near a heater, as the power cord may melt, causing electric shock or fire. Do not install the product in a car or a location exposed to oil, smoke, moisture, water, or rainwater. zAny contact of these materials with the product may cause electric shock or fire. Disconnect the power plug when there is thunder or lightning. zFailing to do so, may cause electric shock or fire. Place the product down gently when installing it. zFailing to do so may cause product damage or personal injury. Avoid dropping the product when moving, as this may cause product damage or personal injury. Do not install the product in a location easily reached by children. zAs the product may fall and cause personal injury. | Safety Symbols | Power | Installation | Using and Cleaning | Using and Cleaning Do not insert any metal objects such as forks, wire, or gimlets, or flammable items such as paper or matches into the ports at the back of the product, as this may cause electric shock or fire. z If water or any foreign substance enters the product, make sure to turn the product off disconnect the power plug from the outlet, and contact a service center. Never disassemble, repair, or modify the product yourself. zIf you need to repair your product, contact a service center. An attempt at repairing this product may cause electric shock or fire. If you hear a strange sound, smell anything burning, or see smoke, disconnect the power plug immediately and contact a service center. zFailing to disconnect the power plug may cause electric shock or fire. Always remove dust and water from the pins and connections of the power plug. zFailing to do so may cause electric shock or fire. When cleaning the product, first disconnect the power plug and clean it with a soft, dry cloth. zDo not use any chemicals such as benzene, alcohol, thinners, mosquito repellant, aromatic, lubricant, detergent or wax. When not using the product for a long time, make sure to disconnect the power plug. zHeavy accumulated dust may cause electric shock or fire. If the product needs to be installed in a location that doesn't satisfy general conditions, make sure to contact one of our service engineers about the installation as the product may encounter serious quality problems due to its environment. zThis refers to locations exposed to conditions such as heavy fine dust, chemicals, high or low temperature, moisture, or when the product needs to be used continually without a break over a long time. If the product has been dropped or the product casing is damaged, turn it off and disconnect the power plug. zUsing the product without verifying that it has not been damaged may cause electric shock or fire. Please contact a service center. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or damage to health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.…

Text truncated - open the document above for the full version.

Initial Settings Installation Program Guide and User Recommendations Settings for Sharing Photos on your PC - Configuring Your Windows Vista Settings for Sharing Photos on your PC - Configuring Your Photo Frame Viewing the Photos from Windows Live Space Viewing the Photos via RSS Setting up Rating and Tags (VISTA:Tags, XP:Labels) on a PC I want to update firmware. I want to connect to a monitor by using Mini-Monitor program. (Windows XP only) Initial Settings To use the wireless sharing function provided with this product, Windows Vista must be running on your computer and a wireless LAN access point (AP) must be in your vicinity. (For Windows XP users, Windows Media Player 11 is required and must be installed on your PC.) 1. Choose Your Language Turn on your Digital Photo Frame and select a language. The selected language is used as the OSD language and for the “Samsung Photo Frame Web Confi guration” which is embedded in your Digital Photo Frame. You can change the language via Settings -> Language. 2. Choose Your WiFi Network A list of APs is displayed. (If there are no APs displayed, click “Refresh Networks” to update the list.) Select an AP to connect to and the connection state is displayed in a popup window and the “Choose Computer” screen will appear. 3. Choose Computer A list of PCs is displayed. (If there are no PCs displayed, click “Refresh List” to update the list.) Select a PC to connect to and the Main screen will appear. Ensure that the settings are confi gured as shown below. Otherwise, your PC may not be displayed in the list or you may not be able to connect to it. In Vista, select Control Panel > Network and Sharing Center > Customize. Check whether the Location type is set to Private. Select Digital Photo Frame from the Windows Media Player > Library > Media Sharing list. Check whether it is set to Allow. Installation Program Guide and User Recommendations Windows XP We highly recommend installing .Net Framework 3.0. Click on the "Frame Manager" icon in the Manual - Main screen to run the installation file. Installing Frame Manager Frame Manager User's Manual Windows Media Player 11 or later must be installed. Digital Image Library Starter Edition (DISE) : This program allows you to change the ratings for the photos on your Digital Photo Frame via your PC. Windows Vista Click on the "Frame Manager" icon in the Manual - Main screen to run the installation file. Installing Frame Manager Frame Manager User's Manual Settings for Sharing the Photos on your PC - Configuring Your Windows Vista Adding Photos to the Library Run Windows Media Player. Click the [Library] tab at the top. Click [Add To Library] in the [Library] tab. In the [Add To Library] window, select [My personal folders] under the [Select the folders to monitor] section and select the folder containing photos and click [Add]. Select the folder to share and click [OK] to add it. When you click [OK], the [Add To Library] window is closed and the [Add to Library by Searching Computer] is displayed. Wait until it finishes the operation and click [Close] when it is completed. Checking Shared Photos In the Windows Media Player, set the Category, which is under the [ , ] symbol at the top left, to [Picture]. In the [Library], select Recently added, All Pictures, Keywords, Date Taken, Ratin g, or Folder settings and check whether the added photos exist in the library. Sharing Settings for Accepting Connections from Your Photo Frame In the [Library] tab, click on [Media Sharing]. In the [Media Sharing] window, check the [Share my media] checkbox under [Sharing settings]. If no [Available device] is displayed in the [Media Sharing] window, proceed to steps 4. If displayed, proceed to step 5. In the [Media Sharing] window, click [Networking] and check whether the current network is set to [Private network]. If not, set it to [Private Network]. If your network is a Private network, the [Available Device] list and the [Settings] button are displayed in the [Media Sharing] window. In the [Media Sharing] window, click [Settings]. The [Media Sharing-Default Settings] window is displayed. In the [Media Sharing-Default Settings] window, set the [Media Type] to [Picture], both [Star ratings] and [Parental ratings] to [All ratings] or a required rating under the [Default Settings] section. If you want to add a device or computer which tries to connect to the library to the list automatically, check the [Add new devices and computers automatically] checkbox. Only photos can be transmitted via PC sharing. Settings for Sharing the Photos on Your PC - Configuring Your Photo Frame Checking Network Connections Check whether the Network icon is displayed at the left top of the Main screen. If the Network icon is displayed, proceed to the Checking Computer Connections section described below. If it is not displayed, move to [Settings]-[Wireless Network(SSID)]. SSID : Service Set Identifier In the [Wireless Network(SSID)] window, select the SSID to which you want to connect your Digital Photo Frame to. If no available SSID is displayed, click [Refresh Networks] to update the list. If the "Connected" message is displayed, it means that your Digital Photo Frame is connected to the network. Checking Computer Connections Check whether the PC icon is displayed at the top left of the screen. If the PC icon[] is displayed, move to the Main screen. If not, move to [Settings]-[Default Computer]. In the [Default Computer] window, select the PC you want to connect your Digital Photo Frame to. If a required PC is not displayed, click on [Refresh List] to update the list and select it. If connected, you will be returned to the [Settings] screen. You will find that the PC icon is displayed at the top left of that screen. Checking Computer Connections In the Main screen, select [Photos]. In the [Photos] screen, check whether the ['Account Name's Photos' on 'Computer Name'] is correct. If incorrect, press the [Menu] button and select the PC you want to …

Text truncated - open the document above for the full version.

802.11b/g Mini WLAN USB2.0 Adapter WUG2700 Specification V3.0 Date: 2007/2/25 8 4. Block Diagram USB Interface MAC/BBP RT2571W MAC Interface Transceiver RT2528 PA RTC6683 I/Q Control RF Switch HWS408 TXTX RX 40MHz 40Mhz TR__SWP TR__SWN PA_PE POWER 5V 3.3VD 3.3VD 3.3VA 1.8VD 1.8VA Chip ANT. TX BPF Note:

SAMSUNG ELECTRONICS CO., LTD. Date: December 4, 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Kevin Wang /V.P. of Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Kevin Wang of CCS TW on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ______________________________________ SAMSUNG ELECTRONICS CO., LTD. Mr. Steve Kim, General Manager

1 Lucy Tsai From:amanda.wu [[email protected]] on behalf of application [[email protected]] Sent:Monday, January 21, 2008 7:02 PM To:Lucy Tsai Cc:application Subject:Re:FW: SAMSUNG ELECTRONICS CO., LTD., FCC ID: A3LBT08PS, Assessment NO.: AN08T7486, Notice#1(Job: 71128203) Attachments:BT08PS Power of attorney Revised 0118.pdf; BT08PS Schematics for Module.pdf; BT08PS Block Diagram for Module.pdf; BT08PS Test Report Revised 0118.pdf; BT08PS Block Diagram for oscillators.pdf Dear Lucy, Plz see my reply, thank you. Best Regards, Amanda "Lucy Tsai" <[email protected]> 2008/01/10 06:45 PM "application" <[email protected]> Hi Seven, Please address following issues. Q#1: Please provide RF portion¡¦s schematics and functional block diagram. Ans: Plz have the attached. Q#2: Per KDB 852143 Authorized Individual Policy (Form 731), only the person who is listed as the grantee contact person on FCC website can sign the agent authorization letter. For Samsung, the grantee code contact person is Mr. Steve Kim , General Manager. Please provide an authorization letter sign by Mr. Steve Kim. Ans: Plz have the attached. Q#3: Please confirm whether the block diagram, schematics or other exhibits will like to be kept as confidentiality. If applicable, please provide a confidentiality request letter signed by the grantee code contact person or the authorized agent. Ans: According client's request that all the documents doesn't need to confidential. Q#5: Please provide the test result of each fundamental and specify them into the test report since 20dBc down from the fundamental is applied. Ans: Plz see page 47-52 of the test report. Best Regards, Lucy 2 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

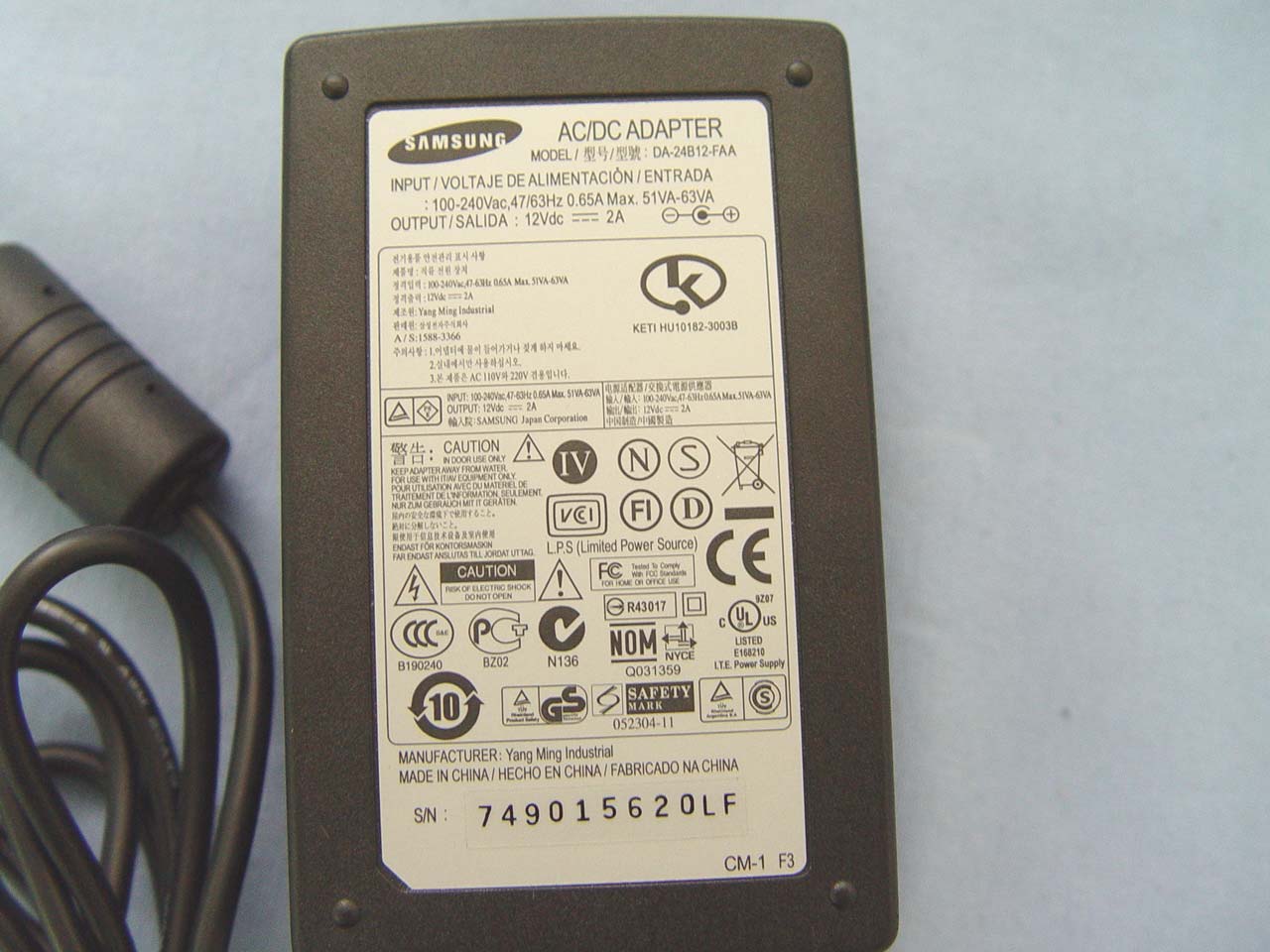

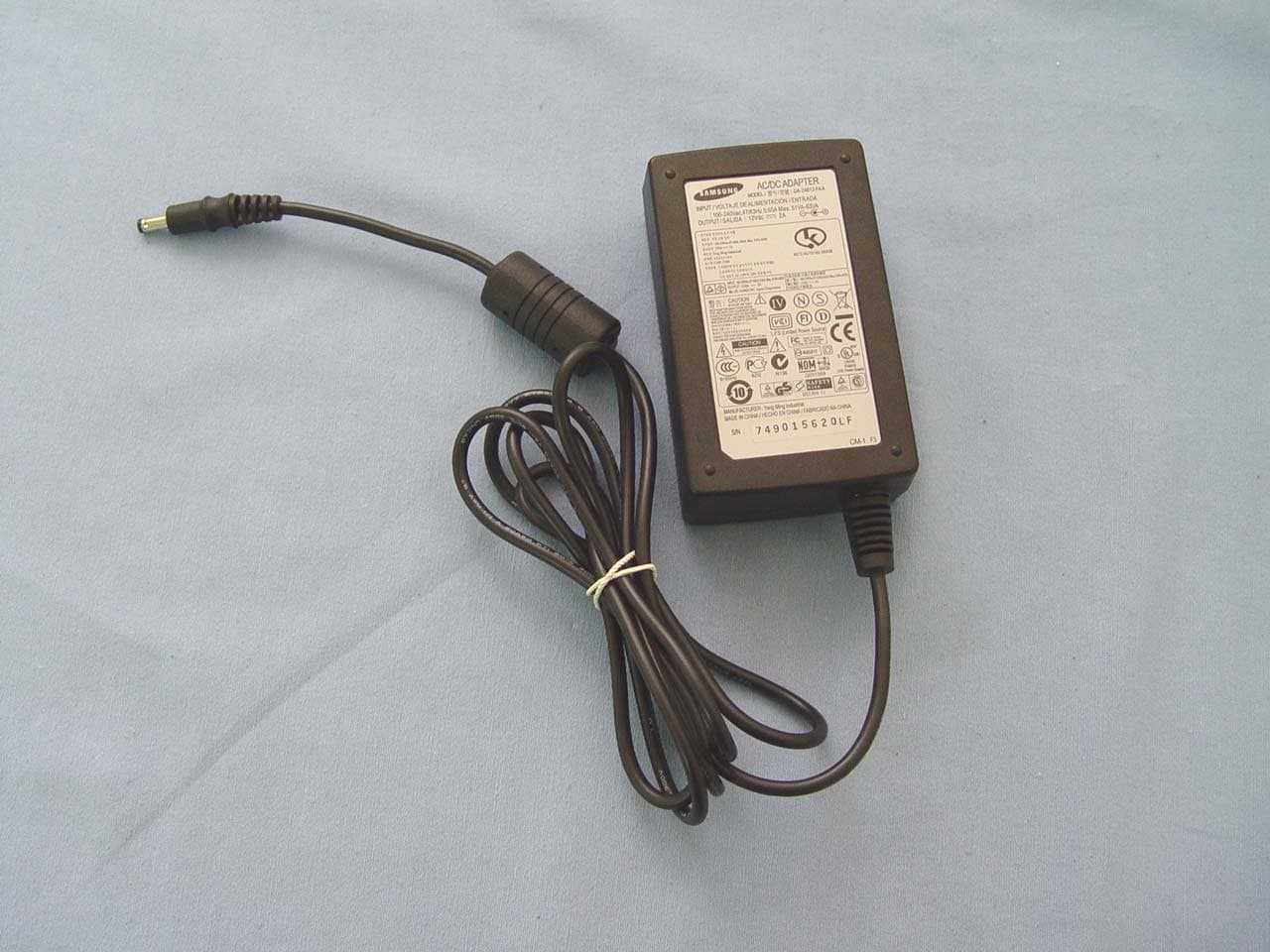

Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 1 Total Page: 13 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 3 Rev.00 Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 5 Rev.00

Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 7 Rev.00 Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 9 Rev.00 WLAN Location Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 10 Rev.00 Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 11 Rev.00 Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 12 Rev.00 Compliance Certification Services Inc. Report No.: 71128203 Date of Issue: December 28, 2007 Page 13 Rev.00 WLAN Module Chip Antenna

Operation Principle 1. MAC/BBP, RT2571W is a highly integrated MAC/baseband processor to support Wireless photo player. The processor supports the Direct Sequence Spread Spectrum (DSSS) for 2.4GHz band and Orthogonal Frequency Division Multiplexing (OFDM) for 2.4GHz bands. Using advanced digital signal processing technologies, the optimal reception performance under severe multi-path environments is achieved. For the MAC part, it provides all the required functions and many optional features in the IEEE standards, such as 802.11e (QoS), 802.11h (TPC/DFS), 802.11i (Security). Using advanced algorithms and design methodologies, the chip is best-in-class in terms of throughput, power consumption, range, multi-path tolerance. External interfaces include USB1.1/USB 2.0. 2. Transceiver, RT2528 is a monolithic SiGe half duplex direct-conversion radio transceiver designed for IEEE 802.11b/g WLAN system or other wireless system application operation in 2.4-2.48GHz bands. The transceiver achieves low noise figure, high input sensitivity, and high linearity, while consuming low dc power. The receive path features a gain selectable, low-noise amplifiers (LNA), followed by RF-to-baseband I/Q demodulator, discrete-step variable-gain amplifier and integrated channel-selection filters. The transmit chain includes integrated reconstruction filters, a baseband-to-RF I/Q modulator, discrete-step variable-gain amplifiers for power –level control, and pre-drivers for external power amplifier. The modulator and demodulator are driven by internal VCO. The VCO is phase-locked by an internal 3-wire-interfaced PLL. An internal autonomous calibration circuit calibrates the bandwidth of the integrated channel-selection filters and the reconstruction filters. Three low dropout regulator (LDO) are also integrated. 3. EEPROM, The AT93C66 provides 4096bits of serial electrically erasable programmable read only memory (EEPROM) organized as 512 words of 8 bits. 4. 2.4GHz - 2.5GHz Power Amplifier, The RTC6683 silicon-germanium (SiGe) power amplifier (PA) is designed to operate in 2.4GHz ISM band, compatible with 802.11 b/g wireless LAN system with low power consumption. The amplifier consists of 3-gain stage with inter-stage matching, build-in input matching network, and a power detector for close loop power control operation. For 11b usage: 15.93dBm O/P Power . For 11g usage: 17.65dBm O/P Power .

55 44 33 22 11 D D C C B B A A WUG2700_E2.SCH 1.0 Mini USB 2.0 PEN TYPE System - RT2571W + RT2528 B 15 Thursday, March 08, 2007 TitleSize Document Number Rev Date: Sheet of USB I/F and Power4-USB-A UDM UDP MAC RT2571W WLAN3-RT2571W TX_BB_Q+ TX_BB_Q- TX_BB_I+ TX_BB_I- RX_BB_Q+ RX_BB_I+ RX_BB_I- RX_BB_Q- VGA_CAL LNA1 RFRX_PE RFTX_PE RF_LE-G# SYNDATA SYNCLK TR_SWN PA_PE_G 40MI IREF LNA0 UDPUDMSUSPB TR_SW AGC1AGC2AGC3AGC4AGC5 Transceiver RT2528 1-RT2528-xtal RFRX_PERFTX_PERF_LE-G#SYNDATA SYNCLK LNA1 40MIRX_BB_I-RX_BB_I+ RX_BB_Q-RX_BB_Q+ TX_BB_I- TX_BB_I+TX_BB_Q-TX_BB_Q+ RFIN_G PA_RFING IREF LNA0 AGC1AGC2 AGC3 AGC4 AGC5 VGA_CALSUSPB PA and TX/RX 2-PA-RTC6683 TR_SWNPA_PE_G RFIN_G PA_RFING TR_SW PA_RFING SUSPB RFIN_G LNA1AGC1TX_BB_Q+AGC5 UDM AGC2RFTX_PETX_BB_I- UDP SYNCLKRFRX_PEVGA_CALRX_BB_I+RF_LE-G#TX_BB_Q-40MISYNDATAAGC3PA_PE_GRX_BB_Q-RX_BB_I-RX_BB_Q+TX_BB_I+AGC4LNA0IREFTR_SWNTR_SW 55 44 33 22 11 D D C C B B A A XTAL:CL=15pF, Co=1.5pF Line width:13 milLine Gap:20 mil Line width:13 milLine Gap:20 mil RX tuning part 1-RT2528-XTAL.SCH 1.0 Transceiver - RT2528 C 25 Thursday, March 08, 2007 TitleSize Document Number Rev Date: Sheet of LNA0 GNDA GNDAGNDA RFIN_G LNA1 VGA_CALIREF GNDA AGC1 SYNCLKRF_LE-G# TX_BB_Q+ SUSPB PA_RFING 3.3VD GNDA RFLDOBP GNDA GNDA GNDA RFRC GNDD VCCATXR_VO2 TXR_VO2 GNDAGNDA GNDA GNDA VE TXR_VO3 TX_BB_I- GNDA GNDA VCCA F40M GNDA GNDA RFIN_F 40MI GNDD GNDAVCCA RFRX_PE TXR_VO3 VCCA VCCA TX_BB_I- AGC3 TXR-40MO RFOUTG- TX_BB_Q+ TX_BB_I+ RF_VCCD RFING+ VCCA LNAG1 VCCA RFTX_PE AGC5 AGC5 SYNDATA TXR_VO3 TX_BB_Q- TXR_VO3 RX_BB_I- RX_BB_I- AGC2 VCTRL1 TXR_VO2 C_VCC RFING- GNDA RFTX_PE TXR_VO2 RX_BB_Q- RX_BB_Q-AGC4 AGC4 RX_BB_Q+ RX_BB_Q+ 40MX1 LNAG0 OFF_CAL OFF_CAL RFOUTG+ SYNDATA GNDA TX_BB_Q- C_VCC VCCPLLA 40MX2 IREF RX_BB_I+ RX_BB_I+ C_VCC SYNCLK GNDA AGC2 TX_BB_I+ AGC3 RFRX_PE GNDA AGC1 RF_LE-G# GNDA VCCA VCCA VCCA VCCA VCCA GNDD GNDD GNDD GNDAGNDA GNDA GNDA GNDAGNDA VCCA GNDA GNDA GNDA GNDA 3.3VD GNDA GNDA GNDA GNDA GNDA GNDD VCCA GNDAGNDA VCCA GNDA GNDA GNDA VCCA GNDA GNDA GNDAVCCA VCCA VCCA GNDD GNDD GNDD GNDD GNDAGNDA GNDA C23 10uF/6.3V 1 2 C22 10uF/6.3V 1 2 C98 100nF 1 2 C290.1uF 12 C1022pF 1 2 C6 2.4K/NI 1 2 C2 2.2nH 1 2 C19 39pF 1 2 C20 10uF/6.3V 1 2 C21 0.01uF 1 2 R9 18K 1 2 L1 2.2pF 1 2 R5 0 ohm 1 2 C17 1pF/NI 1 2 C5 0.01uF 1 2 R6 0 ohm 1 2 C28 3.3nF 12 R7 0 ohm 1 2 R3 0 ohm 1 2 C4 10pF 1 2 L8100nH 1 2 C96 10pF 1 2 C111nF 12 5x3.2 U2 XTAL/5x3.2/40MHz 12 43 C254.7pF 1 2 C97 10pF 1 2 L4 1nH 1 2 L3 1.5pF 1 2 C18 33pF/NI 12 C24 1nF 12 C968pF 1 2 C15 1nF 1 2 C14 1pF/NI 1 2 C27 15pF 12 C1368pF 1 2 R4 600 ohm/0603 1 2 C121nF 12 R10 27 1 2 C30 4.7uF/6.3V 12 L210nH/NI 12 U1 RT2528 123456789 10111213 52 46 47 48 24 23 22 27 32 57 26 25 30314042 55 54 373635343341 53 29 28 56 49 50 51 19 44 43 3938 17 16 15 45 14 18 20 21 LNA_Gain1RFinP2RFinM2VCC2RFoutP2RFoutM2NCNCNCNCNCNCLNA_Gain0 TR_PE CLK Data LE LO_BsVc Core_Vcc LO_Vcc VCCA VCCD GND VP1 LO_Vc LD_fo CLK_Out AGC5 Base_Vcc1 AGC1 AGC2 I_OutP I_OutM Base_Vcc2 Q_OutP Q_OutM AGC4 AGC3 X1/OSCI X2 VCC1 Iref Bias_Vcc RF_PE LDO_Out3 I_InP I_InM Q_InP Q_InM LDO_Bypass LDO_In LDO_PE Offset_Cal LDO_Out1 LDO_Out2 NC NC L7 0 ohm 1 2 C7 33pF 1 2 C8 10pF 12 C3 3.9nH 1 2 C1 10pF 1 2 C26 100pF 12 R1 0 ohm 1 2 C16 10uF/6.3V 1 2 L52.7nH 1 2 RFIN_G VGA_CALIREFRFRX_PE LNA1LNA0 AGC1AGC2AGC3RFTX_PERF_LE-G#SYNDATASYNCLK RX_BB_I+RX_BB_I-RX_BB_Q+AGC5AGC4 SUSPB PA_RFING RX_BB_Q-TX_BB_Q-TX_BB_I+TX_BB_Q+TX_BB_I- 40MI 55 44 33 22 11 D D C C B B A A Close to PA. Output Match Network Input Match Network Line width:13 milLine Gap:20 mil Line width:13 milLine Gap:20 mil Matching circuit Line width:13 milLine Gap:20 mil VC1VC2 TX RX 3.3V 0V 0V 3.3V 2-PA-RTC6683.SCH 1.0 PA and TX/RX C 35 Thursday, March 08, 2007 TitleSize Document Number Rev Date: Sheet of RFIN_G MPAO_G TRSWTRSWN TR_SWTR_SWN GNDA GNDA PA_RFO VC1 GNDA GNDA BPF_OG GNDA MPAO_G PA_RFING GNDA 3.3VD PA_IN DET2 GNDA GNDA GNDA VC2 PA_PE_G VB1 PAF GNDA GNDA GNDA GNDA GNDA GNDA PI_MATCH CHIP_ANT GNDA MDTR GNDA GNDA GNDA GNDA GNDA GNDA GNDA GNDA GNDA GNDA 3.3VD GNDA GNDA GNDA GNDA GNDA GNDA GNDA GNDA GNDA GNDA GNDA L11 300 ohm/NI 12 C941.2pF U5 BF2520-E2R4CAET/LF 1 2 4 3 BI BO G G C49300 ohm/NI 12 C9522pF C53 0.5pF/NI 12 ANT WLASIN 5220A1 12 W1W2 R13 0 ohm/SB 1 2 R14 0 ohm/SB 1 2 R15 100 ohm 1 2 C38NI 12 C51 2.7pF/NI 12 C54 0.1uF/NI 12 C92NP C4710uF/6.3V 12 L143.9nH C48 0 ohm 1 2 C41 10pF/NI 1 2 L10 1.2nH 12 U6 RTC6683 23 13 1 8 7 6 5 9101112 15 16 17 14 4 RFinGND Vcc3 GND Vdet_out NC NC NC NC GND RFOUT GND NC Vcc1 GND Vcc2 Vpc C50 0 ohm 1 2 C991uF C1001uF L123.9nH/NI 12 C461uF 12 C55 0.01uF/NI 12 L9 10 ohm 12 RF_TP MS-156 12 FIREGND C43 10pF/NI 1 2 C521.8pF 12 C451uF 12 U4 HWS408 321 654 OUT1 GND OUT2 VC2INVC1 TR_SWTR_SWN RFIN_G PA_RFING PA_PE_G 55 44 33 22 11 D D C C B B A A Link/TX 3 Test pin connect to ground for USB-IF test. IF RT2571W is used, pin D[0..7] cannot connect to ground. DiffLine width :12 mil DiffLine Spread :8.5 mil DiffLine Gap:20 mil等長 Ready 3-RT2571W.SCH 1.0 WLAN MAC+BBP - RT 2571W C 45 Thursday, March 08, 2007 TitleSize Document Number Rev Date: Sheet of TSSI_AG VREF01 3.3VA LD2_YN UXI UDM TR_SWN LED_LKACT# VREF25NSYNDATA LED_RDY# VREF25P UDMRPU SYNCLK TX_BB_I-TX_BB_I+ 1.8VAR RREFUDP VREFPVREFN RF_LE-G# UDP MRSTB EECSEEDOEESK 3.3VD EEDI UCLK VSPLL SUSPB GNDD 3.3VD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD 1.8VD 3.3VD 1.8VD 1.8VA 1.8VA 3.3VD 3.3VD 1.8VA 1.8VA 1.8VD 3.3VA 1.8VD 3.3VD 3.3VA 3.3VD 3.3VA 1.8VD 3.3VA 3.3VA 3.3VD 3.3VD 3.3VA 3.3VD 3.3VD 3.3VA 3.3VD 1.8VD 3.3VA 3.3VA GNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDD RFTX_PERFRX_PE TX_BB_Q-TX_BB_Q+ PA_PE_GLNA0IREF GNDA 1.8VD 1.8VA 3.3VA RB TR_SW GNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDD CEN1B LD1_GN SNOR PLLMD 1.8VD RXBB_I-RXBB_Q-RXBB_Q+RXBB_I+ RX_BB_I-RX_BB_Q-RX_BB_I+RX_BB_Q+ AGC4AGC1AGC3AGC2AGC5VGA_CALLNA1 40MI 3.3VD VCCA 3.3VD GNDA 3.3VD GNDA D[7..0] D7 D4 D6 D0 D1 D2 D3 D5 S3.3VDS3.3VDS3.3VD D4D2D7 S3.3VD D0 S3.3VD D1 S3.3VD D[7..0] S3.3VD D6 S3.3VD D5D3 GNDD GNDD 3.3VD 3.3VD 3.…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 71128203-RP1 FCC ID: A3LBT08PS Date of Issue: December 31, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 60 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Photo Player Model: BT08PS, SPF-83V Trade Name: Samsung Issued to SAMSUNG ELECTRONICS CO., LTD. 18600 Broadwick St., Rancho Dominguez, California, United States Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 71128203-RP1 FCC ID: A3LBT08PS Date of Issue: December 31, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES ..............................................................................…

Text truncated - open the document above for the full version.
