A3LCCBQ730MWi-Fi / BT Transceiver

Samsung Electronics Co., LTD. 129, Samsu ng -ro , Yeongtong-gu Suwon-City, Gyeonggi-do, 16677, Korea Date: October 23, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 4 7173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Chloe Lee/Manager of KCTL Inc. and hereafter referred to as KCTL to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Chloe Lee/Manager of KCTL Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify tha t we are not s ubject t o a denial of federal benefits, tha t includes FCC benefits, pursuant t o Section 5301 of th e Anti-Drug Abuse Act o f 1988, 2 1 U.S.C. 853(a). In authorizing KCTL as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jenni Chun, General Manager Regulatory & Environmental Affairs Samsung Electronics America, Inc

Applicant/Grantee Samsung Electronics Co., Ltd. FCC ID: A3LCCBQ730M Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. This module is shielded with a shield can. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. OK Y 3 The modular transmitter must have its own power supply regulation. A DC-DC converter is configured for internal supply of the module. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Connected to antenna with internal transmission line and matching. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). OK Y 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A)If using a permanently affixed label, th e modular transmitter must be labeled with its own FCC identification number, and, if the FCC identificati on nu mber is not visible when the mo dule is in stalled inside another device, then th e outside of the device into which the mo dule is installed must also display a la bel referring to the enclosed modu le. This exterio r label can use wordi ng such as the following: “Contai ns Tr ansmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any simil ar wordi ng that expresses the same meaning ma y be u sed. The Grantee ma y either provi de such a label, an example of wh ich must be included in the Mark the FCC-ID certification number on the module label. Y application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Module usage manuals were provided. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. For RF exposure requests, ensure that RF specs are entered and adhered to within the approval source provided to all users for this module. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

Samsung Electronics Co., LTD. 129, Samsung -ro , Yeongtong-gu Suwon-City, Gyeonggi-do, 16677, Korea CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 October 23, 2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. requests confidentiality for the following products: FCC ID Number A3LCCBQ730M Product Title/Model WiFi / BT Transceiver / CCBQ730M The following exhibits contain trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. We request that the following information submitted be held permanent confidential treatment. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description -. Antenna specification -. Parts list -. U-NII Device SW Security Statement We hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give temporary confidentiality of commercially sensitive information prior to product release. Short-Term Confidential Request -. External Photos -. Internal Photos -. Test set-up photo -. User Manual If you have any questions, please feel free to contact me at the address shown below. Sincerely, Jenni Chun/ General manager

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

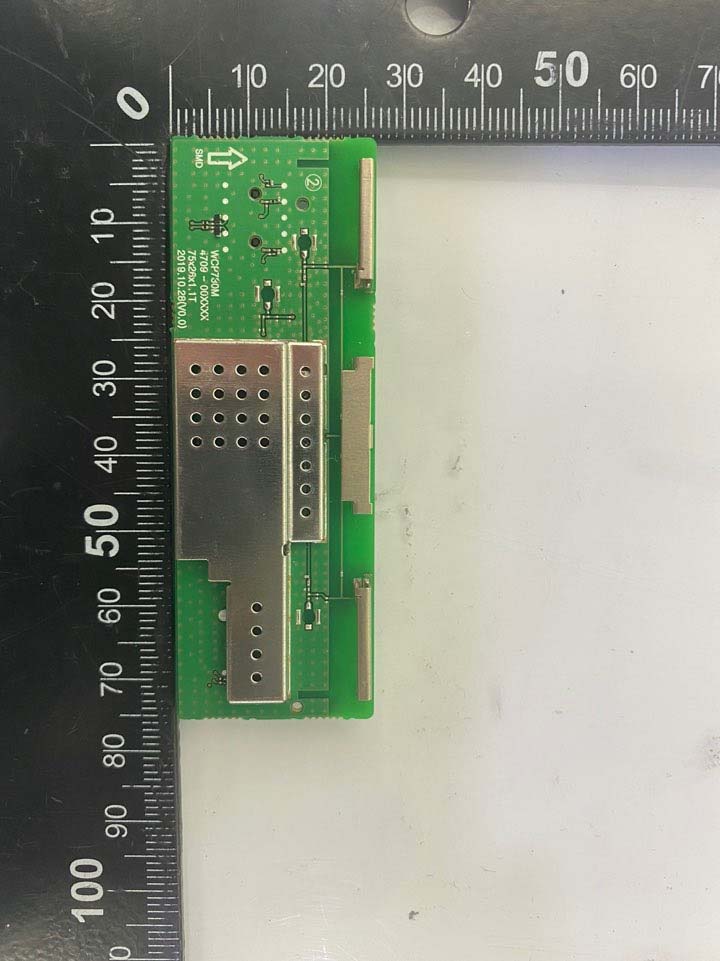

Top of RF module

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT

verify No.536201236189 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0277 Page (2) of (13) KCTL-TIR001-003/3 KP20-02117 REPORT REVISION HISTORY Date Revision Page No 2020-11-02 Originally issued - This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. General remarks for test reports Nothing significant to report. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0277 Page (3) of (13) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 CONTENTS 1. General information ...................................................................................................... 4 2. Device information ........................................................................................................ 4 2.1. Frequency/channel operations ................................................................................ 5 3. Measurement uncertainty ............................................................................................. 6 4. RF Exposure ................................................................................................................. 7 4.1. Test results ............................................................................................................ 10 5. Measurement Equipment ............................................................................................ 13 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0277 Page (4) of (13) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 1. General information Client : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Rep. of Korea Manufacturer : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Rep. of Korea Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 Industry Canada Registration No. : 8035A KOLAS No.: KT231 2. Device information Equipment under test : Wi-Fi / BT Transceiver Model : CCBQ730M Modulation technique : Bluetooth(BDR/EDR)_ GFSK, π/4DQPSK, 8DPSK Bluetooth(BLE)_GFSK WIFI(802.11a/b/g/n/ac)_DSSS, OFDM Number of channels : Bluetooth(BDR/EDR)_79 ch, Bluetooth(BLE)_40 ch 2.4 GHz band: 13 ch (20 ㎒), 9 ch (40 ㎒), UNII-1: 4 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) UNII-2A: 4 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) UNII-2C: 12 ch (20 ㎒), 6 ch (40 ㎒), 3 ch (80 ㎒) UNII-3: 5 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) Power source : DC 5.0 V Antenna type : Metal Antenna Antenna gain : BT/LE ANT 0: -4.60 ㏈i 2.4 ㎓ band ANT 1: 1.90 ㏈i, ANT 2: 1.10 ㏈i UNII-1 ANT 1: 1.80 ㏈i, ANT 2: 2.80 ㏈i UNII-2A ANT 1: 1.40 ㏈i, ANT 2: 2.80 ㏈i UNII-2C ANT 1: 0.40 ㏈i, ANT 2: 2.90 ㏈i UNII-3 ANT 1: 0.30 ㏈i, ANT 2: 2.90 ㏈i Frequency range : 2.4 ㎓ band: 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth/BLE) 2.4 ㎓ band: 2 412 ㎒ ~ 2 472 ㎒ (802.11b/g/n_HT20) 2.4 ㎓ band: 2 422 ㎒ ~ 2 462 ㎒ (802.11n_HT40) UNII-1: 5 180 ㎒ ~ 5 240 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-1: 5 190 ㎒ ~ 5 230 ㎒ (802.11n/ac_HT40/VHT40) UNII-1: 5 210 ㎒ (802.11ac_VHT80) UNII-2A: 5 260 ㎒ ~ 5 320 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-2A: 5 270 ㎒ ~ 5 310 ㎒ (802.11n/ac_HT40/VHT40) UNII-2A: 5 290 ㎒ (802.11ac_VHT80) UNII-2C: 5 500 ㎒ ~ 5 720 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-2C: 5 510 ㎒ ~ 5 710 ㎒ (802.11n/ac_HT40/VHT40) UNII-2C: 5 530 ㎒ ~ 5 690 ㎒ (802.11ac_VHT80) UNII-3: 5 745 ㎒ ~ 5 825 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-3: 5 755 ㎒ ~ 5 795 ㎒ (802.11n/ac_HT40/VHT40) UNII-3: 5 775 ㎒ (802.11ac_VHT80) Software version : 1.0 Hardware version : 1.0 Operation temperature : -20 °C ~ 50 °C KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0277 Page (5) of (13) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 2.1. Frequency/channel operations This device contains the following capabilities: WiFi (802.11a/b/g/n/ac), Bluetooth (BDR/EDR/BLE) Ch. Frequency (㎒) 00 2 402 . . . . 19 2 440 . . . . 39 2 480 Ch. Frequency (㎒) 00 2 402 . . . . 39 2 441 . . . . 78 2 480 Table 2.1.1. Bluetooth Low Energy Table 2.1.2. Bluetooth(BDR/EDR) mode Ch. Frequency (㎒) 01 2 412 . . . . 06 2 437 . . . . 11 2 462 12 2 467 13 2 472 Ch. Frequency (㎒) 03 2 422 . . . . 06 2 437 . . . . 09 2 452 10 2 457 11 2 462 Table 2.1.3. 802.11b/g/n_HT20 mode Table 2.1.4. 802.11n_HT40 mode UNII-1 UNII-2 A UNII-2C UNII-3 Ch. Frequency (㎒) 36 5 180 40 5 200 48 5 240 Ch. Frequency (㎒) 52 5 260 56 5 280 64 5 320 Ch. Frequency (㎒) 100 5 500 116 5 580 144 5 720 Ch. Frequency (㎒) 149 5 745 157 5 785 165 5 825 Table 2.1.5. 802.11a/n/ac_HT20/VHT20 mode UNII-1 UNII-2 A UNII-2C UNII-3 Ch. Frequency (㎒) 38 5 190 46 5 230 Ch. Frequency (㎒) 54 5 270 62 5 310 Ch. Frequency (㎒) 102 5 510 110 5 550 142 5 710 Ch. Frequency (㎒) 151 5 755 159 5 795 Table 2.1.6. 802.11n/ac_HT40/VHT40 mode UNII-1 UNII-2 A UNII-2C UNII-3 Ch. Frequency (㎒) 42 5 210 Ch. Frequency (㎒) 58 5 290 Ch. Frequency (㎒) 106 5 530 138 5 690 Ch. Frequency (㎒) 155 5 775 Table 2.1.7. 802.11ac_VHT80 mode KCTL Inc. …

Text truncated - open the document above for the full version.

verify No.194250447635 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0273 Page (2) of (47) KCTL-TIR001-003/3 KP20-04137 REPORT REVISION HISTORY Date Revision Page No 2020-11-02 Originally issued - This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. General remarks for test reports Nothing significant to report. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0273 Page (3) of (47) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 CONTENTS 1. General information ...................................................................................................... 4 2. Device information ........................................................................................................ 4 2.1. Frequency/channel operations ................................................................................ 5 2.2. Duty Cycle Factor ................................................................................................... 5 3. Antenna requirement .................................................................................................... 7 4. Summary of tests .......................................................................................................... 8 5. Measurement uncertainty ............................................................................................. 9 6. Measurement results explanation example ................................................................ 10 7. Test results ................................................................................................................. 11 7.1. Maximum peak output power ................................................................................ 11 7.2. Peak Power Spectral Density ............................................................................... 14 7.3. 6 dB Bandwidth(DTS Channel Bandwidth) & 99% Bandwidth .............................. 17 7.4. Spurious Emission, Band Edge and Restricted bands .......................................... 23 7.5. Conducted Spurious Emission .............................................................................. 42 7.6. AC Conducted emission ....................................................................................... 45 8. Measurement equipment ............................................................................................ 47 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0273 Page (4) of (47) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 1. General information Client : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Rep. of Korea Manufacturer : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Rep. of Korea Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 Industry Canada Registration No. : 8035A KOLAS No.: KT231 2. Device information Equipment under test : Wi-Fi / BT Transceiver Model : CCBQ730M Modulation technique : Bluetooth(BDR/EDR)_ GFSK, π/4DQPSK, 8DPSK Bluetooth(BLE)_GFSK WIFI(802.11a/b/g/n/ac)_DSSS, OFDM Number of channels : Bluetooth(BDR/EDR)_79 ch, Bluetooth(BLE)_40 ch 2.4 GHz band: 13 ch (20 ㎒), 9 ch (40 ㎒), UNII-1: 4 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) UNII-2A: 4 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) UNII-2C: 12 ch (20 ㎒), 6 ch (40 ㎒), 3 ch (80 ㎒) UNII-3: 5 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) Power source : DC 5.0 V Antenna type : Metal Antenna Antenna gain : BT/LE ANT 0: -4.60 ㏈i 2.4 ㎓ band ANT 1: 1.90 ㏈i, ANT 2: 1.10 ㏈i UNII-1 ANT 1: 1.80 ㏈i, ANT 2: 2.80 ㏈i UNII-2A ANT 1: 1.40 ㏈i, ANT 2: 2.80 ㏈i UNII-2C ANT 1: 0.40 ㏈i, ANT 2: 2.90 ㏈i UNII-3 ANT 1: 0.30 ㏈i, ANT 2: 2.90 ㏈i Frequency range : 2.4 ㎓ band: 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth/BLE) 2.4 ㎓ band: 2 412 ㎒ ~ 2 472 ㎒ (802.11b/g/n_HT20) 2.4 ㎓ band: 2 422 ㎒ ~ 2 462 ㎒ (802.11n_HT40) UNII-1: 5 180 ㎒ ~ 5 240 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-1: 5 190 ㎒ ~ 5 230 ㎒ (802.11n/ac_HT40/VHT40) UNII-1: 5 210 ㎒ (802.11ac_VHT80) UNII-2A: 5 260 ㎒ ~ 5 320 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-2A: 5 270 ㎒ ~ 5 310 ㎒ (802.11n/ac_HT40/VHT40) UNII-2A: 5 290 ㎒ (802.11ac_VHT80) UNII-2C: 5 500 ㎒ ~ 5 720 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-2C: 5 510 ㎒ ~ 5 710 ㎒ (802.11n/ac_HT40/VHT40) UNII-2C: 5 530 ㎒ ~ 5 690 ㎒ (802.11ac_VHT80) UNII-3: 5 745 ㎒ ~ 5 825 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-3: 5 755 ㎒ ~ 5 795 ㎒ (802.11n/ac_HT40/VHT40) UNII-3: 5 775 ㎒ (802.11ac_VHT80) Software version : 1.0 Hardware version : 1.0 Test device serial No. : Conducted(88571DEE66A0) Radiated(88571DEE65C8) Operation temperature : -20 °C ~ 50 °C KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0273 Page (5) of (47) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 2.1. Frequency/channel operations This device contains the following capabilities: WiFi (802.11a/b/g/n/ac), Bluetooth (BDR/EDR/BLE) Ch. Fr…

Text truncated - open the document above for the full version.

verify No.552612830654 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0274-B Page (2) of (184) KCTL-TIR001-003/3 KP20-04137 REPORT REVISION HISTORY Date Revision Page No 2020-11-02 Originally issued - 2020-11-04 Updated 10, 152 2020-11-09 Updated 17, 18, 19 This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. Note. The report No. KR20-SRF0274-A is superseded by the report No. KR20-SRF0274-B. General remarks for test reports Nothing significant to report. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0274-B Page (3) of (184) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 CONTENTS 1. General information ...................................................................................................... 4 2. Device information ........................................................................................................ 4 2.1. Frequency/channel operations ................................................................................ 5 2.2. Duty Cycle Factor ................................................................................................... 6 3. Antenna requirement .................................................................................................... 9 3.1 Antenna information ................................................................................................. 10 3.2 Directional Gain Calculations ................................................................................... 10 4. Summary of tests ........................................................................................................ 11 5. Measurement uncertainty ........................................................................................... 12 6. Measurement results explanation example ................................................................ 13 7. Test results ................................................................................................................. 14 7.1. Maximum peak output power ................................................................................ 14 7.2. Peak Power Spectral Density ............................................................................... 21 7.3. 6 dB Bandwidth(DTS Channel Bandwidth) & 99% Bandwidth .............................. 30 7.4. Spurious Emission, Band Edge and Restricted bands .......................................... 40 7.5. Conducted Spurious Emission ............................................................................ 153 7.6. AC Conducted emission ..................................................................................... 182 8. Measurement equipment .......................................................................................... 184 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0274-B Page (4) of (184) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 1. General information Client : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Rep. of Korea Manufacturer : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Rep. of Korea Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 Industry Canada Registration No. : 8035A KOLAS No.: KT231 2. Device information Equipment under test : Wi-Fi / BT Transceiver Model : CCBQ730M Modulation technique : Bluetooth(BDR/EDR)_ GFSK, π/4DQPSK, 8DPSK Bluetooth(BLE)_GFSK WIFI(802.11a/b/g/n/ac)_DSSS, OFDM Number of channels : Bluetooth(BDR/EDR)_79 ch, Bluetooth(BLE)_40 ch 2.4 GHz band: 13 ch (20 ㎒), 9 ch (40 ㎒), UNII-1: 4 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) UNII-2A: 4 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) UNII-2C: 12 ch (20 ㎒), 6 ch (40 ㎒), 3 ch (80 ㎒) UNII-3: 5 ch (20 ㎒), 2 ch (40 ㎒), 1 ch (80 ㎒) Power source : DC 5.0 V Antenna type : Metal Antenna Antenna gain : BT/LE ANT 0: -4.60 ㏈i 2.4 ㎓ band ANT 1: 1.90 ㏈i, ANT 2: 1.10 ㏈i UNII-1 ANT 1: 1.80 ㏈i, ANT 2: 2.80 ㏈i UNII-2A ANT 1: 1.40 ㏈i, ANT 2: 2.80 ㏈i UNII-2C ANT 1: 0.40 ㏈i, ANT 2: 2.90 ㏈i UNII-3 ANT 1: 0.30 ㏈i, ANT 2: 2.90 ㏈i Frequency range : 2.4 ㎓ band: 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth/BLE) 2.4 ㎓ band: 2 412 ㎒ ~ 2 472 ㎒ (802.11b/g/n_HT20) 2.4 ㎓ band: 2 422 ㎒ ~ 2 462 ㎒ (802.11n_HT40) UNII-1: 5 180 ㎒ ~ 5 240 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-1: 5 190 ㎒ ~ 5 230 ㎒ (802.11n/ac_HT40/VHT40) UNII-1: 5 210 ㎒ (802.11ac_VHT80) UNII-2A: 5 260 ㎒ ~ 5 320 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-2A: 5 270 ㎒ ~ 5 310 ㎒ (802.11n/ac_HT40/VHT40) UNII-2A: 5 290 ㎒ (802.11ac_VHT80) UNII-2C: 5 500 ㎒ ~ 5 720 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-2C: 5 510 ㎒ ~ 5 710 ㎒ (802.11n/ac_HT40/VHT40) UNII-2C: 5 530 ㎒ ~ 5 690 ㎒ (802.11ac_VHT80) UNII-3: 5 745 ㎒ ~ 5 825 ㎒ (802.11a/n/ac_HT20/VHT20) UNII-3: 5 755 ㎒ ~ 5 795 ㎒ (802.11n/ac_HT40/VHT40) UNII-3: 5 775 ㎒ (802.11ac_VHT80) Software version : 1.0 Hardware version : 1.0 Test device serial No. : Conducted(88571DEE66A0) Radiated(88571DEE65C8) Operation temperature : -20 °C ~ 50 °C KCTL Inc. 65, Sinwon-ro, Yeongtong-g…

Text truncated - open the document above for the full version.

KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0274-B Page (71) of (184) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 802.11n HT20_2 467 ㎒ Frequency Pol. Reading Ant. Factor Amp. + Cable DCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 2 483.53 1) H 59.69 32.07 -29.21 - 62.55 74.00 11.45 4 938.22 1) V 62.30 33.98 -55.05 - 41.23 74.00 32.77 9 867.77 V 63.18 36.79 -53.15 - 46.82 74.00 27.18 Average Data 2 483.53 1) H 46.62 32.07 -29.21 0.12 49.60 54.00 4.40 Average data Blank Horizontal/Vertical for Band-edge KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0274-B Page (72) of (184) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0274-B Page (73) of (184) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-04137 802.11n HT20_2 472 ㎒ Frequency Pol. Reading Ant. Factor …

Text truncated - open the document above for the full version.
