A3LCLX3185FNColor Laser Printer

CLX-318x Series Multi-Functional Printer User’s Guide imagine the possibilities Thank you for purchasing a Samsung product. Contents_ 2 contents CONTENTS 2 COPYRIGHT 9 10 Safety information 14 Regulatory information 25 About this user’s guide 27 Features of your new product INTRODUCTION 29 29 Machine overview (CLX-3185/CLX-3185N/CLX-3185WK) 29Front view 30Rear view 31 Control panel overview (CLX-3185/CLX-3185N/CLX-3185WK) 32 Machine overview (CLX-3185FN/CLX-3185FW) 32Front view 33Rear view 34 Control panel overview (CLX-3185FN/CLX-3185FW) 36 Understanding the Status LED 36 Introducing the useful buttons 36Menu button 36Power button 36Print screen button (CLX-3185 only) 36Eco Copy button (CLX-3185/CLX-3185N/CLX-318FN only) 37WPS button (CLX-3185WK/CLX-3185FW only) 37 Acknowledging the status of the toner cartridge GETTING STARTED 38 38 Setting up the hardware 38 Supplied software 39 System requirements 39Microsoft® Windows® 39Macintosh 40Linux 40 Installing USB connected machine’s driver 40Windows 41Macintosh 41Linux 42 Sharing your machine locally 42Windows 43Macintosh NETWORK SETUP (CLX-3185N/CLX-3185WK/CLX-3185FN/ CLX-3185FW ONLY) 44 44 Network environment 44 Introducing useful network programs 44SyncThru™ Web Service 44SyncThru™ Web Admin Service 44SetIP 44 Using a wired network 45Printing a network configuration report 45Setting IP address 46Network parameter setting 46Restoring factory default settings 46 Installing wired network-connected machine’s driver 46Windows 48Macintosh contents Contents_ 3 48Linux 49 IPv6 Configuration 49Activating IPv6 49Setting IPv6 addresses 49Using SyncThru™ Web Service WIRELESS NETWORK SETUP (CLX-3185FW/CLX-3185WK ONLY) 50 50 Using a wireless network 50Choosing your network connection 50Printing a network configuration report 50IP addresses 50Wireless network name and Network Key 50Installing a wireless network with the WPS button 51Installing a wireless network with cables 51 Setting a wireless network with WPS button on the control panel 51Items to prepare 51Choosing your network connection 51Changing WPS mode 51Setting a wireless network in PBC mode 52Setting a wireless network in PIN mode 52 Setting a wireless network with USB cable 52Installing the machine on a wireless network with an Access Point (Windows) 54Installing the machine on an Ad-Hoc wireless network (Windows) 55Installing the machine on a wireless network with an Access Point (Macintosh) 56Installing the machine on an Ad-Hoc wireless network (Macintosh) 57 Setting a wireless network with network cable 57Preparing items 57Setting IP address 58Configuring the machine’s wireless network 59 Resetting factory default values 59Resetting the machine to factory default settings (Windows) 59Resetting the machine to factory default settings (Macintosh) 59Network parameter setting 59 Completing the Installation 59 Troubleshooting 59Wireless network problems 60Solving other problems BASIC SETUP 61 61 Altitude adjustment 61 Changing the display language 61 Setting the date and time (CLX-3185FN/CLX-3185FW only) 61 Changing the clock mode (CLX-3185FN/CLX-3185FW only) 62 Changing the default mode (CLX-3185FN/CLX-3185FW only) 62 Setting sounds 62Key sound and alarm sound (CLX-3185/CLX-3185N only) 62Speaker, ringer, key sound, and alarm sound (CLX-3185FN/CLX- 3185FW only) 62Speaker volume (CLX-3185FN/CLX-3185FW only) 62 Entering characters using the number keypad (CLX-3185FN/CLX- 3185FW only) 62Entering alphanumeric characters 62Keypad letters and numbers 63Correcting numbers or names 63Inserting a pause 63 Using the save modes contents Contents_ 4 63Using the power saving feature 63 Setting the default paper 63From your machine’s control panel 63From your computer 64 Setting job timeout MEDIA AND TRAY 65 65 Loading originals 65On the scanner glass 65In the document feeder (CLX-3185FN/CLX-3185FW only) 66 Selecting print media 66Guidelines for selecting the print media 66Media sizes supported in each mode 66 Changing the tray size for print media 68 Loading paper in the tray 68 Printing on special media 68Envelopes 69Transparencies 69Labels 69CardStock/Custom-sized paper 70Letterhead/Preprinted paper 70Glossy photo 70Matte photo 70 Setting the paper size and type 70Setting the paper size 70Setting the paper type 70 Using the output support PRINTING 71 71 Introducing useful software program 71Samsung AnyWeb Print 71Samsung Easy Color Manager 71 Printer driver features 71Printer driver 71 Basic printing 72Canceling a print job 72 Opening printing preferences 72Using a favorite setting 73 Using help 73 Using special print features 73Printing multiple pages on one sheet of paper 73Printing posters 73Printing booklets (Manual) 73Printing on both sides of the paper (Manual) 74Change percentage of your document 74Fitting your document to a selected paper size 74Using watermarks 75Using overlay 75Advanced Options 76 Changing the default print settings 76 Setting your machine as a default machine 76 Printing to a file (PRN) 76 Macintosh printing 76Printing a document 76Changing printer settings 77Printing multiple pages on one sheet of paper 77 Linux printing contents Contents_ 5 77Printing from applications 78Printing files 78Configuring Printer Properties COPYING 79 79 Basic copying 79 Changing the settings for each copy 79Darkness 79Original Type 79Reduced or enlarged copy 80 Changing the default copy settings 80 ID card copying 80 Using special copy features 802-up or 4-up copying (N-up) 81Poster copying 81Clone copying 81Erasing background images 81Gray enhance copying 81 Deciding the form of copy output SCANNING 83 83 Basic scanning method 83 Scanning originals and sending to your computer (Scan to PC) 83For USB connected machine 84For network connected machine (CLX-3185N/CLX-3185FN/CLX- 3185FW only) 84 Scanning by a network connection (Scan to Email) (CLX-3185FN/CLX- 3185FW only) 84Setting up an e-mail account 84Scanning to Email 85 Changing the settings for each scan job 85 Changing the default scan sett…

Text truncated - open the document above for the full version.

Printing_ 76 CHANGING THE DEFAULT PRINT SETTINGS 1.Click the Windows Start menu. 2.For Windows Server 2000, select Settings >Printers. •For Windows XP/Server 2003, select Printer and Faxes. •For Windows Server 2008/Vista, select Control Panel > Hardware and Sound >Printers. •For Windows 7, select Control Panel > Devices and Printers. •For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers. 3.Right-click your machine. 4.For Windows XP/Server 2003/Server 2008/Vista, press Printing Preferences. For Windows 7 or Windows Server 2008 R2, from context menus, select the Printing preferences. If Printing preferences item has a Ź mark, you can select other printer drivers connected with the selected printer. 5.Change the settings on each tab. 6.ClickOK. If you want to change the settings for each print job, change it in Printing Preferences. SETTING YOUR MACHINE AS A DEFAULT MACHINE 1.Click the Windows Start menu. 2.For Windows Server 2000, select Settings >Printers. •For Windows XP/Server 2003, select Printer and Faxes. •For Windows Server 2008/Vista, select Control Panel > Hardware and Sound >Printers. •For Windows 7, select Control Panel > Devices and Printers. •For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers. 3.Select your machine. 4.Right-click your machine and select Set as Default Printer. For Windows 7 or Windows Server 2008 R2, if Set as default printer item has a Ź mark, you can select other printer drivers connected with the selected printer. PRINTING TO A FILE (PRN) You will sometimes need to save the print data as a file. You can print the document to a file instead of routing it directly to a printer. The document is saved with the printer formatting, such as font selection and color specifications, in a .prn file that can be printed on another printer. To save a print job as a file: 1.Check the Print to file box at the Print window. 2.ClickPrint. 3.Type in the destination path and the file name, and then click OK. For example c:\Temp\file name. If you type in only the file name, the file is automatically saved in My Documents. The saved folder may differ depending on your operating system. MACINTOSH PRINTING This section explains how to print a document in a Macintosh operating system. Printing a document When you print with a Macintosh, you need to check the printer driver setting in each application you use. Follow the steps below to print from a Macintosh. 1.Open the document you want to print. 2.Open the File menu and click Page Setup. 3.Choose your paper size, orientation, scaling or other options, and make sure that your machine is selected. 4.Choose the number of copies you want and indicate which pages you want to print. 5.ClickPrint. Changing printer settings You can use advanced printing features provided by your machine. Open an application and select Print from the File menu. The machine name, which appears in the printer properties pane may differ depending on the machine in use. Except for the name, the composition of the printer properties pane is similar to the following. Printing_ 77 •The setting options may differ depending on models or Macintosh OS versions. •The following pane may differ depending on your operating system or the application you are using. The following pane is the first pane you will see when you open the printer properties pane. Select other advanced features from the drop-down list. Layout The Layout dialog provides options to adjust how the document appears on the printed page. You can print multiple pages on one sheet of paper. Select Layout from the drop-down list to access the following features. •Pages per Sheet:This option determines how many pages to be printed on one page (See "Printing multiple pages on one sheet of paper" on page 77). •Layout Direction:This option allows you to select the printing direction on a page similar to the examples on the screen. •Border:This option allows you to print a border around each page on the sheet. •Reverse Page Orientation:This option allows you to rotate paper 180 degrees. Graphics The Graphics dialog provides options for selecting Quality and Color mode. Select Graphics from the drop-down list to access the graphic features. •Quality:This option allows you to select the printing resolution. The higher setting option you choose, the better sharpness and clarity of printed characters or images are. A higher setting will also increase the time it takes to print a document. •Color mode:You can set the color options. Setting to Color typically produces the best possible print quality for color documents. If you want to print a color document in grayscale, select Grayscale. Paper SetPaper Type to correspond to the paper loaded in the tray from which you want to print. This will let you get the best quality printout. If you load a different type of print material, select the corresponding paper type. Printer Features The Printer Features dialog provides Advanced Options and Color Adjustoptions. Select Printer Features from the drop-down list to access the following features. •Fine Edge:It allows users to emphasize edges of texts and fine lines for improving readability and align color channel registration in color printing mode. •RGB Color:You can adjust the appearance of images by changing the settings in the RGB Color option. •Screen:This option allows you to select options to convert continuous-tone image into printable binary image. •Color Adjust:You can adjust the image by changing the settings in the Color Adjust option. Printing multiple pages on one sheet of paper You can print more than one page on a single sheet of paper. This feature provides a cost-effective way to print draft pages. 1.Open an application, and select Print from the File menu. 2.SelectLayout from the drop-down list. In the Pages per Sheet drop-down list, select the number of pages you want to print on one sheet of paper. 3.Select the other options you want to use.…

Text truncated - open the document above for the full version.

Block Diagram of Zinnia 3185N FN FW 44- -in in- -1 onl y 1 onl y Main B’d Sensor (Deve Home)Sensor (Deve Home) 3185N , FN , FW 3p3p ModemModem 30p FFC30p FFC yy ADFADF 20p20p 44- -in in- -1 only 1 only CISCIS 12 FFC12 FFC 33 LSU LSU Zinnia16 Single beamZinnia16 Single beam HVPSHVPS Sensor (Empty)Sensor (Empty) Ground Wire(225mm)Ground Wire(225mm) 16p FFC16p FFC 3p3p RAM Controller ARM9 – 360MHz Chorus3 DDR2128MB X 2EA SA[12:0], BA0,1 DQ[15:0] 3p3p Sensor (Bin Full & Narrow)Sensor (Bin Full & Narrow) CISCIS 12 p FFC 12 p FFC 3 p 3 p SMPSSMPSZinnia16 Type2 1WZinnia16 Type2 1W HVPSHVPST1T1T2T2ChargerChargerSupplySupplyDeve BiasDeve BiasEitSEitS Waste Toner TXWaste Toner TX Waste Toner RXWaste Toner RX 5p5p 26p FFC26p FFC 2p2p 2p2p 2p2p Sensor (Regi)Sensor (Regi) GPIOMACUART ADC 8chPWM 8ch N/W Φ AC201A1KMLG MAC_TXD[3:0] MAC_RXD[3:0] CKE, nCS0 , nRAS, nCAS, WE DM0~1, nDQS0~1, DQS1, ODT0, nDDR_CLK0, BA0~1 25MHz Fan Fan 3p3p 4p4p E x it S ensor E x it S ensor Fuser LampFuser Lamp ThemistorThemistor FuserFuser BLDC MotorBLDC Motor(Main)(Main) 2p2p 10p10p 2p2p I2CStep LSUControllerHPVC EEPROM SCL SDA 25MHz Cl k 3185N, FN – 32Kbit3185FW – 64Kbit Fuser ClutchFuser Clutch Pickup ClutchPickup Clutch T2 ClutchT2 Clutch ITB CutchITB Cutch D ClthD Clth OPE Panel DisplayOPE Panel Display(LED & Keys)(LED & Keys) Inner Temp.Inner Temp.ITB Home SensorITB Home Sensor 2p2p 3p3p 3p3p 3p3p2p2p 9p9p 5p5p Local ControllerImage ProcessorStepMotor HPVC P. Flash32MB ADDR[24:1 ] DATA[15:0 ] nRD, nWR, nCS S. Flash Data Cl oc k ] (4(4- -in in- -1 only) 1 only) JitJit CRUM YCRUM YCRUM MCRUM M D eve Cl u t c h D eve Cl u t c h 5p5p +24V Cover Open S/W+24V Cover Open S/W 2p2p ERASER LAMPERASER LAMP 2p2p 4p4p 4p4p4p4p PLL Vclk Mclk USB2.0 SSCG 12MHz USBISP1761 DATA[15:0 ] ADDR[8:1 ] Regi ClutchRegi Clutch 3p3p J o i n t J o i n t CRUM CCRUM C CRUM YCRUM Y OPC KEYOPC KEY 2p2p ERASER LAMPERASER LAMP 4p4p 4p4p ※ Flash : CLX-3185XX Series – 32MBDDR : CLX-3185XX Series - 256MB

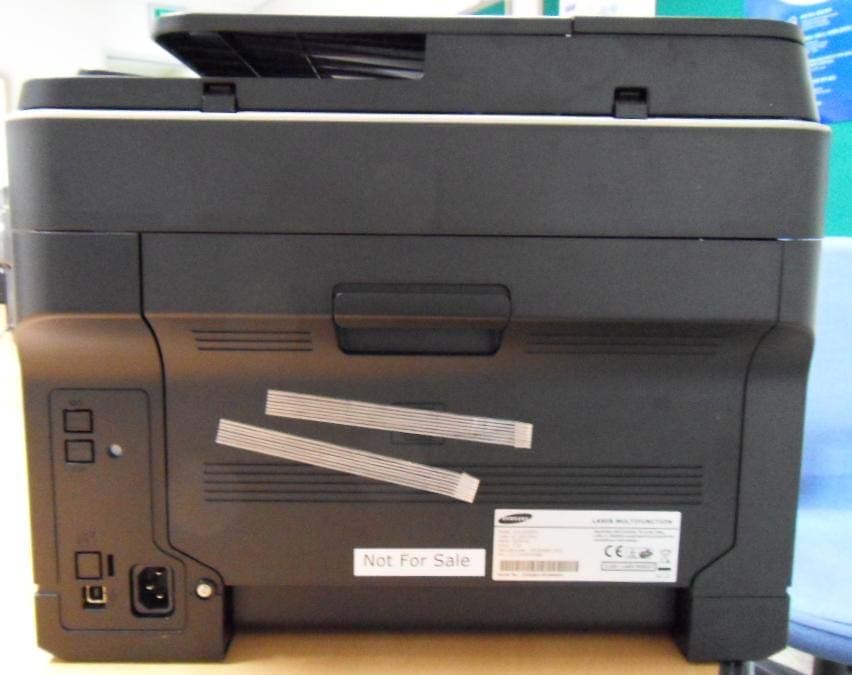

External Pictures 1) Front view 2) Rear view External Pictures 3) Side View1 4) Side View2

Project No. : LBE094005 Color LASER MFP : CLX-3185FW -53/54- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Inside View (1) Label Location Project No. : LBE094005 Color LASER MFP : CLX-3185FW -54/54- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Label

Internal Pictures 1) Front view 2) Rear view PBA Pictures 1) Top View of Main Controller (CLX-3185FW) 2) Bottom View of MainController (CLX-3185FW) 3) Top View of FAX PBA (CLX-3185FN/FW) 4) Bottom View of FAX PBA (CLX-3185FN/FW) 5) Top View of OPE (CLX-3185N) 6) Bottom View of OPE (CLX-3185N) 7) Top View of OPE (CLX-3185FN/FW) 8) Bottom View of OPE (CLX-3185FN/FW) 9) Top View of ADF Joint (CLX-3185FN/FW) 10) Bottom View of ADFJoint (CLX-3185FN/FW)) 11) Top View of SMPS (110V) 12) Bottom View of SMPS (110V) 13) Top View of HVPS 14) Bottom View of HVPS

Project No. : LBE094005 Color LASER MFP : CLX-3185FW -7/54- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor Chorus3 (360Mhz) - Standard System memory 256MB DDR2 SDRAM - Resolution Up to 2400X600dpi Class (Default 1200x600 dpi) Optical: 600x600 Dpi - Copy Quality mode Text : 600x600dpi(Optical: 300x300dpi) Mixed : 600x600dpi(Optical: 300x300dpi) Photo : 600x600dpi(Optical: 300x300dpi)(ADF) , 1200x1200dpi(Optical: 600x600dpi) (Platen) - Paper Handling Paper Tray(standard) 150 Sheets - Power Rating 110~127 VAC, 5.5A, 50/60 Hz - Power Consumption Average : 350W Sleep/Power off : Less than 6W/0.45W - Printer Language SPL-C, PCL-6 (CLX-3185N/FN/FW only) - PC Interfaces USB2.0, Ethernet 10/100 Tx Base, 802.11b/g/n(Wireless model only) - OS compatibility Microsoft Windows: 2000/XP(Include 64bit) Vista Linux OS: Red Hat 8~9, Fedora Core 1~4 Mandrake 9.2~10.1 SuSE 8.2~9.2 - Modes of Operation USB Printing, Network Printing, Copy , FAX (FAX model only) Wireless network printing (Wireless model only) - Intended Class for Emissions Class B -

-1/54- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE094005 Issue No. 1 Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Applicant Date of application December 23, 2009 Type of device Class B digital devices and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LCLX3185FN Kind of product Color LASER PRINTER CLX-3185FW Model No. Variant Model No. CLX-3180N,CLX-3185FN,CLX-3180FN, CLX-3185W,CLX-3180W,CLX-3185N, CLX-3180FW EUT Manufacturer Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeong-Buk, 730-030, Korea Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech IDZ, Shandong Province, P.R. China Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech IDZ, Shandong Province, P.R. China Intops : Intops (Weihai) Electronics Co., Ltd., Keji Road-268-1 , Weihai Hi-Tech,Industries Development Zone , Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2003 Test Period December 15, 2009 ~ December 21, 2009 Issue date December 23 , 2009 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Ho Jin Choi Reviewed by : No Cheon Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE094005 Color LASER MFP : CLX-3185FW -2/54- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 2.2 Accreditation and listing 3. Test configuration 3.1 Test Peripherals 3.2 EUT operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Test configuration and condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE094005 Color LASER MFP : CLX-3185FW -3/54- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Remarks Conducted Disturbance Complied Meets Class B Limit Radiated Disturbance FCC Part 15 Subpart B Complied Meets Class B Limit Project No. : LBE094005 Color LASER MFP : CLX-3185FW -4/54- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 2. General Information 2.1 Test facility The SEC EMC Laboratory is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The SEC EMC Laboratory is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 2.2 Accreditation and listing Laboratory Qualifications Remarks KOLAS(Korea Laboratory Accreditation Scheme) Accredited : 124 UKAS(United Kingdom Accreditation Service) Accredited : 4290 Radio Research Agency Accredited : KR0004 FCC(Federal Communications Commission) Accredited : KR0004 National Voluntary Laboratory Accreditation Program Lab Code: 200623-0 Norges Elektriske Materiellkontroll Accredited : ELA 195 VCCI (Voluntary Control Council for Interference by Information Technology Equipment) C-2421,R-2224 China Quality Certification Center 5-053, 5-054 TUV Rhineland H9354285 GOST(GOSTSTANDART) ROSTEST Elektrotechnicky Zkusebni Ustav Reg. No.: 001 IC(Industry Canada) Assigned Code: 5871 Project No. : LBE094005 Color LASER MFP : CLX-3185FW -5/54- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3. Test Setup configuration 3.1 Test Peripherals The following is a listing of the EUT and peripherals utilized during the performance of testing. 3.2 EUT operating mode To achieve compliance applied standard and/or specification, the following mode(s) were considered Operating Mode 1 Standby Operating Mode 2 USB Printing Operating Mode 3 ADF Copy Printing Operating Mode 4 Network Printing Operating Mode 5 Wireless Network Printing Operating Mode 6 Scan to PC Operating Mode 7 Scan to USB Operating Mode 8 Fax-Rx Operating Mode 9 Fax-Tx 3.3 Details of Sampling Customer selected, single units. Description Model No. Serial No. Manufacturer FCC ID and/or DoC Color Laser MFP CLX-3185FW - Samsung EUT Notebook PC PP18L 2718225373 DELL DOC AC Adapter LA65LS1-00 CN-OYD637-71615-83C- OE60 DELL DOC USB Mouse MOARUO 0740007905 Primax electronics DOC Head set Micro soft - - - Telephone SP-F209 - Samsung - Project No. : LBE094005 Color LASER MFP : CLX-3185FW -6/54- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Powe…

Text truncated - open the document above for the full version.

Project No. : LBE094005 Color LASER MFP : CLX-3185FW -12/54- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.1.3 Photograph of Test Setup Front Rear Project No. : LBE094005 Color LASER MFP : CLX-3185FW -33/54- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.2.3 Photograph of Test Setup Front Rear
