Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

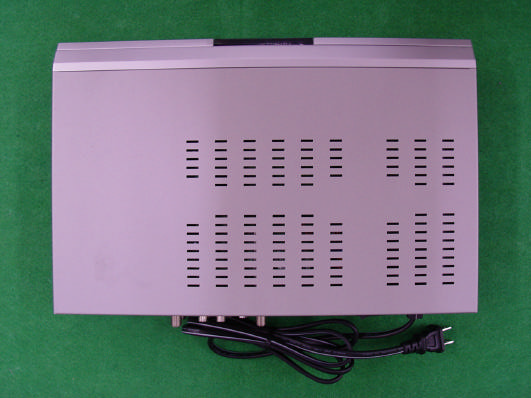

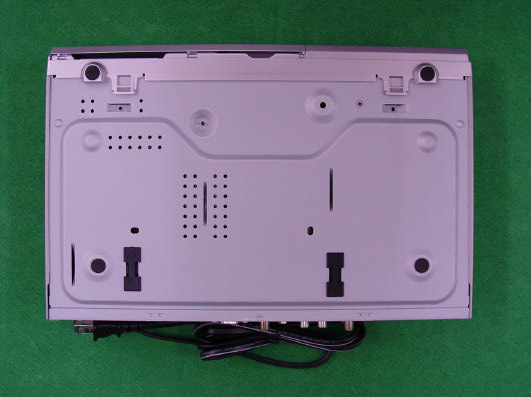

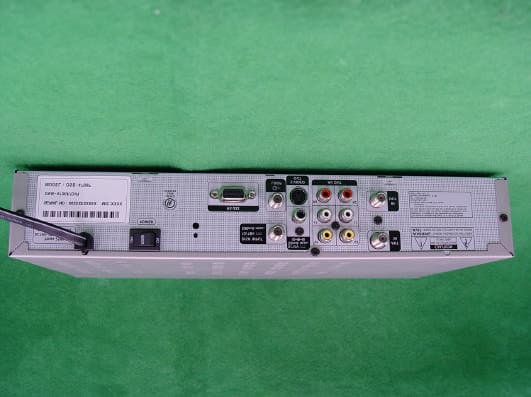

DSB-4700F PHOTOGRAPHS Top View Bottom View DSB-4700F PHOTOGRAPHS Front View Rear View
FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL : DSB-4700F Fuse:250V T1.6AH AC120V~,60Hz Pmax 25W F C C ID : A3L DS B 4700F T his device complies with pa rt 15 of the F C C R ules . O pera tion is s ubject to the following two conditions : (1) this device ma y not ca us e ha rmful interference, a nd (2) this device mus t a ccept a ny interference received, including interference tha t ma y ca us e undes ired opera tion. WA R N IN G : A V IS : SH O CK H A ZA R D-DO N O T O PE N . R ISQ U E DE CH O C É LE CTR IQ U E -N E PA S O U V R IR .
DSB-4700F PHOTOGRAPHS Top View (Top cover open) Main Board Top View DSB-4700F PHOTOGRAPHS Main Board Bottom View
Page : 1 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE040460 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-Si,Gyeonggi-Do, Korea,443-742 Product Name Digital Satellite Receiver Model Name DSB-4700F Manufacturer SAMSUNG Brand Name SAMSUNG Broadcasting System Satellite Variant Model See Page 3 Date of Test March 12, 2004 ~ March 17, 2004 Issued Date March 29, 2004 Name/Position Signature Tested by Min Kyung Chul Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 Page : 2 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3. 1 Conducted Emission 3. 2 Antenna Terminals 3. 3 Radiated Emission 3. 4 Output Signal Level 3. 5 Output Terminal Conducted Spurious Emission 3. 6 Ant. Transfer Switch 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant SAMSUNG Model name DSB-4700F Applicant Address Samsung Electronics Co. Ltd; 416 Maetan3- Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 Contact Person Kyung Chul,Min Kind of product Digital Satellite Receiver Valiant list None Manufacturer SAMSUNG New / Alternative / Permissive change Information This report is original report # 1.2 Detail Information related Product Specification Items Decription FCC ID Number A3LDSB4700F Tuner Freq.Range 950 ~ 2150MHz Tuner Input signal level -65 ~ -25 dBm Channel selection PLL frequency synthesizer Input Impedance 75 ohm unbalanced Tuner LNB Power Control 13V/18V, 22kHz tone Modulator Output CH 3 or CH 4 Video Type NTSC UHF Output level 66 +/- 5dBuV Output connector Female Ant. O/P connector IEC female Tuning method PLL frequency synthesizer RF modulator Page : 4 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating Frequency Tuner Freq. Range : 950 MHz ~ 2150 MHz 1.3 Operating Mode and Condition This system have following operating mode(s). - Satellite Signal Receiving The system was configured for testing in typical fashion use. All connectors not used are terminated with resistors matching the nominal terminal impedance. The mode of operation utilized for testing was selected to best simulate typical EUT use. 1.4 Equipment Modifications No equipment modifications were required. Page : 5 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.5 Test Configuration Used EUT and Peripherals Seq Device Model Name Serial # Maker Note A Digital Satellite Receiver DSB-4700F None SAMSUNG EUT B Remote Controller - - SAMSUNG EUT Used Cable Description Connect Cable Length [m] Shielded [Y/N]Remark 1 Power 1.5 No 2 ANT In 1.5 Yes 75 ohm Termination 3 RF Out 1.5 Yes 75 ohm Termination 4 Dish Input 1.5 Yes 75 ohm Termination 5 Loop 1.5 Yes 75 ohm Termination 6 AV Out 1 1.5 No Video Out : 75 ohm Terminated Audio Out : 10 kohm Terminated 7 AV Out 2 1.5 No Video Out : 75 ohm Terminated Audio Out : 10 kohm Terminated 8 Audio Out 1.5 No Audio Out : 10 kohm Terminated 9 S-Video Out 1.5 No 75 ohm Terminated Page : 6 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Block Diagram Page : 7 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Applied Standards List Applied Standards Test Procedure FCC Part15 Subpart B ANSI 63.4 : 1992 Page : 8 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.7 Test Facility General Information The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 22, 16-1, 16-2, 11. This EMC Testing Lab. is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). This Lab. is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:1998. Accreditation and Listing Uncertainty Test Item Expanded Uncertainty Radiated Disturbance 5.09 Disturbance voltage at the mains terminals 1.64 (According to NAMAS Pub.NIS81) Page : …
Text truncated - open the document above for the full version.
Page : 25 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Rear) Page : 26 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Antenna Terminals Picture 4. Radiated Emission (Front) Page : 27 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 5. Radiated Emission (Rear) Picture 6. Output Signal Level Page : 28 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040460 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 7. Output Terminal Conducted Spurious Emission Picture 8. Ant. Transfer Switch
6660-B Dobbin Road · Columbia, Maryland · United States
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15B | 67.25 MHz - 71.75 MHz | - |
