A3LEIT5600Galaxy Smart Tag2

ISED Notice This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. The use of this devices on an aircraft or a ship may be subject to federal and local guidelines and restrictions. Check with appropriate authorities and always follow crew instructions regarding when and how you may use your device. Antennas mounted on outdoor structures such, as antennas mounted on the outside of a building or on a telephone pole, or any fixed outdoors infrastructure are prohibited for use with this device FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The use of Ultra-Wideband (UWB) transmitters is prohibited when aboard an aeroplane, a ship or a satellite, and may not be employed for the operation of toys. (USA Only) WARNING! Never dispose of batteries in a fire because they may explode. Do not dissemble, crush, puncture, heat, burn or reuse batteries. For more information, visit call2recycle.org or call 1-800-822-8837. Alternatively, visit: www.samsung.com/recycling or call 1-800-SAMSUNG. CALIFORNIA USA ONLY This Perchlorate warning applies only to primary CR(Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate.” These sympt oms may vary or fluctuate, with pain increasing and then subsiding. A symptom of button and coin battery ingestion is vomiting fresh (bright red) blood. If this occurs, seek immediate medical help. The lack of obvious symptoms is why it is important to be vigilant about “flat” or spare button or coin batteries in the home and the products that contain them. Your product supports water-resistance (IP67 rated; tested by submersion in up to 3 feet of fresh water for up to 30 minutes). Follow these tips carefully to maintain the water-resistant performance of the product. • Do not expose the product to swimming pool water or sea water. • Do not expose the product to water moving with force. A sudden rise in the water pressure may exceed the guaranteed level of water resistance. • If the product is exposed to water, wipe it with a soft and clean cloth, and then dry it thoroughly. • If the product is exposed to other liquids, such as soapy water, oil, perfume, sunscreen, hand cleaner, or chemical products such as cosmetics, clean the product with fresh water that does not flow, wipe it with a soft and clean cloth, and then dry it thoroughly before use to maintain the water resistance. • If the product has been immersed in water or speaker is wet, sound may not be heard clearly. WARNING • Do not use your product in a hot environment of near a fire. • Do not swallow or disassemble any battery, chemical burn hazard. • If the battery from your product is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. • Keep batteries away from infants and children. If the battery compartment does not close securely, stop using the product and keep it away from infants and children. If you think the batteries might have been swallowed or inserted inside any part of the body, seek immediate medical attention. Possible symptoms of battery consumption Unfortunately, it is not always obvious when a button or coin battery is stuck in a child’s oesophagus. The child might: • cough, gag, or drool excessively; • appear to have an upset stomach or a virus; • be sick; • point to their throat or stomach; • have pain in their abdomen, chest, or throat; • be tired or lethargic; • be quieter or more clingy than usual or otherwise “not themselves”; • lose their appetite or have a reduced appetite; and • not want / be unable to eat solid food. English Copyright © 2023 Samsung Electronics Co., Ltd. Copyright © 2023 Samsung Electronics America, Inc. Samsung and Samsung Galaxy are trademarks of Samsung Electronics Co., Ltd. Other company names and marks are the property of their respective owners. Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • To connect a product to a mobile device, press the button ( ) to turn it on and follow the on-screen instructions to complete the connection. If the pop-up window does not appear, use a mobile device to scan the QR code on the box. • Insert the ejection pin supplied with the product or a clip into the battery tray hole ( ) and replace the battery ( ). • Check the direction of the battery’s positive (+) terminal. If the battery is incorrectly inserted, the product will not work. • Visit www.samsung.com to access the user manual and the safety information. This content may not be available depending on the region. • This product includes certain free/open source software. The licence information of the open source software used in this product can be found at opensource.samsung.com. • Your consumer rights are governed by the law of the country in which you purchased the product. Please contact your service provider for more information. a A B 1 2 Printed in Korea A01213 Rev.1.0 NA Type 06/2023 EI-T5600 QUICK START GUIDE Galaxy SmartTag2 • Si le produit est exposé à d’autres liquides, comme de l’eau savonneuse, de l’huile, du parfum, de l’écran solaire, du nettoyant à mains ou encore des produits chimiques comme des cosmétiques, nettoyez le produit …

Text truncated - open the document above for the full version.

UNITED STATES DESIGNATED AGENT LETTER Date: 13-JUL-2023 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: Samsung Electronics Co., Ltd. Company Name: Samsung Electronics Co., Ltd. Grantee Code: A3L FRN: Contact Name: Jenni Chun Contact Name: Address: 19 Chapin Rd., Building D Address: 0027908797 Jenni Chun 19 Chapin Rd., Building D City/Province/Zip: Pine Brook/New Jersey/07058 City/Province/Zip: Pine Brook/New Jersey/07058 Telephone: 973-808-6375 Telephone: 973-808-6375 Fax: 973-808-6361 Fax: 973-808-6361 Email: [email protected] Email: [email protected] Applicable Equipment: FCC ID: A3LEIT5600 ATTN: Director of Certification: We, Samsung Electronics Co., Ltd., understand and acknowledge the applicants consent and the designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e-mail of the designated agent listed above. We, Samsung Electronics Co., Ltd., acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Applicant U.S. designated agent Name (Printed): Jenni Chun Name (Printed): Jenni Chun Title: General Manager Title: General Manager Signature: Signature:

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Samsung Electronics Co., Ltd. Address 19 Chapin Rd., Building D, Pine Brook, New Jersey, 07058 Grantee Code A3L FCC ID A3LEIT5600 Authorized Contact Name Jenni Chun Contact Email [email protected] Contact Phone 973-808-6375 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List Samsung Electronics Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Samsung Electronics Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 13 July 2023 Print Name: Jenni Chun Title: General Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

19 Chapin Rd., Building D Pine Brook, New Jersey, 07058, United States Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: A3LEIT5600 To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 13 July 2023 19 Chapin Rd., Building D Pine Brook, New Jersey, 07058, United States i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Jenni Chun/ General Manager Samsung Ele ctronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

19 Chapin Rd., Building D Pine Brook, New Jersey, 07058, United States 13 July 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: A3LEIT5600 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets a nd proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 5 External Photos 6 Internal Photos 7 Test‐Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Jenni Chun / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected] 4 PCB Layout

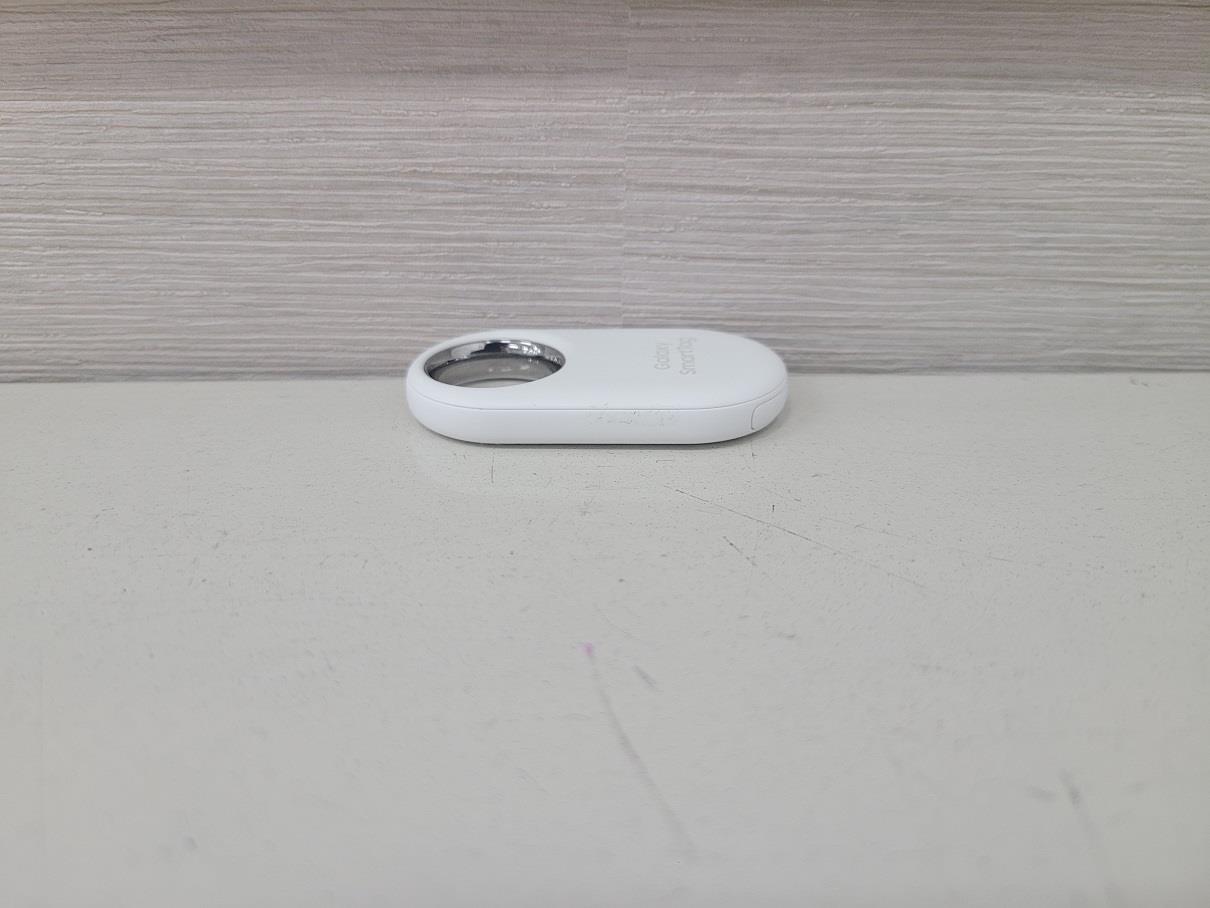

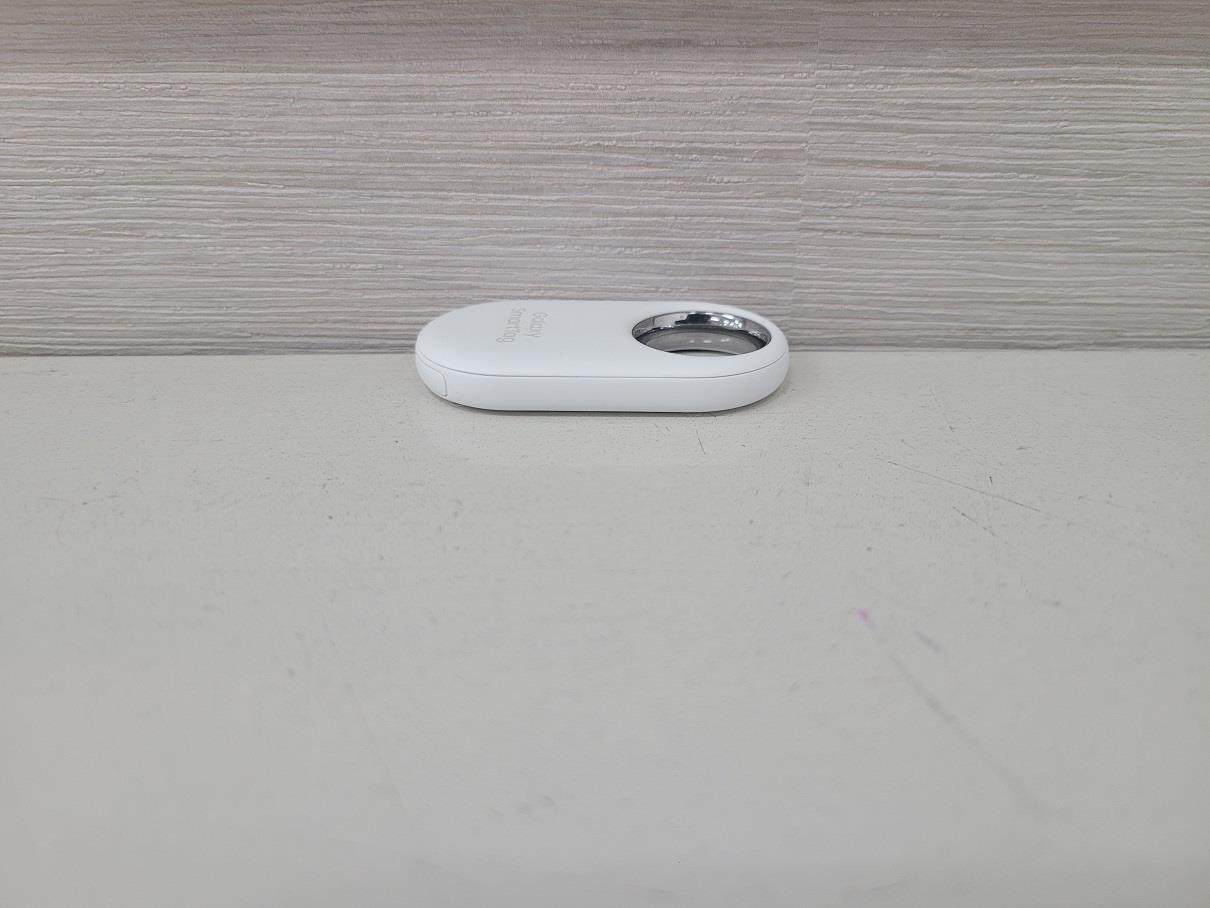

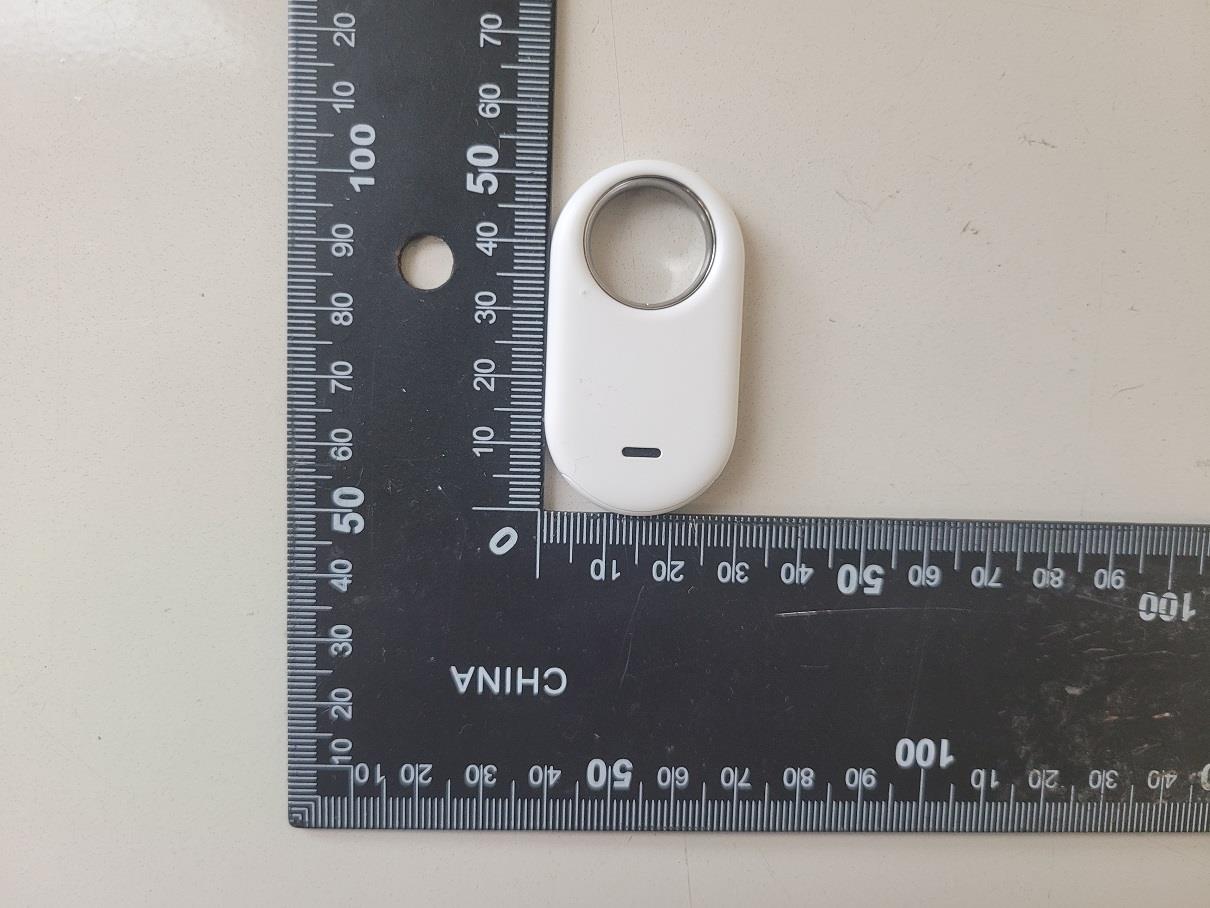

Model name: EI-T5600 External photos of EUT Model name: EI-T5600 Front view of EUT Rear view of EUT Model name: EI-T5600 Top view of EUT Bottom view of EUT Model name: EI-T5600 Side view of EUT

Label Information Label *This product is too small to insert FCC, ICstatement, it would be placed in the package. -Front view of EUT

Model name: EI-T5600 Internal photos of EUT Model name: EI-T5600 Internal view of EUT Model name: EI-T5600 Top view of Main PCB Model name: EI-T5600 Bottom view of Main PCB Model name: EI-T5600 View of Antenna BluetoothLowEnergyantenna UWBantenna

FCC ID: A3LEIT5600 According to KDB 447498 D01 General RF Exposure Guidance v06. At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 ㎜, the SAR test exclusion threshold is determined according to the following. [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] x [√f(㎓)] ≤ 3.0 1. SAR test exclusion threshold 1.1. Frequency: 2 480 ㎒ (min. separation distances = 0 ㎜) SAR test exclusion thresholds(5 ㎜) = 3 x 5 / (√ 2.480 ) = 9.525 ㎽ Max. tune-up tolerance (㎽) SAR Test Exclusion Thresholds (5 ㎜) (㎽) 7.943 9.525 Calculation value: 7.943 (㎽) / 5 (㎜) x √ 2.480 = 2.50 So, Calculation value ≤ 3.0 Remark; - Max. tolerance power of EUT (9 ㏈m). - Max. tolerance power of EUT is 7.943(㎽). - When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ is applied to determine SAR test exclusion. - Tune up power procedure / torelance 1M PHY : 8.0 ㏈m (-1.5 ㏈m ~ + 1.0 ㏈m) 1.2. Frequency : 6.5 ㎓ (UWB) - Maximum Allowed E.I.R.P. : -41.3 ㏈m (0.000 074 ㎽) - The Maximum allowed RF output power of UWB is less than 1 ㎽. Per November 2019 TCB Workshop Notes, RF Exposure test is not required based on 1 ㎽ exclusion for frequency over 6 ㎓. 2. Simultaneous transmission of RF Exposure test exclusion Configuration. - Bluetooth LE: the ratio is 2.5 / 3 - UWB: the ratio is 0.000 074 / 1 Confirm the sum result of individual RF Expsoure ratio is ≤ 1.0; Bluetooth LE + UWB: (2.5 / 3) + (0.000 074 / 1) = 0.833 407 ≤ 1.0 3. Conclusion: No SAR is required.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004240 Page: 2 of 49 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information ----------------------------------------------------------------------- 3 2. Maximum Peak Power and Radiated Emissions ----------------------------------- 7 3. 10 ㏈ Bandwidth -------------------------------------------------------------------------- 35 4. 99 % Bandwidth ---------------------------------------------------------------------------- 41 5. Cease Transmission Time --------------------------------------------------------------- 47 6. Antenna Requirement---------------------------------------------------------------------- 49 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004240 Page: 3 of 49 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil. Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant FCC Applicant : Samsung Electronics Co Ltd FCC Address : 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States, 07058 IC Applicant : SAMSUNG ELECTRONICS CO. LTD. IC Address : 129 Samsung-ro, Yeongtong-gu, Suwon-Si, Gyeonggi-do, 16677, Korea (Republic Of) Contact Person : Chun, Jenni Phone No. : +1 973 808 6361 1.3. Details of Manufacturer Company : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Republic of Korea 1.4. Description of EUT Kind of Product Galaxy Smart Tag2 Model Name EI-T5600 Serial Number EI-T5600_003 Power Supply DC 3.0 V Frequency Range Tx: 7 987.2 ㎒, Rx: 7 987.2 ㎒ Modulation Type BPM-BPSK Number of Channel 1 Antenna Type FPCB antenna Antenna Gain ※ 0.12 ㏈i H/W Version 1.00 S/W Version 1.00 FVIN N/A SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004240 Page: 4 of 49 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMA100B 106887 Oct. 13, 2022 Annual Oct. 13, 2023 Spectrum Analyzer Agilent N9030A US51350132 Nov. 11, 2022 Annual Nov. 11, 2023 Spectrum Analyzer Agilent N9020A MY53421758 Aug. 26, 2022 Annual Aug. 26, 2023 DC Power Supply R&S HMP2020 019922876 Apr. 27, 2023 Annual Apr. 27, 2024 Spectrum Analyzer R&S FSW67 103242 Aug. 26, 2022 Annual Aug. 26, 2023 Attenuator AEROFLEX 40AH2W-10 40G-1 Jun. 14, 2023 Annual Jun. 14, 2024 Preamplifier H.P. 8447F 2944A03909 Aug. 04, 2022 Annual Aug. 04, 2023 Signal Conditioning Unit R&S SCU-18 10117 Jun. 15, 2023 Annual Jun. 15, 2024 Pre Amplifier TESTEK TK-PA1840H 130016 Jan. 11, 2023 Annual Jan. 11, 2024 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 23, 2021 Biennial Aug. 23, 2023 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Feb. 09, 2023 Annual Feb. 09, 2024 Horn Antenna R&S HF906 100326 Feb. 28, 2023 Annual Feb. 28, 2024 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170 9170-540 Nov. 30, 2022 Annual Nov. 30, 2023 Test Receiver R&S ESU26 100109 Jan. 18, 2023 Annual Jan. 18, 2024 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/3 8330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/3 8330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Apr. 04, 2023 Semi- Annual Oct. 04, 2023 Coaxial Cable Qualwave Inc. QA500-18-NN-10 (10 m) 22200114 Apr. 04, 2023 Semi- Annual Oct. 04, 2023 Coaxial Cable RFONE PL360P-292M292M-1.5 M-A 20200324002 Apr. 14, 2023 Semi- Annual Oct. 14, 2023 Note; - For equipment listed above that has a calibration date or calibration due date that falls within the test date range, care was taken to ensure that this equipment was used after the calibration date and before the calibration due date. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004240 Page: 5 of 49 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 subpart F, IC RSS-220 Issue 1 and RSS-Gen Issue 5 Section in FCC Section in IC Test Item(s) Result 15.519(c) 15.519(e) 15.521(g) RSS-220 Issue 1 5.3.1(d)(g) Maximum Peak Power and Average Emissions Complied 15.209(a) 15.505(b) 15.519(c) 15.519(d) 15.521(a) 15.521(c) 15.521(h) RSS-220 Issue 1 3.4 5.3.1(d)(e)(f) Radiated emissions Complied 15.503(a) 15.519(b) 15.521(e) RSS-220 Issue 1 2 10 ㏈Bandwidth Complied - RSS-Gen Issue 5 6.7 99 % Bandwidth Complied 15.519(a)(1) RSS-220 Issue 1 5.3.1(b) Cease Transmission Time Complied 15.207 RSS-Gen Issue 5 8.8 AC Conducted Emissions N/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation and which do not operate from the AC power lines. 1.7. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty 99 % Bandwidth 1.15 ㎒ 10 ㏈ Bandwidth 0.98 ㎒ Cease Transmission Time 1.65 ㎳ Radiated Emission, 9 ㎑ to 30…

Text truncated - open the document above for the full version.

Model name: EI-T5600 Item Contents Mode Bluetooth Low Energy UWB Antenna Type FPCB antenna Antenna peak gain 0.77 ㏈i 0.12 ㏈i Manufacturer / Model name Amotech / AMO-FA-SS001 Amotech / AMO-FA-SS002 Address of manufacturer 380, Namdongseo-ro, Namdong-gu, Incheon, Republic of Korea Test Laboratory Amotech Antenna Length 30 mm 7 mm Antenna Width 5 mm 5 mm Antenna of Bluetooth Low Energy Antenna Information Length Width Model name: EI-T5600 Antenna of UWB Length Width 1-1. Picture1-2. Matching Circuit 1-3. Passive Result VSWR Passive Gain Freq. [MHz]240024422485Avg.3D Radiation Peak Gain [dBi] 0.350.770.460.52 Avg.Gain [dBi] -4.52-4.03-4.45-4.33 Eff. [%]35.4639.8735.9537.09 C318C313L302 1.2pF1.5pFDNP Antenna manufacturer : Amotech Antenna Model : A MO-FA-SS001 Antenna m easuring instrument : Amotech 1-1. Picture1-2. Matching Circuit 1-3. Passive Result VSWR Passive Gain Freq. [MHz]775080008250Avg.3D Radiation Peak Gain [dBi] 0.130.040.070.08 Avg. Gain [dBi] -3.76-3.83-3.89-3.82 Eff. [%]42.0741.4040.8341.43 L200 1nH Antenna manufacturer : Amotech Antenna Model : AMO-FA-SS0 02 Antenna m easuring instrument : Amotech 1-3. Passive Result Freq. [MHz] Passive Gain Avg.Gain [dBi]Peak Gain [dBi] 30-28.24-23.52 815-27.63-22.87 1600-26.79-21.68 2150-20.66-13.33 2700-18.35-12.37 4975-13.89-7.82 7250-4.84-2.25 7875-3.750.12 8500-4.730.05 9375-8.47-1.46 10250-10.36-3.65 1-3. Passive Result Freq. [MHz] Passive Gain Avg.Gain [dBi]Peak Gain [dBi] 10425-10.74-5.72 10600-10.99-5.68 10650-11.41-5.83 10700-11.62-6.11 11200-12.48-7.73 11700-13.47-7.98 12225-15.63-8.27 12750-15.89-8.52 19375-23.92-17.86 26000-29.25-24.34

Model name: EI-T5600 Test setup photos of EUT Model name: EI-T5600 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Model name: EI-T5600 Z-axis Model name: EI-T5600 2. Photos of Radiated Spurious Emission Test (Below 1㎓) Model name: EI-T5600 3. Photo of Radiated Spurious Emission Test (Above 1㎓) Model name: EI-T5600 4. Photo of Conducted Test
