A3LEO-AG900Samsung Level over

GH68-00000A Rev.1.0 2013/11 www.samsung.com User manual EO-AG900 Refer to page 12 for safety information. 4 Images may differ in appearance from the actual product. Content is subject to change without prior notice. Package contents Check the product box for the following items. The items supplied with the device and any available accessories may vary depending on the region or service provider. • Device • Hard case • Soft case (Acc. kit) • USB cable • 3.5 mm audio cable • 6.3 mm stereo plug • Flight adaptor • User manual Getting started Device layout TB D TB D 5 Getting started TB D After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket. • To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging. • The socket-outlet shall be installed near the equipment and shall be easily accessible. Charging the battery This device has a built-in battery. Before using the device for the first time or when the battery has been unused for extended periods, you must charge the battery. Use only Samsung-approved chargers and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. Charge the device by connecting it to the computer or the USB power adaptor via the USB cable. • The notification light turns red while the device is being charged. The notification light turns green when charging is complete. 6 Getting started Turning the device on or off Slide the power switch up to turn on the device. When the device is turned on, the notification light flashes blue. TB D Slide the power switch down to turn off the device. When the device is turned off, the notification light turns blue and then flashes red before turning off. Charging time and standard run times (800 mAh) Charging time Approx. 2.5 hrs Standard run times Call time Approx. 15 hrs Play time Approx. 15 hrs Standby time Approx. 2,000 hrs • Charging time is measured after charging with a Samsung- approved charger. • Battery run time is results of tests performed in the manufacturer's laboratory. Standby time was measured at the time of first shipment. • The battery charging time and run time may vary depending on the environment the device is used in. 7 Getting started Connecting via the NFC feature 1 Activate the NFC feature on the other device. 2 Turn on the device and place the other device’s NFC antenna near the NFC antenna area on the left earpiece of your device. If you are connecting to other devices, ensure that the screen on the connected device is unlocked. The NFC feature does not work when the connected device's screen is locked. TB D Connecting to other devices You can connect the device to other Bluetooth-enabled devices, such as smartphones or computers. You can connect to an other Bluetooth-enabled device only after disconnecting a previously connected device. Connecting via the Bluetooth feature 1 Turn on the device. Press and hold the Bluetooth button for about 3 seconds. The device enters the Bluetooth pairing mode and the notification light flashes red, green, and then blue. 2 On the Bluetooth-enabled device, access the Bluetooth setup mode and search for Bluetooth devices. 3 From the search results, select the device name. When pairing is complete, the device's name appears in the device list. 8 Using the device Use one of the following methods to disconnect a device: • Turn off the device. • Disconnect the Bluetooth feature between your device and the connected device. • Place another device's NFC antenna near the NFC antenna area on the left earpiece of your device. Using the device Enjoying multimedia files with the device You can enjoy multimedia files on other devices with your device. Play multimedia files on a connected device and use the touch panel on the right earpiece of your device to control functions. You can control connected devices with the touch panel when they are connected via Bluetooth. • When two devices are connected, place your device near to the connected device. Otherwise, the device may not work properly or be affected by noise interference. • The connection methods or NFC antenna area may differ depending on the connected devices. For more information, refer to the user manual of the connected device. Disconnecting from other devices You can connect to another device only after disconnecting a previously connected device. 9 Using the device • Tap and hold on the touch panel and draw a circle anticlockwise to decrease the volume. TB D When the device is adjusted to full volume an alert will sound to notify you. Adjust the volume on the connected device when you cannot hear sounds on your device at full volume. • Tap the touch panel to play or pause playback. • On the touch panel, drag your finger to the left to play the previous file or drag it to the right to play the next file. TB D • Tap and hold on the touch panel and draw a circle clockwise to increase the volume. TB D 10 Using the device Receiving a call If a smartphone is connected to the device, you can answer a call. Use the touch panel on the right earpiece of your device and use one of the following methods to control calls: • Tap the touch panel to answer a call. • Tap and hold the touch panel to reject a call. • Tap and hold on the touch panel and draw a circle clockwise to increase the volume. • Tap and hold on the touch panel and draw a circle anticlockwise to decrease the volume. Connecting via an audio cable You can connect a smartphone or media player to the device with an audio cable. TB D • Before connecting a device via the audio cable, disconnect any other connected devices. • When the device is turned off, you can adjust the volume when playing multimedia files with the connected …

Text truncated - open the document above for the full version.

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea March 31, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize th at we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and res olution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate th e products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made know n to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Sang Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

129, Samsun g‐Ro, Yeongtong‐Gu, Suw on‐City Gyeonggi‐Do, 443‐742, Korea March 31, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LEO‐AG900 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

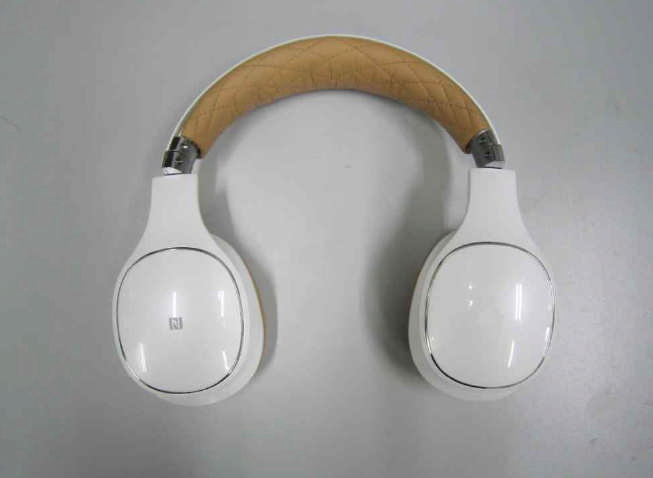

Model :EO-AG900 External photos of EUT Model :EO-AG900 Top view of EUT Bottom view of EUT

Label Info. FCC ID: A3LEO-AG900 IC: 649E-EOAG900 Rear view of EUT FCC ID: A3LEO-AG900 IC: 649E-EOAG900 MODEL: EO-AG900

Internal photos of EUT Internal view of EUT Top view of main board Bottom view of main board Top view of sub board #1 Bottom view of sub board #1 Top view of sub board #2 Bottom view of sub board #2 Top view of sub board #3 Bottom view of sub board #3 BT Antenna Antenna

FCC ID : A3LEO-AG900 According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 At 100㎒to 6㎓and fortest separation distances≤50 mm, the SAR test exclusion threshold is determined according to the following a) [(max. power of channel, including tune-up tolerance,㎽) / (min. test separation distance, mm)] x [√f (GHz) ]≤ 3.0 1. SAR test exclusion threshold Frequency: 2 441㎒ (min. separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = (3 x 5) / √ 2.441 = 9.60 ㎽ Max. conducted power(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 0.889.60 Calculation value: 1.00 (㎽) / 5(mm) x√2.441= 0.27 So, Calculation value ≤ 3.0 Remark -Max. conducted power (㎽): maximum tolerance power of EUT (1㏈m) -Max. conducted power 0.88 (㎽) is closest 1.00 (㎽), so 1.00 (㎽) was calculated. 2. Conclusion : No SAR is required.

Report Number: F690501/RF-RTL007152-3 Page: 2 of 71 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 8 3. 20㏈ Bandwidth and 99% BW ------------------------------------------------------------------- 31 4. Maximum Peak Output Power ------------------------------------------------------------------- 43 5. Hopping Channel Separation --------------------------------------------------------------------- 45 6. Number of Hopping Frequency ------------------------------------------------------------------ 48 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 52 8. Transmitter AC Power Line Conducted Emission ------------------------------------------- 66 9. Antenna Requirement ------------------------------------------------------------------------------ 71 Report Number: F690501/RF-RTL007152-3 Page: 3 of 71 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person : Yoon, Hyo-Jung Phone No. : +82 31 301 5878 1.3. Description of EUT Kind of Product Samsung Level over Model Name EO-AG900 Power Supply DC 3.7 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Antenna Type Internal type Antenna Gain 1.86 ㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels - Operation temperature: -20 °C ~ 50 °C - Power class: 2 Report Number: F690501/RF-RTL007152-3 Page: 4 of 71 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.4. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number: F690501/RF-RTL007152-3 Page: 5 of 71 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMBV100A 255834 Jun. 26, 2013 Annual Jun. 26, 2014 Signal Generator R&S SMR40 100272 Aug. 10, 2013 Annual Aug. 10, 2014 Spectrum Analyzer R&S FSW43 100637 Jul. 26, 2013 Annual Jul. 26, 2014 Spectrum Analyzer R&S FSV30 100768 Mar. 28, 2013 Annual Mar. 28, 2014 Bluetooth Tester TESOM TC-3000C 3000C000142 Dec. 24, 2012 Annual Dec. 24, 2013 Directional Coupler KRYTAR 152613 122660 Jun. 07, 2013 Annual Jun. 07, 2014 Power Divider MARKI MICROWAVE INC PD-0040 1318 May 30, 2013 Annual May 30, 2014 High Pass Filter Wainwright WHK3.0/18G-10SS 344 Jun. 08, 2013 Annual Jun. 08, 2014 High Pass Filter Wainwright WHNX7.5/26.5G-6SS 11 Jun. 08, 2013 Annual Jun. 08, 2014 Low Pass Fil…

Text truncated - open the document above for the full version.

Model :EO-AG900 Test setup photos of EUT Model :EO-AG900 A.Photo of Field Strength & Spurious Emission Test Model :EO-AG900 B.AC Power Line conducted Emission
