A3LEPP100IJWUWireless Charging Pad

Wireless Charging Pad Type STA. A00101 03/2013. Rev.1.0 www.samsung.com English Safety information To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device Samsung cannot be held responsible for any injury or property damage caused by failure to comply with the safety cautions and regulations Do not use damaged power cords or plugs, or loose electrical sockets Do not touch the power cord with wet hands or disconnect the charger by pulling the cord Do not bend or damage the power cord Do not store your device with metal objects, such as coins, keys, and necklaces. Your device may overheat. Do not use your device or applications for a while if the device is overheated Prolonged exposure of your skin to an overheated device may cause low temperature burn symptoms, such as red spots and pigmentation. Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers Your device may overheat and cause a fire. Do not drop or cause an impact to the charger or the device Store your device only on flat surfaces• If your device falls, it may be damaged.• Do not bite or suck the device or the battery Doing so may damage the device or cause an explosion.• If children use the device, make sure that they use the • device properly. This device must be installed and used in a manner that keeps the device at least 10cm from users and bystanders. Keep your device dry Humidity and liquids may damage the parts or electronic • circuits in your device. If your device is wet, dry the device with a towel and take it • to a service center. Do not disassemble, modify, or repair your device Your device may malfunction and your risk of electric • shock is increased. Any changes or modifications to your device can void your • manufacturer’s warranty. If your device needs servicing, take your device to a Samsung Service Center. This manual’s images and content may differ from the product. Overview Check the product box for the following items: Wireless Charging Pad, Charger, Charging cable, User manual. The items supplied with the Wireless Charging Pad and any available accessories may vary depending on the region. Using the Wireless Charging Pad Connect the Wireless Charging Pad and the charger 1 with the charging cable, and plug the charger into an electric socket. When the Wireless Charging Pad is connected to the • electric socket, the indicator light flashes from red to green to orange, and then turns off. Use only Samsung-approved chargers and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. The Wireless Charging Pad’s indicator light flashes differently depending on its status. For more information about the indicator light, see below. If the indicator light is not working properly, reconnect the charger to the Wireless Charging Pad. Indicator lightDevice status Red → Green → Orange When connecting to the power outlet OrangeWhen not charging properly GreenWhen charging properly OffWhen in Idle mode Attach the Wireless Charging Cover to a 2 smartphone, and then place the smartphone on the Wireless Charging Pad. The Wireless Charging Cover is sold separately. For more information about the Wireless Charging Cover, refer to the Wireless Charging Cover’s user manual. When the smartphone is fully charged, disconnect 3 the charger from the Wireless Charging Pad. Check the smartphone’s battery status looking at • the charging icon displayed on the screen. Do not place any other object between the • smartphone and the Wireless Charging Pad. The smartphone may not charge properly. Charging a smartphone with the Wireless Charging • Pad in an area with a weak signal may cause a significant drop in reception. The Wireless Charging Pad is compatible with WPC • certified devices. Do not place the Wireless Charging Cover solely on the Wireless Charging Pad Doing so may overheat the device and cause a fire. Place the smartphone properly on the Wireless Charging Pad The position guide indicates the upper side, lower side and the center of the Wireless Charging Pad. Match the upper and lower side of the smartphone with the Wireless Charging Pad, and place the smartphone in the middle. If not, the smartphone may not charge properly, and its signal may drop. FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Samsung will void the user’s authority to operate the equipment. Recycling Direct To dispose electronics properly, follow the recycling process regulated in your area or go to Samsung website to find the nearest recycling location: www.samsung.com/recyclingdirect Or call, (877) 278 – 0799. Samsung Telecommunications America, LLC 1301 E. Lookout Drive Richardson, Texas 75082 Phone: 1-800-SAMSUNG Phone: 1-888-987-HELP (4357) Indicator light Position guide Charging jack EP-P100_UM_STA_Eng.indd 12013-03-19 오전 8:09:23

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea March 08, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LEPP100I JWU Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID show n in the FCC ID label page will be readily visible at the time of purchase. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: February 25, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LEPP100IJWU To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

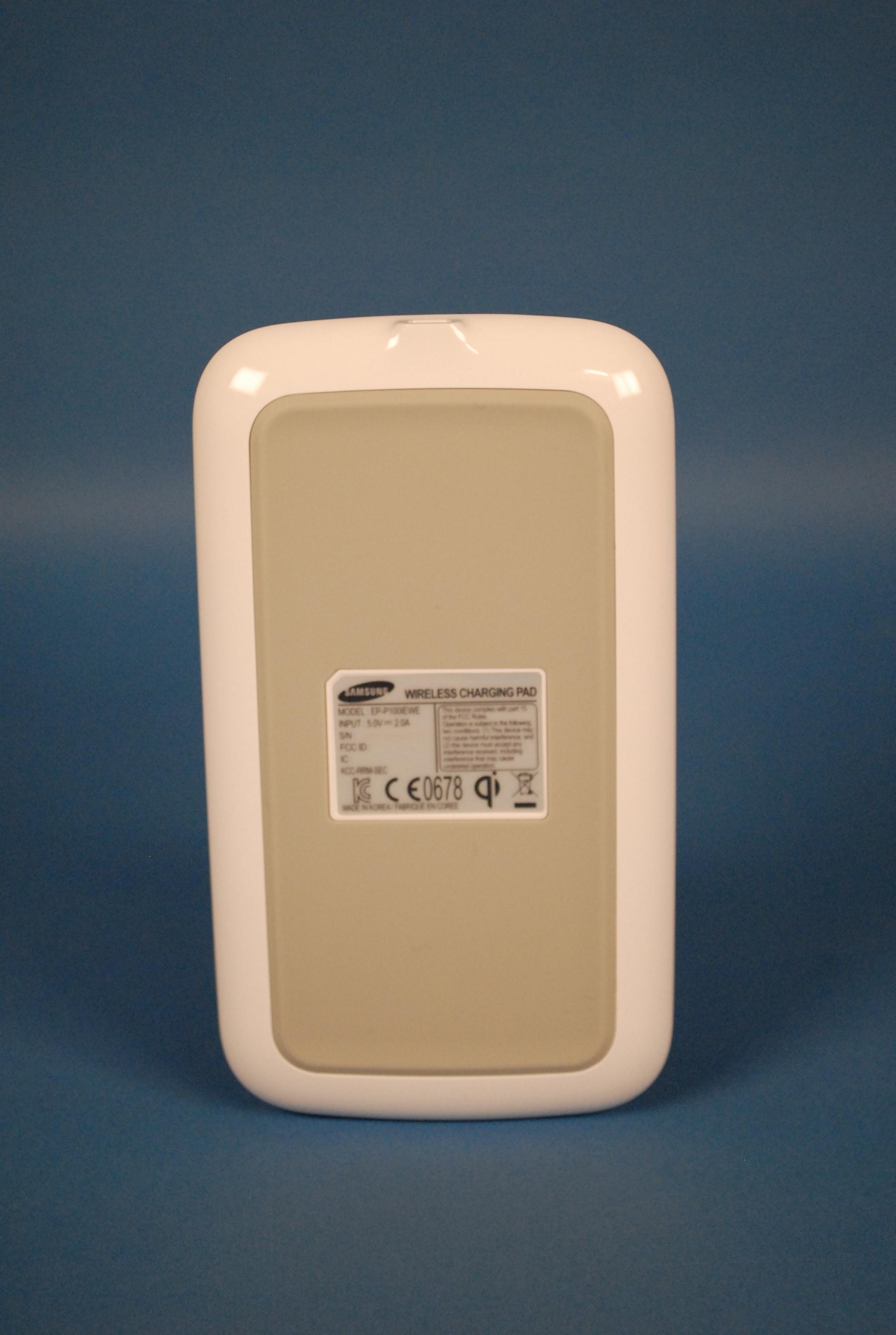

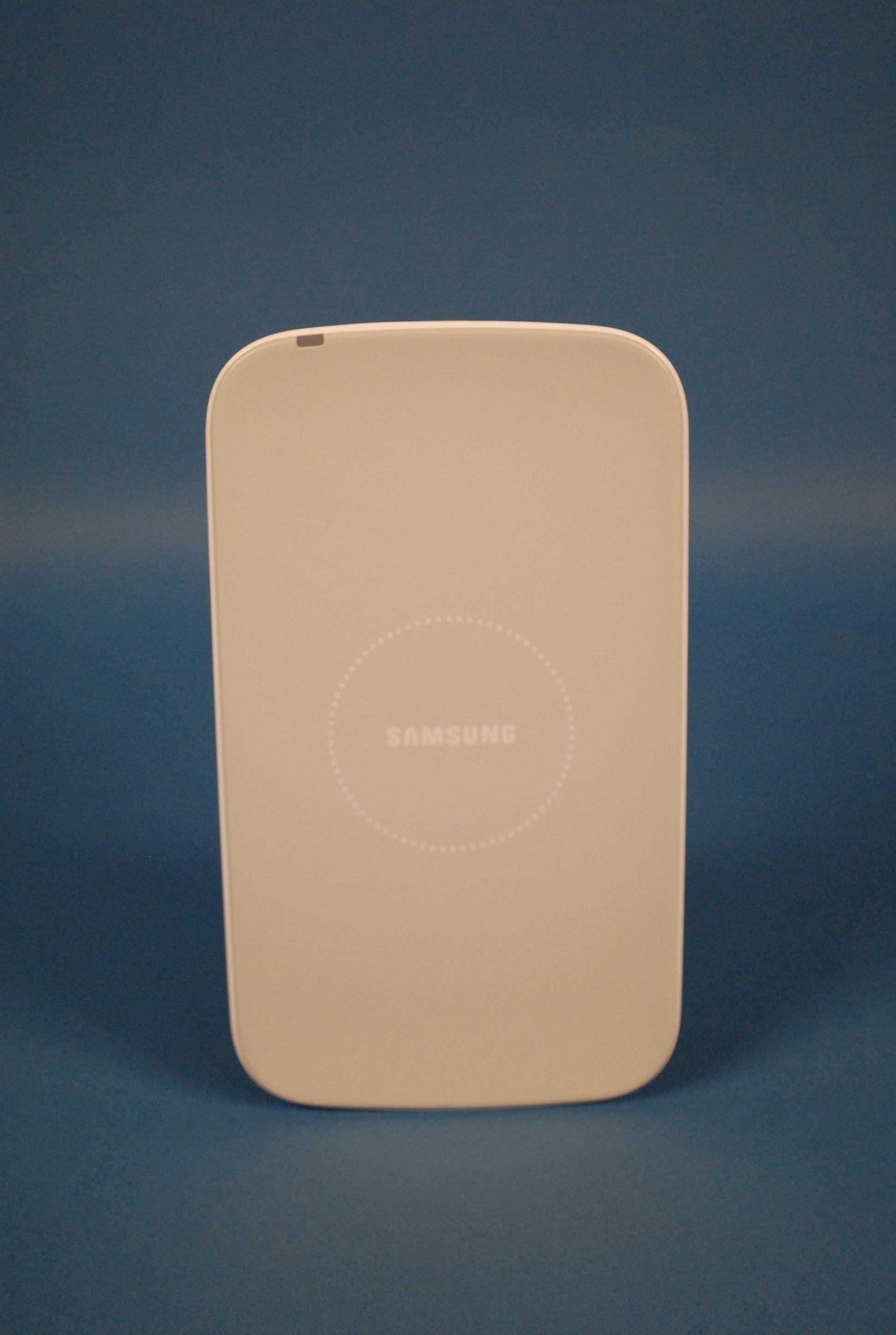

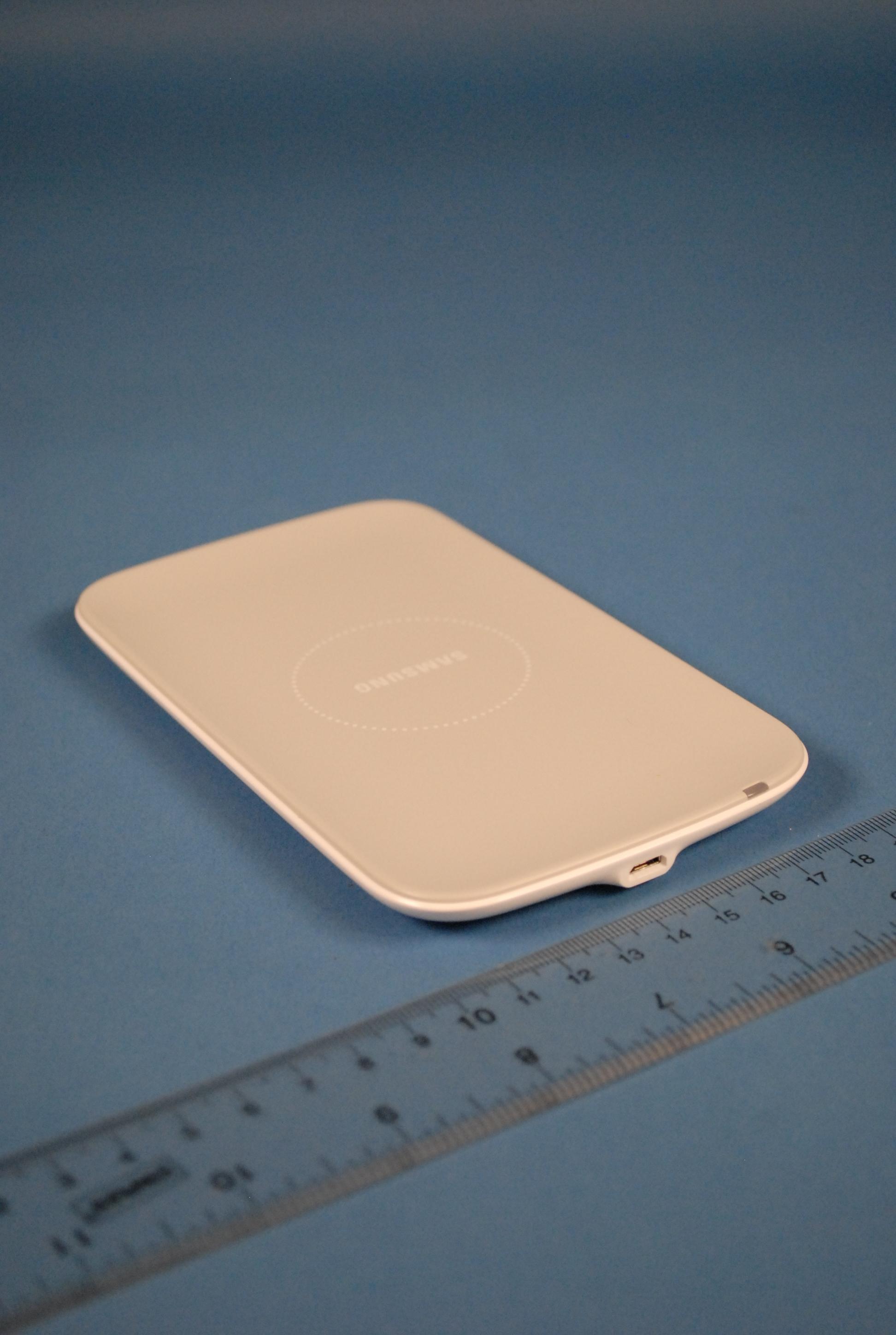

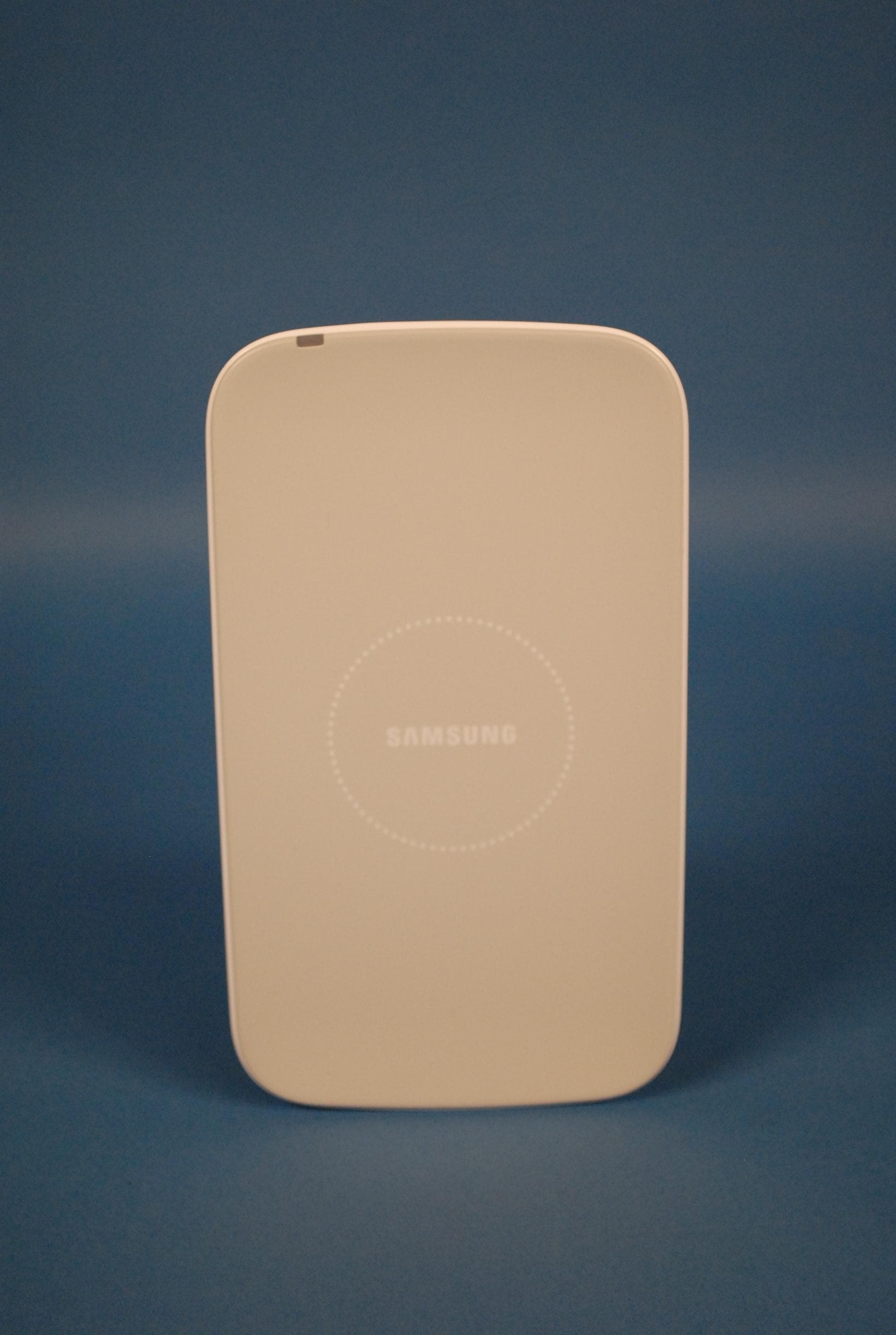

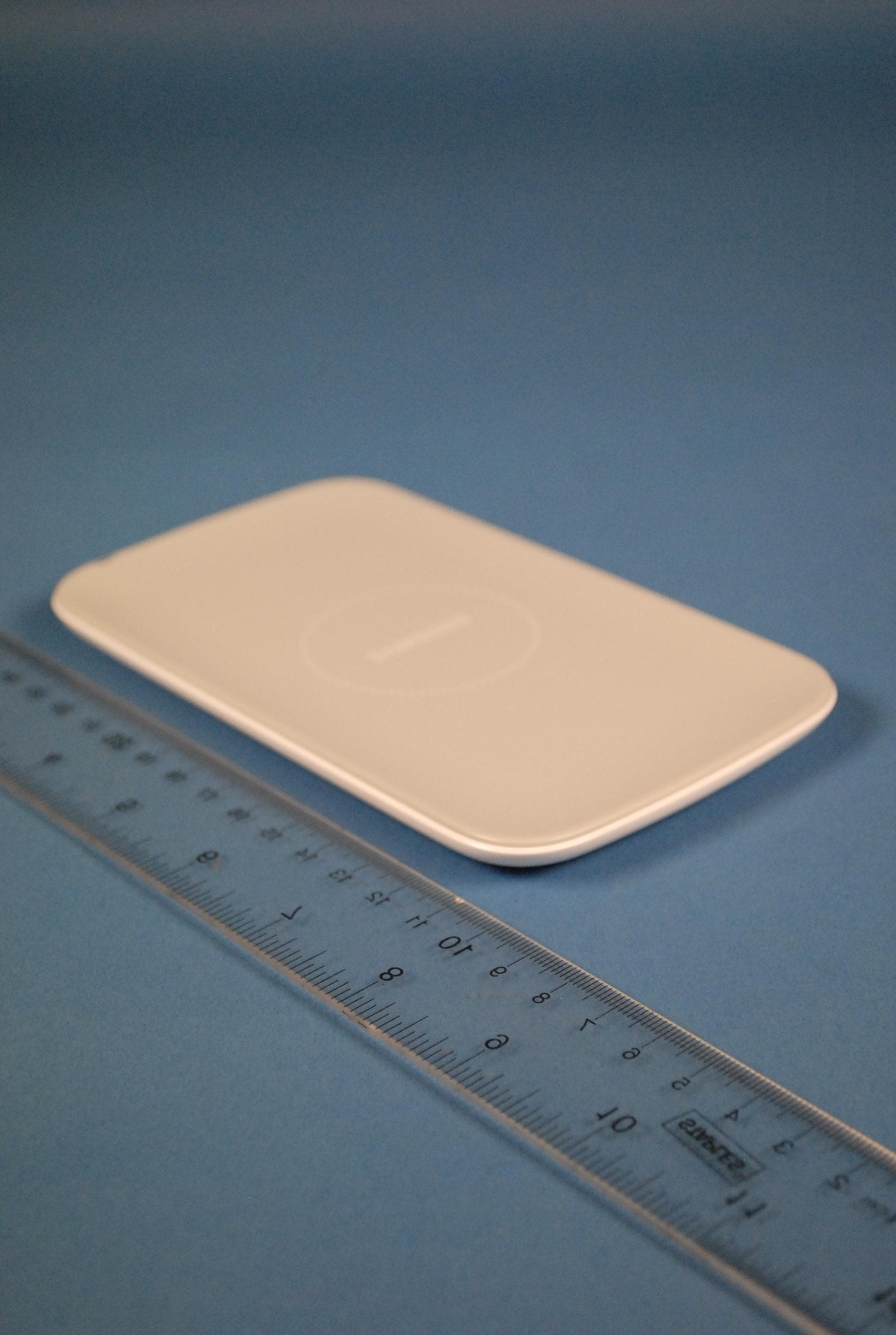

Samsung FCC ID: A3LEPP100IJWU Model: EP-P100IJWU External Photos EUT Type: Wireless Charging Pad Page 1 of 4 © 2013 P CTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LEPP100IJWU Model: EP-P100IJWU External Photos EUT Type: Wireless Charging Pad Page 2 of 4 © 2013 P CTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEPP100IJWU Model: EP-P100IJWU External Photos EUT Type: Wireless Charging Pad Page 3 of 4 © 2013 P CTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEPP100IJWUModel: EP-P100IJWU External Photos EUT Type: Wireless Charging Pad Page 4 of 4 © 2013 P CTEST Engineering Laboratory Inc.

FCC A pp roval Label & Location FCC ID: A 3LEPP100IJWU Model: EP-P100IJWU Date: 2013.0 3 . 13

Internal Photos EUT Type: Wireless Charging Pad Page 1 of 7 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LEPP100IJWU Model: EP-P100IJWU Internal Photos EUT Type: Wireless Charging Pad Page 2 of 7 Samsung FCC ID: A3LEPP100IJWU Model: EP-P100IJWU © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEPP100IJWU Model: EP-P100IJWU Internal Photos EUT Type: Wireless Charging Pad Page 3 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEPP100IJWUModel: EP-P100IJWU Internal Photos EUT Type: Wireless Charging Pad Page 4 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEPP100IJWU Model: EP-P100IJWU Internal Photos EUT Type: Wireless Charging Pad Page 5 of 7 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEPP100IJWUModel: EP-P100IJWU Internal Photos EUT Type: Wireless Charging Pad Page 6 of 7 © 2013 P CTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEPP100IJWUModel: EP-P100IJWU Internal Photos EUT Type: Wireless Charging Pad Page 7 of 7 © 2013 P CTEST Engineering Laboratory Inc.

FCC ID: A3LEPP100IJWU MAXIMUM PERMISSIBLE EXPOSURE (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 9 0Y1302270364.A3L-R1 2/28-3/28/2012 Wireless Charging Pad © 2013 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 2/28-3/28/2012 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1302270364.A3L-R1 FCC ID: A3LEPP100IJWU IC CERTIFICATION NO.: 649E-EPP100IJWU APPLICANT: Samsung Electronics Co., Ltd. EUT Type: Wireless Charging Pad FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) IC Specification(s): RSS-102 Issue 4 FCC Classification: Part 15 Low Power Transmitter Below 1705 kHz (DCD) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. *This revised Test Report (S/ N: 0Y1302270364.A3L-R1) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard and destroy the previously issued test report (S/N: 0Y1302270364.A3L) and dispose of it accordingly. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) FCC ID: A3LEPP100IJWU MAXIMUM PERMISSIBLE EXPOSURE (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 9 0Y1302270364.A3L-R1 2/28-3/28/2012 Wireless Charging Pad © 2013 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................... 3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW ..................................................................................................... 4 1.4 TEST EQUIPMENT ............................................................................................................................... 5 1.5 TEST CONFIGURATION ...................................................................................................................... 5 1.6 WIRELESS CHARGING PAD MPE DATA ............................................................................................ 7 2.0 CONCLUSION .................................................................................................................................. 8 3.0 WCC – MAX RESISTIVE LOAD PHOTO ......................................................................................... 9 FCC ID: A3LEPP100IJWU MAXIMUM PERMISSIBLE EXPOSURE (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 9 0Y1302270364.A3L-R1 2/28-3/28/2012 Wireless Charging Pad © 2013 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Samsung Electronics Co., Ltd. to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 0.3-1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Samsung Model: EP-P100IJWU is a wireless charging pad containing a wireless charging circuit using a frequency of 112 – 205kHz. For this MPE evaluation the device is set to transmit and the RF exposure is evaluated. EUT: Model: EP-P100IJWU Grantee: Samsung Electronics Co., Ltd. FCC ID: A3LEPP100IJWU FCC ID: A3LEPP100IJWU MAXIMUM PERMISSIBLE EXPOSURE (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 4 of 9 0Y1302270364.A3L-R1 2/28-3/28/2012 Wireless Charging Pad © 2013 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additio…

Text truncated - open the document above for the full version.

FCC ID: A3LEPP100IJWU FCC Pt. 15C MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 26 0Y1302270363.A3L 2/27-3/15/2013 Wireless Charging Pad © 2013 PCTEST Engineering Laboratory, Inc. REV 6.5CT 09/27/12 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 2/27-3/15/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1302270363.A3L FCC ID: A3LEPP100IJWU IC CERTIFICATION NO.: 649E-EPP100IJWU APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification EUT Type: Wireless Charging Pad Model(s): EP-P100IJWU FCC Rule Part(s): FCC Part 15 Subpart C IC Specification(s): RSS-Gen Issue 3 FCC Classification: Part 15 Low Power Transmitter Below 1705 kHz (DCD) Test Procedure: ANSI C63.4-2009 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4- 2009. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15C FCC ID: A3LEPP100IJWU FCC Pt. 15C MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 26 0Y1302270363.A3L 2/27-3/15/2013 Wireless Charging Pad © 2013 PCTEST Engineering Laboratory, Inc. REV 6.5CT 09/27/12 TABLE OF CONTENTS FCC Class B MEASUREMENT REPORT....................................................................................3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE .................................................................................................................................................. 4 1.2 PCTEST TEST LOCATION ................................................................................................................... 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................ 5 2.2 DEVICE CAPABILITIES ........................................................................................................................ 5 2.3 TEST CONFIGURATION ...................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ............................................................................. 5 2.5 LABELING REQUIREMENTS ............................................................................................................... 5 3.0 DESCRIPTION OF TEST ................................................................................................................. 6 3.1 EVALUATION PROCEDURE ................................................................................................................ 6 3.2 AC LINE CONDUCTED EMISSIONS .................................................................................................... 6 3.3 RADIATED EMISSIONS ........................................................................................................................ 7 4.0 SAMPLE CALCULATIONS .............................................................................................................. 8 4.1 CONDUCTED EMISSION MEASUREMENT SAMPLE CALCULATION ............................................... 8 4.2 RADIATED EMISSION MEASUREMENT SAMPLE CALCULATION .................................................... 8 5.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 6.0 ENVIRONMENTAL CONDITIONS ................................................................................................. 10 7.0 TEST DATA .................................................................................................................................... 11 7.1 SUMMARY .......................................................................................................................................... 11 7.2 20DB BANDWIDTH MEASUREMENT ................................................................................................ 12 7.3 IN-BAND RADIATED SPURIOUS EMISSION MEASUREMENTS ...................................................... 13 7.4 RADIATED MEASUREMENT DATA ................................................................................................... 14 7.5 LINE CONDUCTED MEASUREMENT DATA ..................................................................................... 18 8.0 CONCLUSION ................................................................................................................................ 26 FCC ID: A3LEPP100IJWU FCC Pt. 15C MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 26 0Y1302270363.A3L 2/27-3/15/2013 Wireless Charging Pad © 2013 PCTEST Engineering Laboratory, Inc. REV 6.5CT 09/27/12 MEASUREMENT REPORT FCC Part 15C – Intentional Radiators § 2.1033 General Information APPLICANT: Samsung Electronics Co., Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Yeongtong-gu Suwon-city, Gyeonggi-do, 443-803 TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LEPP100IJWU Model: EP-P100IJWU Test Set-Up Photos EUT Type: Wireless Charging Pad Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LEPP100IJWU Model: EP-P100IJWU Test Set-Up Photos EUT Type: Wireless Charging Pad Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LEPP100IJWU Model: EP-P100IJWU Test Set-Up Photos EUT Type: Wireless Charging Pad Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LEPP100IJWU Model: EP-P100IJWU Test Set-Up Photos EUT Type: Wireless Charging Pad Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.
