A3LGTI8160LCellular/PCS GSM/WCDMA/EDGE Phone with WLAN and Bluetooth

User manual GT-I8160L using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a dam…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: April 9, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTI8160L To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea April 5, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L GTI8160L Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

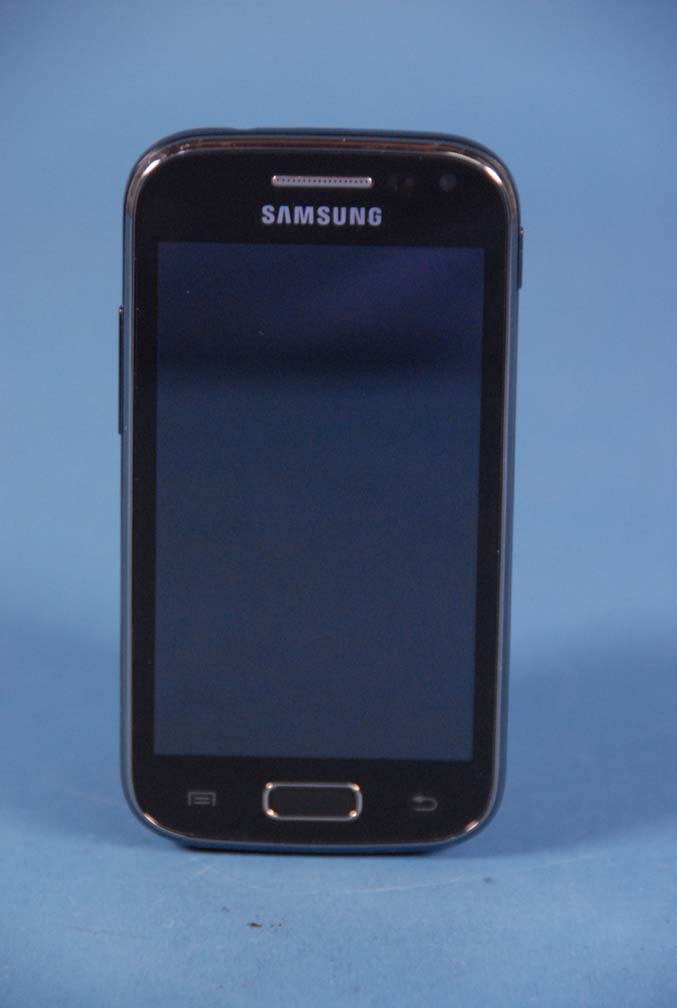

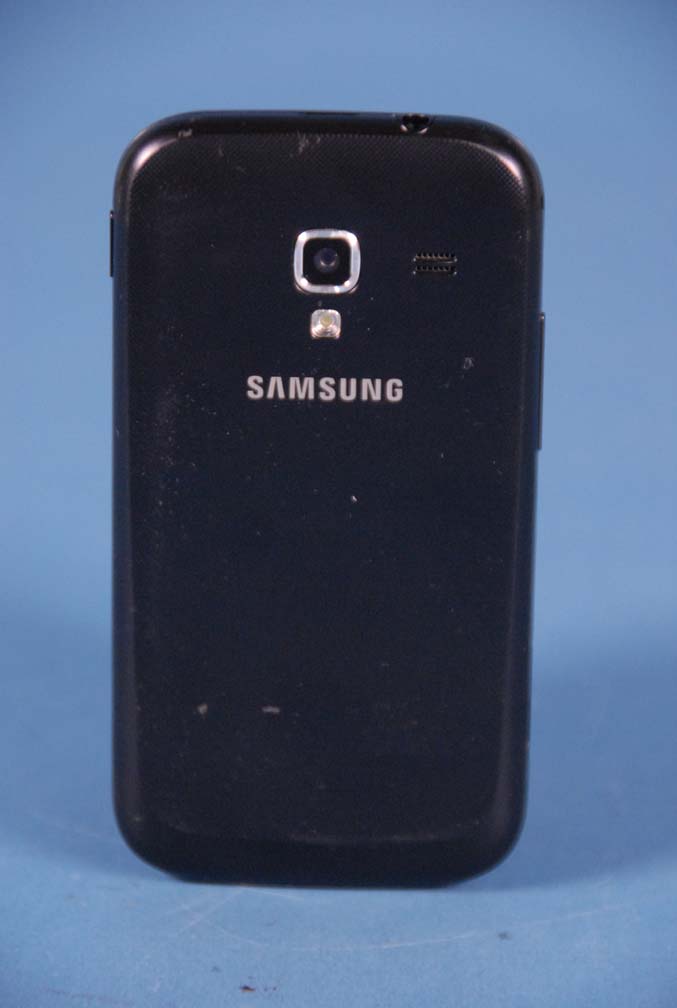

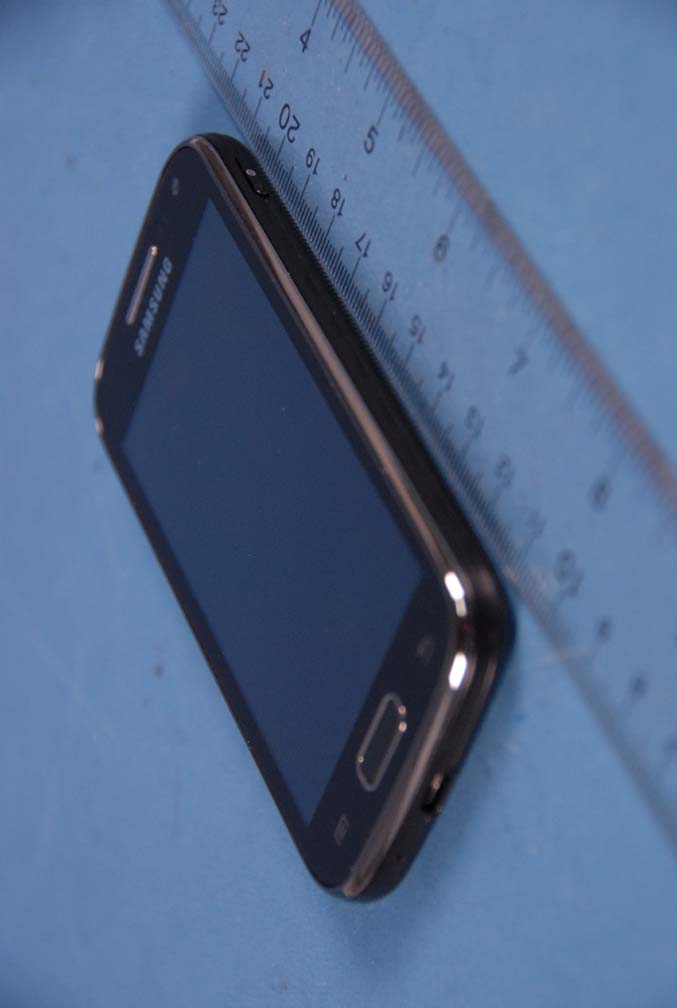

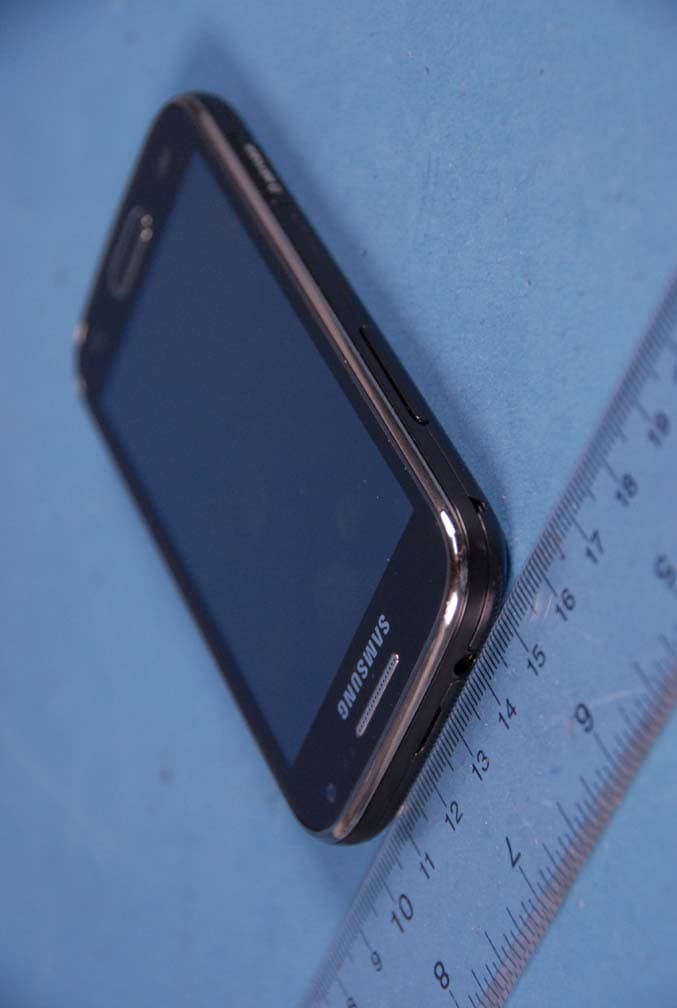

Samsung FCC ID: A3LGTI8160L Model: GT-I8160L External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LGTI8160L Model: GT-I8160L External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTI8160L Model: GT-I8160L External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTI8160L Model: GT-I8160L External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

2. GT-I8160L Label and Location Samsung Phone Model: GT-I8160L FCC ID: A3LGTI8160L Label: Location: Top etalp kcaB Bottom Label is placed inside of the battery compartment. MODELO : GT-I8160L FCC ID : A3LGTI8160L SSN : -I8160LGSMH ALIMENTACION : 3,7 V ;1500 mA PRODUCTO COREANO / KOREAN PRODUCT TELEFONO CELULAR / CELLULAR PHONE MODELO : GT-I8160L FCC ID : A3LGTI8160L SSN : -I8160LGSMH ALIMENTACION : 3,7 V ;1500 mA PRODUCTO COREANO / KOREAN PRODUCT TELEFONO CELULAR / CELLULAR PHONE

Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Internal Photos EUT Type: Portable Handset Page 1 of 8 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Internal Photos EUT Type: Portable Handset Page 2 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Internal Photos EUT Type: Portable Handset Page 3 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Internal Photos EUT Type: Portable Handset Page 4 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Internal Photos EUT Type: Portable Handset Page 5 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Internal Photos EUT Type: Portable Handset Page 6 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Internal Photos EUT Type: Portable Handset Page 7 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Internal Photos EUT Type: Portable Handset Page 8 of 8 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: A3LGTI8160L SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 34 0Y1203270323.A3L 03/28/12 - 03/30/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/28/12 - 03/30/12 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1203270323.A3L FCC ID: A3LGTI8160L APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 GT-I8160L Test Device Serial No.: Pre-Production [S/N: FJ-080-A, FJ-080-C] 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) GSM/GPRS/EDGE 850824.20 - 848.80 MHz32.21 0.250.710.71 WCDMA/HSPA 850826.40 - 846.60 MHz22.450.230.540.54 GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz29.750.37 0.740.74 WCDMA/HSPA 19001852.4 - 1907.6 MHz22.350.65 0.880.88 2.4 GHz WLAN2412 - 2462 MHz13.940.170.210.21 Bluetooth2402 - 2480 MHz12.42 0.821.091.09 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LGTI8160L SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 34 0Y1203270323.A3L 03/28/12 - 03/30/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 5 3 SAR MEASUREMENT SETUP ....................................................................................................... 6 4 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 5 DEFINITION OF REFERENCE POINTS ........................................................................................ 8 6 TEST CONFIGURATION POSITIONS FOR HANDSETS .............................................................. 9 7 FCC RF EXPOSURE LIMITS ........................................................................................................ 12 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 9 RF CONDUCTED POWERS ......................................................................................................... 16 10 SYSTEM VERIFICATION .............................................................................................................. 19 11 SAR DATA SUMMARY ................................................................................................................. 21 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 27 13 EQUIPMENT LIST ......................................................................................................................... 30 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 31 15 CONCLUSION ............................................................................................................................... 32 16 REFERENCES .............................................................................................................................. 33 FCC ID: A3LGTI8160L SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 34 0Y1203270323.A3L 03/28/12 - 03/30/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850824.20 - 848.80 MHz W CDMA/HSPA 850826.40 - 846.60 MHz GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz W CDMA/HSPA 19001852.4 - 1907.6 MHz 2.4 GHz W LAN2412 - 2462 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 DUT Antenna Locations Table 1-1 Mobile Hotspot Sides for SAR Testing ModeBack Front Top Bottom Right Left GPRS 850 Yes Yes No Yes Yes No WCDMA 850 Yes Yes No Yes Yes No GPRS 1900 Yes Yes No Yes Yes No WCDMA 1900 Yes Yes No Yes Yes No 2.4 GHz WLAN Yes Yes Yes No No Yes Mobile Hotspot Sides for SAR Testing Note: Particular DUT edges were not required to be evaluated for Wireless Router SAR if the edges were greater than 2.5 cm from the transmitting antenna according to FCC KDB Publication 941225 D06 guidance, page 2. The antenna document shows the distances between the transmit antennas and th…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

Reviewed by: FCC ID: A3LGTI8160L FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1203270325.A3L April 2-10, 2012 Portable Handset Page 1 of 40 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.9WBGNFI 02/13/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. April 2-10, 2012 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1203270325.A3L FCC ID: A3LGTI8160L APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): GT-I8160L EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.4-2003, KDB 558074 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 802.11b 2412 - 246224.83113.9535.81015.54 802.11g 2412 - 246218.40812.6551.28617.10 802.11n 2412 - 246213.12211.1834.75415.41 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: A3LGTI8160L FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1203270325.A3L April 2-10, 2012 Portable Handset Page 2 of 40 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.9WBGNFI 02/13/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N............................................................................... 17 6.4 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 18 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 24 6.6 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 28 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 32 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 36 6.9 LINE-CONDUCTED TEST DATA............................................................................................................. 3…

Text truncated - open the document above for the full version.

FCC ID: A3LGTI8160L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D1 of D7 03/28/12 - 03/30/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LGTI8160L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D2 of D7 03/28/12 - 03/30/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 1: Right Touch SAR Test Setup Photo 2: Right Tilt FCC ID: A3LGTI8160L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D3 of D7 03/28/12 - 03/30/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 3: Left Touch SAR Test Setup Photo 4: Left Tilt FCC ID: A3LGTI8160L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D4 of D7 03/28/12 - 03/30/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 5: Back at 1.0 cm SAR Test Setup Photo 6: Front at 1.0 cm FCC ID: A3LGTI8160L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D5 of D7 03/28/12 - 03/30/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 7: Top at 1.0 cm SAR Test Setup Photo 8: Bottom at 1.0 cm FCC ID: A3LGTI8160L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D6 of D7 03/28/12 - 03/30/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 9: Right at 1.0 cm SAR Test Setup Photo 10: Left at 1.0 cm FCC ID: A3LGTI8160L SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D7 of D7 03/28/12 - 03/30/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 11: Body-Worn at 1.0 cm Note: Headset Cable is connected to the device during body-worn SAR assessment, as seen above.

Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTI8160L Model: GT-I8160L Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2012 PCTEST Engineering Laboratory Inc.
