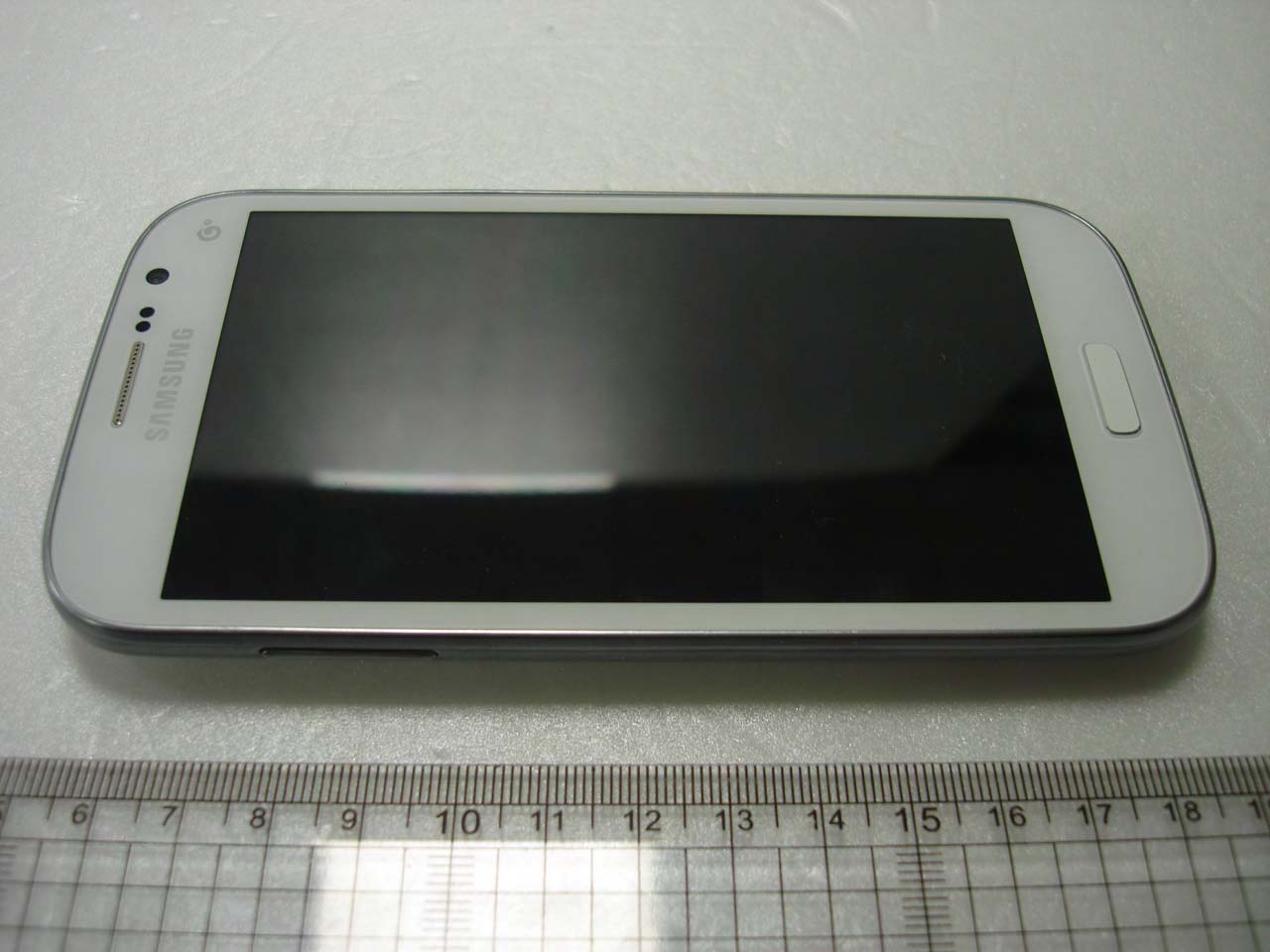

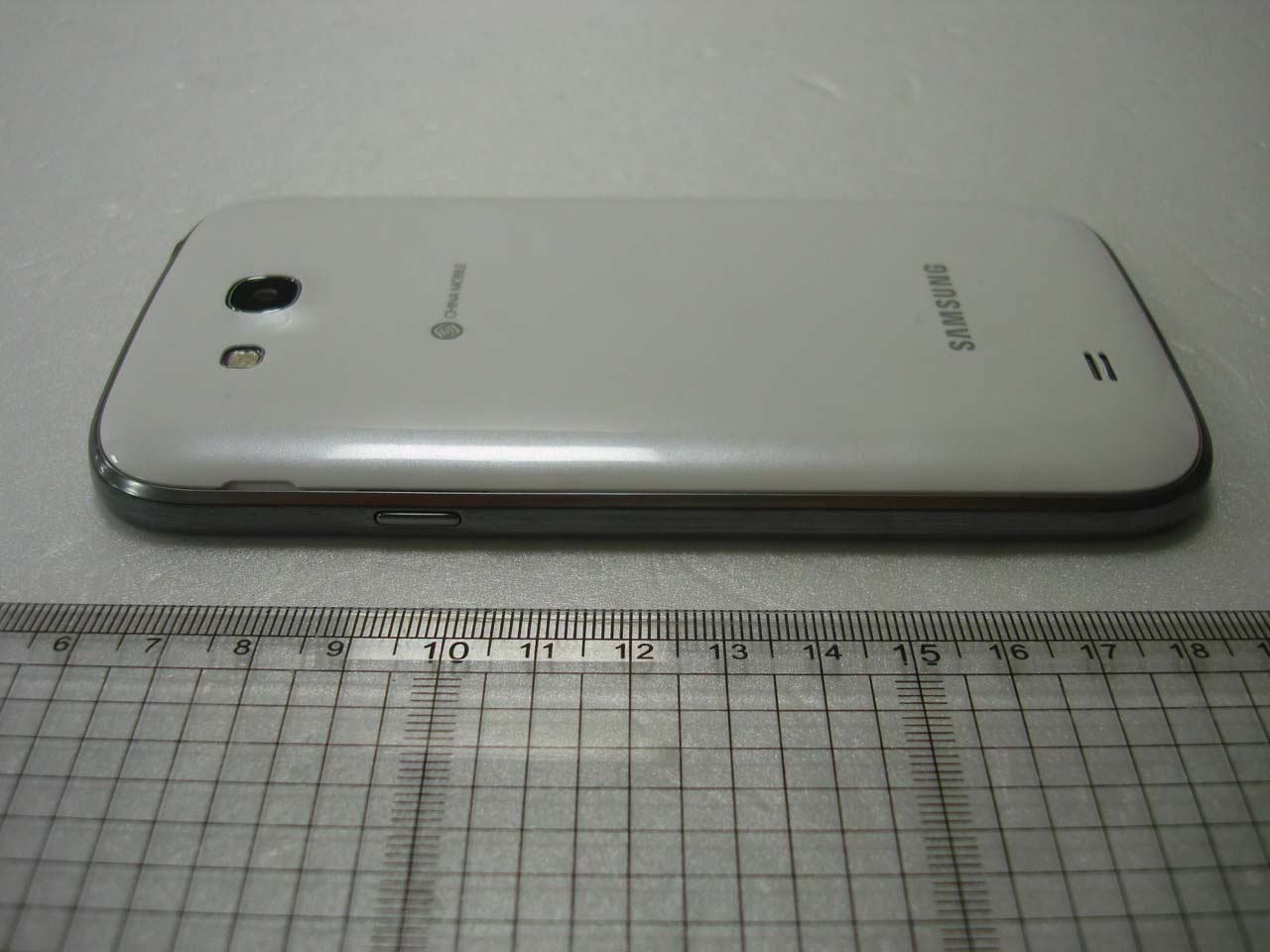

A3LGTI9128PCS GSM Phone with WLAN and Bluetooth

User manual GT-I9 128 Draft 6.1 2013-1-15 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or pe…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 18, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTI9128 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea January 17, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LGT I9128 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

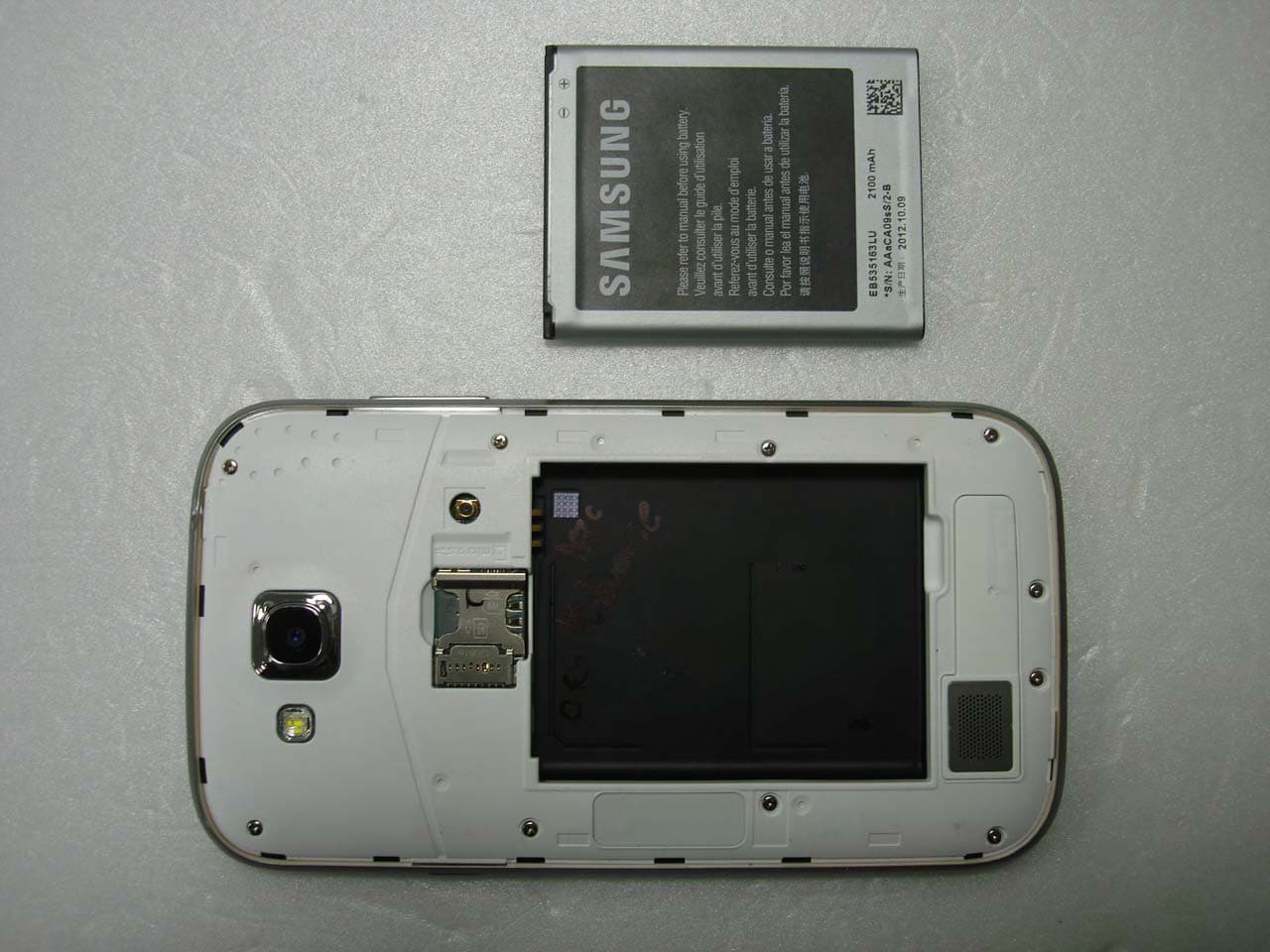

Label and Location Samsung Phone Model: GT-I9128 FCC ID: A3LGTI9128 Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment. Label

Reviewed by: FCC ID:A3LGTI9128 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1301020004.A3L 01/07/13 - 01/08/13 Portable Handset Page 1 of 1 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 01/07/13 - 01/08/13 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742, Republic of Korea Document Serial No.: 0Y1301020004.A3L FCC ID: A3LGTI9128 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): GT-I9128 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS 19001850.20 - 1909.80 MHz29.41 0.220.420.74 DTS2.4 GHz WLAN2412 - 2462 MHz15.87< 0.1 < 0.1< 0.1 DSSBluetooth2402 - 2480 MHz11.17 0.22 0.710.74 N/A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID:A3LGTI9128 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1301020004.A3L 01/07/13 - 01/08/13 Portable Handset Page 2 of 2 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 6 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 4 DEFINITION OF REFERENCE POINTS ........................................................................................ 8 5 TEST CONFIGURATION POSITIONS FOR HANDSETS .............................................................. 9 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES........................................................................................ 13 8 RF CONDUCTED POWERS......................................................................................................... 14 9 SYSTEM VERIFICATION.............................................................................................................. 16 10 SAR DATA SUMMARY ................................................................................................................. 18 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 21 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 23 13 EQUIPMENT LIST......................................................................................................................... 24 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 25 15 CONCLUSION............................................................................................................................... 26 16 REFERENCES .............................................................................................................................. 27 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID:A3LGTI9128 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1301020004.A3L 01/07/13 - 01/08/13 Portable Handset Page 3 of 3 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS 1900Voice/Data1850.20 - 1909.80 MHz 2.4 GHz WLANData2412 - 2462 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Voice (dBm) 1 TX Slot 1 TX Slots 2 TX Slots 3 TX Slots 4 TX Slots Maximum29.5 29.5 27.0 25.5 24.0 Nominal29.0 29.0 26.5 25.0 23.5 GSM/GPRS 1900 Mode / Band Burst Average GMSK (dBm) Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal 15.5 13.5 12.0 11.0 12.5 Bluetooth 11.5 IEEE 802.11n (2.4 GHz) IEEE 802.11b (2.4 GHz) 16.0 Modulated Average (dBm) IEEE 802.11g (2.4 GHz) 14.0 Mode / Band Reviewed by: FCC ID:A3LGTI9128 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1301020004.A3L 01/07/13 - 01/08/13 Portable Handset Page 4 of 4 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2013 1.3 DUT Antenna Locations Note…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTI9128 FCC Pt. 15.247 802.11b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1301020005.A3L January 02 - 03, 2013 Portable Handset Page 1 of 45 © 2013 PCTEST Engineering Laboratory, Inc. REV 3.0WN40 11/08/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. January 02 - 03, 2013 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1301020005.A3L FCC ID: A3LGTI9128 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): GT-I9128 EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2009, KDB 558074 v02 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 802.11b 2412 - 246239.53715.9769.66318.43 802.11g 2412 - 246223.12113.64135.20721.31 802.11n 2412 - 246217.78312.50104.71320.20 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and KDB 558074. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: A3LGTI9128 FCC Pt. 15.247 802.11b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1301020005.A3L January 02 - 03, 2013 Portable Handset Page 2 of 45 © 2013 PCTEST Engineering Laboratory, Inc. REV 3.0WN40 11/08/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ)............................................................... 18 6.4 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 20 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 27 6.6 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 31 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 36 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 41 6.9 LINE-CONDUCTED TEST DATA...............................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTI9128 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1301020005.A3L January 02 - 03, 2013 Portable Handset Page 1 of 39 © 2013 PCTEST Engineering Laboratory, Inc. REV 2.0BTLE 09/21/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. January 02 - 03, 2013 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1301020005.A3L FCC ID: A3LGTI9128 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: GT-I9128 EUT Type: Portable Handset Max. RF Output Power: 6.566 mW (8.173 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2009 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 Bluetooth (Low Energy) Reviewed by: FCC ID: A3LGTI9128 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1301020005.A3L January 02 - 03, 2013 Portable Handset Page 2 of 39 © 2013 PCTEST Engineering Laboratory, Inc. REV 2.0BTLE 09/21/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE)..................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE)...................................................................... 15 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE).............................................................................. 17 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 21 6.6 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 23 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 28 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 33 RADIATED RESTRICTED BAND EDGE MEASUREMENTS (CONT’D)............................................................... 34 6.9 LINE-CONDUCTED TEST DATA............................................................................................................. 35 7.0 CONCLUSION .......................................................................................................................................39 Reviewed by: FCC ID: A3LGTI9128 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERT…

Text truncated - open the document above for the full version.

Samsung Electronics Ltd., Inc. FCC ID: A3LGTI9128 Model: GT-I9128 Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Ltd., Inc. FCC ID: A3LGTI9128 Model: GT-I9128 Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Ltd., Inc. FCC ID: A3LGTI9128 Model: GT-I9128 Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC IDA3LGTI9128 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/07/13 - 01/08/13 Portable Handset APPENDIX F: Page 1 of 6 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2013 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC IDA3LGTI9128 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/07/13 - 01/08/13 Portable Handset APPENDIX F: Page 2 of 6 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2013 SAR Test Setup Photo 1: Right Cheek SAR Test Setup Photo 2: Right Tilt Reviewed by: FCC IDA3LGTI9128 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/07/13 - 01/08/13 Portable Handset APPENDIX F: Page 3 of 6 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2013 SAR Test Setup Photo 3: Left Cheek SAR Test Setup Photo 4: Left Tilt Reviewed by: FCC IDA3LGTI9128 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/07/13 - 01/08/13 Portable Handset APPENDIX F: Page 4 of 6 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2013 SAR Test Setup Photo 5: Back Side at 1.0 cm SAR Test Setup Photo 6: Front Side at 1.0 cm Reviewed by: FCC IDA3LGTI9128 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/07/13 - 01/08/13 Portable Handset APPENDIX F: Page 5 of 6 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2013 SAR Test Setup Photo 7: Bottom Edge at 1.0 cm SAR Test Setup Photo 8: Right Edge at 1.0 cm Reviewed by: FCC IDA3LGTI9128 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/07/13 - 01/08/13 Portable Handset APPENDIX F: Page 6 of 6 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2013 SAR Test Setup Photo 9: Left Edge at 1.0 cm SAR Test Setup Photo 10: Horizontal and Vertical Reference Lines
