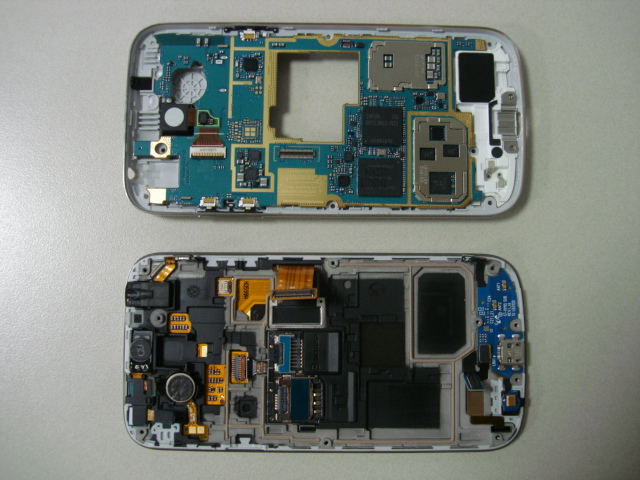

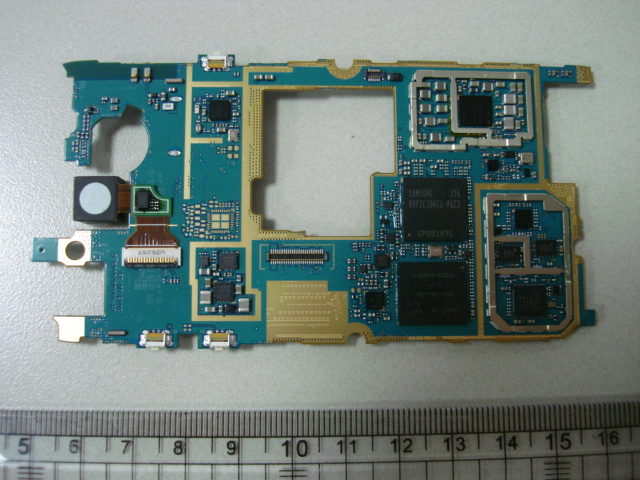

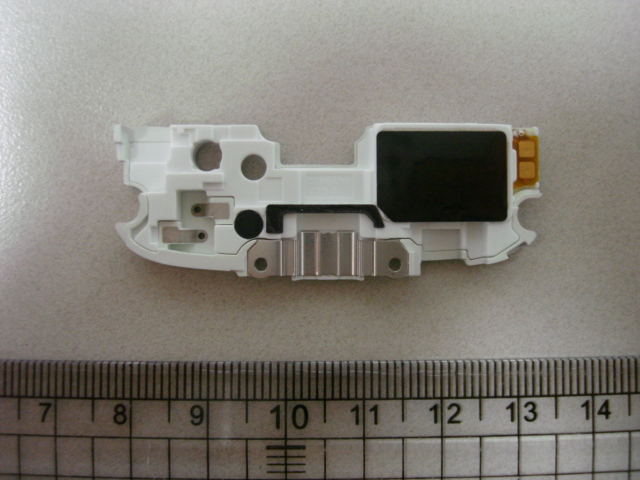

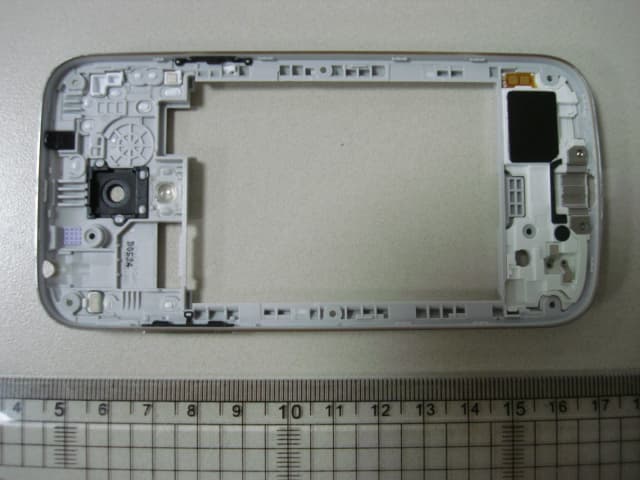

A3LGTI9192Cellular/PCS GSM/EDGE/WCDMA Phone with WLAN and Bluetooth

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 7, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTI9192 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129,Samsung-ro ,Yeongtong-gu Suwon-city,Gyeonggi-do, 443-742 Korea May 21, 2013 Federal Communica tions Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LGTI9192 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

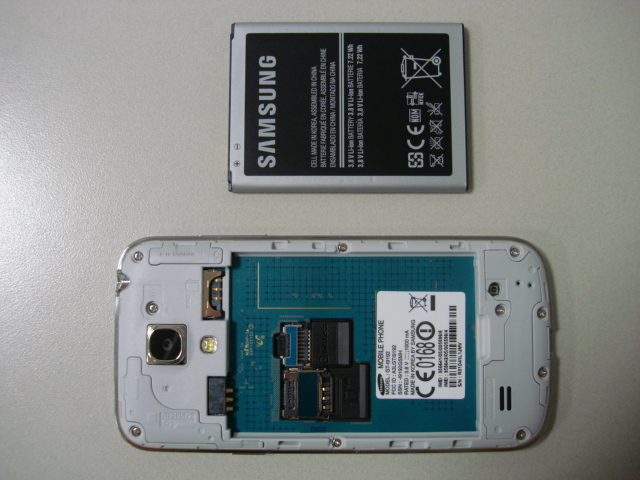

Label and Location Samsung Phone Model: GT-I9192 FCC ID: A3LGTI9192 Lab el: Location: Top Back of device Bottom Label is placed inside of the battery compartment. Label

The FCC ID label is l ocated in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device.”

FCC ID: A3LGTI9192 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 39 0Y1305170863-R1.A3L 05/20/13 - 05/25/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 05/20/13 - 05/25/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1305170863-R1.A3L FCC ID: A3LGTI9192 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): GT-I9192, GT-I9190 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz32.95< 0.10.260.56 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz29.32< 0.10.300.53 PCEUMTS 850826.40 - 846.60 MHz24.420.100.410.41 PCEUMTS 19001852.4 - 1907.6 MHz23.000.150.810.81 DTS2.4 GHz WLAN2412 - 2462 MHz17.240.260.520.52 DTS5.8 GHz WLAN5745 - 5825 MHz9.35< 0.1< 0.1-1.00 NII5.2 GHz WLAN5180 - 5240 MHz9.59< 0.1< 0.1-1.00 NII5.3 GHz WLAN5260 - 5320 MHz9.08< 0.10.10-1.00 NII5.5 GHz WLAN5500 - 5700 MHz9.74< 0.10.13-1.00 DSS/DTSBluetooth2402 - 2480 MHz9.05 0.371.331.33 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised Test Report (S/N: 0Y1305170863-R1.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LGTI9192 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 39 0Y1305170863-R1.A3L 05/20/13 - 05/25/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 7 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 8 4 DEFINITION OF REFERENCE POINTS ........................................................................................ 9 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 10 6 RF EXPOSURE LIMITS ................................................................................................................ 13 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 14 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 22 10 SAR DATA SUMMARY ................................................................................................................. 24 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 30 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 33 13 EQUIPMENT LIST ......................................................................................................................... 34 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 35 15 CONCLUSION ............................................................................................................................... 37 16 REFERENCES .............................................................................................................................. 38 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LGTI9192 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 39 0Y1305170863-R1.A3L 05/20/13 - 05/25/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating …

Text truncated - open the document above for the full version.

FCC ID: A3LGTI9192 FCC Pt. 22 & 24 GSM / GPRS / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 59 0Y1305190864.A3L 5/23 - 5/28/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.9 04/15/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 5/23 - 5/28/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab., Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1305190864.A3L FCC ID: A3LGTI9192 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): GT-I9192 EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 Test Device Serial No.: identical prototype [S/N: FK-125-C] Max. Power (W ) Max. Power (dBm) GSM850824.2 - 848.8242KGXW0.15021.75 EDGE850824.2 - 848.8244KG7W0.04616.64 GSM19001850.2 - 1909.8242KGXW0.33925.30 EDGE19001850.2 - 1909.8237KG7W0.10520.21 WCDMA850826.4 - 846.64M20F9W0.04216.25 WCDMA19001852.4 - 1907.64M19F9W0.10620.26 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: A3LGTI9192 FCC Pt. 22 & 24 GSM / GPRS / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 59 0Y1305190864.A3L 5/23 - 5/28/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.9 04/15/2013 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 7 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA .................................................................................... 10 5.0 SAMPLE CALCULATIONS ............................................................................................................ 11 6.0 TEST RESULTS ............................................................................................................................. 12 6.1 SUMMARY ......................................................................................................................................... 12 6.2 CELLULAR EFFECTIVE RADIATED POWER (ERP) ....................................................................... 13 6.3 PCS EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) .......................................................... 14 6.4 CELLULAR GSM RADIATED MEASUREMENTS ............................................................................. 15 6.5 CELLULAR WCDMA RADIATED MEASUREMENTS ....................................................................... 18 6.6 P…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS FCC ID: A3LGTI9192 Model: GT-I9192 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 1 of 2 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LGTI9192 Model: GT-I9192 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 2 of 2 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LGTI9192 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 7 05/20/13 - 05/25/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 APPENDIX F: S AR TEST SETUP PHOTOGRAPHS FCC ID: A3LGTI9192 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 7 05/20/13 - 05/25/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 1: Right Cheek SAR Test Setup Photo 2: Right Tilt FCC ID: A3LGTI9192 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 7 05/20/13 - 05/25/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 3: Left Cheek SAR Test Setup Photo 4: Left Tilt FCC ID: A3LGTI9192 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 7 05/20/13 - 05/25/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 5: Back Side at 1.0 cm SAR Test Setup Photo 6: Front Side at 1.0 cm FCC ID: A3LGTI9192 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 7 05/20/13 - 05/25/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 7: Top Edge at 1.0 cm SAR Test Setup Photo 8: Bottom Edge at 1.0 cm FCC ID: A3LGTI9192 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 6 of 7 05/20/13 - 05/25/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 9: Right Edge at 1.0 cm SAR Test Setup Photo 10: Left Edge at 1.0 cm FCC ID: A3LGTI9192 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 7 of 7 05/20/13 - 05/25/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 11: Horizontal and Vertical Reference Lines
