A3LGTN7102850/1900 GSM/GPRS/EDGE Phone w/ Bluetooth and WLAN

User manual GT-N7102 Draft 6.1 2012-10-08 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or pe…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea October 8, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LGTN7102 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

October 10, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LGTN7102 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

416, Maetan-3 Dong , Yeongtong-Gu, Suwon-City, Gyeonggi-Do 443-742 South Korea Date: 04/09/2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, NAME: Sang Kyung(Peter), Ra TITLE: Head of QA Lab (General Manager) Applicant: Samsung Electronics America, Inc Address: 19 Chapin Rd, Building D. Pine Brook, NJ 07058

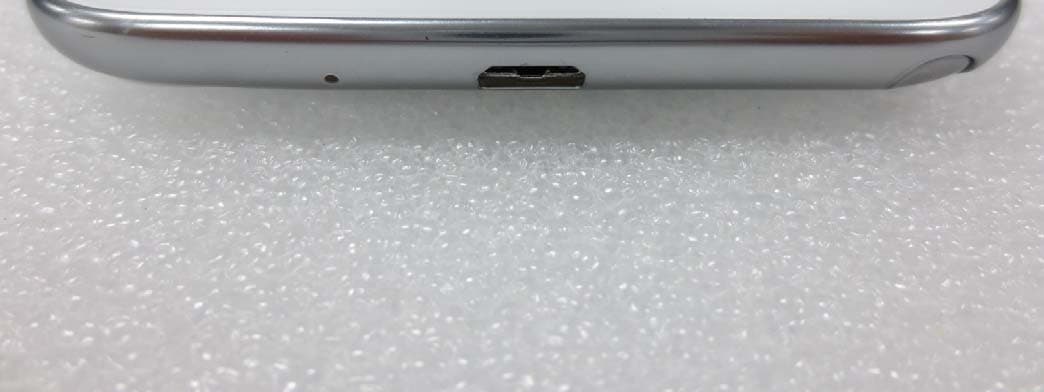

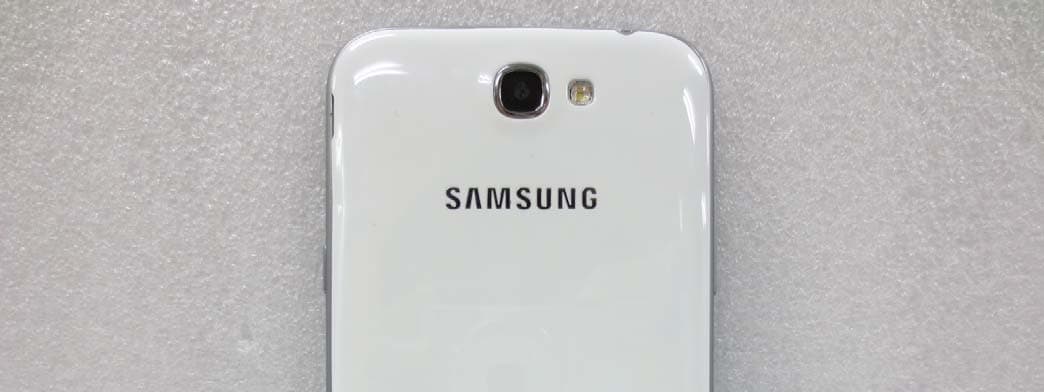

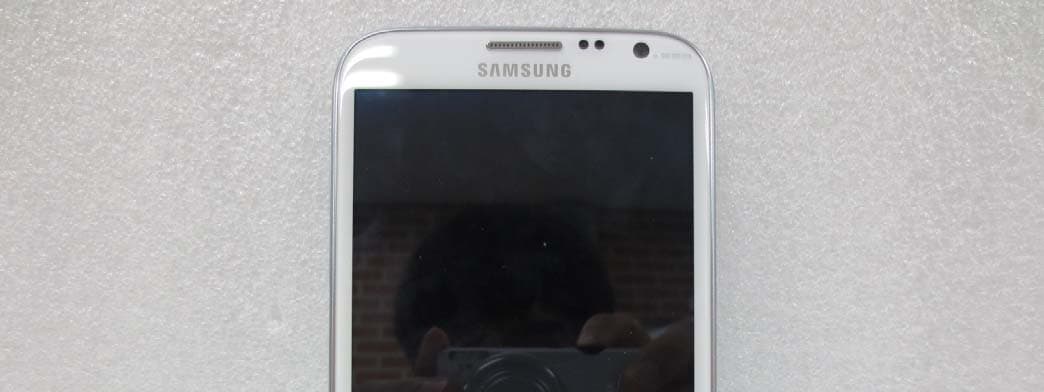

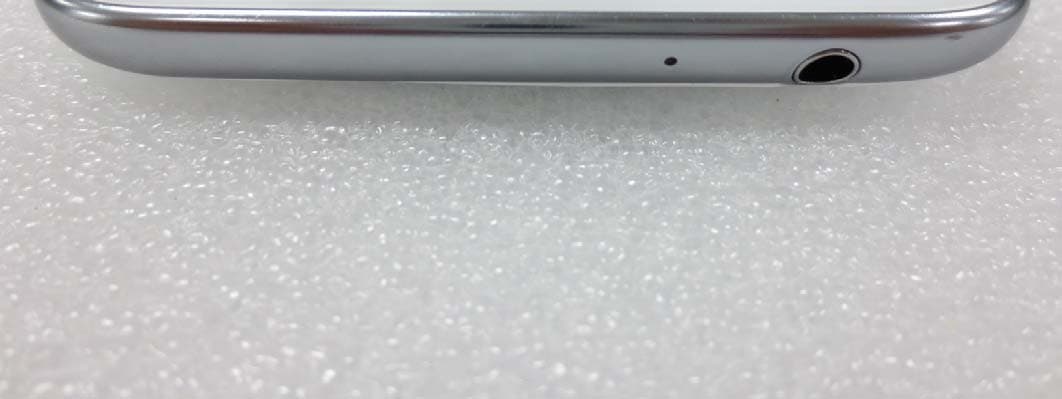

FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

Label and Location Samsung Phone Model: GT-N7102 FCC ID: A3LGTN7102 Label: Location: Top Back plate of device Bottom Label is placed inside of the battery compartment. Label

FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 19 INTERNAL PHOTOGRAPHS FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １６ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １７ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １８ of 19 ■ INTERNAL PHOTO FCC ID: A3LGTN7102 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １９ of 19 ■ INTERNAL PHOTO

FCC A l FCC A pprova l Antenna location & Distance Model: GT-N7102Date: 2012. 09. 04 * Placement of each antenna confidential GPS ANTENNA Rear View SLAVE ANTENNA(GSM850 Tx /Rx) (GSM850 Tx /Rx) BT/WIFI ANTENNA MAIN ANTENNA(GSM850/1900 Tx/Rx) * Antenna pattern (FCC Band 만 표기 ) confidential Antenna pattern (FCC Band 만 표기 ) MAIN ANTENNA(GSM850/1900 Tx /Rx) (GSM850/1900 Tx /Rx) GSM 1900 GSM850 * Antenna pattern (FCC Band 만 표기 ) confidential Antenna pattern (FCC Band 만 표기 ) SLAVE ANTENNA( GSM1900 Tx /Rx) GSM 1900 ( GSM1900 Tx /Rx) * Distance between BT/WLAN antenna and Main antenna 13mm GSM 1900 Bluetooth & WLAN antenna Rear View confidential 97mm 103mm GSM 1900 GSM850 * Distance between Main antenna and edge confidential Rear View 133133 mm 151mm Main antenna Patten 2.8mm 48 mm 1.8mm 48 mm 80.6mm * Distance between Bluetooth antenna and edge confidential 20mm Bluetooth & WLAN antenna Rear View 68mm 4.7mm 98mm

SAR TEST REPORT HCT CO., LTD EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth and WLAN FCC ID: A3LGTN7102 Model: GT-N7102 Date of Issue: Oct.05, 2012 Test report No.: HCTA1210FS10 Test Laboratory: HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Applicant : SAMSUNG Electronics Co., Ltd. 416 Maetan3-Dong, YeongTong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 Testing has been carried out in accordance with: RSS-102 Issue 4; Health Canada Safety Code 6 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 1992 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Max SAR Band 1g SAR (W/kg) Head Body-worn Hotspot GSM850 0.102 0.093 0.093 GSM1900 0.059 0.282 0.282 802.11b 0.000495 0.00109 0.124 802.11a/n 0.000862 0.567 - Simultaneous SAR per KDB 690783 D01 0.102 0.849 0.283 Signature Report prepared by Approved by : Young-Soo Jang : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA1210FS10 FCC ID: A3LGTN7102 Date of Issue: Oct.05, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 186 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. DESCRIPTION OF DEVICE ......................................................................................................................... ４ 3. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ５ 4. SAR MEASUREMENT PROCEDURE ..................................................................................................... １２ 5. DESCRIPTION OF TEST POSITION ....................................................................................................... １３ 6. MEASUREMENT UNCERTAINTY ........................................................................................................... １５ 7. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １７ 8. SYSTEM VERIFICATION ......................................................................................................................... １８ 9. RF CONDUCTED POWER MEASUREMENT ......................................................................................... ２０ 10. SAR Test configuration & Antenna Information ................................................................................ ２７ 11. SAR Considerations for Multiple Transmitters and Antennas ......................................................... ２８ 12. SAR TEST DATA SUMMARY ................................................................................................................ ３１ 12.1 Measurement Results (GSM850 Head SAR) ............................................................................. ３１ 12.2 Measurement Results (GSM1900 Head SAR) ........................................................................... ３２ 12.3 Measurement Results (802.11b Head SAR) .............................................................................. ３３ 12.4 Measurement Results (802.11a/n 5GHz Head SAR) ................................................................. ３４ 12.5 Measurement Results (GSM850 Hotspot SAR) ........................................................................ ３５ 12.6 Measurement Results (GSM1900 Hotspot SAR) ...................................................................... ３６ 12.7 Measurement Results (802.11b Hotspot SAR) ......................................................................... ３７ 12.8 Measurement Results (802.11a/n 5GHz Body-Worn) ............................................................... ３８ 13. CONCLUSION ........................................................................................................................................ ３９ 14. Scaled SAR Values to the Maximum tune-up tolerances ................................................................. ４０ 15. REFERENCES ....................................................................................................................................... ４１ Attachment 1. – SAR Test Plots ................................................................................................................ ４２ Attachment 2. – Dipole Validation Plots ................................................................................................ １０１ Attachment 3. – Probe Calibration Data ................................................................................................ １２４ Attachment 4. – Dipole Calibration Data ............................................................................................... １４９ Report No.: HCTA1210FS10 FCC ID: A3LGTN7102 Date of Issue: Oct.05, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 186 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of El…

Text truncated - open the document above for the full version.

Report No.: HCTA1210FS10 FCC ID: A3LGTN7102 Date of Issue: Oct.05, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 101 of 186 Attachment 2. – Dipole Validation Plots Report No.: HCTA1210FS10 FCC ID: A3LGTN7102 Date of Issue: Oct.05, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 102 of 186  Validation Data (835 MHz Head) Test Laboratory: HCT CO., LTD Input Power 100 mW (20 dBm) Liquid Temp: 21.2 °C Test Date: Sep. 24, 2012 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:441 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.917 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1630; ConvF(6.27, 6.27, 6.27); Calibrated: 2011-11-18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2012-02-21 - Phantom: SAM 1800/1900 MHz; Type: SAM Validation 835MHz/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.00 mW/g Validation 835MHz/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.2 V/m; Power Drift = -0.025 dB Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.921 mW/g; SAR(10 g) = 0.594 mW/g Maximum value of SAR (measured) = 1.00 mW/g 0 dB = 1.00mW/g Report No.: HCTA1210FS10 FCC ID: A3LGTN7102 Date of Issue: Oct.05, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 103 of 186  Validation Data (835 MHz Body) Test Laboratory: HCT CO., LTD Input Power 100 mW (20 dBm) Liquid Temp: 21.2 °C Test Date: Sep. 24, 2012 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:441 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 1.01 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1630; ConvF(6.27, 6.27, 6.27); Calibrated: 2011-11-18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2012-02-21 - Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA Validation 835 MHz/Area Scan (111x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.05 mW/g Validation 835 MHz/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 33.5 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.961 mW/g; SAR(10 g) = 0.626 mW/g Maximum value of SAR (measured) = 1.04 mW/g 0 dB = 1.04mW/g Report No.: HCTA1210FS10 FCC ID: A3LGTN7102 Date of Issue: Oct.05, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 104 of 186  Validation Data (1 900 MHz Head) Test Laboratory: HCT CO., LTD Input Power 100 mW (20 dBm) Liquid Temp: 21.2 °C Test Date: Sep. 25, 2012 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d032 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.37 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1630; ConvF(5.17, 5.17, 5.17); Calibrated: 2011-11-18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2012-02-21 - Phantom: SAM 1800/1900 MHz; Type: SAM Dipole 1900MHz Validation/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.37 mW/g Dipole 1900MHz Validation/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.9 V/m; Power Drift = 0.038 dB Peak SAR (extrapolated) = 6.81 W/kg SAR(1 g) = 3.74 mW/g; SAR(10 g) = 1.93 mW/g Maximum value of SAR (measured) = 4.16 mW/g 0 dB = 4.16mW/g Report No.: HCTA1210FS10 FCC ID: A3LGTN7102 Date of Issue: Oct.05, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 105 of 186  Validation Data (1 900 MHz Body) Test Laboratory: HCT CO., LTD Input Power 100 mW (20 dBm) Liquid Temp: 21.2 °C Test Date: Sep. 25, 2012 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d032 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1630; ConvF(4.75, 4.75, 4.75); Calibrated: 2011-11-18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2012-02-21 - Phantom: SAM 1800/1900 MHz; Type: SAM Dipole 1900MHz Validation/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.71 mW/g Dipole 1900MHz Validation/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.2 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 6.64 W/kg SAR(1 g) = 3.89 mW/g; SAR(10 g) = 2.04 mW/g Maximum value of SAR (measured) = 4.31 mW/g 0 dB = 4.31mW/g Report No.: HCTA1210FS10 FCC ID: A3LGTN7102 Date of Issue: Oct.05, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 106 of 186  Validation Data (2 450 MHz Head) Test Laboratory: HCT CO., LTD Input Power 100 mW (20 dBm) Liquid Temp: 21.1 °C Test Date: Sep. 26, 2012 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:743 Communica…

Text truncated - open the document above for the full version.

Head Body-Worn Accessory Hot Spot IEEE 1528, Supp C Supp C FCC KDB 941225 D06 1GSM 850/1900 MHz Voice …
