A3LGTP1010Mini-Tablet with WLAN and Bluetooth

ANDROID TABLET User Manual Please read this manual before operating your device, and keep it for future reference. GT-P1010_XXJI5_WB_093010_D1 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG tablet, including but not limited to, accessories, parts, or software relating there to (the “tablet”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), LLC Headquarters:Customer Care Center: 1301 E. Lookout Drive1000 Klein Rd. Richardson, TX 75082Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) Internet Address: http://www.samsungusa.com © 2010 Samsung Telecommunications America, LLC is a registered trademark of Samsung Electronics America, Inc. and its related entities. Do you have questions about your Samsung Android Tablet? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsungtelecom.com/support T9 Text Input is licensed by Tegic Communications and is covered by U.S. Pat. 5,818,437; U.S. Pat. 5,953,541; U.S. Pat. 6,011,554 and other patents pending. ACCESS ® and NetFront™ are trademarks or registered trademarks of ACCESS Co., Ltd. in Japan and other countries. The Bluetooth ® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG. microSD™ and the microSD logo are Trademarks of the SD Card Association. Openwave ® is a registered Trademark of Openwave, Inc. and are trademarks of SRS Labs, Inc. CS Headphone and WOW HD technologies are incorporated under license from SRS Labs, Inc. Google, the Google logo, Android, the Android logo, Android Market, Gmail, Google Mail, Google Apps, Google Calendar, Google Checkout, Google Earth, Google Latitude, Google Maps, Google Talk, Picasa, and YouTube are trademarks of Google Inc. Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc. Swype and the Swype logos are trademarks of Swype, Inc. © 2010 Swype, Inc. All rights reserved. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com/category/mobile/mobile-phone/.??? Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. 4 Section 1: Getting Started This section explains how to start using your tablet by configuring your hardware and activating your service. Setting Up Your Tablet Prior to use it is necessary to install the memory card into their corresponding compartments. Warning!: Please note that a touch screen responds best to a light touch from the pad of your finger. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. For more information, refer to “Standard Limited Warranty” on page 147. Installing the Memory Card Your device lets you use a microSD™ (SD) or microSDHC™ card to expand available memory space. This secure digital card enables you to exchange images, music, and data between SD-compatible devices. This type of memory card is designed for use with this tablet and other devices. 1.Push the microSD card into the slot until it clicks (as shown). 2.Make sure the microSD’s gold contact pins face downward and the card is securely inserted. Note: Your tablet has been tested to support up to a 16GB memory card. For more information on Memory Cards, see “Memory Card” on page 26. Getting Started 5 Charging the Battery Your tablet is powered by a rechargeable Li-ion battery. The Travel Adapter that is used to charge the battery, is included with your tablet. Note: Long backlight settings, searching for service, vibrate mode, browser use, and other variables may reduce the battery’s talk and standby times. Although you can use the device while the battery is charging, doing so will require additional charging time. Note: …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: October 7, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTP1010 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

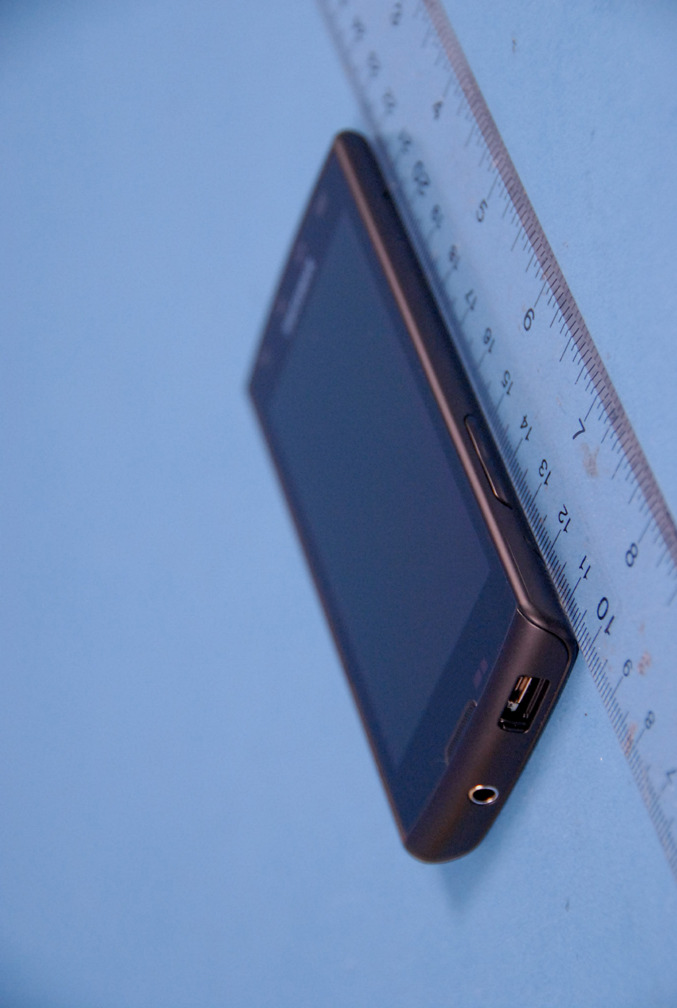

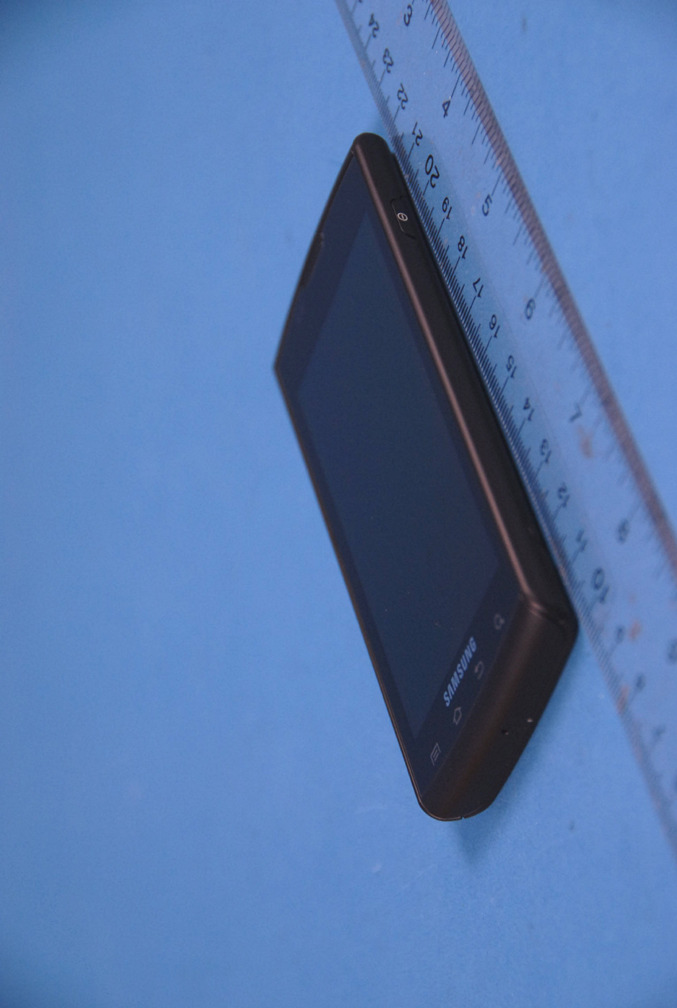

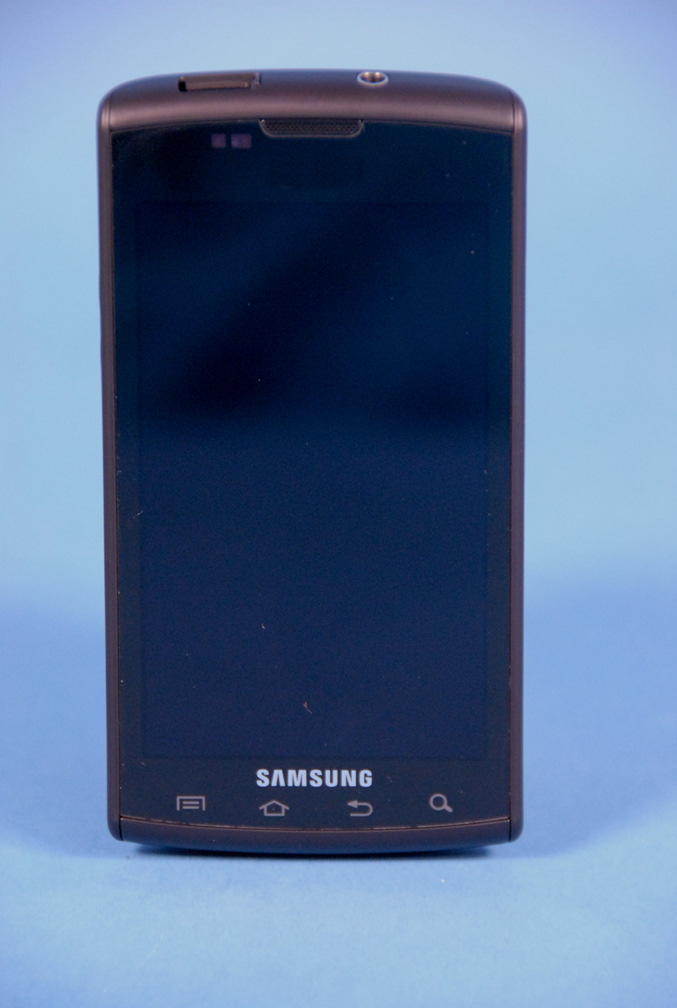

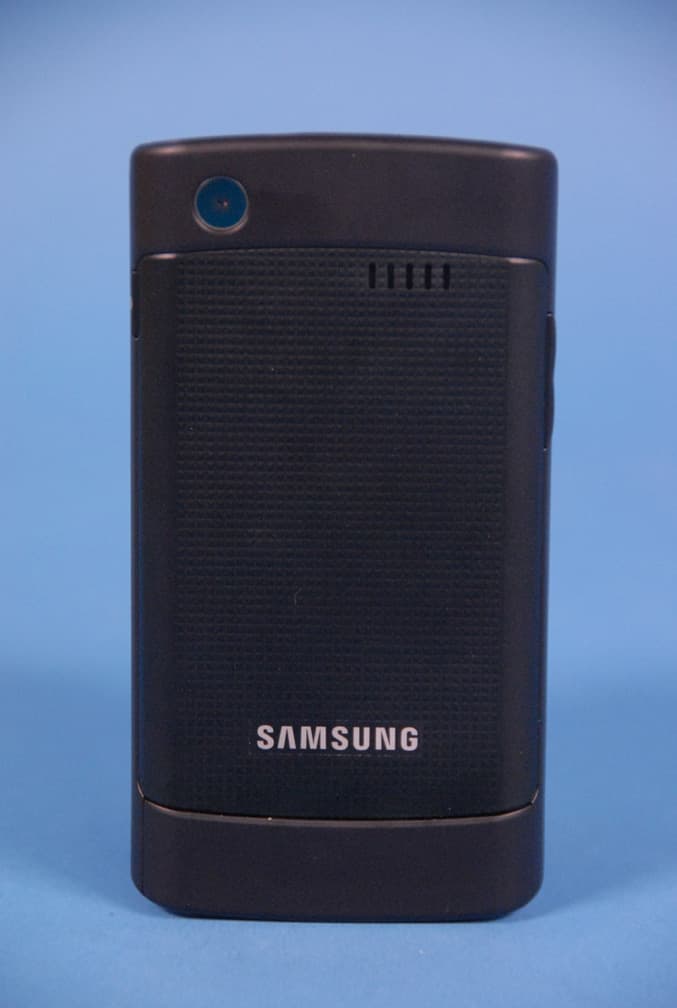

Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 External Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. E X T E R N A L P H O T O G R A P H S Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 External Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 External Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 External Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

WiFi_NA Technical Description 1. Use 'FILM' provided by 'SAMSUNG' for letter and contents 2. Background color is 'BLACK', letter color is 'GRAY' (reverse for SAMSUNG LOGO) 3. Back side should be attached to release paper once adhesive is applied. 4. No letter should be blur/smeared 5. The production must be proceed after the approval of R&D Group 6. The product must be within approvedsample's specification tolerance. 7. The product must be finished in a ROLL 8. Release paper must be unifiedn for material and color(blue)

Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Internal Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 1 of 9 © 2010 PCTEST Engineering Laboratory Inc. I N T E R N A L P H O T O G R A P H S Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Internal Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 2 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Internal Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 3 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Internal Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 4 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Internal Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 5 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Internal Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 6 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Internal Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 7 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Internal Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 8 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Internal Photos EUT Type: Mini-Tablet with Bluetooth and WLAN Page 9 of 9 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LGTP1010 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009221630-R1.A3L 09/23/10 - 09/29/10 Mini Tablet with WLAN and Bluetooth Page 1 of 28 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 09/23/10 - 09/29/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1009221630-R1.A3L FCC ID: A3LGTP1010 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Mini Tablet with WLAN and Bluetooth Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: Digital Transmission System (DTS) Model(s): GT-P1010 Tx Frequency: 2412 - 2462 MHz (IEEE 802.11 b/g/n) 5 GHz (IEEE 802.11a/n) Conducted Power: 17.06 dBm 2.4 GHz WLAN 12.33 dBm 5 GHz WLAN Max. SAR Measurement: 0.63 W/kg 2.4 GHz WLAN Body SAR 0.76 W/Kg 5 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: FH-218-C] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LGTP1010 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009221630-R1.A3L 09/23/10 - 09/29/10 Mini Tablet with WLAN and Bluetooth Page 2 of 28 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 RF EXPOSURE LIMITS ................................................................................................................ 11 9 MEASUREMENT UNCERTAINTIES ............................................................................................ 12 10 SYSTEM VERIFICATION.............................................................................................................. 14 11 FCC ANTENNA SAR CONSIDERATIONS ................................................................................... 16 12 WIFI MEASUREMENT PROCEDURES ....................................................................................... 17 13 SAR DATA SUMMARY ................................................................................................................. 20 14 EQUIPMENT LIST......................................................................................................................... 22 15 CONCLUSION............................................................................................................................... 23 16 REFERENCES .............................................................................................................................. 24 17 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 26 Reviewed by: FCC ID: A3LGTP1010 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009221630-R1.A3L 09/23/10 - 09/29/10 Mini Tablet with WLAN and Bluetooth Page 3 of 28 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave [3] is used for guidance in measuring the Specific Absorption Rate (SAR) due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTP1010 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009221633.A3L September 23 - 28, 2010 Mini-Tablet with Bluetooth and WLAN Page 1 of 72 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1UAN 02/06/09 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. September 23 - 28, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1009221633.A3L FCC ID: A3LGTP1010 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): GT-P1010 EUT Type: Mini-Tablet with Bluetooth and WLAN Max. RF Output Power: 17.54 mW (12.44 dBm) Conducted (802.11a UNII Band I) 11.75 mW (10.7 dBm) Conducted (802.11a UNII Band II) 5.61 mW (7.49 dBm) Conducted (802.11a UNII Band III) 17.26 mW (12.37 dBm) Conducted (802.11n UNII Band I) 11.67 mW (10.67 dBm) Conducted (802.11n UNII Band II) 5.43 mW (7.35 dBm) Conducted (802.11n UNII Band III) Frequency Range: 5180MHz – 5240MHz (UNII-I Band), 5260MHz – 5320MHz (UNII-II Band), 5500 – 5700MHz (UNII-III Band) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Device Serial No.: FH-218-C This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 802.11 a/n Reviewed by: FCC ID: A3LGTP1010 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009221633.A3L September 23 - 28, 2010 Mini-Tablet with Bluetooth and WLAN Page 2 of 72 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1UAN 02/06/09 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT .....................................................................................................11 6.3 OUTPUT POWER MEASUREMENT – 802.11A/N (UNII I) ...................................................................... 21 6.4 OUTPUT POWER MEASUREMENT – 802.11A/N (UNII II) ..................................................................... 22 6.5 OUTPUT POWER MEASUREMENT – 802.11A/N (UNII III) .................................................................... 23 6.6 PEAK POWER SPECTRAL DENSITY.....................................................................................................24 6.7 PEAK EXCURSION RATIO ..................................................................................................................... 34 6.8 FREQUENCY STABILITY ........................................................................................................................ 44 6.9 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 47…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTP1010 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009221634.A3L September 28, 2010 Mini-Tablet with Bluetooth and WLAN Page 1 of 22 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.3DFS 3/3/08 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. September 28, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab. Columbia, MD, USA United States Test Report Serial No.: 0Y1009221634.A3L FCC ID: A3LGTP1010 COMPANY: Samsung Electronics, Co. Ltd. Model(s): GT-P1010 EUT Type: Mini-Tablet with Bluetooth and WLAN Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5700 MHz (UNII-III Band) Output Power: 11.75 mW (10.7 dBm) Conducted (802.11a UNII Band II) 5.61 mW (7.49 dBm) Conducted (802.11a UNII Band III) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003 and FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 Reviewed by: FCC ID: A3LGTP1010 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009221634.A3L September 28, 2010 Mini-Tablet with Bluetooth and WLAN Page 2 of 22 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.3DFS 3/3/08 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE..................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ............................................................................................................... 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 MODIFICATIONS....................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST .........................................................6 3.1 APPLICABILITY ......................................................................................................................................... 6 3.2 REQUIREMENTS ...................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES ................................................................................................ 8 3.4 PARAMETERS OF DFS TEST SIGNALS ..................................................................................................8 3.5 PROCEDURE ............................................................................................................................................ 9 4.0 TEST EQUIPMENT................................................................................................................................11 4.1 ADDITIONAL EQUIPMENT ..................................................................................................................... 11 5.0 TEST PLOTS AND DATA UNII - II BAND .............................................................................................12 6.0 TEST PLOTS AND DATA UNII – III BAND............................................................................................17 7.0 CONCLUSION .......................................................................................................................................22 Reviewed by: FCC ID: A3LGTP1010 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009221634.A3L September 28, 2010 Mini-Tablet with Bluetooth and WLAN Page 3 of 22 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.3DFS 3/3/08 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 18600 Broadwick St. Rancho Dominguez, CA 90220, United States TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 6660-B Dobbin Road, Columbia, MD 21045 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: GT-P1010 FCC ID: A3LGTP1010 Test Device Serial No.: FH-218-C Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection DATE(S) OF T…

Text truncated - open the document above for the full version.

Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Test Set-Up Photos EUT Type: WCDMA Mini Tablet with Bluetooth and WLAN Page 1 of 3 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Test Set-Up Photos EUT Type: WCDMA Mini Tablet with Bluetooth and WLAN Page 2 of 3 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTP1010 Model: GT-P1010 Test Set-Up Photos EUT Type: WCDMA Mini Tablet with Bluetooth and WLAN Page 3 of 3 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LGTP1010 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009221630-R1.A3L 09/23/10 - 09/29/10 Mini Tablet with WLAN and Bluetooth Page 26 of 28 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 17 SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: A3LGTP1010 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009221630-R1.A3L 09/23/10 - 09/29/10 Mini Tablet with WLAN and Bluetooth Page 27 of 28 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 Figure 17-1 SAR Test Setup Photo 1 - Back Figure 17-2 SAR Test Setup Photo 2 – Top Edge Reviewed by: FCC ID: A3LGTP1010 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009221630-R1.A3L 09/23/10 - 09/29/10 Mini Tablet with WLAN …

Text truncated - open the document above for the full version.
