A3LGTP7310Tablet with WLAN and Bluetooth

Using this guide 2 Using this guide Congratulations on your purchase of the Samsung GT-P7310. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the GT-P7310 gives you access to thousands of useful and entertaining applications to enrich your mobile web experience. With integrated wireless access and a responsive touch screen, you can keep in touch with versatile messaging and video calling applications; read books and newspapers on the go; stay up-to-date on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this guide carefully before using your device to ensure ‡ safe and proper use. The descriptions in this guide are based on the default settings of your device. ‡ Images and screenshots used in this guide may differ in appearance from the actual product.‡ Content in this guide may differ from the product, or from software provided by service ‡ providers or carriers, and is subject to change without prior notice. Using this guide 3 Available features and additional services may vary by device, software, or service provider.‡ Formatting and delivery of this guide is based on Google Android operating systems and may ‡ vary depending on the user’s operating system. Applications and their functions may vary by country, region, or hardware specifications. ‡ Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or incompatibilities caused by user editing of ‡ registry settings. You may upgrade your mobile device’s software by accessing www.samsungmobile.com. ‡ Sound sources, wallpapers, and images provided in this device are licenced for limited use ‡ between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this guide for future reference. ‡ Using this guide 4 Instructional icons Before you start, familiarise yourself with the icons you will see in this guide: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Ź Refer to—pages with related information; for example: Ź p.12 (represents “see page 12”) ĺ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Settings ĺ Wireless and network (represents Settings, followed by Wireless and network) []Square brackets—device keys; for example: [ ] (represents the Power key) Using this guide 5 Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.‡ The Android logo, Google Search‡ ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Bluetooth ‡ ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be ‡ trademarks of their respective owners. Windows Media Player ‡ ® is a registered trademark of Microsoft Corporation. Wi-Fi ‡ ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Using this guide 6 DivX‡ ® , Divx Certified ® , and associated logos are trademarks of DivX, Inc. and are used under license. Covered by one or more of the following U.S. patents: Pat. 7,295,673; 7,460,668; 7,515,710; 7,519,274 All other trademarks and copyrights are the property of their respective owners. ‡ Using this guide 7 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, Inc. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. DivX Certified ® to play DivX ® video up to HD 720p, including premium content May play DivX ® video up to HD 1080p (LCD resolution : 1024x600) ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 8 Assembling ...........................................................................................11 Unpack ............................................................................................................................... 11 Charge the battery .......................................................................................................... 12 Insert the SIM or USIM card ........................................................................................... 13 Insert a memory card (optional) .................................................................................. 15 Getting started .....................................................................................18 Turn your device on and off .......................................................................................... 18 Get to know your device ................................................................................................ 20 Use the touch sc…

Text truncated - open the document above for the full version.

Date: May 16, 2011 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc 6660-B Dobbin Road Columbia, MD 21045 Subject: SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LGTP7310 Statement of Conformity in regards to KDB 848637 To Whom It May Concern: We, Samsung Electronics Co., Ltd., attest to the following information regarding the operation of the above mentioned device in the 5GHz U-NII Band. The GT-P7310 supports the following frequency ranges and is only client device in 5GHz bands WLAN: 5745 – 5825MHz UNII: 5180 – 5240MHz, 5260 – 5320MHz, 5500 – 5700MHz The following table lists the actual channel/frequency plan for the 5GHz operation in USA. Active scanning and transmit a beacon in DFS frequency (5260MHz ~ 5320MHz and 5500MHz ~ 5700MHz) is not available. Channel Freq.(MHz) Channel Freq.(MHz) Channel Freq.(MHz) 36 5180 64 5320 140 5700 40 5200 100 5500 149 5745 44 5220 104 5520 153 5765 48 5240 108 5540 157 5785 52 5260 112 5560 161 5805 56 5280 116 5580 165 5825 60 5300 136 5680 Ad-hoc or peer-to-peer modes are not supported operating in the UNII bands. This NII transmitter is a client-only device without radar detection capability. The client software and associated drivers can not initiate any transmission on DFS frequencies, which includes transmissions for beacon, ad-hoc, and peer-to- peer modes. Operation as an access point on non-DFS legacy frequencies is also not supported. The software is locked by the module manufacturer such that there is no access and the settings can not be changed by the integrator of the module or the end user of the device. The User’s Manual submitted with this application is complete and contains all information pertaining to the devices capability. There is no Professional Installers manual available for this device as it is an end user item. Should you have any questions or comments concerning the above, please contact the undersigned. Best Regards Sang Kyung, Ra/General Manager American QA Lab SAMSUNG Electronics America INC. E-mail : [email protected] Telephone : 310-900-5250

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: May 17, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTP7310 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

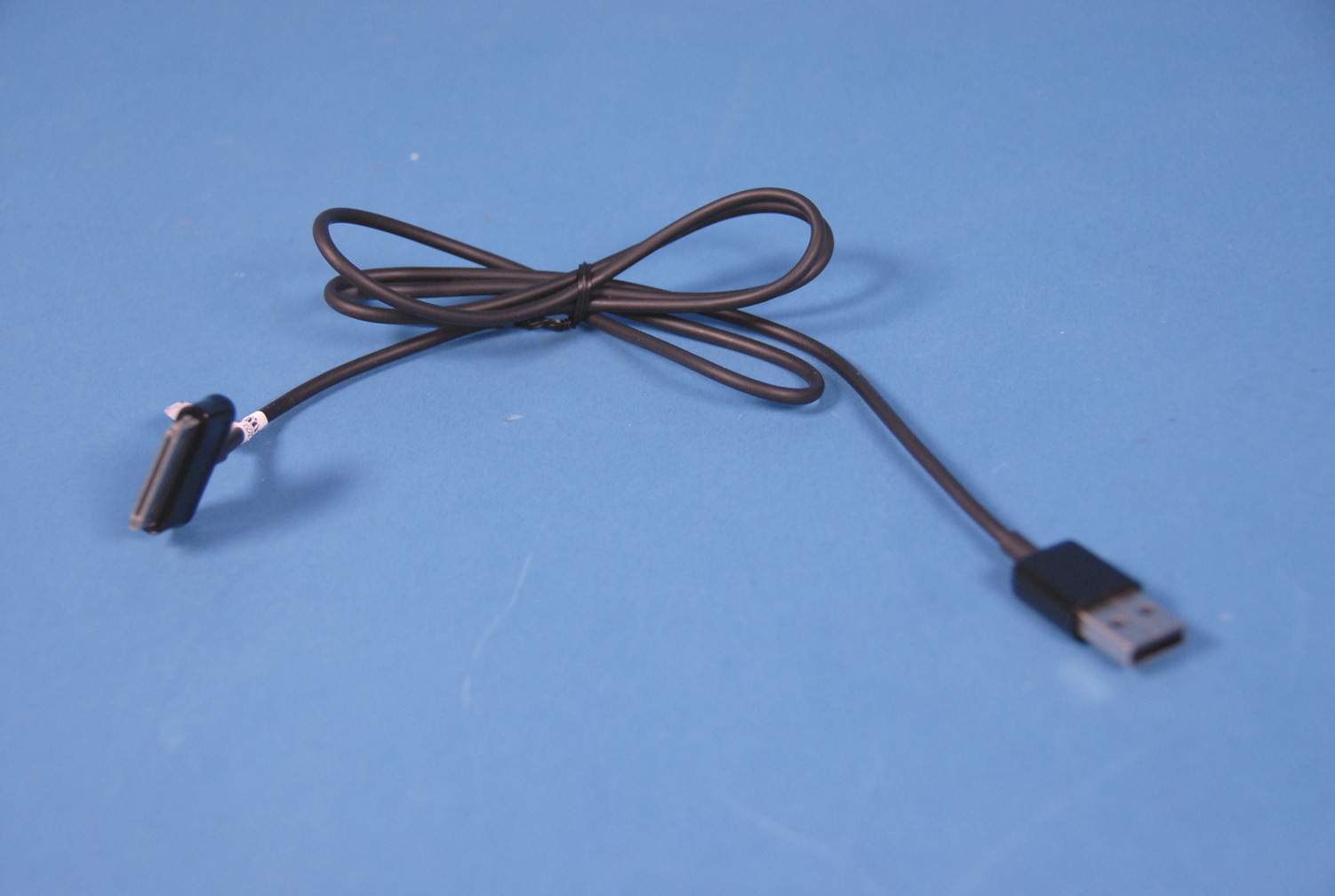

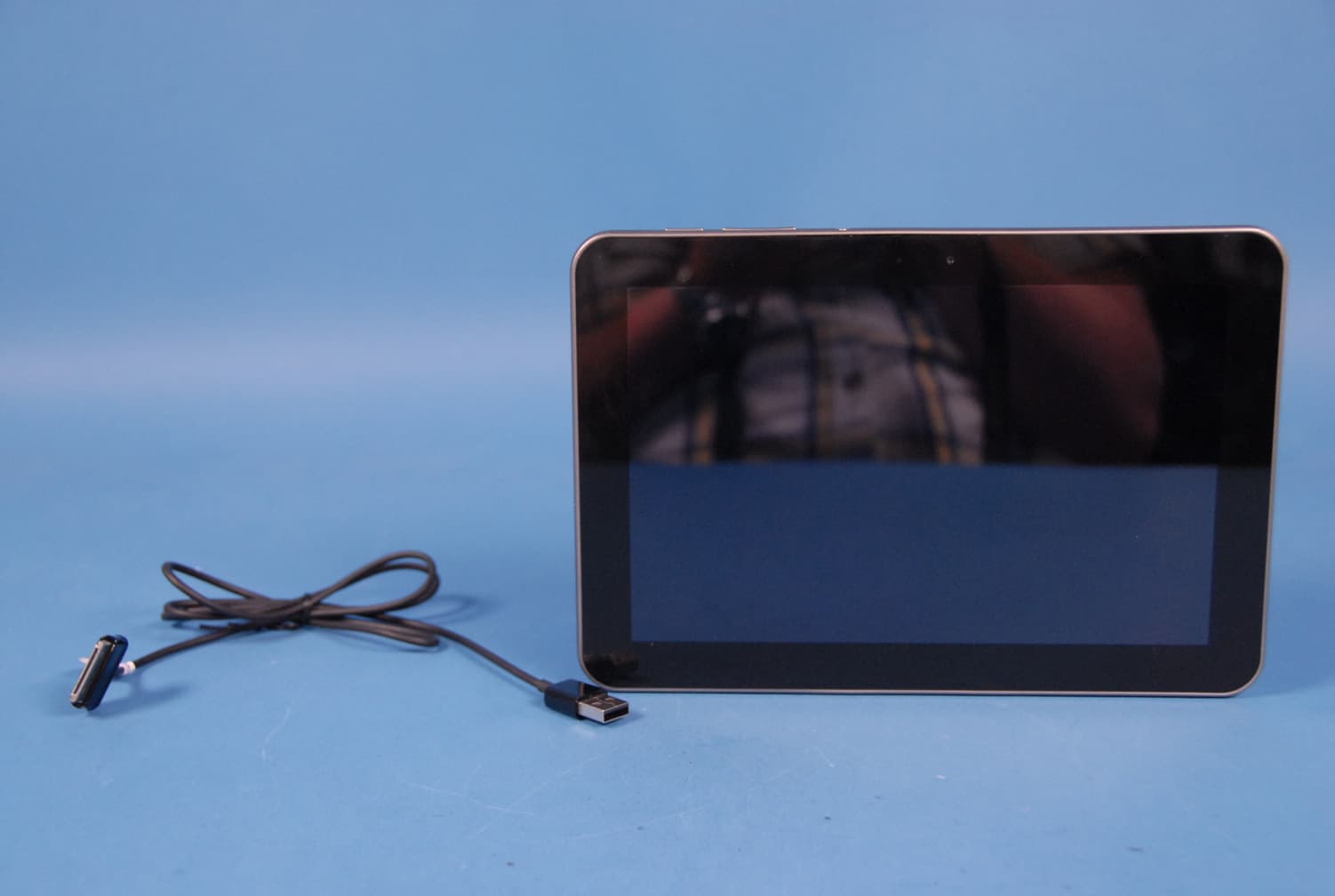

Samsung FCC ID: A3LGTP7310 Model: GT-P7310 External Photos EUT Type: TABLET with BT and WLAN Page 1 of 1 © 2011 PCTEST Engineering Laboratory Inc. E X T E R N A L P H O T O G R A P H S Samsung FCC ID: A3LGTP7310 Model: GT-P7310 External Photos EUT Type: TABLET with BT and WLAN Page 2 of 2 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7310 Model: GT-P7310 External Photos EUT Type: TABLET with BT and WLAN Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7310 Model: GT-P7310 External Photos EUT Type: TABLET with BT and WLAN Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc. Reviewed by: FCC ID: A3LGTP7310 FCC Pt. 15B MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105040847.A3L May 12, 2011 Tablet with BT and WLAN Page 19 of 20 © 2011 PCTEST Engineering Laboratory, Inc. REV 6.0CT 10/22/10 1 0 . 0 E U T P H O T O G R A P H S Reviewed by: FCC ID: A3LGTP7310 FCC Pt. 15B MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105040847.A3L May 12, 2011 Tablet with BT and WLAN Page 20 of 20 © 2011 PCTEST Engineering Laboratory, Inc. REV 6.0CT 10/22/10

FCC ID IS PRINTED ON BOTTOM OF THE DEVICE

Samsung FCC ID: A3LGTP7310 Model GT-P7310 Internal Photos EUT Type: TABLET with BT and WLAN Page 1 of 1 © 2011 PCTEST Engineering Laboratory Inc. I N T E R N A L P H O T O G R A P H S Samsung FCC ID: A3LGTP7310 Model GT-P7310 Internal Photos EUT Type: TABLET with BT and WLAN Page 2 of 2 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7310 Model GT-P7310 Internal Photos EUT Type: TABLET with BT and WLAN Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7310 Model GT-P7310 Internal Photos EUT Type: TABLET with BT and WLAN Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7310 Model GT-P7310 Internal Photos EUT Type: TABLET with BT and WLAN Page 5 of 5 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7310 Model GT-P7310 Internal Photos EUT Type: TABLET with BT and WLAN Page 6 of 6 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7310 Model GT-P7310 Internal Photos EUT Type: TABLET with BT and WLAN Page 7 of 7 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7310 Model GT-P7310 Internal Photos EUT Type: TABLET with BT and WLAN Page 8 of 8 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7310 Model GT-P7310 Internal Photos EUT Type: TABLET with BT and WLAN Page 9 of 9 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A3LGTP7310 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 30 0Y1105040842-R1.A3L 05/12/11 - 05/16/11 Tablet with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 05/12/11 - 05/16/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1105040842-R1.A3L FCC ID: A3LGTP7310 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Tablet with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] GT-P7310 Tx Frequency: 2412 - 2462 MHz (WLAN 802.11b/g/n) 5180 - 5240 MHz (WLAN 802.11a/n) / 5260 - 5320 MHz (WLAN 802.11a/n) 5500 - 5700 MHz (WLAN 802.11a/n) / 5745 - 5825 MHz (WLAN 802.11a/n) Conducted Power: 12.60 dBm 2.4 GHz WLAN 12.22 dBm 5.2 GHz WLAN / 12.20 dBm 5.3 GHz WLAN 12.31 dBm 5.5 GHz WLAN / 11.50 dBm 5.8 GHz WLAN Max. SAR Measurement: 1.01 W/kg 2.4 GHz WLAN Body SAR 0.89 W/kg 5.2 GHz WLAN Body SAR 0.86 W/kg 5.3 GHz WLAN Body SAR 0.89 W/kg 5.5 GHz WLAN Body SAR 0.74 W/kg 5.8 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: FI-110-B] Note: This revised Test Report (S/N: 0Y1105040842-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LGTP7310 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 30 0Y1105040842-R1.A3L 05/12/11 - 05/16/11 Tablet with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 FCC RF EXPOSURE LIMITS ........................................................................................................ 11 9 ANTENNA LOCATIONS AND KEY FEATURES .......................................................................... 12 10 SAR TESTING CONSIDERATIONS & FCC KDB INQUIRIES ..................................................... 14 11 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 15 12 SYSTEM VERIFICATION .............................................................................................................. 18 13 SAR DATA SUMMARY ................................................................................................................. 20 14 EQUIPMENT LIST ......................................................................................................................... 22 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 23 16 CONCLUSION ............................................................................................................................... 25 17 REFERENCES .............................................................................................................................. 26 18 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 28 FCC ID: A3LGTP7310 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 30 0Y1105040842-R1.A3L 05/12/11 - 05/16/11 Tablet with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. [1] The safety limits used for the environmental evaluation measurements are based on the criteria publishe…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTP7310 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105040844.A3L May 5-13, 2011 Tablet with BT and WLAN Page 1 of 61 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.0WN 03/11/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. May 5-13, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1105040844.A3L FCC ID: A3LGTP7310 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): GT-P7310 EUT Type: Tablet with BT and WLAN Max. RF Output Power: 8.47 mW (9.28 dBm) Conducted (b) 18.62 mW (12.7 dBm) Conducted (g) 17.99 mW (12.55 dBm) Conducted (n) - 2.4GHz – 20MHz Bandwidth 14.13 mW (11.5 dBm) Conducted (a) - 5.8GHz 13.8 mW (11.4 dBm) Conducted (n) - 5.8GHz – 20MHz Bandwidth Frequency Range: 2412 - 2462 MHz (DSSS/OFDM), 5745 – 5825 MHz (OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11a/b/g/n Reviewed by: FCC ID: A3LGTP7310 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105040844.A3L May 5-13, 2011 Tablet with BT and WLAN Page 2 of 61 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.0WN 03/11/2011 T A B L E O F C O N T E N T S FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N........................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G .................................................................................. 20 6.4 OUTPUT POWER MEASUREMENT – 802.11A (5.8GHZ) ...................................................................... 21 6.5 OUTPUT POWER MEASUREMENT – 802.11N (2.4GHZ) ...................................................................... 22 6.6 OUTPUT POWER MEASUREMENT – 802.11N (5.8GHZ) ...................................................................... 23 6.7 POWER SPECTRAL DENSITY (802.11A/B/G/N) .................................................................................... 24 6.8 OUT OF BAND EMISSIONS AT THE BAND EDGE ................................................................................ 33 6.9 OUT OF BAND EMISSIONS .................................................................................................................... 38 6.10 RADIATED SPURIOUS EMISSION MEASUREMENTS .......................................................................... 44 6.11 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .............…

Text truncated - open the document above for the full version.

       ! " #  $" %&! $  '(   )  * +  " "&,& -,,# ./ TEST SETUP PHOTOGRAPHS        ! " #  $" %&! $  '(  + )  * +  " "&,& -,,# ./        ! " #  $" %&! $  '(   )  * +  " "&,& -,,# ./

FCC ID: A3LGTP7310 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 28 of 30 0Y1105040842-R1.A3L 05/12/11 - 05/16/11 Tablet with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 18 SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LGTP7310 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 29 of 30 0Y1105040842-R1.A3L 05/12/11 - 05/16/11 Tablet with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Figure 18-1 SAR Test Setup Photo 1: Back at 0.0 cm Figure 18-2 SAR Test Setup Photo 2: Top at 0.0 FCC ID: A3LGTP7310 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 30 of 30 0Y1105040842-R1.A3L 05/12/11 - 05/16/11 Tablet with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Figure 18-3 SAR Test Setup Photo 3: Left at 0.0
