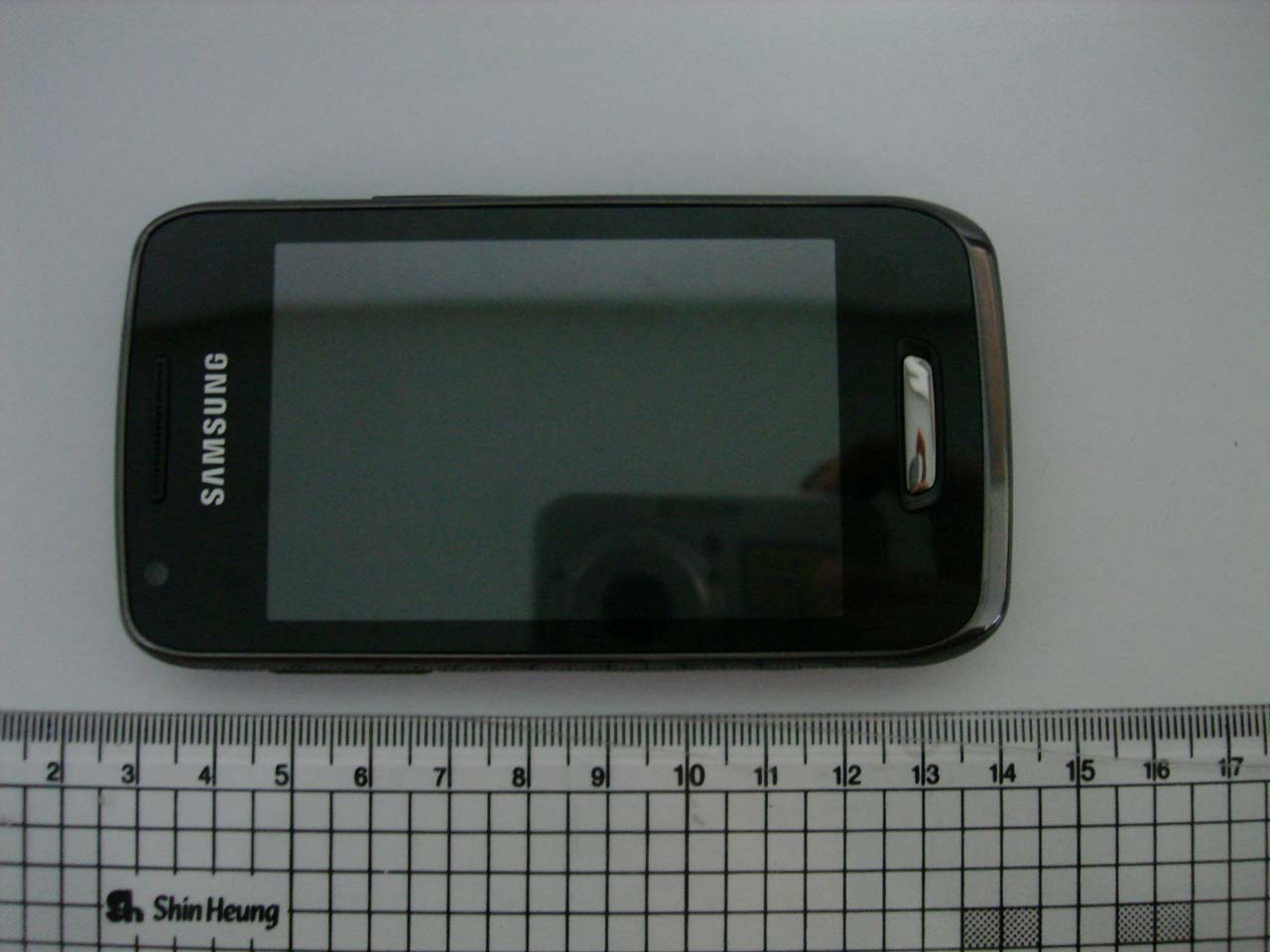

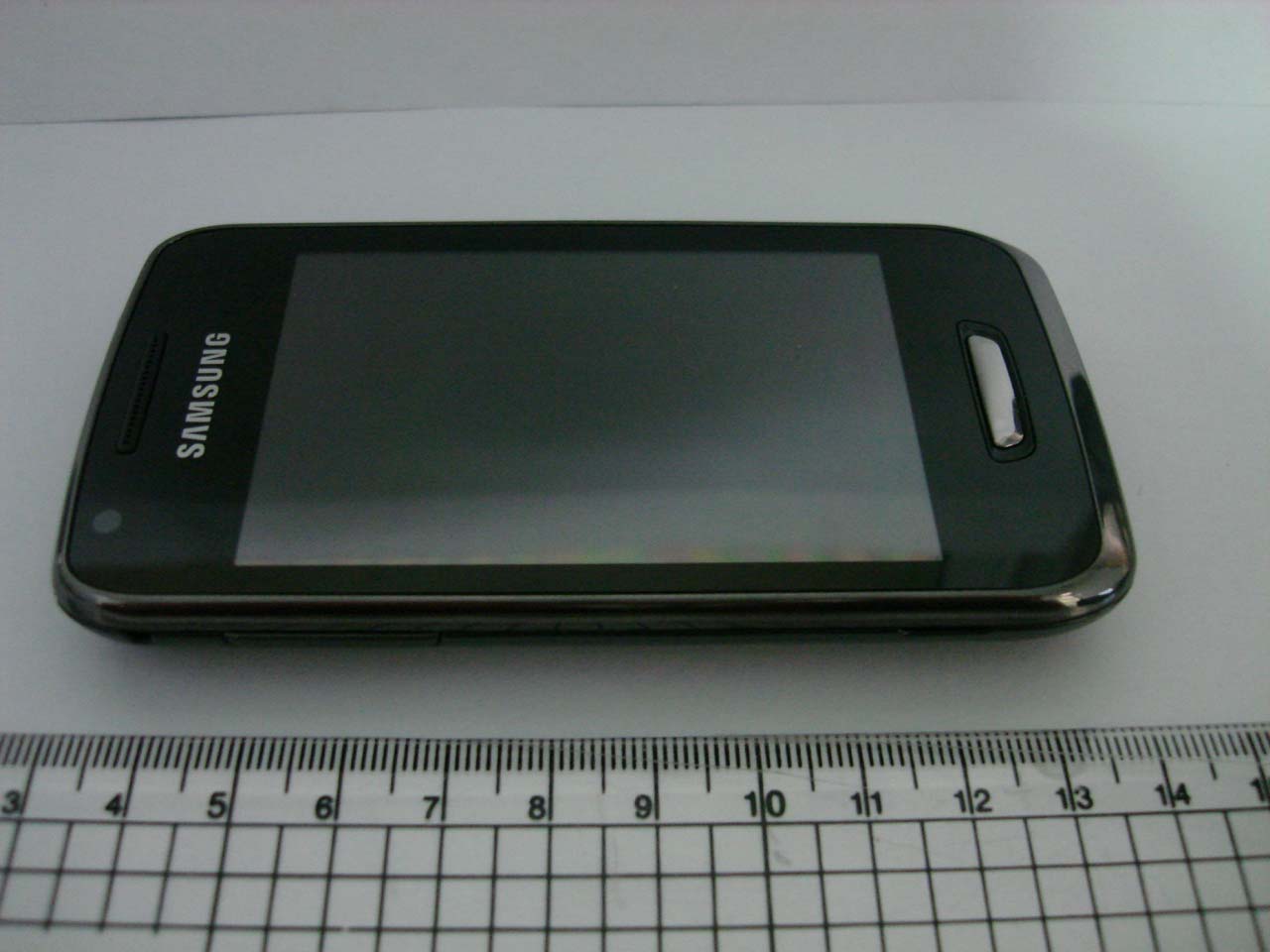

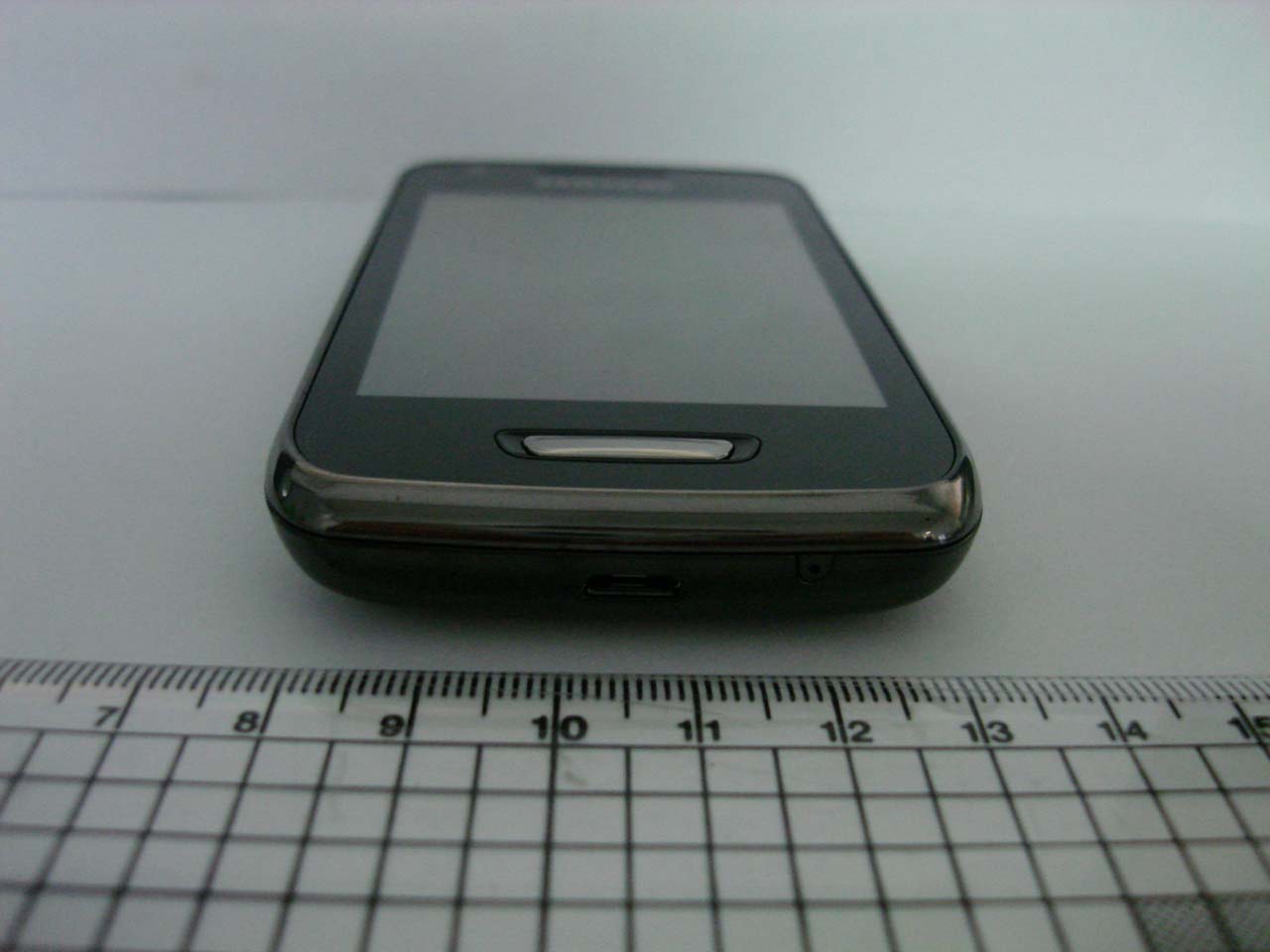

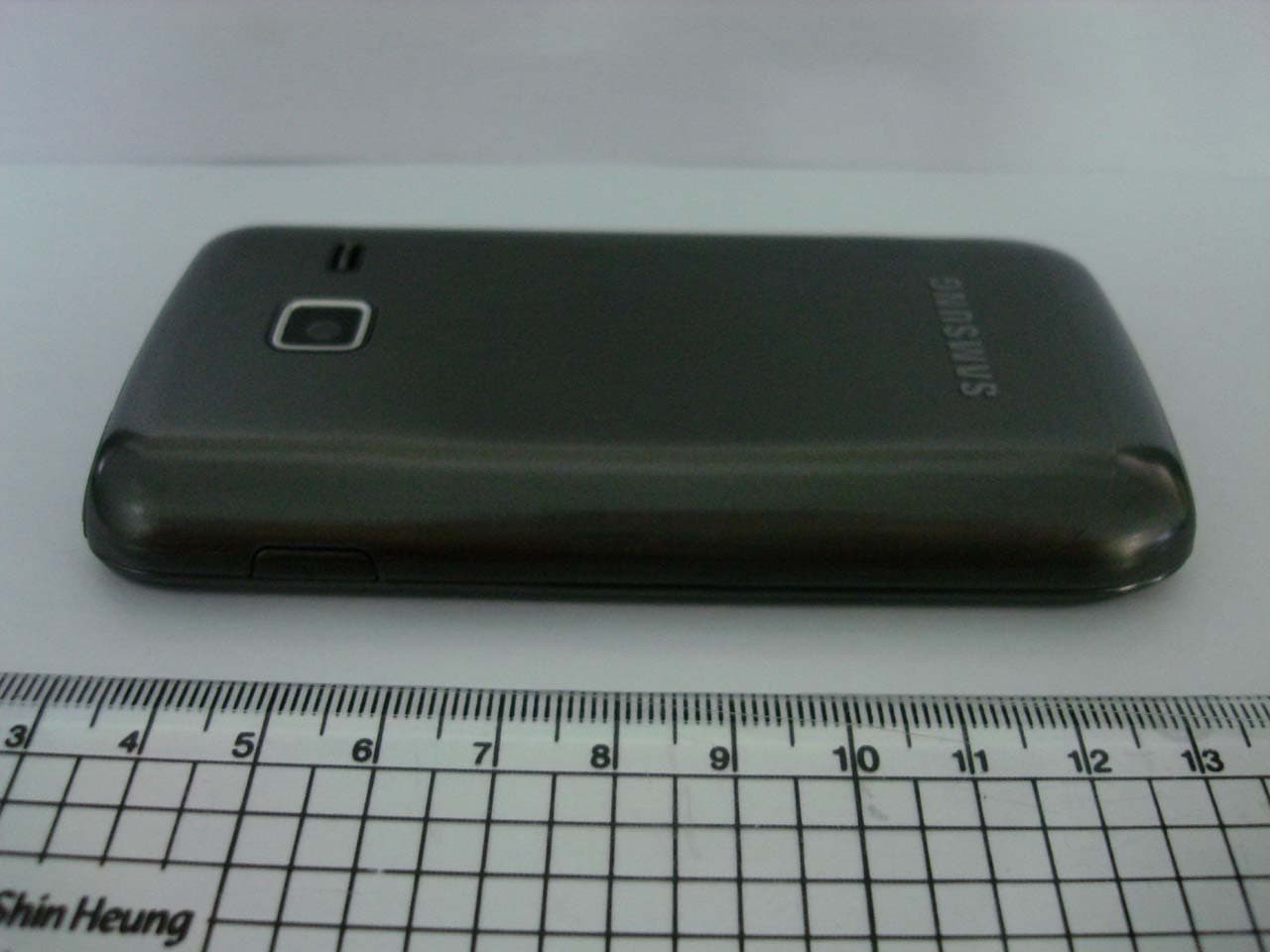

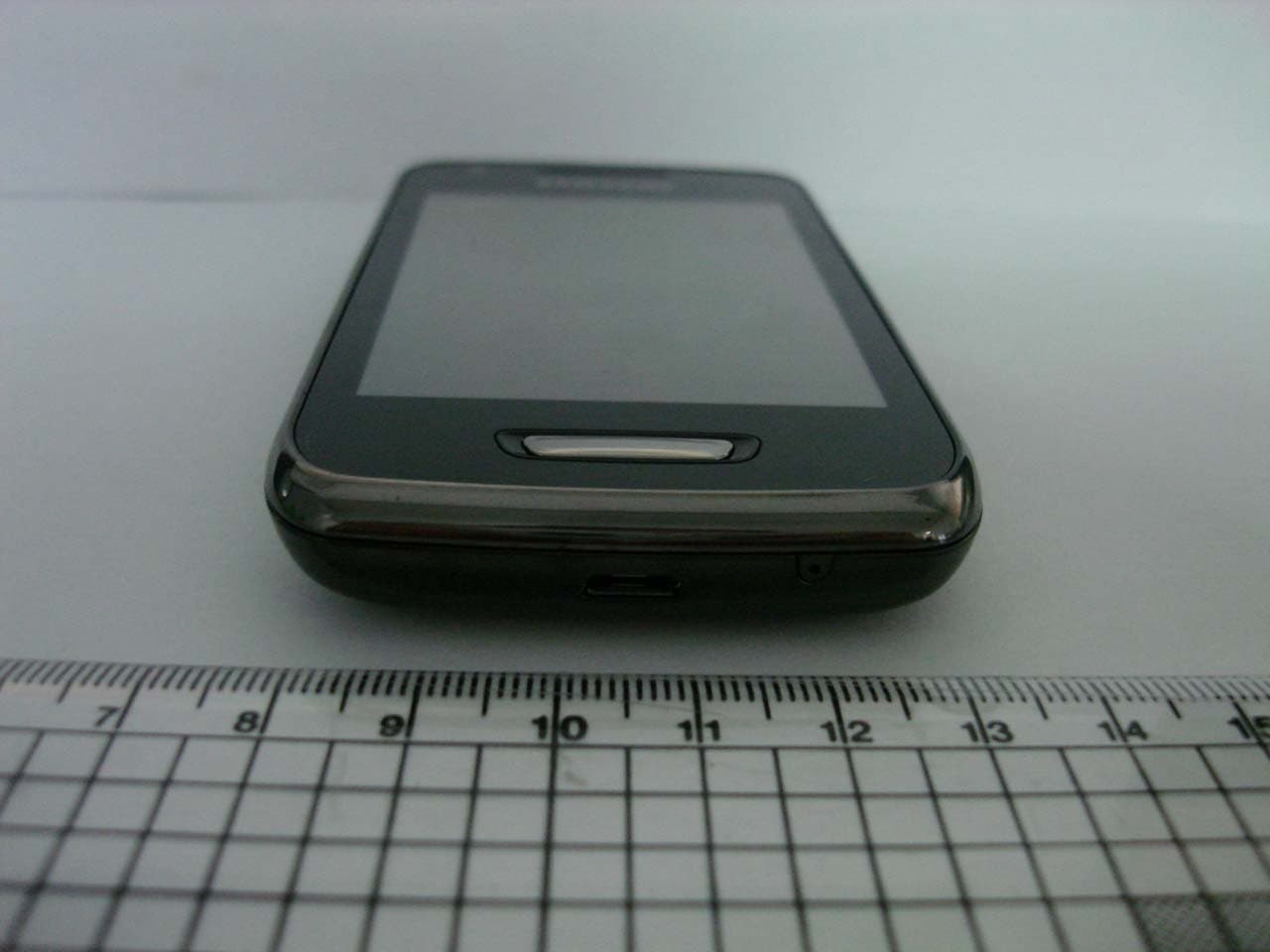

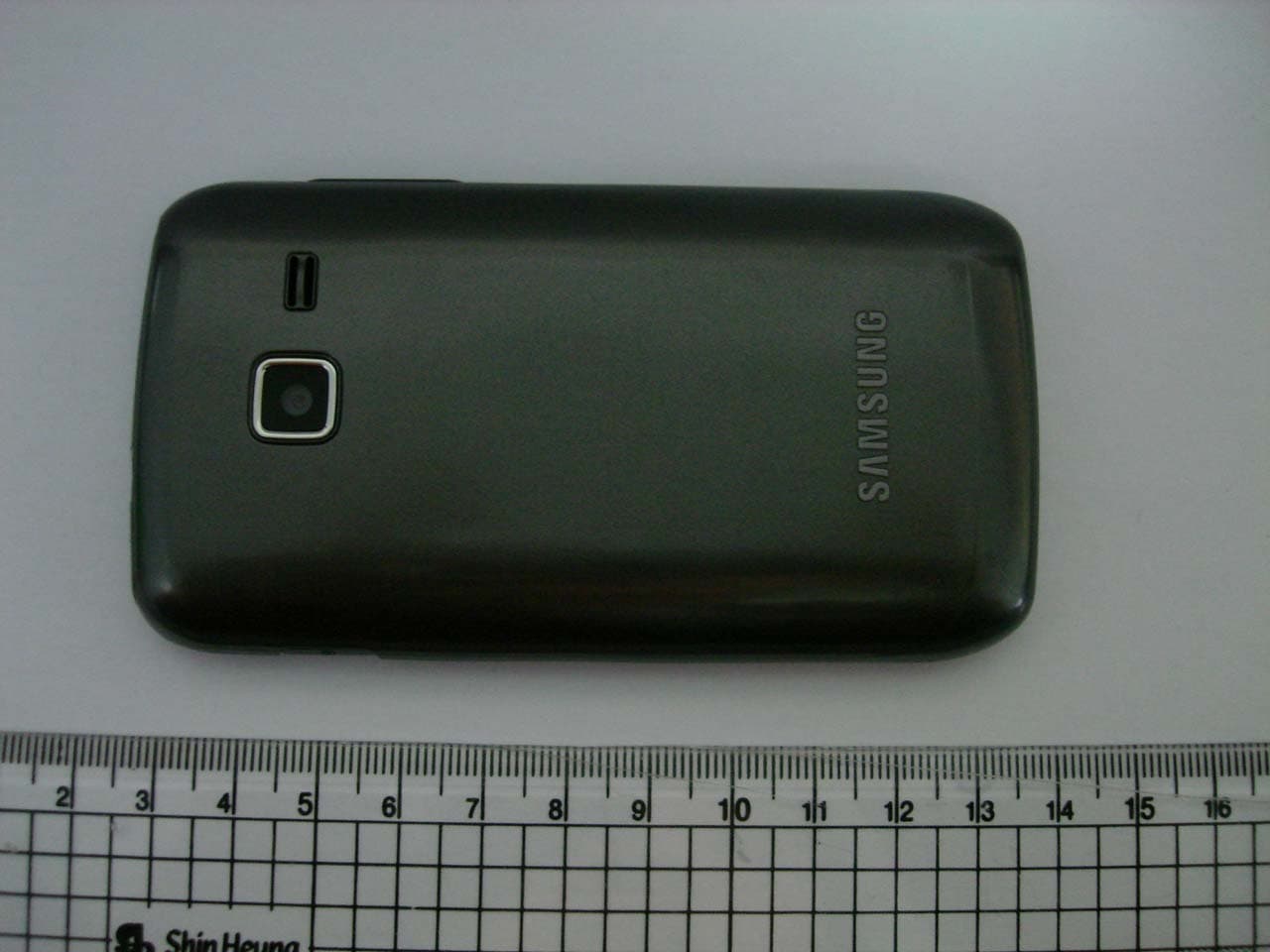

A3LGTS5380KCellular/PCS GSM Phone with WLAN and Bluetooth

User manual GT-S5380K using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a da…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: October 26, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS5380K To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Federal Communicat ions Commission 7435 Oakland Mills Road Colum bia, MD 21046 SUBJECT : Label Statement FCC ID : A3L Gentlemen: We hereby provide the label statement letter for the above-mentioned phone by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the phone will be marketed without the battery installed. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

GH68-00000A 110830110830110830 LABEL-MAIN GT-S5380K Yun Jun SangJo Kyeong HwanKim June Sop Technical Description 1. Use ‘AI/PDF’ provided by ‘SAMSUNG’ for letter and contents 2. Background color is ‘WHITE’, letter color is ‘BLACK’ (reverse for SAMSUNG LOGO) 3. Back side should be attached to release paper once adhesive is applied. 4. No letter should be blur/smeared 5. The production must be proceed after the approval of R&D Group 6. The product must be within approved sample's specification tolerance. 7. The product must be finished in a ROLL 8. Release paper must be unified for material and color(blue) Vendor HANSUNG P&I < 1:1 Artwork > MODEL: GT-S5380K SSN: -S5380KGSMH RATED: 3.7 V ; 1000 mA FCC ID: A3LGTS5380K MADE IN KOREA BY SAMSUNG MOBILE PHONE 4.0 7.0 30.0 5.0 MODEL: GT-S5380K SSN: -S5380KGSMH RATED: 3.7 V ; 1000 mA FCC ID: A3LGTS5380K MADE IN KOREA BY SAMSUNG MOBILE PHONE OPP Laminating 16 Adhesive 8 WHITE POLYESTER 50 Adhesive 25 (0.10T±0.01) The label is placed inside the battery compartment MODEL: GT-S5380K SSN: -S5380KGSMH RATED: 3.7 V ; 1000 mA FCC ID: A3LGTS5380K MADE IN KOREA BY SAMSUNG MOBILE PHONE 5.0

FCC ID: A3LGTS5380KReport Number: FI-251-S1 Page : 1 of 36 SAMSUNG Electronics C0. LTD EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only Issue Date : Oct.24, 2011 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: GT-S5380K FCC ID (Requested): A3LGTS5380K Job No: FI-251 Report No: FI-251-S1 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(June 2001). Prepared By JR LEE - Test Engineer Authorized By JD JANG - Technical Manager FCC ID: A3LGTS5380KReport Number: FI-251-S1 Page : 2 of 36 SAMSUNG Electronics C0. LTD EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only Issue Date : Oct.24, 2011 Contents 1. GENERAL INFORMATION .............................................................................. 3 2. DESCRIPTION OF DEVICE ............................................................................ 3 3. DESCRIPTION OF TEST EQUIPMENT .......................................................... 4 3.1 SAR Measurement Setup ............................................................................................................... 4 3.2 E-field Probe ................................................................................................................................... 5 3.3 Phantom.......................................................................................................................................... 7 3.4 Brain Simulating Mixture Characterization .................................................................................... 9 3.5 Device Holder for Transmitters........................................................................................................ 9 3.6 Validation Dipole ........................................................................................................................... 10 3.7 Equipment Calibration................................................................................................................... 11 4. SAR MEASUREMENT PROCEDURE ........................................................... 12 5. DESCRIPTION OF TEST POSITION ............................................................ 13 5.1 SAM Phantom Shape.................................................................................................................... 13 5.2 “cheek” Position ............................................................................................................................ 13 5.3 “tilted” Position .............................................................................................................................. 15 5.4 Body Configurations for Single TX SAR considerations................................................................16 6. MEASUREMENT UNCERTAINTY ................................................................. 18 7. SYSTEM VERIFICATION............................................................................... 21 7.1 Tissue Verification ......................................................................................................................... 21 7.2 Test System Validation .................................................................................................................. 21 8. SAR MEASUREMENT RESULTS.................................................................. 22 8.1 GSM850 Head SAR Results ......................................................................................................... 28 8.2 GPRS850 Body SAR Results ....................................................................................................... 29 8.3 GSM1900 Head SAR Results ....................................................................................................... 30 8.4 GPRS1900 Body SAR Results ..................................................................................................... 31 8.5 WLAN Head SAR Results ............................................................................................................. 32 8.6 WLAN Body SAR Results ............................................................................................................. 33 9. CONCLUSION ............................................................................................... 34 10. REFERENCES ............................................................................................. 35 APPENDIX A SAR Definition ........................................................................... 37 APPENDIX B Probe Calibration Process ........................................................ 38 APPENDIX C ANSI/IEEE C95.1 – 1992 RF EXPOSURE LIMITS.................. 39 APPENDIX D The Validation Measurements .................................................. 40 APPENDIX E Plots of The SAR Measurements.............................................. 47 APPENDIX F Probe Calibration ...................................................................... 81 APPENDIX G Calibration of The Validation Dipole ......................................... 93 FCC ID: A3LGTS5380KReport Number: FI-251-S1 Page : 3 of 36 SAMSUNG Electronics C0. LTD EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only Issue Date : Oct.24, 2011 1. GENERAL INFORMATION Test Dates : Oct.10, 2011 ~ Oct.11, 2011 Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Address : 416 Maetan3-Dong, Suwon City, Korea Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(June 2001) FCC Classification : Licensed Transmitter Held to Ear (PCE) Digital Transmitter System (DTS) Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Test Sample : 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only Model Number : GT-S5380K Serial Number : Identical prototype (S/N : # FI-251-A) Tx Freq. Range : 824.2 ~ 848.8 MHz (GSM850) 1850.20 ~ 1909.80 MHz (GSM1900) 2412 ~ 2462…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTS5380K FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110111777.A3L October 09, 2011 Portable Handset Page 1 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.7WBGNFI 09/15/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. October 09, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1110111777.A3L FCC ID: A3LGTS5380K APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): GT-S5380K EUT Type: Portable Handset Max. RF Output Power: 50.58 mW (17.04 dBm) Conducted (b) 25 mW (13.98 dBm) Conducted (g) 17.18 mW (12.35 dBm) Conducted (n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Device Serial No.: N/A This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: A3LGTS5380K FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110111777.A3L October 09, 2011 Portable Handset Page 2 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.7WBGNFI 09/15/2011 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.4 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 17 6.4 OUTPUT POWER MEASUREMENT – 802.11G/N .................................................................................. 18 6.5 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 19 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 25 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 29 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 33 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 37 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 39 7.0 CONCLUSION ....................................…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LGTS5380K Model: GT-S5380K Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LGTS5380K Model: GT-S5380K Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTS5380K Model: GT-S5380K Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc.

Test Setup Photographs © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only Back © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only Back 10mm © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS538 0K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only Front © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only Front 10mm © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only SideA © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only SideA 10mm © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only SideB © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS538 0K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only SideB 10mm © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only SideC © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only SideC 10mm © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only SideD © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only SideD 10mm © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS5380 K 850/1900 GSM/GPRS Phone with Bluetooth, WLAN and EDGE Rx only
