A3LGTS5620BCellular GSM/WCDMA PCS GSM Phone with WLAN and Bluetooth

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jan 24, 2010
Application Purpose: Original Equipment
Date of Application: Jan 24, 2010
Equipment Note: Cellular GSM/WCDMA PCS GSM Phone with WLAN and Bluetooth
Frequency Range: 2412.00000000 - 2462.00000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User manual GT-S5620B Draft 3 2009-11-30 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “ 오류! 참조 원본을 찾을 수 없습니다.,” and “오류! 참조 원본을 찾을 수 없습니다. .” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information X Refer to—pages with related information; for example: X p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners: z Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide z Java™ is a trademark of Sun Microsystems, Inc. z Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care z Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone. z Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones. z Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. z Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and …

Text truncated - open the document above for the full version.

Cover Letter(s)

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: January 25, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS5620B To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

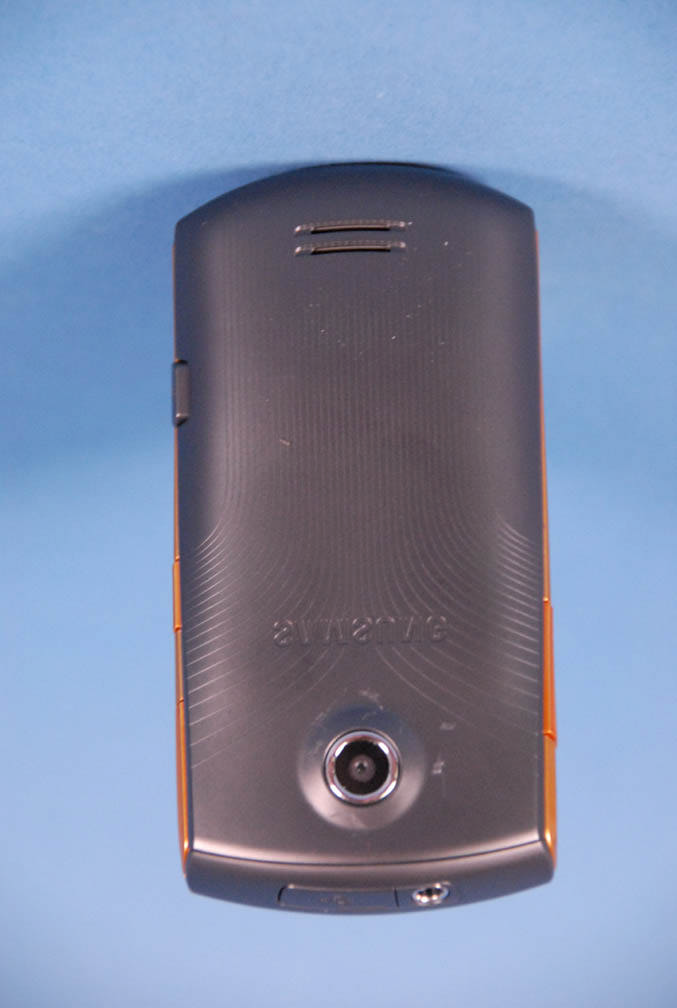

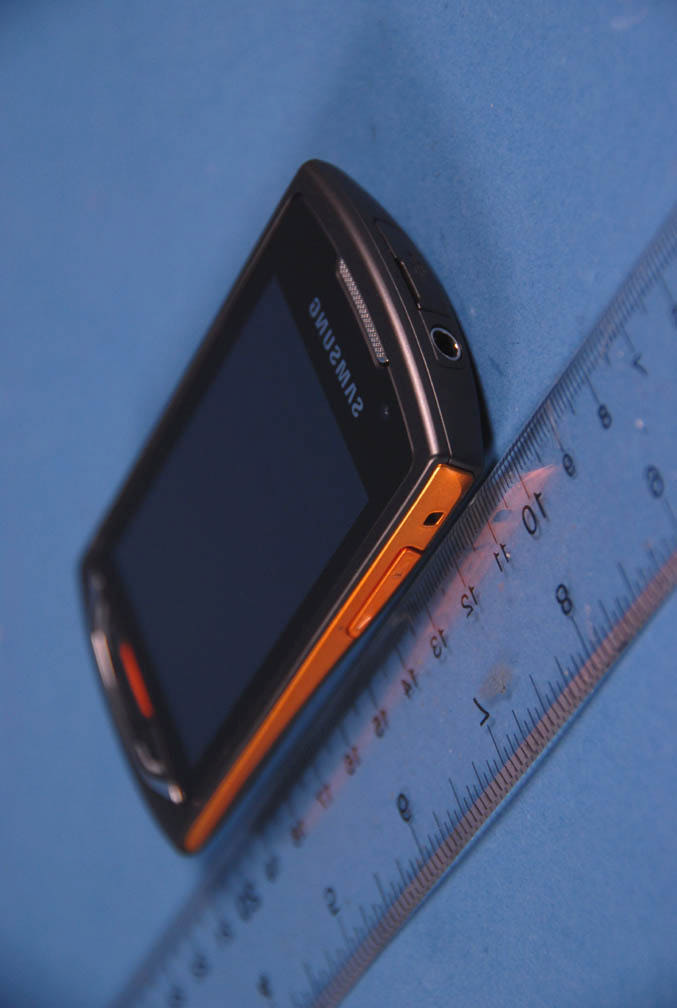

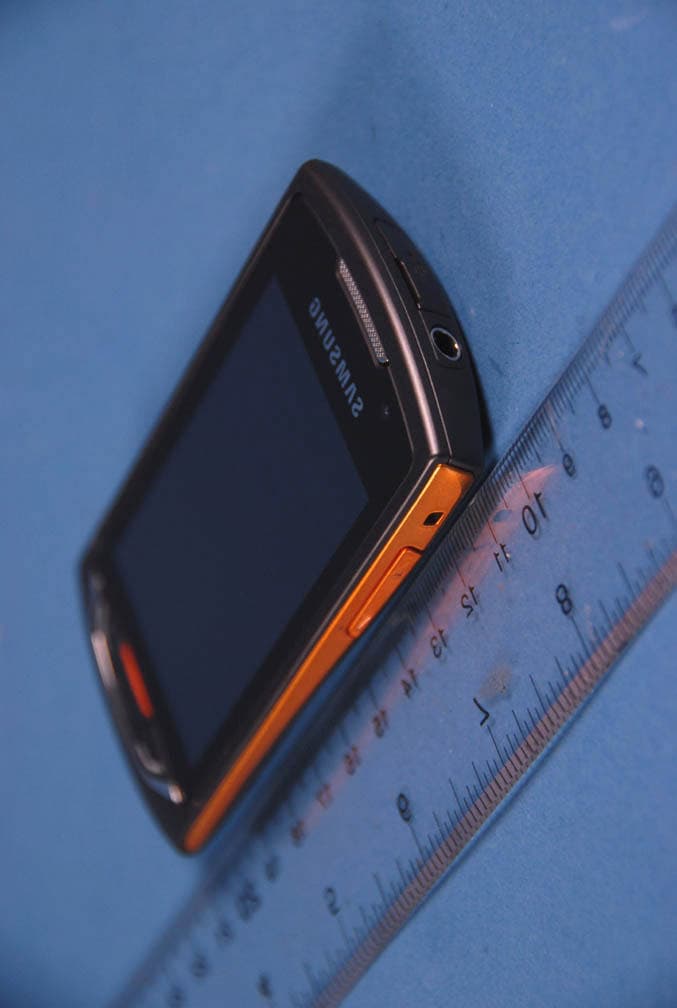

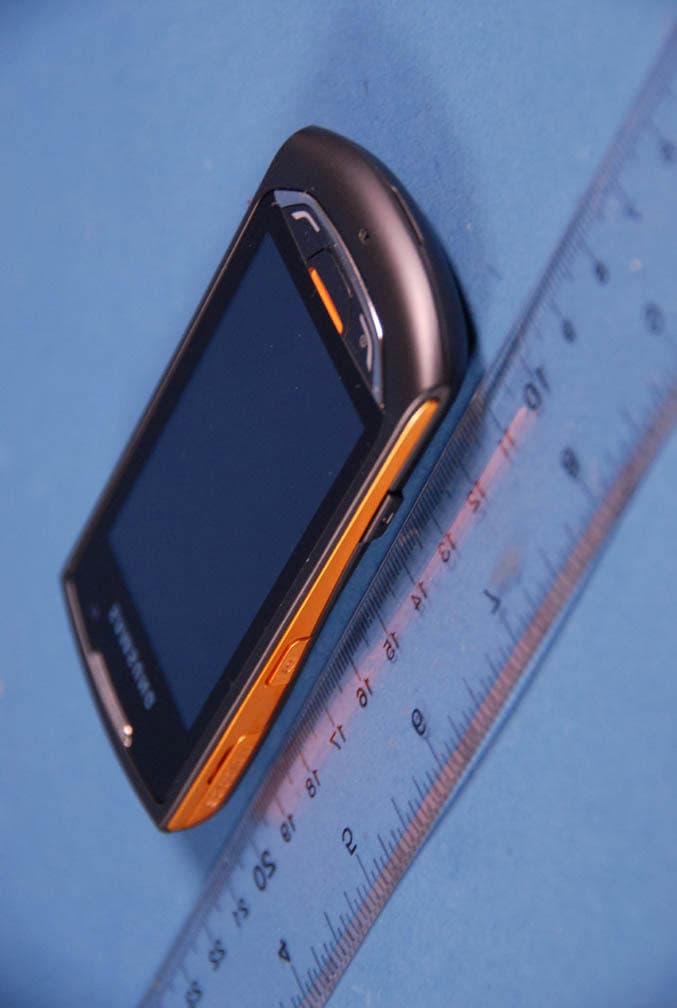

External Photos

Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B External Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B External Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B External Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B External Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

ID Label/Location Info

GH68- A 09-12-02 09-12-02 09-12-02 GT-S5620B (Central and South America) IMEI : MODELO : GT-S5620B SSN :-S5620BGSMH FCC ID : A3LGTS5620B RATED : 3,7 V 1000 mA 0168 IMEI : MODELO : GT-S5620B SSN :-S5620BGSMH FCC ID : A3LGTS5620B RATED : 3,7 V 1000 mA 0168 The label is placed inside the battery compartment

Internal Photos

Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 1 of 12 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 2 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 3 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 4 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 5 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 6 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 7 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 8 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 9 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 10 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 11 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Internal Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 12 of 12 © 2010 PCTEST Engineering Laboratory Inc.

RF Exposure Info

Reviewed by: FCC ID: A3LGTS5620B SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1001150068.A3L 01/18/10 - 01/19/10 850/1900 GSM and 850 WCDMA/HSDPA Phone with WLAN, BT and EDGE Rx Page 1 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 01/18/10 - 01/19/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1001150068.A3L F C C I D : A3 L G T S 5 6 2 0 B AP P L I C AN T : S AMS UNG E LE CT RO NI CS , CO . LT D. EUT Type: 850/1900 GSM and 850 WCDMA/HSDPA Phone with WLAN, BT and EDGE Rx Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Digital Transmission System (DTS) Model(s): GT-S5620B Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) 2412 - 2462 MHz (WLAN) Conducted Power: 32.66 dBm GSM 850 29.58 dBm GSM 1900 23.54 dBm UMTS V 16.24 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.37 W/kg GSM 850 Head SAR 0.56 W/kg GSM 850 Body SAR 0.52 W/kg GSM 1900 Head SAR 0.41 W/kg GSM 1900 Body SAR 0.51 W/kg UMTS V Head SAR 0.37 W/kg UMTS V Body SAR 0.05 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: FG-370-A] T his wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LGTS5620B SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1001150068.A3L 01/18/10 - 01/19/10 850/1900 GSM and 850 WCDMA/HSDPA Phone with WLAN, BT and EDGE Rx Page 2 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 RF EXPOSURE LIMITS .................................................................................................................16 11 MEASUREMENT UNCERTAINTIES .............................................................................................17 12 SYSTEM VERIFICATION...............................................................................................................18 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS..........................................................20 14 FCC 3G MEASUREMENT PROCEDURES ...................................................................................21 15 SAR DATA SUMMARY ..................................................................................................................24 16 EQUIPMENT LIST..........................................................................................................................29 17 CONCLUSION................................................................................................................................30 18 REFERENCES ...............................................................................................................................31 19 SAR TEST SETUP PHOTOGRAPHS ............................................................................................33 Reviewed by: FCC ID: A3LGTS5620B SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1001150068.A3L 01/18/10 - 01/19/10 850/1900 GSM and 850 WCDMA/HSDPA Phone with WLAN, BT and EDGE Rx Page 3 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 1 I N T R O D U C T I O N The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteri…

Text truncated - open the document above for the full version.

Test Report

Reviewed by: FCC ID: A3LGTS5620B FCC Pt. 15.247 WLAN 802.11b/g TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1001150070.A3L January 20, 2010 850/1900 GSM/GPRS and 850 WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 1 of 35 © 2010 PCTEST Engineering Laboratory, Inc. REV 2.8WBG 11/18/2009 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. January 20, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1001150070.A3L FCC ID: A3LGTS5620B APPLICANT: Samsung Electronics, Co. Ltd. Model(s): GT-S5620B EUT Type: 850/1900 GSM/GPRS and 850 WCDMA Phone with EDGE Rx, Bluetooth and WLAN Max. RF Output Power: 42.07 mW (16.24 dBm) Conducted (b) 24.66 mW (13.92 dBm) Conducted (g) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Device Serial No.: FG-370-C This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC PART 15.247 WLAN 802.11b/g Certification Reviewed by: FCC ID: A3LGTS5620B FCC Pt. 15.247 WLAN 802.11b/g TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1001150070.A3L January 20, 2010 850/1900 GSM/GPRS and 850 WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 2 of 35 © 2010 PCTEST Engineering Laboratory, Inc. REV 2.8WBG 11/18/2009 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION...........................................................................................................................4 1.1 SCOPE.........................................................................................................................................................................4 1.2 PCTEST TEST LOCATION......................................................................................................................................4 2.0 PRODUCT INFORMATION............................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS...........................................................................................5 2.3 LABELING REQUIREMENTS..................................................................................................................................5 3.0 DESCRIPTION OF TEST...............................................................................................................6 3.1 EVALUATION PROCEDURE...................................................................................................................................6 3.2 CONDUCTED EMISSIONS......................................................................................................................................6 3.3 RADIATED EMISSIONS...........................................................................................................................................7 4.0 ANTENNA REQUIREMENTS.........................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA......................................................................................9 6.0 TEST RESULTS..........................................................................................................................10 6.1 SUMMARY................................................................................................................................................................10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G............................................................................................11 6.3 OUTPUT POWER MEASUREMENT – 802.11B................................................................................................15 6.4 OUTPUT POWER MEASUREMENT – 802.11G................................................................................................16 6.5 POWER SPECTRAL DENSITY (802.11B/G)......................................................................................................17 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE............................................................................................21 6.7 CONDUCTED SPURIOUS EMISSIONS..............................................................................................................23 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS...................................................................................26 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS..........................................................................30 6.10 LINE-CONDUCTED TEST DATA..........................................................................................................................31 7.0 CONCLUSION............................…

Text truncated - open the document above for the full version.

Test Setup Photos

Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 1 of 3 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 2 of 3 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5620B Model: GT-S5620B Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/WCDMA Phone with EDGE Rx, Bluetooth and WLAN Page 3 of 3 © 2010 PCTEST Engineering Laboratory Inc.

Test Setup Photos

Contact Information

Applicant

Jenni Chun(General Manager)

[email protected]973-808-6375Fax: 973-808-6361

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

Element Materials Technology Washington DC LLCRandy Ortanez

[email protected]410-290-6652Fax: 410 290 6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	42.00 mW

Confidentiality

Long Term

Grant Notes

Power output is conducted. This device is authorized to operate with the specific handset described in this filing. SAR compliance for body-worn operation is based on a separation distance of 1.5 cm between the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not listed in this filing may not contain metallic components. The highest reported SAR values are: Body-worn: 0.05 W/kg.
