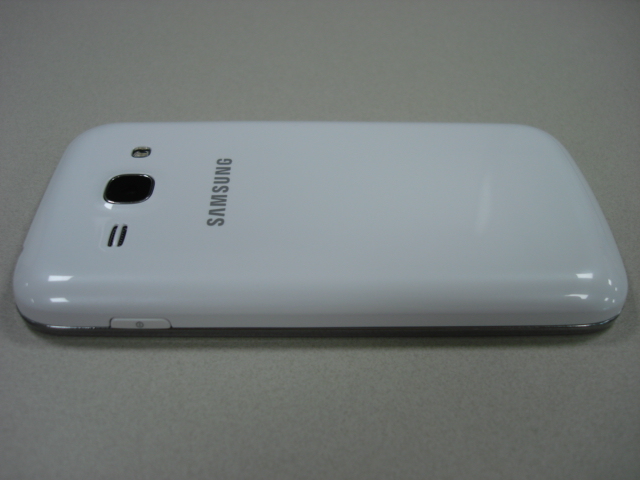

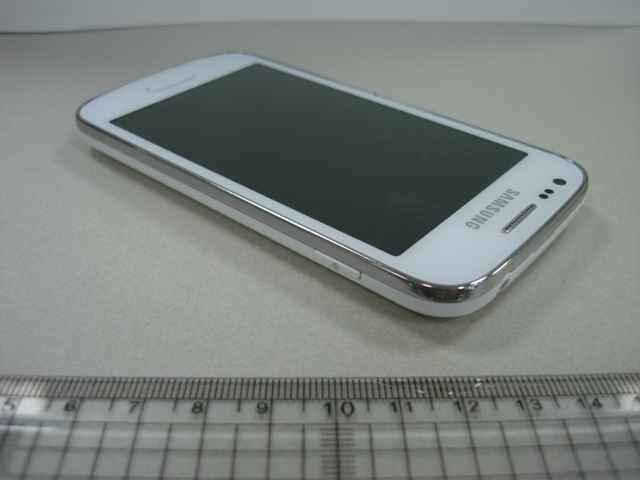

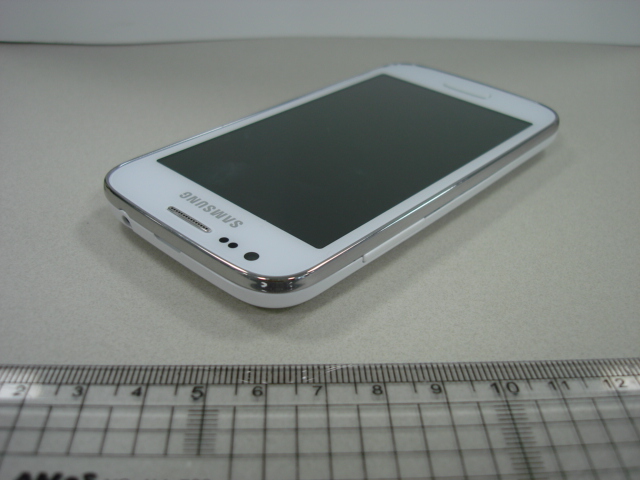

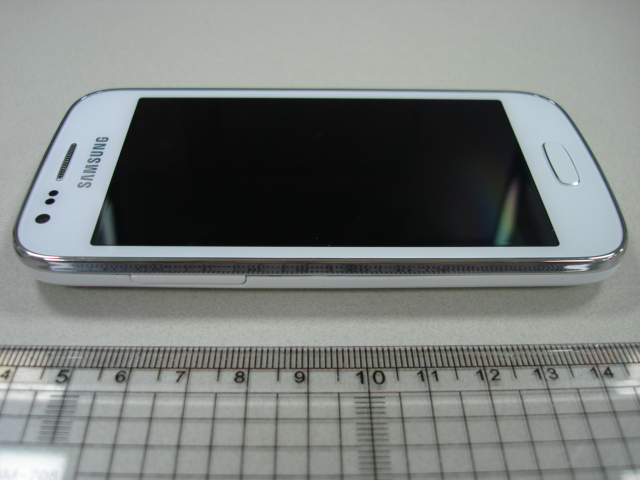

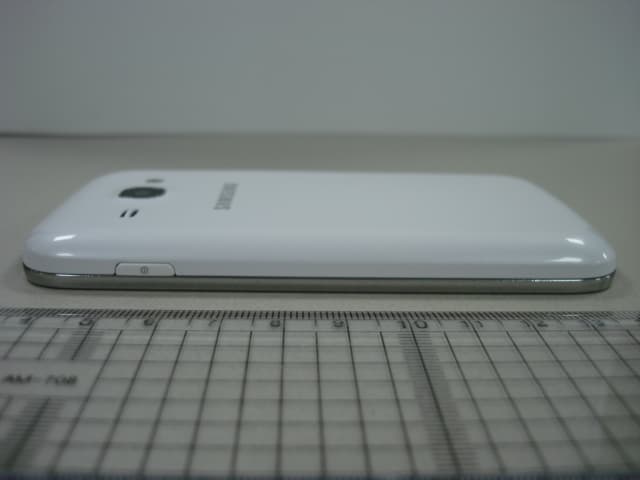

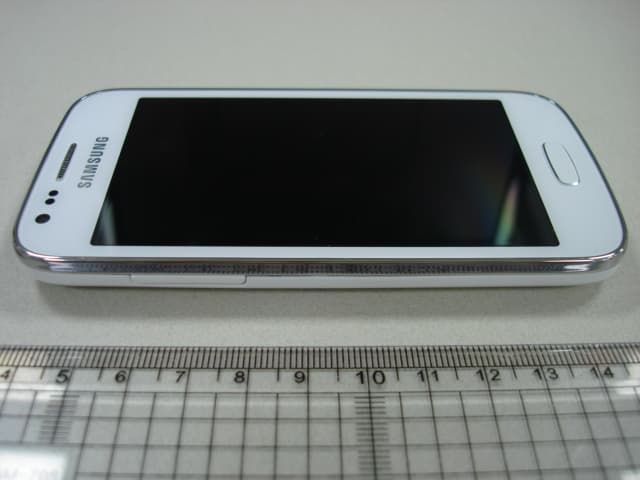

A3LGTS7275BMulti-band GSM/EDGE/WCDMA/LTE Phone with WLAN, Bluetooth and RFID

User manual GT-S7275B Draft 6.1 2012-09-08 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or perma…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: September 13, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS7275B To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea September 9, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LGTS7275B Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Label and Location Model: GT-S7275B FCC ID: A3LGTS7275B Label: Location: Top Back of device Bottom Phone: Label is placed inside of the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device.” Label

Reviewed by: FCC ID:A3LGTS7275B SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1308261664-R1.A3L 08/26/2013-09/05/2013 Portable Handset Page 1 of 57 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 08/26/2013-09/05/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1308261664-R1.A3L FCC ID: A3LGTS7275B APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): GT-S7275B 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz32.490.210.460.52 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz30.120.360.500.55 PCEUMTS 850826.40 - 846.60 MHz22.710.200.460.46 PCEUMTS 19001852.4 - 1907.6 MHz22.500.700.650.65 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHz22.500.730.680.68 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHz21.240.600.480.48 PCELTE Band 5 (Cell)824.7 - 848.3 MHz22.260.200.460.46 PCELTE Band 17706.5 - 713.5 MHz21.35< 0.10.160.16 DTS2.4 GHz WLAN2412 - 2462 MHz17.500.530.370.37 DSS/DTSBluetooth2402 - 2480 MHz9.60 1.251.051.05 Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised Test Report (S/N: 0Y1308261664-R1.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.5 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID:A3LGTS7275B SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1308261664-R1.A3L 08/26/2013-09/05/2013 Portable Handset Page 2 of 57 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 8 3 INTRODUCTION ............................................................................................................................. 9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 12 7 RF EXPOSURE LIMITS ................................................................................................................ 16 8 FCC MEASUREMENT PROCEDURES........................................................................................ 17 9 RF CONDUCTED POWERS......................................................................................................... 21 10 SYSTEM VERIFICATION.............................................................................................................. 39 11 SAR DATA SUMMARY ................................................................................................................. 41 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 49 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 52 14 EQUIPMENT LIST......................................................................................................................... 53 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 54 16 CONCLUSION............................................................................................................................... 55 17 REFERENCES .............................................................................................................................. 56 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID:A3LGTS7275B SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1308261664-R1.A3L 08/26/2013-09/05/2013 Portable Handset Page 3 of 57 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 2 (PCS)Data1850.7 - 1909.3 MHz LTE Band 4 (AWS)Data1710.7 - 17…

Text truncated - open the document above for the full version.

FCC ID: A3LGTS7275B FCC Pt. 22,24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 61 0Y1308261665.A3L 8/29-9/6/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 8/29-9/6/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1308261665.A3L FCC ID: A3LGTS7275B APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification Model(s): GT-S7275B EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: FK-265-D, FK-265-B] Max. Power (W ) Max. Power (dBm) GSM850824.2 - 848.8248KGXW1.48331.71 EDGE850824.2 - 848.8243KG7W0.61527.89 GSM19001850.2 - 1909.8245KGXW1.30031.14 EDGE19001850.2 - 1909.8250KG7W0.42626.29 WCDMA850826.4 - 846.64M17F9W0.08219.12 WCDMA19001852.4 - 1907.64M15F9W0.11520.62 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22,24 FCC ID: A3LGTS7275B FCC Pt. 22,24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 61 0Y1308261665.A3L 8/29-9/6/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 TABLE OF CONTENTS FCC PART 22,24 MEASUREMENT REPORT ............................................................................................. 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS ............................................................................................................ 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 5.0 SAMPLE CALCULATIONS ............................................................................................................ 10 6.0 TEST RESULTS ............................................................................................................................. 11 6.1 SUMMARY ......................................................................................................................................... 11 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 12 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 16 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 31 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 37 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 40 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 44 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 52 7.0 CONCLUSION ...................................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LGTS7275B FCC Pt. 22,24,27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 117 0Y1308261666.A3L 8/27-8/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 8/27-8/29/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1308261666.A3L FCC ID : A3LGTS7275B APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22; §24; §27 EUT Type: Portable Handset Model(s): GT-S7275B Test Device Serial No.: identical prototype [S/N: FK-265-B] Max. Power (W) Max. Power (dBm) LTE Band 17706.5 - 713.54M49G7DQPSK0.01311.21 LTE Band 17706.5 - 713.54M51W7D16QAM0.01010.19 LTE Band 17709 - 7118M93G7DQPSK0.01411.32 LTE Band 17709 - 7118M92W7D16QAM0.01110.31 LTE Band 5824.7 - 848.31M10G7DQPSK0.04016.06 LTE Band 5824.7 - 848.31M10W7D16QAM0.03315.13 LTE Band 5825.5 - 847.52M68G7DQPSK0.04116.08 LTE Band 5825.5 - 847.52M68W7D16QAM0.03315.20 LTE Band 5826.5 - 846.54M49G7DQPSK0.04216.20 LTE Band 5826.5 - 846.54M50W7D16QAM0.03315.17 LTE Band 5829 - 8448M95G7DQPSK0.04216.23 LTE Band 5829 - 8448M94W7D16QAM0.03215.06 LTE Band 41710.7 - 1754.31M10G7DQPSK0.17822.50 LTE Band 41710.7 - 1754.31M10W7D16QAM0.16922.28 LTE Band 41711.5 - 1753.52M71G7DQPSK0.18822.73 LTE Band 41711.5 - 1753.52M70W7D16QAM0.18322.61 LTE Band 41712.5 - 1752.54M54G7DQPSK0.15021.77 LTE Band 41712.5 - 1752.54M53W7D16QAM0.14821.71 LTE Band 41715 - 17508M98G7DQPSK0.16822.25 LTE Band 41715 - 17508M80W7D16QAM0.16222.10 LTE Band 41717.5 - 1747.513M5G7DQPSK0.18722.71 LTE Band 41717.5 - 1747.513M5W7D16QAM0.18222.61 LTE Band 41720 - 174518M0G7DQPSK0.19422.87 LTE Band 41720 - 174518M0W7D16QAM0.18722.72 LTE Band 21850.7 - 1909.31M10G7DQPSK0.17722.48 LTE Band 21850.7 - 1909.31M10W7D16QAM0.13821.40 LTE Band 21851.5 - 1908.52M71G7DQPSK0.18822.74 LTE Band 21851.5 - 1908.52M70W7D16QAM0.15121.80 LTE Band 21852.5 - 1907.54M52G7DQPSK0.18522.67 LTE Band 21852.5 - 1907.54M50W7D16QAM0.15021.76 LTE Band 21855 - 19059M01G7DQPSK0.18422.66 LTE Band 21855 - 19058M99W7D16QAM0.15021.77 LTE Band 21857.5 - 1902.513M5G7DQPSK0.25624.09 LTE Band 21857.5 - 1902.513M5W7D16QAM0.20523.12 LTE Band 21860 - 190017M9G7DQPSK0.23623.74 LTE Band 21860 - 190018M0W7D16QAM0.18222.61 Mode Tx Frequency (MHz) Emission Designator ERP/EIRP Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22,24,27 LTE FCC ID: A3LGTS7275B FCC Pt. 22,24,27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 117 0Y1308261666.A3L 8/27-8/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 TABLE OF CONTENTS FCC PART 22,24,27 MEASUREMENT REPORT .................................................................................................................................. 3 1.0 INTRODUCTION .................................................................................................................................................................... 4 1.1 SCOPE ...................................................................................................................................................................... 4 1.2 TESTING FACILITY .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION .................................................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................................ 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ................................................................................................ 5 2.4 LABELING REQUIREMENTS ................................................................................................................................... 5 3.0 DESCRIPTION OF TESTS..................................................................................................................................................... 6 3.1 MEASUREMENT PROCEDURE .............................................................................................................................. 6 3.2 BLOCK A FREQUENCY RANGE ............................................................................................................................. 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS ............................................................................................................ 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ........................................................................................................ 6 3.5 PCS - BASE FREQUENCY BLOCKS ............................................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LGTS7275B FCC Pt. 22,24,27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 61 of 117 0Y1308261666.A3L 8/27-8/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 9.0 BAND 4 PLOTS OF EMISSIONS Note: All bandwidths, RB configurations, and modulations were investigated. The worst case test results are reported below. Plot 9-1. Lower Band Edge Plot (1.4MHz QPSK – RB Size 6) FCC ID: A3LGTS7275B FCC Pt. 22,24,27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 62 of 117 0Y1308261666.A3L 8/27-8/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Plot 9-2. Lower Extended Band Edge Plot (1.4MHz QPSK – RB Size 6) Plot 9-3. Occupied Bandwidth Plot (1.4MHz QPSK – RB Size 6) FCC ID: A3LGTS7275B FCC Pt. 22,24,27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 63 of 117 0Y1308261666.A3L 8/27-8/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Plot 9-4. Occupied Bandwidth Plot (1.4MHz 16-QAM – RB Size 6) Plot 9-5. Upper Band Edge Plot (1.4MHz QPSK – RB Size 6) FCC ID: A3LGTS7275B FCC Pt. 22,24,27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 64 of 117 0Y1308261666.A3L 8/27-8/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Plot 9-6. Upper Extended Band Edge Plot (1.4MHz QPSK – RB Size 6) Plot 9-7. PAR Plot (1.4MHz QPSK – RB Size 6) FCC ID: A3LGTS7275B FCC Pt. 22,24,27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 65 of 117 0Y1308261666.A3L 8/27-8/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Plot 9-8. PAR Plot (1.4MHz 16-QAM – RB Size 6) Plot 9-9. Lower Band Edge Plot (3.0MHz QPSK – RB Size 15) FCC ID: A3LGTS7275B FCC Pt. 22,24,27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 66 of 117 0Y1308261666.A3L 8/27-8/29/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Plot 9-10. Lower Extended Band Edge Plot (3.0MHz QPSK – RB Size 15) Plot 9-11. Occupied Bandwidth Plot (3.0MHz QPSK – RB Size 15) FCC ID: A3LGTS7275B FCC Pt. 22,24,27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT T…

Text truncated - open the document above for the full version.
