A3LL7IU-B1CIndoor Pico

Ver. 2600-00FKQFGA2 1.0 LTE 1.9 GHz Indoor Pico Cell System Description Ver. 2600-00FKQFGA2 1.0 COPYRIGHT This manual is proprietary to SAMSUNG Electronics Co., Ltd. and is protected by copyright. No information contained herein may be copied, translated, transcribed or duplicated for any commercial purposes or disclosed to the third party in any form without the prior written consent of SAMSUNG Electronics Co., Ltd. TRADEMARKS Product names mentioned in this manual may be trademarks and/or registered trademarks of their respective companies. This manual should be read and used as a guideline for properly installing and operating the product. All reasonable care has been made to ensure that this document is accurate. If you have any comments on this manual, please contact our documentation centre at the following address: Address: Document Center 3rd Floor Jeong-bo-tong-sin-dong. 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 Homepage: http://www.samsungdocs.com ©2013 SAMSUNG Electronics Co., Ltd. All rights reserved. Ver. INTRODUCTION 2600-00FKQFGA2 1.0 INTRODUCTION Purpose This description describes the characteristics, features and structure of the 1.9 GHz Indoor Pico Cell, an LTE eNB. Document Content and Organization This manual consists of five Chapters and a list of Abbreviations. CHAPTER 1. Samsung LTE System Overview  Introduction to Samsung LTE System  Samsung LTE Network Configuration CHAPTER 2. System Overview  Introduction to System  Main Functions  Specifications  Intersystem Interface CHAPTER 3. System Structure  Hardware Structure  Software Structure CHAPTER 4. Message Flow  Call Processing Message Flow  Data Traffic Flow  Network Sync Flow  Alarm Signal Flow  Loading Flow  Operation and Maintenance Message Flow © SAMSUNG Electronics Co., Ltd. page 3 of 72 Ver. INTRODUCTION 2600-00FKQFGA2 1.0 CHAPTER 5. Supplementary Functions and Tools LMT ABBREVIATION Describes the acronyms used in this manual. Conventions The following types of paragraphs contain special information that must be carefully read and thoroughly understood. Such information may or may not be enclosed in a rectangular box, separating it from the main text, but is always preceded by an icon and/or a bold title. NOTE Indicates additional information as a reference. Revision History VERSION DATE OF ISSUE REMARKS 1.0 04. 2013. First Version © SAMSUNG Electronics Co., Ltd. page 4 of 72 Ver. TABLE OF CONTENTS 2600-00FKQFGA2 1.0 TABLE OF CONTENTS INTRODUCTION 3 Purpose ..................................................................................................................................................... 3 Document Content and Organization ...................................................................................................... 3 Conventions ............................................................................................................................................... 4 Revision History ........................................................................................................................................ 4 CHAPTER 1. Samsung LTE System Overview 8 1.1 Introduction to Samsung LTE System .................................................................................... 8 1.2 Samsung LTE Network Configuration .................................................................................... 11 CHAPTER 2. System Overview 14 2.1 ntroduction to System .............................................................................................................14 2.2 Main Functions ........................................................................................................................15 2.2.1 Physical Layer Processing ......................................................................................................... 15 2.2.2 Call Processing Function ........................................................................................................... 19 2.2.3 IP Processing .............................................................................................................................. 21 2.2.4 SON Function ............................................................................................................................. 21 2.2.5 Easy Operation and Maintenance ............................................................................................. 23 2.3 Specifications...........................................................................................................................25 2.4 Intersystem Interface ...............................................................................................................28 2.4.1 Interface Structure ...................................................................................................................... 28 2.4.2 Protocol Stack ............................................................................................................................. 29 CHAPTER 3. System Structure 33 3.1 Hardware Structure ..................................................................................................................33 3.2 Software Structure ...................................................................................................................38 3.2.1 Basic Software Structure ............................................................................................................ 38 3.2.2 CPS Block ................................................................................................................................... 40 3.2.3 OAM Blocks ................................................................................................................................ 43 © SAMSUNG Electronics Co., Ltd. page 5 of 72 Ver. TABLE OF CONTENTS 2600-00FKQFGA2 1.0 CHAPTER 4. Message Flow 46 4.1 Call Processing Message Flow .......................................................................…

Text truncated - open the document above for the full version.

SAMSUNG Electronics Co., Ltd. Date: June 28, 20 13 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize < HCT CO., LTD.>, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by < HCT CO., LTD.> on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are n ot subject to a deni al of federal benefi ts, that includes FCC b enefits, pursuant to Section 5301 of the Anti-Drug Abuse Act o f 1988, 21 U.S.C. 853(a). In authorizing < HCT CO., LTD.> as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a m isleading ma nner; h)ensure that any reference to our product certification in communication medi a such as docum ents, brochures or advertising, complies with the requirements of th e Certification Division ; i)kee p a record of all complaints made known to the us relating to the pro duct’s com pliance with requirements of the relevant standard and to make these record s avai lable to the Certification Division wh en requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certific ation; k)do cument the acti ons taken. Th is authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This aut horization letter wi ll be sent along wi th yo ur application wh en fi ling wi th t he Certi fication Division . 2. Please follow the format and type it on company letterhead and send original to us . Addre ss:416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeon ggi-do, Korea Hwan-Chul Ryu / Principal Research Engineer

SAMSUNG Electronics Co.,Ltd. 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi- d o , Korea 10/11/2011 To W hom It May Concern: I he r eby appoint Hwan-Chul Ryu to si gn letters and applications for any filings with regulatory agencies on our behalf, and to receive and exchange data between our company, the agents company and the agency in connection with certification for any products that our company owns or manufactures. Sincerely, ------------------------------------------ Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 Date: June 28, 2013

Request for Confidentiality Compliance Certification Services Date: June 28, 2013 Fremont, CA 94538 RE: FCC ID: Certification Application A3LL7IU-B1C Confid entiality Request Pursuant to Sections 0.4 57 an d 0.45 9 of the Commission’s Rule, the applicant hereb y reque sts confidential treatment of information accompanying this application as outlined below: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription 1 Block Diagram 2 Parts Lists and Tune-up Procedure 3 Schematics CONFIDENTIAL 4 Operational Description 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual We a re also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG temporary confidentiality of commercially sensitive information prior to product release. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457 & 0.459, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : SAMSUNG El ectronics Co.,Ltd. Addre ss:416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeon ggi-do, Korea Hwan-Chul Ryu / Principal Research Engineer

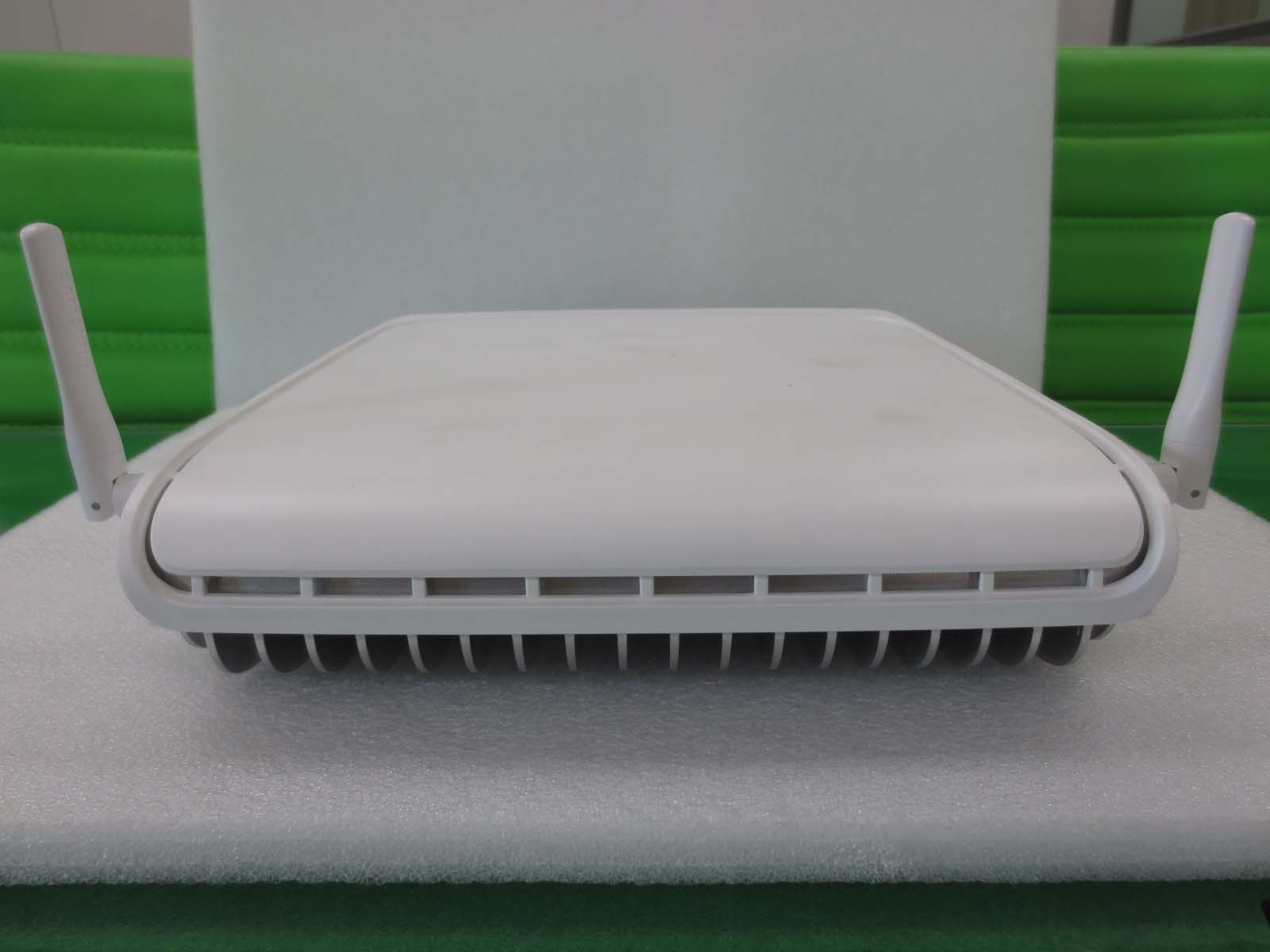

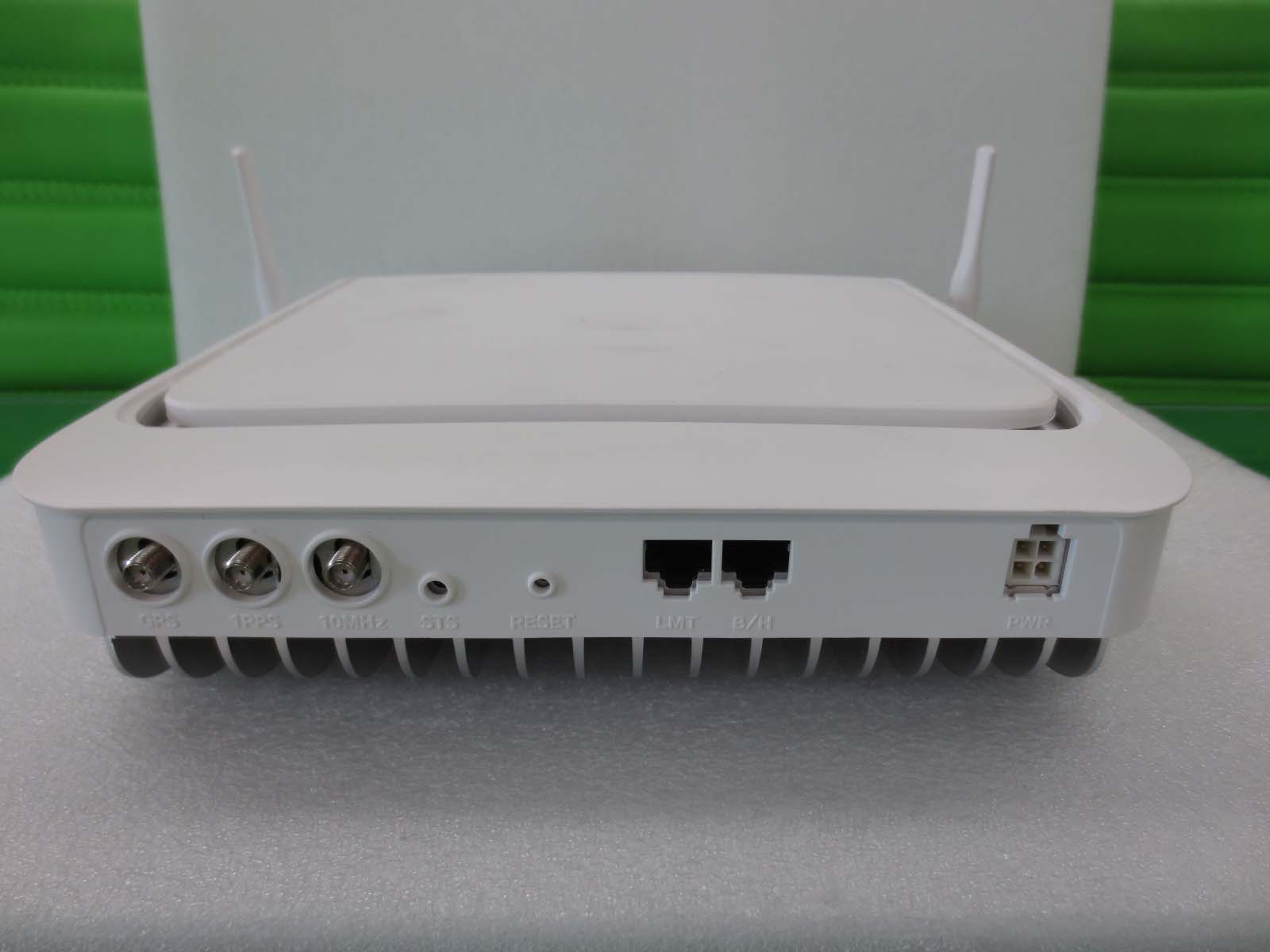

FCC ID : A3LL7IU-B1C HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 1/6 Front FCC ID : A3LL7IU-B1C HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 2/6 Rear FCC ID : A3LL7IU-B1C HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 3/6 Left FCC ID : A3LL7IU-B1C HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 4/6 Right FCC ID : A3LL7IU-B1C HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 5/6 Top FCC ID : A3LL7IU-B1C HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 6/6 Bottom

FCC ID: A3LL7IU-B1C HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 2 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC Model No : L7IU-B1C FCC ID : A3LL7IU-B1C EUT Type : Indoor Pico This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Including interference that may cause undesired operation. SAMSUNG Electronics Co.,Ltd. 19 Chapin Rd., Building D Pine Brook, NJ 07058 MADE IN KOREA FCC ID: A3LL7IU-B1C HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 2 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

FCC ID : A3LL7IU-B1C HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 1/10 L7IA-D11 PBA (Top) FCC ID : A3LL7IU-B1C HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 2/10 L7IA-D11 PBA (Bottom) FCC ID : A3LL7IU-B1C HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 3/10 L7IA-D11 Base (Top) FCC ID : A3LL7IU-B1C HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 4/10 L7IA-D11 Base (Bottom FCC ID : A3LL7IU-B1C HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 5/10 L7IA-D11 PBA + Base FCC ID : A3LL7IU-B1C HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 6/10 L7IA-D11 Middle (Inside) FCC ID : A3LL7IU-B1C HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 7/10 L7IA-D11 Base + PBA + Middle FCC ID : A3LL7IU-B1C HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 8/10 L7IA-D11 Top (inside) FCC ID : A3LL7IU-B1C HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 9/10 L7IA-D11 Top + Middle + PBA + Base FCC ID : A3LL7IU-B1C HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 10/10 L7IA-D11 Top+Bottom (side)

FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01 Date of Issue: July 01,2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 71 of 72 10. RF EXPOSURE STATEMENT 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01 Date of Issue: July 01,2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 72 of 72 3. RESULTS Port 0 Max Peak output Power at antenna input terminal 24.08 dBm Max Peak output Power at antenna input terminal 255.9 mW Prediction distance 100.000 cm Prediction frequency 1962.5 MHz Antenna Gain(typical) 2.5 dBi Antenna Gain(numeric) 1.77828 - Power density at prediction frequency (S) 0.003621 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.00000 mW/cm 2 Port 1 Max Peak output Power at antenna input terminal 23.98 dBm Max Peak output Power at antenna input terminal 250.0 mW Prediction distance 100.000 cm Prediction frequency 1932.5 MHz Antenna Gain(typical) 2.5 dBi Antenna Gain(numeric) 1.77828 - Power density at prediction frequency (S) 0.003538 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.00000 mW/cm 2 The power density level at 100 cm is 0.003621 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at Port 0 The power density level at 100 cm is 0.003538 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at Port 1 Simultaneous MPE at 100 cm is (0.003621/1.0)+(0.003538/1.0) < 1

FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 2 of 72 Revision TEST REPORT NO. DATE DESCRIPTION HCTR1307FR01 July 01,2013 First Approval Report HCTR1307FR01-1 July 03,2013 Update Calibration day HCTR1307FR01-2 July 12, 2013 Band Edge : RBW change 47 kHz => 100 kHz FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 3 of 72 C O N T E N T S 1. GENERAL INFORMATION ..................................................................................................................... 5 1.1. CLIENT INFORMATION ..................................................................................................................... 5 1.2. PRODUCT INFORMATION ................................................................................................................ 5 1.3. INTRODUCTION OF EUT ................................................................................................................... 6 2. TEST SUMMARY ....................................................................................................................................... 7 2.1. STANDARDS ...................................................................................................................................... 7 2.2. MODE OF OPERATION DURING THE TEST ................................................................................... 7 3. STANDARDS ENVIRONMENTAL TEST CONDITIONS .................................................................... 8 4. TEST EQUIPMENT ................................................................................................................................... 8 5. CONDUCTED OUTPUT POWER ............................................................................................................ 9 5.1. Applicable Standard .......................................................................................................................... 9 5.2. Test Equipment List and Details ...................................................................................................... 9 5.3. Test Procedure ................................................................................................................................... 9 5.4. Test Result ....................................................................................................................................... 10 6. OCCUPIED BANDWIDTH ..................................................................................................................... 22 6.1. Applicable Standard ........................................................................................................................ 22 6.2.Test Equipment List and Details ..................................................................................................... 22 6.3. Test Procedure ................................................................................................................................. 23 6.4. Test Result ....................................................................................................................................... 23 7. SPURIOUS EMISSION AT ANTENNA TERMINAL ........................................................................... 35 7.1. Applicable Standard ........................................................................................................................ 35 7.2. Test Equipment List and Details .................................................................................................... 35 7.3. Test Procedure ................................................................................................................................. 35 7.4. Test Result ....................................................................................................................................... 35 8. RADIATED SPURIOUS EMISSION ...................................................................................................... 66 8.1 Applicable Standard ......................................................................................................................... 66 8.2 Test Equipment List and Details ..................................................................................................... 66 8.3 Test Procedure .................................................................................................................................. 66 8.3.1 Radiated Spurious Emissions Test Setup .................................................................................. 67 8.4 Test Result ........................................................................................................................................ 67 9. FREQUECNY STABILITY ..................................................................................................................... 68 9.1 Applicable Standard ......................................................................................................................... 68 9.2 Txest Equipment List and Details ................................................................................................... 68 FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 4 of 72 9.3 Test Procedure .................................................................................................................................. 68 9.4. Test Result ....................................................................................................................................... 68 10. RF EXPOSURE STATEMENT .............................................................................................................. 71 FCC PT.24 TEST REPORT FCC CERT…

Text truncated - open the document above for the full version.

FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 37 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 38 of 72 (QPSK Middle Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 39 of 72 ( QPSK High Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 40 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 41 of 72 (16QAM Low Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 42 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 43 of 72 (16QAM Middle Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 44 of 72 ( 16QAM High Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 45 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 46 of 72 (64QAM Low Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 47 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 48 of 72 (64QAM Middle Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 49 of 72 ( 64QAM High Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 50 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 51 of 72 . Plot Data for LTE 5 MHz : 1 Carrier , Output Port 1 (QPSK Low Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 52 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 53 of 72 (QPSK Middle Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 54 of 72 ( QPSK High Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 55 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 56 of 72 (16QAM Low Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 57 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 58 of 72 (16QAM Middle Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 59 of 72 ( 16QAM High Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 60 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 61 of 72 (64QAM Low Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 62 of 72 (Band Edge) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, 2013 EUT Type: Indoor Pico FCC ID: A3LL7IU-B1C Page 63 of 72 (64QAM Middle Channel) (30 MHz ~ 1 GHz) (1 GHz ~ 26.5 GHz) FCC PT.24 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1307FR01-2 Date of Issue: July 12, …

Text truncated - open the document above for the full version.

FCC ID : A3LL7IU-B1C HC…
