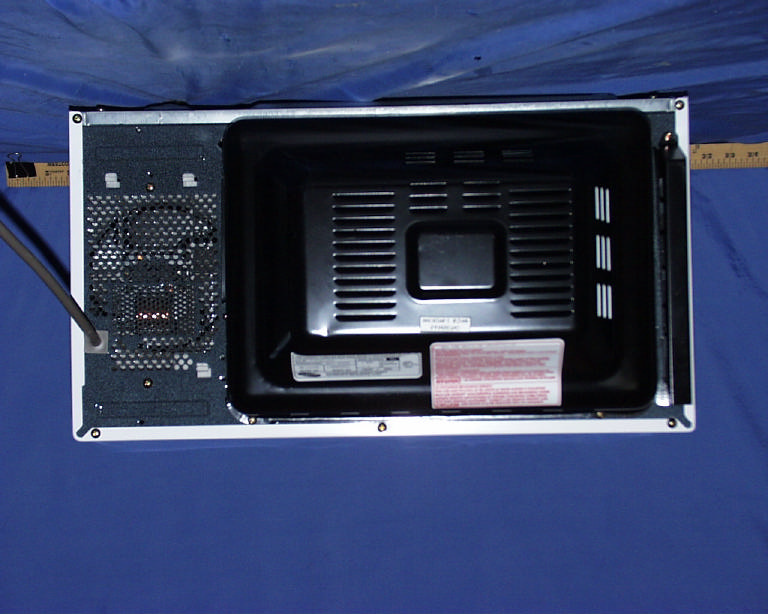

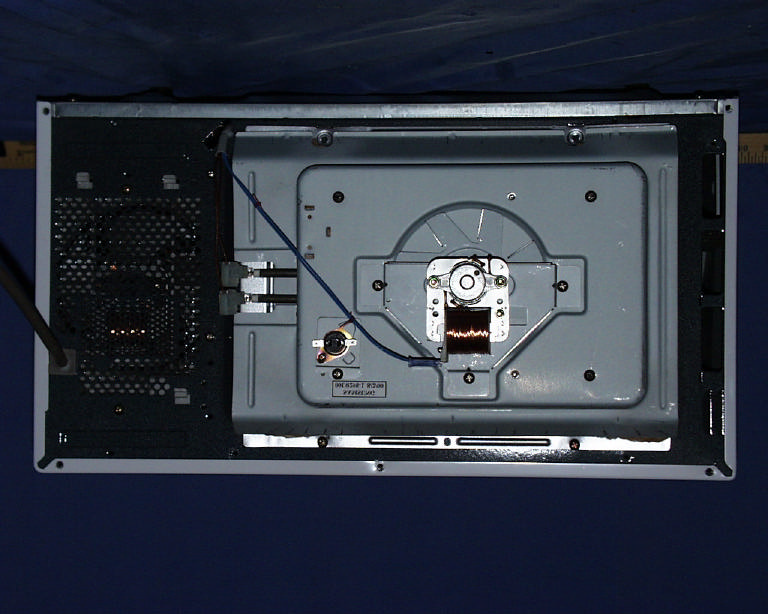

A3LMC769950W MICROWAE OVEN

............. Owner’s Instructions M I C ROWAVE / CONVECTION C O M B I N AT I O NOV E N M C7698W / M C7699G CODE NO. DE68-?????A 0.010 Front Cover 11/12/98 9:00 PM Page 1 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY : (a)Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b)Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c)Do not operate the oven if it is damaged. It is particularly impor- tant that the oven door close properly and that there is no damage to the: (1) Door (bent) (2) Hinges and latches (broken or loosened) (3) Door seals and sealing surfaces (d)The oven should not be adjusted or repaired by anyone except properly qualified service personnel. WARNING Always observe Safety Precautions when using your oven. See “Important Safety Instructions” on the next page. Never try to repair the oven on your own – dangerous voltage is inside. If the oven needs to be repaired, call 1-800-SAMSUNG for the name of an authorized service center near you. Please record the serial number from the inside of your Samsung microwave oven and the date of purchase in the space provided below. We recommend that you keep your purchase receipt with this manual for easy warranty service. Model Number_______________________________ Serial Number_______________________________ Date Purchased_______________________________ Dealer_______________________________ 1. 010 IFC 11/12/98 6:51 AM Page 1 SAFETY1 Thank You for Choosing Samsung Thank you for choosing Samsung! Your new oven represents the very latest in microwave and convection cooking technology. This oven is a full-featured, easy- to-use appliance built to strict quality standards set by Samsung — the highest in the industry. We’re proud to offer you a product that will provide convenient, dependable service for years to come. IM P O RTA N TSA F E T YIN S T R U C T I O N S When Using Any Electrical Appliance • When using any electrical appliance, basic safety precautions should be followed, including the following: WARNING:To reduce the risk of burns, electric shock, fire, injury to per- sons or exposure to excessive microwave energy: • Read all safety instructions before using the appliance. • Read and follow the specific “PRECAUTIONS TO AVOID EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ” inside the front cover of this manual. • This appliance must be grounded. Connect only to properly grounded outlets. See “Grounding Instructions” on page Safety.3. • Install or locate this appliance only in accordance with the installation instructions provided. • Some products, such as whole eggs and sealed containers, may explode if heated in this oven. • Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. • As with any appliance, close supervision is necessary when used by children. • Do not operate this appliance if it has a damaged cord or plug, if it is not work- ing properly, or if it has been damaged or dropped. • This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment. • Do not cover or block any of the openings on the appliance. • Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like. SAV ETH E S EIN S T R U C T I O N S 2. 010 PREF/TOC/PAGE_1.1 11/12/98 6:52 AM Page 1 2SAFETY When Using Any Electrical Appliance (cont.) • Do not immerse cord or plug in water. • Keep cord away from heated surfaces. • Do not let cord hang over edge of table or counter. • When cleaning door and oven surfaces, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth. • To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance if paper, plastic,or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from plastic cooking bags before placing bags in oven. c. If materials inside the oven ignite, keep the oven door closed, turn the oven off, disconnect the power cord, or shut off the power at the fuse or circuit breaker panel. d. Do not use the oven compartment for storage purposes. Do not leave paper products, cooking utensils, or food in the oven when not in use. • Do not try to preheat oven or operate while empty. • Do not cook without the glass tray in place on the oven floor as food will not cook properly. • Do not defrost frozen beverages in narrow-necked bottles. The container may break. • Dishes and containers can become hot. Handle with care. • Carefully remove utensil coverings, directing steam away from hands and face. • Avoid heating baby food in glass jars, even without their lids, especially meat and egg mixtures. After heating baby food in microwave-safe dish or bowl, stir well and test temperature by tasting before serving to baby. • A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used if care is exercised in their use. • If a long cord or extension cord is used, a. the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance; b. the extension cord must be a grounding-type 3 wire cord; and c. the longer cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over accidentally. SAV ETH E S EIN S T R U C T I …

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LMC769 FCC ID LABEL

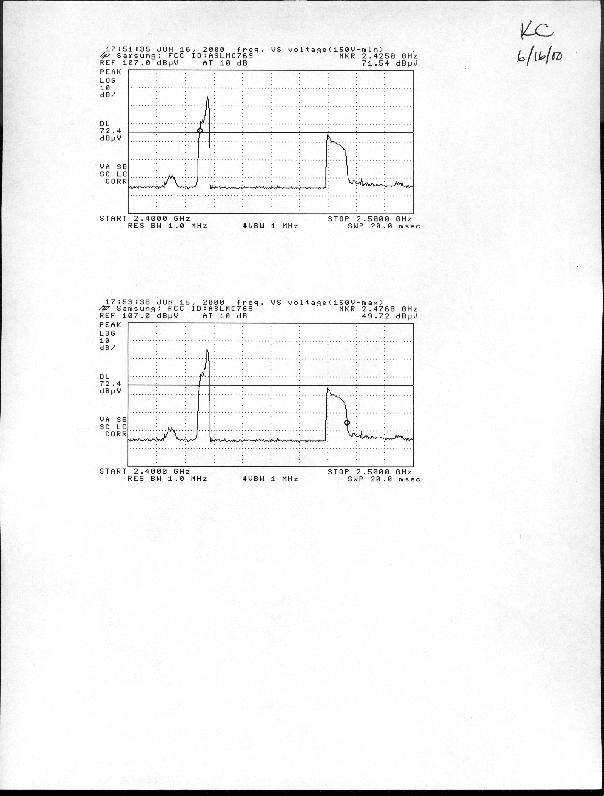

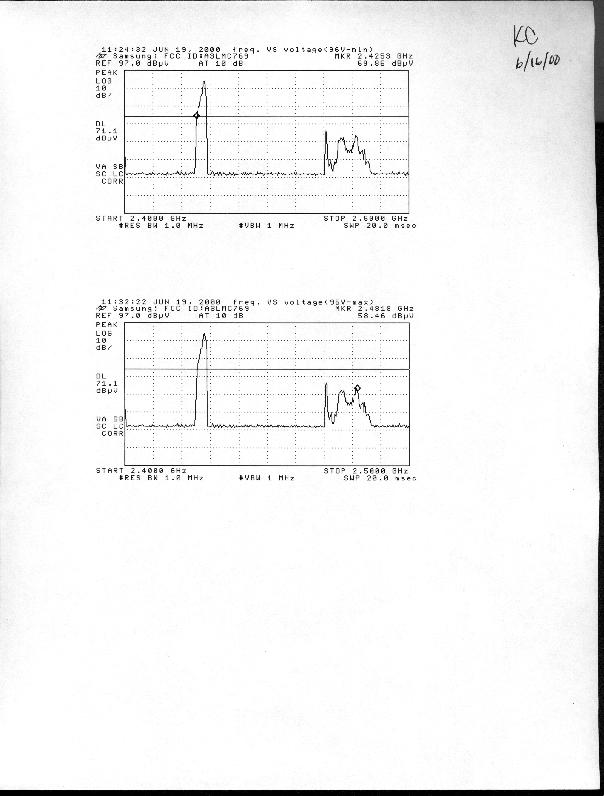

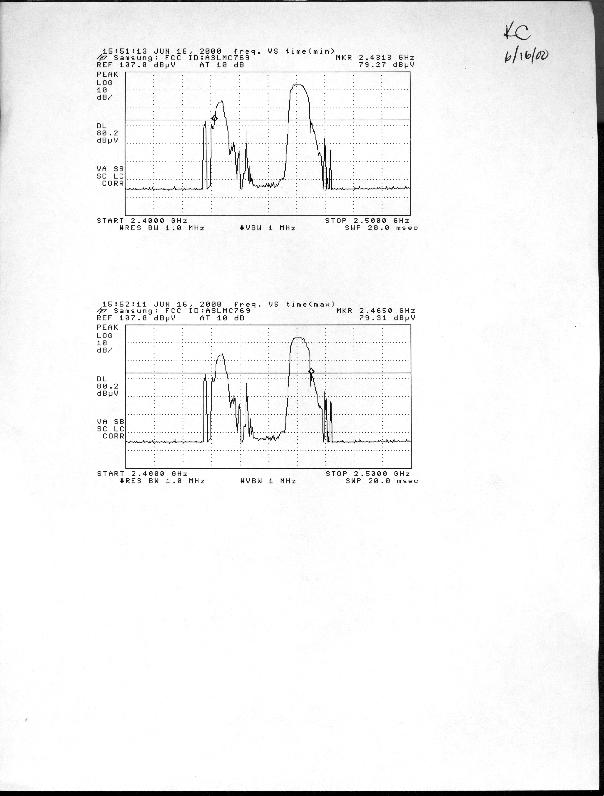

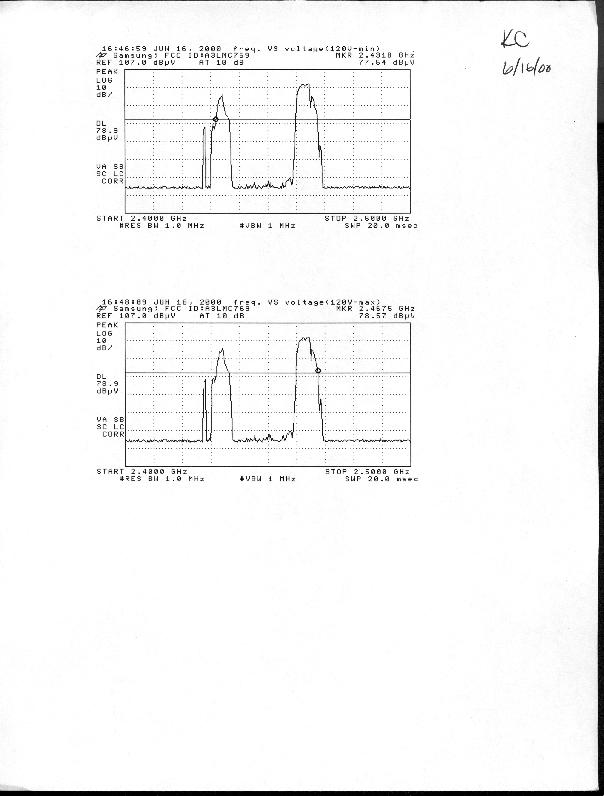

FCC CFR47 PART 18 SUBPART C ISM EQUIPMENT TEST REPORT FOR 950W MICROWAVE OVEN MODEL : MC7698W FCC ID: A3LMC769 REPORT NUMBER: 00U0298-1 ISSUE DATE: JUNE 16, 2000 Prepared for SAMSUNG ELECTRONICS CO., LTD. 85 West Tasman Drive San Jose, CA 95134 USA Prepared by COMPLIANCE CERTIFICATION SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO: 00U0298-1 DATE: JUNE 16, 2000 FCC ID: A3LMC769 EUT: MICROWAVE OVEN (M/N: MC7698W) COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002C 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE ............................................................................................................. 1 2.PRODUCT DESCRIPTION .............................................................................................................................. 2 3.TEST FACILITY ................................................................................................................................................ 2 4.ACCREDITATION AND LISTING ................................................................................................................. 2 5.RADIO NOISE EMISSION MEASUREMENTS PROCEDURES/RESULTS............................................ 2 5.1RADIATION HAZARD MEASUREMENT................................................................................................... 2 5.2INPUT POWER ............................................................................................................................................... 3 5.3RF OUTPUT POWER MEASUREMENT...................................................................................................... 4 5.4OPERATING FREQUENCY MEASUREMENTS......................................................................................... 5 5.5VARIATION IN OPERATING FREQUENCY WITH TIME........................................................................ 5 5.6VARIATION IN OPERATING FREQUENCY WITH VOLTAGE............................................................... 6 5.7RADIATED EMISSIONS ............................................................................................................................... 7 6.MEASUREMENT EQUIPMENT LIST ........................................................................................................... 9 7.EUT SETUP PHOTOS. .................................................................................................................................... 10 ATTACHMENTS ....................................................................................................................................................... 16 RADIATION EMISSION DATA ........................................................................................................................... 17 VARIATION IN OPERATING FREQUENCY WITH TIME PLOTS .................................................................. 19 VARIATION IN OPERATING FREQUENCY WITH VOLTAGE PLOTS ......................................................... 20 PROPOSED FCC ID LABEL.................................................................................................................................. 23 USER MANUAL AND SCHEMATICS................................................................................................................. 24 REPORT NO: 00U0298-1 DATE: JUNE 16, 2000 FCC ID: A3LMC769 EUT: MICROWAVE OVEN (M/N: MC7698W) 1 OF 24 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME :SAMSUNG ELECTRONICS CO., LTD 85 WEST TASMAN DRIVE SAN JOSE, CA 95134 CONTACT PERSON : WALLANCE OH / MANAGER TELEPHONE NO :(408) 828-8833 EUT DESCRIPTION:950W MICROWAVE OVEN MODEL NO/NAME :MC7698W DATE TESTED :JUNE 16, 2000 TYPE OF EQUIPMENT:CONSUMER ISM EQUIPMENT TECHNICAL LIMIT:SUBPART C FCC RULES:PART 18 MEASUREMENT PROCEDUREFCC MP-5/1986 EQUIPMENT AUTHORIZATION PROCEDURE CERTIFICATION MODIFICATIONS MADE ON EUT YES NO The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 18. The said equipment in the configuration described herein shows that maximum emission levels emanating from the equipment are within the compliance requirements. Warning : This report documents conditions under which testing was conducted and the results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved By TOM N. COKENAS / DIRECTOR OF ENGINEERING COMPLIANCE CERTIFICATION SERVICES REPORT NO: 00U0298-1 DATE: JUNE 16, 2000 FCC ID: A3LMC769 EUT: MICROWAVE OVEN (M/N: MC7698W) 2 OF 24 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2.PRODUCT DESCRIPTION The equipment under test is a microwave oven sold for consumer use. Model: MC7698W is a 950W microwave oven with digital controls. 3.TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4.ACCREDITATION AND LISTING The test facilities used to perform radiated and conducted emissions tests are ac…

Text truncated - open the document above for the full version.

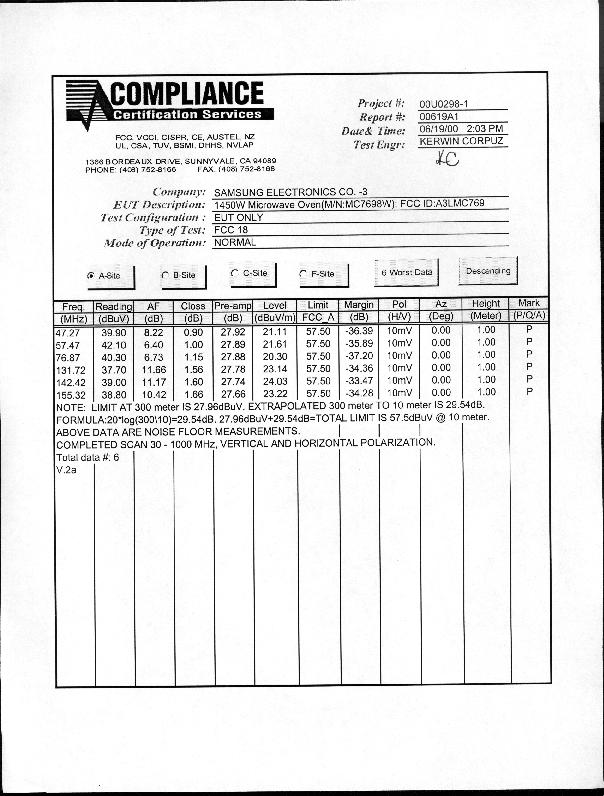

Sheet1 COMPLIANCE CERTIFICATION SERVICES, INC. Radiated Emissions 06/19/00 Kerwin Corpuz A-SITE (1.0 Meter) SAMSUNG ELECTRONICS CO. -3 950W Microwave Oven (M/N: MC7698W); FCC ID: A3LMC769 fo= 2450 MHz F(MHz) READINGAFCLAMPDIST HPF TOTALLIMITMARGIN (dBuV)(dB)(dB)(dB)(dB) (dB) (dBuV/m)(dBuV/m)(dB) Av AvAvAvLOAD 4925V41.132.95.6-31.25-49.541-0.1927.96-28.2> 4925H4232.95.6-31.25-49.5410.7127.96-27.3> 7396V43.3376.6-31.25-49.5417.1127.96-20.9>> 7206H39.936.16.6-31.25-49.5412.8127.96-25.2>> 9866V3837.98.28-31.25-49.5414.3927.96-23.6>> 9866H37.537.98.28-31.25-49.5413.8927.96-24.1>> 12331*36.6399-31.25-49.5414.8127.96-23.2>> 14796V40.639.910.7-31.25-49.54111.4127.96-16.6>> 14796H40.239.910.7-31.25-49.54111.0127.96-17>> 17261V434411.88-31.25-49.54119.0927.96-8.87>> 17261H42.24411.88-31.25-49.54118.2927.96-9.67>> 19727*41.332.112.6-31.25-49.5416.2127.96-21.8>> 22195*43.432.514.22-31.25-49.54110.3327.96-17.6>> 24657*43.332.515.12-31.25-49.54111.1327.96-16.8>> * Measured noise floor (worse case vertical) NOTE: MEASURED HORIZONTAL (H) AND VERTICAL (V)ANALYZER SETTINGS DIST : Correction to extrapolate reading to 300m specification distanceRes bw Avg. bw 1M measurement distance: -49.54dBPEAK(Pk ) :1MHz1MHz AF : Antenna Factor AVERAGE(Avg):1MHz10Hz ANTENNA : EMCO, 3115, S/N:9001-3245, cal due:1/5/01 & ARA, MWH-1826/B, S/N:1013, cal due:7/28/00 AMP : Pre-amp gain PRE-AMP : HP, 8449B, S/N:3008A00369, cal due:4/12/01 CL : Cable loss (18ft) HPF : High pass filter insertion loss (FSY;4.6GHz, S/N:001 & 7.6GHz, S/N:002) LOAD: >300ml at front right corner of inside oven. >>700ml at center of inside oven. Page 1

REPORT NO: 00U0298-1 DATE: JUNE 16, 2000 FCC ID: A3LMC769 EUT: MICROWAVE OVEN (M/N: MC7698W) 10 OF 24 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 7. EUT SETUP PHOTOS. Below 1 GHz Radiated setup (Front Side) REPORT NO: 00U0298-1 DATE: JUNE 16, 2000 FCC ID: A3LMC769 EUT: MICROWAVE OVEN (M/N: MC7698W) 11 OF 24 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Below 1GHz Radiated setup (Back Side) REPORT NO: 00U0298-1 DATE: JUNE 16, 2000 FCC ID: A3LMC769 EUT: MICROWAVE OVEN (M/N: MC7698W) 12 OF 24 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Lazy Susan Turntable Above 1GHz Radiated Setup REPORT NO: 00U0298-1 DATE: JUNE 16, 2000 FCC ID: A3LMC769 EUT: MICROWAVE OVEN (M/N: MC7698W) 13 OF 24 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Frequency Vs. Time and Frequency Vs. Voltage Test Setup REPORT NO: 00U0298-1 DATE: JUNE 16, 2000 FCC ID: A3LMC769 EUT: MICROWAVE OVEN (M/N: MC7698W) 14 OF 24 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Input Power Test Setup REPORT NO: 00U0298-1 DATE: JUNE 16, 2000 FCC ID: A3LMC769 EUT: MICROWAVE OVEN (M/N: MC7698W) 15 OF 24 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. RF Hazard Test Setup
