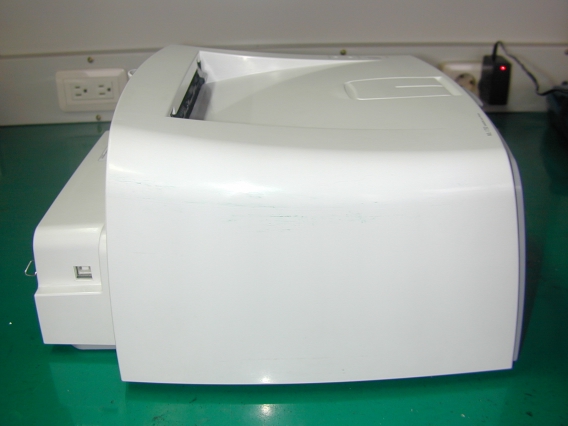

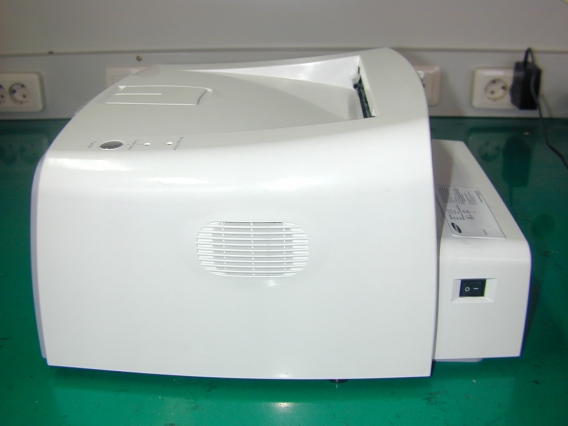

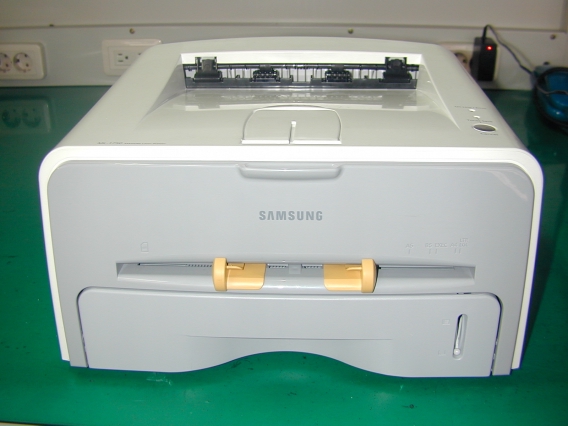

A3LML-1750Laser Printer

SAMSUNG LASER PRINTER User’s Guide ML-1750 i This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any damages, direct or indirect, arising from or related to use of this manual. © 2002 Samsung Electronics Co., Ltd. All rights reserved. •ML-1750 and Samsung logo are trademarks of Samsung Electronics Co., Ltd. •PCL and PCL 6 are trademarks of Helett-Packard Company. •Centronics is a trademark of Centronics Data Computer Corporation. •IBM and IBM PC are trademarks of International Business Machines Corporation. •Apple, AppleTalk, TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc. •Microsoft, Windows, Windows 9x, Windows Me, Windows 2000, Windows NT and Windows XP are registered trademarks of Micorsoft Corporation. •All other brand or product names are trademarks of their respective companies or organizations. ii C ONTENTS Chapter 1: I NTRODUCTION Special Features .................................................. 1.2 Printer Components ............................................. 1.4 Front View ..................................................... 1.4 Inside View .................................................... 1.5 Rear View ...................................................... 1.5 Understanding the Control Panel ............................ 1.6 On Line/Error and Toner Save LEDs ................... 1.6 Cancel button ................................................. 1.7 Chapter 2: S ETTING U P Y OUR P RINTER Unpacking .......................................................... 2.2 Selecting a Location ........................................ 2.3 Installing the Toner Cartridge ................................ 2.4 Loading Paper ..................................................... 2.6 Changing the Paper Size in the Tray .................. 2.8 Connecting a Printer Cable .................................... 2.9 Turning the Printer on ......................................... 2.11 Printing a Demo Page .......................................... 2.12 Installing Printer Software ................................... 2.13 Printer Driver Features ................................... 2.14 Installing Printer software in Windows .............. 2.15 Installing the USB Driver in Windows 98/Me ............................................. 2.18 iii Chapter 3: U SING P RINT M ATERIALS Choosing Paper and Other Materials ....................... 3.2 Sizes and Capacities ....................................... 3.3 Guidelines for Paper and Special Materials .......... 3.4 Selecting the Output Location ................................ 3.5 Printing to the Top Output Tray (Face down) ...... 3.5 Printing to the Rear Output Tray (Face up) ......... 3.6 Loading Paper ..................................................... 3.7 Using the Tray ................................................ 3.7 Using the Manual Feeder ................................. 3.8 Printing on Envelopes .......................................... 3.10 Printing on Labels ............................................... 3.12 Printing on Transparencies ................................... 3.13 Printing on Card Stock or Custom-sized Materials ....................................... 3.15 Chapter 4: P RINTING T ASKS Printing a Document ............................................ 4.2 Canceling a Print Job ....................................... 4.4 Using a Favorite Setting .................................. 4.5 Using Help ..................................................... 4.5 Setting Paper Properties ....................................... 4.6 Using the Toner Save Mode ................................... 4.8 Printing Multiple Pages on One Sheet of Paper (N-Up Printing) ................................................... 4.10 Scaling Your Document ....................................... 4.12 Fitting Your Document to a Selected Paper Size ...... 4.13 Printing Posters .................................................. 4.14 Setting Graphic Properties ................................... 4.16 Printing Watermarks ........................................... 4.19 Using an existing Watermark ........................... 4.19 Creating a Watermark .................................... 4.20 Editing a Watermark ...................................... 4.21 Deleting a Watermark .................................... 4.21 Printing Overlays ................................................ 4.22 What is an Overlay? ....................................... 4.22 Creating a New Page Overlay .......................... 4.22 Using a Page Overlay ..................................... 4.24 Deleting a Page Overlay ................................. 4.25 Using the Status Monitor ..................................... 4.26 Opening the Status Monitor ............................. 4.26 Setting Up Locally Shared Printer .......................... 4.28 Windows 98/Me ............................................. 4.28 Windows NT/2000/XP ..................................... 4.29 iv Chapter 5: M AINTAINING Y OUR P RINTER Maintaining the Toner Cartridge ............................. 5.2 Redistributing Toner ........................................ 5.3 Replacing the Toner Cartridge .......................... 5.4 Cleaning the Printer ............................................. 5.5 Cleaning the Outside ....................................... 5.5 Cleaning the Inside ......................................... 5.5 Consumables and Replacement Parts ..................... 5.8 Chapter 6: S OLVING P ROBLEMS Troubleshooting Checklist ..................................... 6.2 Solving General Printing Problems .......................... 6.3 Clearing Paper Jams ............................................. 6.7 In the Paper Exit Area ..................................... 6.7 In the Paper Feed Area .................................... 6.9 Around the Toner Cartridge ...............…

Text truncated - open the document above for the full version.

PRINTING TASKS 4.20 Creating a Watermark 1When you change the print settings from your software application, access the printer properties. See page 4.2. 2Click the Extras tab, and click the Edit button in the Watermark section. The Watermarks window appears. 3You can enter the desired text message in the Watermark Message box. This will be displayed in the preview window. The preview image is provided so that you can see how the watermark will appear on the printed page. If the First Page Only box is checked, the watermark will be printed on the first page only. 4Select the desired watermark options. You can select the font type and size, and color from the Font Attributes section, and set the angle of the watermark from the Message Angle section. 5Click Add to add a new watermark to the list. 6When you complete editing, click OK and start printing. To stop printing the watermark, select <No Watermark> in the Watermark drop-down list. PRINTING TASKS 4.21 4 Editing a Watermark 1When you change the print settings from your software application, access the printer properties. See page 4.2. 2Click the Extras tab, and click the Edit button in the Watermark section. The Watermarks window appears. 3Select the watermark you want to edit in the Current Watermarks list, and change the watermark message and the options. Refer to “Creating a Watermark” on page 4.20. 4Click Update to save the changes. 5Click OK. Deleting a Watermark 1When you change the print settings from your software application, access the printer properties. See page 4.2. 2From the Extras tab, click the Edit button in the Watermark section. 3Select the watermark you want to delete in the Current Watermarks list, and click Delete. 4Click OK. PRINTING TASKS 4.22 Printing Overlays What is an Overlay? An overlay is text and/or images stored in the computer hard disk drive(HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of preprinted forms and letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing the exact same information that is currently on your letterhead. To print a letter with your company’s letterhead, you do not need to load preprinted letterhead paper in the printer. You need only tell the printer to print the letterhead overlay on your document. Creating a New Page Overlay To use a page overlay, you must create a new page overlay containing your logo or image. 1Create or open a document containing text or an image for use in a new page overlay. Position the items exactly as you wish them to appear when printed as an overlay. If needed, save the file for later use. 2When you change the print settings from your software application, access the printer properties. See page 4.2. 3Click the Extras tab, and click Edit button in the Overlay section. WORLD BEST Dear ABC Regards WORLD BEST PRINTING TASKS 4.23 4 4In the Overlays window, click Create Overlay. 5In the Create Overlay window, type a name of up to eight characters in the File name box. Select the destination path, if necessary. (The default is C:\Formover). 6Click Save. You will see the name in the Overlay List. 7Click OK or Yes until you complete creating. The file is not printed out. Instead it will be stored on your computer HDD disk. Note: The overlay document size must be the same as documents you will print with the overlay. Do not create an overlay with a watermark. PRINTING TASKS 4.24 Using a Page Overlay After an overlay has been created, it is ready to be printed with your document. To print an overlay with a document: 1Create or open the document you want to print. 2When you change the print settings from your software application, access the printer properties. See page 4.2. 3Click the Extras tab. 4Select the desired overlay from the Overlay drop-down list box. 5If the desired overlay file does not appear in the Overlay list, click Edit button and Load Overlay, and select the overlay file. If you have stored the overlay file you want to use into an external source, you can also load the file when you access the Load Overlay window. After you select the file, click Open. The file is now shown in the Overlay List box and is available for printing. Select the overlay from the Overlay List box. PRINTING TASKS 4.25 4 6If necessary, click Query Page Overlay. If this box is checked, a message window will appear each time you submit a document for printing, asking you to confirm your wish to print an overlay on your document. Answering Yes to the window means that the selected overlay will be printed with your document. Answering No to the window cancels overlay printing. If this box is empty and an overlay has been selected, the overlay will be automatically printed with your document. 7Click OK or Yes until the printing starts. The selected overlay will be downloaded with your print job and printed on your document. Note: The resolution of the overlay document must be the same as that of the document you will print with the overlay. Deleting a Page Overlay You can delete page overlays that are no longer used. 1In the printer properties window, click the Extras tab. 2Click Edit in the Overlay section. 3Select the overlay you want to delete from the Overlay List box. 4Click Delete Overlay. 5Click OK until you exit the Print window. PRINTING TASKS 4.26 Using the Status Monitor If you installed the Status Monitor software, you can check the current status of the printer whenever you want. If an error occurs in your printer, the Status Monitor window appears, showing the error. Note: The Status Monitor program can be used only if you connect the printer to your computer with the USB cable. Opening the Status Monitor 1Double click the Status monitor icon on the Windows task bar. Or, select Programs from Start, Samsung ML-1750 Series, and Samsung Printer Status Monitor. 2The Samsung ML-1750 Series Status monitor window appears. Double click this icon. You can change the …
